Zooz 800LR Series Z-Wave Long Range Dimmer ZEN72 800LR – Direct 3-Way, White

Overview

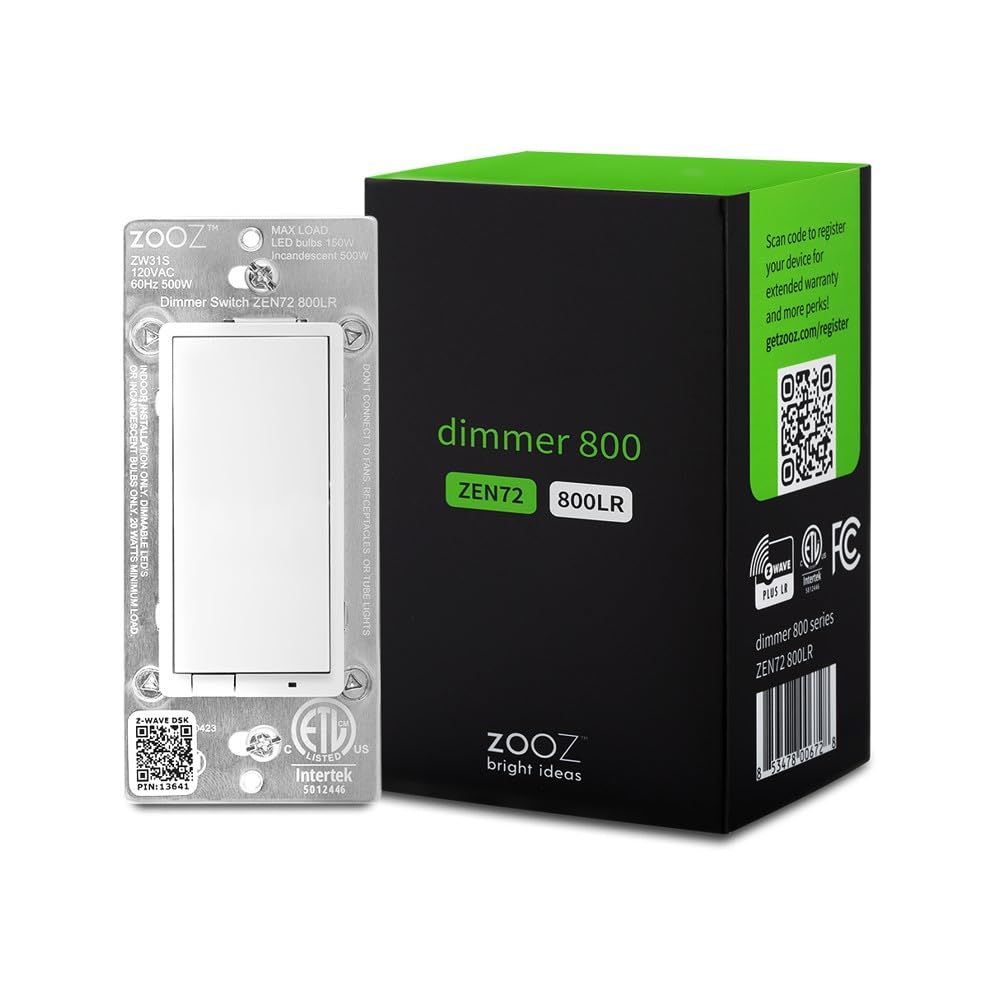

Meet the Zooz 800LR Z-Wave Long Range Dimmer Switch (ZEN72 800LR) in white — a compact, capable control for contemporary lighting. Its sleek profile sits neatly in crowded boxes while offering robust hub-based control that can adapt as your smart home grows. This dimmer is designed for indoor use and works with a compatible Z-Wave hub, letting you dim, brighten, or trigger scenes from a wall switch or your app.

Why choose the 800LR for your home

• Longer range and faster signals: The 800LR family expands hub-to-device reach, especially when Long Range mode is enabled.

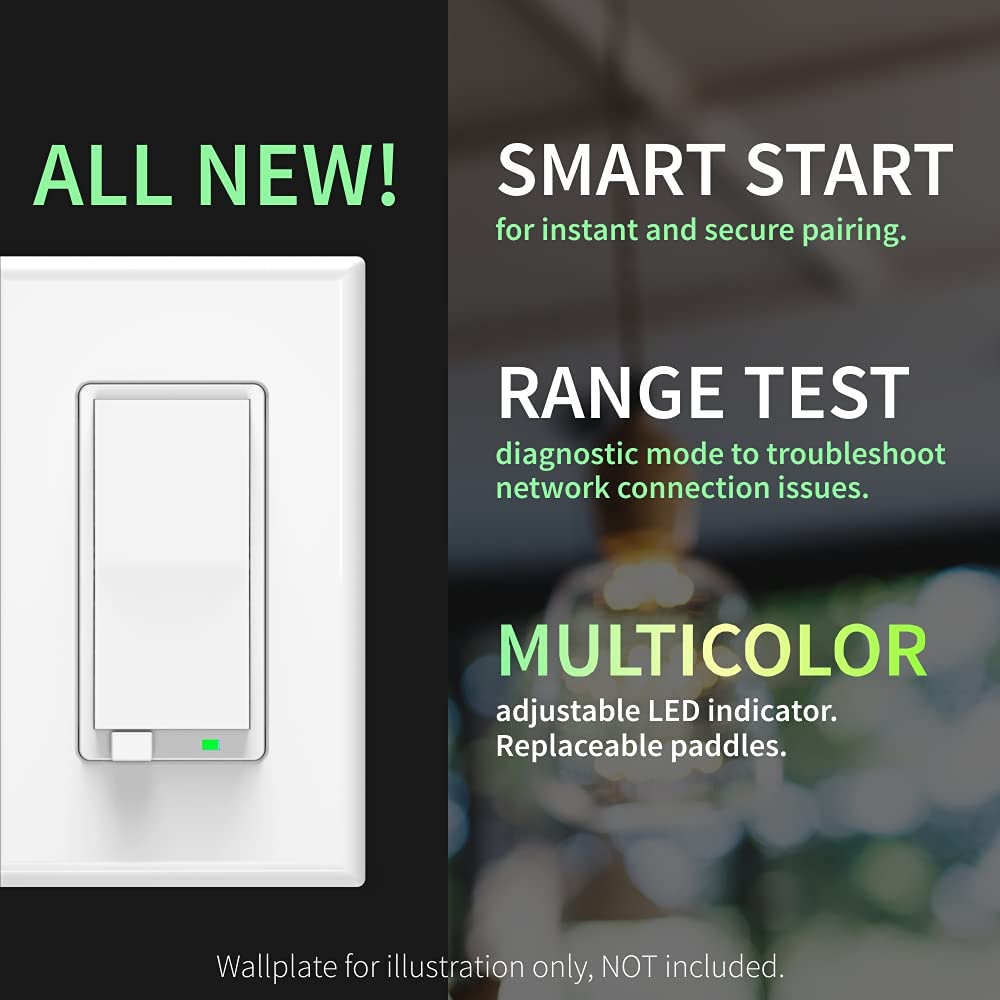

• Integrated range testing: Troubleshoot connectivity right from the switch to keep your network smooth.

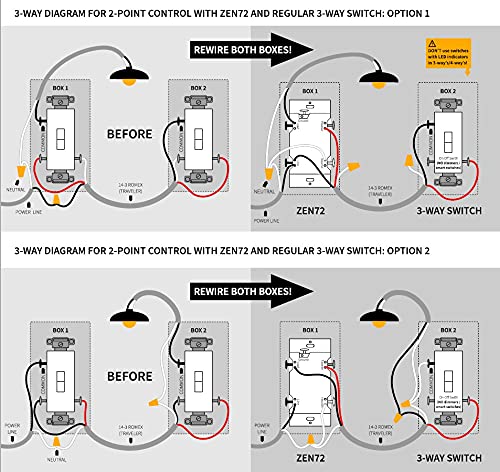

• Direct 3-Way setup: Wire it with existing on/off switches without needing an add-on dimmer in the 3-way path.

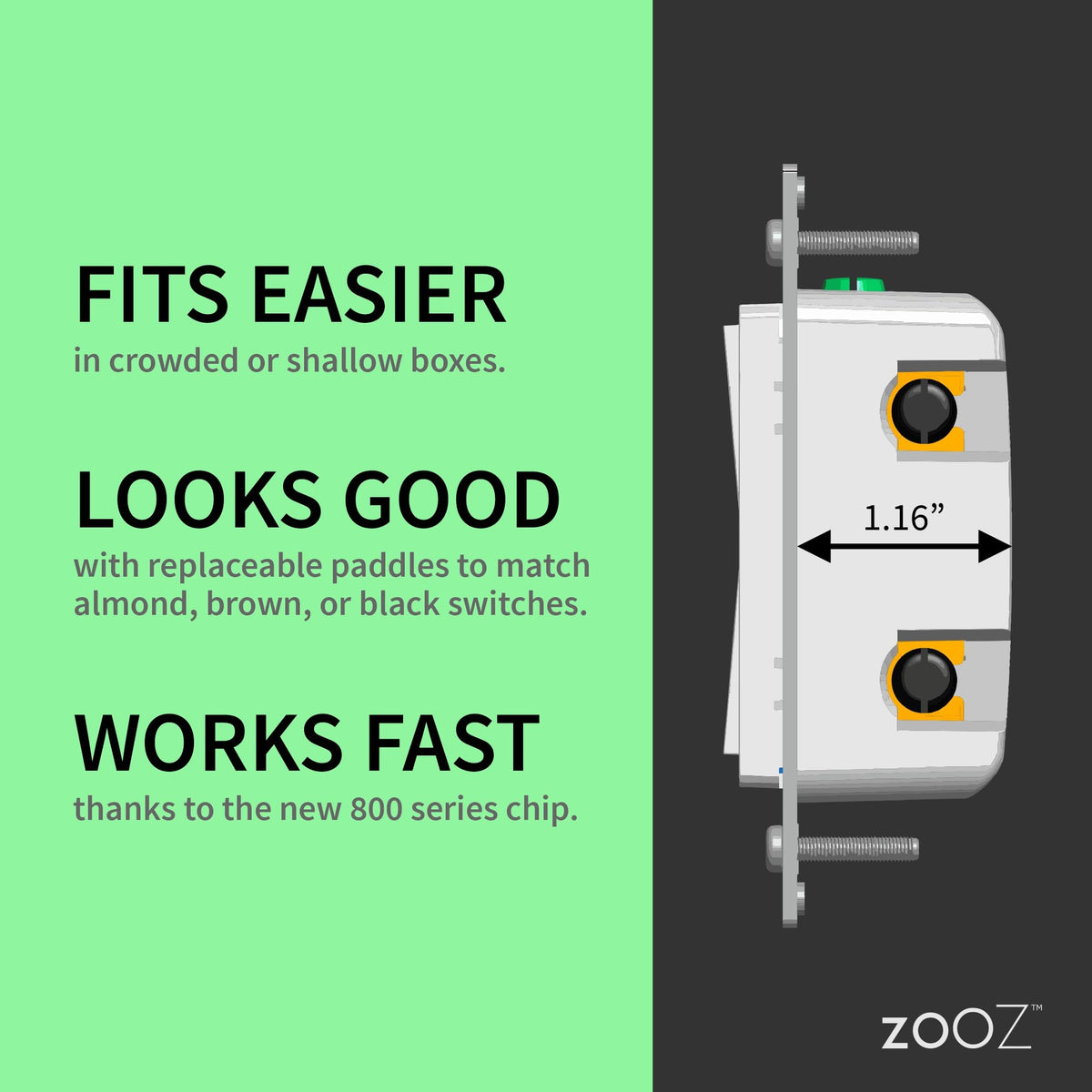

• Slim, easy fit: Only 1.16 inches deep, ideal for shallow boxes and crowded multi-gang installations.
• Programmable and flexible: Double-tap to jump to full brightness, with last-brightness recall in supported hubs.
• Secure pairing and support: S2 authentication with SmartStart, Z-Wave Plus certified, lifetime tech support, and a 5-year warranty after registration.

What you should know before installing

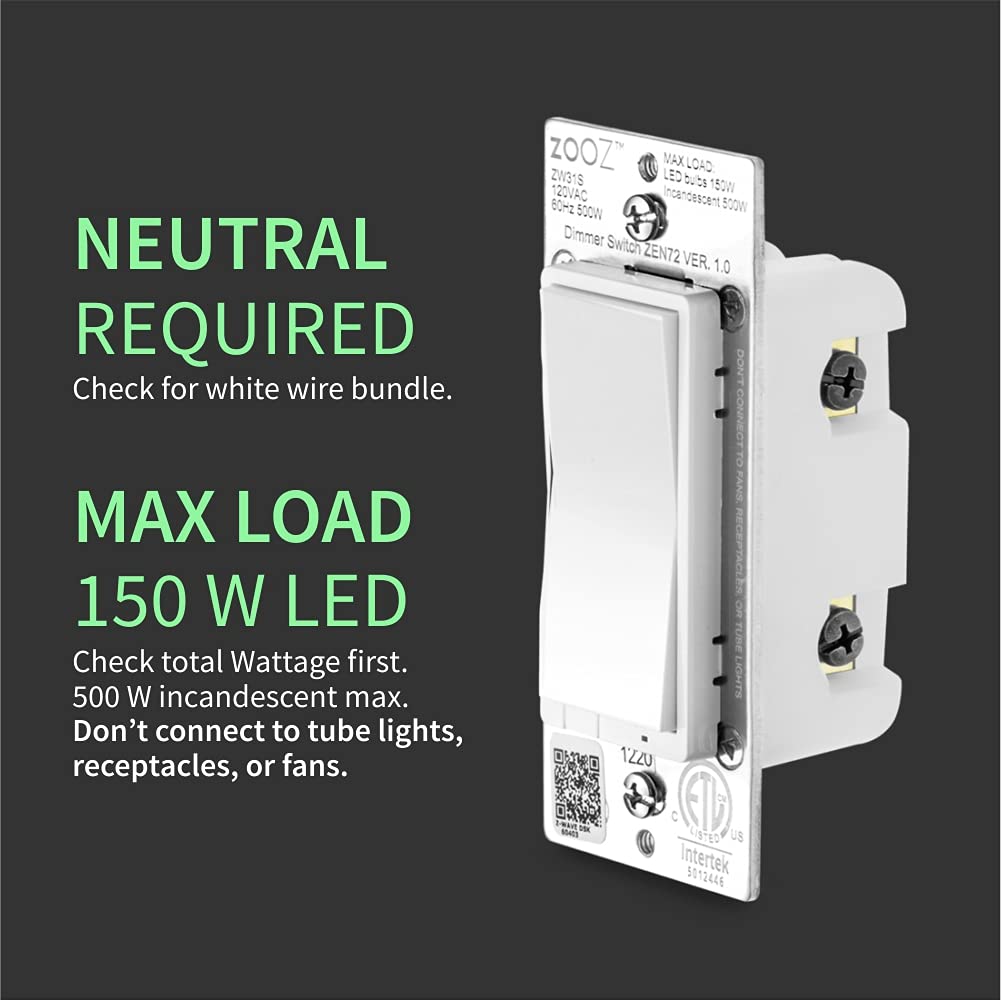

• Important power limits: Do not exceed 150 W for LEDs or 500 W for incandescent loads.
• Neutral wire required: This switch needs a neutral in the box and is for indoor use only.
• Quality bulbs recommended: For best dimming results, use reputable dimmable bulbs.
• Hub and compatibility: Voice control requires a Z-Wave hub (not direct with smart speakers). Compatible hubs include Z-Box (SmartThings), Aeotec Smart Home Hub, Hubitat, and Home Assistant.

How it works in a smart home setup

Pairing uses the new S2 authentication and SmartStart for quick, secure onboarding. The dimmer is Z-Wave Plus certified and ETL listed, offering confidence in performance and safety. When you register, you may benefit from lifetime technical support and an extended warranty.

Tips for best results

• Use high-quality dimmable bulbs and follow the manual’s wiring diagrams for 3-way installations.
• Keep hub firmware current to unlock advanced settings and scene triggers.
• If you want a different paddle color, Zooz offers options sold separately.
