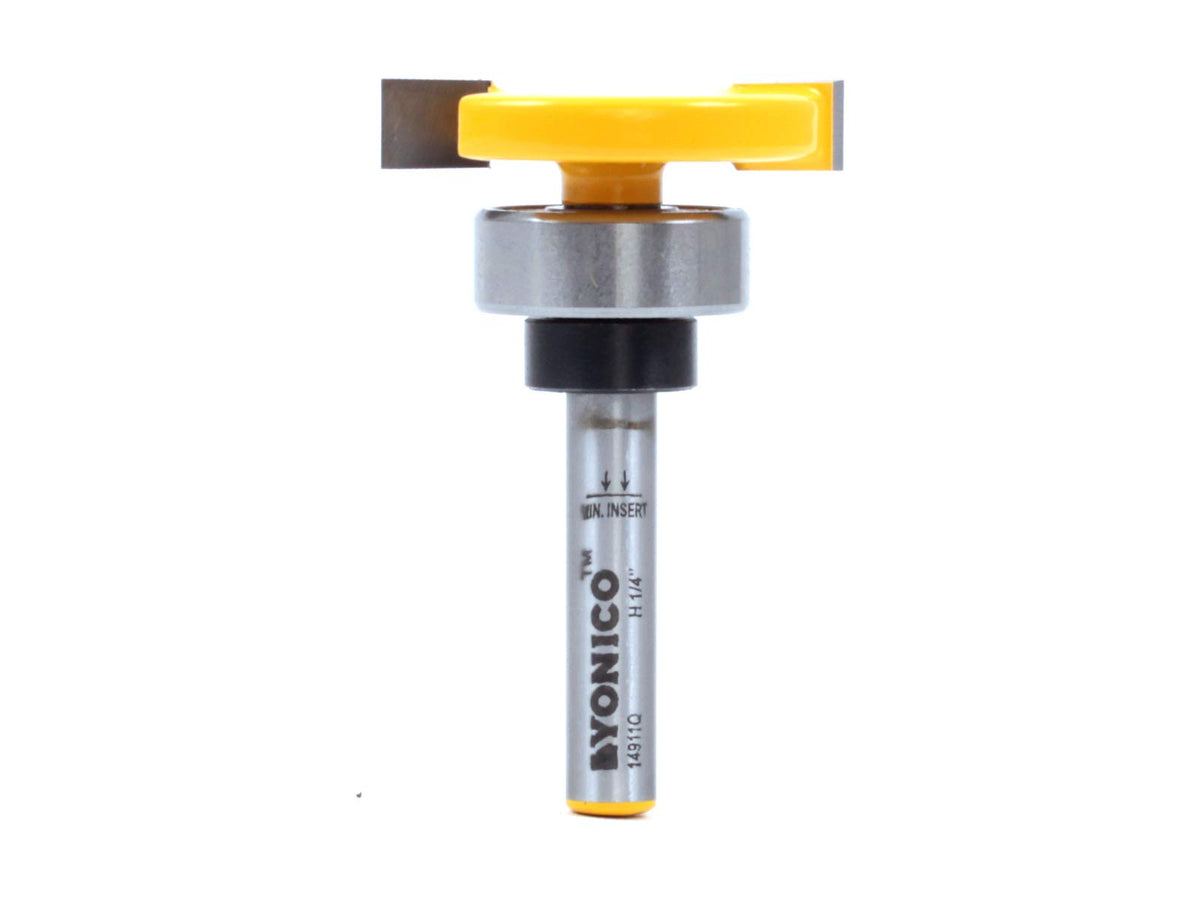

Yonico Top Bearing Slot Cutter Router Bit – 1/4 Inch Slot, 1/4 Inch Shank, Deck Slotting

Overview

Designed for precise on-site deck work, the Yonico Top Bearing Slot Cutter Router Bit creates a neat 1/4 inch by 1/4 inch slot that works with hidden deck fasteners. With an overall diameter of 1-1/4 inches and a 1/4 inch shank, this bit offers confident control whether you’re using a table-mounted router or a handheld model. The bearing guides the cut as boards sit where you need them, helping you follow straight lines along edges, boards, and grooves with minimal setup. The end result is slots that sit flush with the surface, reducing the chance of interference with underlying wood.

Because the bit has no protruding tip, you can slot boards that are already positioned on deck beams without worrying about snagging or misalignment. The result is clean, flush slots that align with fasteners and support tidy edge treatment around the deck surface.

Key capabilities

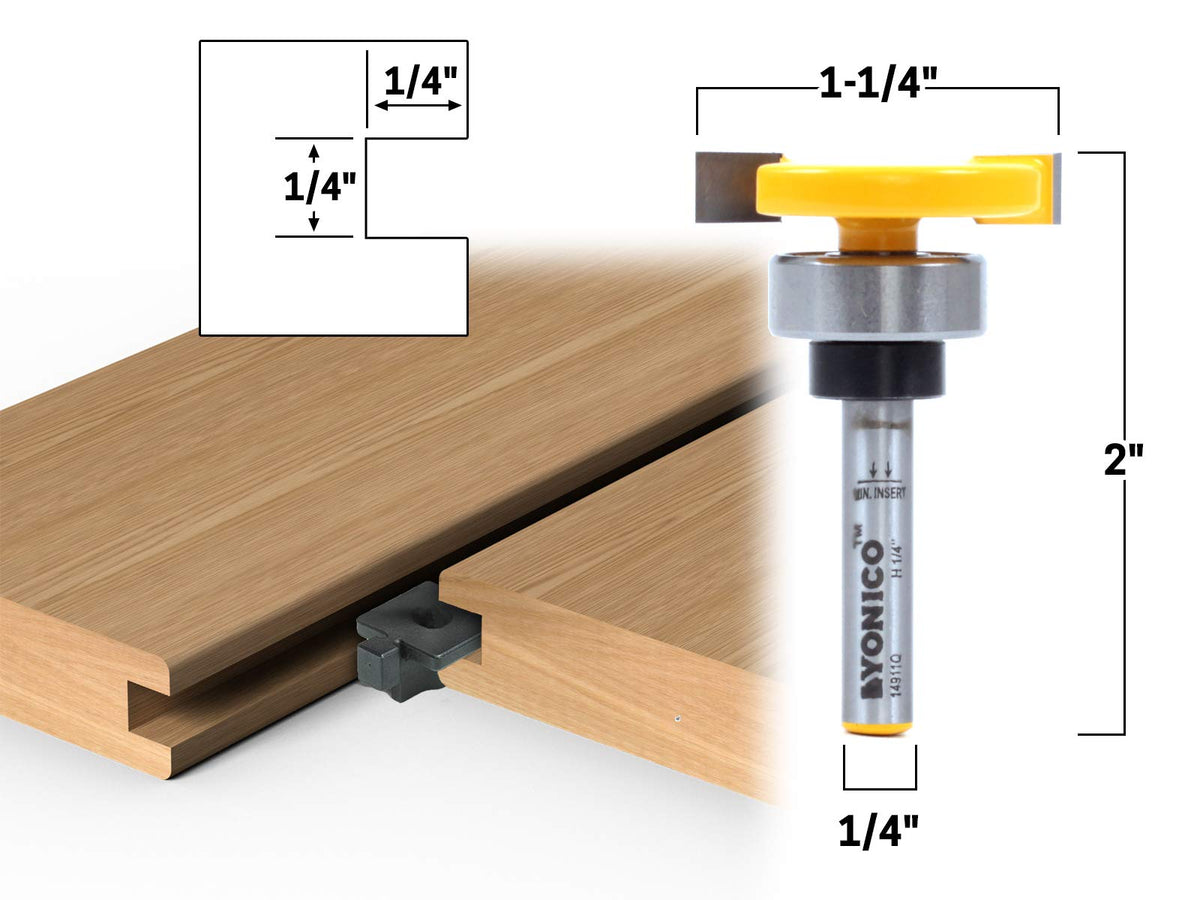

• Slot size: 1/4 inch by 1/4 inch
• Overall diameter: 1-1/4 inches
• Shank diameter: 1/4 inch
• Top bearing enables slotting with boards in position
• Premium C3 micro-grain tungsten carbide blades

Why this matters for deck projects

Deck installations benefit from consistent slot width and clean edges. The top bearing keeps the cut aligned with the board’s surface, while the absence of end-protrusion reduces the chance of catching on hidden layers below. Together with hidden fasteners, this setup can help you achieve smoother assembly and a more professional finish.

Beyond decks, the bit also serves general joinery and groove work. Its guided cut and sharp blade enable repeatable results across varying wood types, making it a versatile choice for cabinets, furniture, or inlays where a precise groove is needed.

Premium blades and build quality

The tool uses C3 micro-grain tungsten carbide blades engineered for a sharp edge and long service life. Expect consistent slots over multiple passes, with less need for repeated sharpening. The robust build also contributes to stable cuts, even when routing denser woods.

Usage tips

• Use with table-mounted or handheld routers as needed
• Secure boards firmly before slotting to prevent drift
• Feed steadily to maintain straight, even slots
• Avoid overheating by taking light passes on dense woods
• Cool the bit if cutting tough species or extended sessions

With the Yonico Top Bearing Slot Cutter, you gain a capable tool for deck construction, cabinetry, and other precise slotting tasks. While results vary with wood species and setup, the design emphasizes control, repeatable slots, and a flush finish that supports clean, professional-looking builds.
