Yonico 14323q Undersized Dado Router Bit Set – 3 Bits, 1/4-Inch Shank

Yonico 14323q Undersized Dado Bit Set

The Yonico 14323q is a purposefully undersized dado router bit set designed to produce accurately sized dados in plywood sheets. Rather than chasing exact nominal thicknesses, these bits acknowledge real-world plywood variance, helping you achieve precise, snug joints when inserting dressed panels. The set includes three bits tuned for common plywood thicknesses, each with a 1/4-inch shank for broad router compatibility and dependable stability during operation.

What you get and how it helps

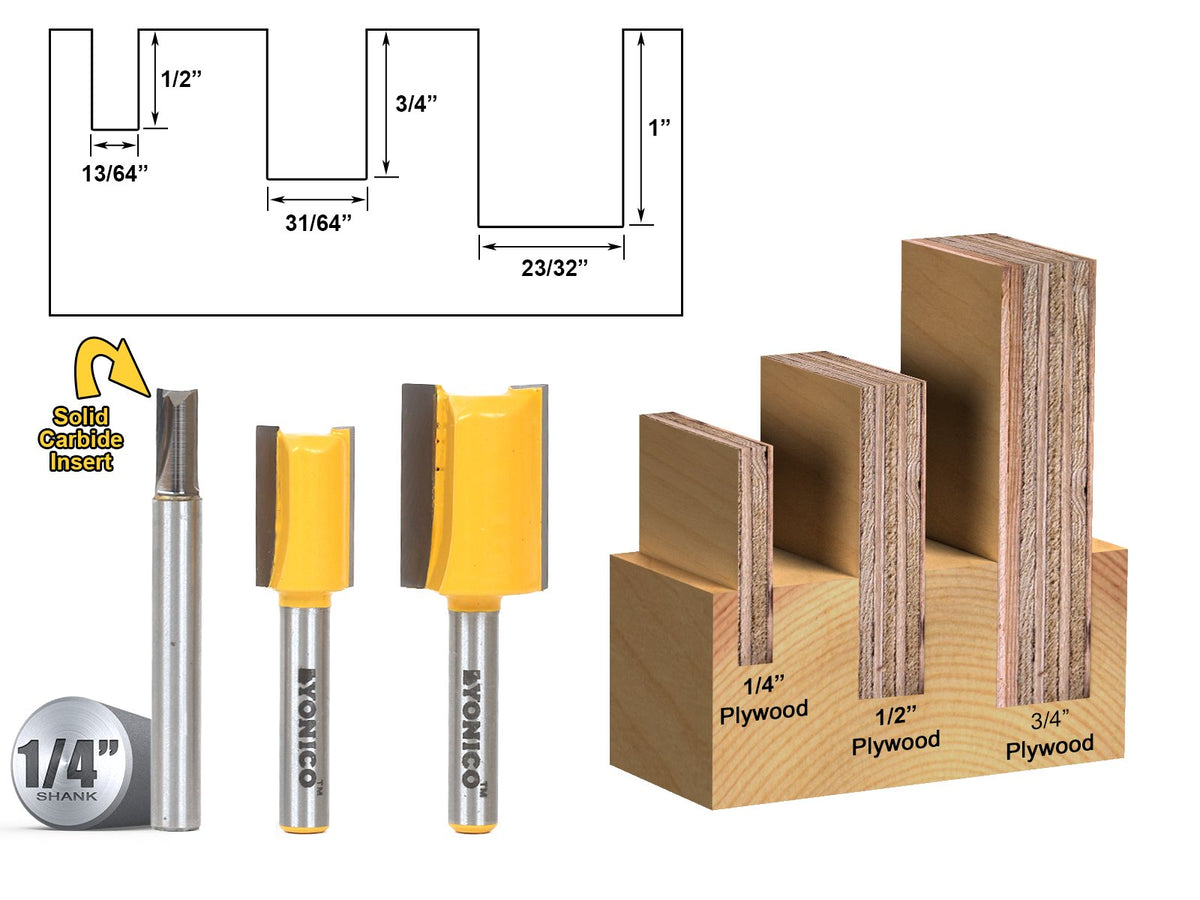

• 13/64" wide and 1/2" tall for 1/4" plywood yields a ready-to-fit dado slot when you’re working with thinner panels.
• 31/64" wide and 3/4" tall for 1/2" plywood to accommodate medium-thickness sheets commonly used in shelving and cabinet assemblies.
• 23/32" wide and 1" tall for 3/4" plywood to support larger panels and more substantial joinery.
• All blades are mounted on 1/4" shanks to fit a wide range of routers, CNCs, and table-mounted machines.

Build quality and durability

• Premium C3 micro-grain tungsten carbide blades provide a sharp edge and longer edge life, helping you achieve cleaner cuts with less effort.
• Silver induction brazing locks the bits together for maximum strength and durability under demanding routing tasks.
• Designed for versatility, these bits perform well on CNC, table-mounted, and handheld routers, expanding where you can apply dado cuts.

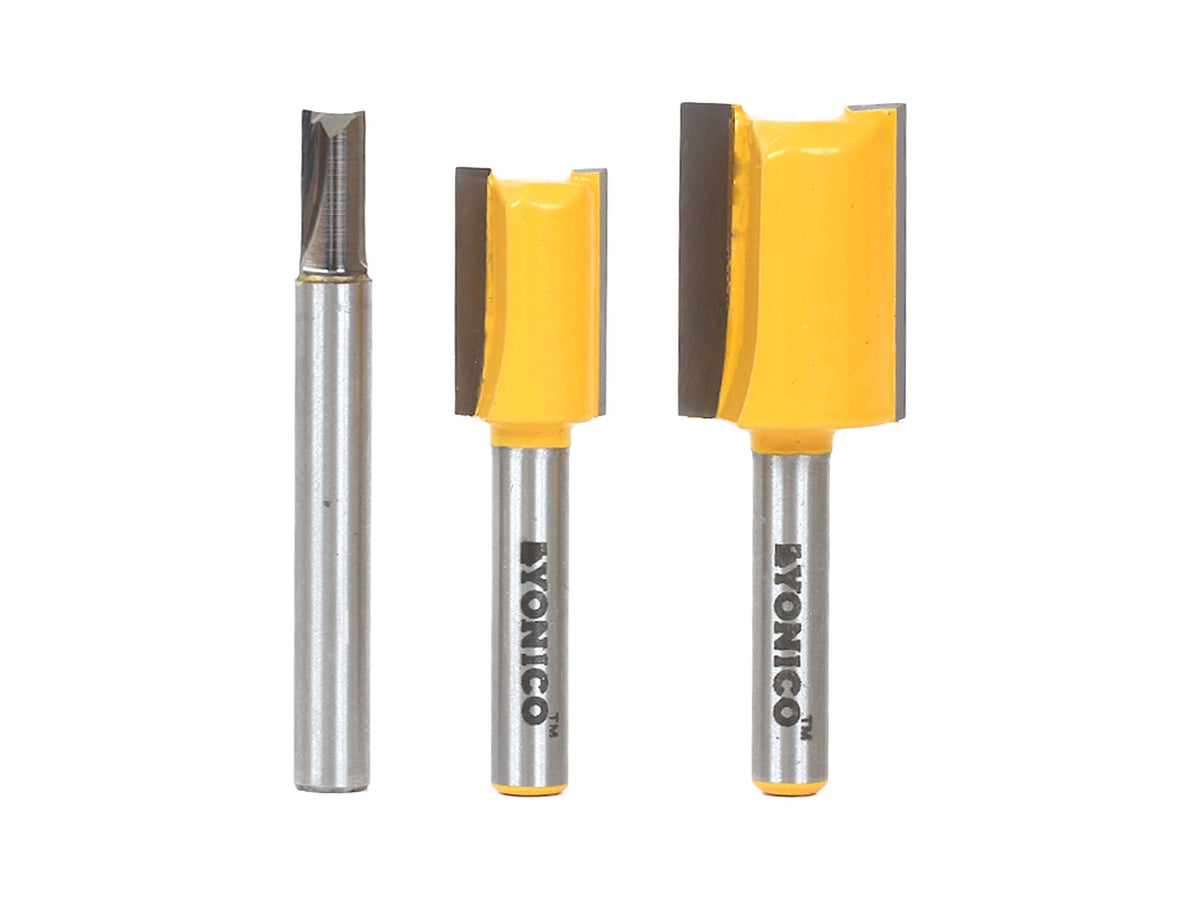

• Includes a solid wood storage case to keep the three bits organized and protected between jobs.

Practical use and care

When planning dados, consider board preparation, clamping stability, and appropriate feed rate to reduce tear-out and achieve consistent results. The undersized geometry is intended to align with plywood thickness variances you may encounter on site, offering a practical approach to fit-and-finish joints. Keep the bits clean and dry after use and store them in the provided case to maintain blade performance over time.

Why this set could fit your shop

• Three distinct bit sizes align with common plywood thicknesses, reducing the need for manual adjustments between cuts.
• The combination of carbide blades and robust brazing lends itself to repeated tasks across multiple projects without frequent replacement.
• Compatibility with CNC, table, and handheld routers makes this set a flexible addition for furniture, cabinetry, or shelving projects.

Overall, the Yonico 14323q undersized dado bit trio offers a thoughtful balance of sizing accuracy, durable construction, and versatile compatibility. It’s a practical option for woodworkers seeking reliable dados that accommodate real-world plywood thickness variation, with a clear path from setup to finished fit.
