XD-3420 High Torque DC Motor 12V/24V CW/CCW with Mount | 30W DIY Generator

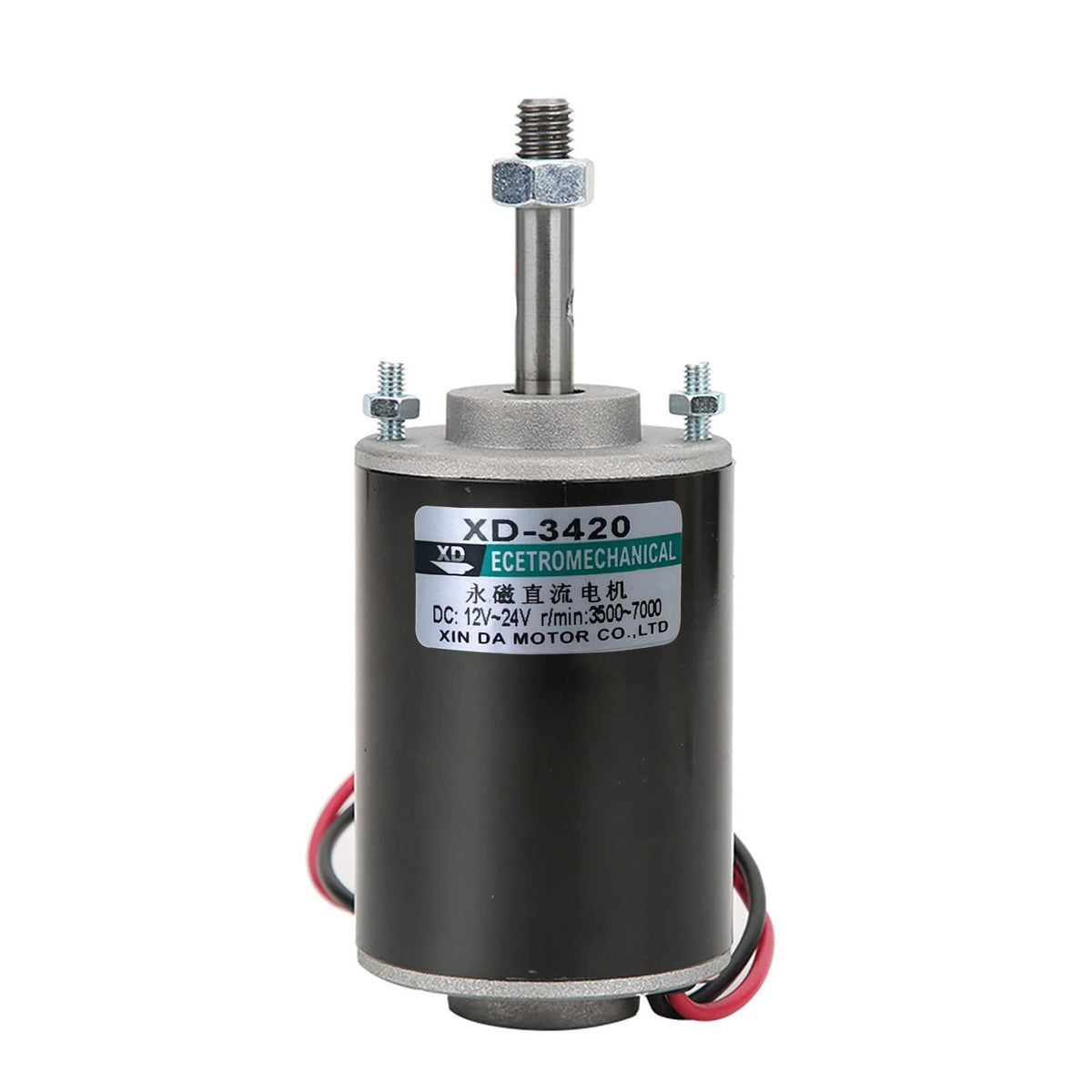

The XD-3420 is a compact, permanent-magnet DC motor that runs on either 12V or 24V, making it a versatile choice for a wide range of DIY builds. It delivers high speed and solid torque while maintaining low noise, ideal for small machines or home-built generators. The output shaft is 8 mm in diameter with a 38 mm length, enabling flexible mounting, and the motor supports bidirectional rotation (CW/CCW) when paired with an external control. An external DC controller is required to enable speed regulation and to manage rotation direction through appropriate wiring or switching.

Performance and build quality come together in a compact package. The motor offers 30 W of rated power, draws about 0.5 A, and provides idle speeds of 3,500 rpm at 12V or 7,000 rpm at 24V. Torque values are 1 kgf.cm at 12V and 2 kgf.cm at 24V, giving you capable acceleration under load. The stator windings use pure copper, which helps reduce heat and losses for more reliable operation. The kit includes a motor mount and 2 spacers for quick, straightforward installation in a variety of environments, whether a lab bench, hobby workshop, or compact generator project.

Performance highlights

• Voltage options: 12V or 24V compatible, enabling flexible power designs
• Idle speeds: 3,500 rpm at 12V; 7,000 rpm at 24V
• Rated power and current: 30 W, approximately 0.5 A
• Torque: about 1 kgf·cm at 12V; 2 kgf·cm at 24V

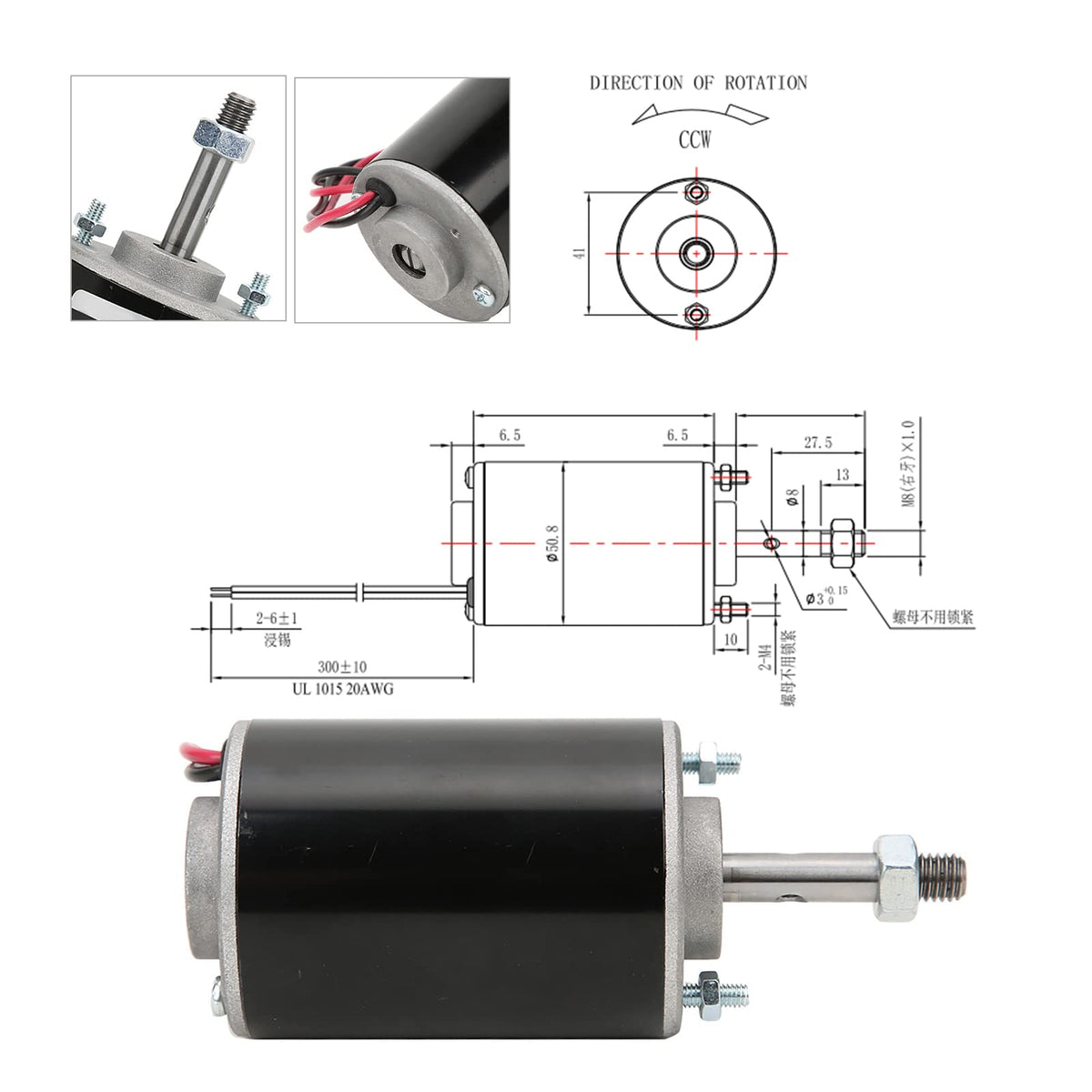

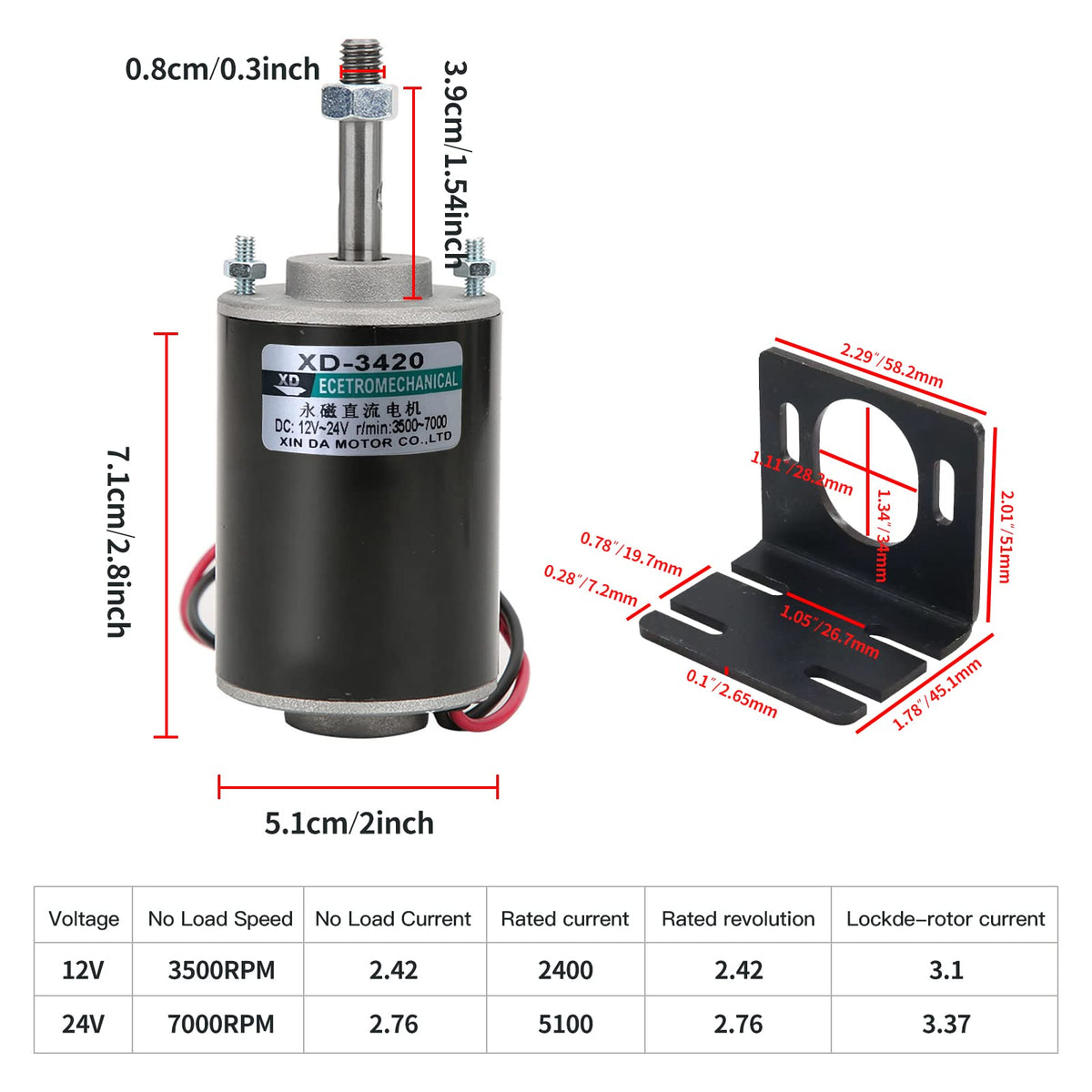

• Output shaft: 38 mm length, 8 mm diameter; suitable for common couplings
• CW/CCW operation: direction can be changed for different assemblies
• Low-noise, high-speed performance with smooth drive characteristics

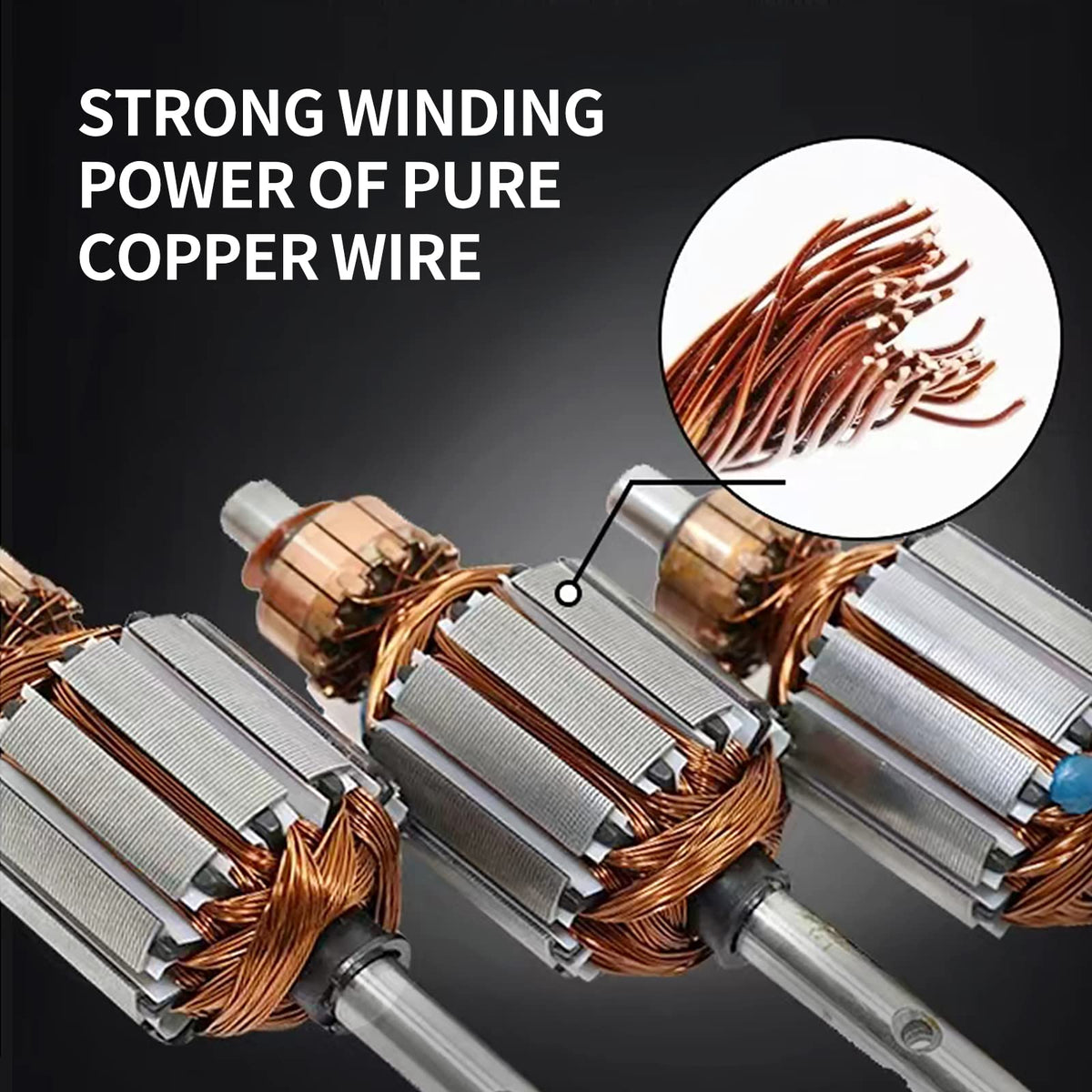

• Stator windings: pure copper for lower heat and longer life

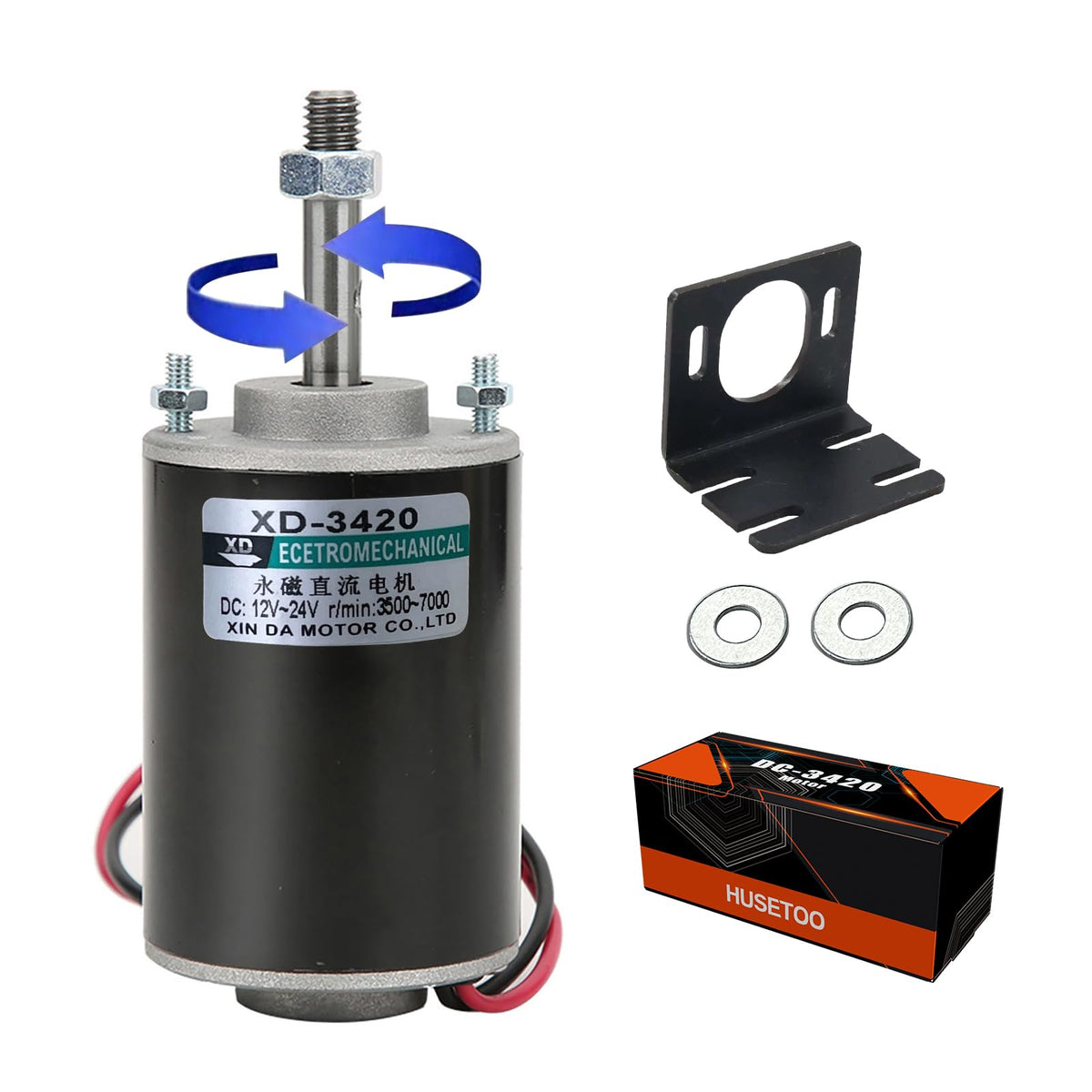

• Extras: includes motor mount and spacers for quick installation

Ideal use cases and installation tips

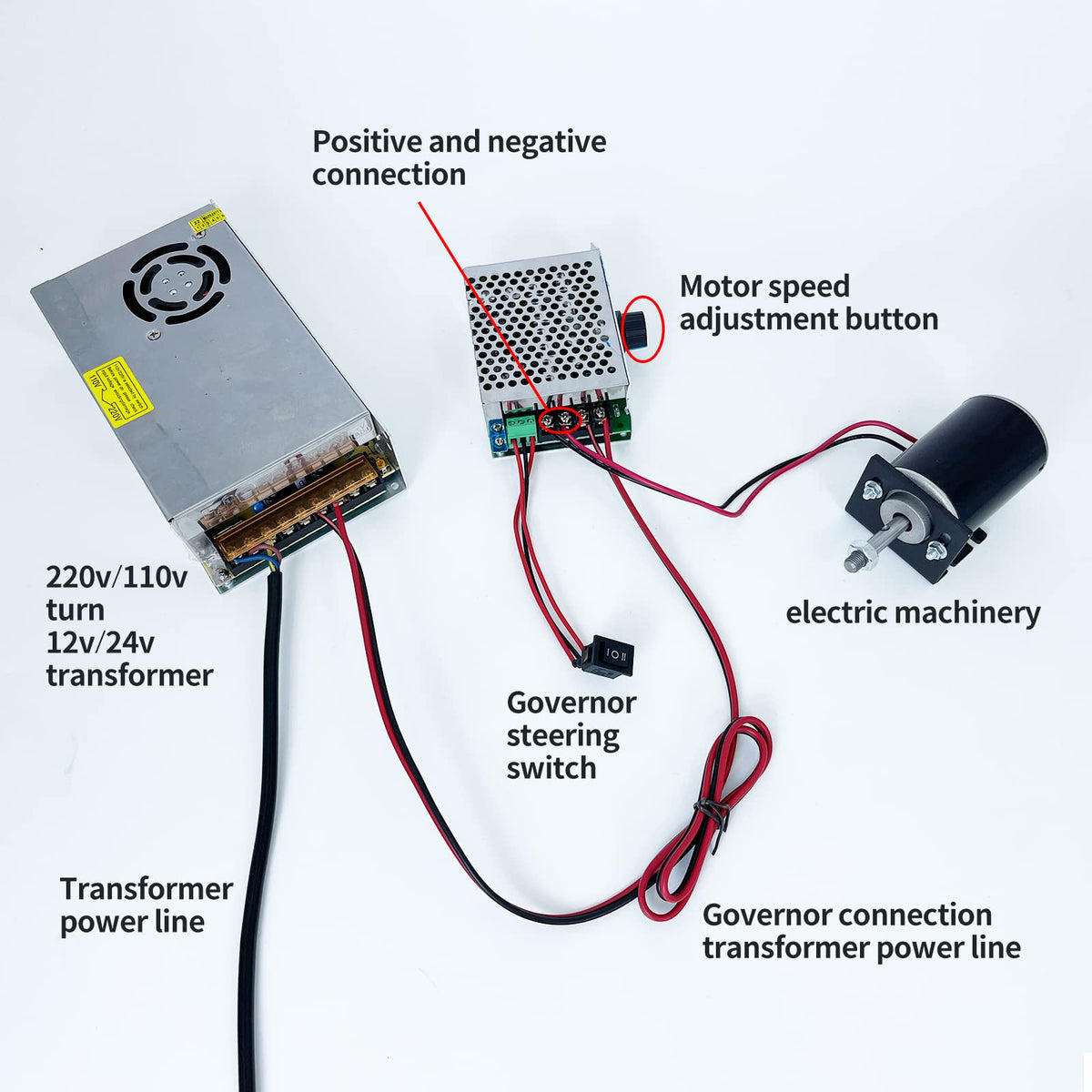

Use the XD-3420 as the power unit in DIY generators, small cutting tables, hobby machines, or educational kits. Pair it with a compatible external DC controller to set a target speed and choose clockwise or counterclockwise rotation as needed. When mounting, align the shaft with your coupling or gear, secure the mount, and route wiring to a stable supply within the voltage range.

Why choose the XD-3420

This motor blends compact size with solid torque and speed, making it a practical option for hobbyists and light-duty projects. The dual-voltage design simplifies sourcing and testing, while the CW/CCW capability supports various mechanical layouts without fuss. The included mounting hardware accelerates integration and reduces setup steps.
