WORKPRO Cabinet Hardware Jig – Aluminum Alloy Drill Guide Template for Accurate Handle Installation

Precision you can rely on

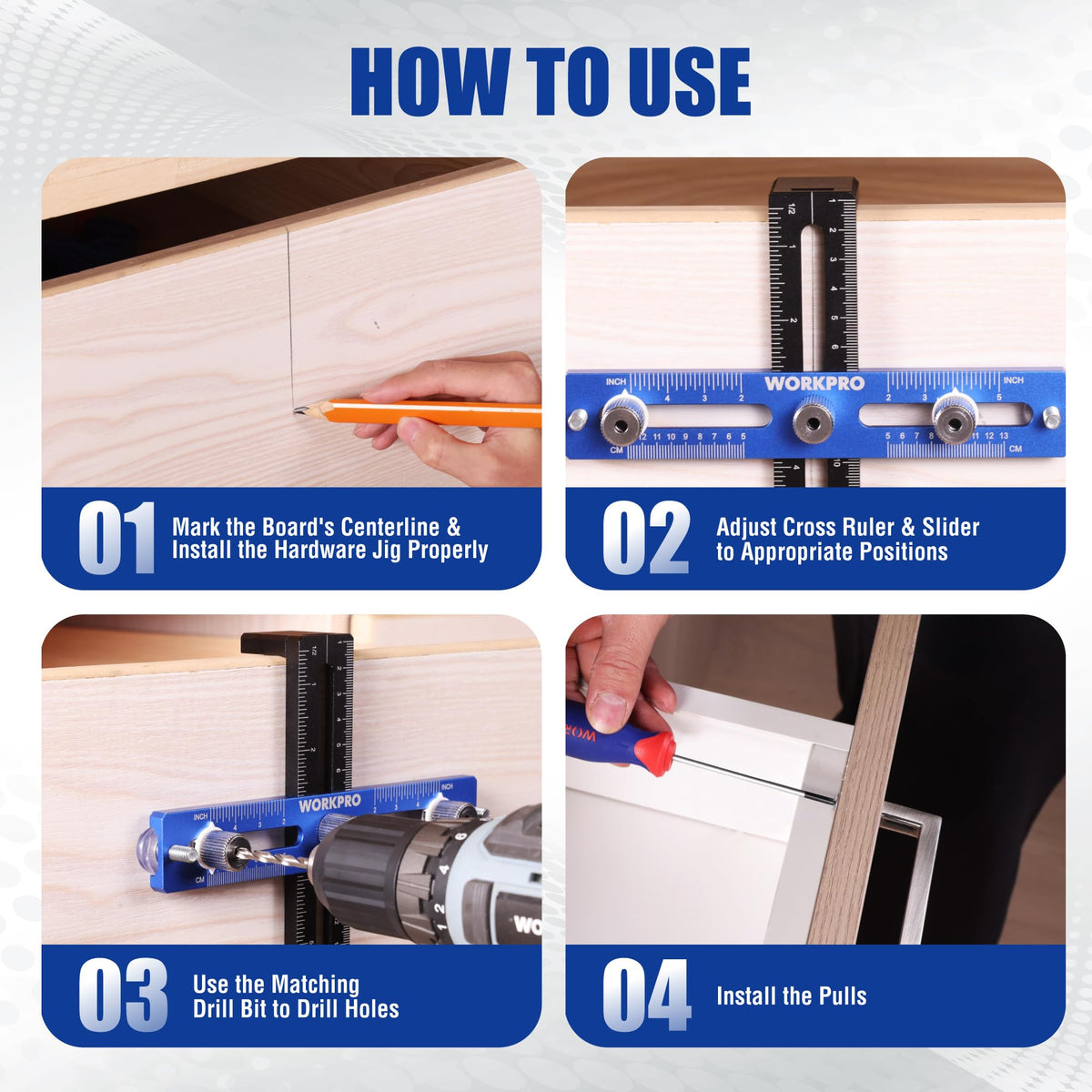

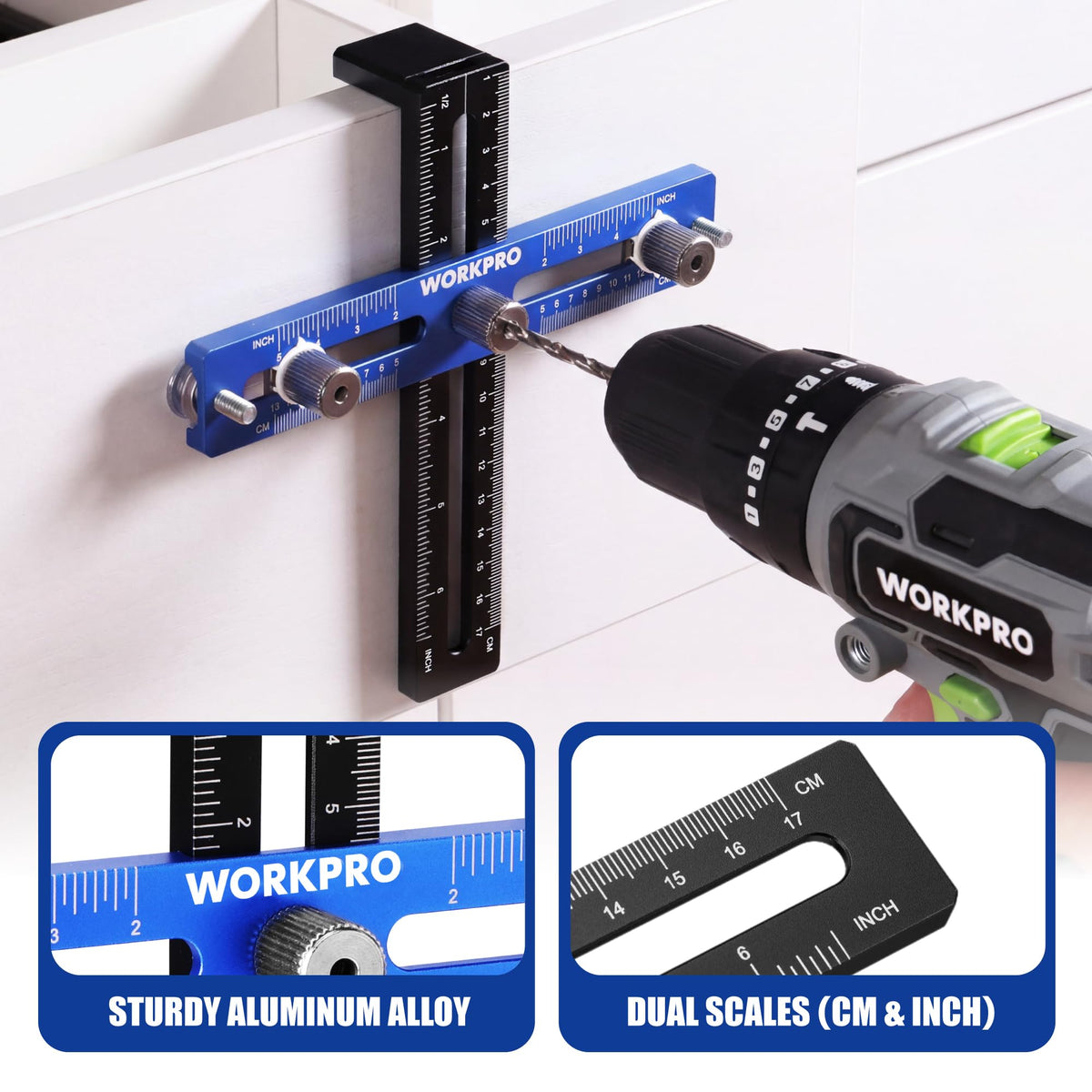

The WORKPRO cabinet hardware jig blends rugged aluminum alloy with precise measurement tools to streamline hardware installations. Dual scales, metric and imperial, allow quick setup, while drill guides feature pointers to help you align each hole. The horizontal and vertical rulers meet a 1‰ perpendicularity standard, supporting clean, straight holes across panels and reducing the need for rework.

Designed for both DIY enthusiasts and professionals, this jig combines durability with practical portability. The kit is engineered to deliver repeatable results, so you can plan layouts with confidence and execute them efficiently on kitchen cabinets, drawers, and other furniture projects.

What you get

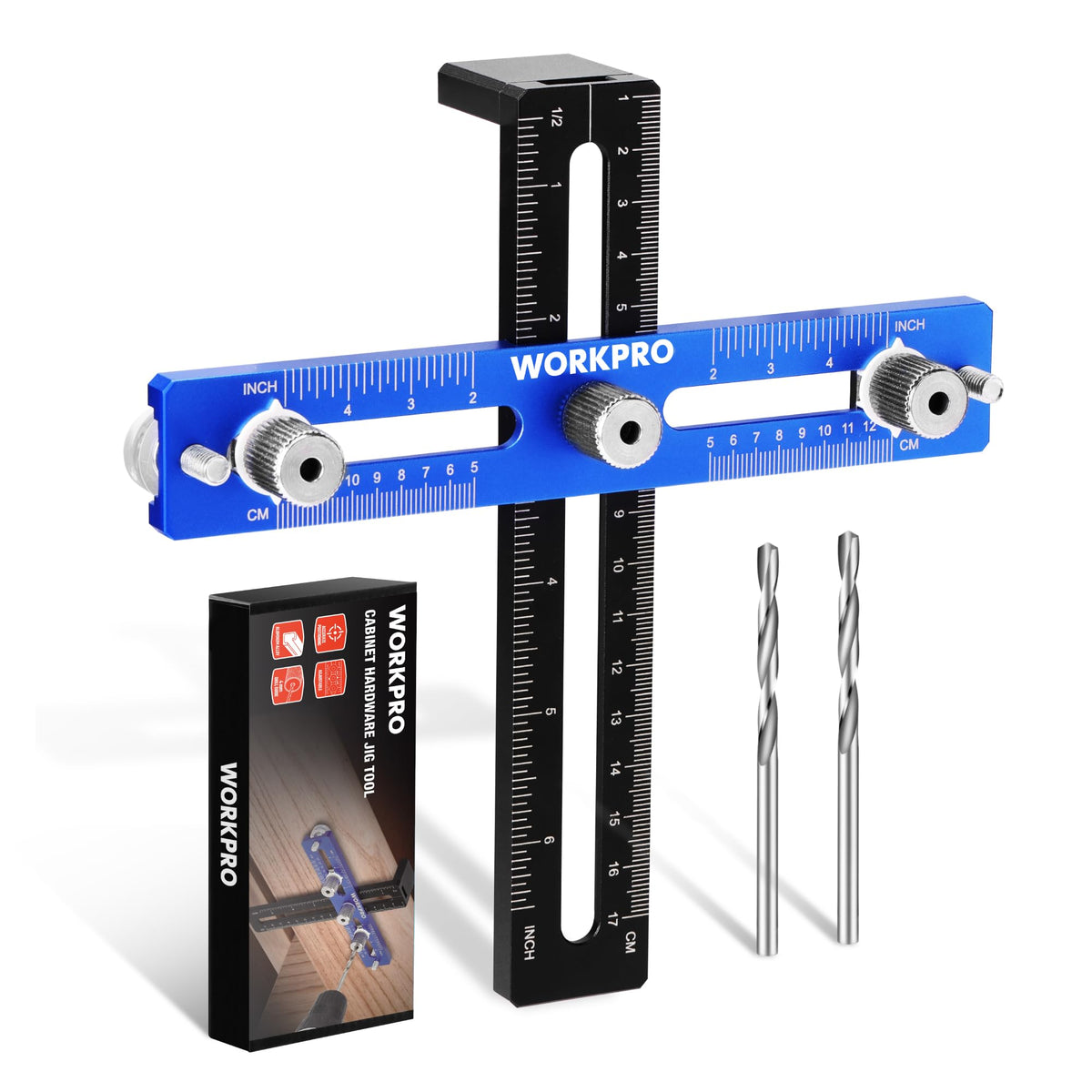

• Straight ruler with built-in drill guides, an L-shaped ruler, and two 4mm drill bits; all components disassemble and store in a compact box for easy transport.

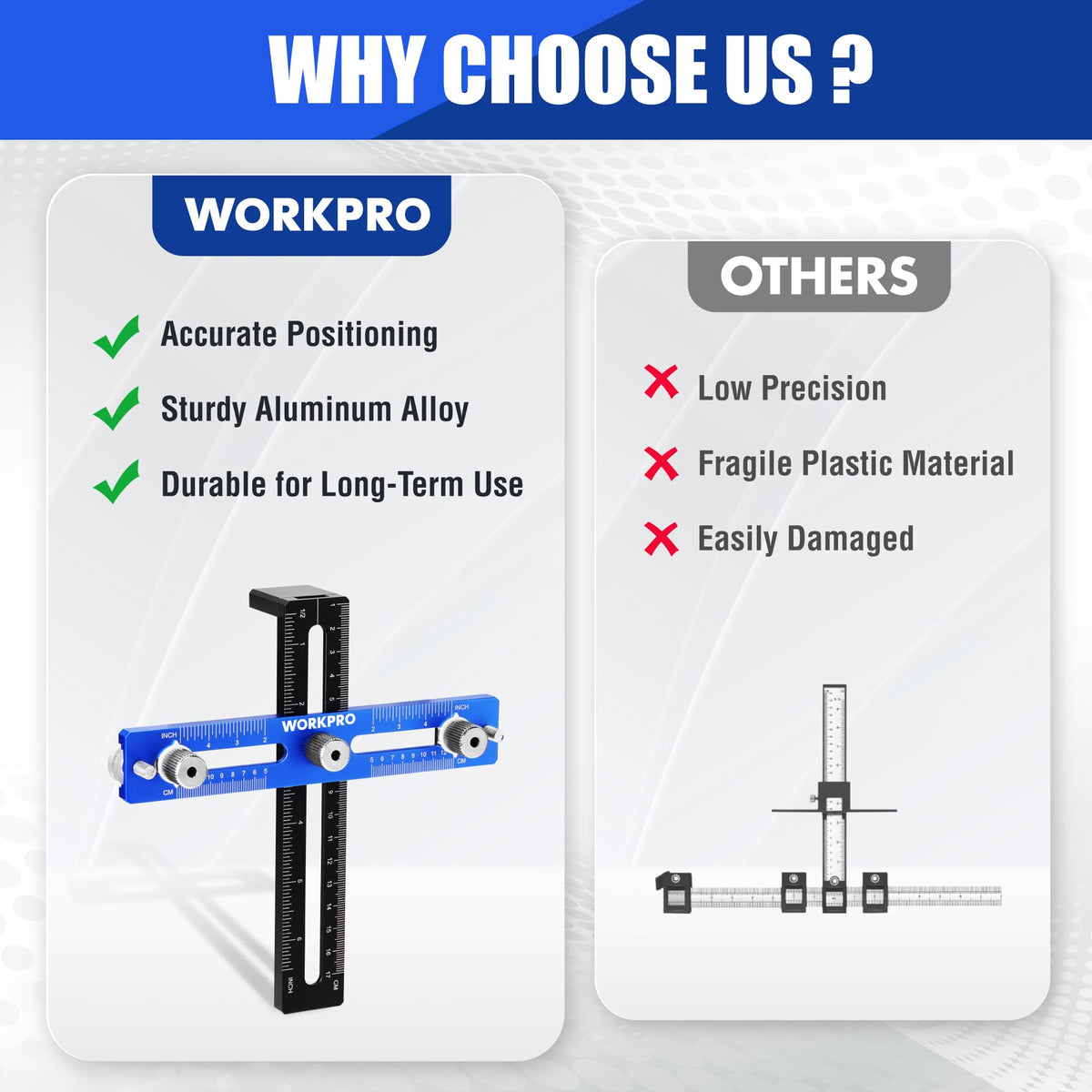

• Rust-proof aluminum alloy with an oxidized surface for lasting durability and corrosion resistance through many installations.

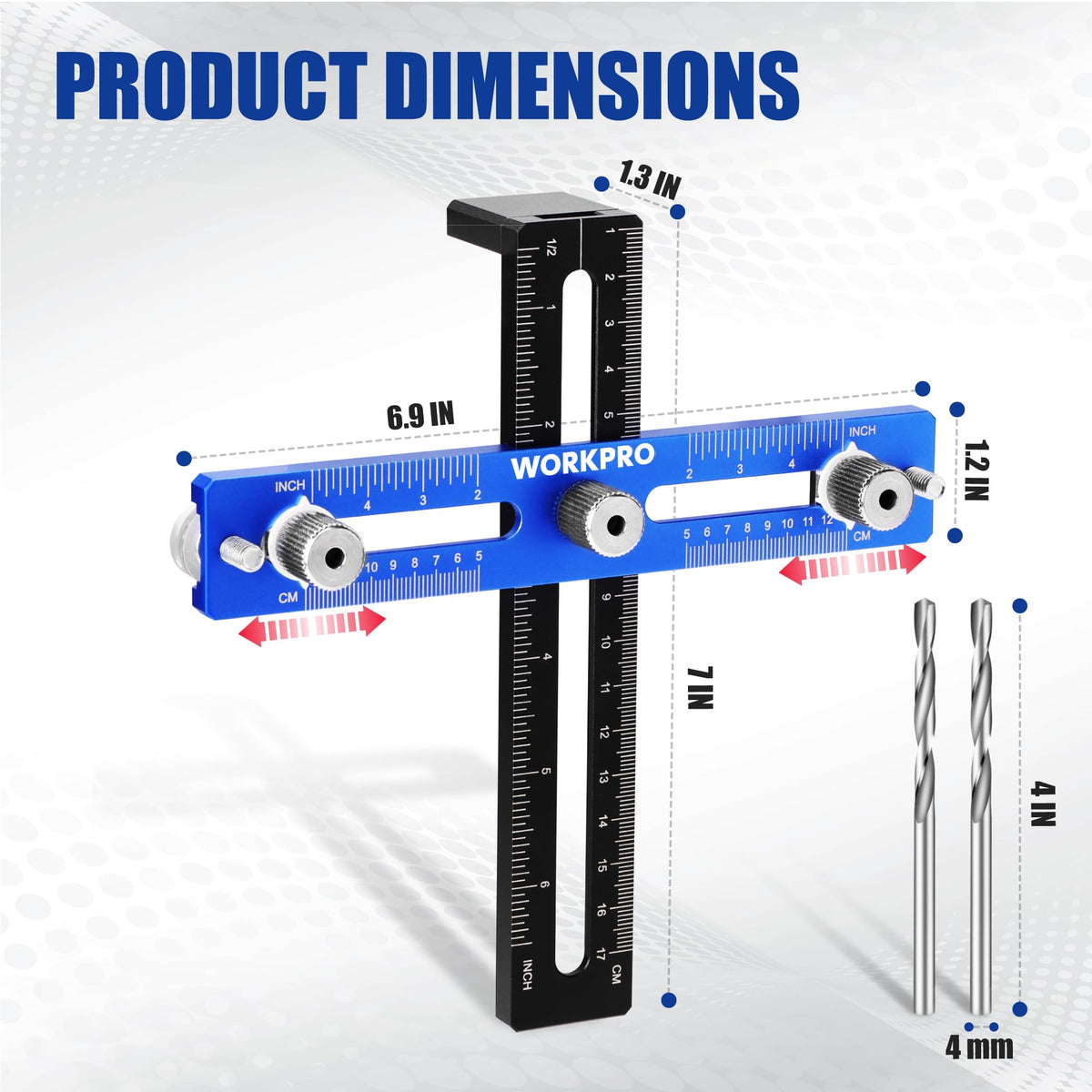

• Adjustable drill guides that slide within 8 cm (3 inches); a central nut lets you fine-tune the vertical distance, while guide spacing is configurable for precise hole layouts.

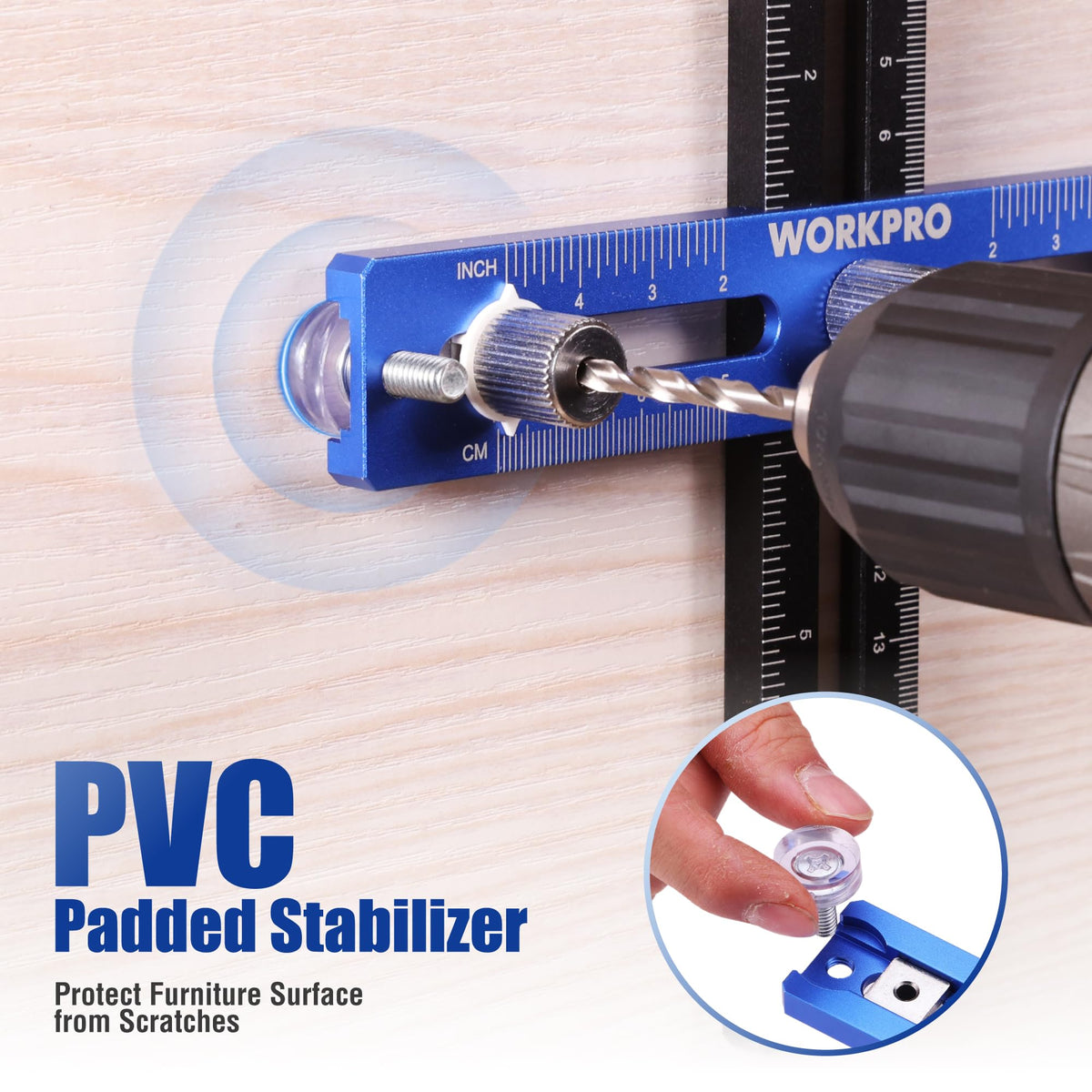

• Two M6 PVC soft pads on the back of the horizontal ruler protect furniture surfaces from scratches during drilling.

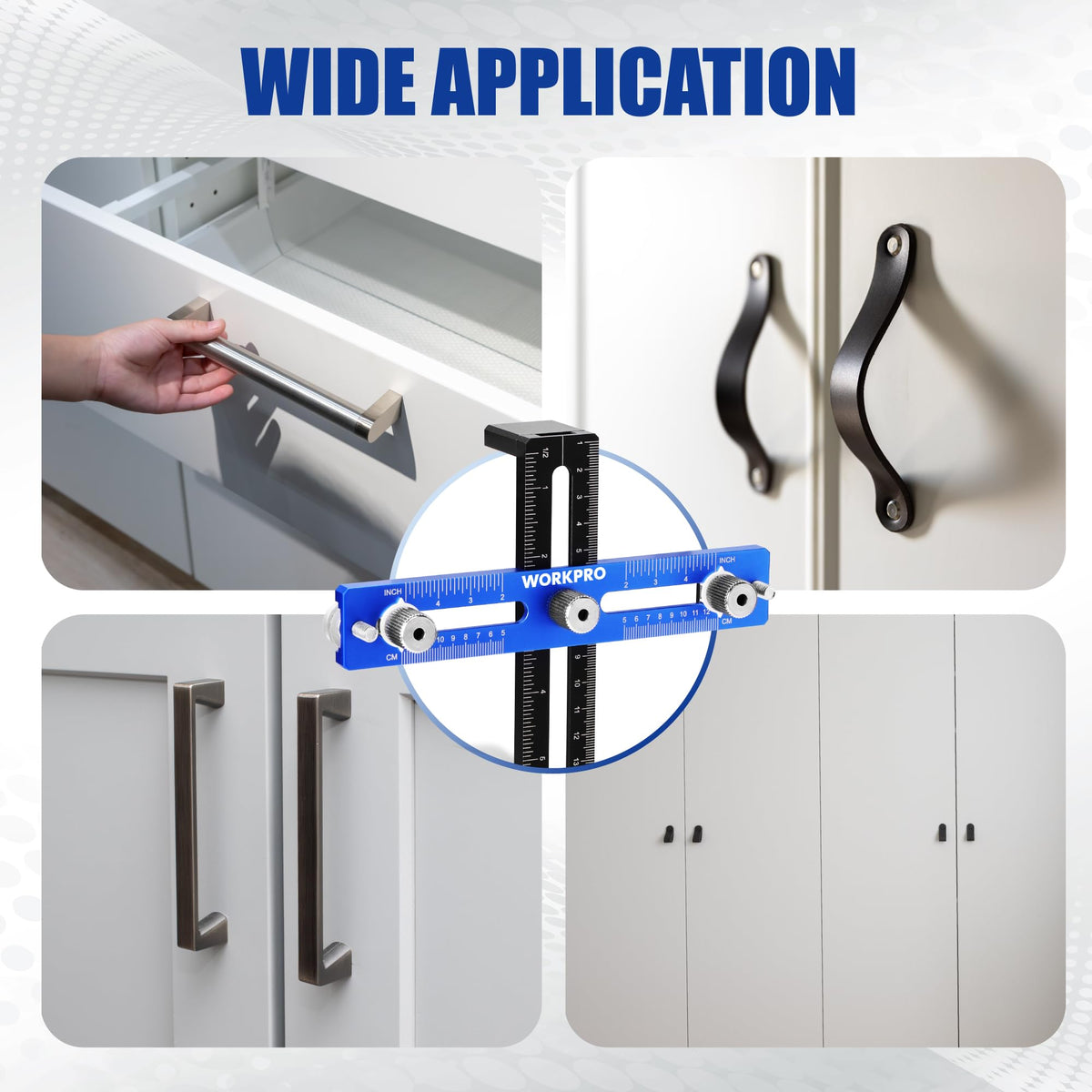

• Broad compatibility for handles, pulls, and knobs on drawers, cabinets, door panels, and similar carriers.

Real-world use and benefits

• Achieve consistent hole spacing across multiple positions to create a cohesive, professional look in cabinetry projects.
• Switch between hardware sizes with adjustable spacing without remeasuring each time, saving setup time on multiple items.
• Work on furniture with delicate or glossy surfaces thanks to soft pads that help prevent marks and damage.
• Disassemble and pack into a small box for transport, making it easy to carry to job sites or storage.

Whether you are upgrading a single cabinet or retrofitting an entire kitchen, the WORKPRO jig offers precision, durability, and portability. While results depend on user technique, the tool supports repeatable layouts and cleaner installations without overpromising outcomes.
