Whiteside RD2100 Downcut Spiral Bit | Solid Carbide, 1/4" Diameter, 1" Length

Overview

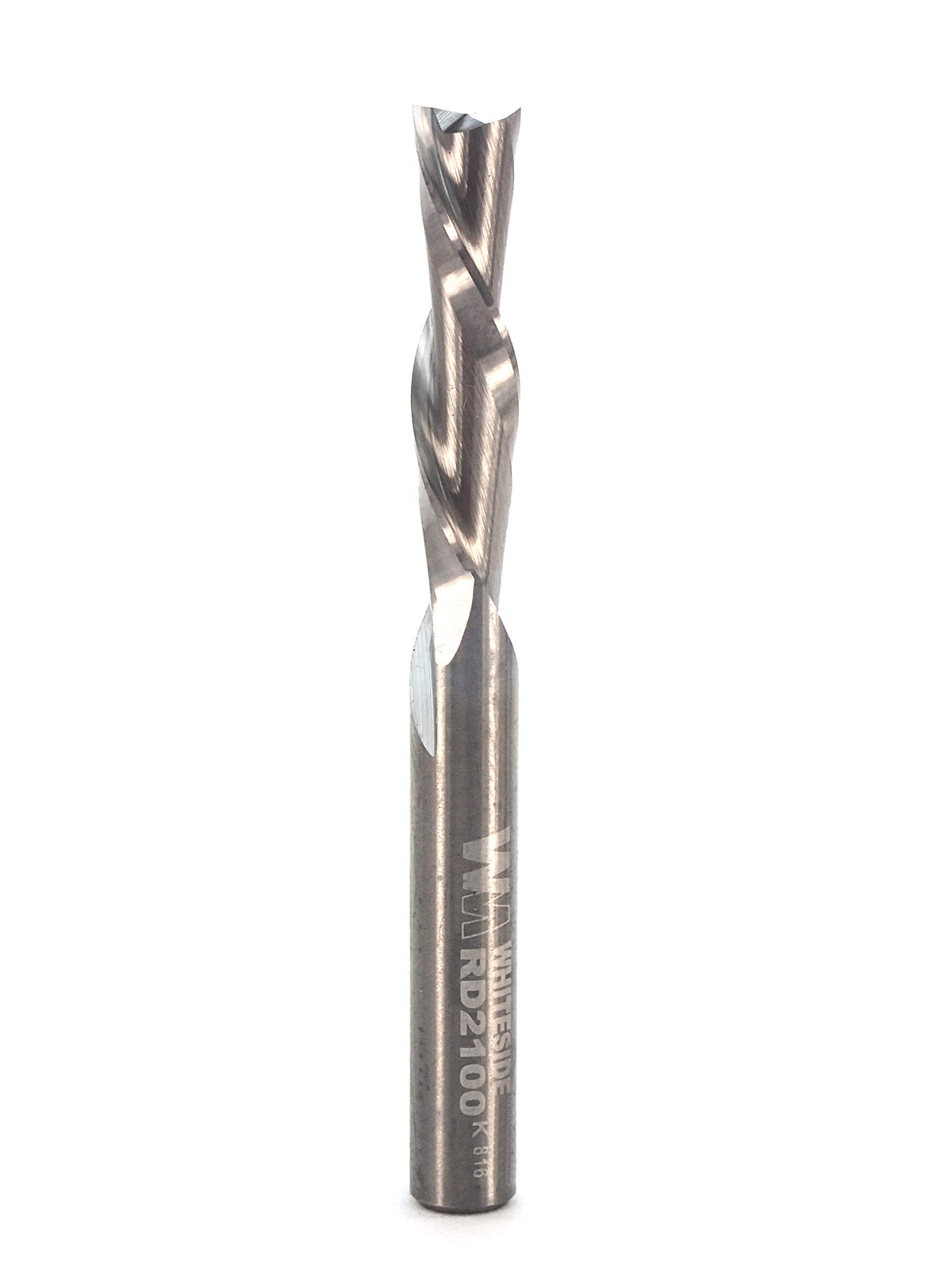

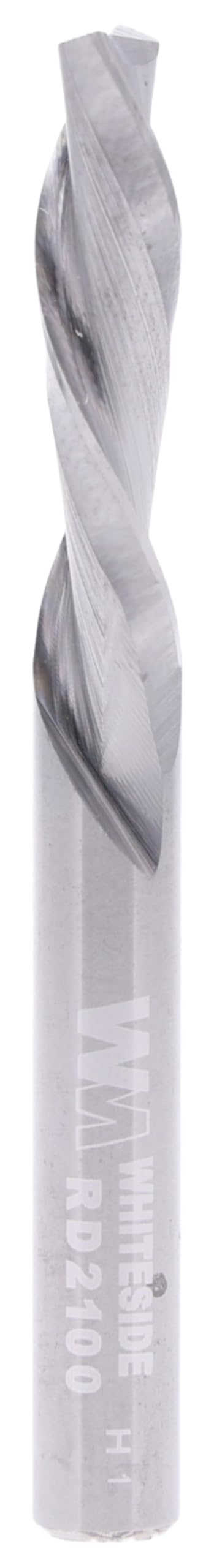

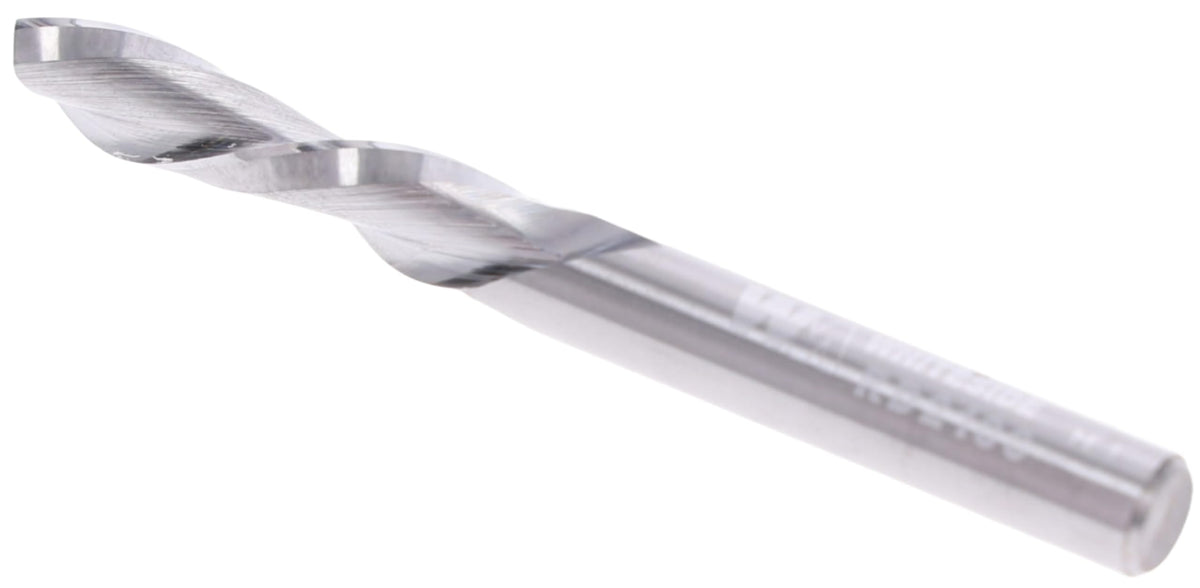

Meet the Whiteside RD2100 Downcut Spiral Bit, a high-precision tool designed for clean, controlled cuts in veneer, laminates, and plywood. The solid carbide construction delivers consistent performance, while the downcut spiral design helps produce smooth top surfaces by shearing the cut edge as you work. This combination supports crisp edges and a refined overall look as you route.

Key Specifications

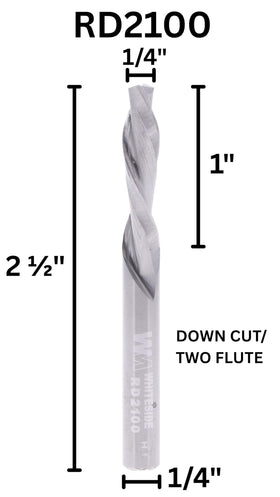

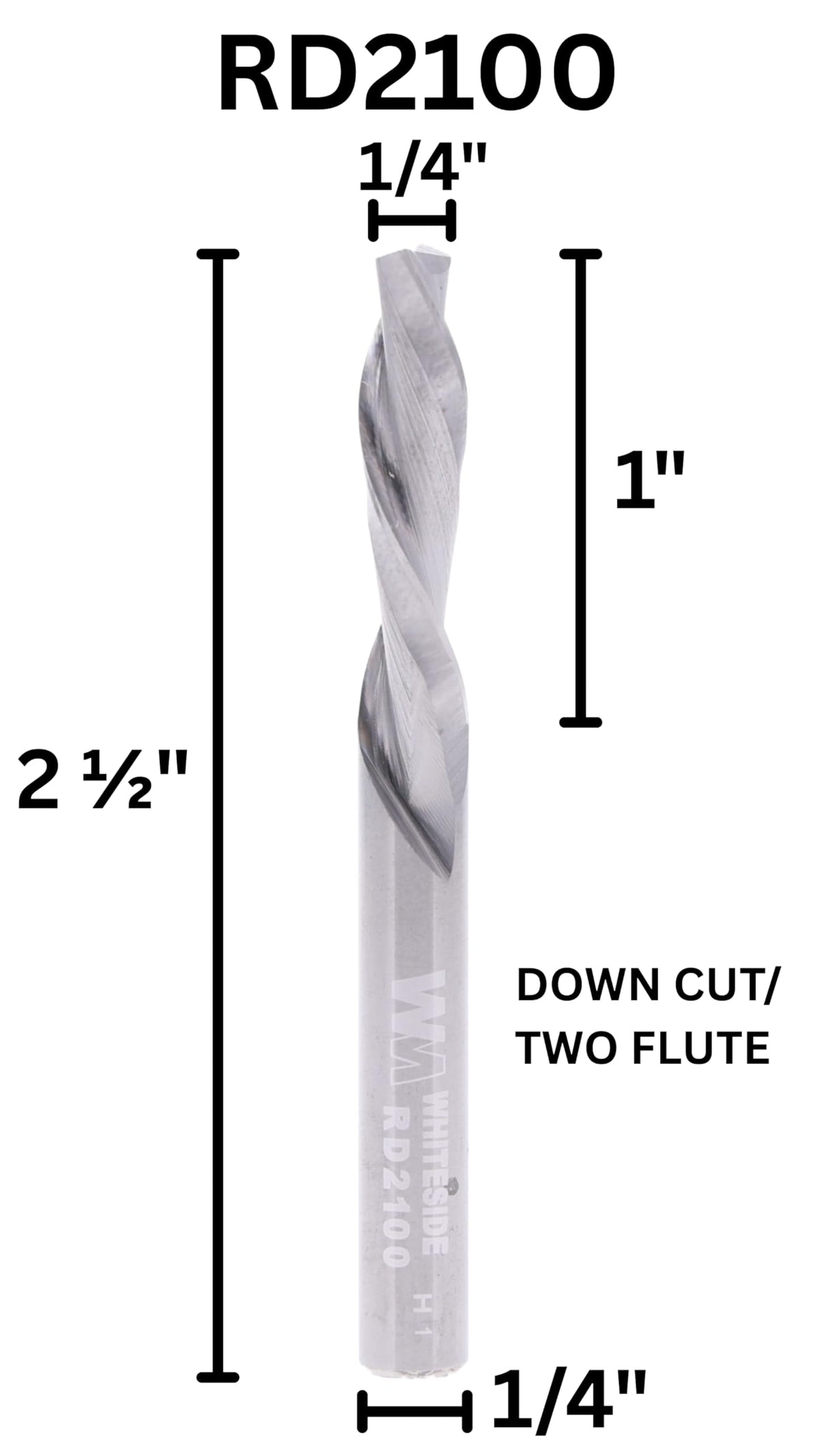

• TOOL SPECS: Solid carbide, downcut spiral with 1/4" cutting diameter, 1/4" shank, 1" cutting length, and 2-1/2" overall length for use in routers with a 1/4" collet.
• DOWN CUT SPIRAL: Ensures a clean edge on the side of the material closest to the router, ideal for crisp top edges in handheld or CNC routing.
• HELIX PERFORMANCE: The helical action supports clean, crisp cuts in shallow grooves, dados, and inlays, outperforming standard straight bits.
• CLEAN FINISH: The downward cutting action reduces tearout when cutting grooves, dados, slots, and pockets in veneer, laminates, and plywood.
• STABILITY: Holds thin sheets or small pieces more securely during CNC routing, and ejects chips away from the router as you cut.

What You Can Expect in Real Use

Users notice dependable edge quality when trimming veneers and wrapping plywood edges, with top surfaces that stay flat and ready for finishing. The RD2100 shines in inlays and shallow grooves where precision matters, enabling a smoother feel during manual or machine routing.

Popular Use Scenarios

• Edge finishing on thin plywood panels and veneers for cabinetry or hobby projects.
• Shallow dados or slots in decorative panels, ensuring a crisp seam.
• Inlays and decorative routing where a clean, controlled edge is important.
• Holding thin sheets steady during CNC operations to maintain accuracy.

Why Choose the RD2100

Combining durable solid carbide with a purpose-built downcut geometry, this bit aims to deliver consistent results across handheld and CNC routers. The 1/4" cutting diameter and 1" cutting length strike a balance between versatility and control, while the 1/4" shank fits standard machines.

Usage Tips

Feed rate and bit engagement should align with material thickness and equipment. Use with proper collet support, and consider light passes on delicate sheets to minimize deflection and maximize edge quality.
