WEN 6524 Oscillating Belt and Spindle Sander – 5 Spindle Sizes, 4x24 Belt, 3.5A

Overview

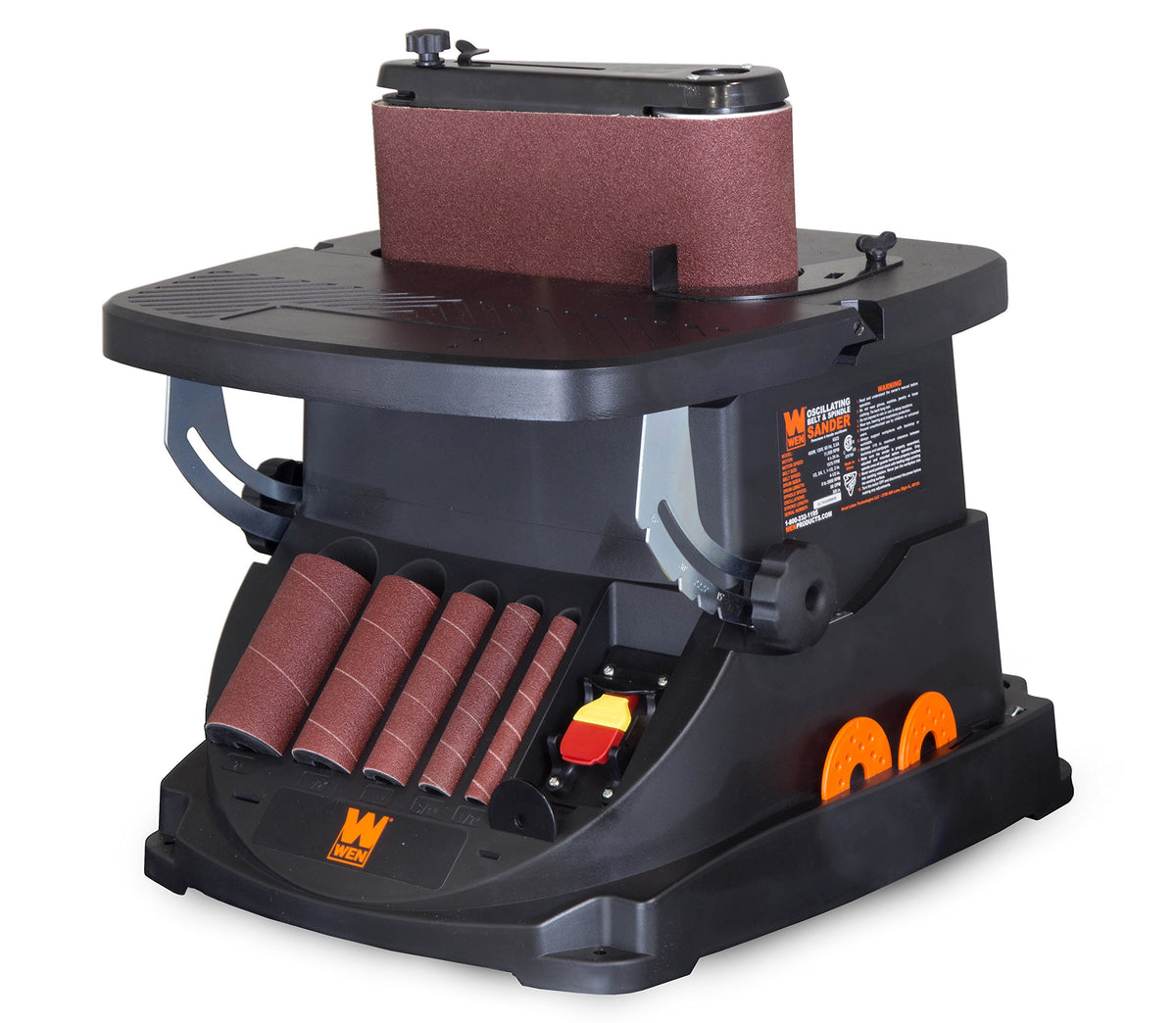

The WEN 6524 Oscillating Belt and Spindle Sander combines two sanding methods in one compact machine. Designed to tackle arcs, curves, contours, and beveled edges, it brings versatility to projects ranging from simple edge finishing to intricate profile work. A robust 3.5-amp motor drives both belt and spindles, providing steady power for moderate to demanding tasks without needing to switch tools.

Versatility in one machine

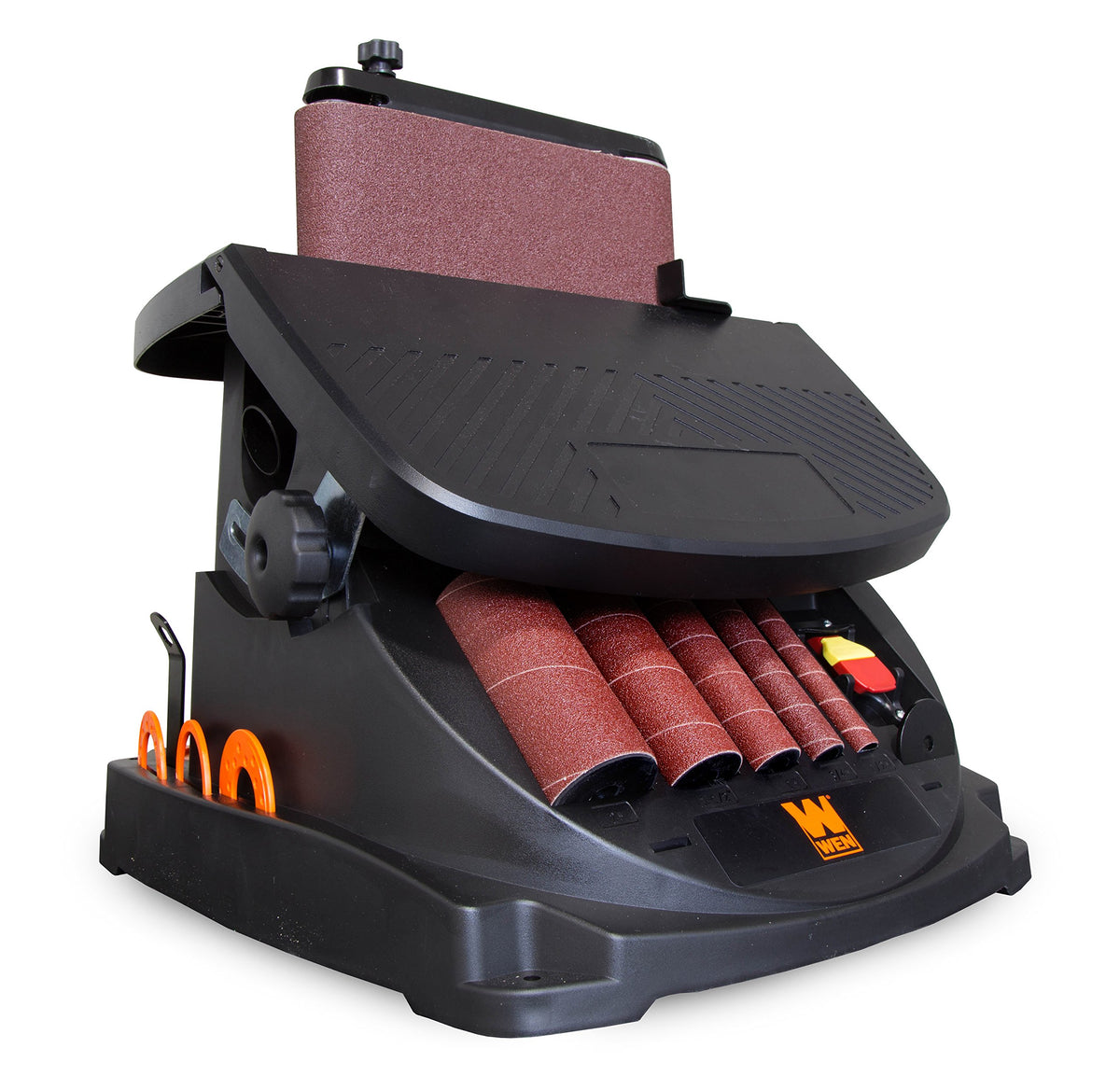

This sander blends belt and spindle functionality with an adjustable oscillation system. The belt moves up to 1575 feet per minute, while spindles reach up to 2000 RPM. The belt oscillates up to 58 times per minute with a 5/8-inch stroke, helping to smooth out irregular shapes and produce consistent finishes. Five spindle sizes (1/2 inch, 3/4 inch, 1 inch, 1-1/2 inch, and 2 inch) cover a wide range of curves and radii, making it easier to approach complex workpieces from multiple angles.

• Oscillation: up to 58 cycles per minute with a 5/8-inch stroke
• Belt speed: up to 1575 FPM
• Spindle speeds: up to 2000 RPM

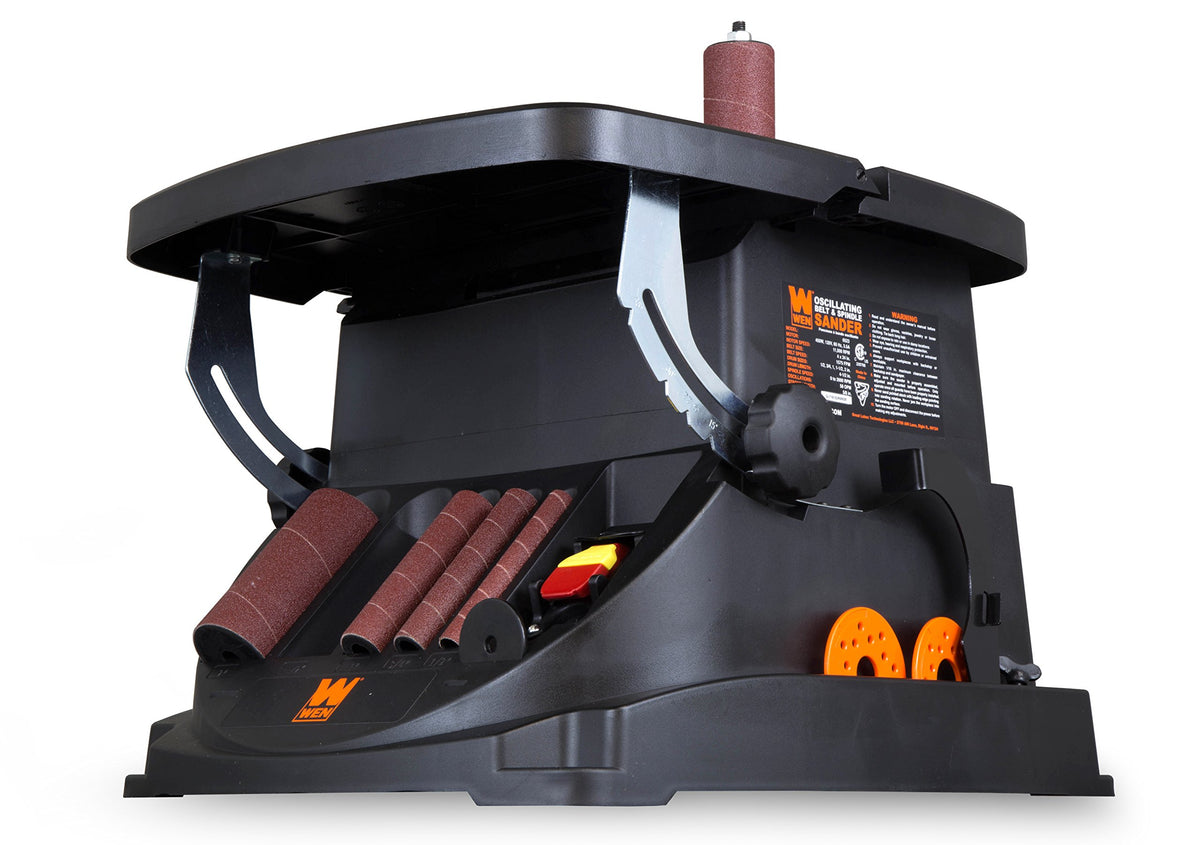

• Five spindle diameters + one 4 x 24 inch belt

Beveling and convenience

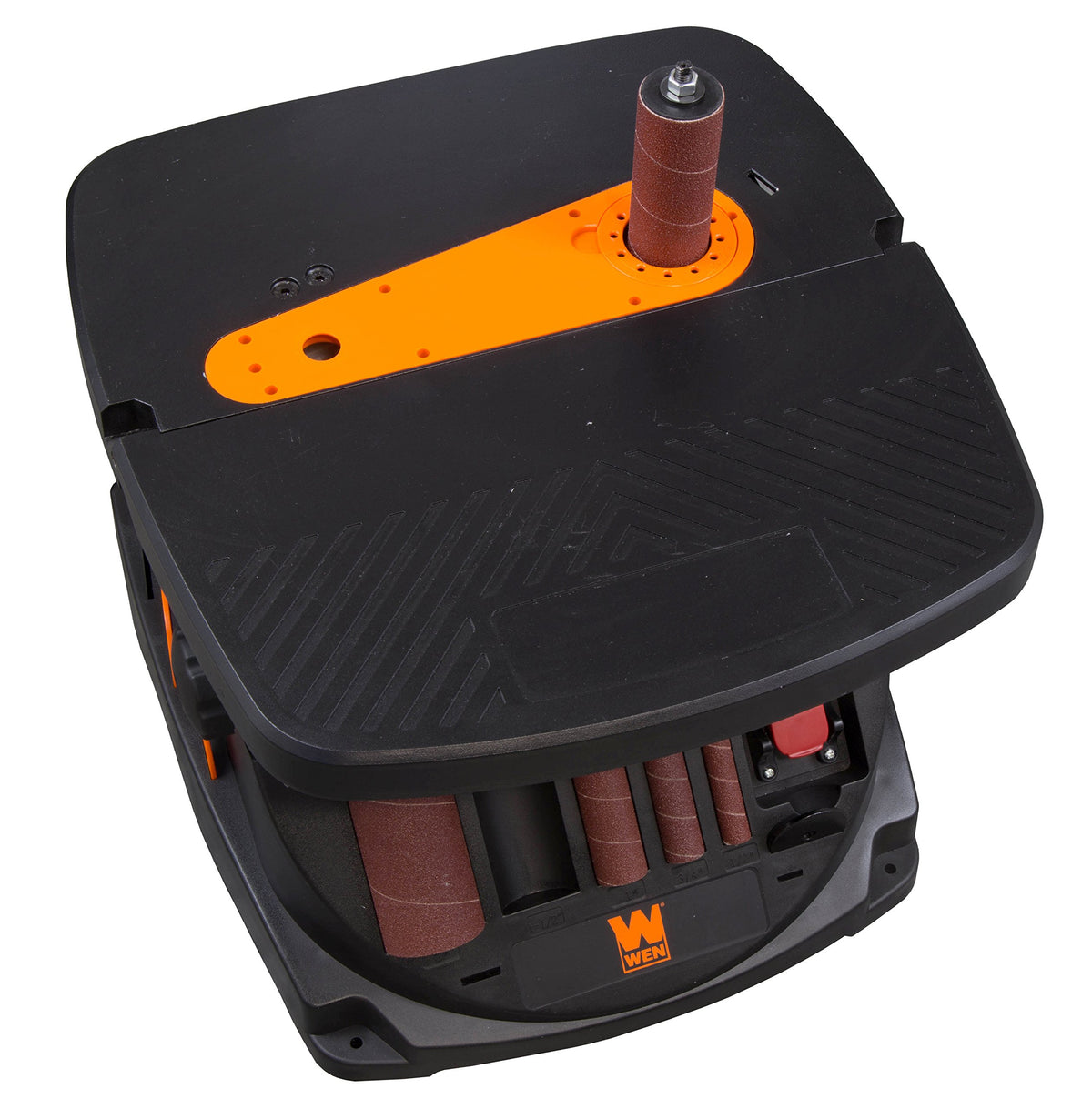

The built-in beveling work table accepts angled work, tilting from 0 to 45 degrees to help with bevels and angled surfaces. Onboard storage keeps throat plates, rubber sanding drums, table inserts, and other accessories neatly organized, so you can focus on the task at hand. A 1-1/2 inch dust port enables connection to a dust collection system, helping to minimize cleanup after finishing sessions.

• Beveling table tilts 0–45 degrees for angled edges

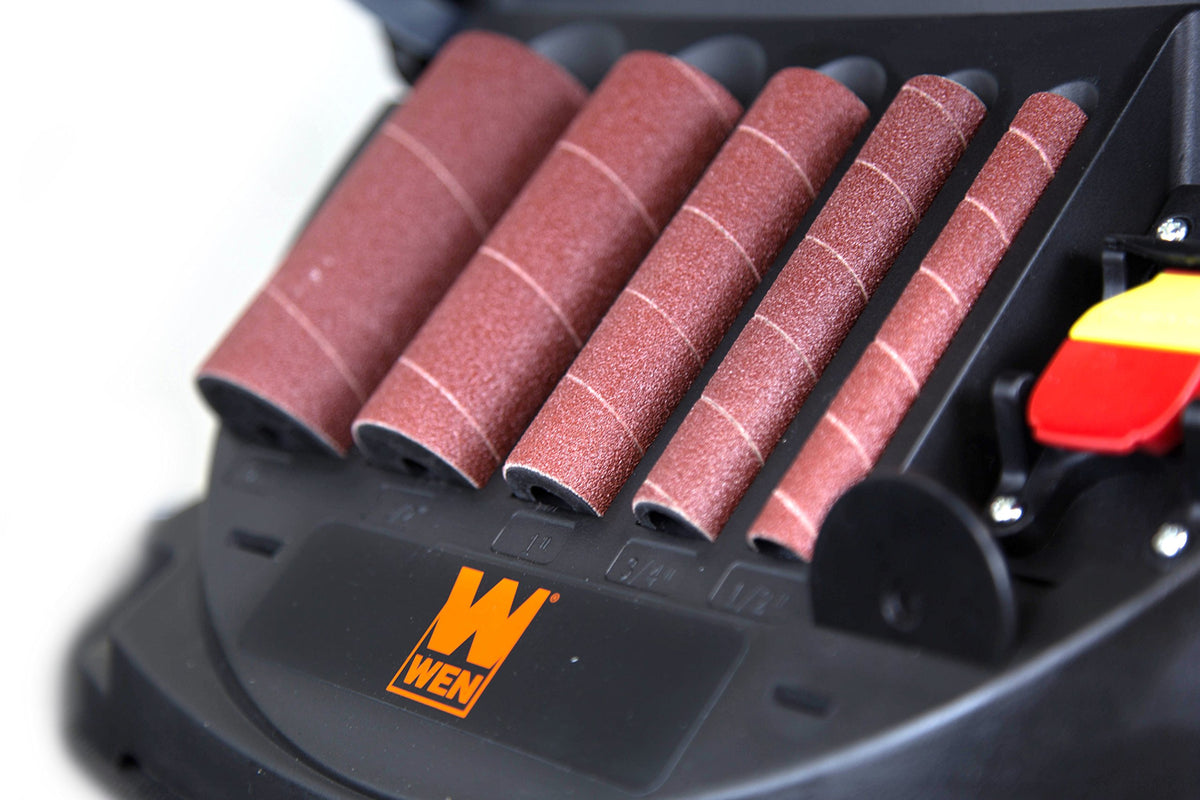

• Onboard storage for accessories and sanding drums

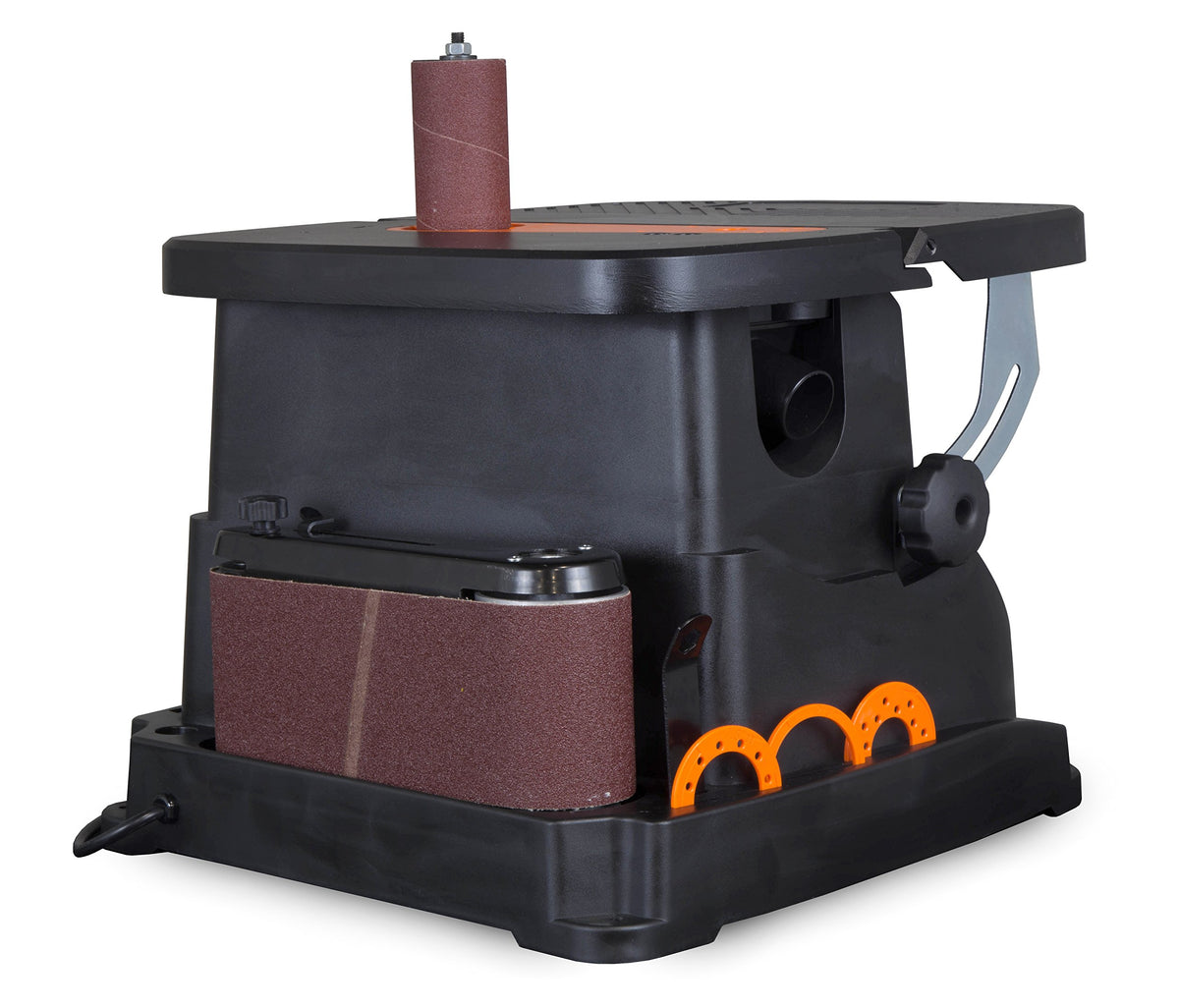

• 1-1/2 inch dust port for cleaner workshops

Included and ready to use

Every package includes six pieces of 80-grit sandpaper (one for the belt and one for each spindle size), plus four rubber sanding drums and several throat plates. The combination of belt and spindles supports a range of smoothing tasks on various shapes and profiles. The design also emphasizes user support with a nationwide service network and a friendly help line, helping you keep the workflow moving.

• Six 80-grit papers included (one per accessory)
• Beveling table, throat plates, and sanding drums included
• Service network and support line available

Why it matters for your shop

For projects with curves, arcs, or tight radii, this sander offers a practical, space-efficient solution. It helps you approach sculpted edges with controlled material removal, while the organized storage and dust management reduce clutter and cleanup times. While you may notice smoother transitions and cleaner finishes, outcomes depend on your material and technique.
