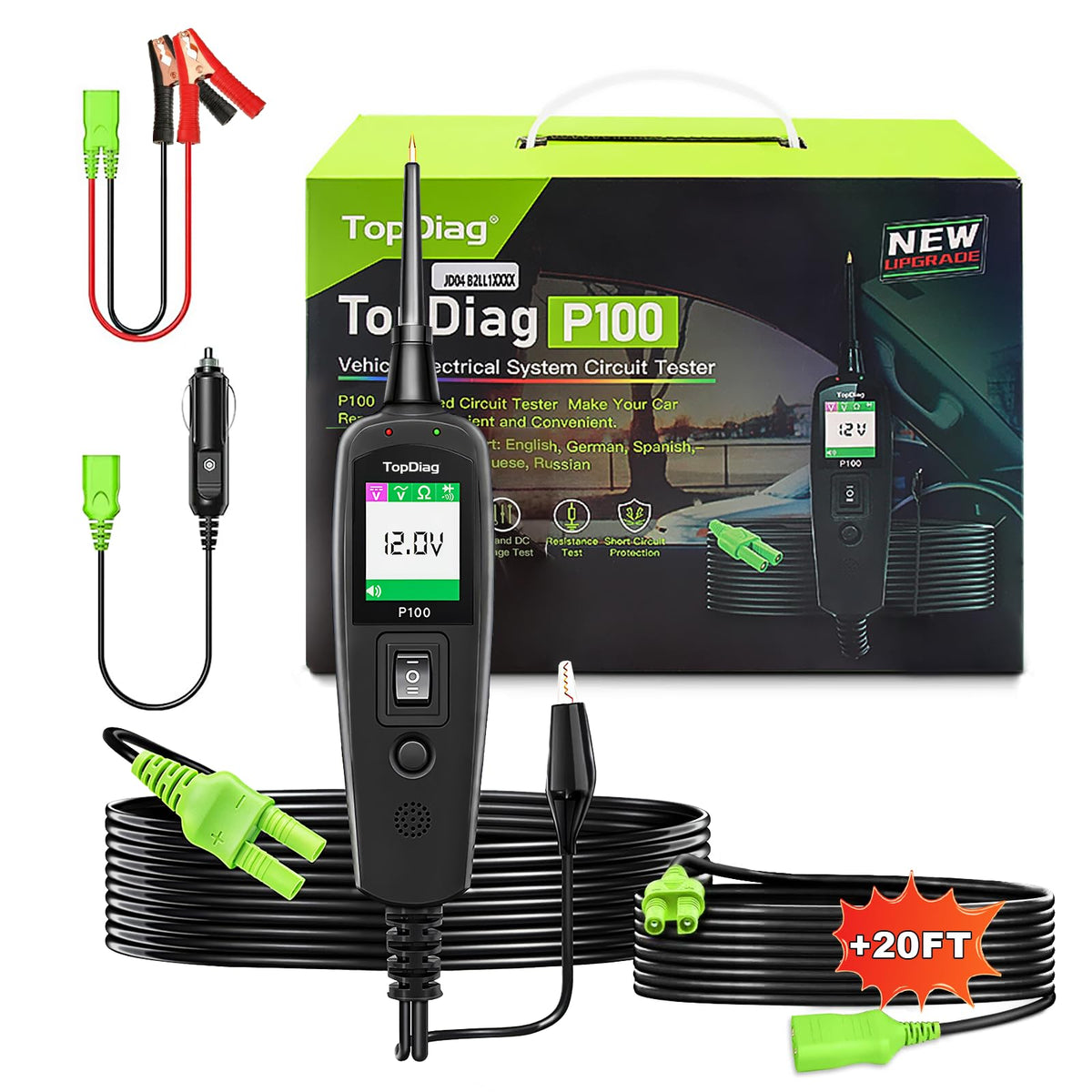

TopDiag P100 Circuit Tester – Automotive Power Circuit Probe, 40ft Cable, 12V/24V Car Diagnostic Tool

Overview

The TopDiag P100 Circuit Tester is a compact, handheld automotive diagnostic tool designed for quick, confident electrical checks. It delivers essential functionality at a value-friendly price, helping you move from uncertainty to a verifiable reading without a pile of tools.

With a total reach of 40 feet (a 20-foot built-in cable plus a 20-foot extension), it helps you access hard-to-reach harnesses and trailer wiring while keeping a single ground reference. The built-in flashlight improves visibility in dim engine bays, making small wires and connectors easier to locate.

Core capabilities

• Wide voltage range from 9V to 70V, compatible with 12V cars and 24V trucks
• DC voltage measurement with 0.1V resolution for precise checks
• AC voltage measurement with min/max, duty cycle, and frequency
• Resistance measurement between the probe tip and auxiliary ground
• Tone On/Off mode to help trace circuits in dim areas
• Total cable length supports 40ft reach when needed
• Built-in flashlight for night-time or dark work environments
• Robust battery clips designed for higher-load testing
• Internal short-circuit protection to help reduce risk during use

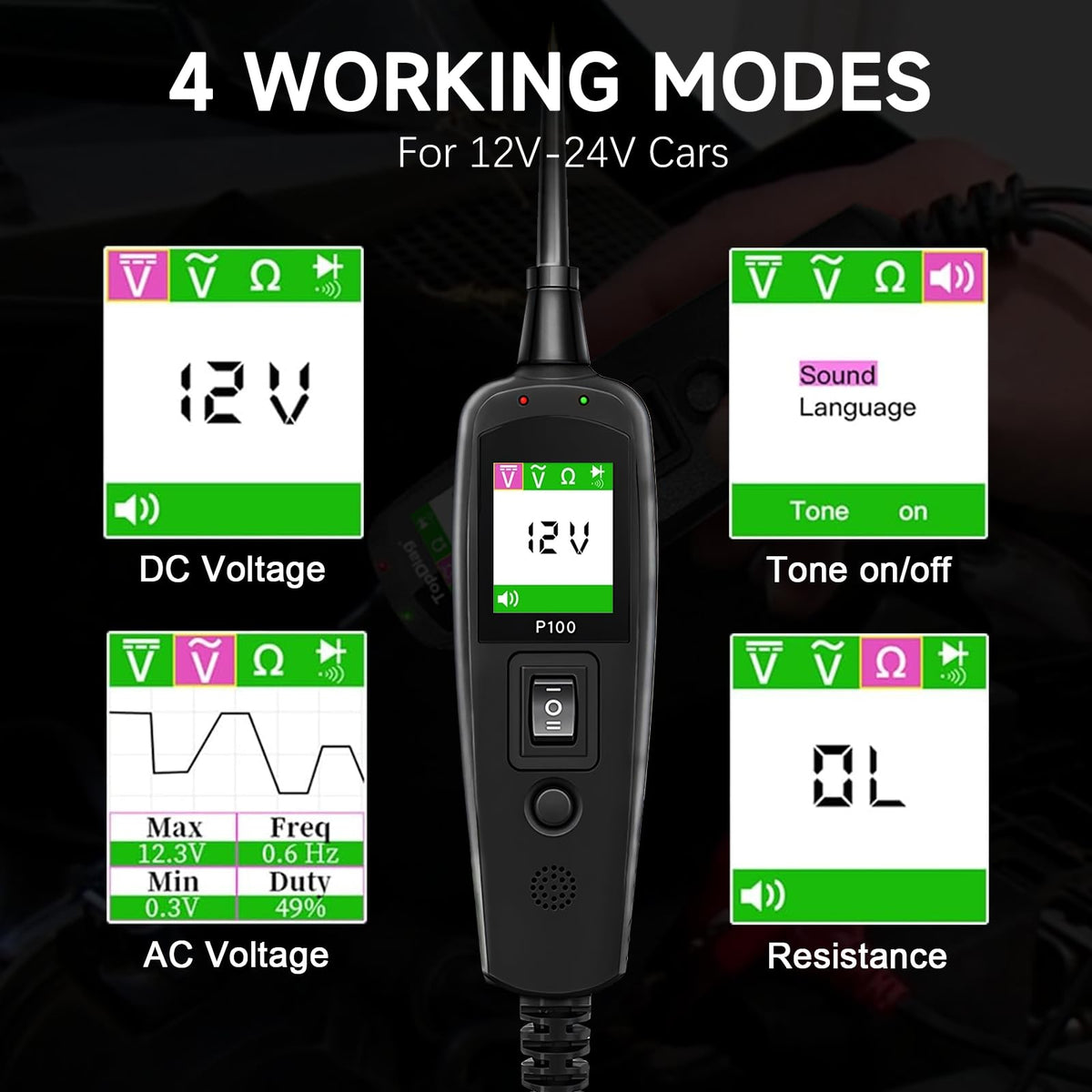

Working modes in detail

• DC Voltage mode for voltage readings with 0.1V precision
• AC Voltage mode showing min, max, duty cycle, and frequency
• Resistance mode to measure continuity between tip and ground
• Tone On/Off mode to audibly identify active circuits

Practical testing scenarios

In everyday workshops or DIY garages, use the P100 to verify power to components such as blower motors, power windows, wipers, and defrosters. The long reach helps you test rear harnesses and trailer connections without scrambling for a grounding point.

You can also activate components on/off for quick integrity checks, test circuits with live wiring, and employ the tone feature to follow a path through the harness in dim lighting.

Safety, setup, and compatibility

Designed with safety in mind, the P100 includes overload protection via an internal circuit breaker and sturdy battery clips. It supports a broad input range and is suitable for both personal DIY tasks and more involved automotive work.

Why choose TopDiag P100

For technicians and enthusiasts, the P100 blends practical capability with clear value. It can speed up diagnosis, reduce guesswork, and adapt to a wide range of wiring tasks. Consider it a versatile helper with potential benefits across many automotive projects.
