TANYO 2-in-1 Shelf Pin Jig & Hinge Jig — Aluminum Cabinet Drill Guide

2-in-1 Precision for Cabinets

The TANYO 2-in-1 Shelf Pin Jig and Hinge Jig combines two essential cabinet tasks into a single, user-friendly tool. Built for DIY enthusiasts and seasoned woodworkers alike, this aluminum fixture helps you place shelf holes and align hinges with dependable accuracy. The design emphasizes clamping and fixing actions that streamline your project flow, so you can focus on achieving clean, professional results without a steep learning curve.

What You Get

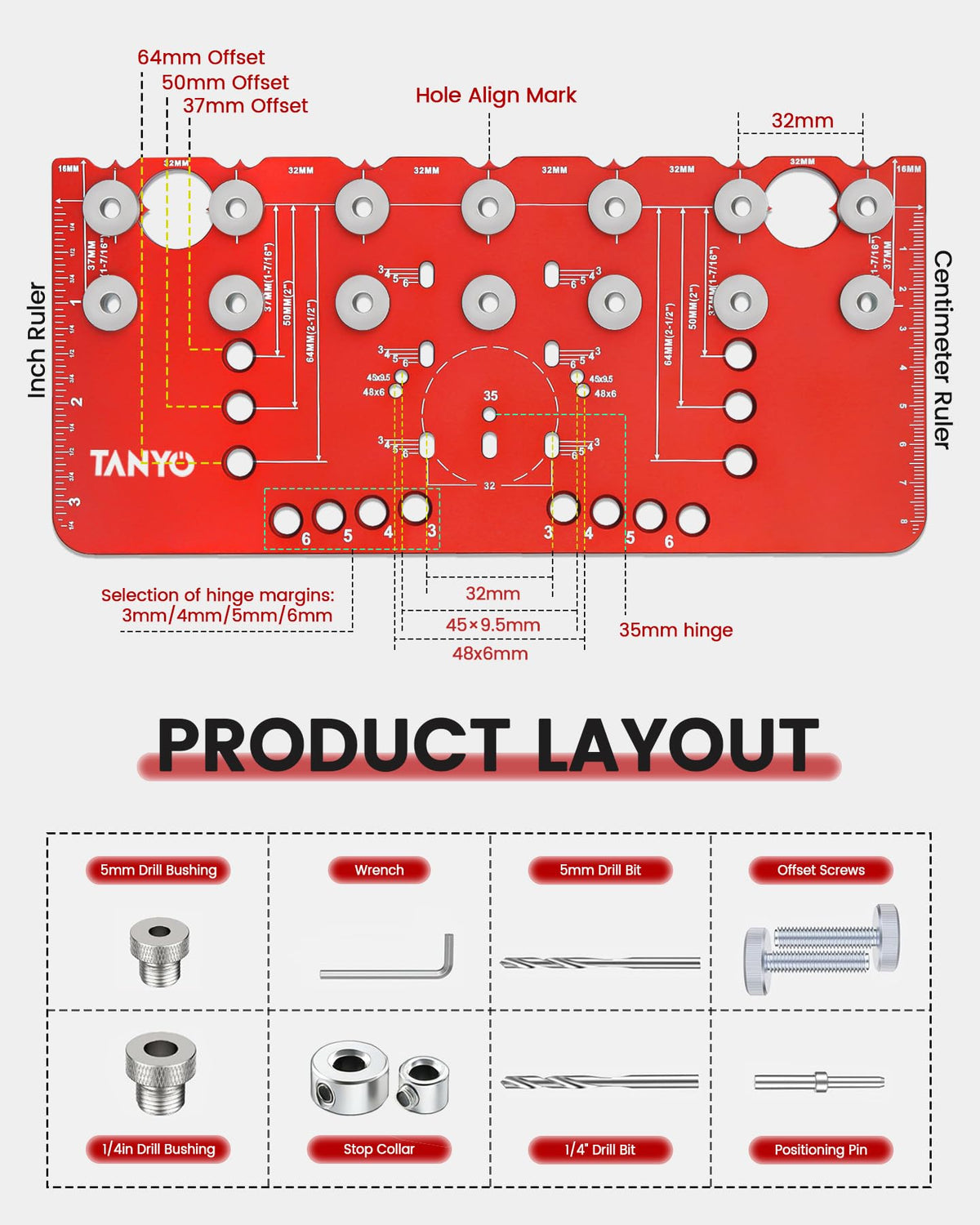

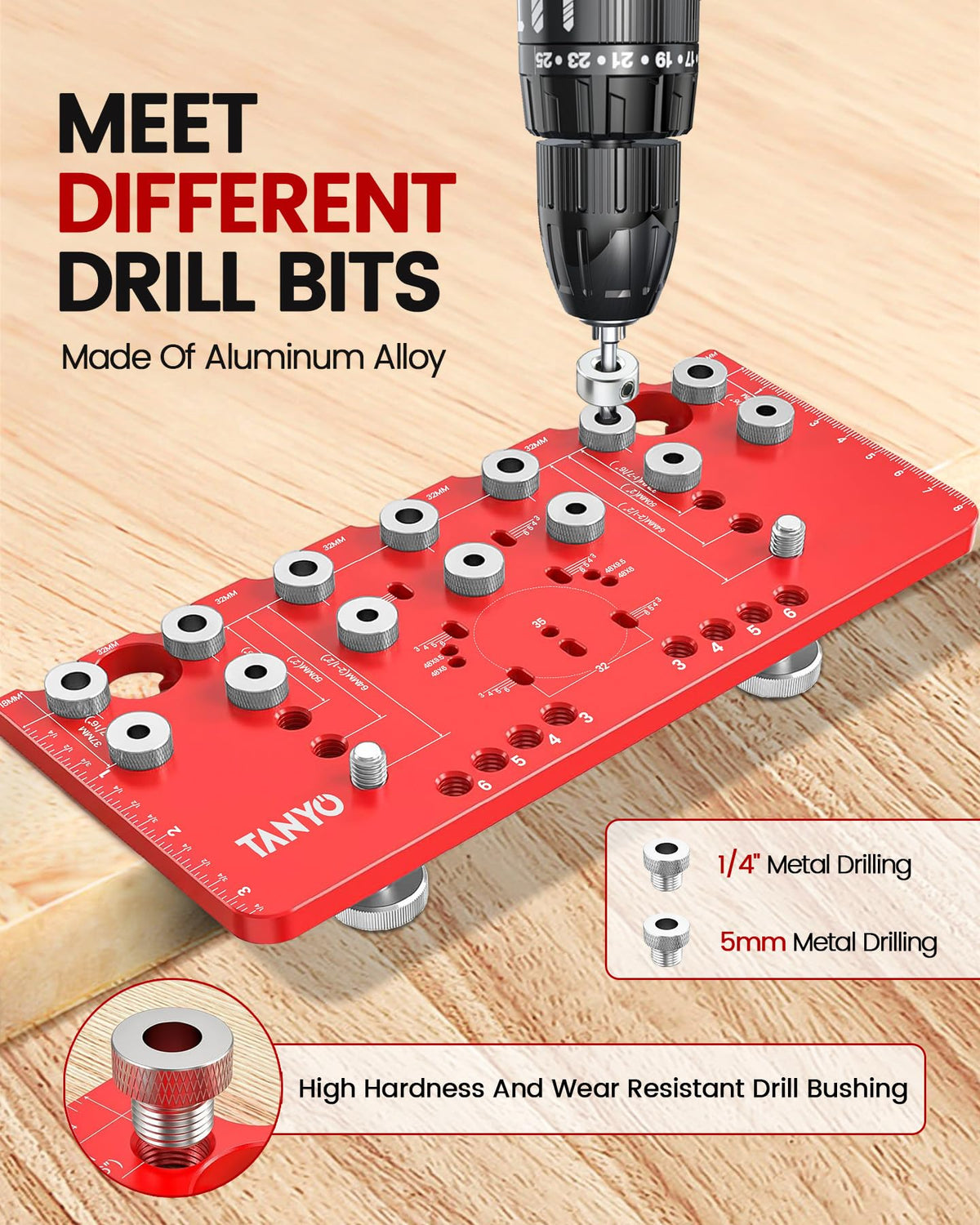

• Full metal, aluminum shelf jig with a φ35mm hinge module for flexible door configurations.

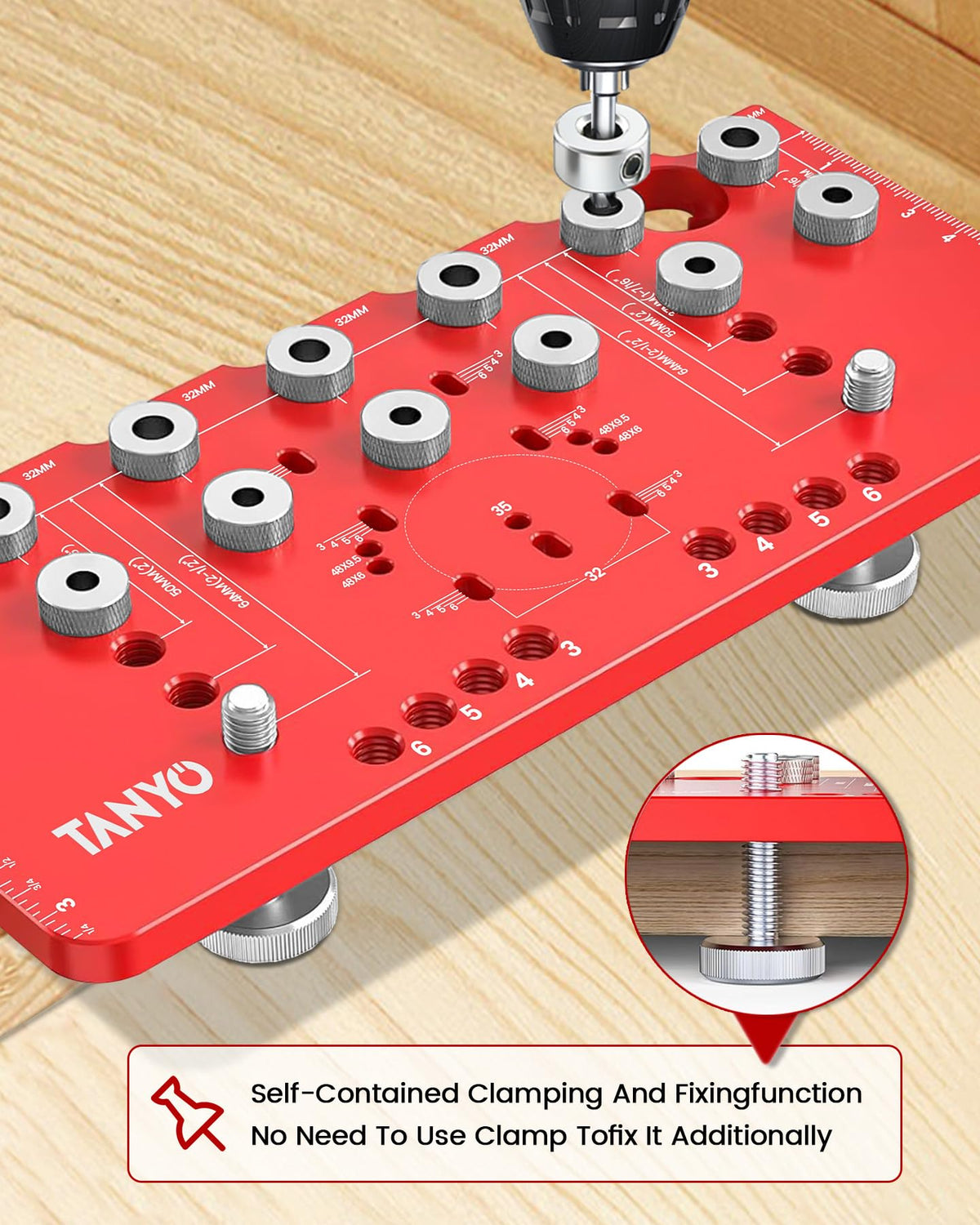

• 14 removable drill sleeves: 7 for 1/4" bits and 7 for 5mm bits, plus a 1/4" and a 5mm drill bit included.

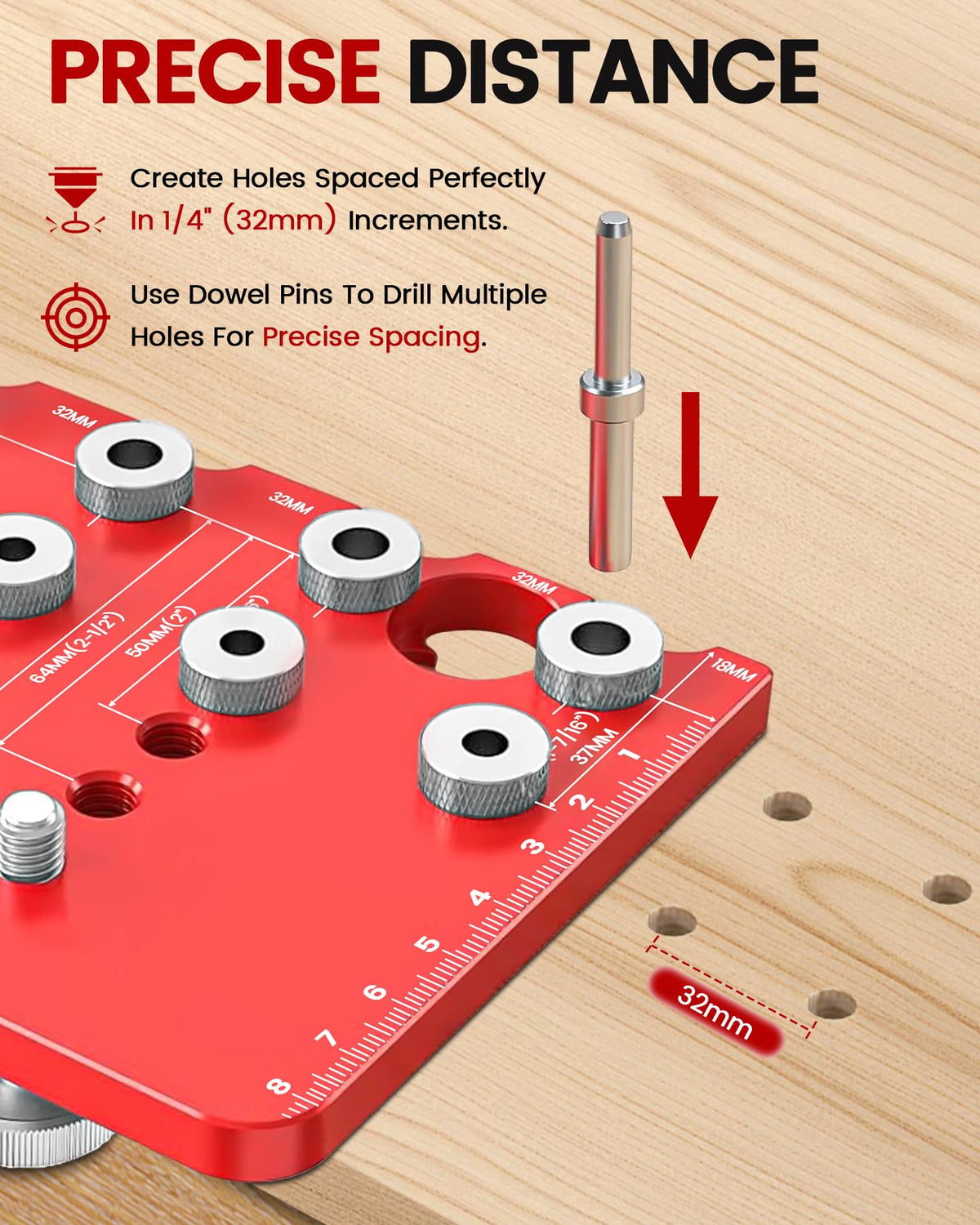

• Precise double-sided scales that speed up accurate hole spacing and alignment.
• Dowel pin for continuous drilling of shelf pin holes, reducing interruptions during work.

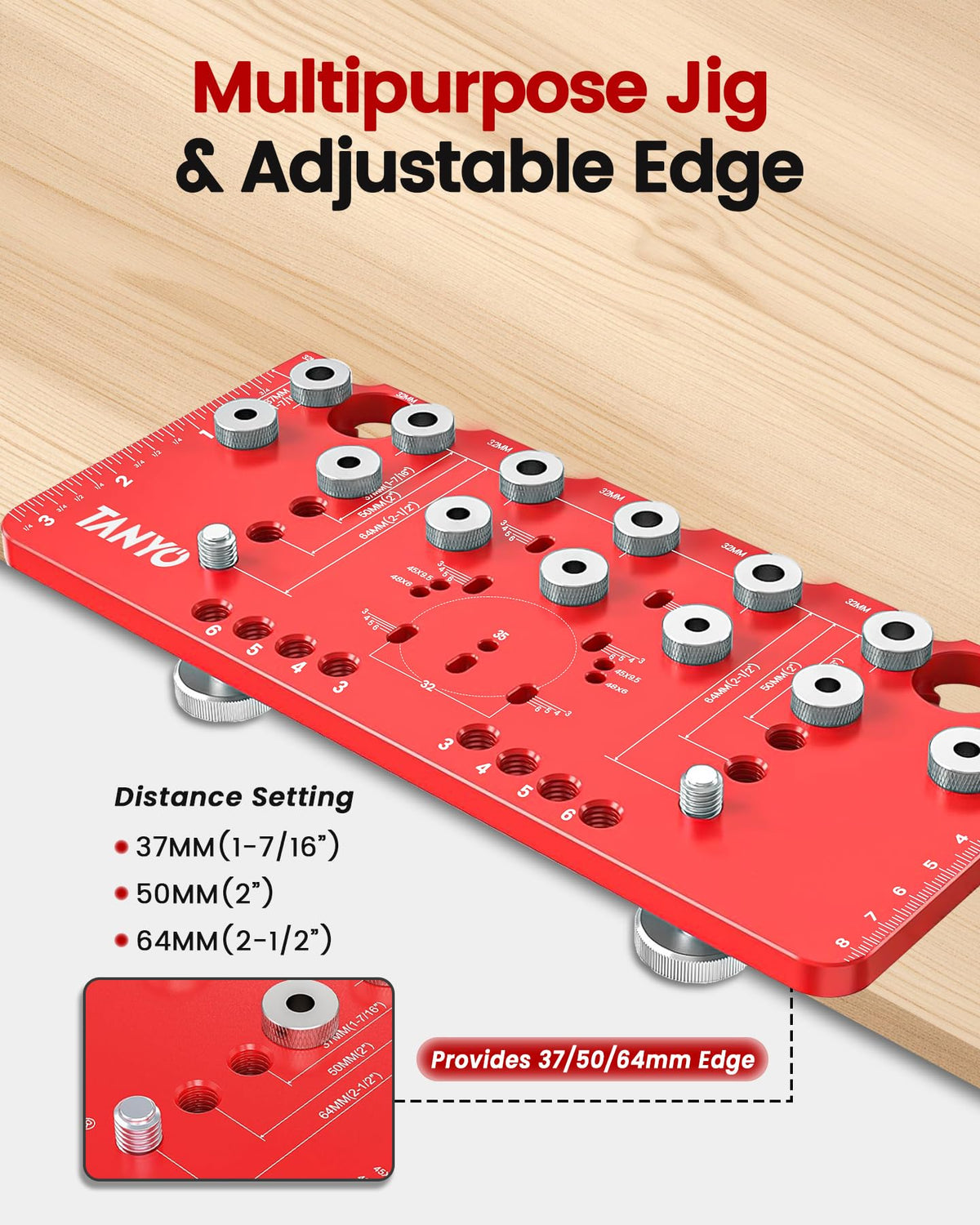

• Offset adjustability at 37/50/64mm to position shelf edges with precision.
• Wide hinge compatibility, including common US concealed hinges (35mm straight/half wrap).

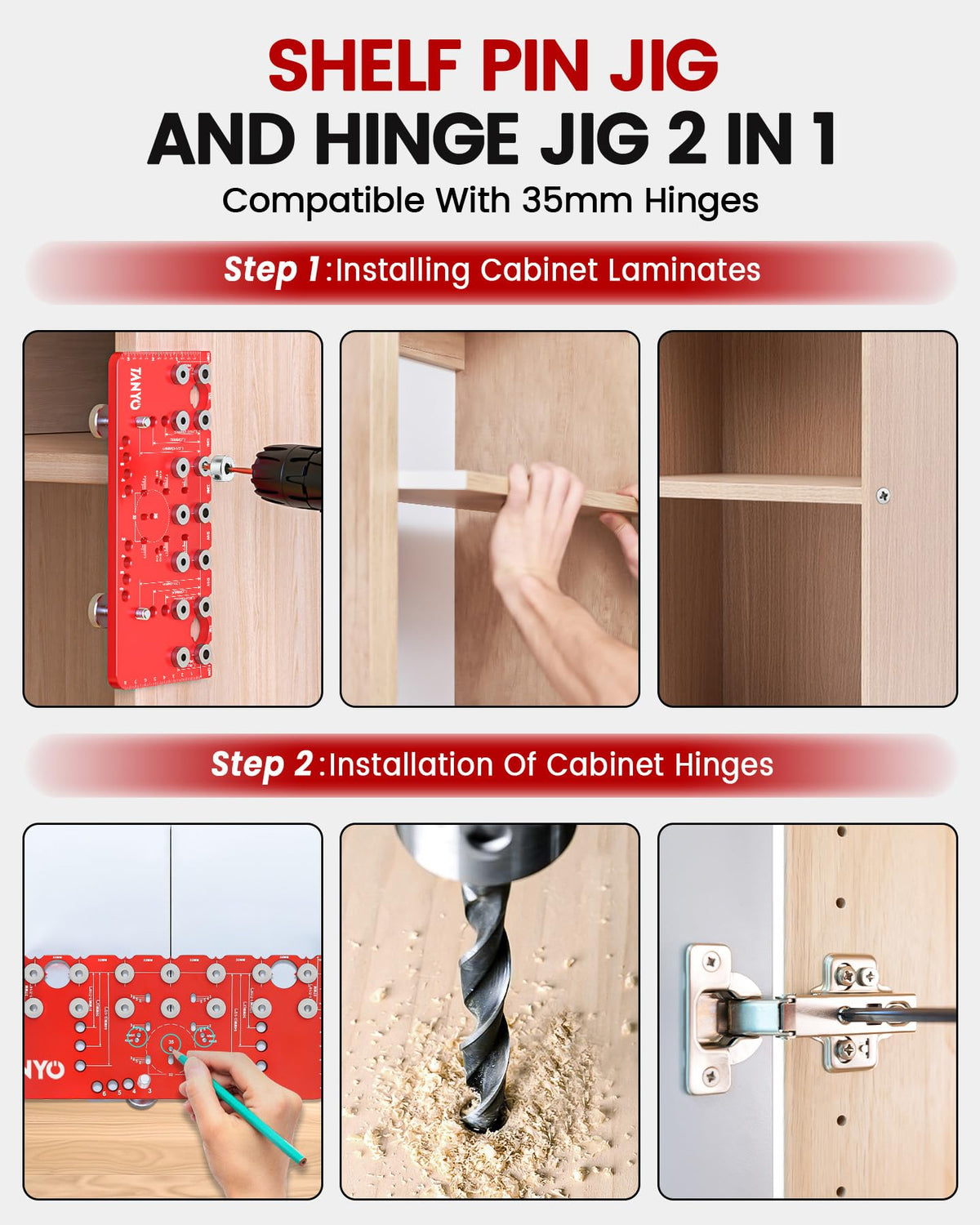

• adjustable hinge margin settings (3/4/5/6mm) for versatile project configurations.
• All-metal shelf pins and hinge clamps with a wear-resistant surface for repeated use.

Why It Helps Your Projects

This tool shines in real-world cabinet installs, shelving upgrades, and home decor projects where consistent hole spacing and clean hinges matter. The 2-in-1 approach reduces tool clutter and simplifies workflows, while the solid aluminum construction provides a sturdy feel and long-lasting performance. Use it to achieve neat, evenly spaced shelves or to align doors with confidence, knowing there are adjustable margins and scalable offsets to match your design.

Practical Uses and Scenarios

Sketch a cabinet layout, clamp the jig in place, and drill through pre-set sleeves with minimal drift. The 11/4" (6mm) hole spacing and continuous dowel pin facility support fast, repeatable shelf pin placement. The hinge module and margin adjustments expand compatibility across different door styles, making it a versatile companion for DIY, woodworking, and home renovation projects.

Key Specifications at a Glance

• 2-in-1 functionality: shelf pin jig plus hinge jig in one tool

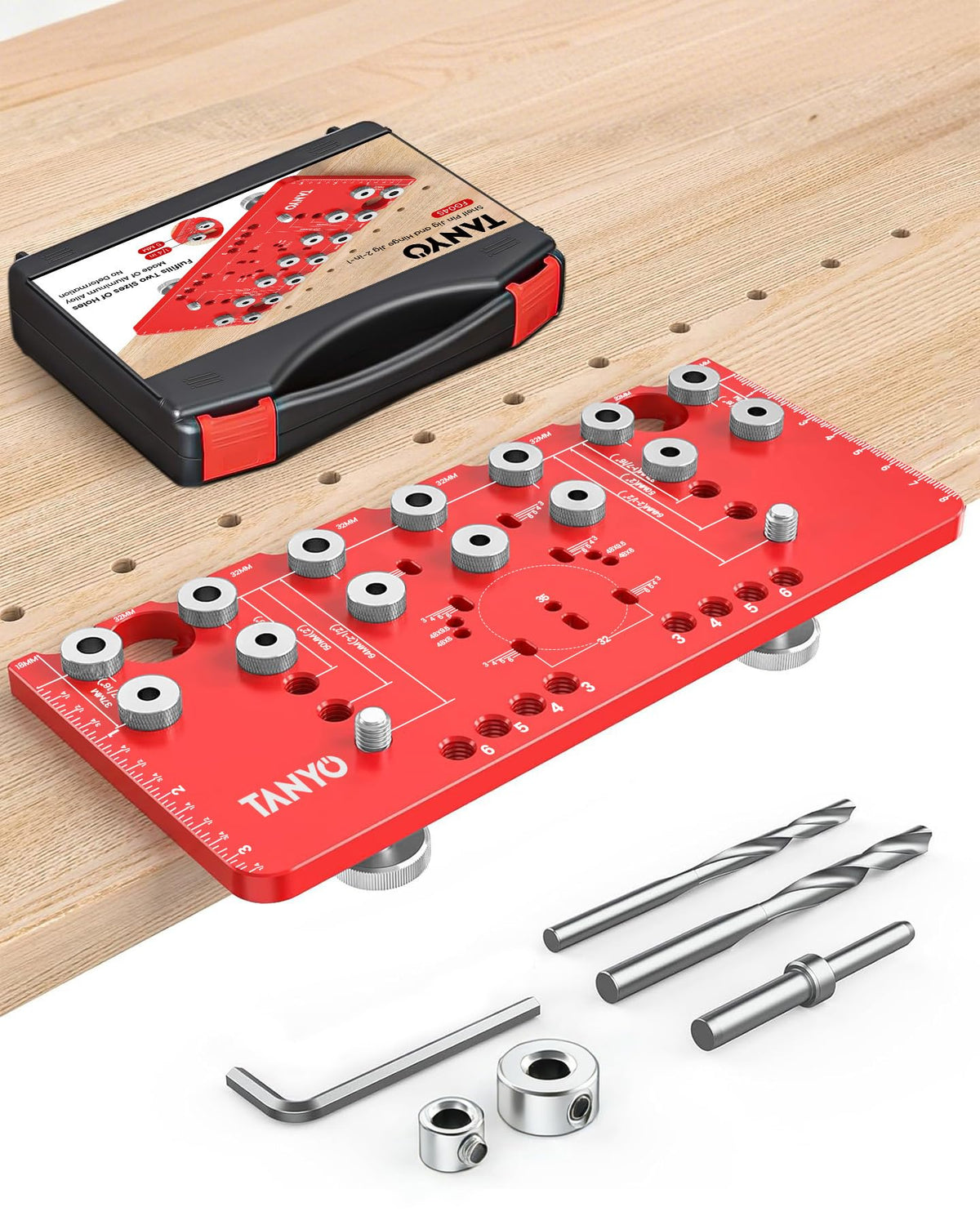

• All-metal aluminum body for durability and smooth operation
• φ35mm hinge module, suitable for common concealed hinges
• 14 removable drill sleeves (7 x 1/4" and 7 x 5mm); includes 1/4" and 5mm bits
• Double-sided scales for quick, accurate spacing
• Offset options: 37/50/64mm
• Dowel pin for continuous hole drilling
• Adjustable hinge margins: 3/4/5/6mm
• Wear-resistant surface and all-metal shelf pins/hinge clamps
