Square D Homeline 20A CAFCI/GFCI Plug-On Neutral Breaker | Schneider Electric

Overview

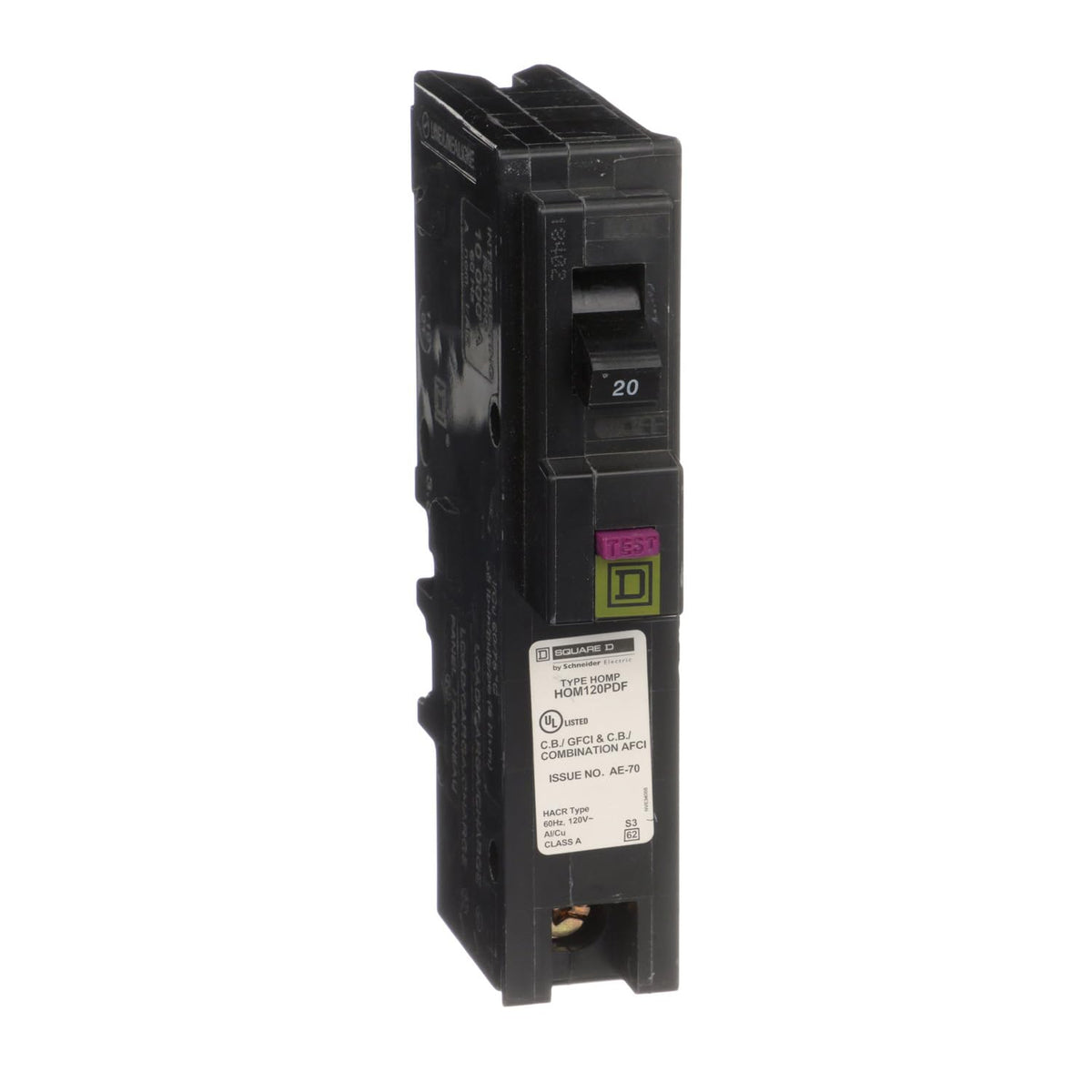

Square D by Schneider Electric introduces the Homeline 20 amp single-pole plug-on neutral dual function circuit breaker, combining CAFCI and GFCI protection in a single, space-saving device. This design aligns with evolving electrical codes that call for combined arc fault and ground fault protection on common kitchen and laundry circuits. By consolidating protection into one compact breaker, it helps simplify installations and reduce the need for multiple components on your panel.

The plug-on neutral connection directly contacts the neutral bar, trimming the number of wiring connections and eliminating pigtails that can crowd gutter space. In addition, the included neutral clip minimizes clutter, contributing to a cleaner, more organized panel layout. Like other Square D CAFCI breakers, it features time saver diagnostics to deliver circuit information quickly at the push of a button, potentially speeding troubleshooting and verification during maintenance or upgrades.

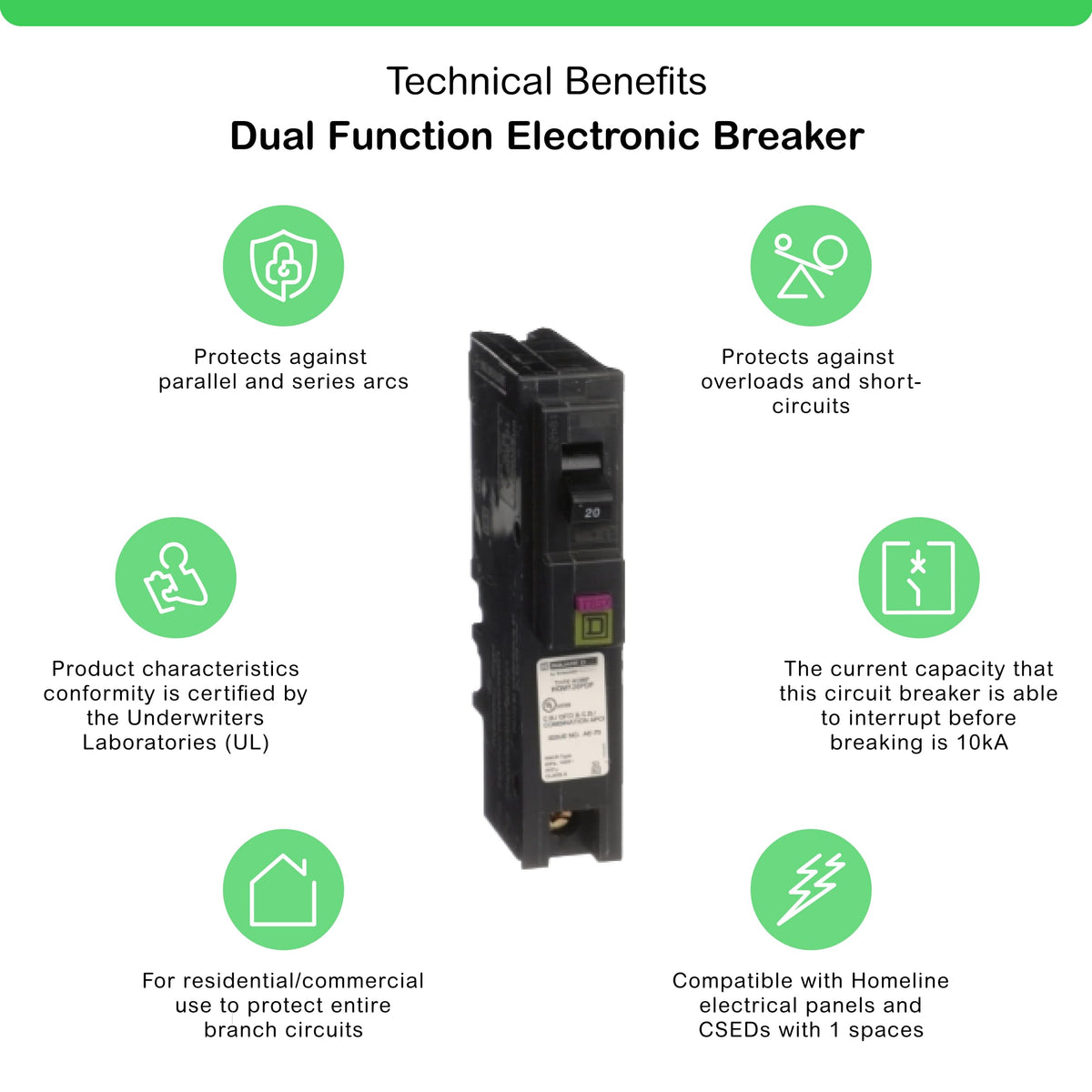

Key benefits

• Dual protection: CAFCI and GFCI in one 20 A, 1-pole device for kitchens and laundry circuits.
• Space- and labor-saving design: plug-on neutral reduces connections and eliminates pigtails, freeing gutter space.
• Fast installation: direct neutral bar connection simplifies wiring and speeds panel work.
• Code-ready features: 120 VAC operation with a 10,000 AIR rating supports reliable arc fault protection.
• Diagnostics at a glance: built-in time saver diagnostics help identify circuit status quickly.

Compatibility and installation guidance

Designed for Homeline Series 4 and newer load centers, this breaker is ready for modern panels and residential layouts. It is rated for 120 VAC and supports standard kitchen and laundry circuit protection. Always follow local codes and manufacturer guidelines during installation.

Real-world use cases

• Kitchens undergoing remodels can upgrade protection without swapping multiple devices, reducing panel clutter.
• Laundry room circuits gain both arc fault and ground fault protection in a single unit, simplifying upgrades.
• Smaller panels benefit from the compact footprint and time-saving neutral connection during panel optimizations.

What to expect

Expect a straightforward, space-efficient installation with clear diagnostics and a compact footprint that fits Homeline panels. This dual function breaker aims to streamline protection for essential circuits while meeting current code expectations.
