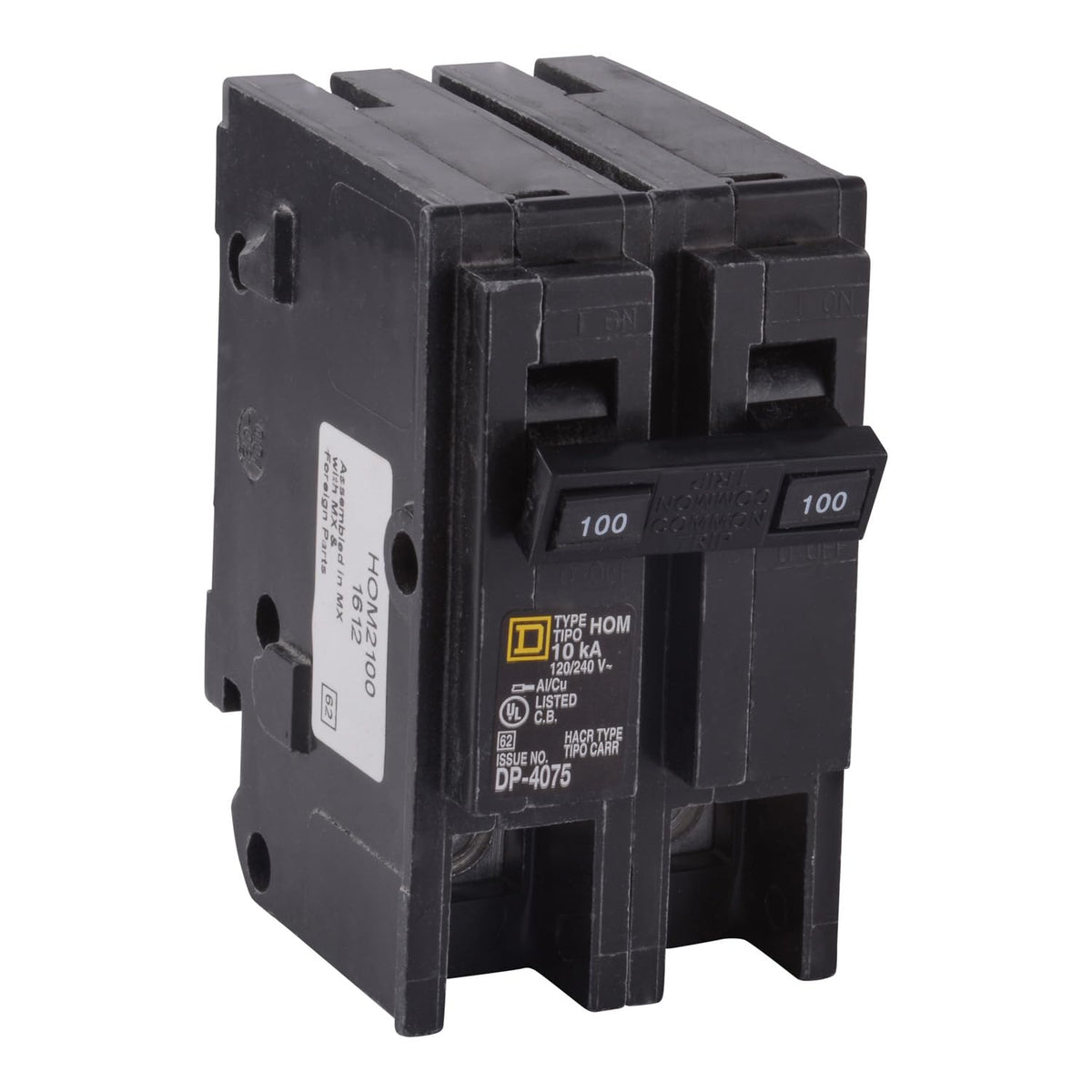

Square D Homeline 100A 2-Pole Breaker – 120/240V, 10kA, Plug-In

Overview

Discover the Square D Homeline 100 Amp Circuit Breaker from Schneider Electric—a compact, dependable protection device designed for modern residences. With a two-space footprint in Homeline panels, it helps guard 120/240V circuits against overloads and short circuits while maintaining a tidy, organized panel appearance.

The plug-on neutral design simplifies installation, allowing quick, tool-free mounting in compatible Homeline load centers and CSEDs. This 100A, two-pole unit is well suited for larger appliances that draw substantial power, such as clothes dryers, ranges, furnaces, and air conditioners, offering a practical balance of performance and space efficiency.

Key advantages for homes

• Space-saving footprint that fits into two panel spaces with fast plug-in mounting
• High breaking capacity up to 10,000 AIC for robust surge protection on demanding circuits
• UL-listed and HACR-rated for standard residential circuit protection
• 120/240V AC operation with a 100A rating suitable for higher-demand loads
• Box lugs accept copper or aluminum wire across a broad range (4 AWG to 2/0 AWG)

Installation and compatibility

• Designed for use with Square D Homeline load centers and CSED devices for seamless integration

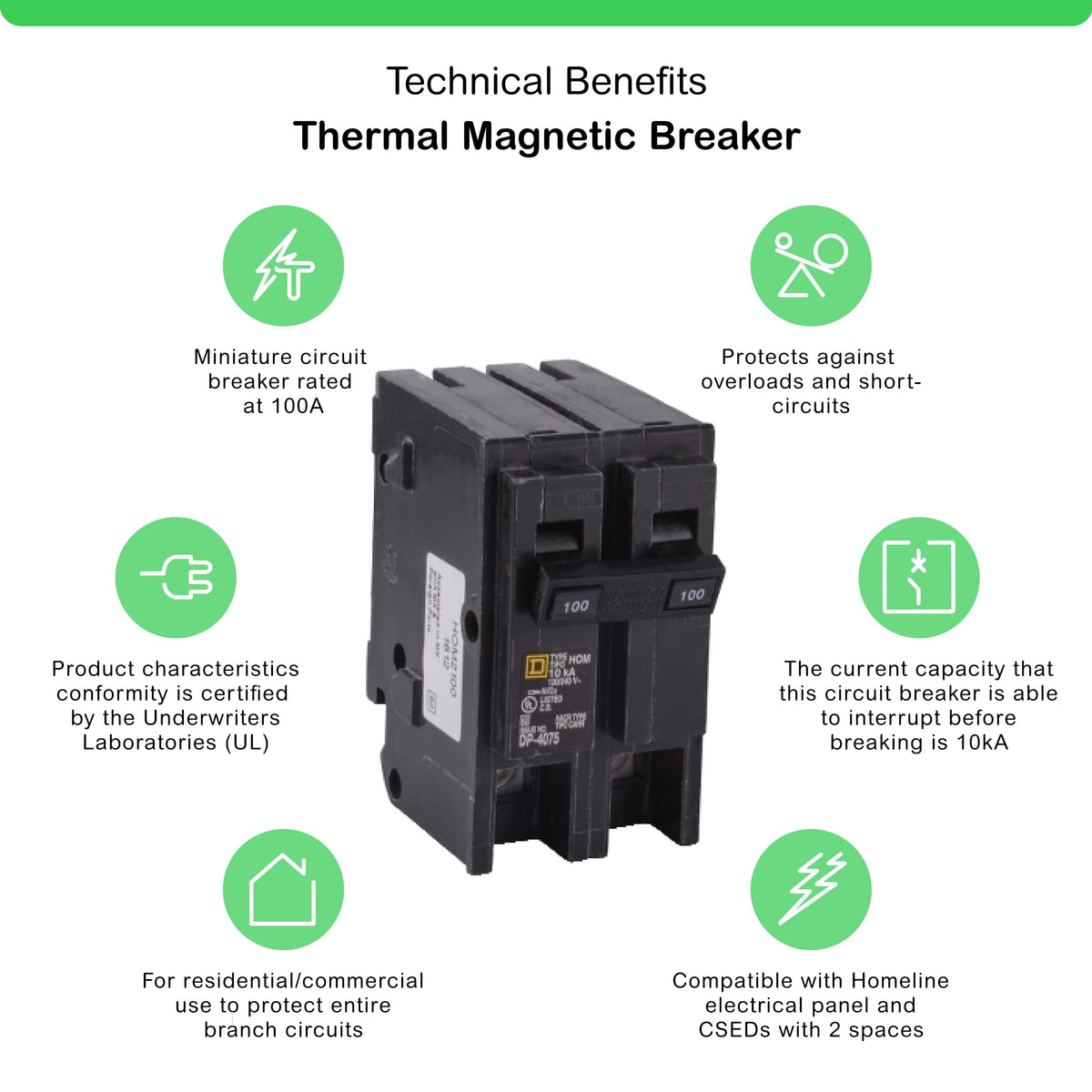

• Plug-on neutral design reduces wiring steps and speeds up panel upgrades

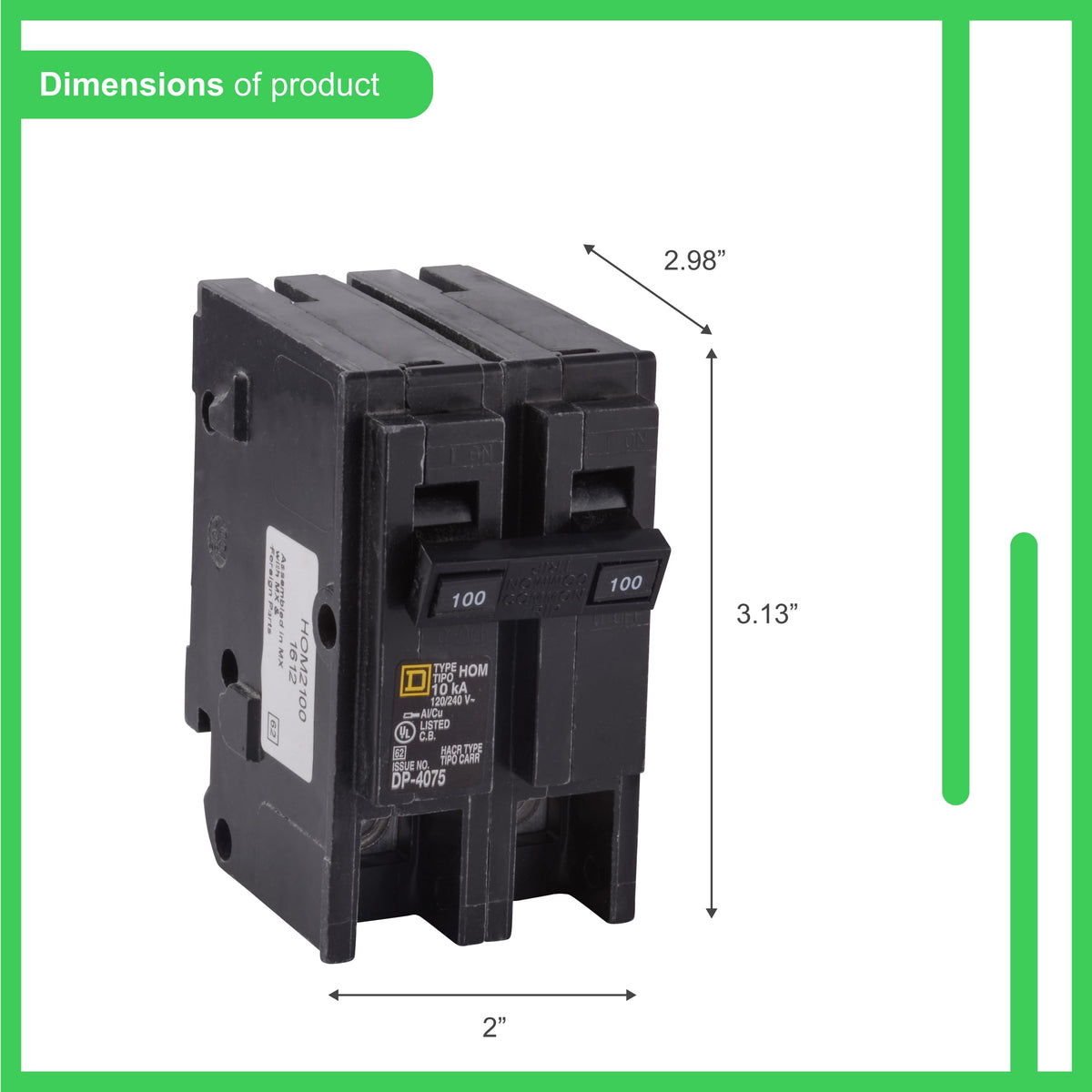

• Compact dimensions (3.13" H x 2" W x 2.98" D) help conserve panel space
• Intended for residential applications and backed by UL-listed safety and HACR rating

Specifications at a glance

• Current rating: 100A
• Poles: 2
• Voltage: 120/240V AC
• Breaking capacity: 10kA
• Type: Standard, plug-on neutral
• Wire range: 4 AWG to 2/0 AWG copper or aluminum
• Dimensions: 3.13 in H x 2 in W x 2.98 in D
• Certifications: UL-listed, HACR-rated

Residential electronics vary by home setup, but many users find this breaker to be a practical choice for larger circuits while keeping panel layouts clean and straightforward.
