SICWOOD Slab Flattening Router Bit – 1/2 in Shank, 2 in Diameter, 6-Wing Carbide Inserts for CNC Spoilboard Surfacing

Overview

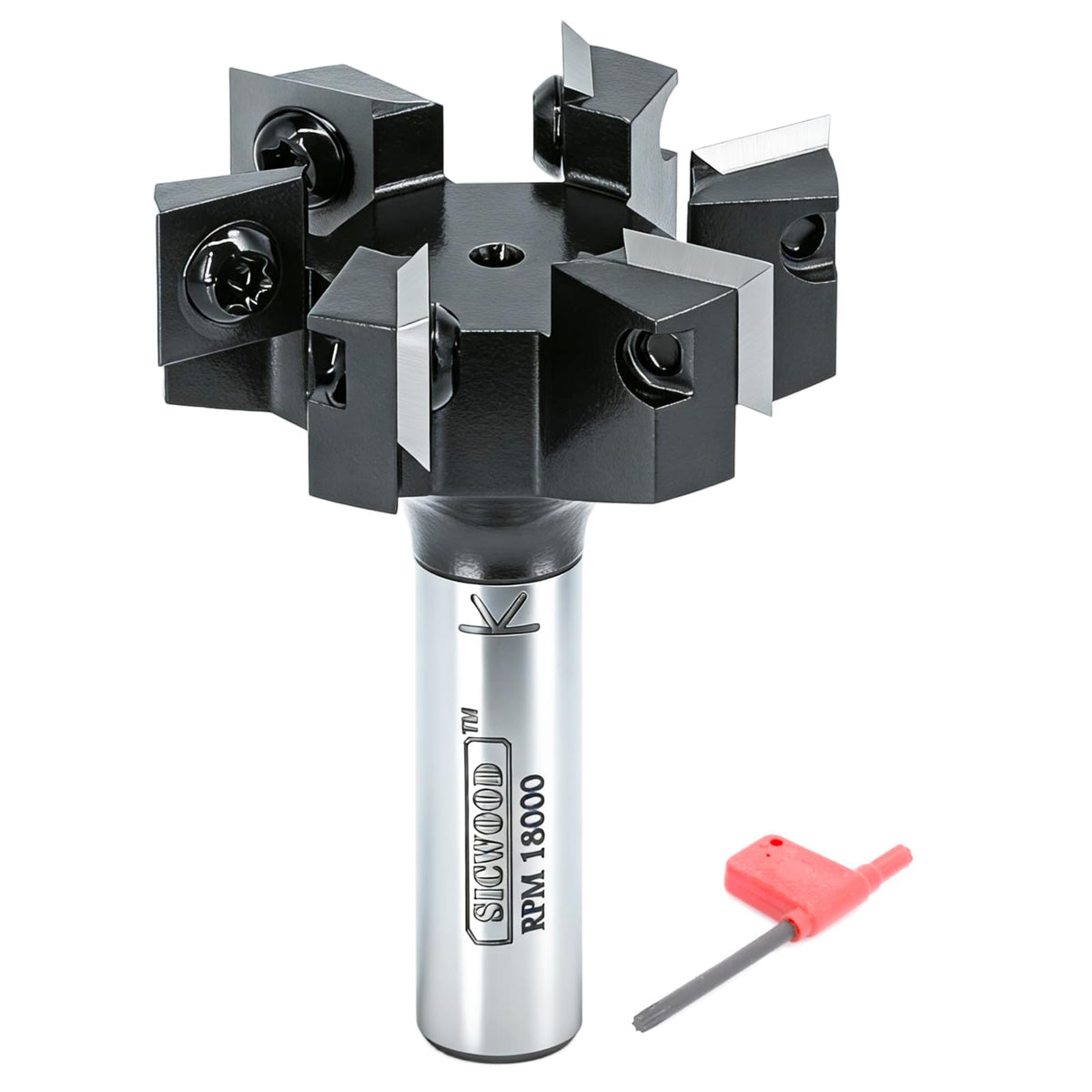

The SICWOOD Slab Flattening Router Bit is designed to help you achieve true, flat surfaces on slabs and spoilboards with confidence. Built for router sleds and CNC spoilboard setups, this bit features a 1/2 in shank, a 2 in cutting diameter, and a six-wing carbide design for efficient material removal. The replaceable carbide inserts measure 12 x 12 x 1.5 mm, and the tool is rated up to 18,000 RPM to support fast, consistent cuts without sacrificing surface quality.

Key Benefits

• Wide-cutting area: The 2 in diameter covers more surface per pass for quicker leveling.
• Six-wing design: Optimizes cut quality for smoother slab surfaces and reduced chatter.

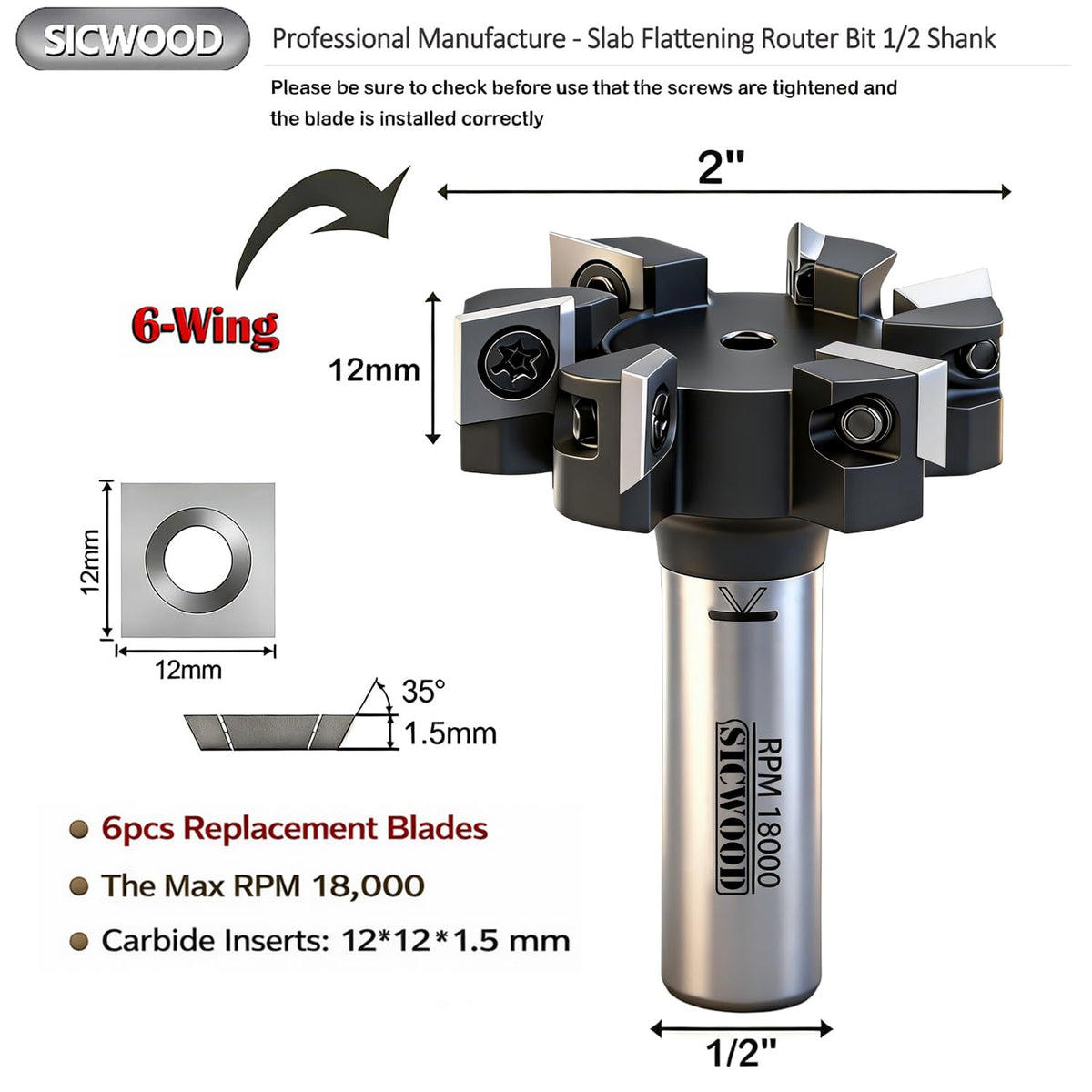

• Durable, replaceable inserts: 12 x 12 x 1.5 mm carbide inserts extend life and maintain sharpness.
• High-speed capability: Max RPM of 18,000 enables efficient material removal on appropriate machines.
• Material versatility: Suitable for MDF, plywood, chipboard, plastic, acrylic, epoxy resins, and both hardwoods and softwoods.
• Economical solution: Replace the inserts rather than the whole bit to lower running costs over time.

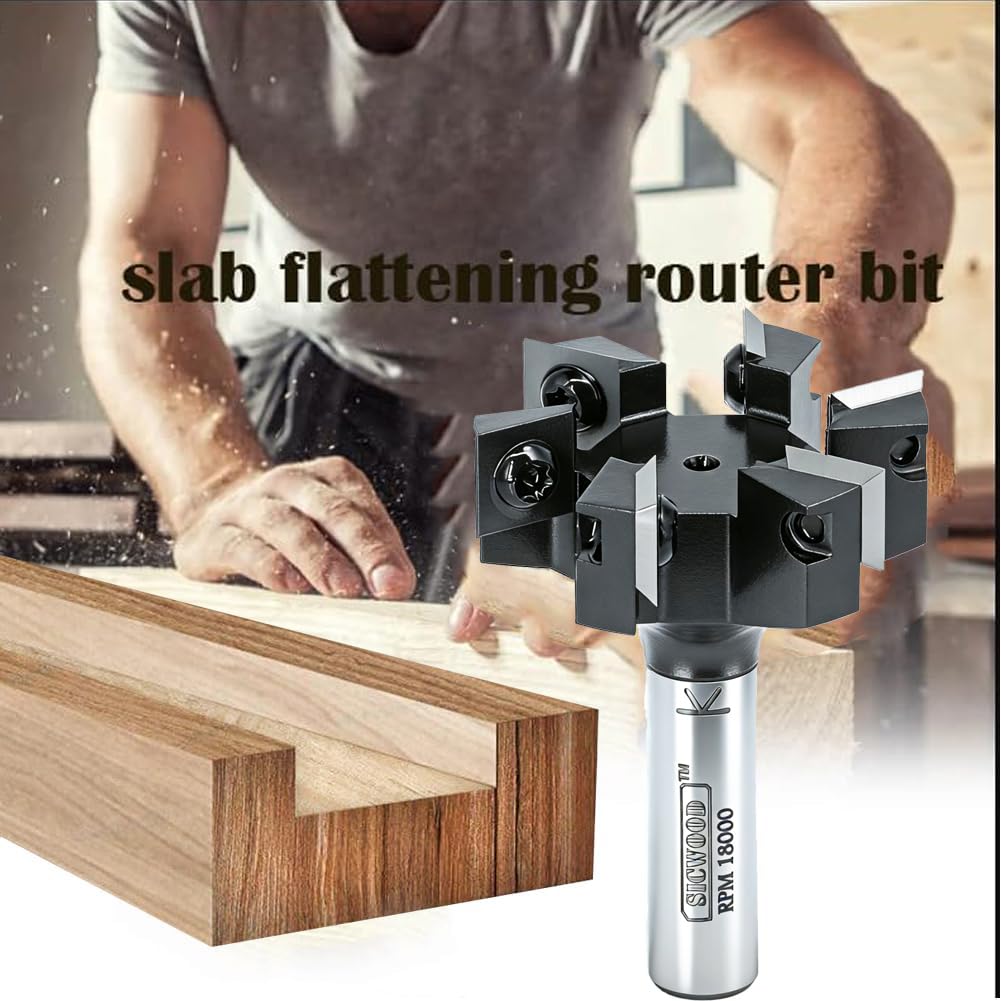

• Versatile applications: Works for planing, rabbeting, and slab leveling on router sleds or CNC machines.

What to Expect in Use

In practical use, the SICWOOD bit tends to deliver a clean, consistent surface with fewer passes, particularly on flat slabs or spoilboard surfaces. The 6-wing configuration helps with material evacuation and reduces heat buildup, contributing to a steadier cut and smoother finish. The 1/2 in shank fits common routers, while the 2 in cutting diameter covers substantial surface areas, helping to speed up workflow on larger projects.

Usage Tips and Safety

• Important: Before operation, verify all six carbide inserts are flat and securely tightened. Small deviations (around 1/32 in) can cause imbalance and vibration.
• Start at a conservative speed: test-run below 10,000 RPM, then increase gradually toward the rated 18,000 RPM.
• Ensure your router has adequate power: use a router with at least 2 HP for safe operation.
• Set up on a stable, squared router sled with solid rails and secure fasteners to prevent movement during planning.

Material and Setup Notes

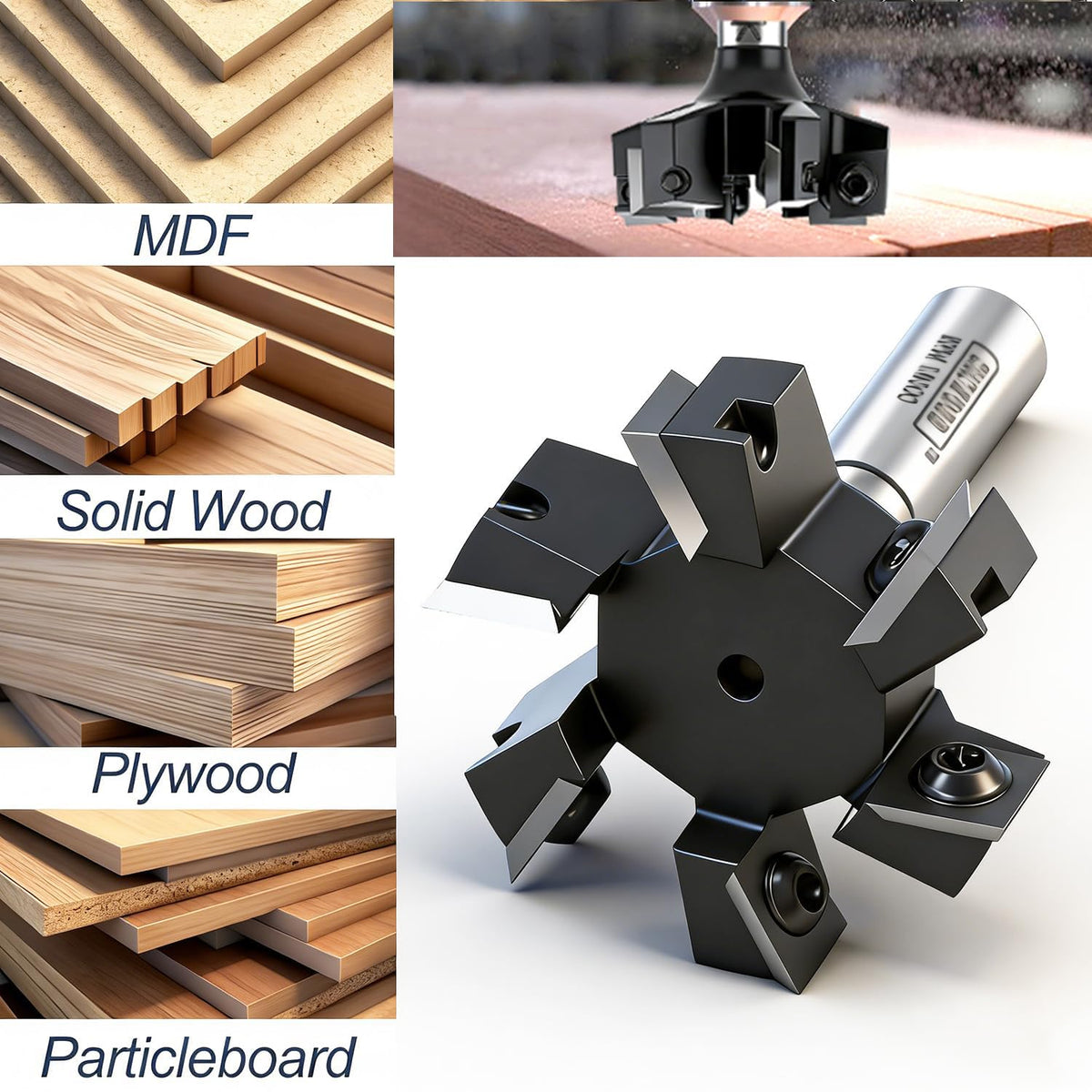

• Compatible materials include MDF, plywood, chipboard, plastic, acrylic, epoxy resins, as well as hardwood and softwood.

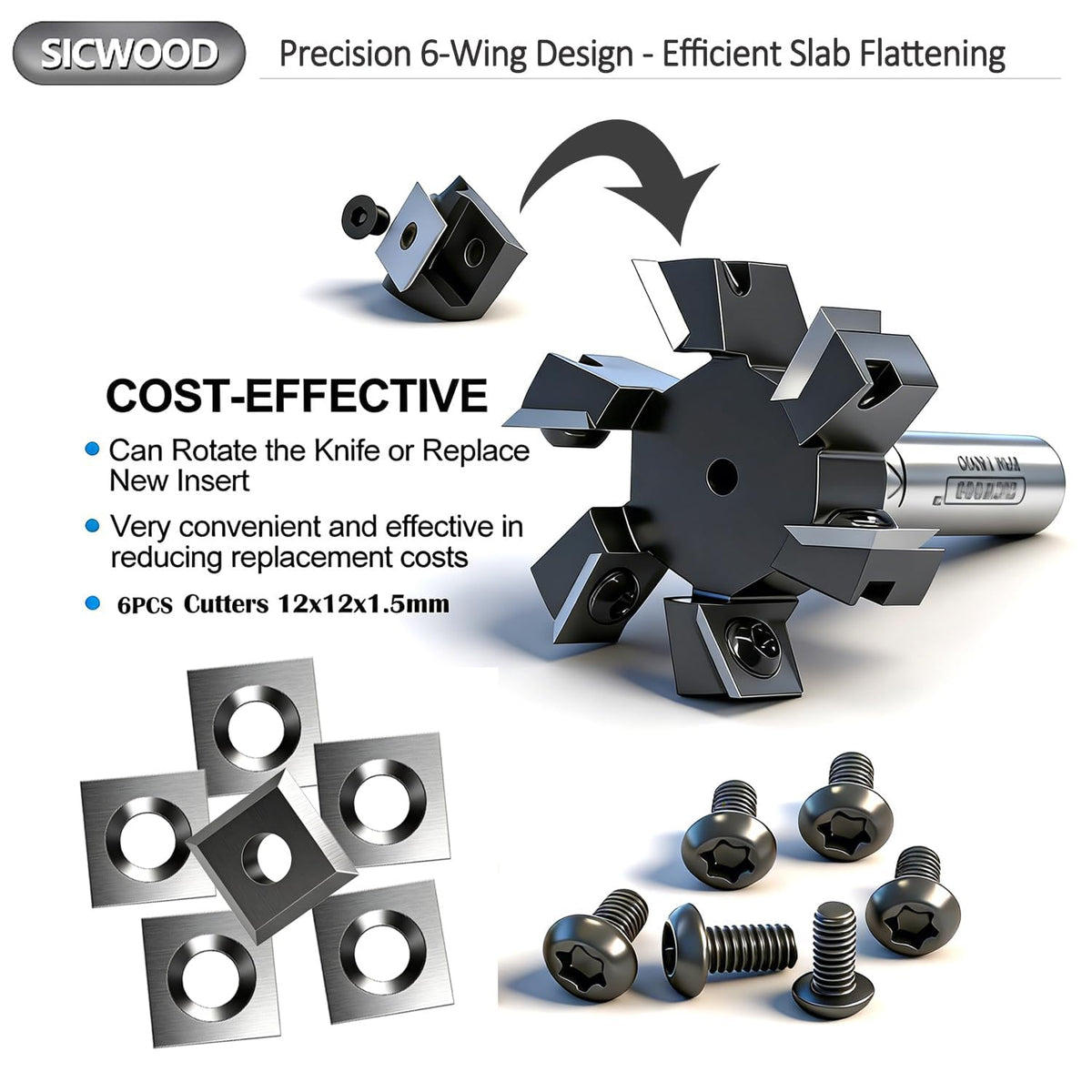

• Replaceable 4-sided carbide inserts provide long-lasting sharpness, delivering a cost-effective solution for ongoing planing tasks.

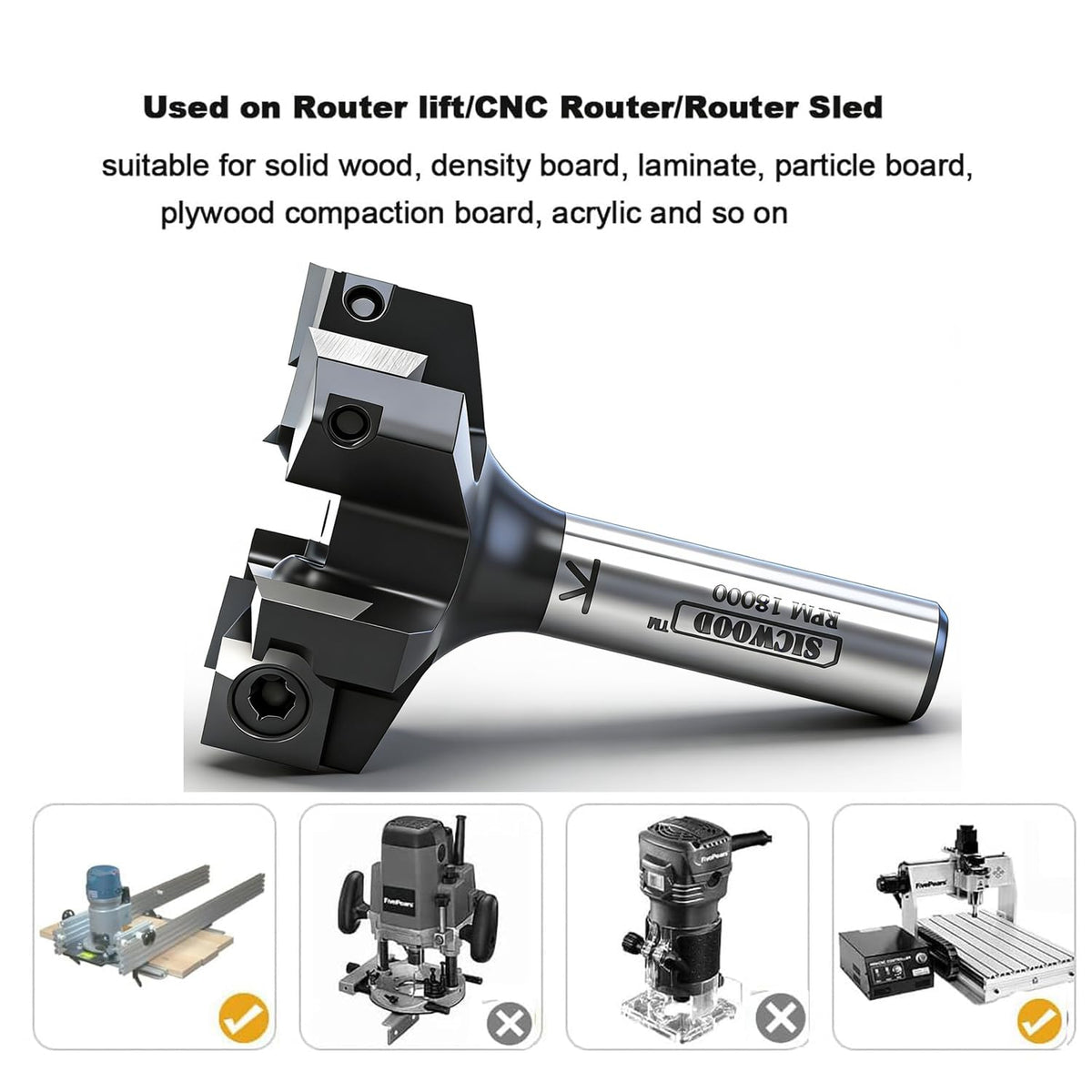

• Designed for use on router sleds and CNC spoilboard surfacing machines to achieve flat, level slabs.

With the SICWOOD slab flattening bit, you have a tool that aligns with professional workflow needs while offering practical, real-world benefits. It presents a balanced mix of speed, accuracy, and durability without overpromising results; the outcome will depend on your setup, feed rate, and machine stability.
