Seco-Larm Enforcer Mini No-Cut Electric Door Strike SD-991A-D1Q – Fail-Secure

Overview

The Seco-Larm Enforcer Mini No-Cut Electric Door Strike (Fail-Secure) turns a standard cylindrical lock into an electronic access-control point with minimal door-frame modification. This no-cut variant is designed to fit most metal or wooden doors, requiring only the frame cut necessary to accommodate the strike hole. It connects quickly to access-control or egress devices via a simple 2-wire, non-polarized setup, and its reversible, non-handed design adapts to either left- or right-handed doors.

With fail-secure operation, the door remains locked when power is lost, helping you maintain controlled entry. The 1,000-pound static holding force provides a robust sense of security, while the stainless steel keeper delivers durability for long-term use. The striker ships with both a stainless steel no-cut strike plate and a silver aluminum low-cut strike plate, ready to fit a wide range of cylindrical locksets. An optional bronze-colored low-cut strike plate is also available (sold separately – SD-991RA-61Q/B). All required installation hardware is included for a streamlined setup. This unit is intended for indoor use and is powered by a 12VDC solenoid, not a buzzer coil.

Key Benefits

• Converts a cylindrical lockset into an electronic access-controlled lock
• Minimal door frame cutting; fits most metal or wood doors
• Fail-secure operation keeps the door locked if power is lost
• 1,000-pound static holding force for solid security
• Non-handed design for left- or right-handed doors

What You Get and How It Fits

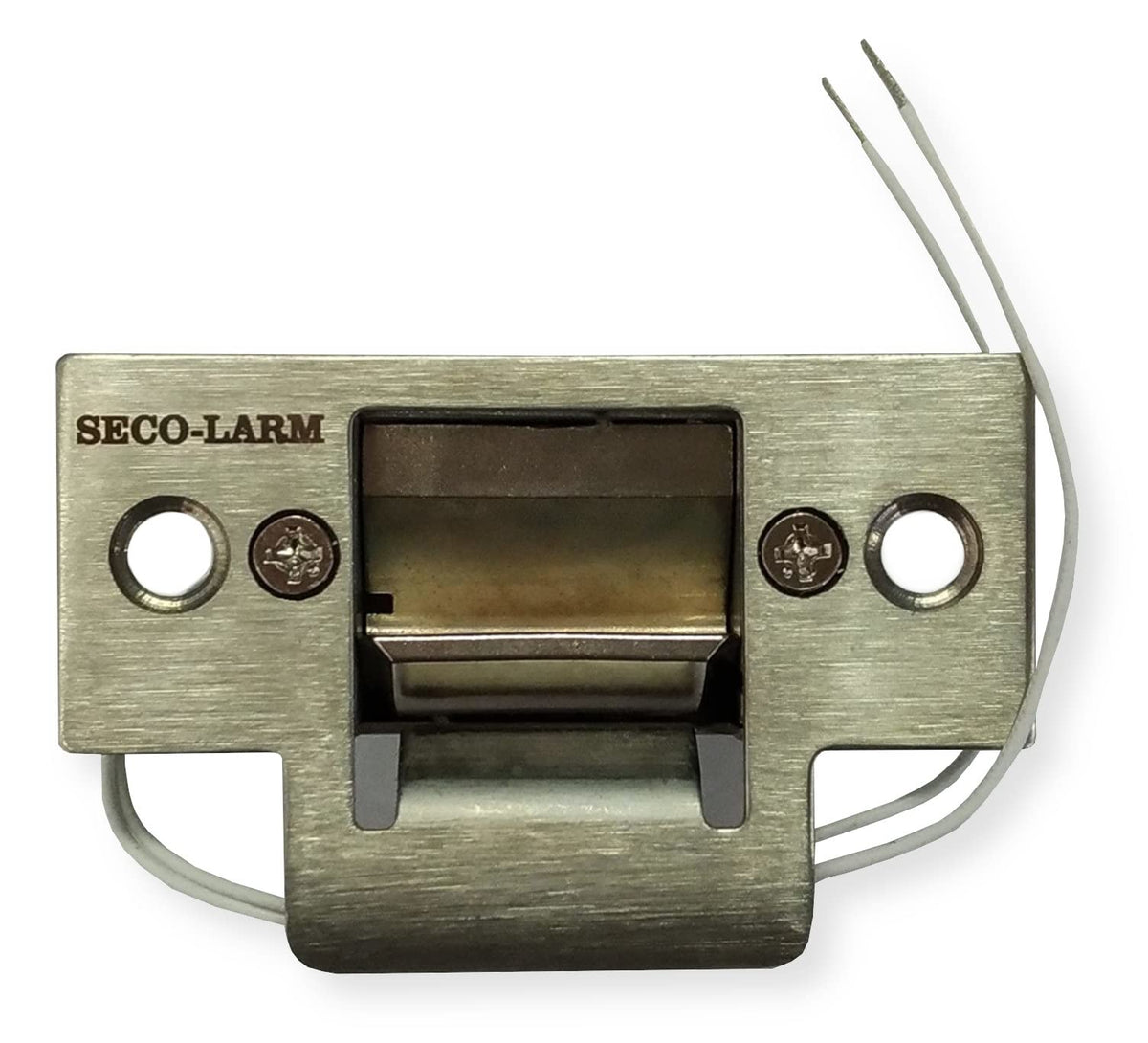

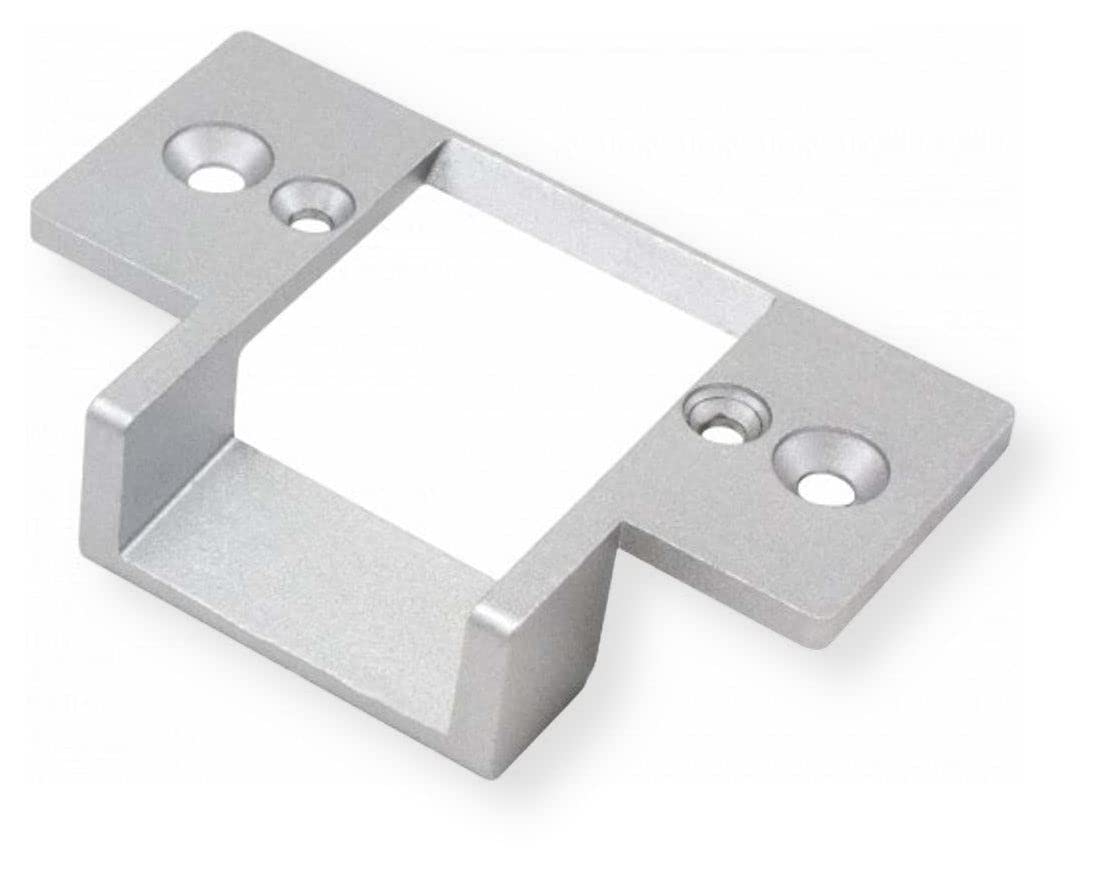

• Includes stainless steel no-cut strike plate and silver low-cut strike plate to cover most cylindrical lock setups
• Bronze low-cut strike plate is available separately to broaden compatibility
• All required mounting hardware, a template, and an installation manual are included

Installation Notes and Compatibility

The strike connects to digital keypads, pushbuttons, and other entry devices, enabling integration with existing access-control systems. Its shallow profile supports a broad range of metal doors, and the device is CE and RoHS certified with a 1-year warranty. For indoor use only, this unit is powered by 12VDC with a current draw of 280 mA, delivering dependable operation in active access points.

Technical Snapshot

• Operating voltage: 12 VDC
• Current draw: 280 mA at 12 VDC
• Holding force: 1,000 pounds (454 kg)
• Endurance: 250,000 cycles (factory tested)
• Latch throw: 1/2 inch (13 mm)
• Operating temperature: 14° to 120°F (-10° to 49°C)
• Operating humidity: 0 to 85% non-condensing

Note: Indoor use only. Included are all installation components, and the unit is backed by a 1-year warranty for peace of mind.
