Sebupar Door Hinge Mortiser Kit – Adjustable Jig for 2.5–6 inch Hinges and 1.375–2.5 inch Doors

Overview

The Sebupar Door Hinge Mortiser Kit is designed to simplify hinge installation for interior doors by pairing a precision routing setup with a dedicated hinge template. Equipped with a 1/2 inch cutting diameter router bit and a 5/8 inch bearing, the system accommodates hinge lengths from 2-1/2 in to 6 in and door thicknesses from 1-3/8 in to 2-1/2 in. This combination helps you tailor cutouts to common hinge profiles while keeping lines crisp and results consistent.

Key benefits

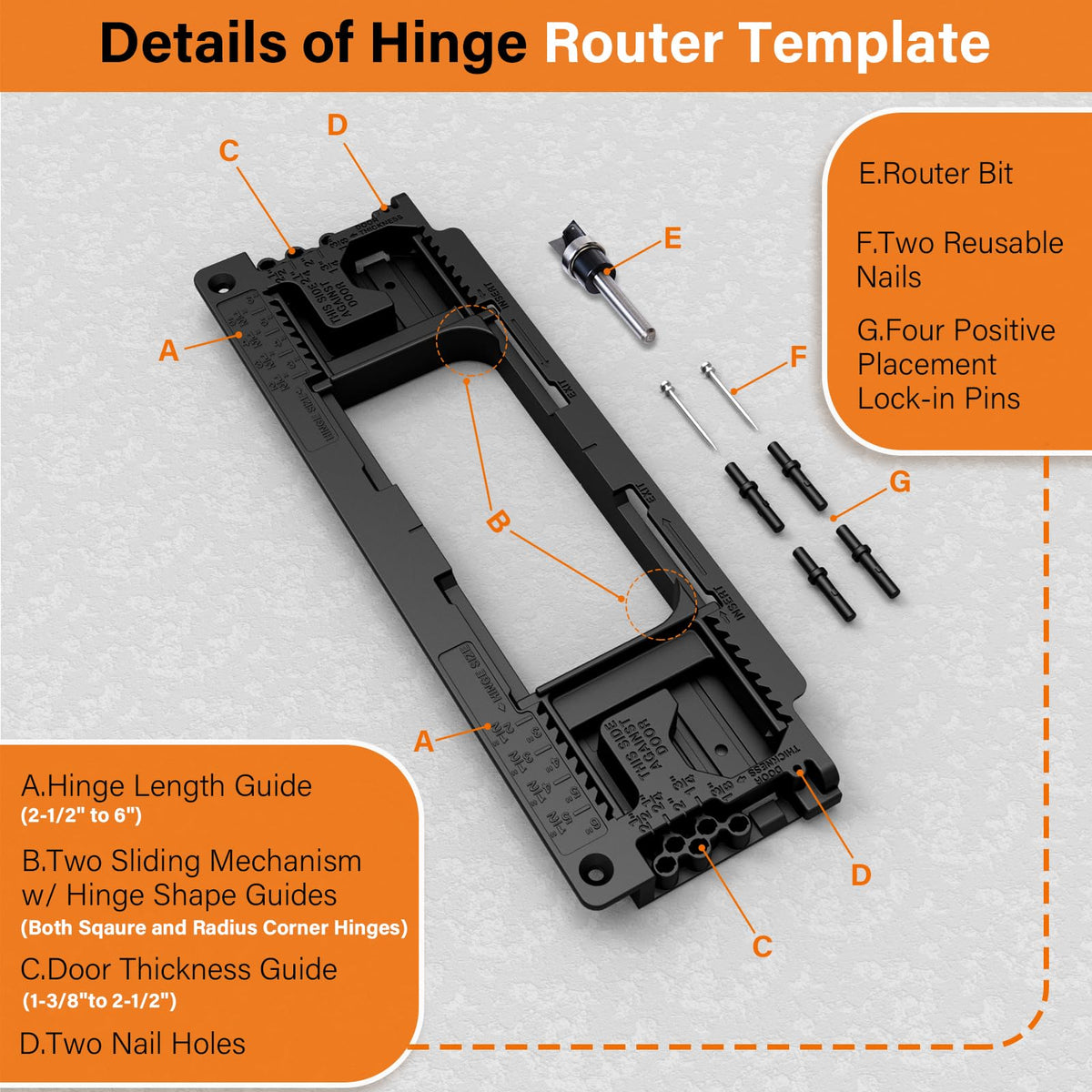

• Integrated mortiser and hinge-shape guides enable consistent mortises for both square and radius corners.
• Removable sliding guides allow quick changes between hinge sizes without starting from scratch.
• Designed for use on both door and jamb, reducing handling steps and the risk of misalignment.
• Router-based routing creates cleaner mortises with less effort and mess compared to chiseling.

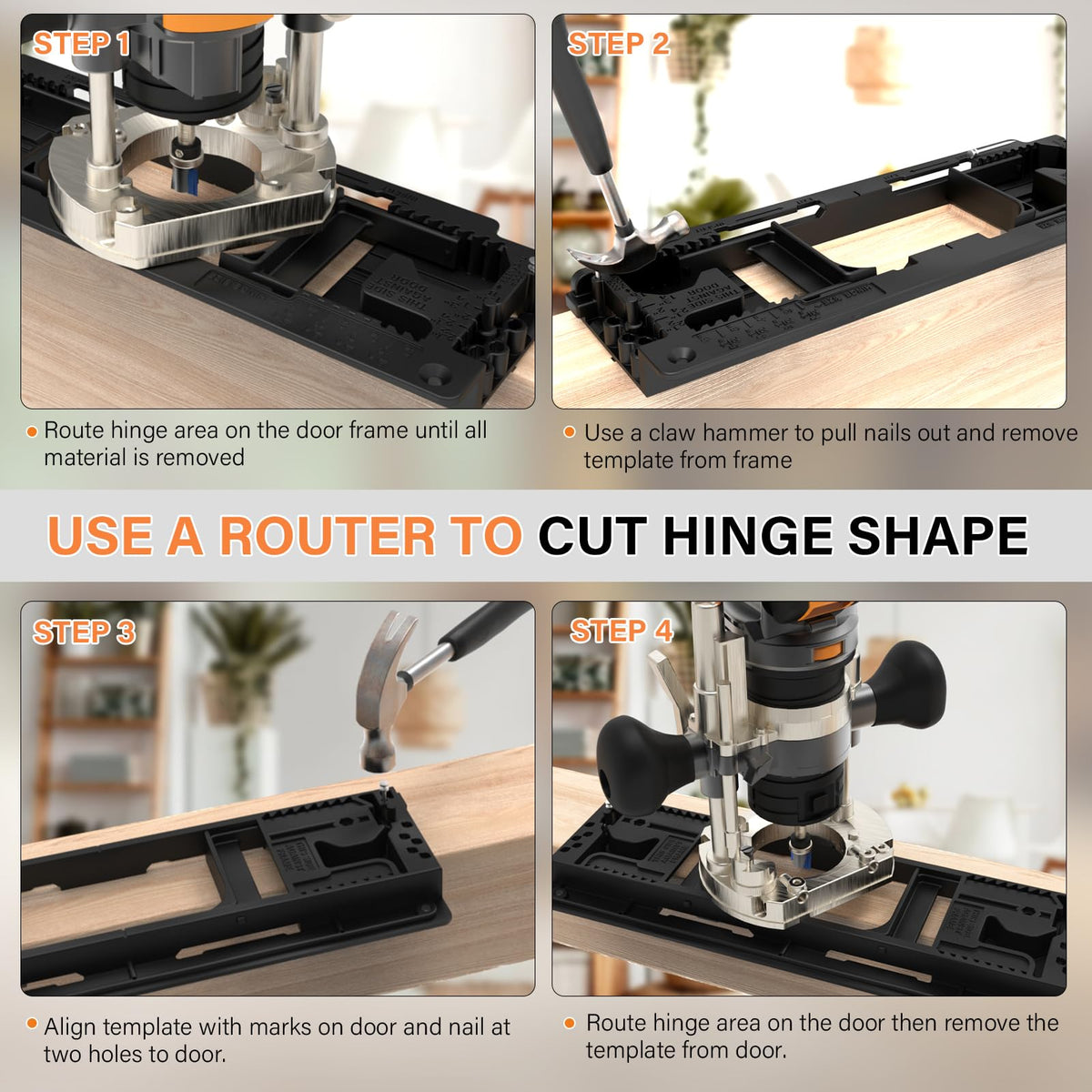

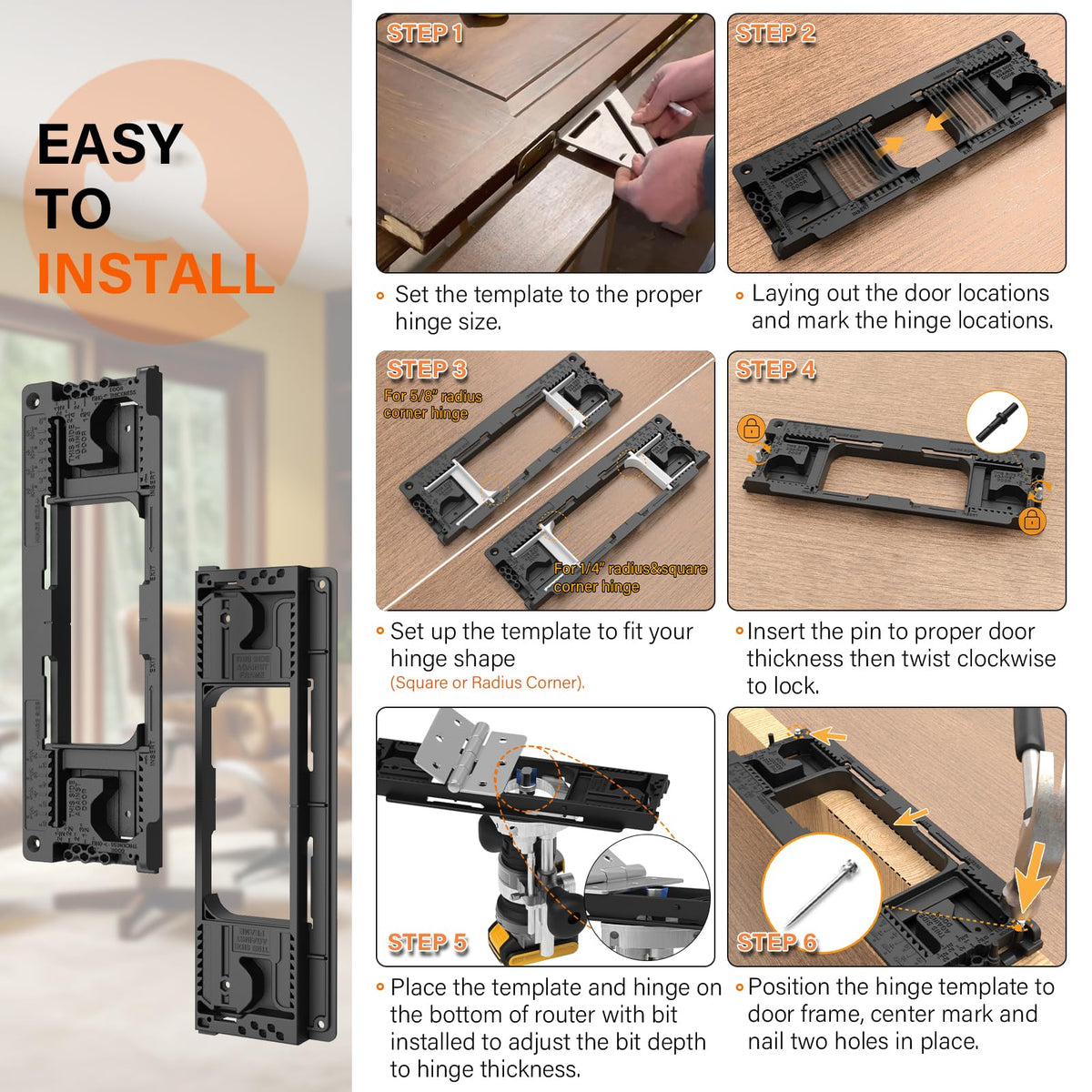

How to use

1. Lay out hinge locations on the door according to your plan and mark them clearly.

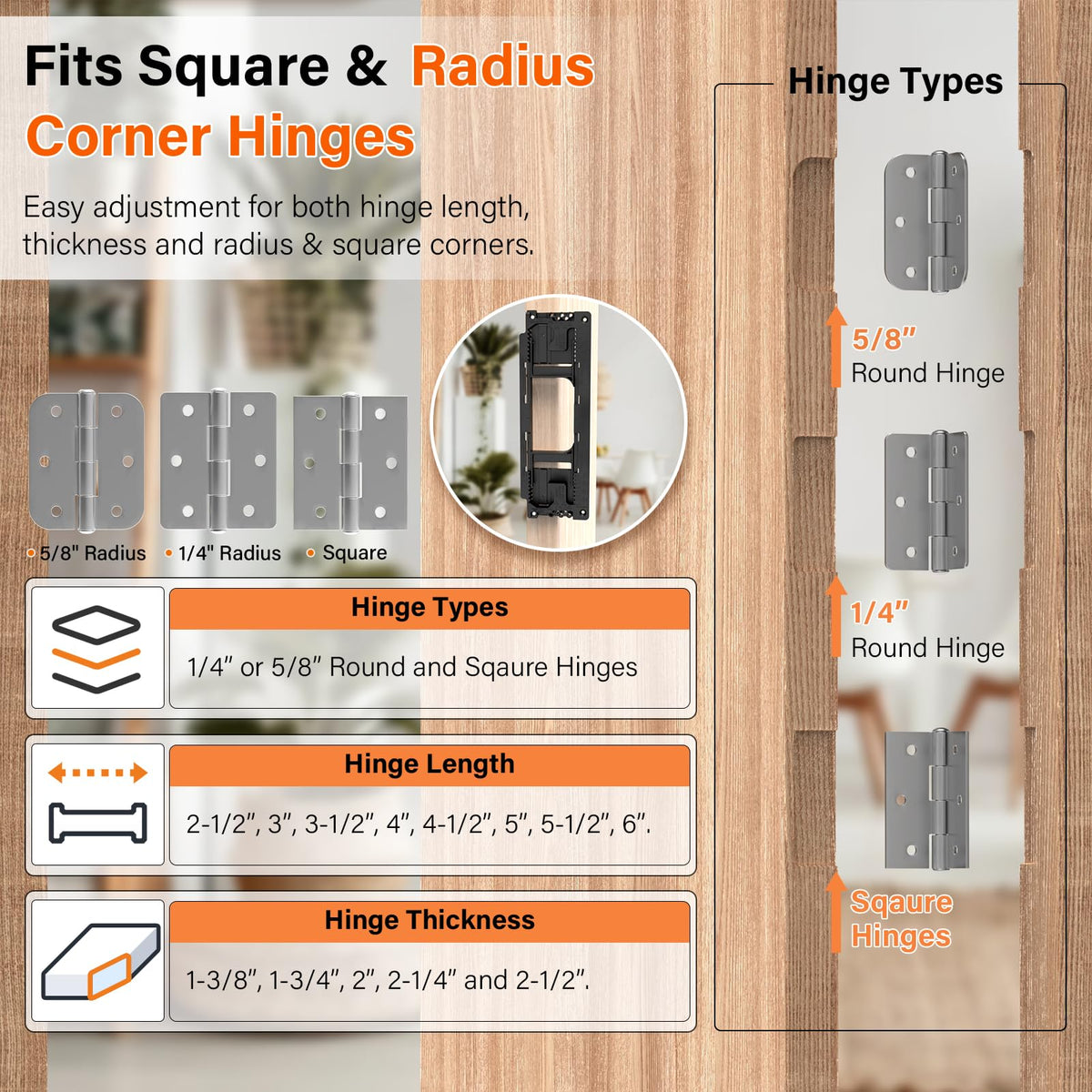

2. Set the template to the target hinge size and choose square or radius corner as needed.
3. Adjust the template for your door thickness by fitting the pin to the correct depth, then lock it in place.
4. Position the template and hinge under the router; align with the depth and route the mortise area.
5. Place the template on the door frame, make a center mark, and nail two alignment holes to secure.

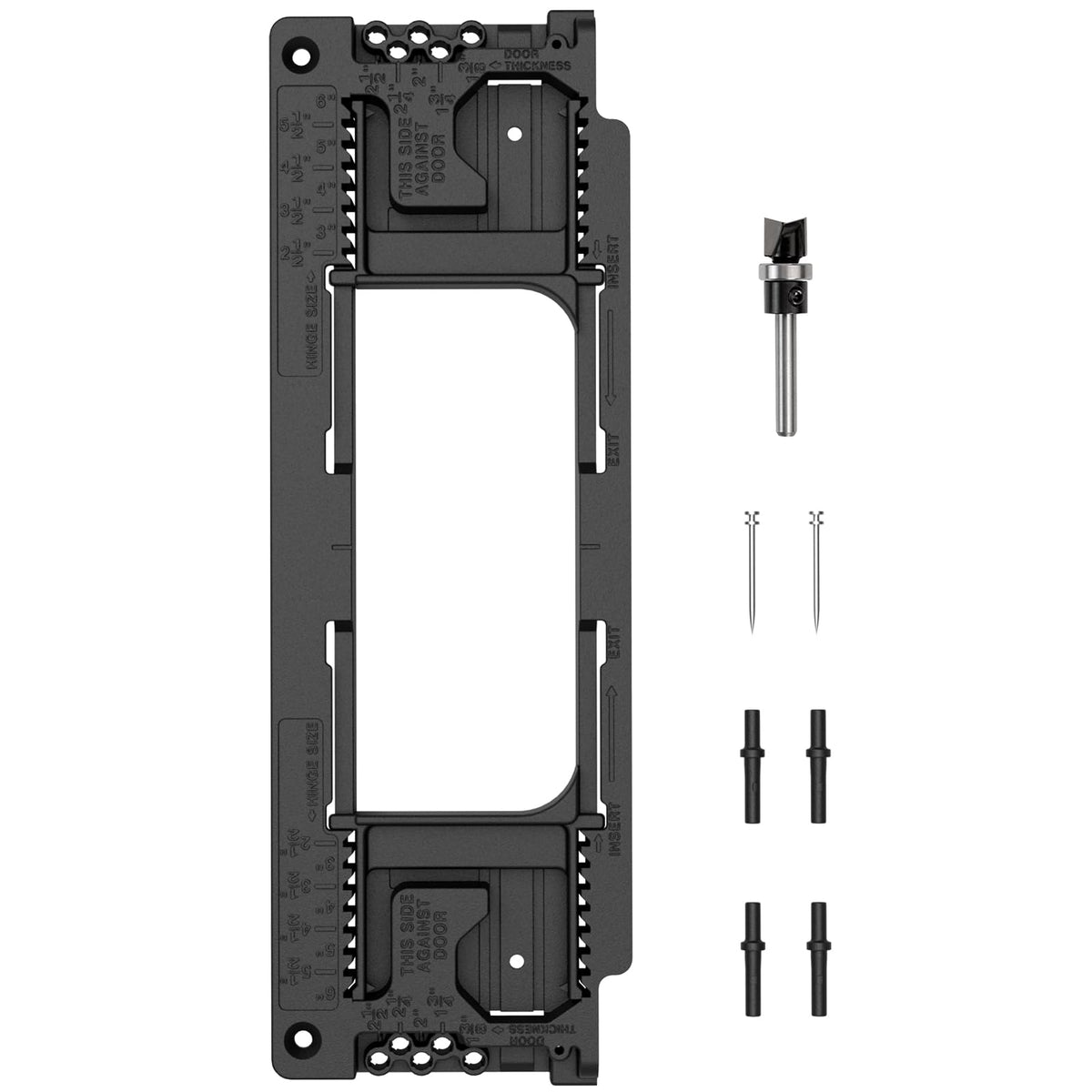

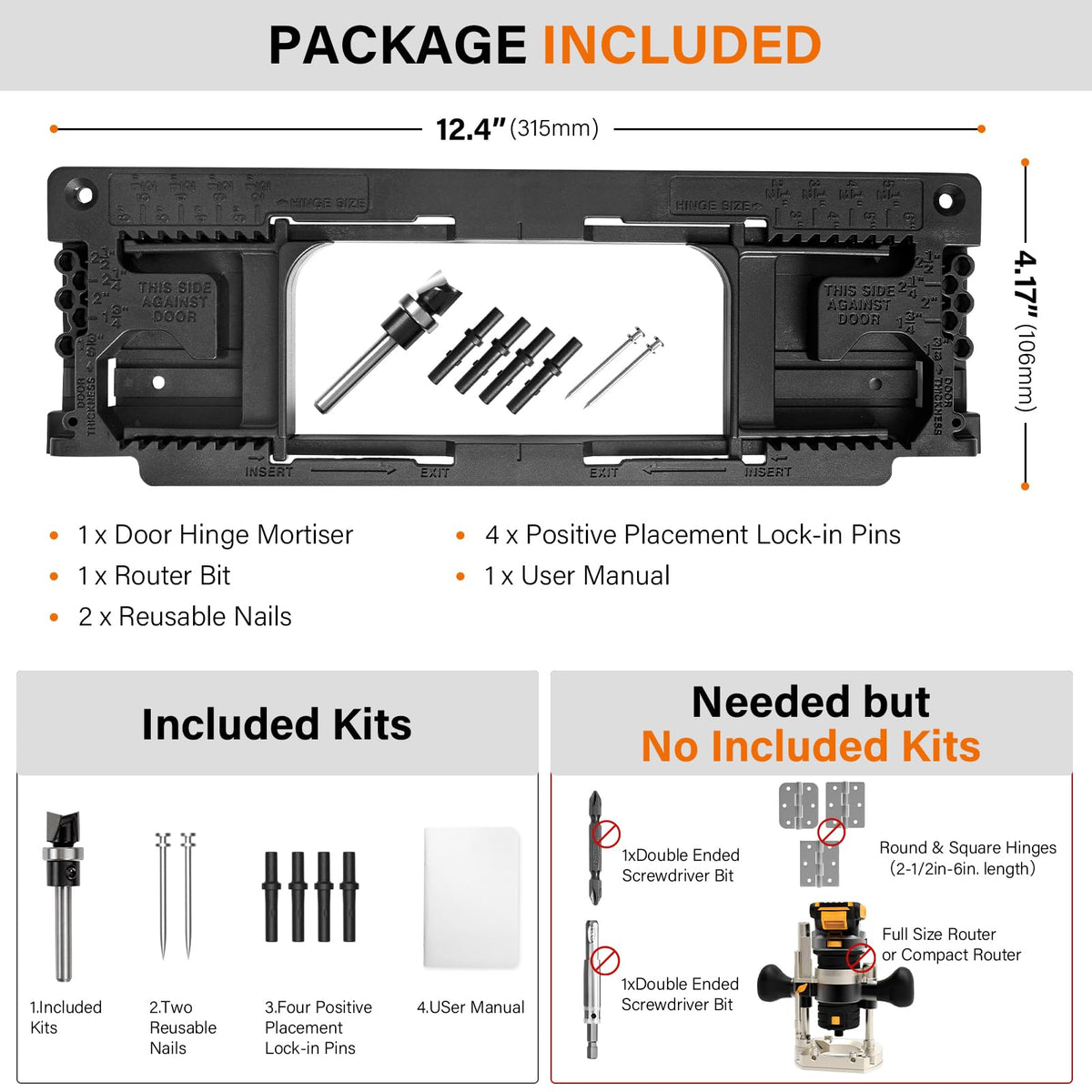

What you get

• 1 Door Hinge Mortiser template
• 1 Router bit (1/2 inch cutting diameter)
• 2 sliding hinge size guides
• 4 lock-in pins and 2 reusable nails
• 1 user manual

Note: Not designed for use on existing and already installed door frames. The sturdy plastic construction provides stable routing and helps minimize accidental damage to surrounding surfaces while you work.
