RVBOATPAT Inline Cord Switch 12V 20A DC IP66 Waterproof, Red Lighted, 2-Position DPST

Powerful, ready-for-outdoor inline switch

Meet the RVBOATPAT Inline Cord Switch, a practical control solution for 12V DC systems. It’s designed for boats, RVs, and rugged outdoor enclosures, delivering reliable on/off control for high-current devices. The red indicator light provides a quick visual cue, helping you confirm status at a glance without guesswork. Built to withstand variable weather, this switch aims to remain dependable in outdoor settings while remaining easy to install and wire.

Key features at a glance

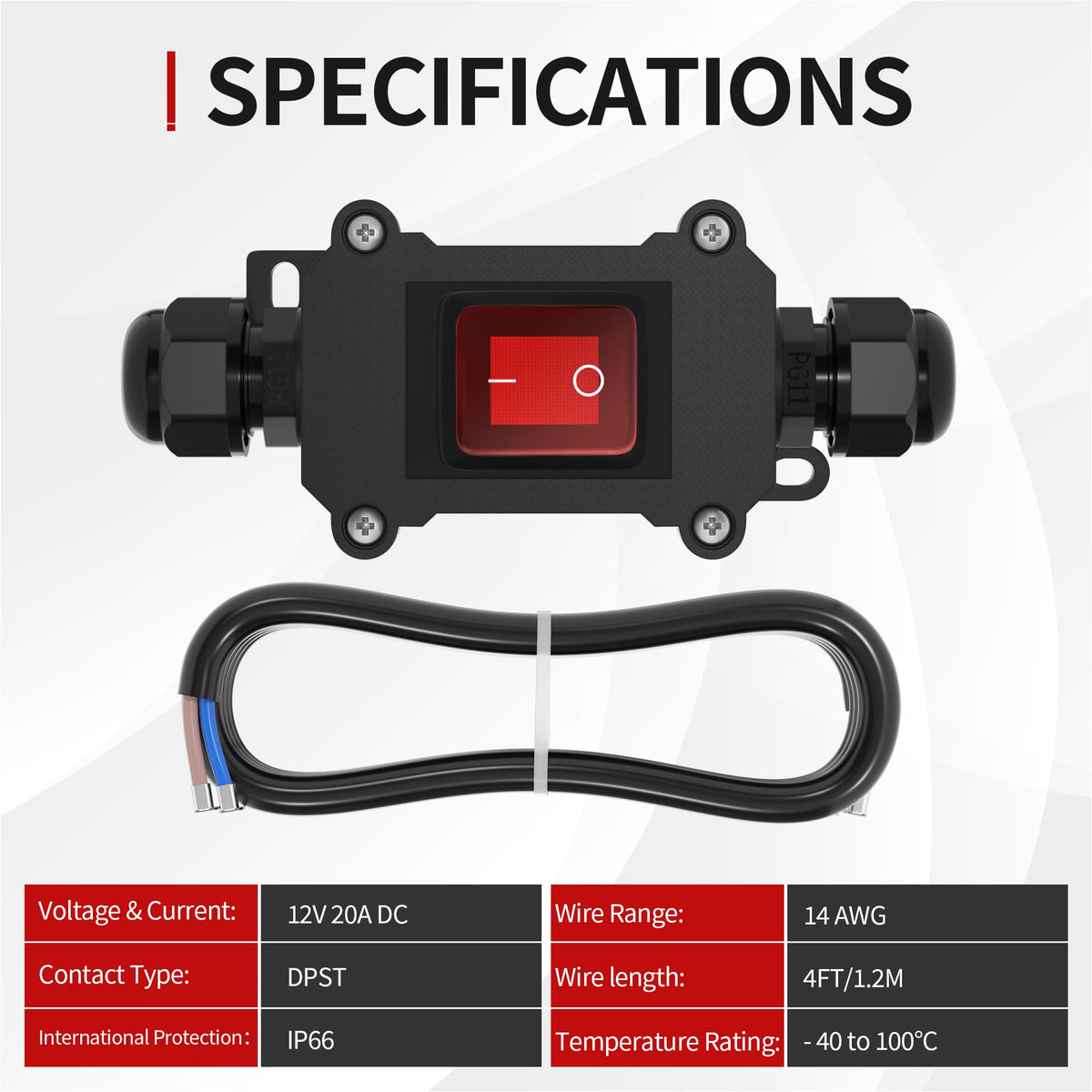

• 12V DC operation with a robust 20A rating, suitable for higher-demand loads
• DPST, 4-pin configuration with two-side entry for flexible wiring
• 4-foot length with 14 AWG conductors and RNB terminals on both ends

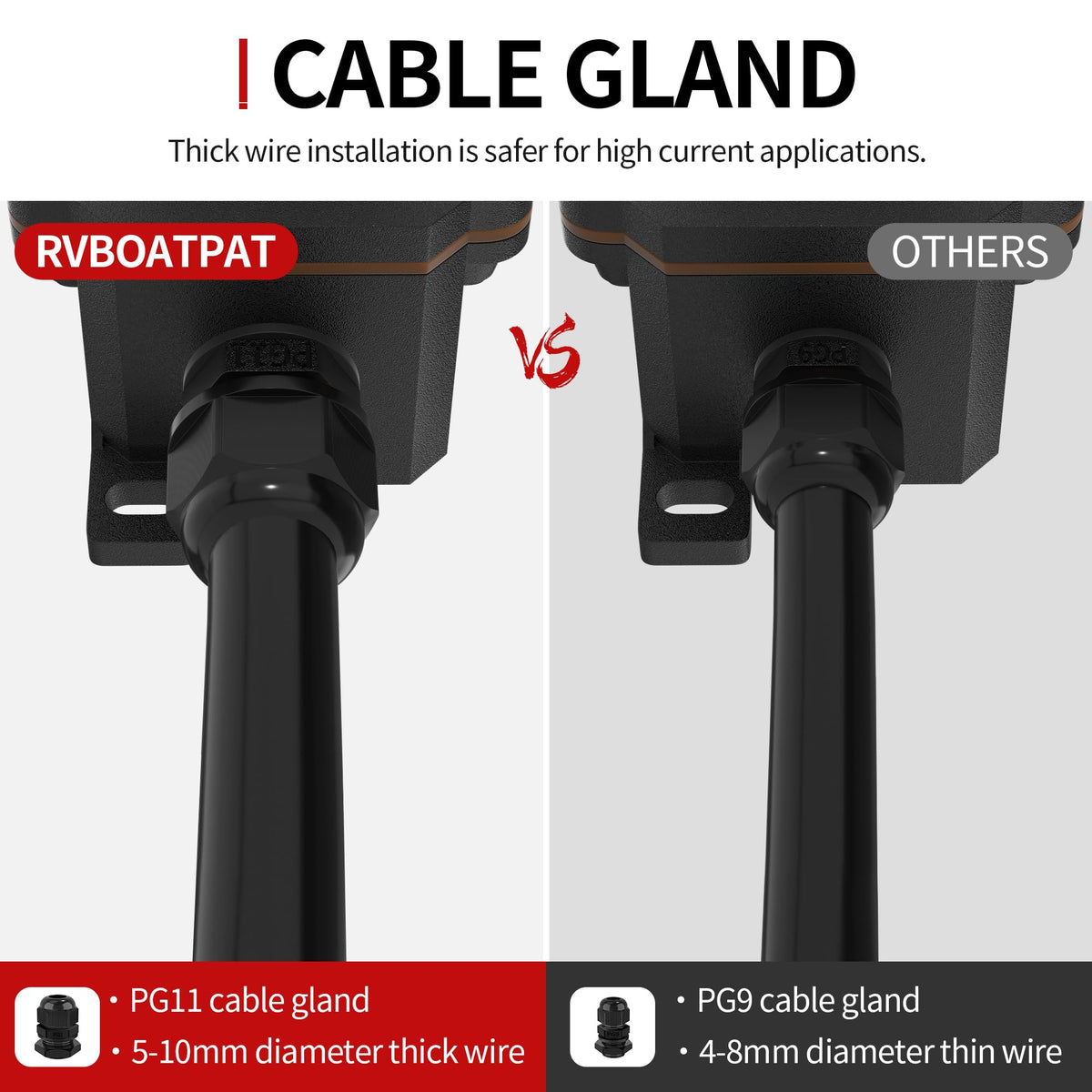

• PG11 cable gland supports 5–10 mm diameter wires for a neat, stable connection

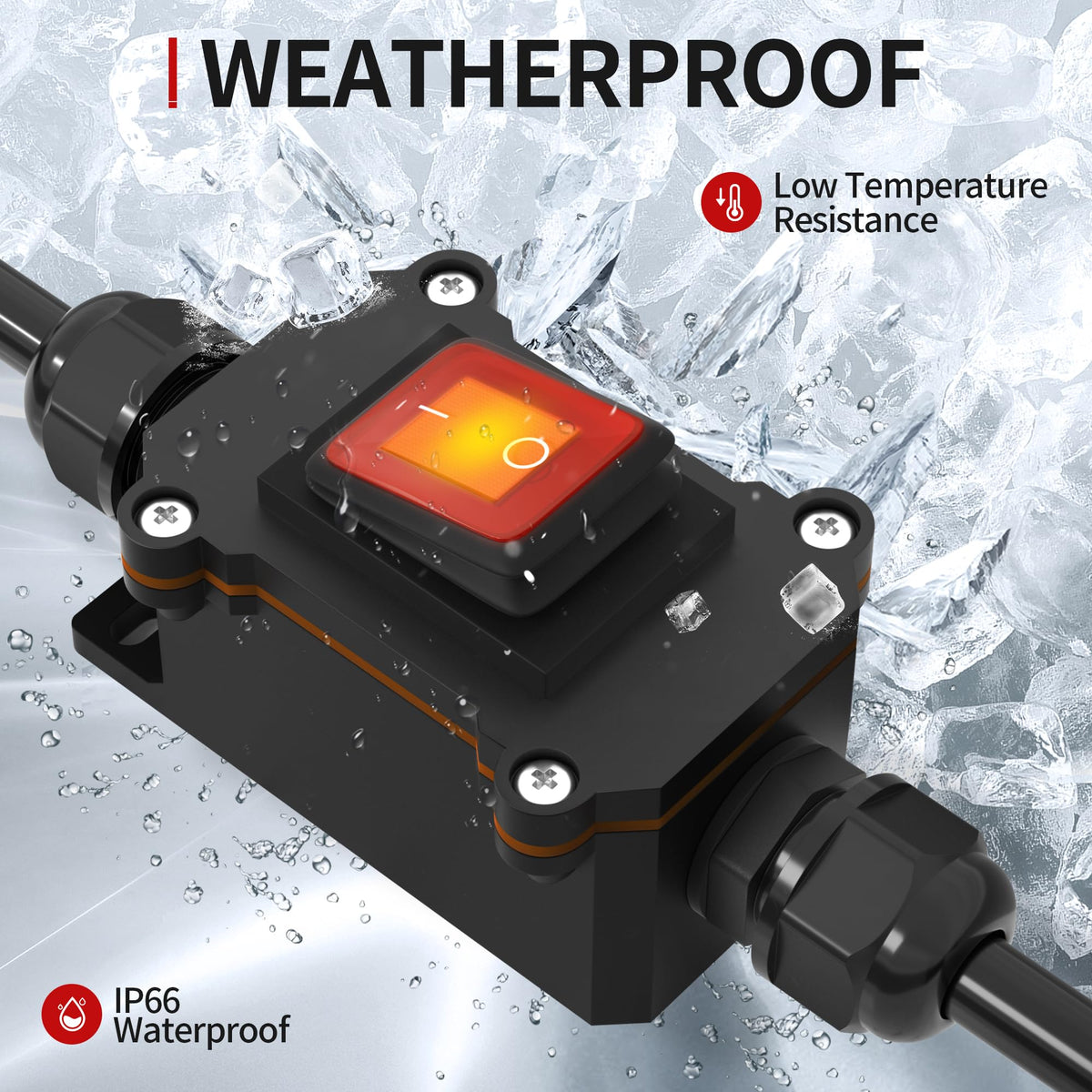

• IP66 waterproof design backed by professional sealing materials for outdoor use

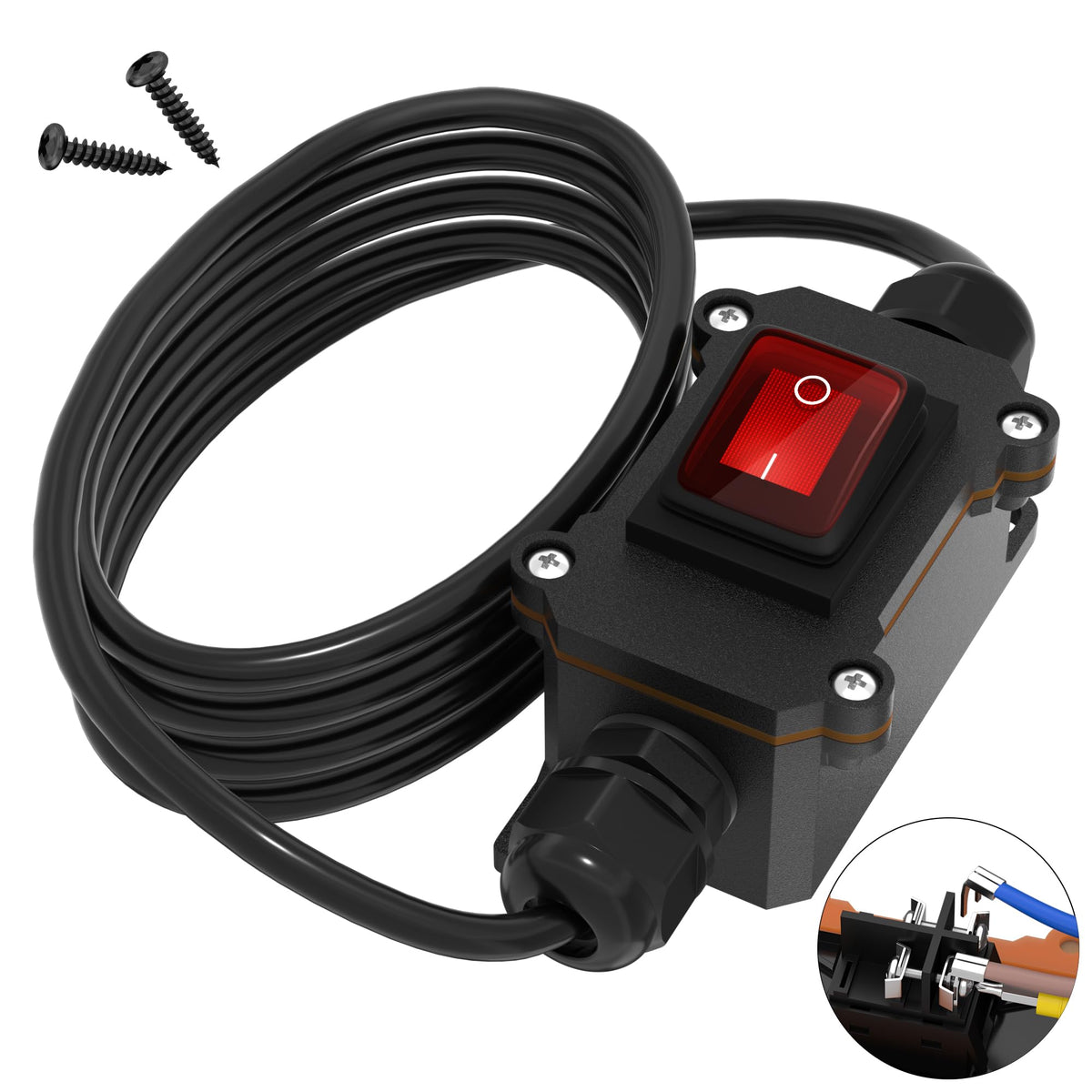

• Red illuminated switch provides a clear ON indication while you monitor power flow

Real-world applications and scenarios

• Marine and watercraft setups, such as bilge pumps, navigation lighting, and auxiliary circuits
• RVs, campers, and outdoor installations where a rugged, weatherproof inline switch is beneficial
• Outdoor enclosures or sheds that require a dependable power switch for high-current devices
• Wiring projects where two separate circuits can be controlled from a single inline unit

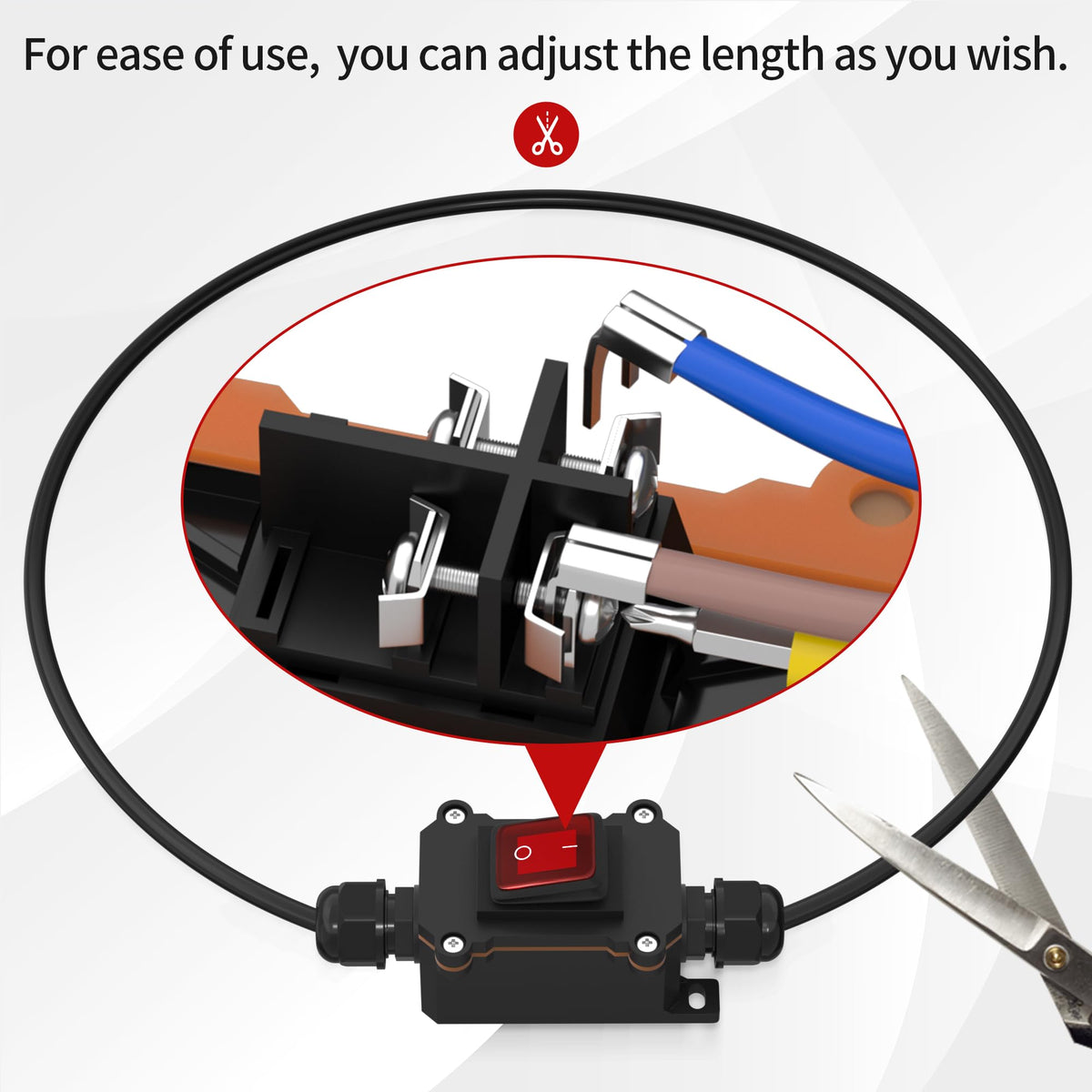

The design emphasizes versatility while keeping the installation straightforward. If you need thicker wires, the unit’s configuration supports flexibility to accommodate larger current paths, potentially delivering steadier operation under demanding conditions. While the device is built for outdoor performance, always ensure proper enclosure and safe wiring practices for your specific setup.

In short, this inline switch offers practical control, clear status indication, and durable construction to fit a range of 12V power applications without making guarantees about outcomes. It presents a solid option for users seeking a dependable, weather-ready switch in challenging environments.

Note: Always follow local electrical codes and installation guidelines when integrating high-current components into any system.
