RTC Spin Doctor Tile Leveling System — 1/8" Baseplates, 250 Pc

Overview

The RTC Spin Doctor Tile Leveling System is designed to help installers achieve precise, flush tile edges with controlled spacing. This setup uses 1/8 inch black breakaway spacer posts (250 pieces) paired with a rotating cap that sits on a threaded spacer post. Caps and base plates are sold separately, offering flexibility to tailor the system to your project. The result is a consistent edge line and a streamlined installation process without relying on mortar between the spacer and the tile.

Key benefits at a glance

• Direct contact between spacer and tile with no mortar in between for consistent edge alignment
• Edge-friendly spacing under exposed tile edges to promote even tile planes

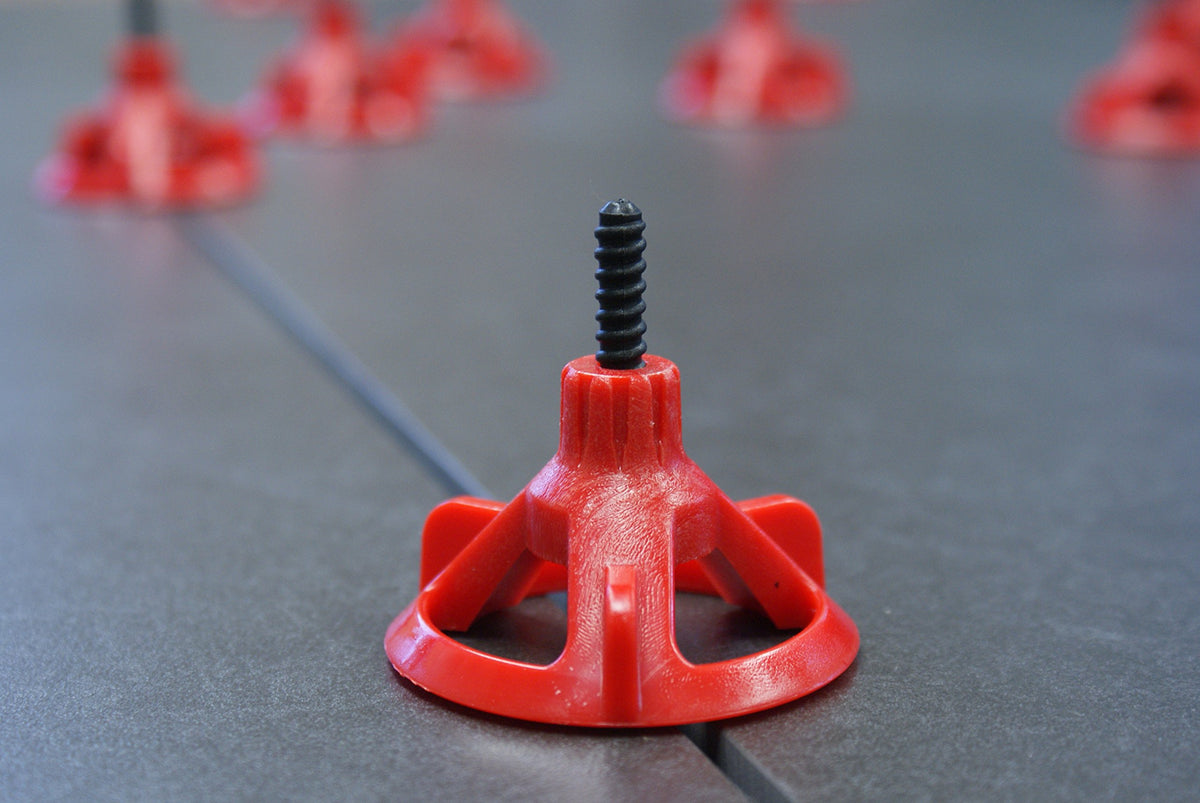

• Rotating cap provides adjustable height to help achieve flush surfaces across adjacent tiles
• Post-curing removal is straightforward, and the spacer post can be repurposed as a wall shim or spacer

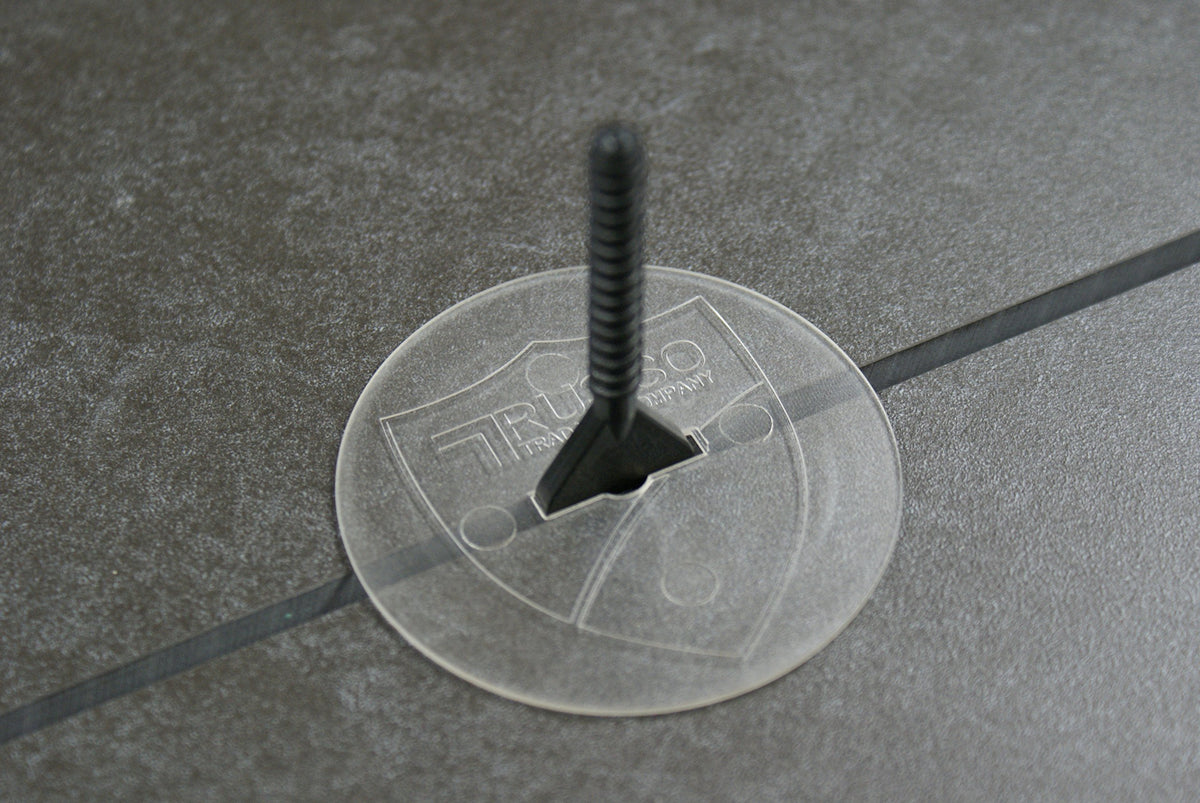

• Optional anti-friction shield plate reduces wear during leveling when used in longer runs

How it works

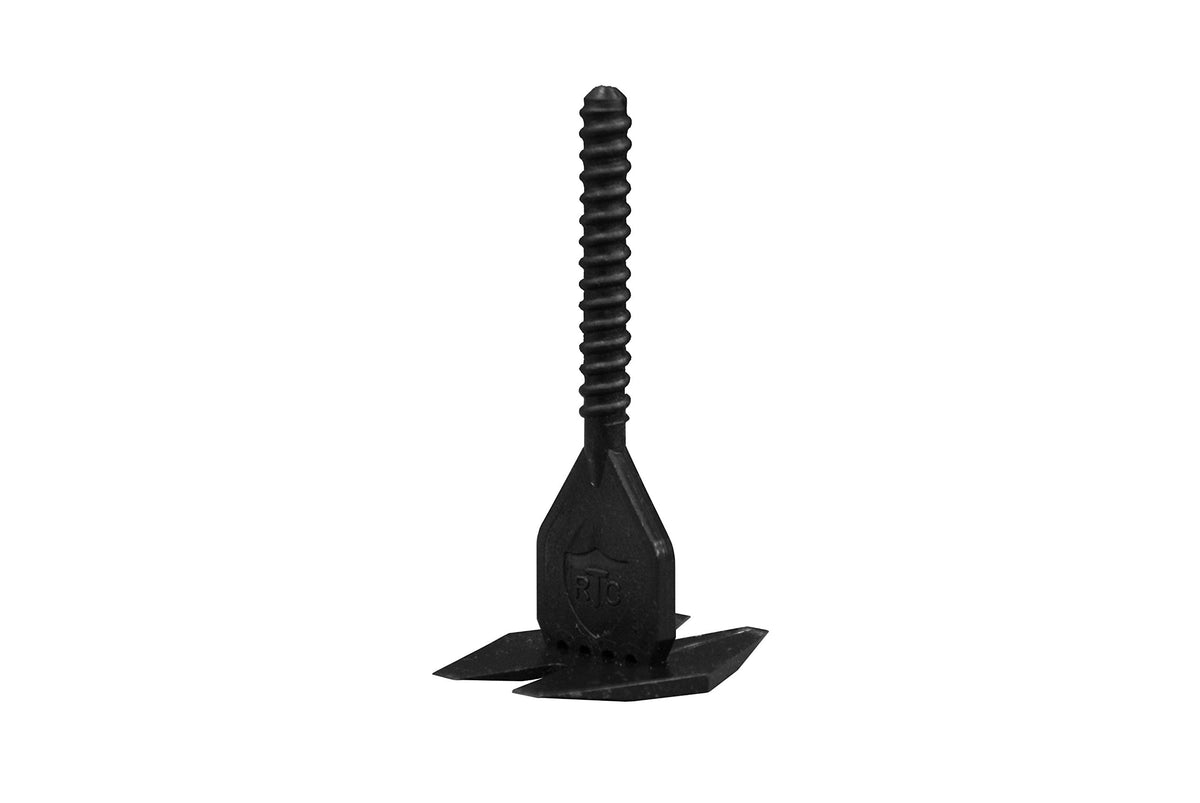

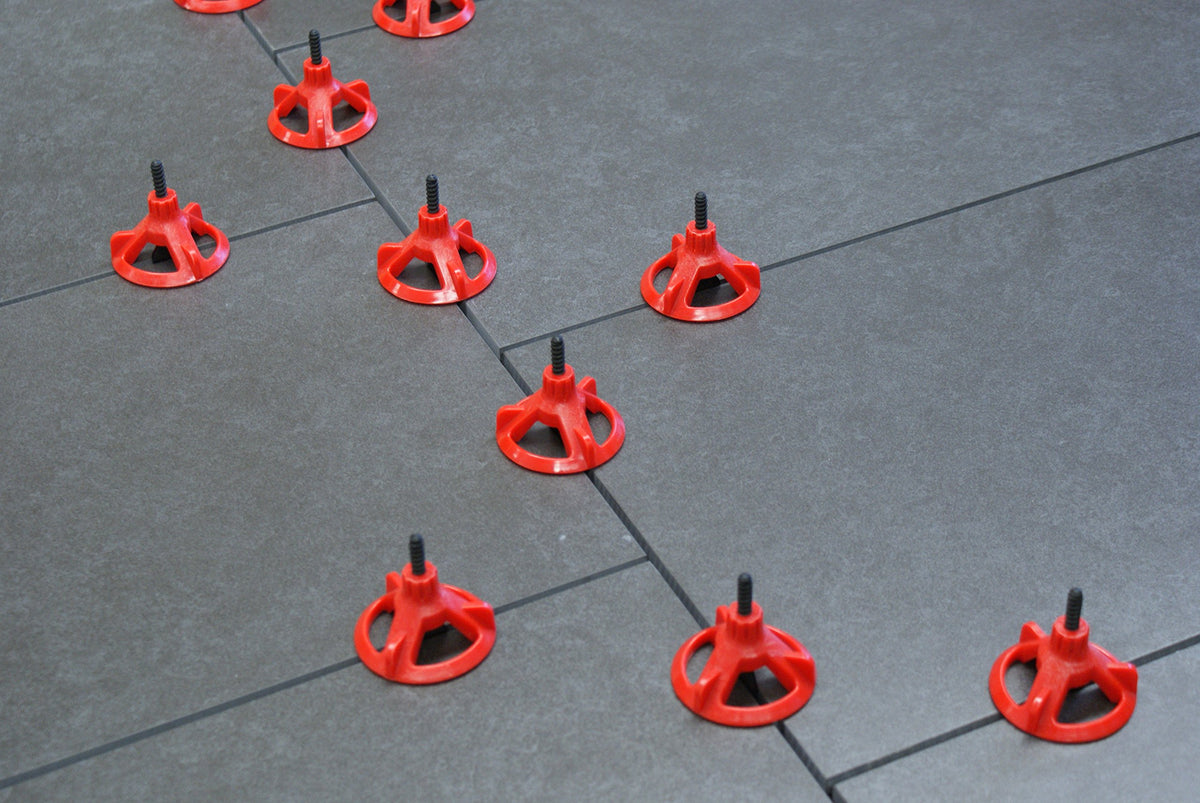

On each exposed edge, place a 1/8 inch spacer post beneath the tile edge. Screw the rotating cap down toward the tile surface. Turn the cap as needed until neighboring tiles align evenly. After the setting material cures, the Spin Doctor assembly can be removed with a light kick or a rubber mallet, leaving a level planar surface.

• Position spacer posts under critical edges to anchor the tile plane
• Use the rotating cap to fine-tune height for a flat field across the area
• Once cured, remove the assembly; the spacer post can be reused in future projects

Real-life use cases

Ideal for rooms with varied tile heights, long straight runs, or large-format tiles where precise edge alignment matters. The system offers adjustable increments to help you achieve a consistent surface across transitions and corners.

Maintenance and reuse

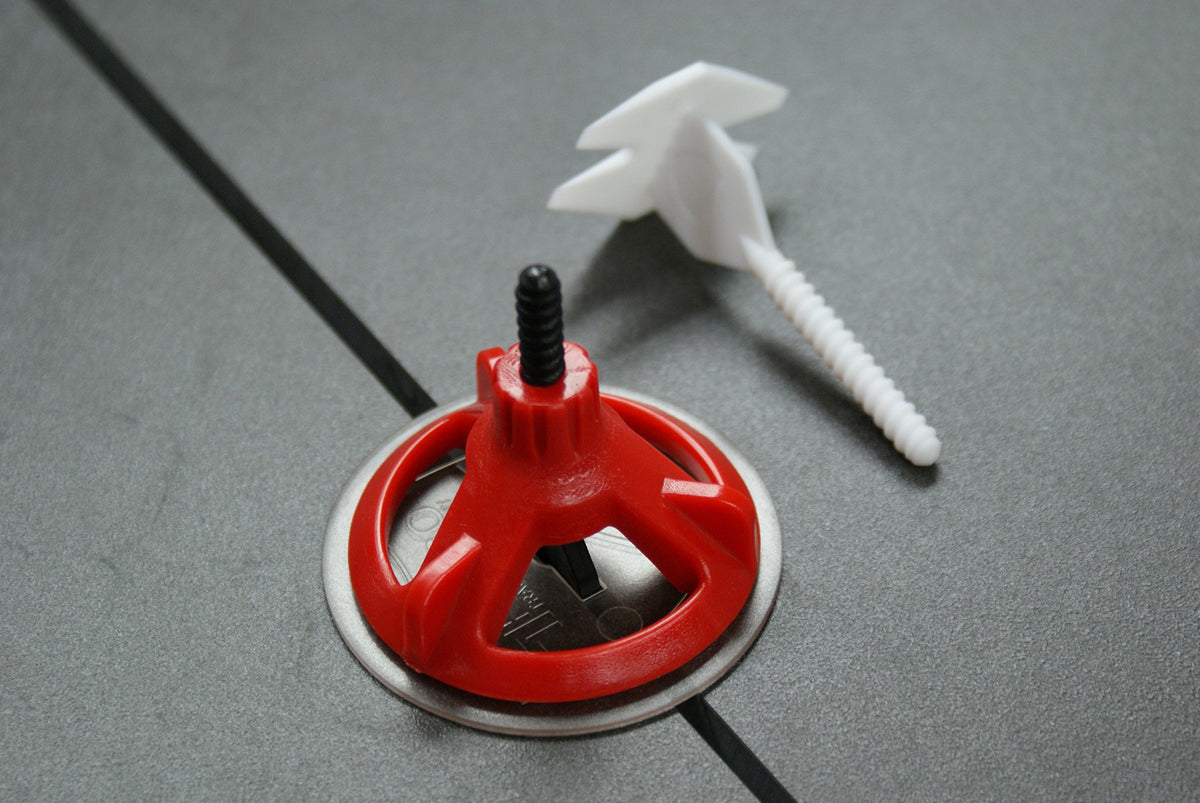

After curing, remove the Spin Doctor and repurpose the spacer post as a wall shim or spacer for future installations. An anti-friction shield plate is available as an optional accessory to further reduce wear during extended use.

Installation note

Professional installation is recommended to maximize the system’s potential. Plan edge tile placement and maintain even spacing to achieve the best results across the project.
