Ravinte 5 Pairs Full Overlay Concealed Cabinet Hinges – 105° Adjustable, Soft-Close for Face-Frame Cabinets

Overview

Ravinte brings a refined touch to everyday cabinetry with full-overlay concealed hinges designed for face-frame cabinets. These hinges offer a quiet, controlled close, a generous opening angle, and straightforward adjustment, making them well-suited for kitchens, bathrooms, and other living spaces where clean lines matter.

With a durable nickel-plated steel build and a built-in damper, the system blends reliable performance with subtle movement. The result is a dependable hardware upgrade that supports smooth operation without sacrificing style or accessibility.

What you get

• Ten concealed hinges (5 pairs) ready for installation, designed for full-overlay doors.

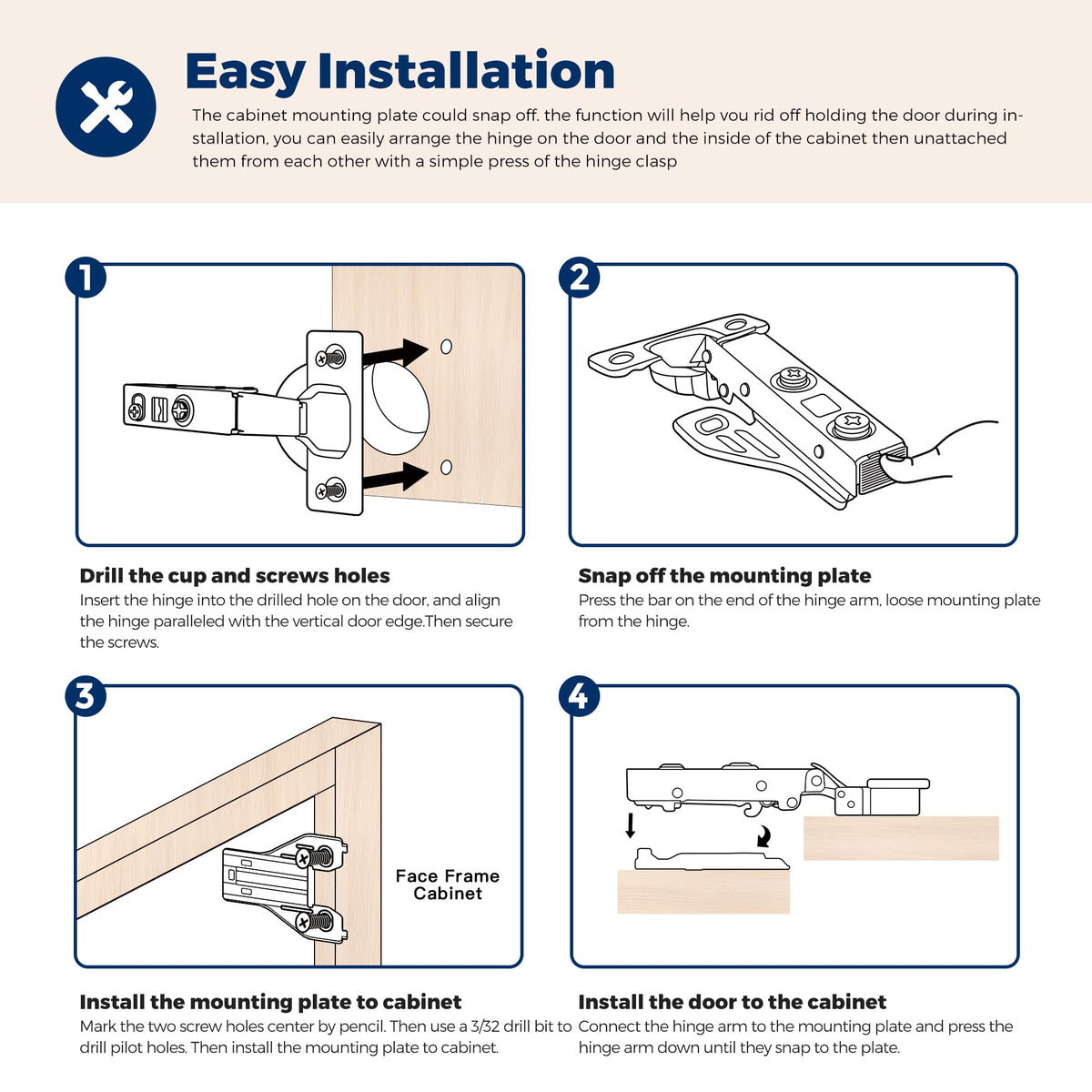

• Forty mounting screws included (four per hinge) to simplify mounting on standard face-frame cabinets.
• Official installation instructions to guide proper alignment and fit.

These items are designed to work together for a clean look and dependable performance in daily use, from busy family kitchens to guest baths and pantry cabinets.

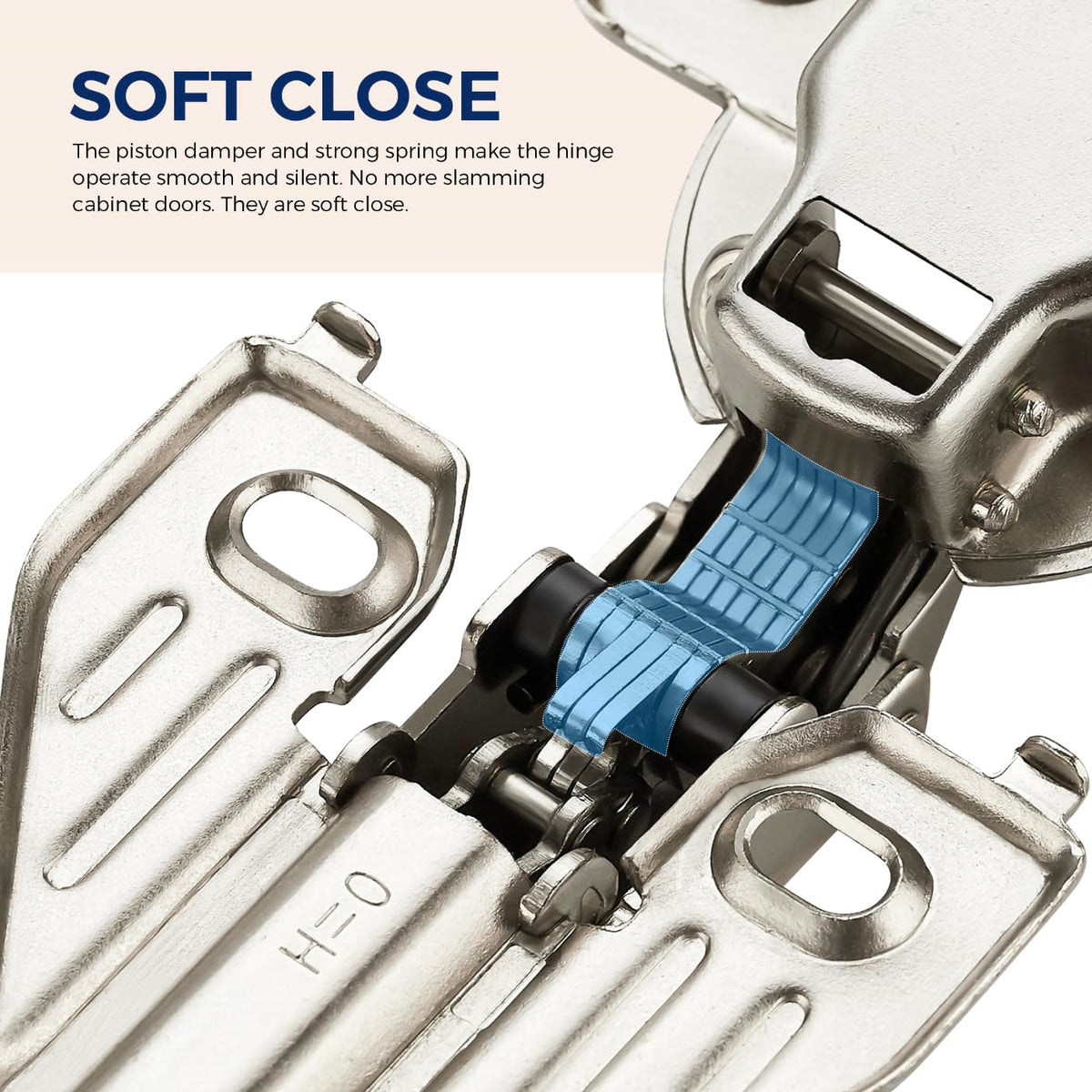

Soft-close and quiet operation

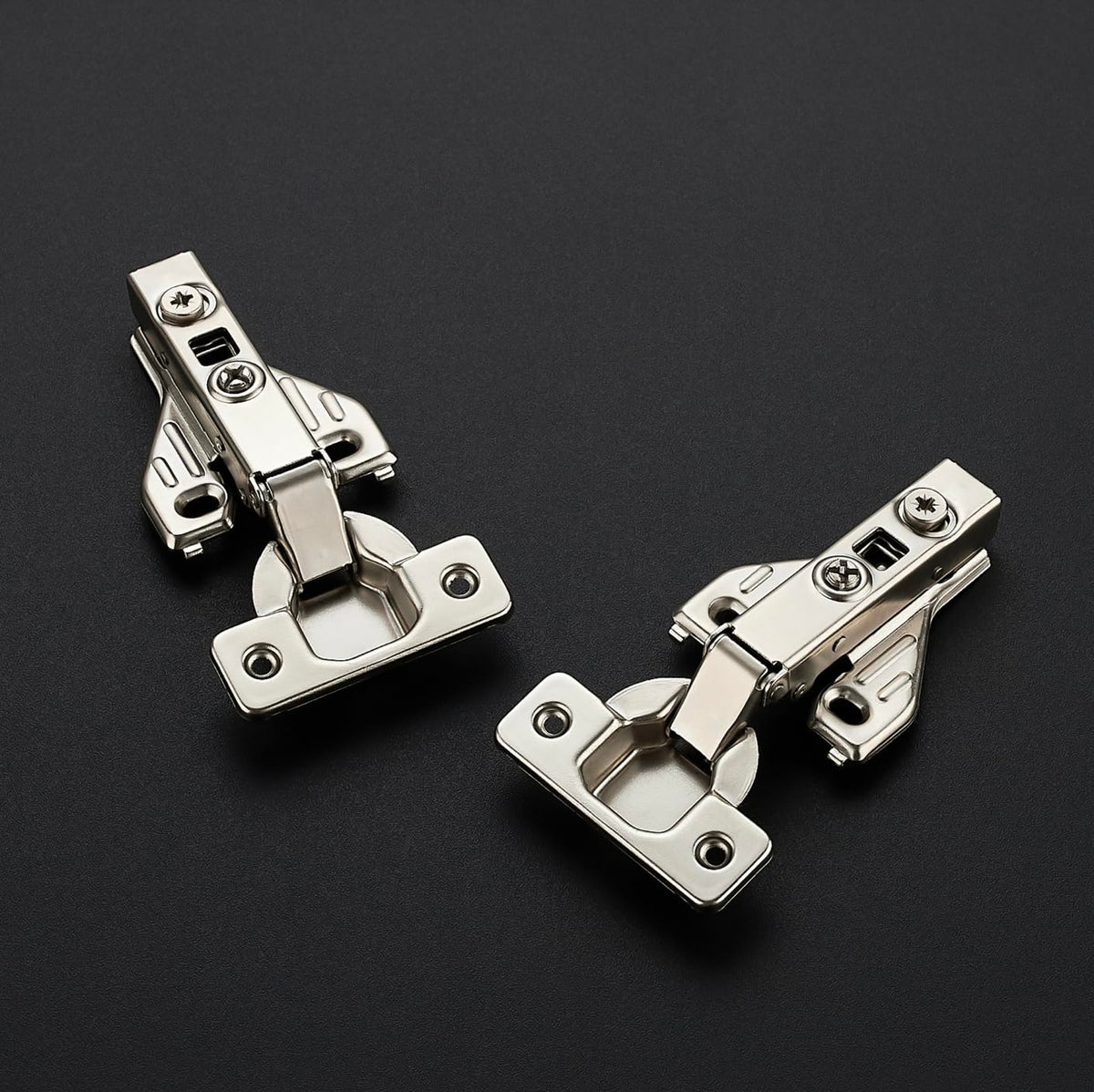

Each hinge includes a built-in damper that enables a soft, gradual close. The mechanism engages as the door angle drops below the threshold, helping to minimize abrupt noises and protect cabinet interiors over time.

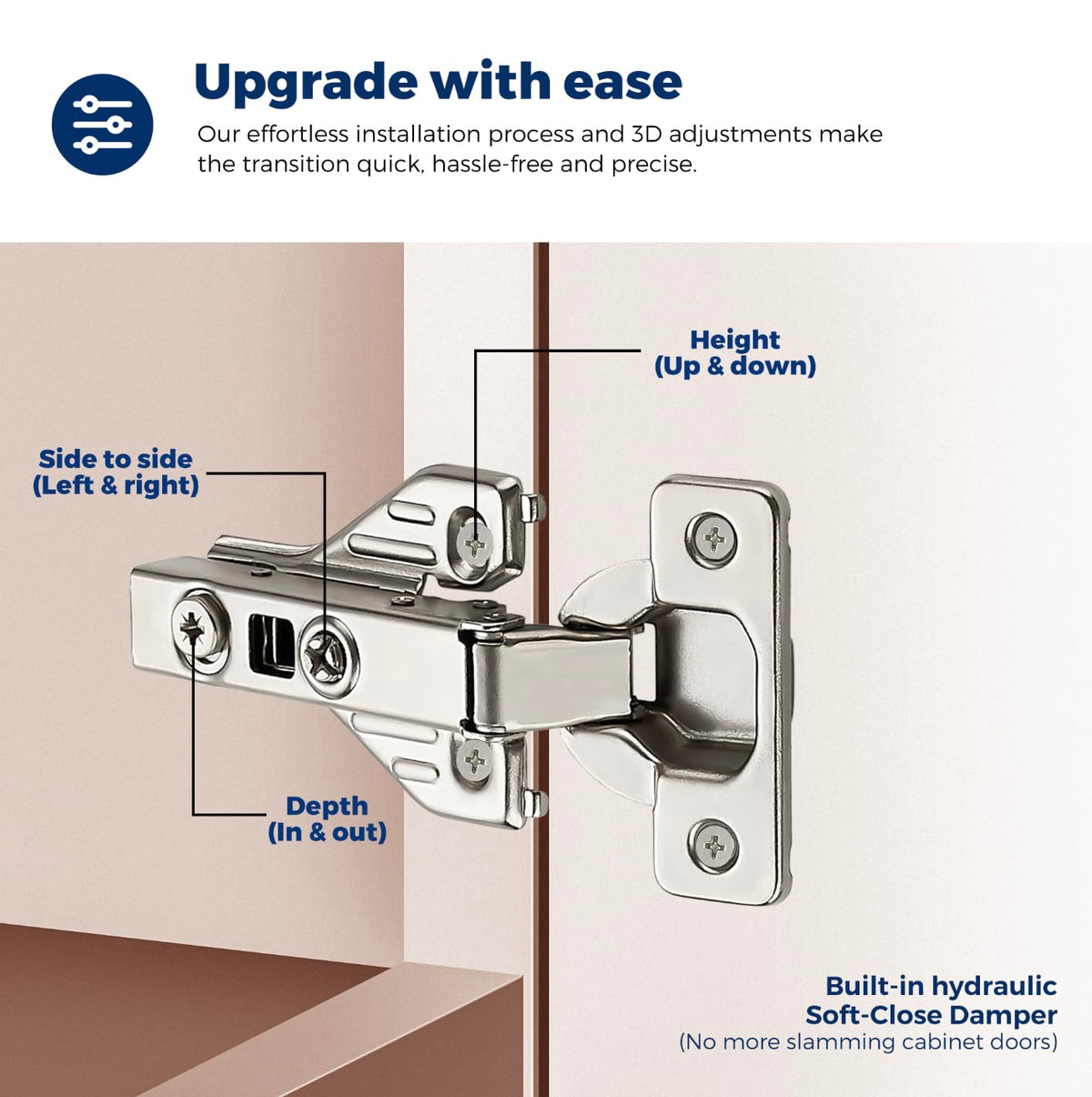

Adjustment and fit

• Door mounting holes spaced at 32 mm with an edge clearance of 10 mm, aligning with common face-frame layouts.

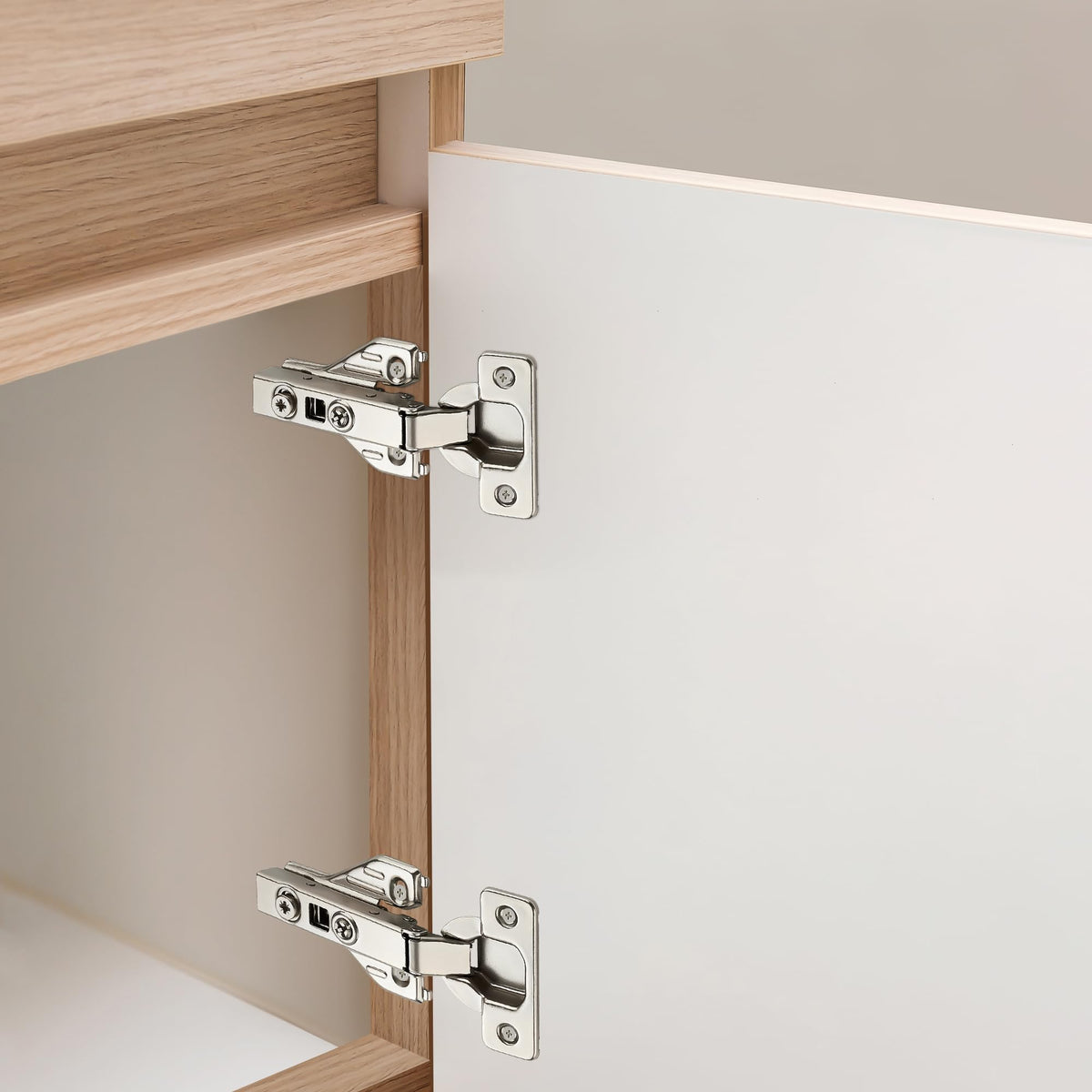

• The hinge design allows a fine 2 mm seam gap adjustment via the two raised screws, helping you achieve a precise door alignment.
• Maximum opening angle reaches up to 105 degrees, supporting easier access and wide visibility of contents.

Durability and versatility

Constructed from premium steel with a nickel-plated finish, these hinges offer a strong, long-lasting body that stands up to daily use. They are suitable for kitchen, bathroom, and other face-frame cabinet applications, delivering dependable performance without sacrificing aesthetics.

Installation support and warranty

Ravinte backs these hinges with a 365-day evaluation period, inviting you to try them in your space and reach out if they don’t meet your needs. While not a guarantee, the support promise reflects a commitment to customer satisfaction and ongoing assistance.
