Prime-Line C 1001 Sliding Glass Door Handle Set – 4-15/16 in, Black

Prime-Line C 1001 Sliding Glass Door Handle Set

This door handle set blends durable extruded aluminum with a sleek black anodized finish and a subtle wood grain detail, adding a contemporary touch to any patio entry. It is a hook style, surface mounted unit that requires no mortising, and it is non-handed for flexible installation on both left and right handed sliding doors.

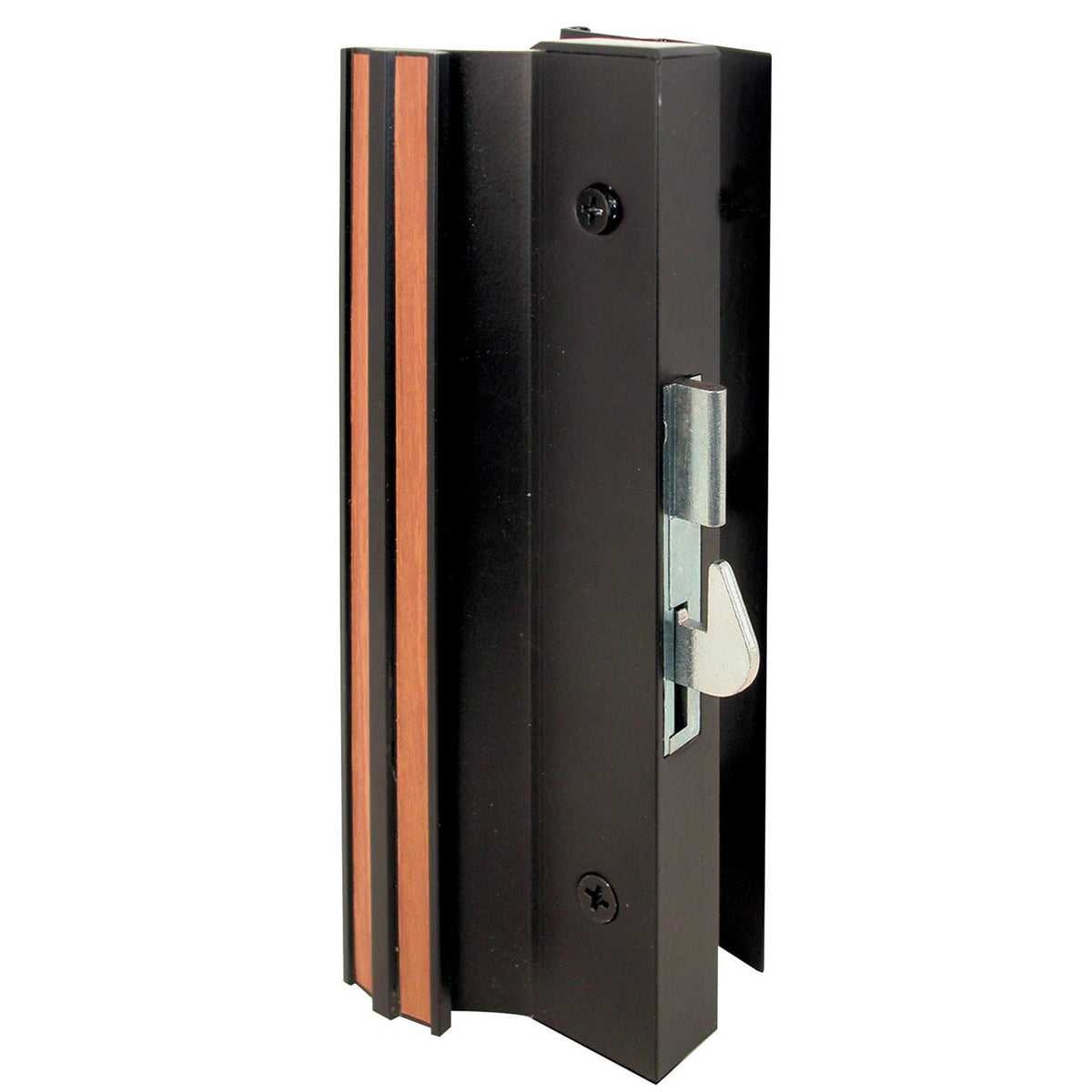

The exterior pull is a flush design, while the interior pull remains easy to grasp, creating a clean, low-profile appearance. The locking mechanism is integrated into the handle, and the exterior locking pull can be swapped later if you prefer a different locking configuration. This versatility makes it a practical choice for upgrading or replacing damaged hardware without extensive door modification.

Key benefits you may notice in daily use

• Sturdy extruded aluminum construction stands up to daily use and exposure to the elements.
• Black anodized finish with a wood grain detail complements many door styles and exterior aesthetics.
• Non-handed design lets you mount the set on both left and right handed doors, simplifying procurement.
• Surface mounted hook style eliminates the need for mortising, speeding up installation.
• Fixed anti-lift key helps resist external manipulation for added peace of mind.
• Hook latch retracts to the unlocked position if the door closes while extended, helping prevent damage to the keeper and lock assembly.

Versatility, compatibility, and fittings

To ensure a proper fit, verify that mounting holes center-to-center measure 4-15/16 inches. The set includes all necessary fasteners and installation instructions. Besides matching style and lock type, this central measurement is a key specification when replacing existing hardware.

For customization, Prime-Line offers options such as the outside flush pull (C 1009) and the locking outside pull (C 1041). If door frame variances require adjustment, refer to shim plate recommendations (E 2181) for a precise fit.

What you get and how to use it

• Replacement for damaged or missing surface mount, hook style handles on sliding doors
• 4-15/16 inch center-to-center mounting holes
• Extruded aluminum with a black anodized finish and wood grain detail
• Integrated surface mounted hook lock for streamlined operation

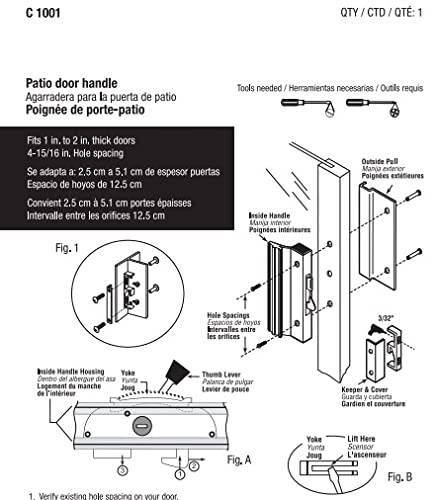

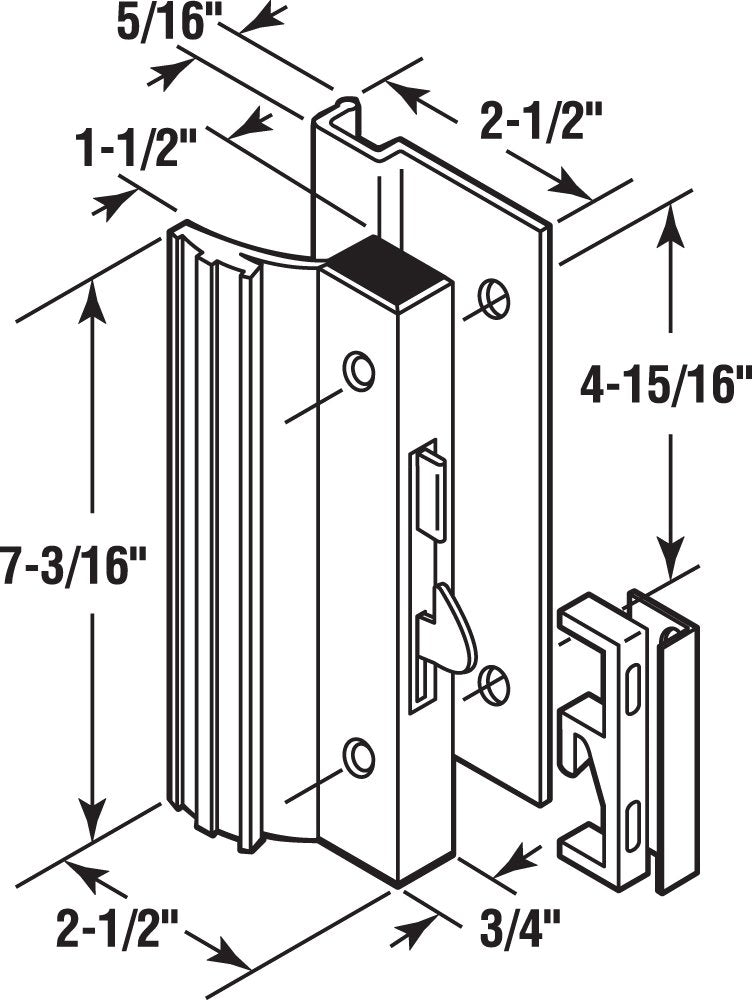

• Clear line art drawing included to compare dimensions and fit

Care and quick tips

Wipe with a mild cleaner to preserve the finish, and check door alignment and track lubrication periodically to maintain smooth operation. The single pack includes all required fasteners for straightforward installation.
