PREXISO Digital Level & Protractor – 7-Inch Magnetic Base Angle Finder (0–180°, 0–90°)

Overview

The PREXISO Digital Level & Protractor combines two precision tools into one compact device, designed to help you measure angles with clarity and confidence. It reads angles against the horizontal with absolute accuracy and offers a quick relative mode to capture the angle between two surfaces. The result is a versatile instrument for woodwork, cabinetry, layout, and drainage leveling, delivering practical guidance without overpromising results.

Built to support real-world projects, this tool emphasizes hands-free operation, reliable visibility, and flexible measurement options. The combination of a magnetic base, a rugged aluminum frame, and a clear electronic display makes it easier to work in cluttered spaces, dim rooms, or on metal surfaces where traditional rulers fall short.

Key capabilities

• Absolute angle measurement against the horizontal plane for stable, repeatable readings.
• Relative measurement mode to quickly gauge the angle between two surfaces without resetting.

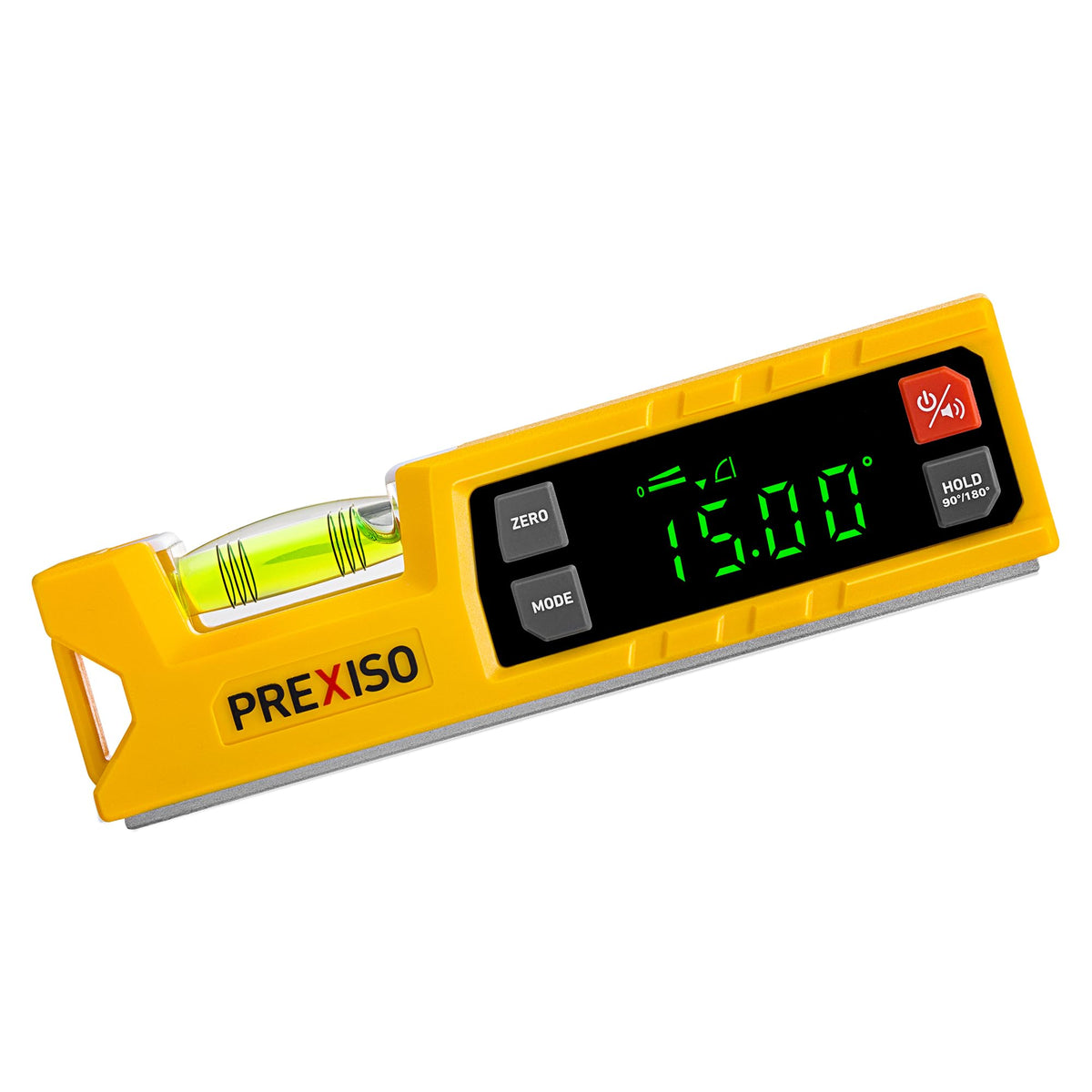

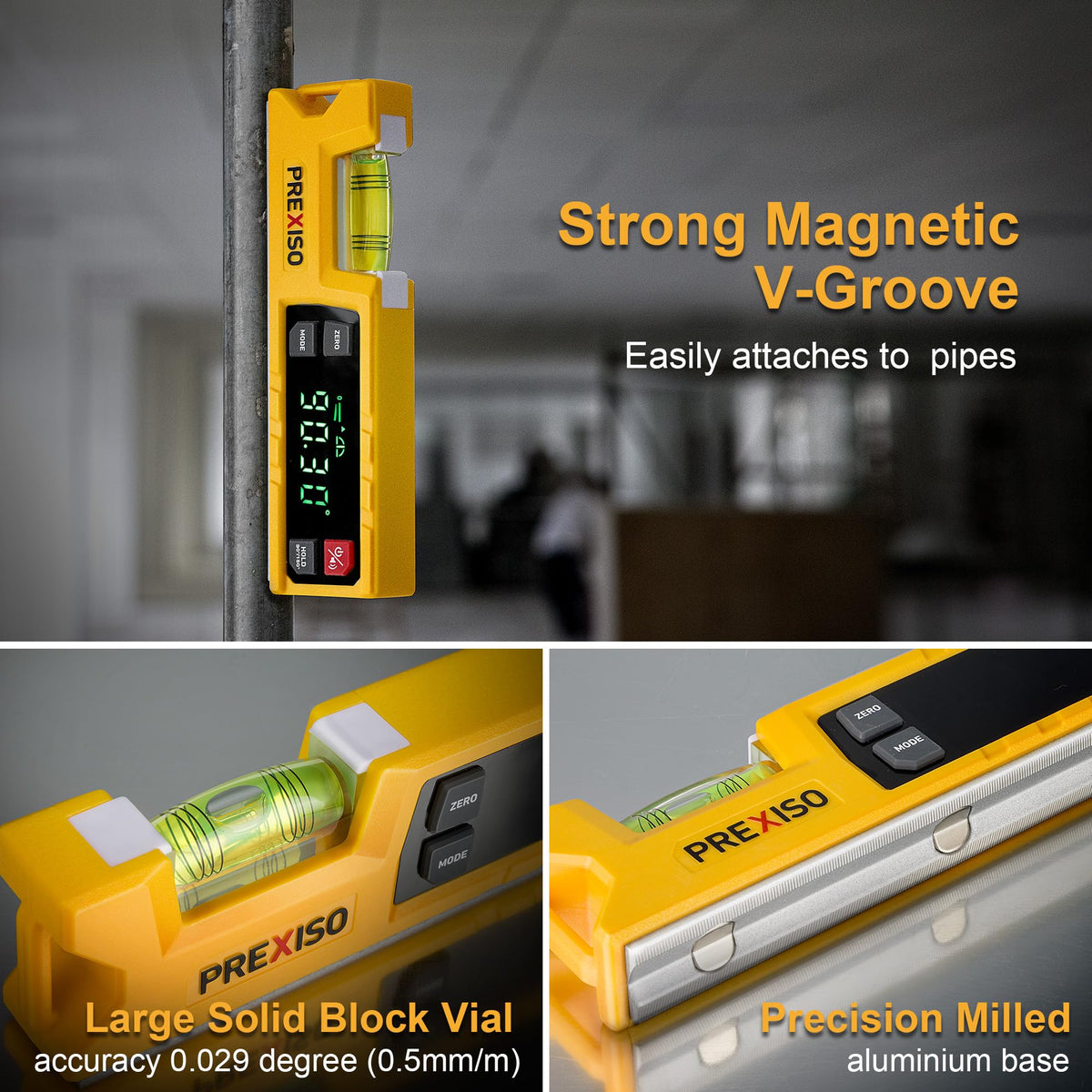

• Magnetic V-groove base for hands-free attachment to ferrous surfaces such as pipes and steel framing.
• Rugged aluminum construction that supports precise leveling in demanding environments.
• Automatic digital inversion so the display remains intuitive when the tool is upside down, plus a backlit screen for low-light work.
• Audible indicator that helps you locate 0° and 90° even in challenging lighting or while you focus on the task.

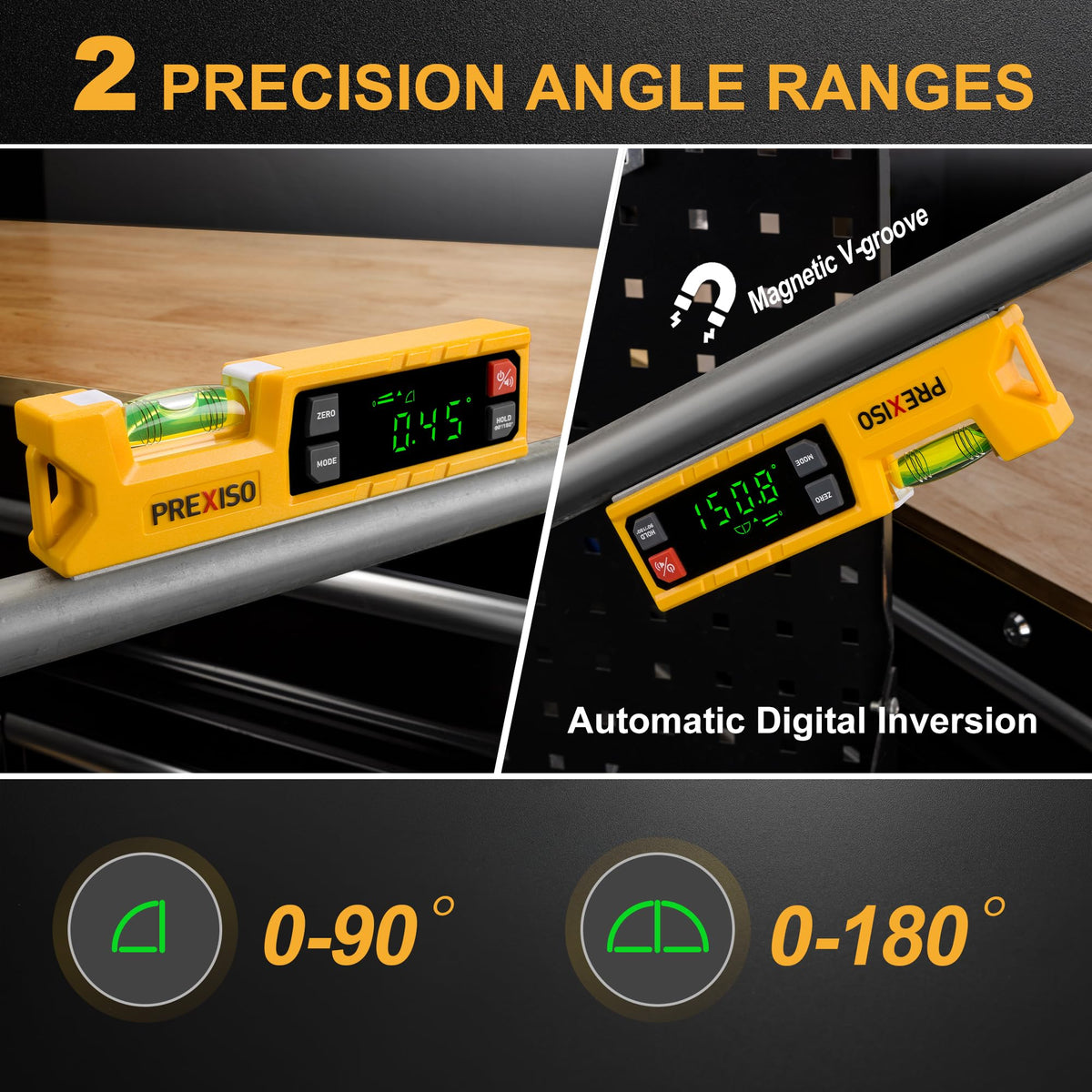

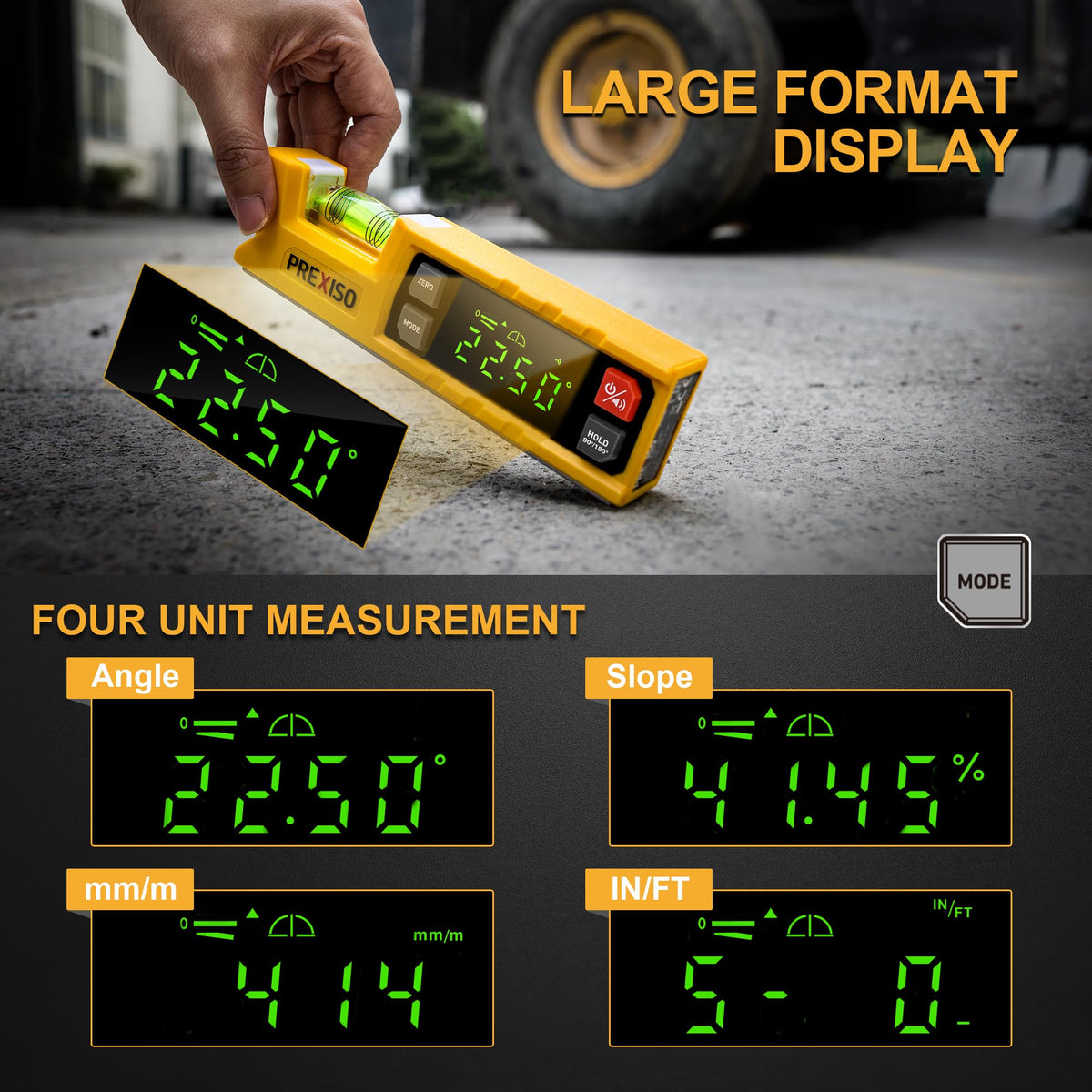

• Four unit options (degrees, in/ft, mm/m, percent slope) and two angle ranges (0–90°, 0–180°) for flexible reading styles.

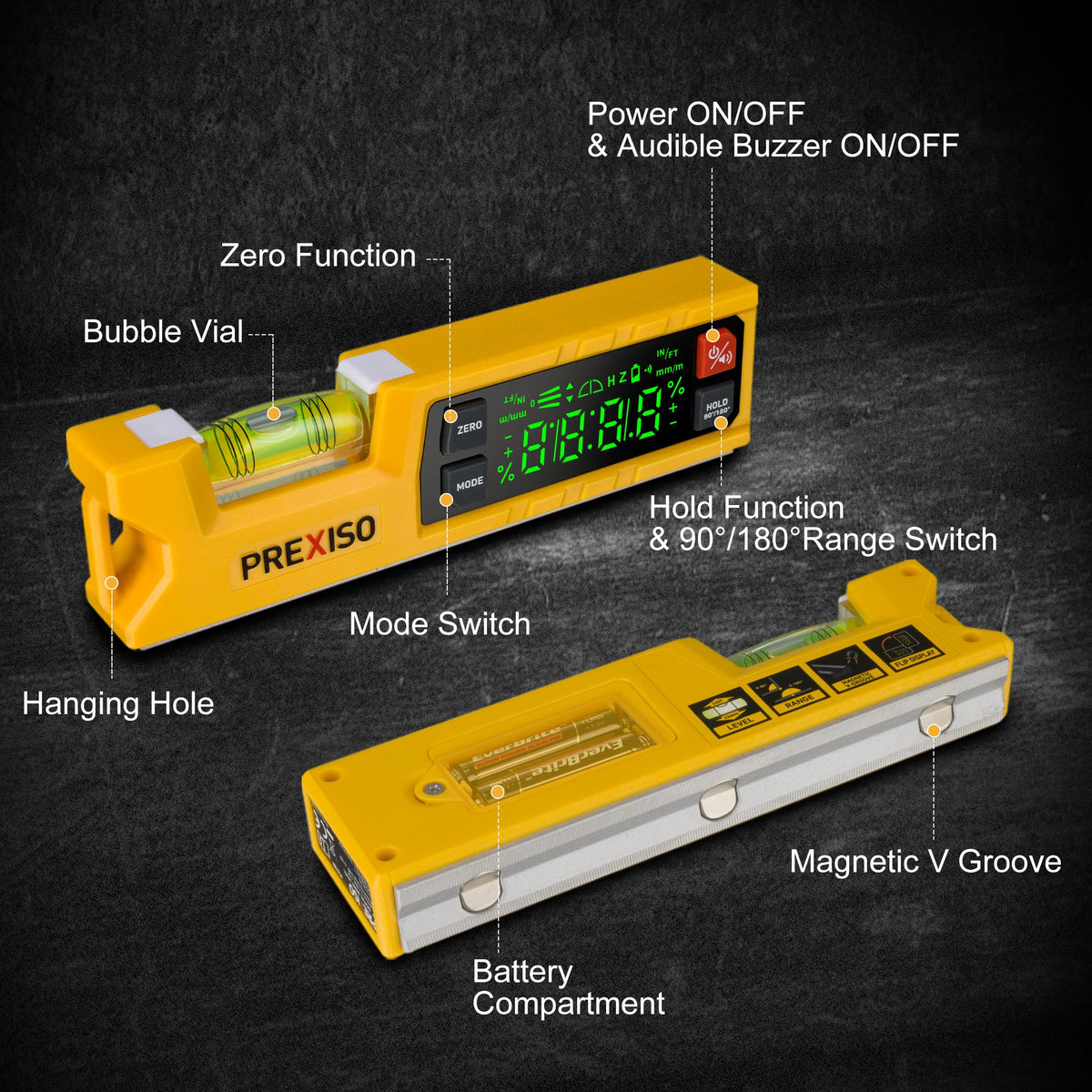

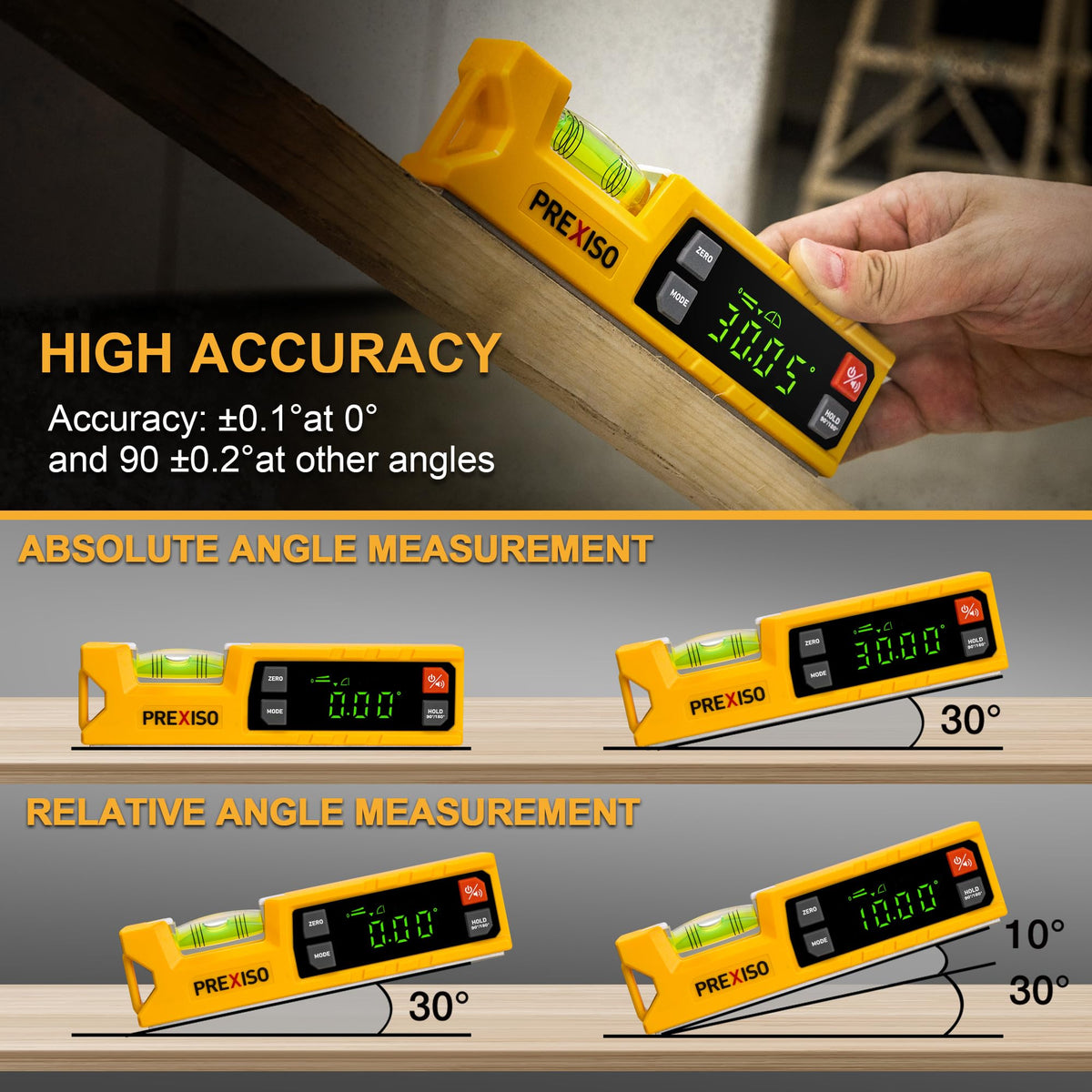

• High accuracy: ±0.1° at 0°/90° and ±0.2° at other angles, with a reading hold function to capture measurements for multiple surfaces.

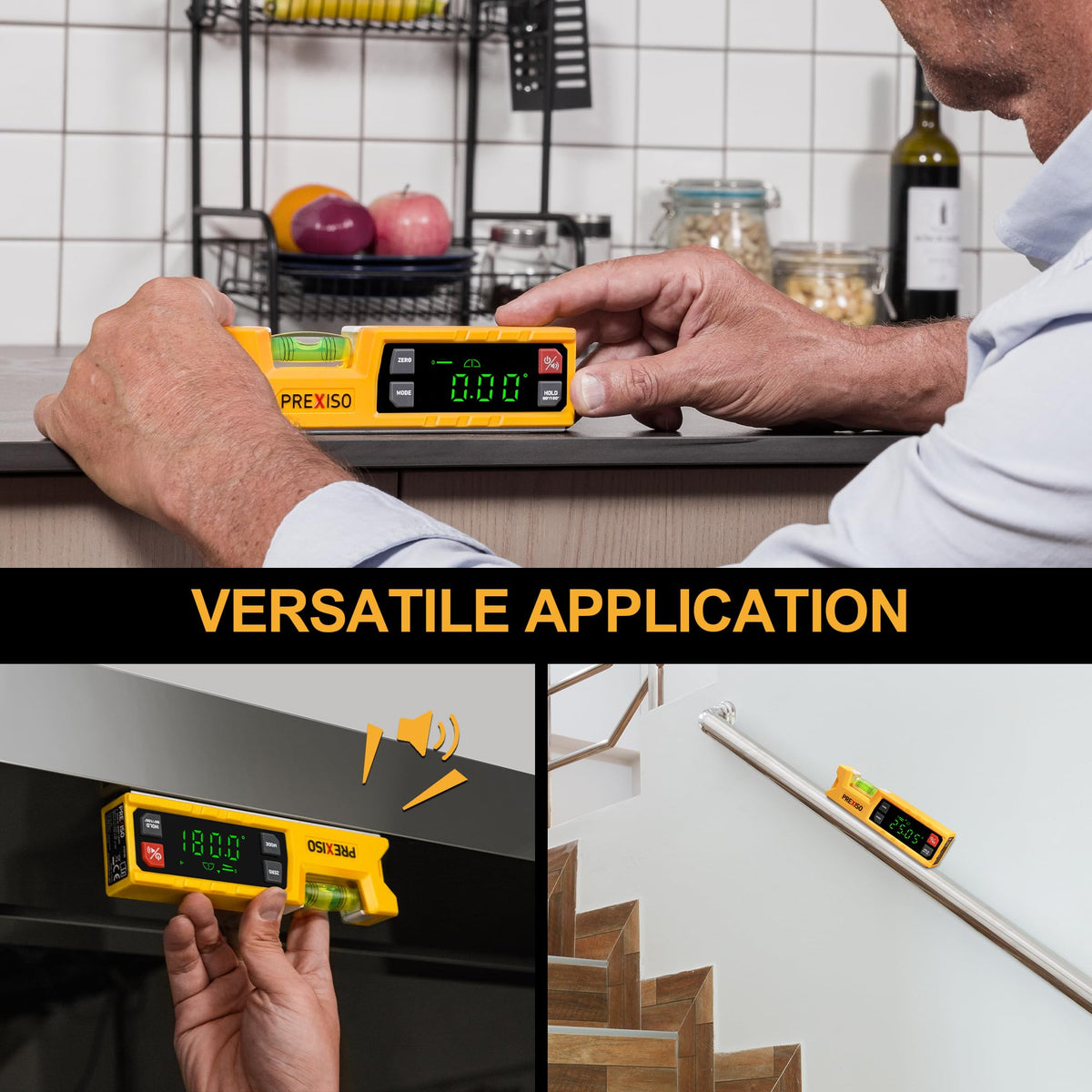

Real-world applications

• Cabinet and shelf installation: maintain level surfaces and consistent angles to achieve clean joints.
• Bevels and saw alignment: set precise bevels and tilt angles for miters and cuts.
• Pipework and drainage: verify slope and alignment to support proper drainage and piping layout.
• Home improvement tasks: check the levelness of countertops, tiles, fixtures, and mounted hardware, even in dim corners.

What you gain from the PREXISO tool is a combination of dependable measurements, intuitive feedback, and versatile display options that adapt to your workflow. While results can vary with surface conditions and setup, the device’s features are designed to help you approach measurements with greater clarity and consistency.
