PRECIHW 320PCS Heat Shrink Bullet Connectors Kit – Marine-Grade, Insulated Waterproof Terminals

Elevate Your Wiring with PRECIHW Heat Shrink Bullet Connectors Kit

Designed for reliability in demanding environments, the PRECIHW kit combines a thick copper barrel with a dual-walled heat shrink assembly to deliver clean, durable connections. The outer polyolefin tube contracts around the wire while an internal adhesive seals as it shrinks, helping resist moisture and salt exposure common in marine and outdoor installations. This approach aims to minimize loose connections and electrical noise, while keeping wire bundles neat and protected.

With three color-coded sizes and a total of 320 pieces, this set is built to cover a wide range of automotive, trailer, marine, and DIY projects. The large, red copper barrels are designed to carry current efficiently, while the heat-activated sealant inside provides an airtight finish. The kit’s design emphasizes a strong grip, reduced slip, and long-term stability in changing conditions, without requiring soldering for a solid finish.

Key Features at a Glance

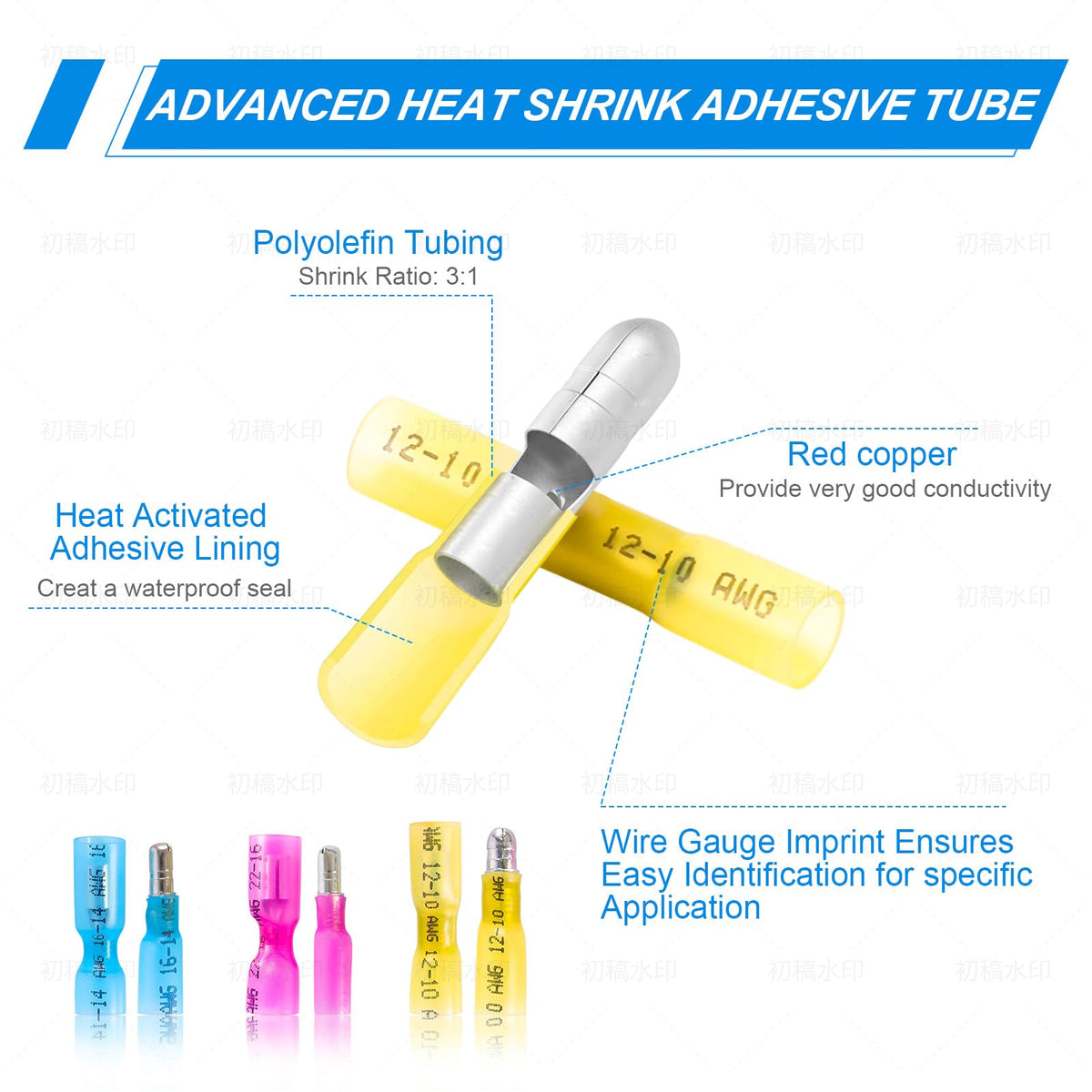

• Thick red copper barrels for robust current flow and reliable connections

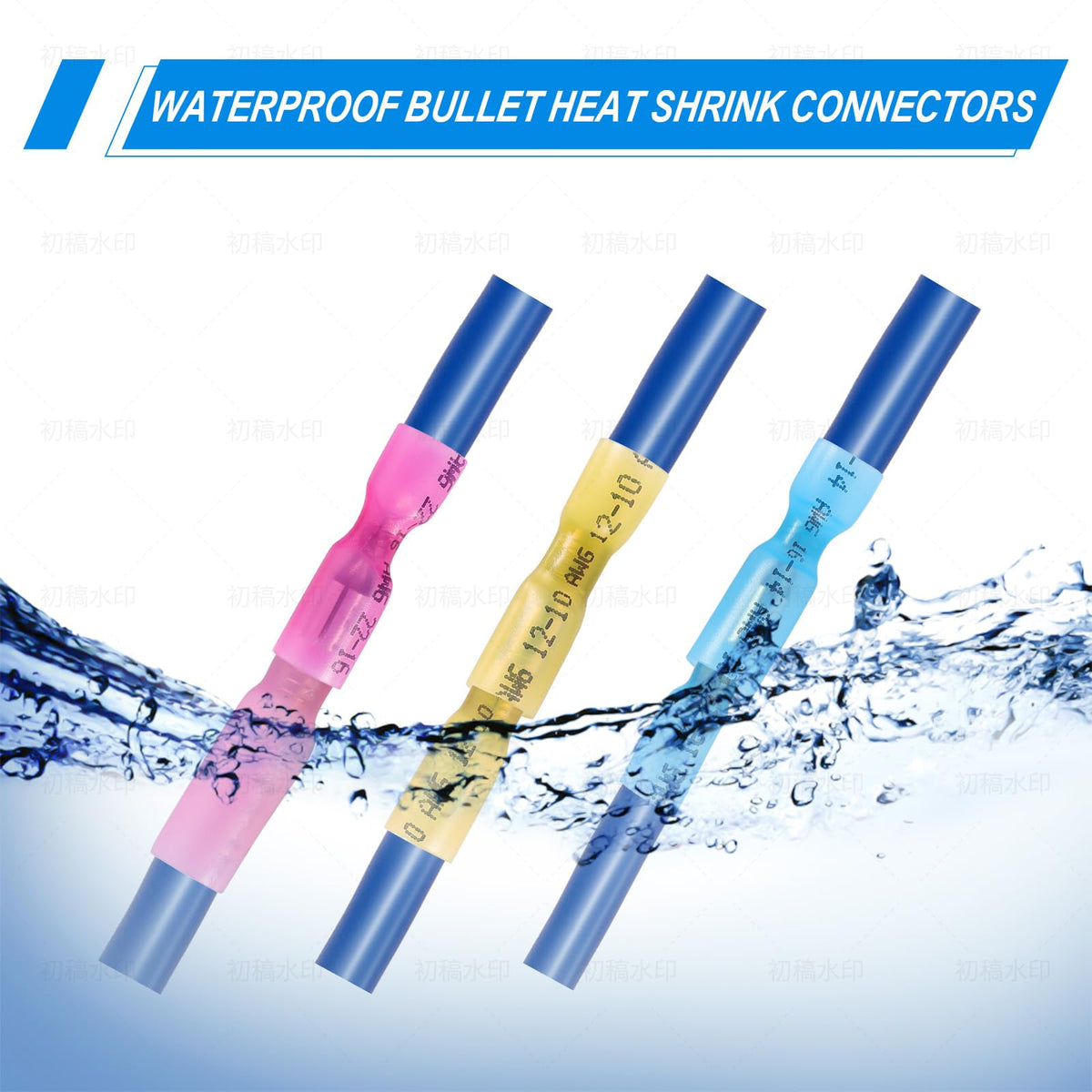

• Dual-walled tubing with an internal adhesive for a moisture- and salt-resistant seal
• Three color-coded sizes for quick identification: red, blue, and yellow
• 3:1 shrink ratio delivers high tensile strength and weather resistance
• Operating range from -55 C to 125 C, with start and finish shrink temperatures at 80 C and 130 C

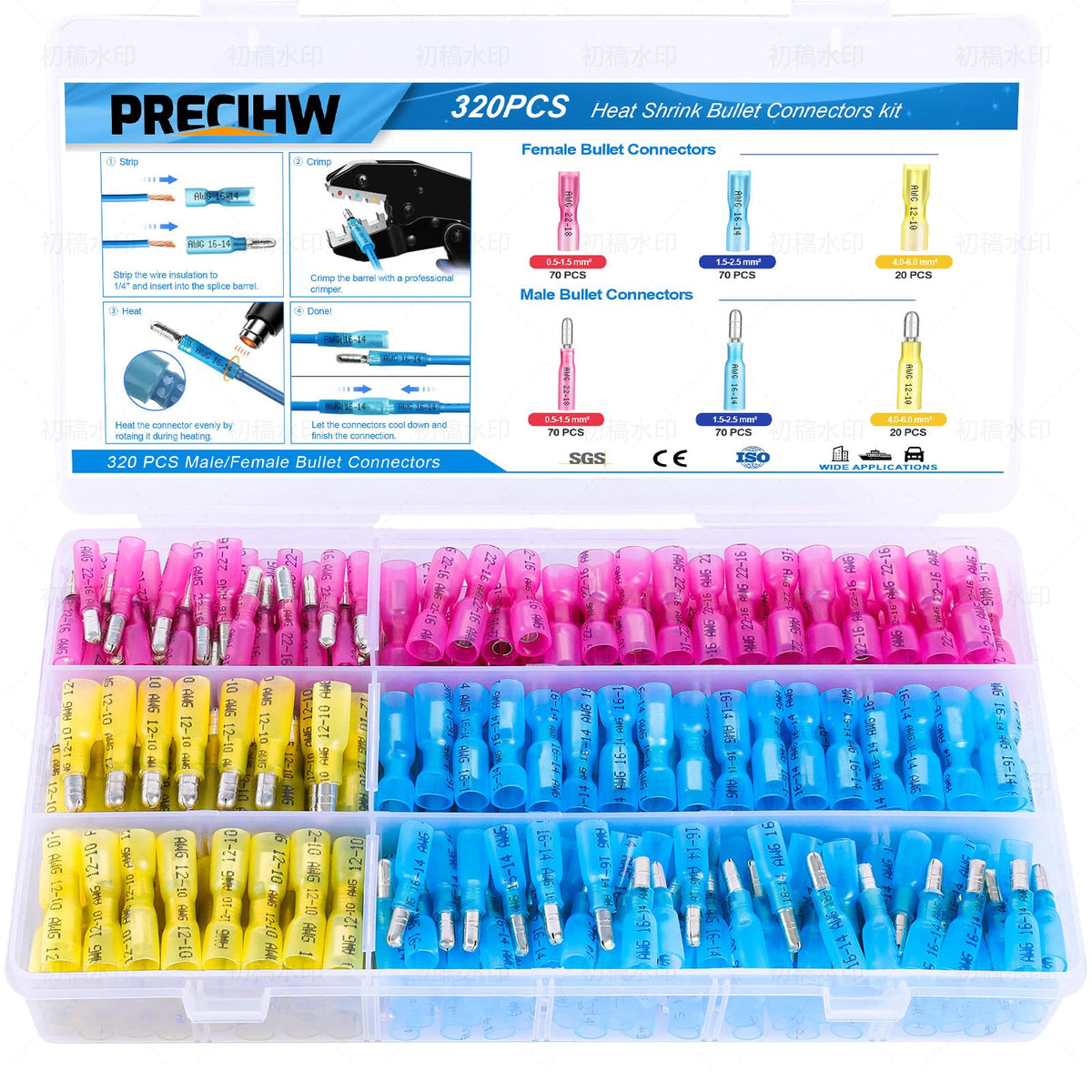

Kit Contents and Sizing

• 320 heat shrink bullet terminals (male and female) in red, blue, and yellow
• Durable plastic storage case for organized projects

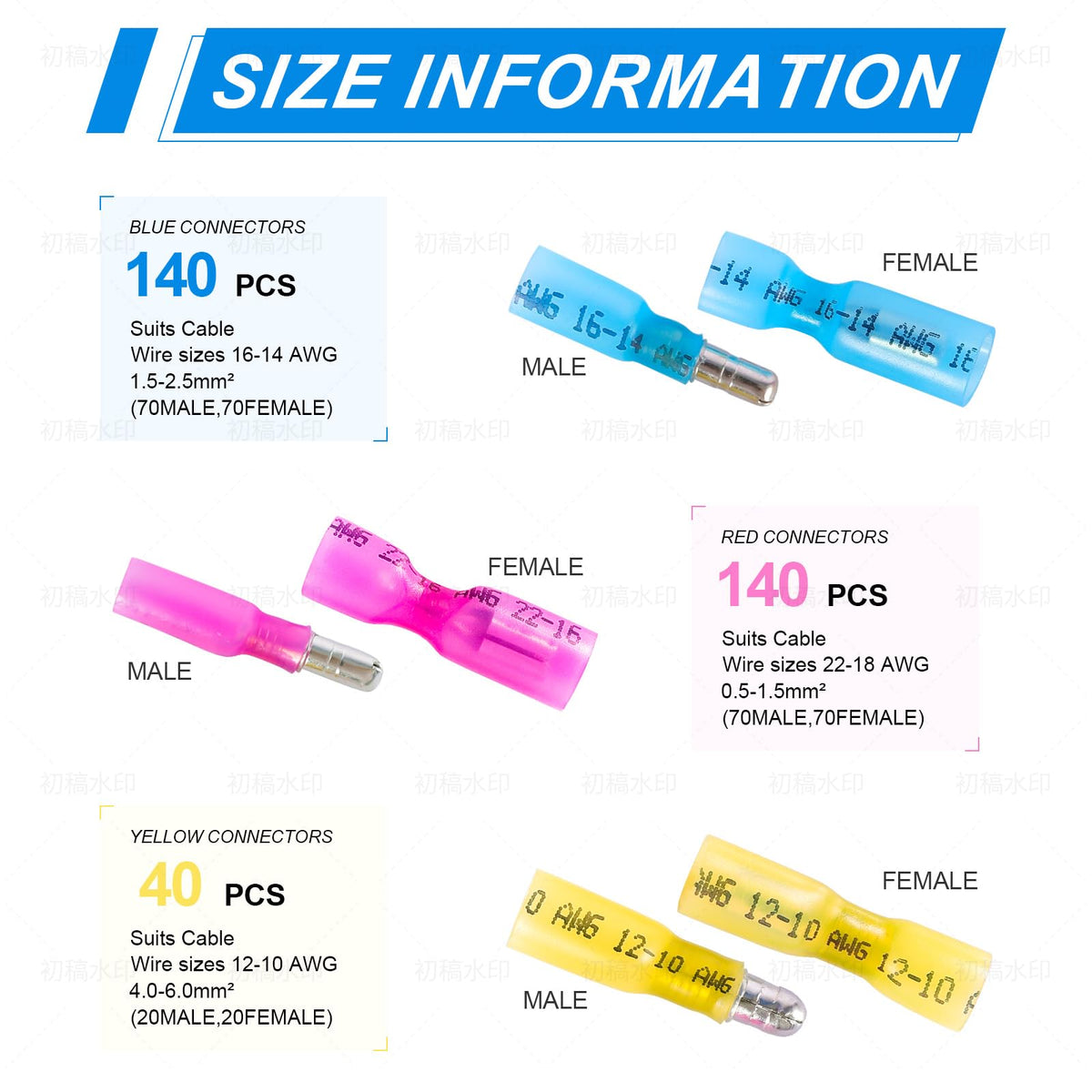

• Clear size guidance imprinted on the tubing for easy selection (AWG 22-18, 16-14, 12-10)
• Suitable for automotive audio, trailers, marine vessels, RVs, DIY wiring, and lab setups

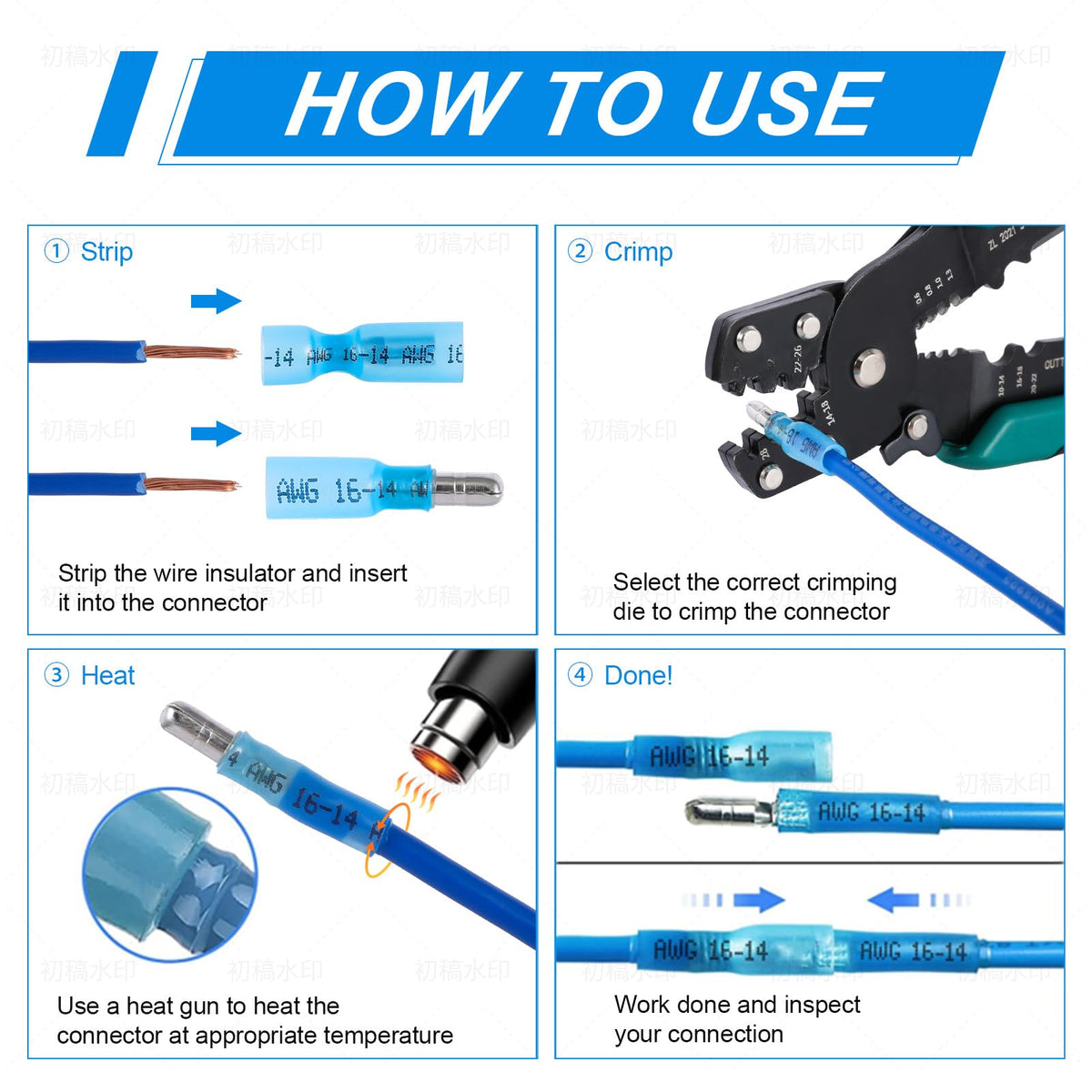

How to Use

1. Prepare the wire and insert it into the appropriate terminal barrel
2. Crimp the connector with a suitable crimping tool
3. Apply heat with a heat gun until the tubing contracts and the adhesive seals
4. Allow the connector to cool for a tight, sealed finish

Practical Applications and Tips

In coastal or outdoor environments, the sealed design helps protect wiring from moisture and corrosion. The color-coding speeds identification during installations or repairs, while the storage case keeps components organized for ongoing projects. For best results, strip insulation first, crimp firmly, and heat evenly while rotating the connector to avoid gaps.
