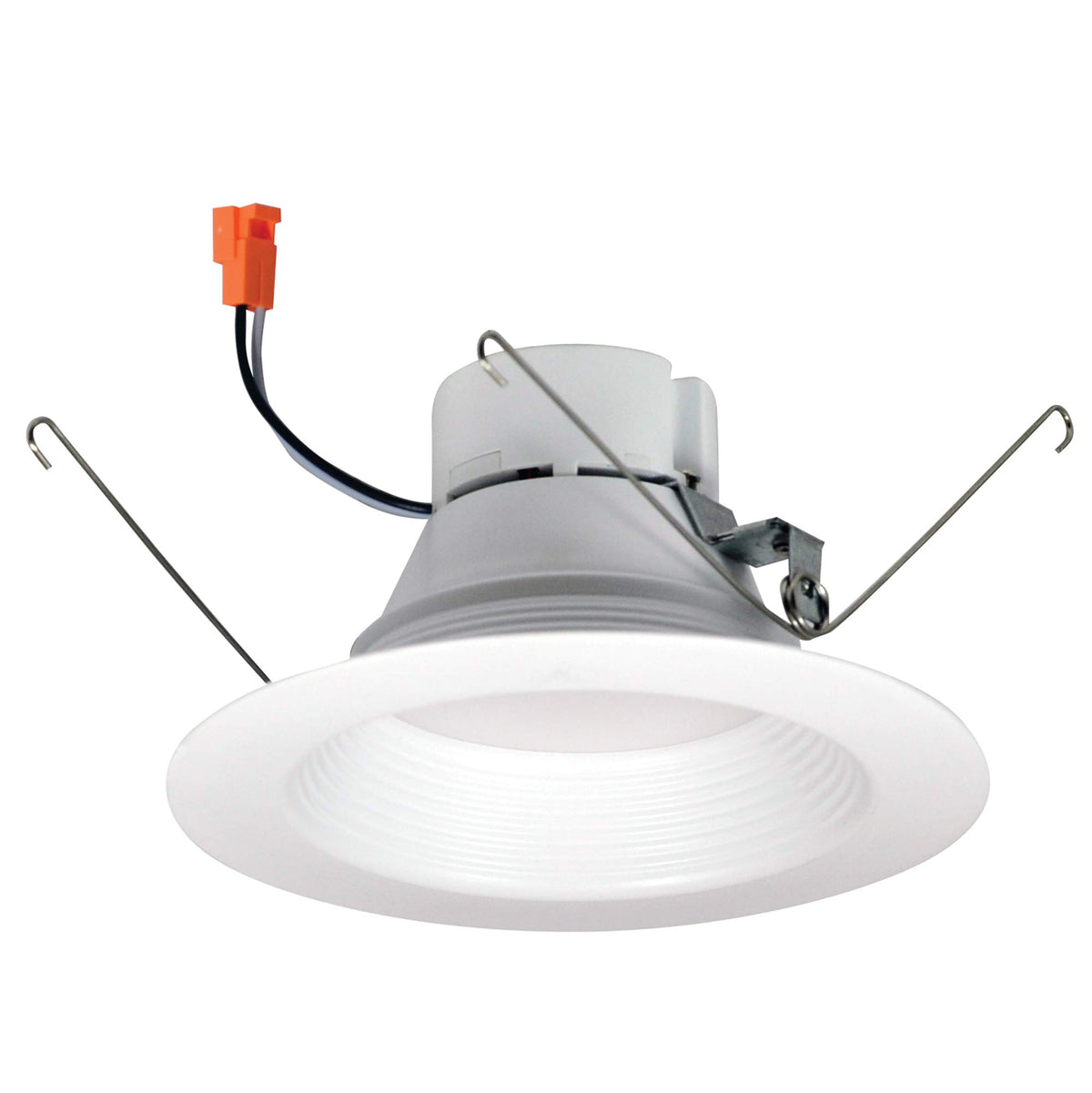

Nora Lighting NOX-563230 Onyx LED Baffle Retrofit Trim 5-6 inch White 3000K

Overview

The Nora Lighting NOX-563230 Onyx LED baffle retrofit trim blends a sleek, low-profile silhouette with efficient, color-accurate lighting. With a compact 5-6 inch footprint, this trim is designed to retrofit a wide range of existing housings, delivering even illumination through a white polymer diffuser. Its all-metal construction, combined with thoughtful thermal management, helps maintain performance over time while keeping a clean, contemporary look in both commercial and residential spaces.

Smart construction for longevity

• Unitized Thermal Management (UTM) within a die-formed aluminum housing actively dissipates heat to support longer life and stable color over time.
• One-piece die-cast aluminum trim provides crisp edges and a durable finish that stays sharp after installation.

Install and compatibility

Designed for straightforward retrofit projects, the fixture includes two adjacent spring steel mounting blades for quick and secure installation. It ships with an E26 quick-connect adaptor and is compatible with most 4-inch IC and non-IC housings from Nora or other brands, simplifying upgrades in both retrofits and new installations.

Lighting performance and efficiency

• A built-in 11-watt LED module delivers about 750 lumens at 3000K with 90 Color Rendering Index, offering vibrant, natural-looking color rendering for uplight and ambient tasks.
• A white polymer diffuser evenly distributes light across the ceiling plane, reducing hotspots and glare for a comfortable viewing experience.

Standards, weather resistance, and warranty

Rated for wet locations, this trim is suitable for damp or high humidity environments. It meets Energy Star criteria and California Title 24 requirements, underscoring efficiency and code compliance. Nora backs the fixture with a 5-year manufacturer limited warranty for added peace of mind.

Product specs at a glance

• Cutout: 5 inches; Overall height, width, and depth: 5 inches; Weight: 2.0 lbs
• Electrical: 120 volts; Integrated LED with 11 watts; Color temperature: 3000K; CRI: 90; Lumens: 750

Why choose the NOX-563230 Onyx

This retrofit trim combines a modern, minimal profile with thoughtful engineering that supports versatile applications. Whether upgrading a hospitality hallway, a retail showroom, or a residential living space, the Onyx trim offers reliable, consistent illumination and a design-forward appearance without needing a complete housing swap.
