NDS Pro Series Channel Drain Kit – 5-1/2 in Deep Profile, Galvanized Grates

Overview

Protect hardscapes from excess water with the NDS Pro Series Channel Drain Kit. Designed to handle moderate runoff from driveways, patios, courtyards, walkways, and sports facilities, this robust modular system channels surface water away from critical areas and into a drain pipe. The deep-profile channel and galvanized steel grates combine durability with straightforward installation, making it a practical choice for residential spaces and light commercial use alike.

What makes it stand out

• Efficient surface water runoff management: captures and conveys water from driveways, patios, and walkways to protect against flooding and concrete damage

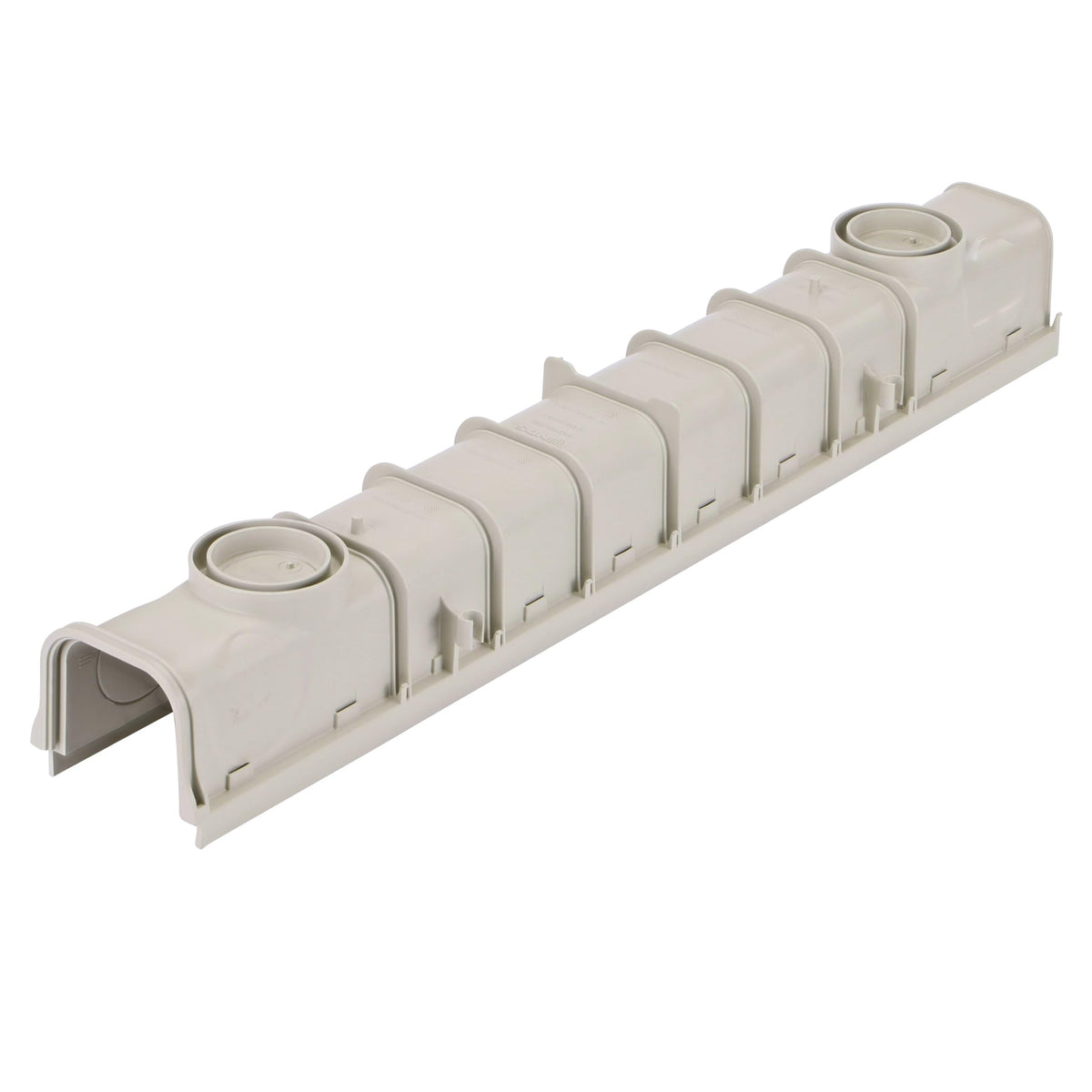

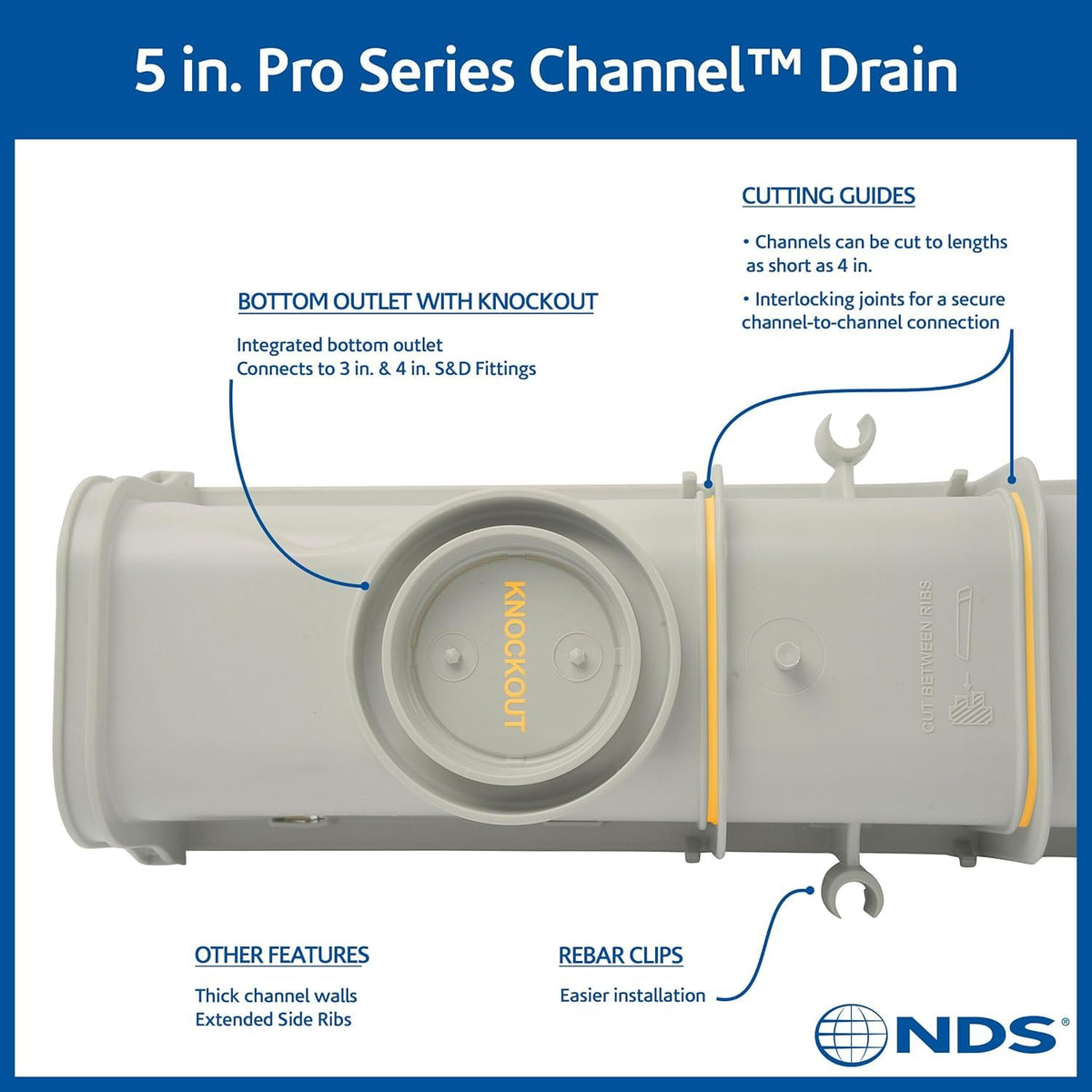

• Flexible drainage connections: bottom outlet accepts 3" and 4" fittings; side and end outlets connect to standard pipes for versatile layouts

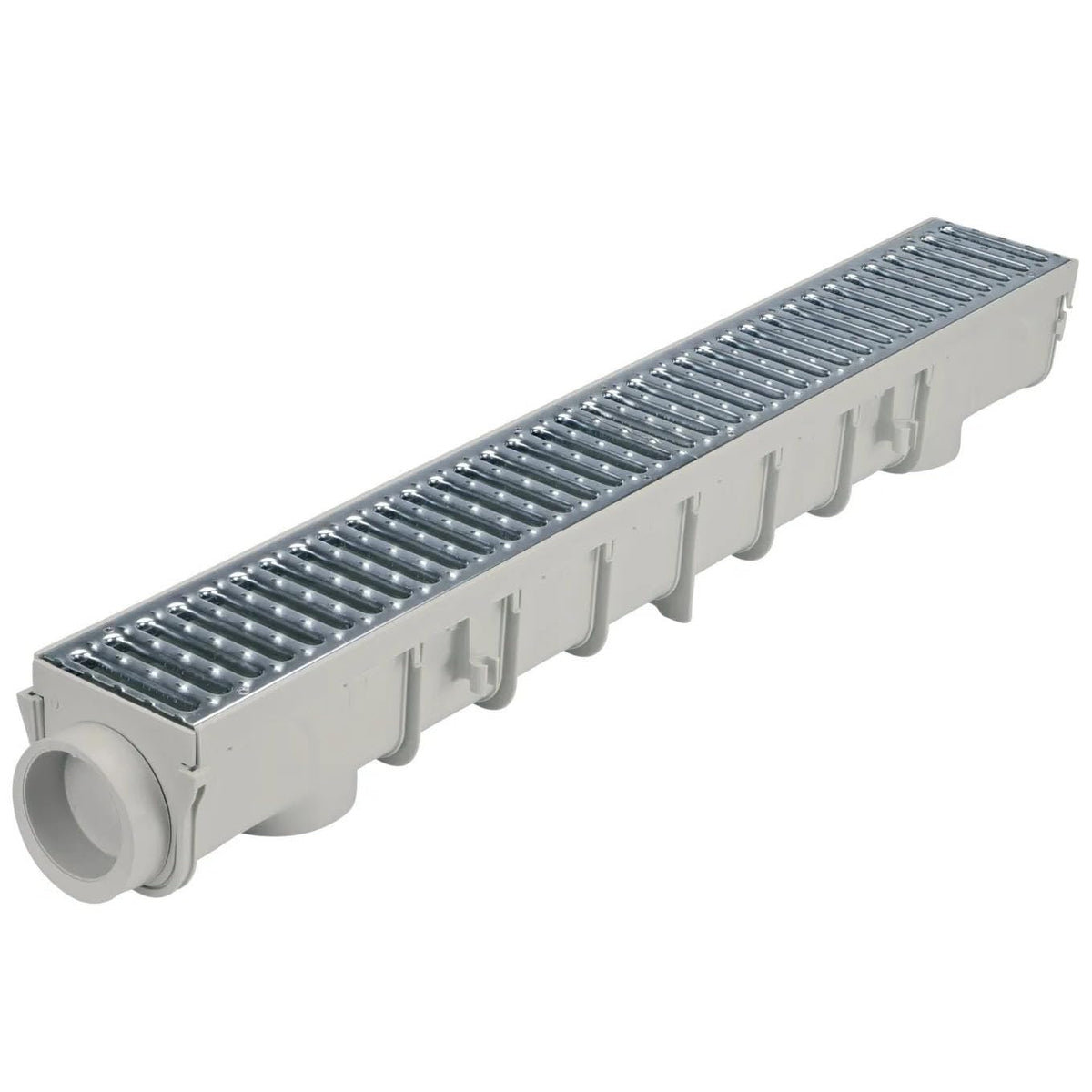

• Ready-to-install kit: includes channel, galvanized steel grates, end cap/outlet, and end cap for a complete modular drainage system

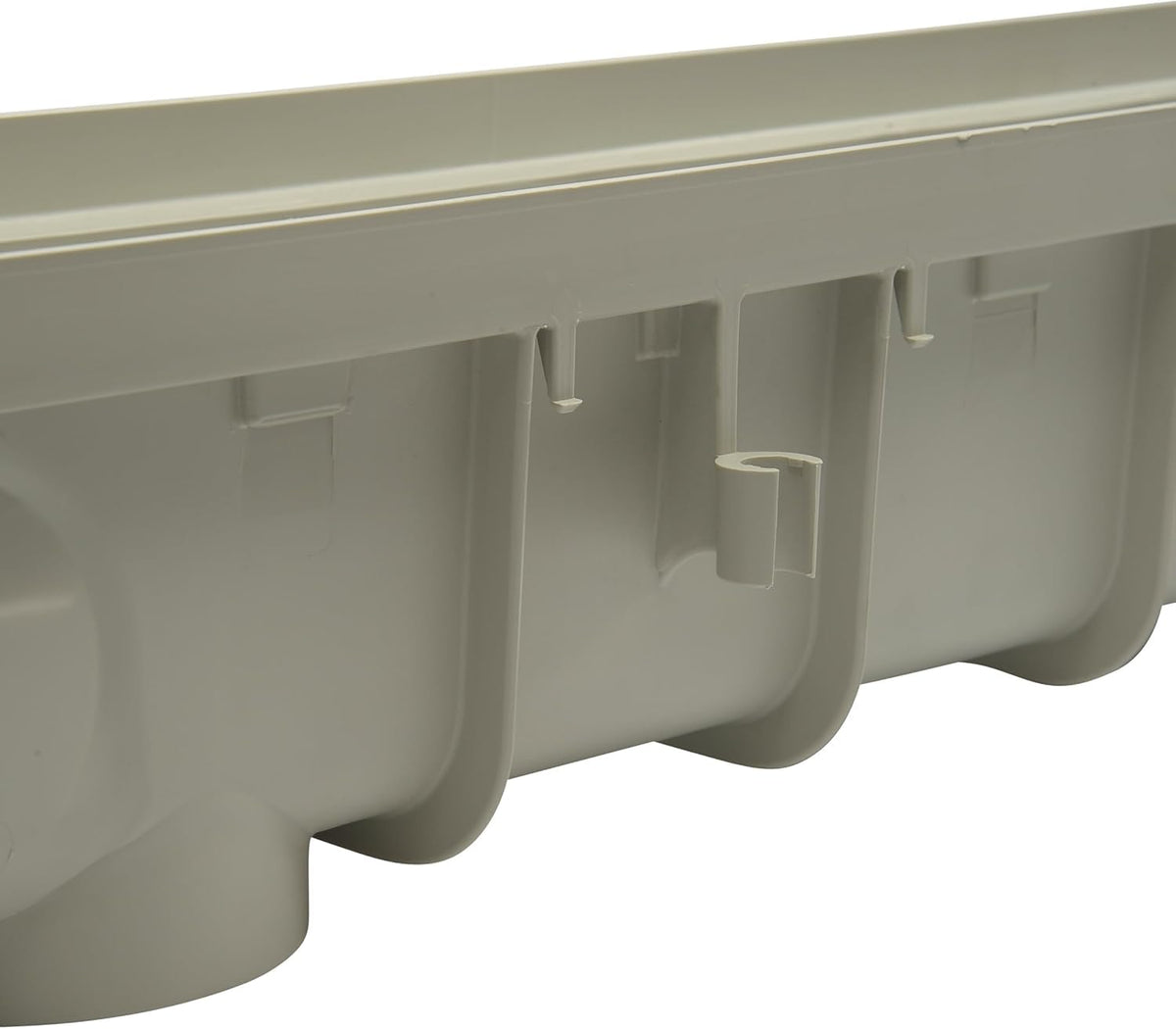

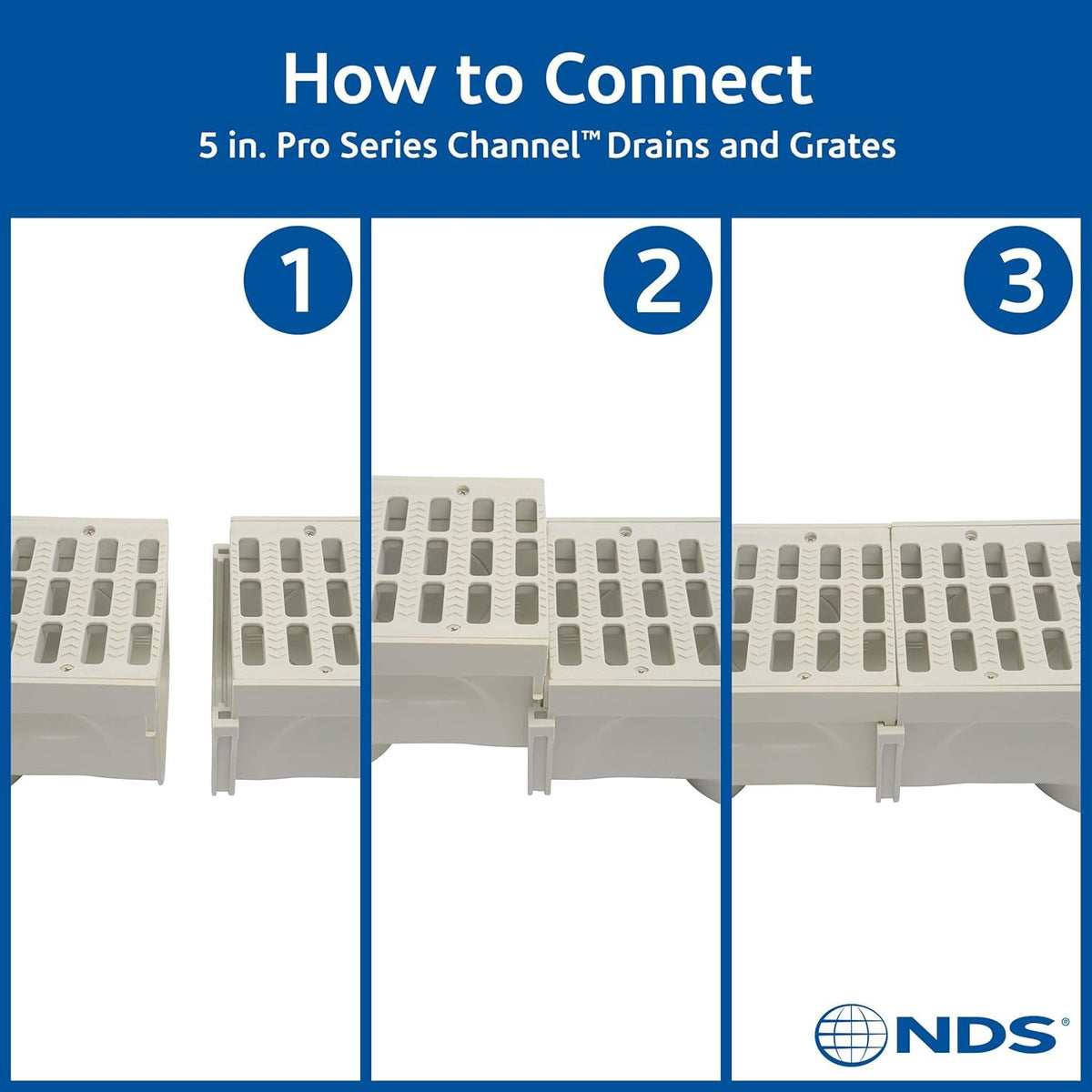

• Expandable modular design: connect channels for long runs or cut sections to fit; interlocking clips simplify alignment

Performance and durability

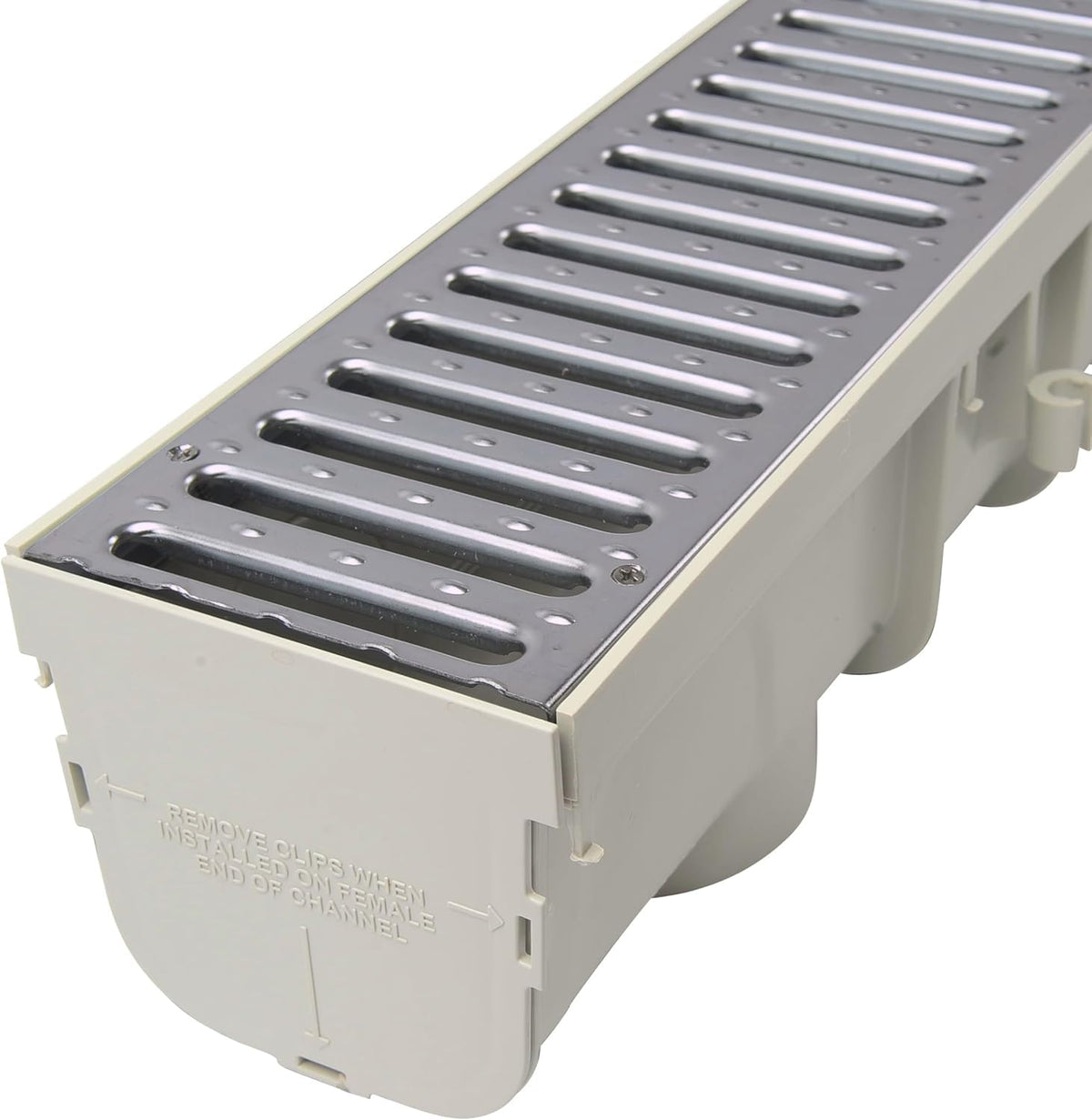

• Durable and ADA compliant: designed for safe pedestrian use with ADA considerations
• Flow and open area: 59 GPM per foot flow rate; 19.32 sq in. open surface area per linear foot
• Load rating: Class B rating supports light traffic up to 175 psi

Real-world applications and benefits

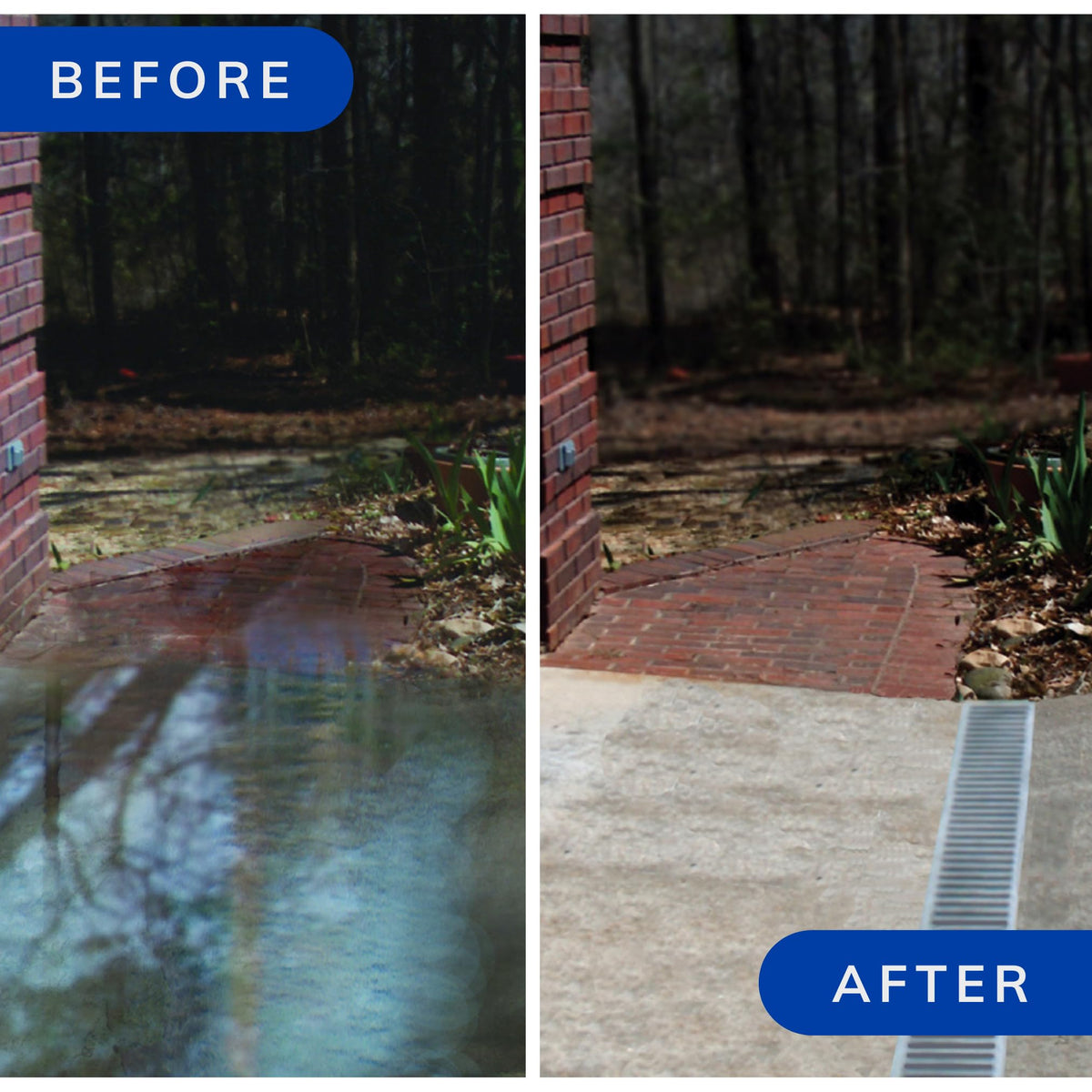

Ideal for driveways to move surface water away from vehicles, patios to prevent pooling after rain, and along walkways or courtyards where moderate runoff occurs. The integrated bottom outlet and side knockouts provide eight outlet options per channel section, enabling flexible routing to a drain pipe or drainage network. The modular design reduces waste, while the ability to shorten sections on site lets you tailor the install to your space.

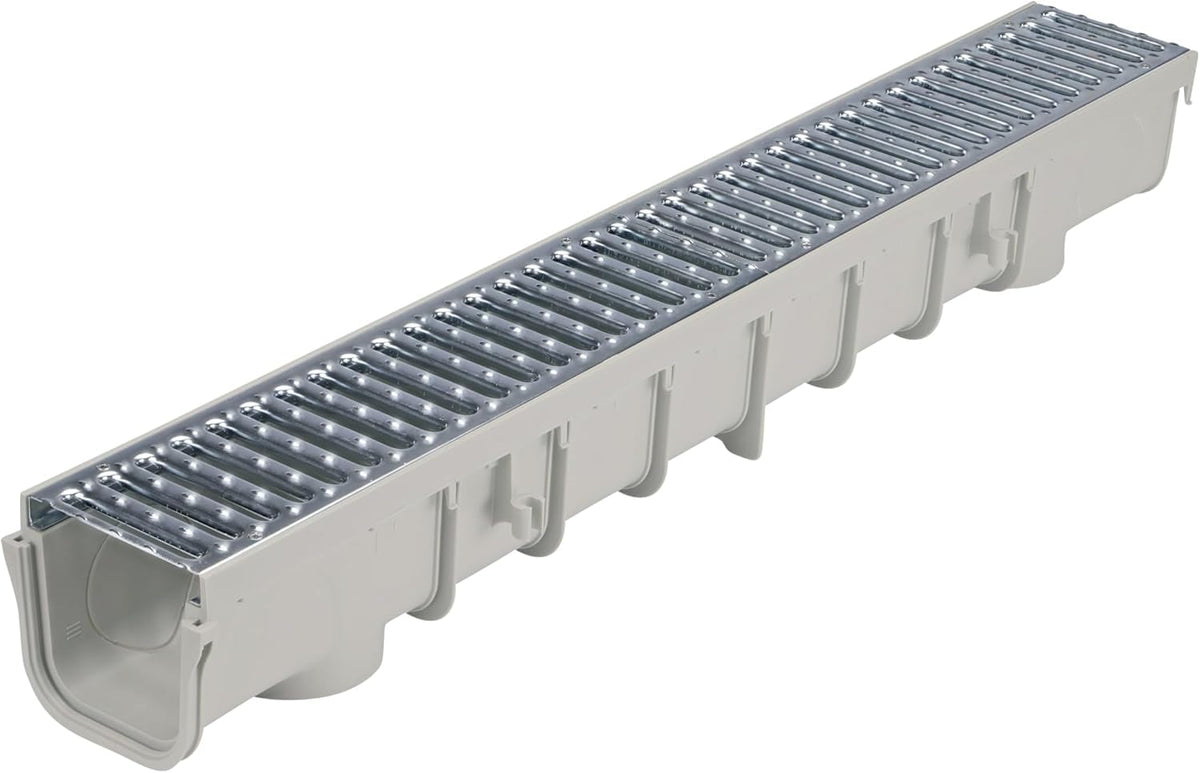

With NDS, you gain access to planning tools like the Channel Drain Selector and Stormwater app to guide your project. The system is built for durability over time, offering a reliable solution where water management matters most.

What’s in the kit

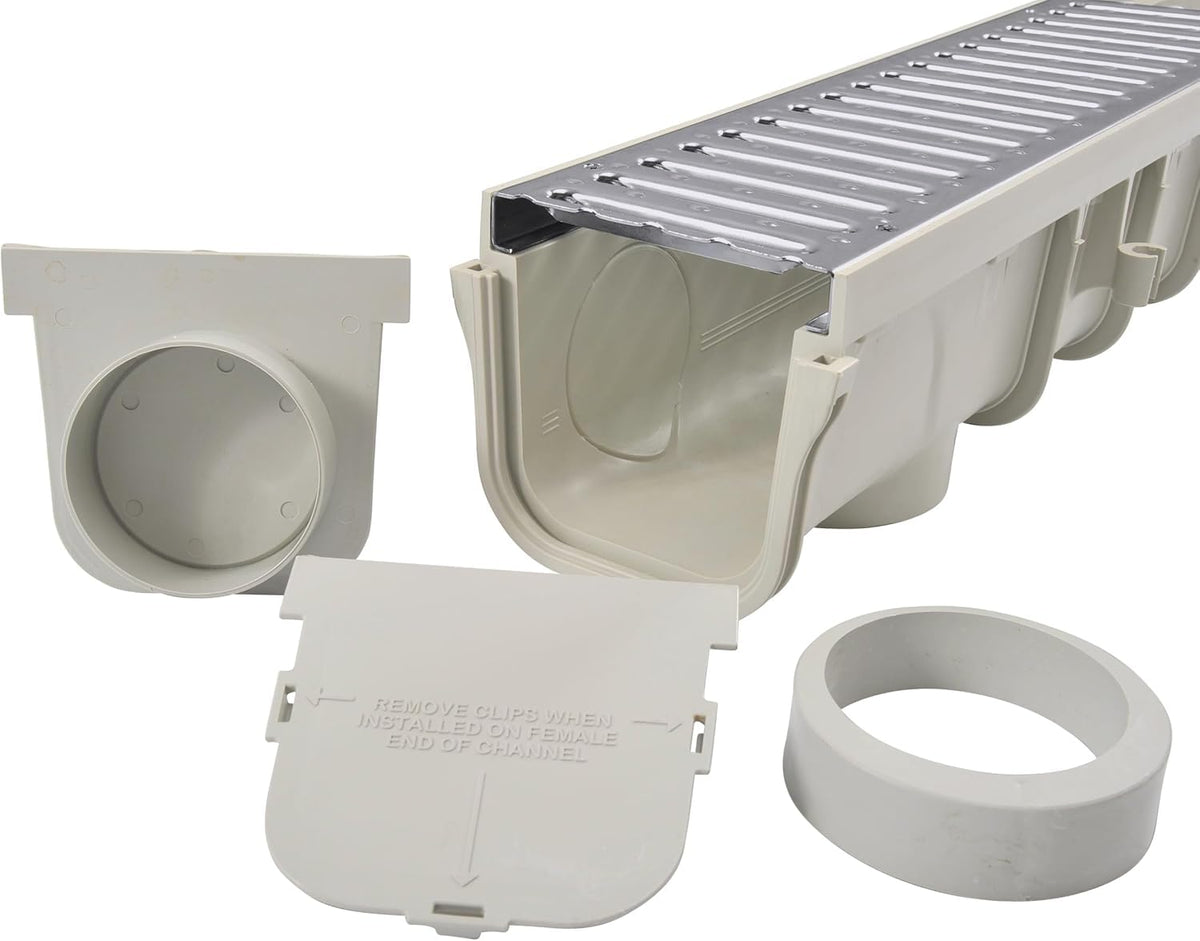

The package includes a 5-inch-deep channel drain, galvanized steel grates, end cap/outlet, end cap, and interlocking joints for a complete setup that’s ready to install.
