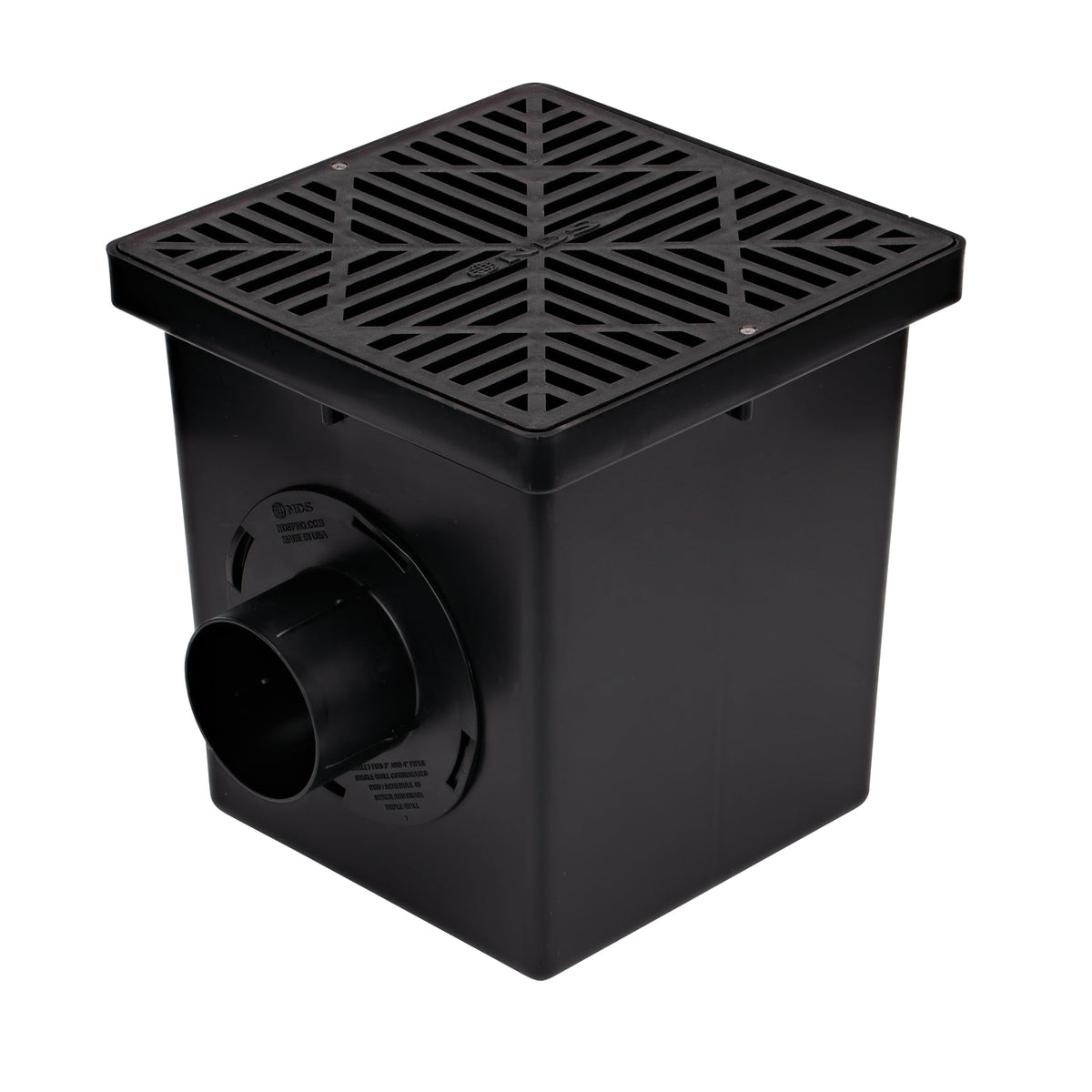

NDS 1200BKITRTL1PK Square Catch Basin Drain Kit – 2 Openings, 12-Inch, 162 GPM, ADA

The NDS 1200BKITRTL1PK Square Catch Basin Drain Kit provides a practical, all‑in‑one solution for managing stormwater on residential properties. By capturing runoff at the source and directing it to a drain line, this kit may help reduce pooling near foundations, patios, and walkways while keeping surfaces cleaner and drier after rain.

How it works

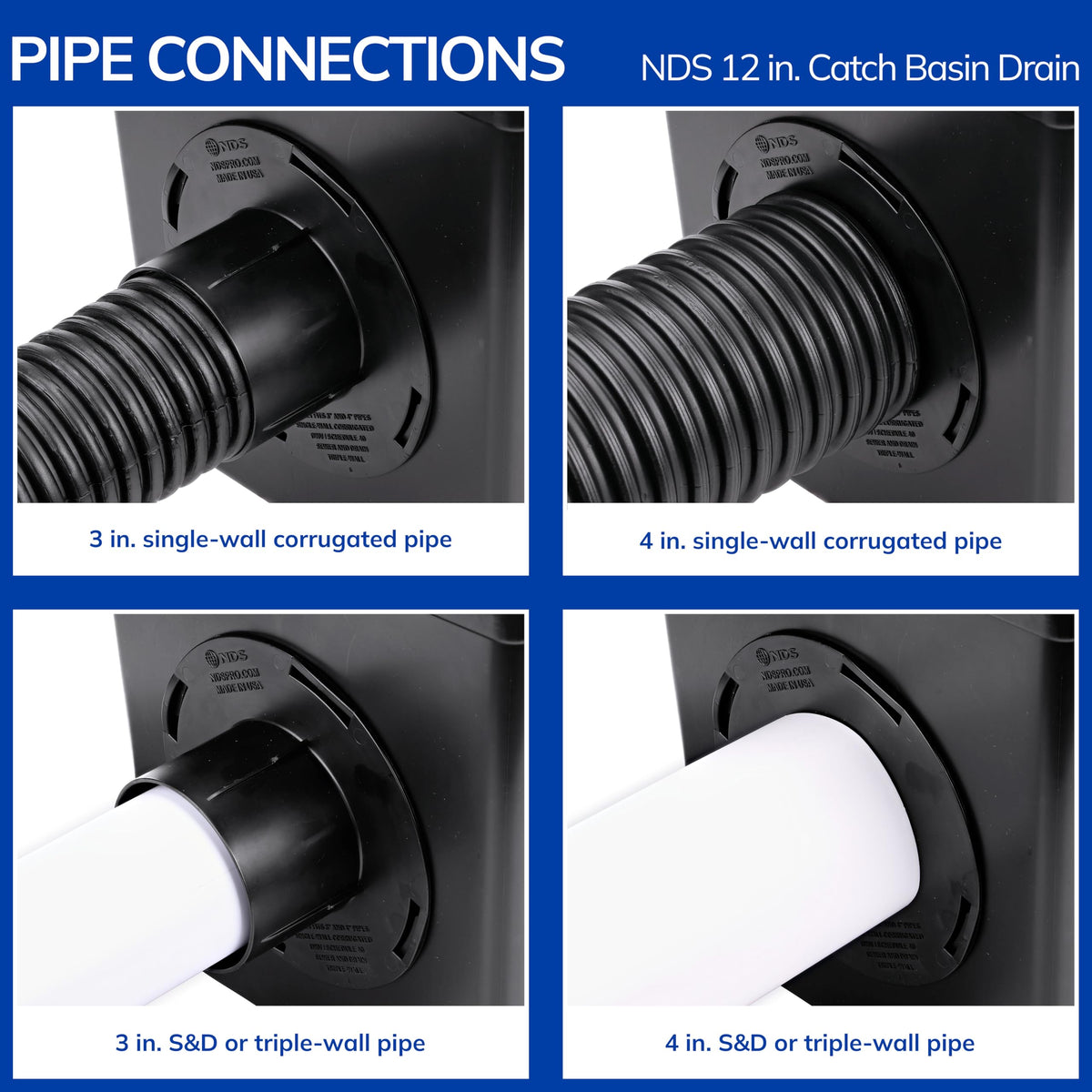

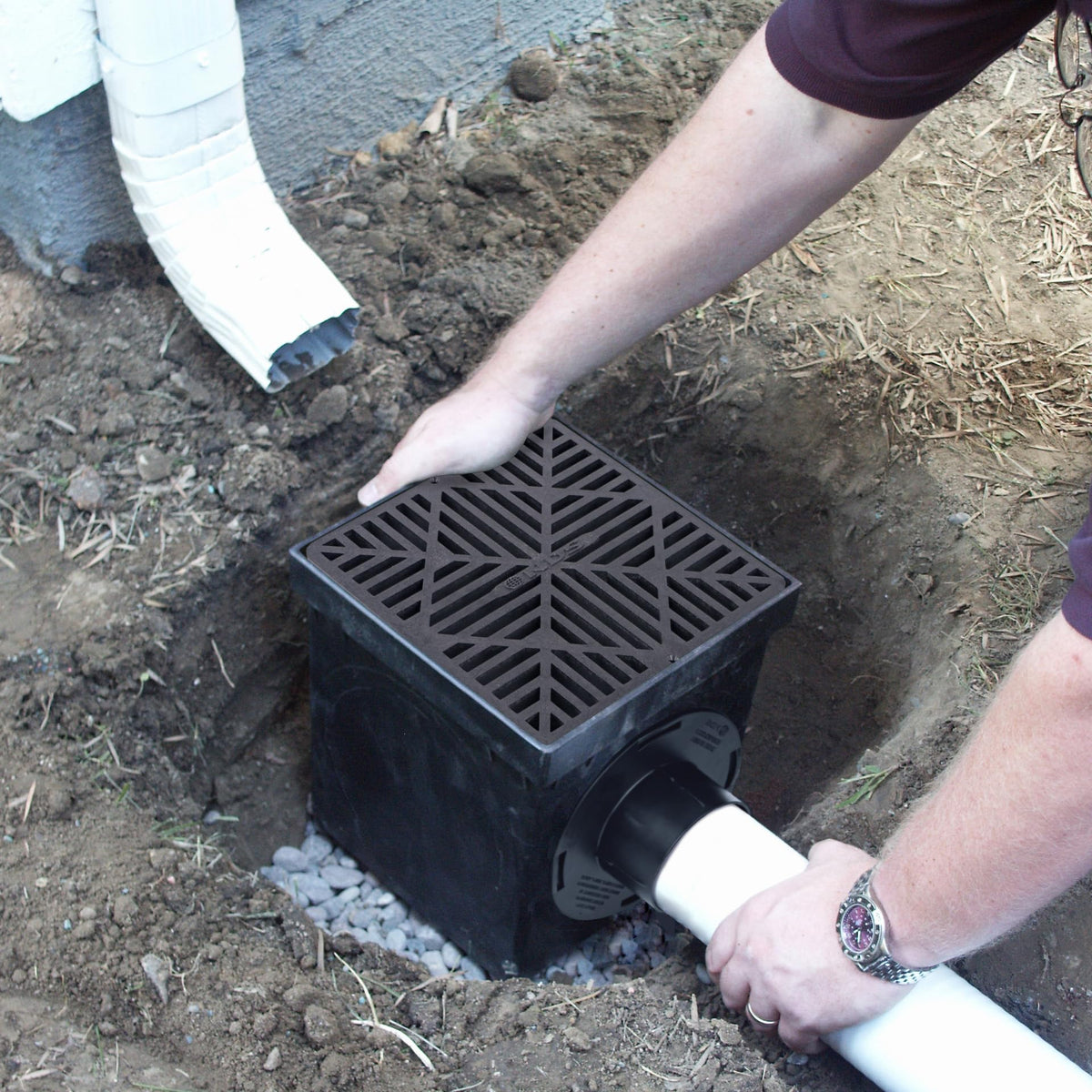

Designed for underground installation, it sits along your drainage path and connects to standard 3 in. and 4 in. pipes. When heavy rain arrives, surface water is funneled into the basin and carried downstream to a discharge point. The 12-inch square grate allows steady flow while helping to exclude larger debris.

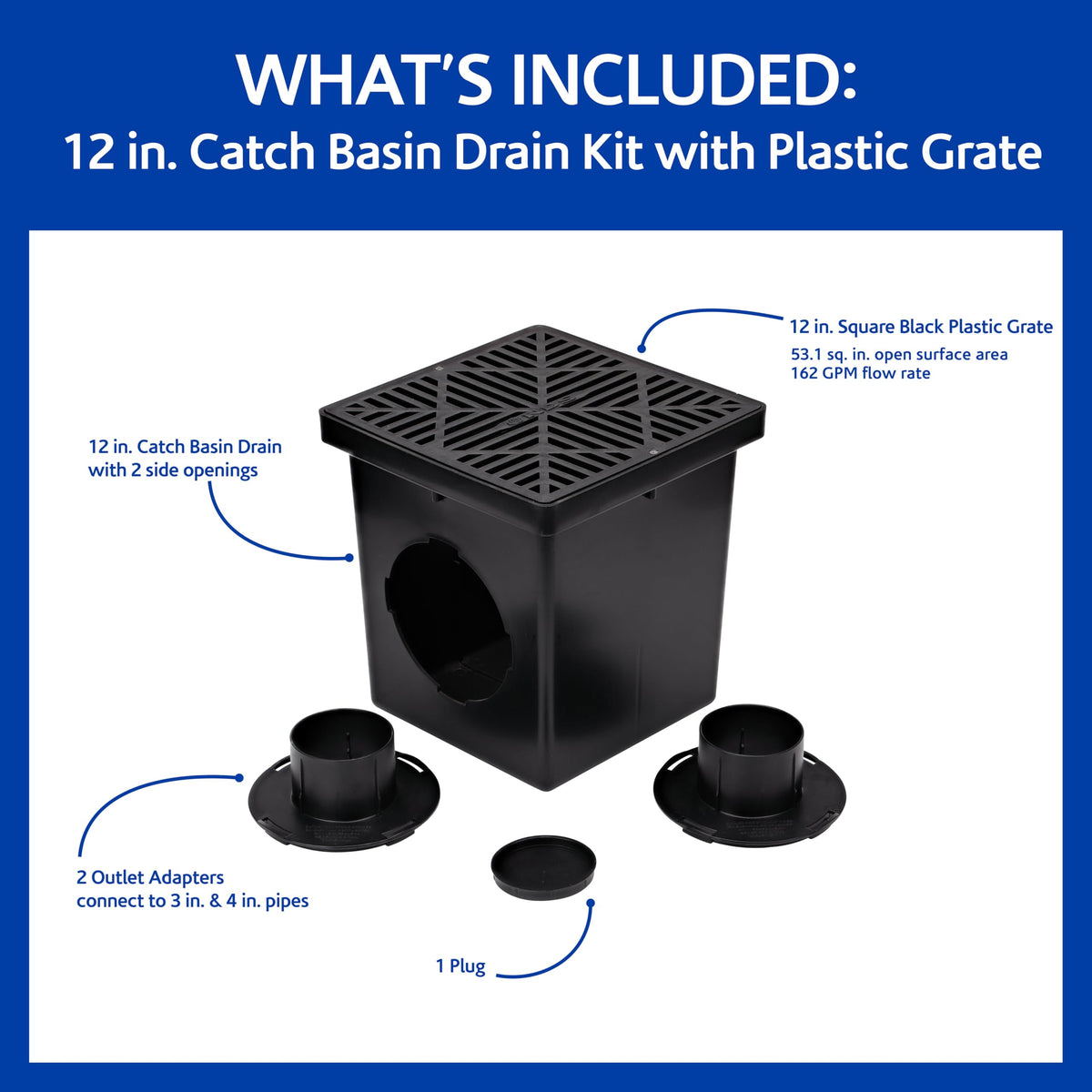

What’s included

• Catch basin drain with 2 side openings and a bottom knockout
• Two outlet adapters
• One outlet plug
• One square plastic drain grate

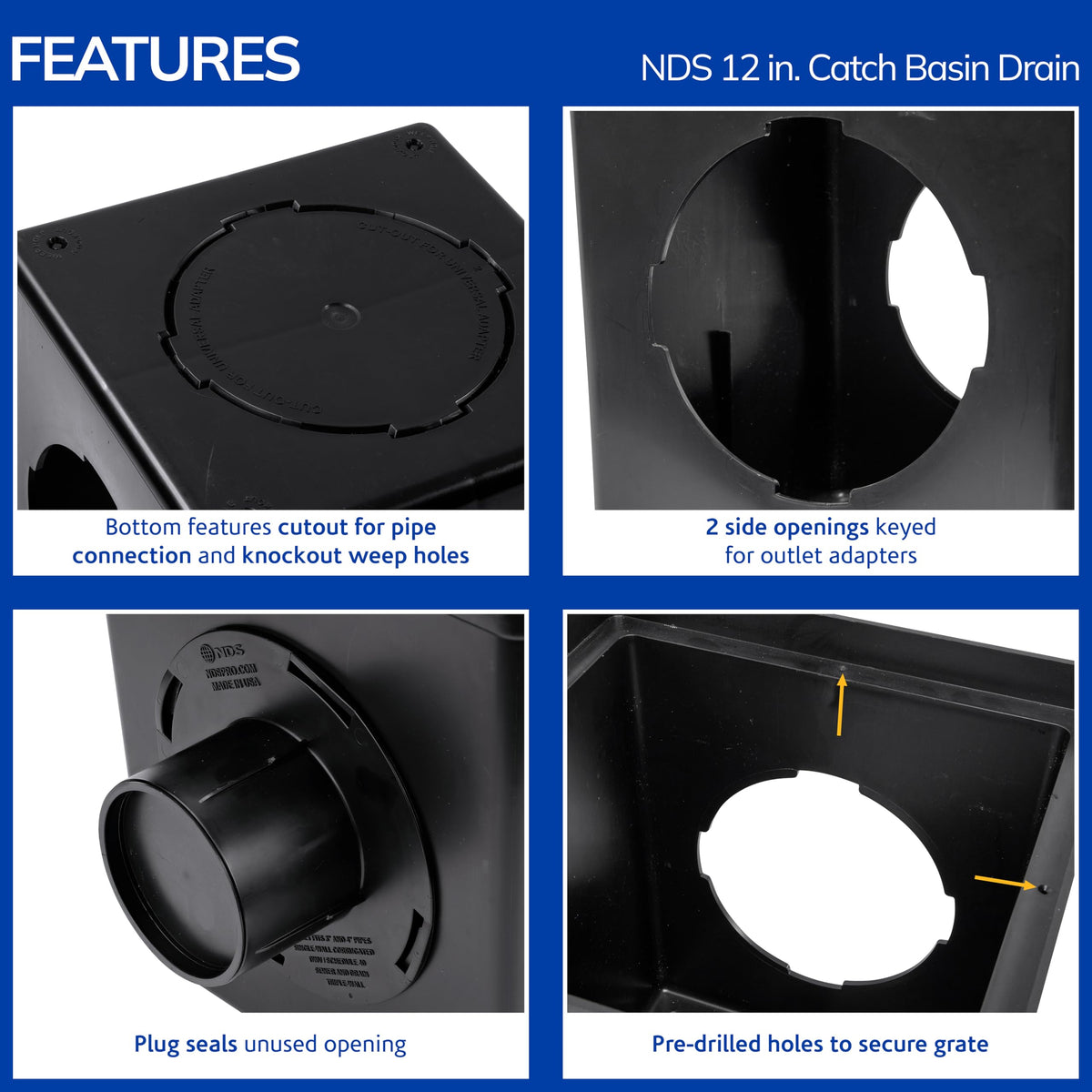

Key design features

• Keyed side openings align with adapters for secure connections
• Bottom knockout offers an extra keyed opening if needed
• Weephole knockouts on the bottom help prevent stagnant water
• Soil-tight outlet adapters ensure a reliable pipe connection
• The plug seals unused openings when not in use
• The drain grate prevents debris from entering the pipeline, reducing clog risk

Performance and compatibility

• Open surface area: 53.1 sq in
• Rated flow: 162 GPM, supporting heavy rainfall events
• Class B load rating up to 175 psi when properly installed
• ADA compliant for accessible installation and use

Practical use cases

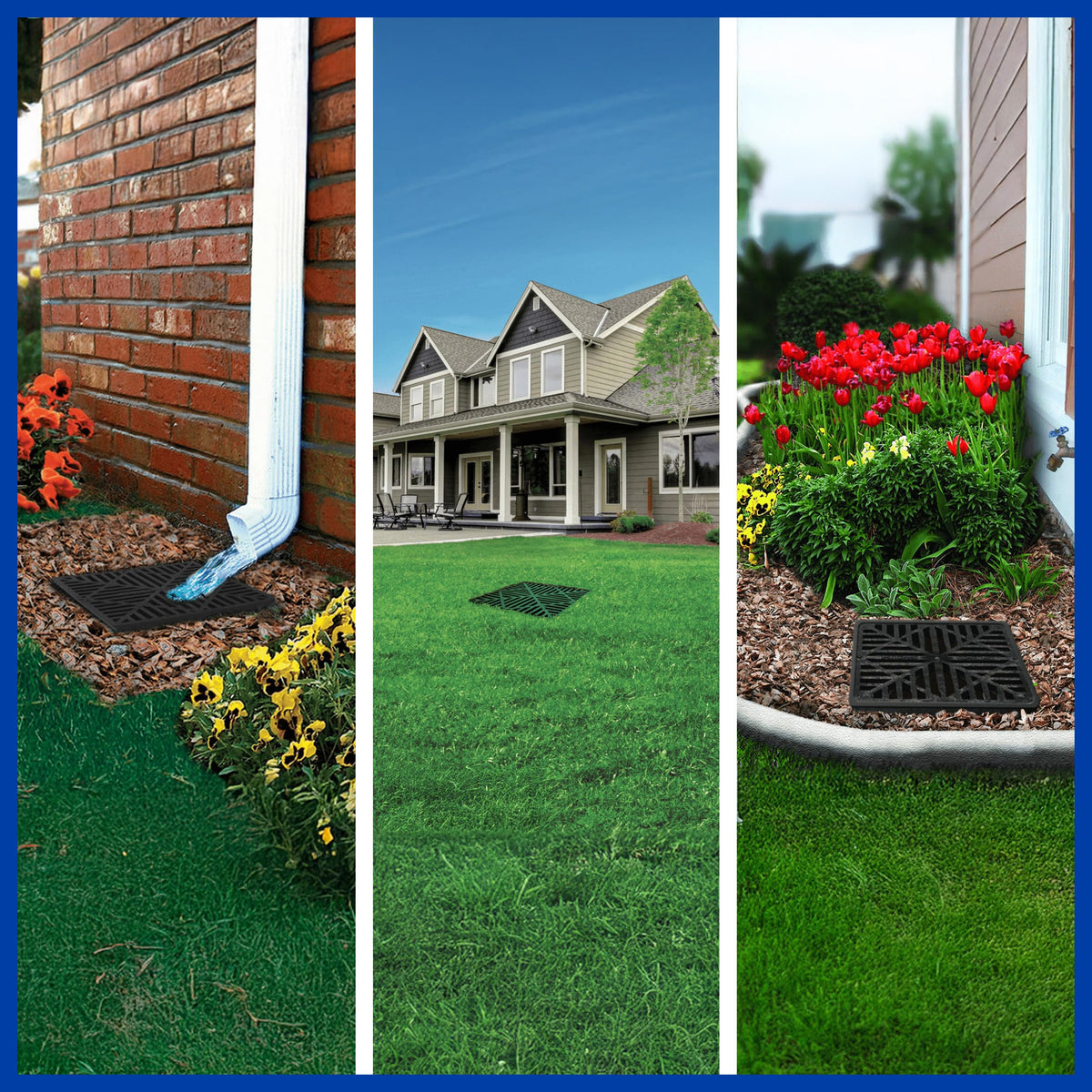

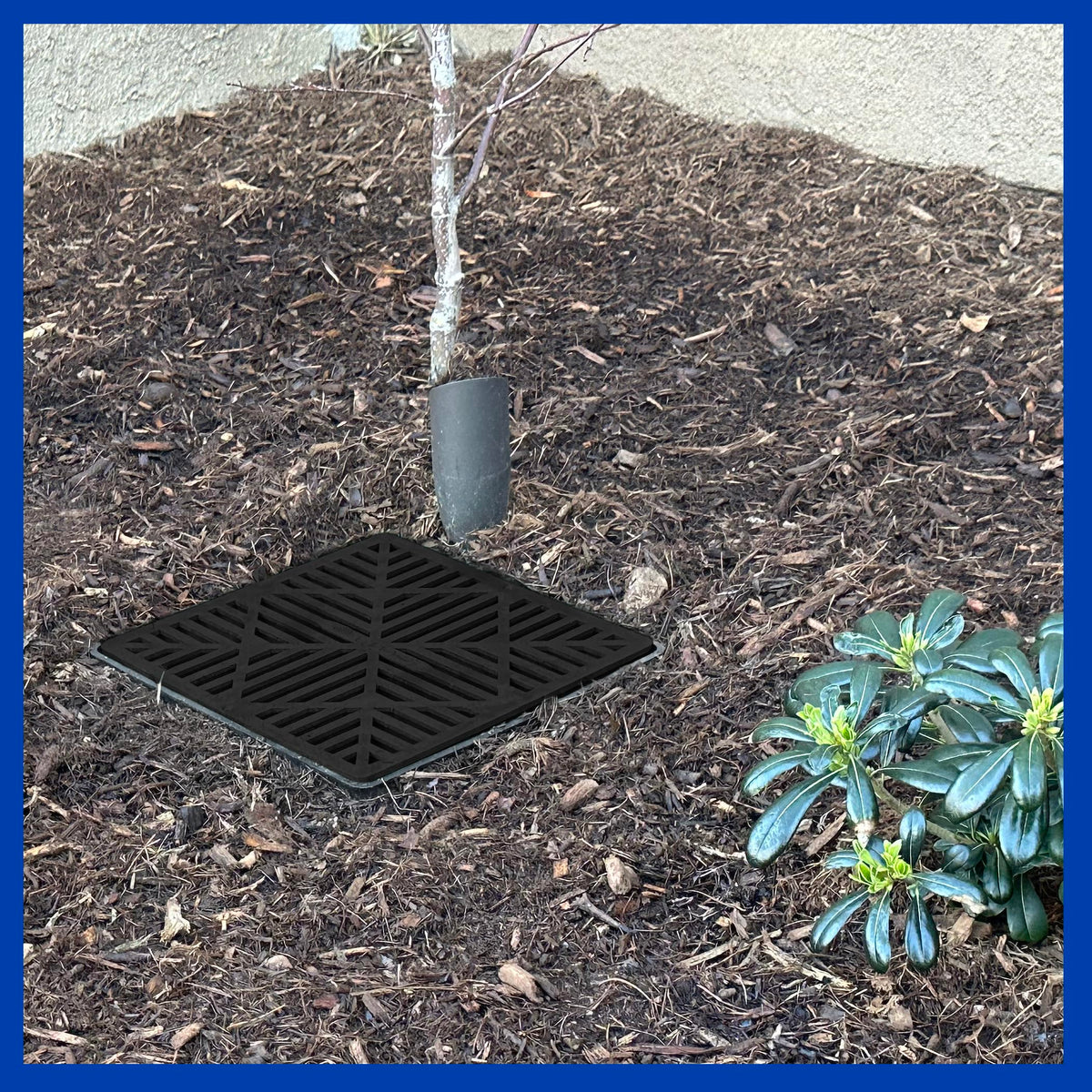

Ideal for lawns, landscaped areas, patios, and walkways. It captures runoff near downspouts and directs it to a safe discharge point, helping protect landscape beds and pavements from erosion and standing water. Installations beneath surfaces keep areas clean and durable.

Note: Benefits described reflect design features and specifications. Actual performance depends on site conditions and correct installation.
