Milescraft 1342 Euro Hinge Jig – Precise 35mm Concealed Hinge Drilling Guide

The Milescraft 1342 EuroHingeJig is a purpose‑built drilling guide designed to help you install flawless 35mm concealed hinges on cabinet doors. Whether you work with framed cabinets or frameless designs, this jig supports repeatable hinge hole placement and clean, professional results with less guesswork.

Precision you can count on

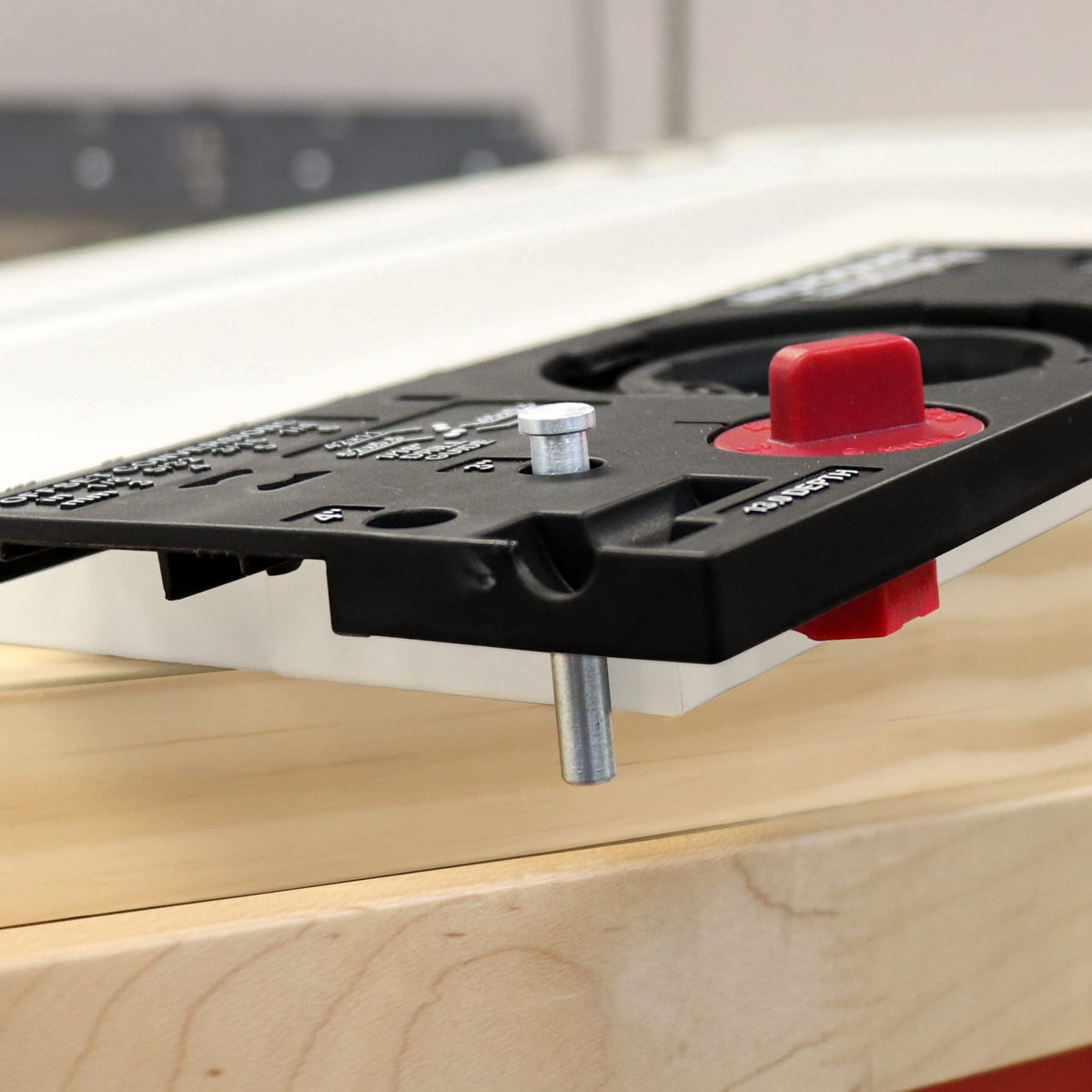

Six common cup hole edge distance settings, plus an edge locator pin, let you quickly set the cup hole position at three inches or four inches from the door edge. The metal bushing drill guide locks into the jig, producing straight, centered hinge cup holes every time. Two built-in depth gauges on the left and right sides allow you to select one of two hinge hole depths to suit the hinge cup thickness and door style. A detachable marking guide makes it easy to transfer center lines and hinge locations to the cabinet frame or wall.

• Two edge alignment knobs position the cup hole from the door edge, while the edge pin fixes vertical distance.

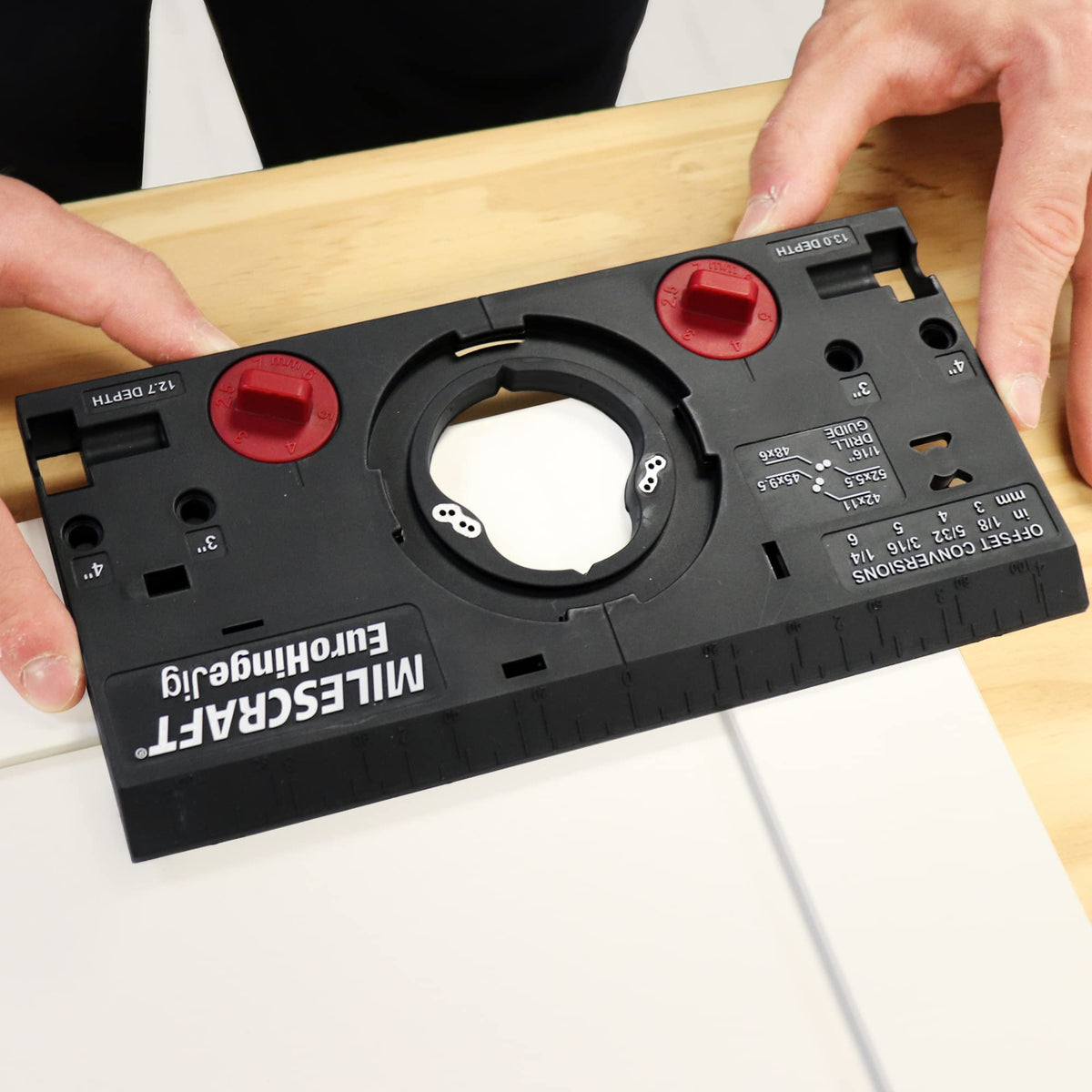

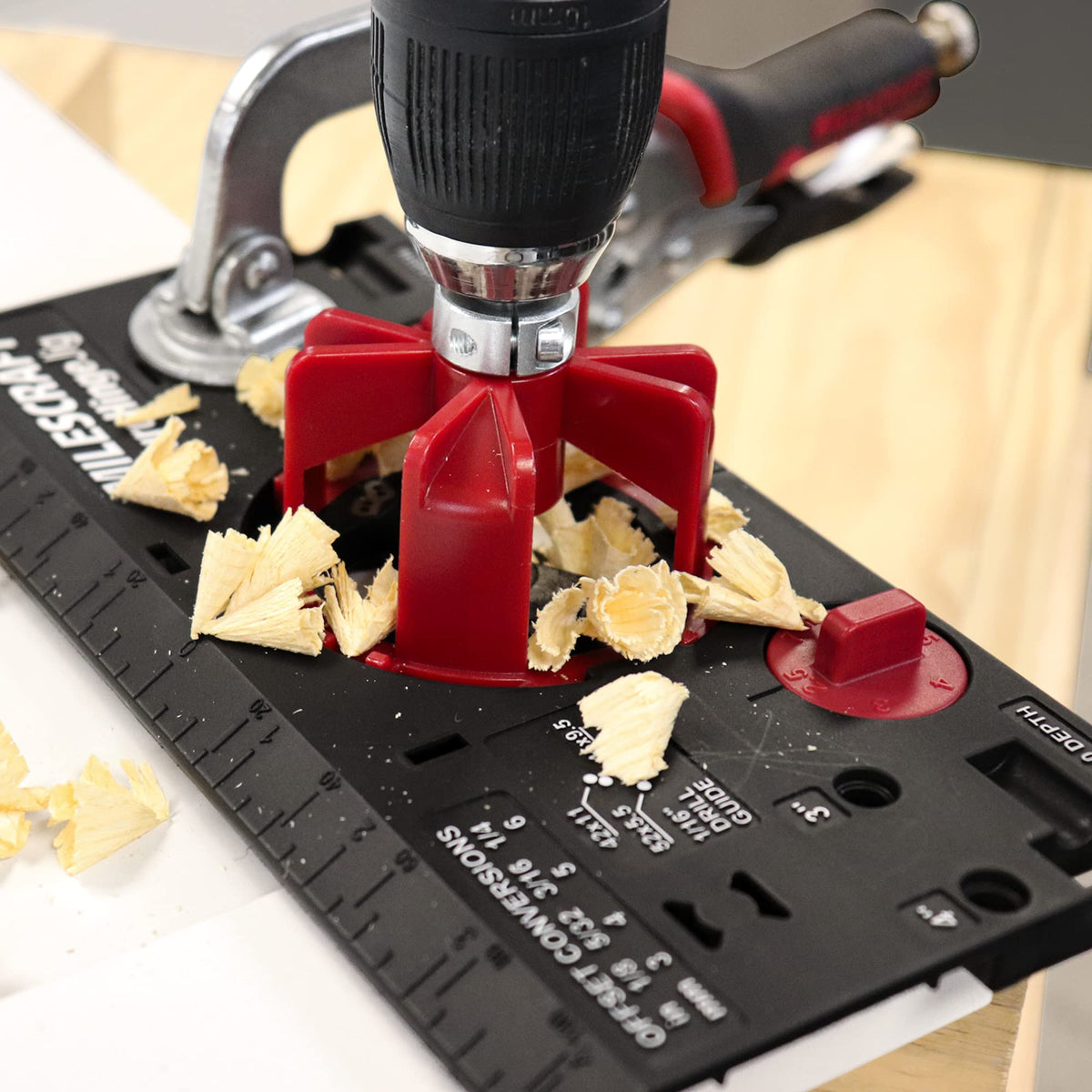

• The drill guide with metal bushing locks into the jig to create perfectly straight holes.
• The guide enables pre drilling pilot holes in four common locations using the included one-sixteenth inch bit.
• Depth setting fixtures enable quick, repeatable hinge hole depths with the included 35mm drill bit.

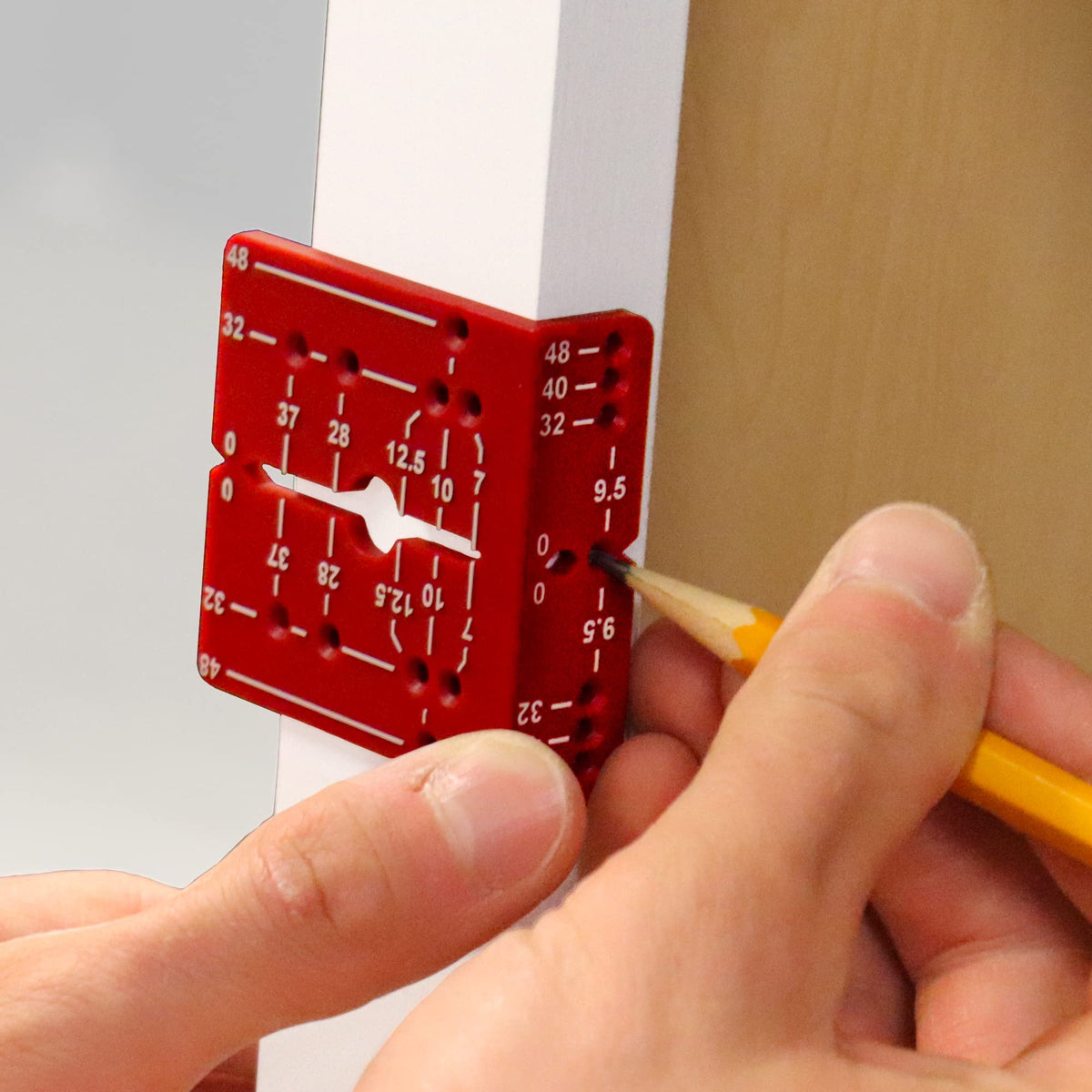

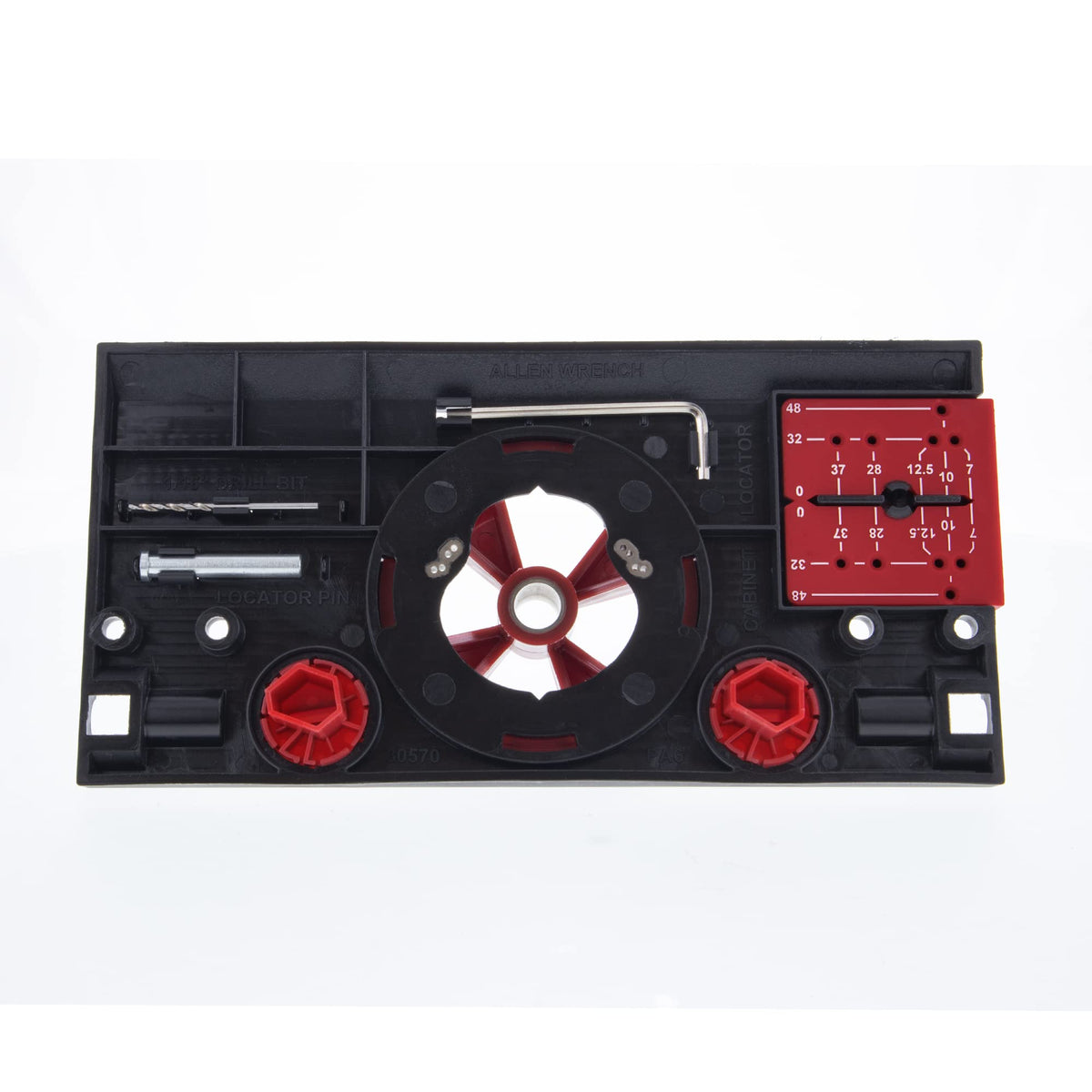

• The marking guide detaches for easy transfer of hinge locations to the cabinet wall or frame.

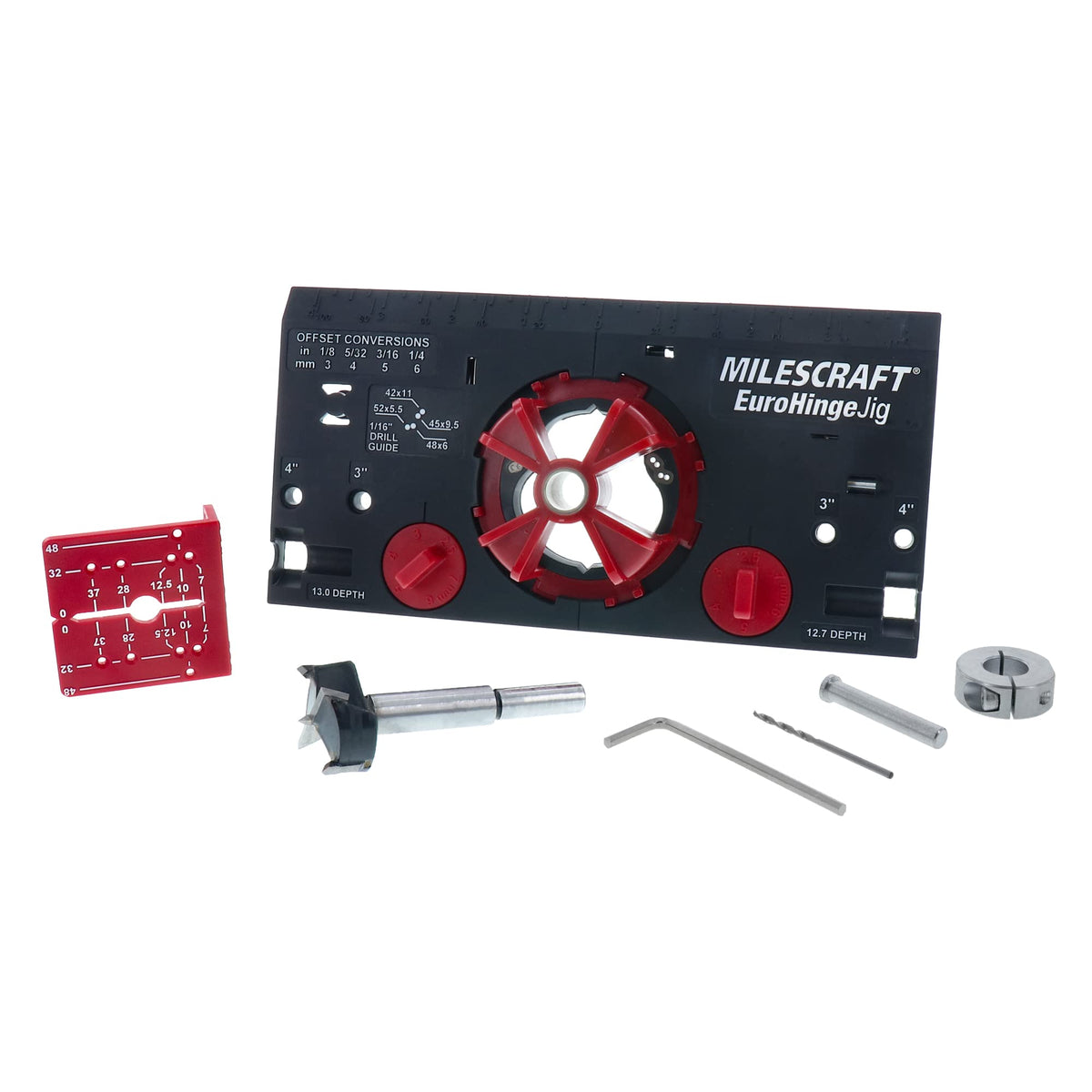

What’s in the box

• Allen key
• One-sixteenth inch pilot drill bit
• Locator pin
• Cabinet locator measuring tool
• 35mm drill bit

In practice, this jig helps you approach hinge installation with a repeatable workflow. The sturdy metal components resist wear, and the alignment features support consistent positioning across multiple doors. Use it to tackle both framed and frameless cabinets, and let the built‑in guides and depth settings help you achieve clean, precise hinge openings with less rework. While results may vary with your setup and technique, the Milescraft EuroHingeJig offers a solid path toward reliable hinge alignment and smooth door operation.
