Maxxima Occupancy/Vacancy PIR Wall Switch | 3-Way or Single Pole | 120-277V

Overview

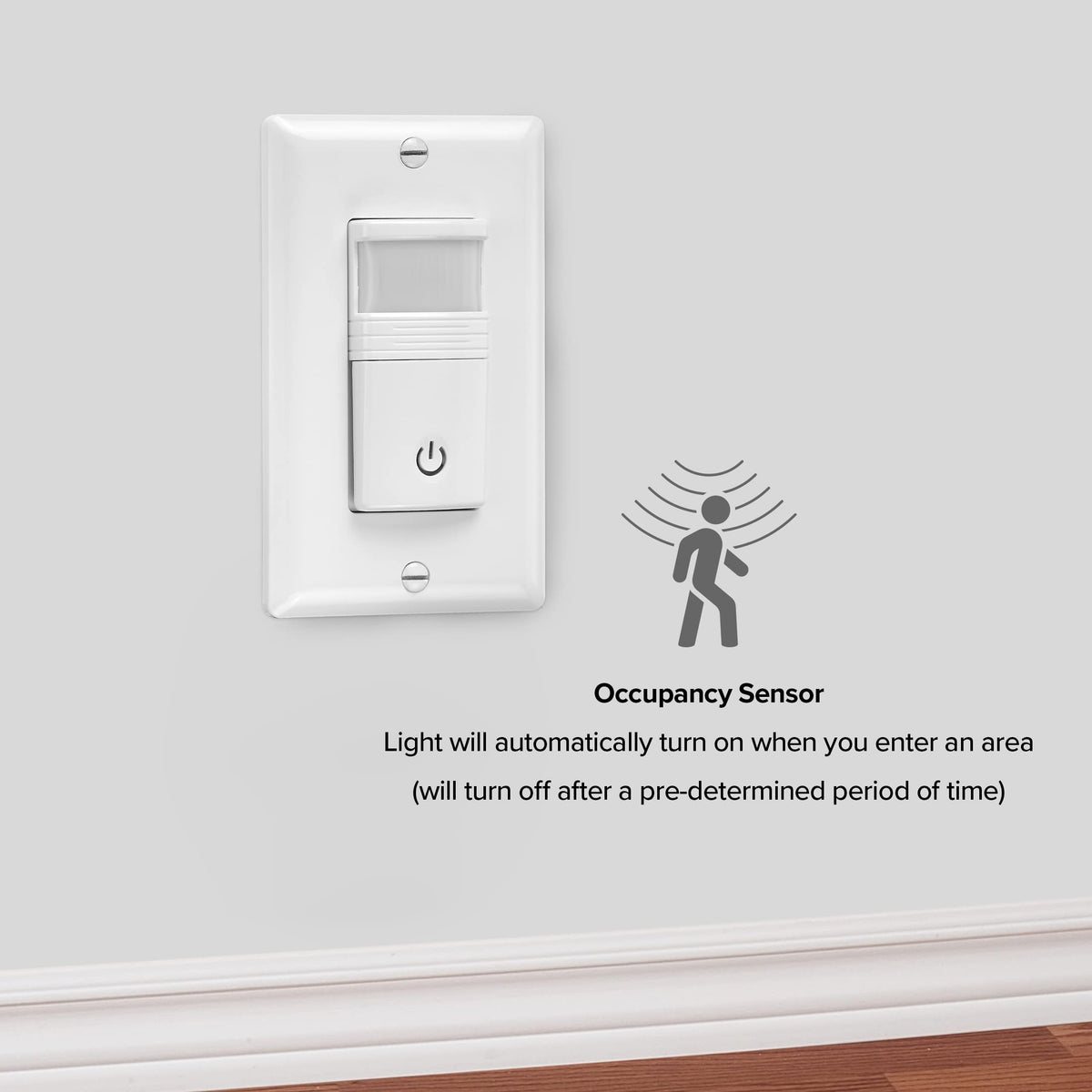

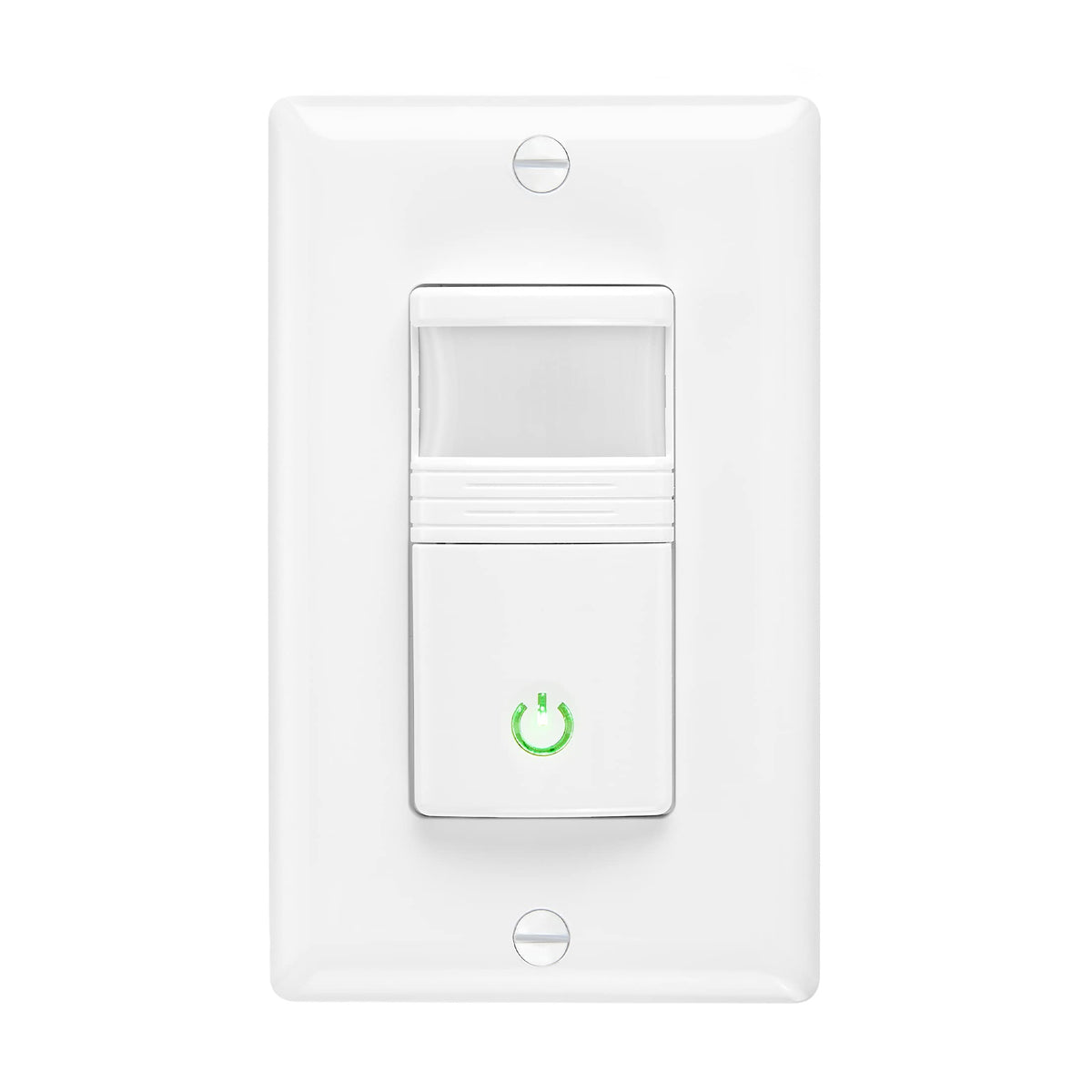

The Maxxima Occupancy/Vacancy Motion Sensor PIR Wall Switch brings automatic lighting control to both homes and commercial spaces. It blends hands-free convenience with smart visibility, helping spaces feel more responsive while giving you subtle control over when lights energize or dim down. The unit ships with a wall plate and essential mounting hardware, making it straightforward to integrate into existing configurations.

Flexible operation for your space

• Dual Operation Modes: automatic ON/OFF and manual ON with Automatic OFF provide energy-saving convenience. A simple switch under the faceplate lets you toggle between occupancy and vacancy modes to fit occupancy patterns.

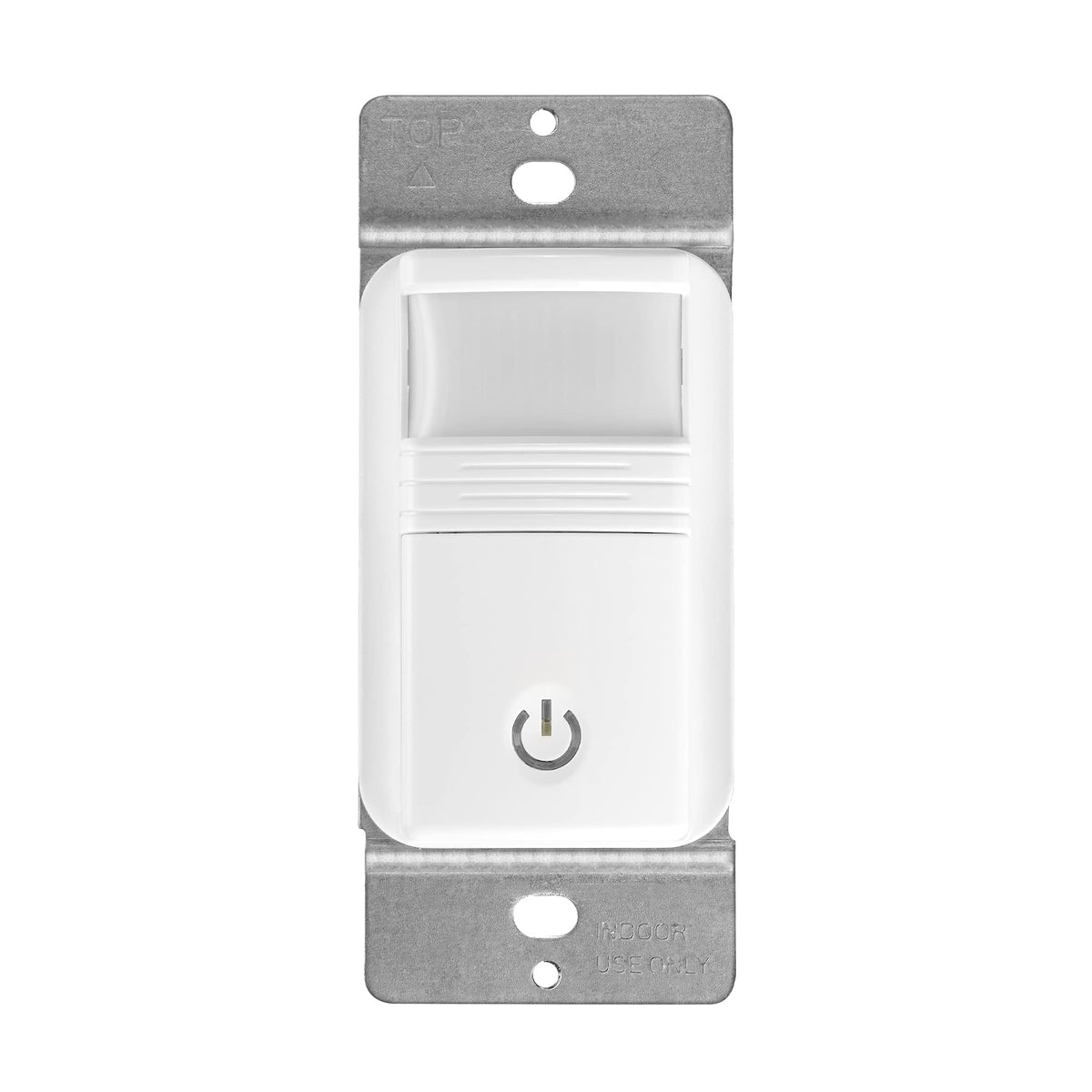

• 180° PIR Sensing with Green Backlight: the sensor covers a broad area and the green LED backlight helps you locate the control in dim conditions without disturbing others.

Fine-tuned control

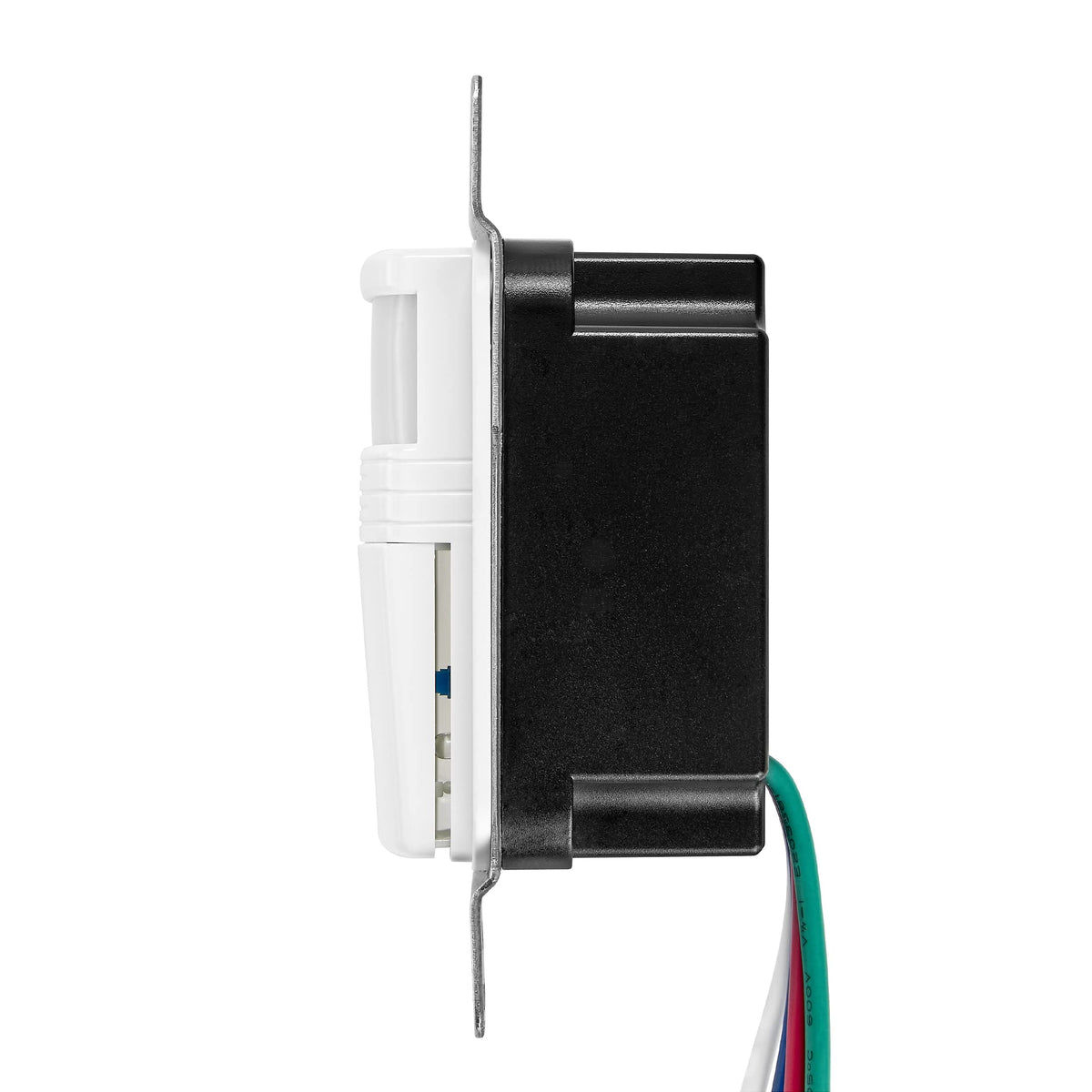

• Time Delay: customize how long lights stay on after activity from 1 minute to 30 minutes, helping tailor lighting behavior to corridors, restrooms, or workspaces.

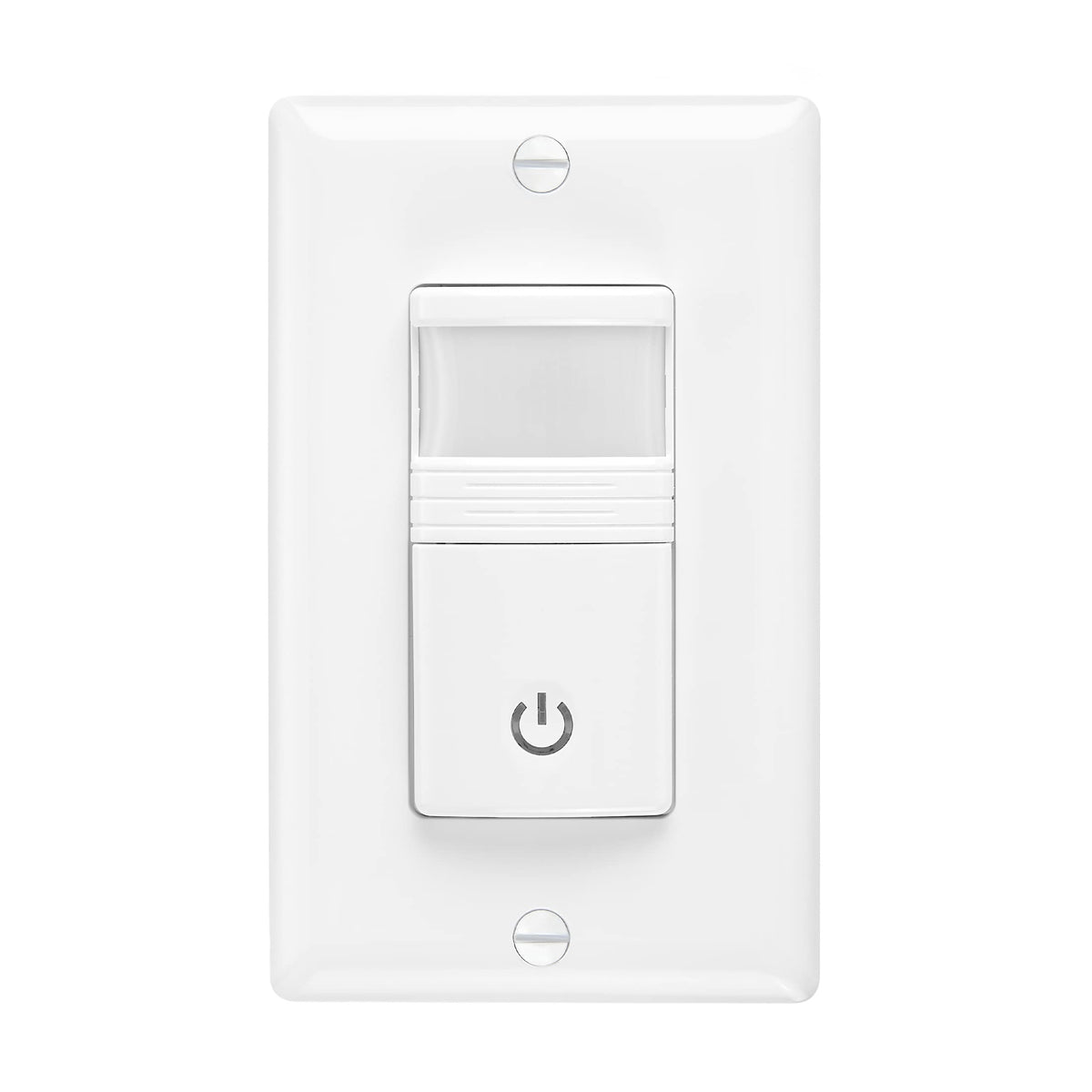

• Sensitivity and Light Level Sensing: adjust detection sensitivity and ambient-light thresholds to suit different rooms and lighting needs.

Performance and compatibility

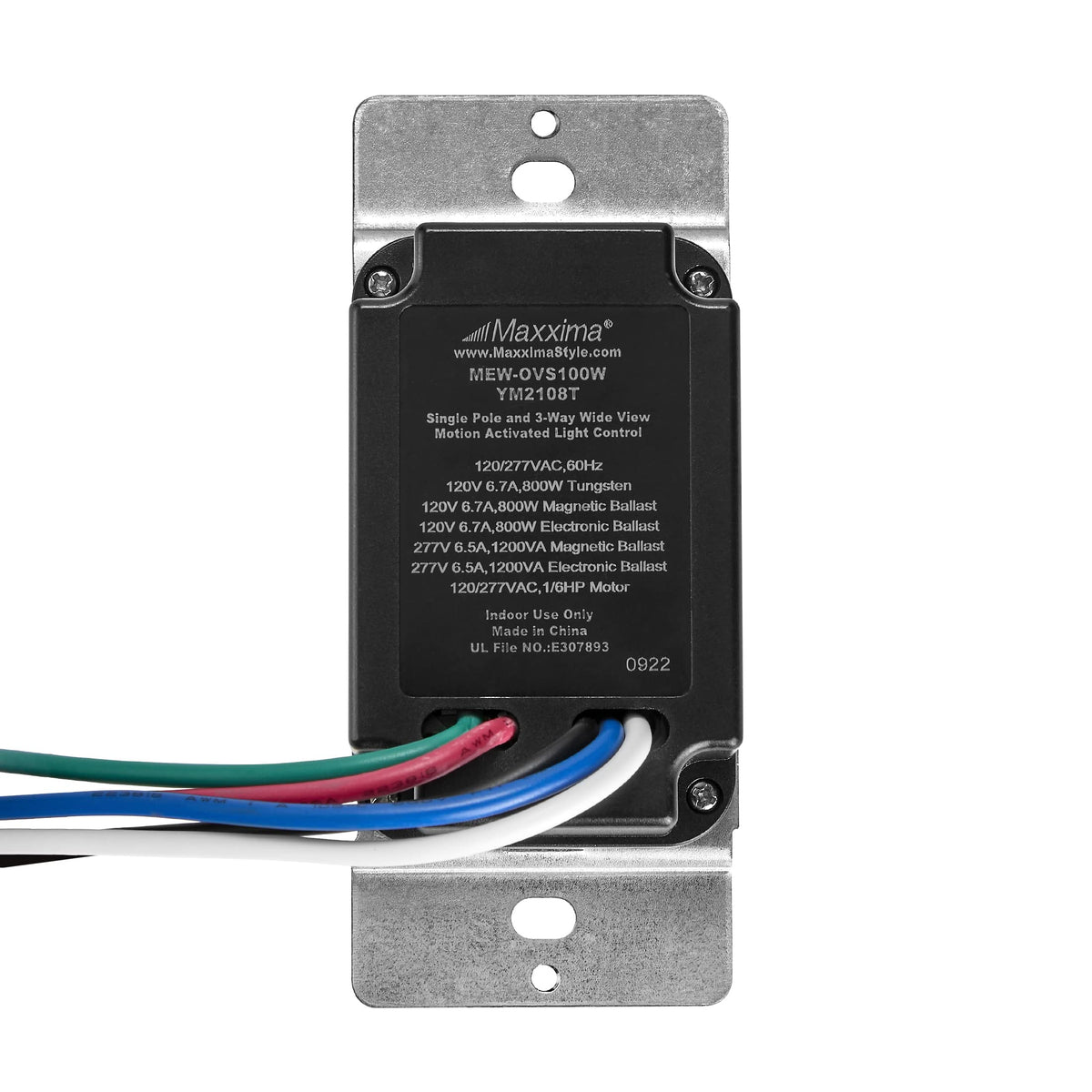

Built for a wide range of loads, this switch supports up to 800W at 120V and 1200W at 277V, with no minimum load requirement. It is compatible with incandescent, electronic ballast fluorescent, CFL, magnetic low-voltage (MLV), and electronic low-voltage (ELV) lighting setups.

• UL Listed for safe indoor use, ensuring reliable operation in walls, hallways, offices, or storage areas.

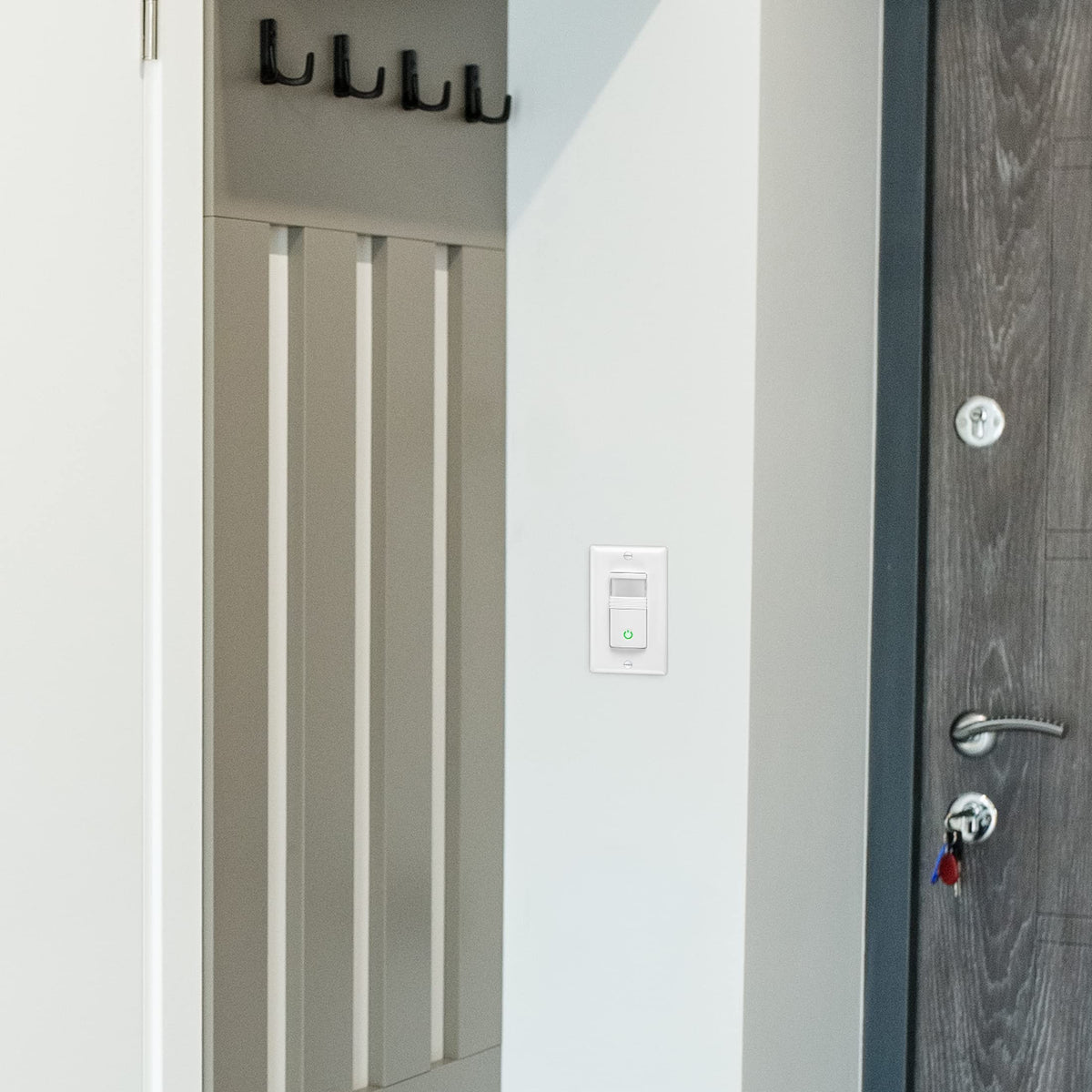

• Wiring versatility: supports single-pole or 3-way configurations. In 3-way installations, only one MEW-OVS100W sensor may be used with a standard switch in the other location.

Practical use and included hardware

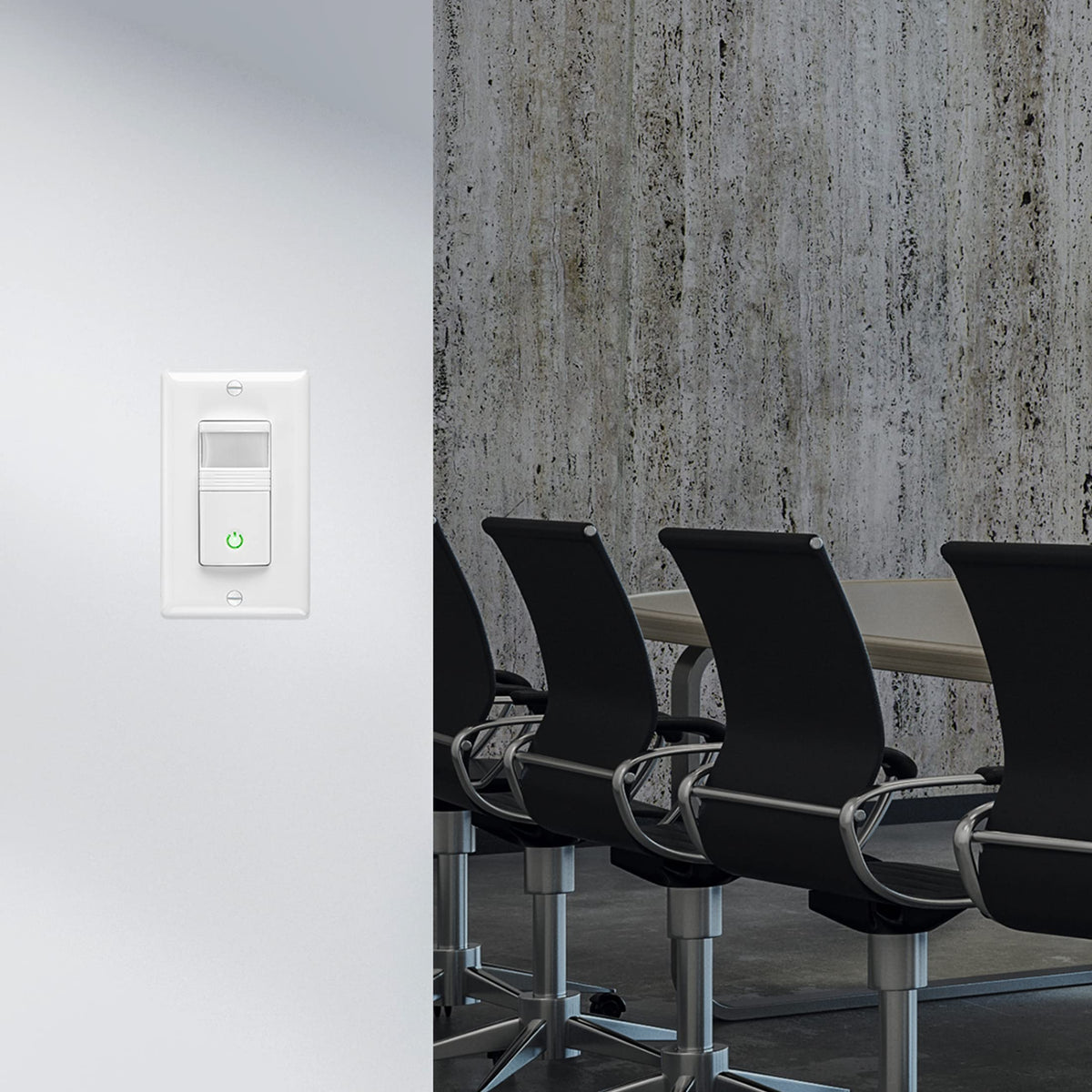

Ideal for hallways, conference rooms, restrooms, and storage areas, the Maxxima sensor switch adapts to busy patterns and ambient lighting. The included wall plate and wire nuts streamline installation, reducing setup time and extra purchases. With adjustable settings and a straightforward switch, you can tailor operation to your space without heavy rewiring.

Key benefits at a glance

• Automates lighting to save energy while maintaining convenience
• Flexible modes and adjustable timing to fit various environments
• Broad load compatibility supports many common lighting systems
