Little Giant VCMA-20ULST 115V Condensate Removal Pump — 80 GPH, 1/30 HP, Overflow Switch

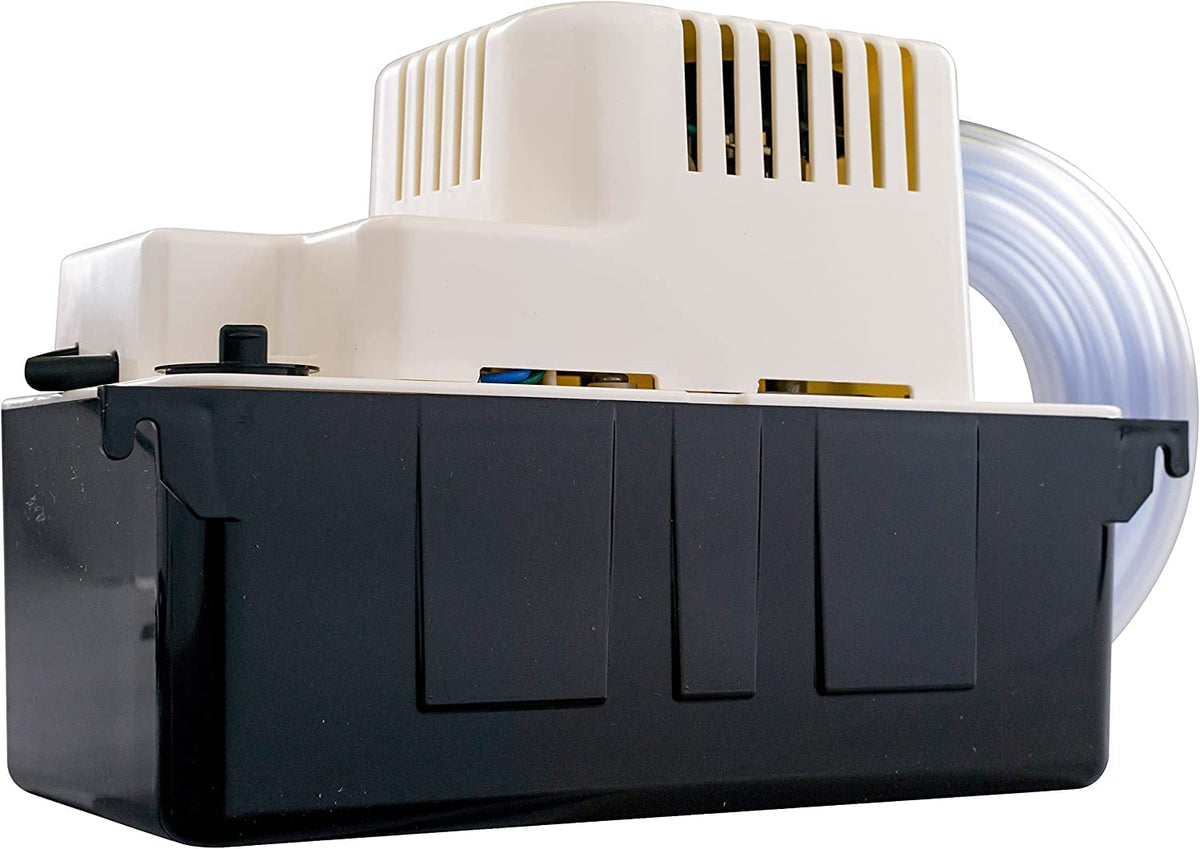

The Little Giant VCMA-20ULST 115V condensate removal pump offers compact, reliable moisture management for air conditioners, dehumidifiers, and refrigeration gear. With an 80 GPH flow rate at a 1 foot lift and a 1/2 gallon condensate tank, this pump is designed for automatic drainage in spaces where gravity drainage is not practical. It ships with essential components to support flexible installation, including a 3/8 inch O.D. discharge with a built-in check valve, a 6 foot power cord, and a generous 20 feet of 3/8 inch ID vinyl tubing. The result is a self-contained solution that can help keep equipment and surroundings dry without constant attention.

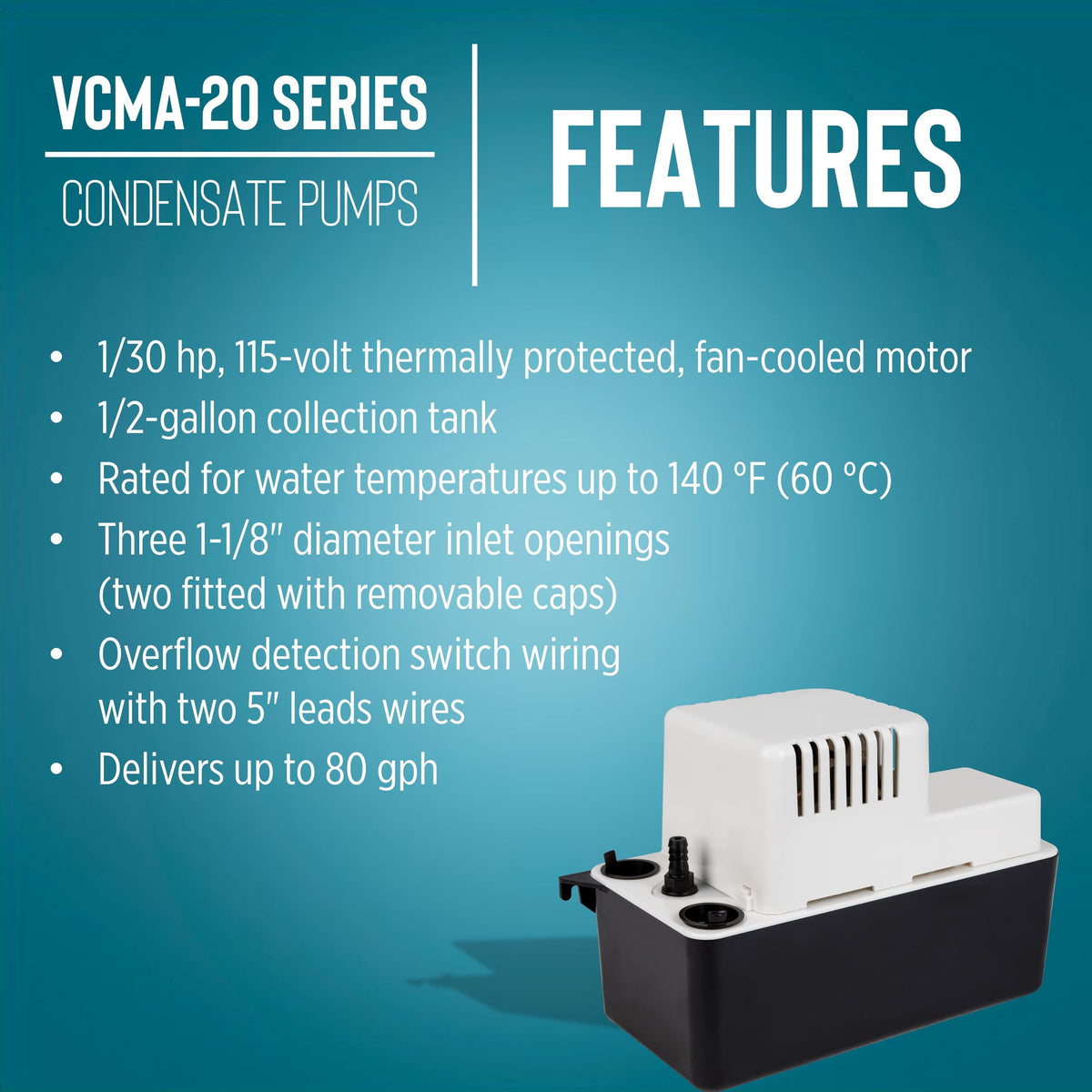

Key features at a glance

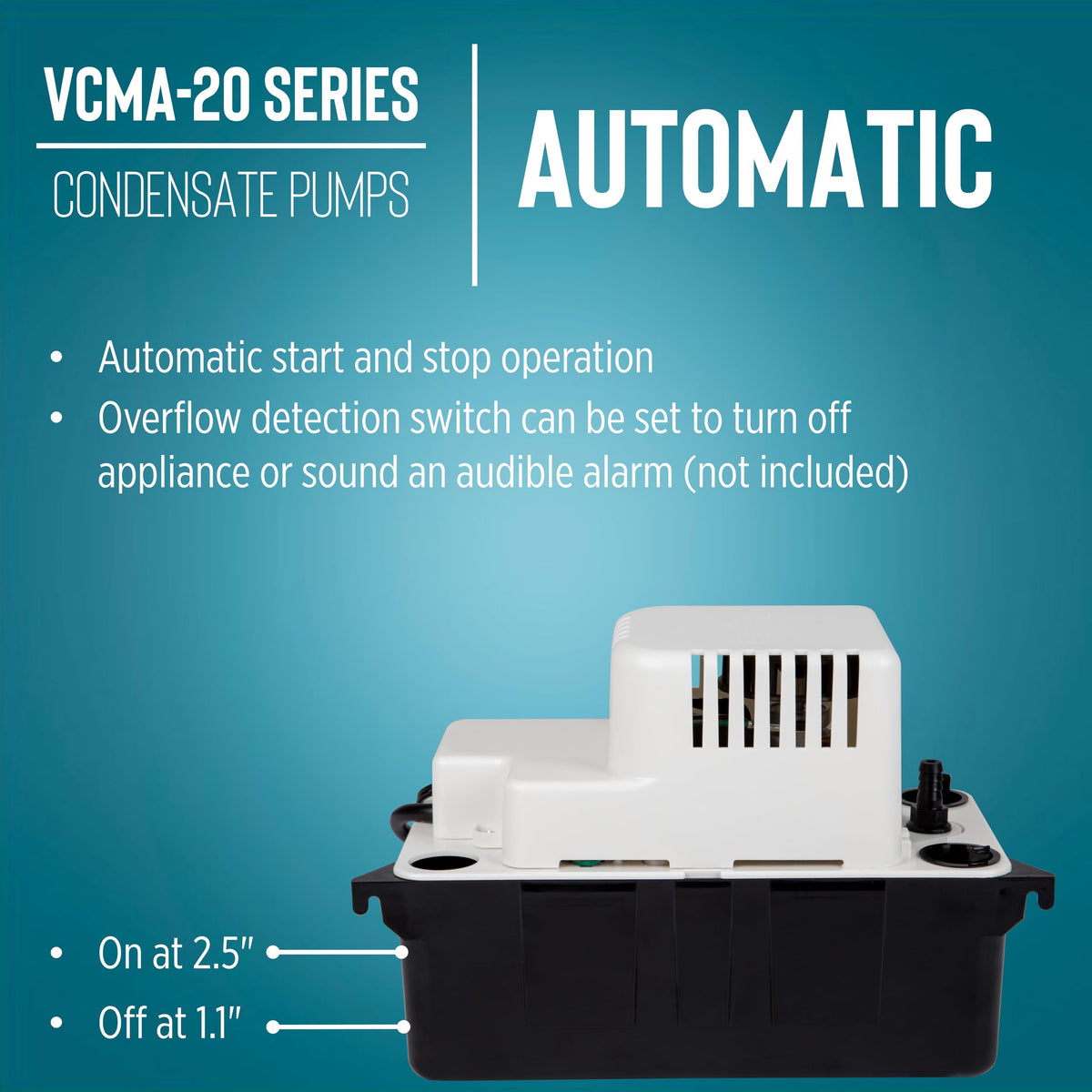

• AUTOMATIC CONDENSATE PUMP with a vertical switch to minimize space usage while enabling automatic removal
• THERMALLY PROTECTED, HIGH PERFORMANCE MOTOR: 1/30 HP, 93 watts, 115 volts, CSA certified
• BUILT TO LAST: ABS tank, motor cover and volute; stainless steel motor shaft; supports operation up to 140 F
• OVERFLOW DETECTION SWITCH with 20 ft of vinyl tubing: can shut off the appliance or trigger an alarm (alarm not included)

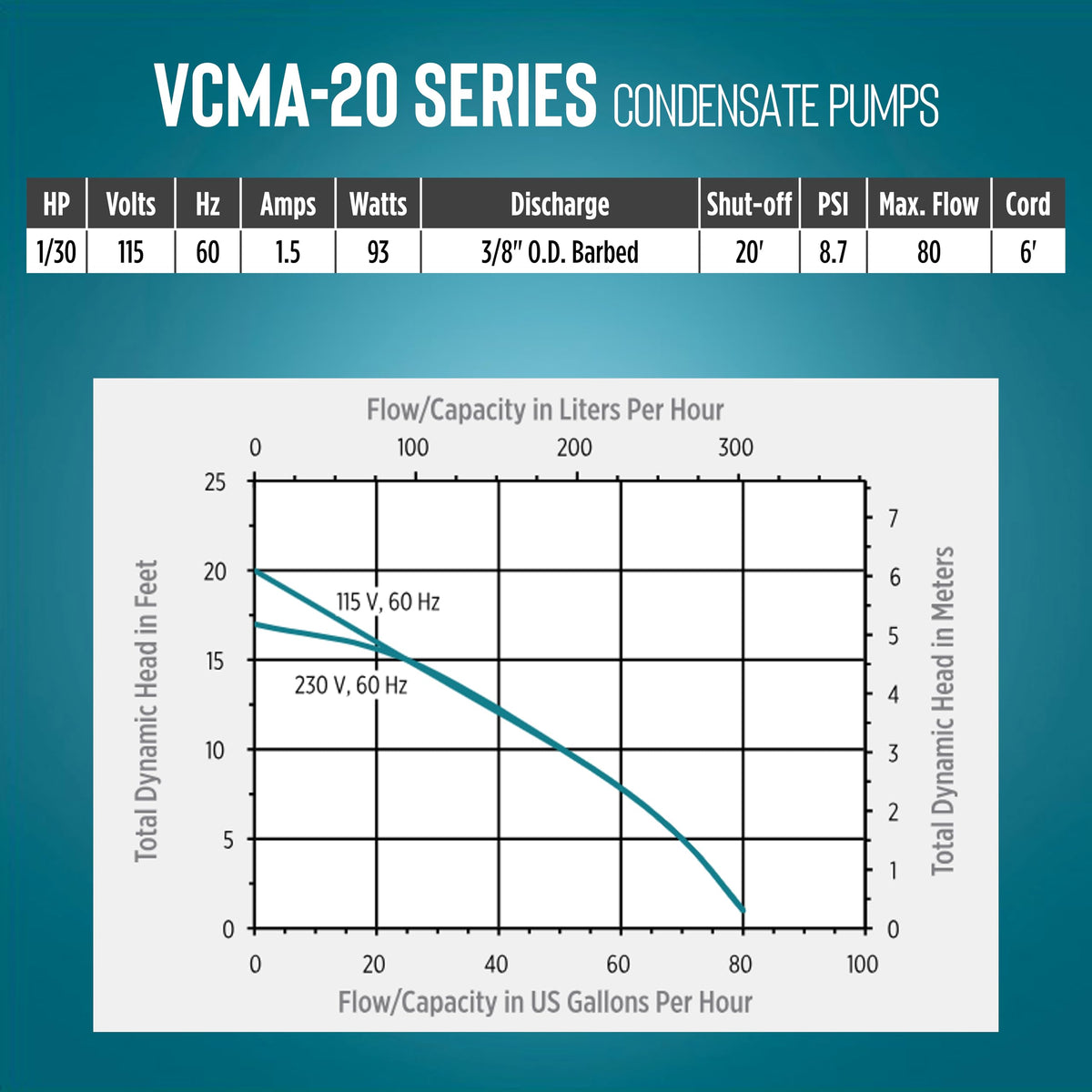

• SPECIFICATIONS: 1/30 HP; 115 VAC; 1.5 A; 3/8 inch OD discharge; 80 GPH at 1 ft; max 8.7 PSI; three 1-1/8 inch inlet openings; 6 ft cord

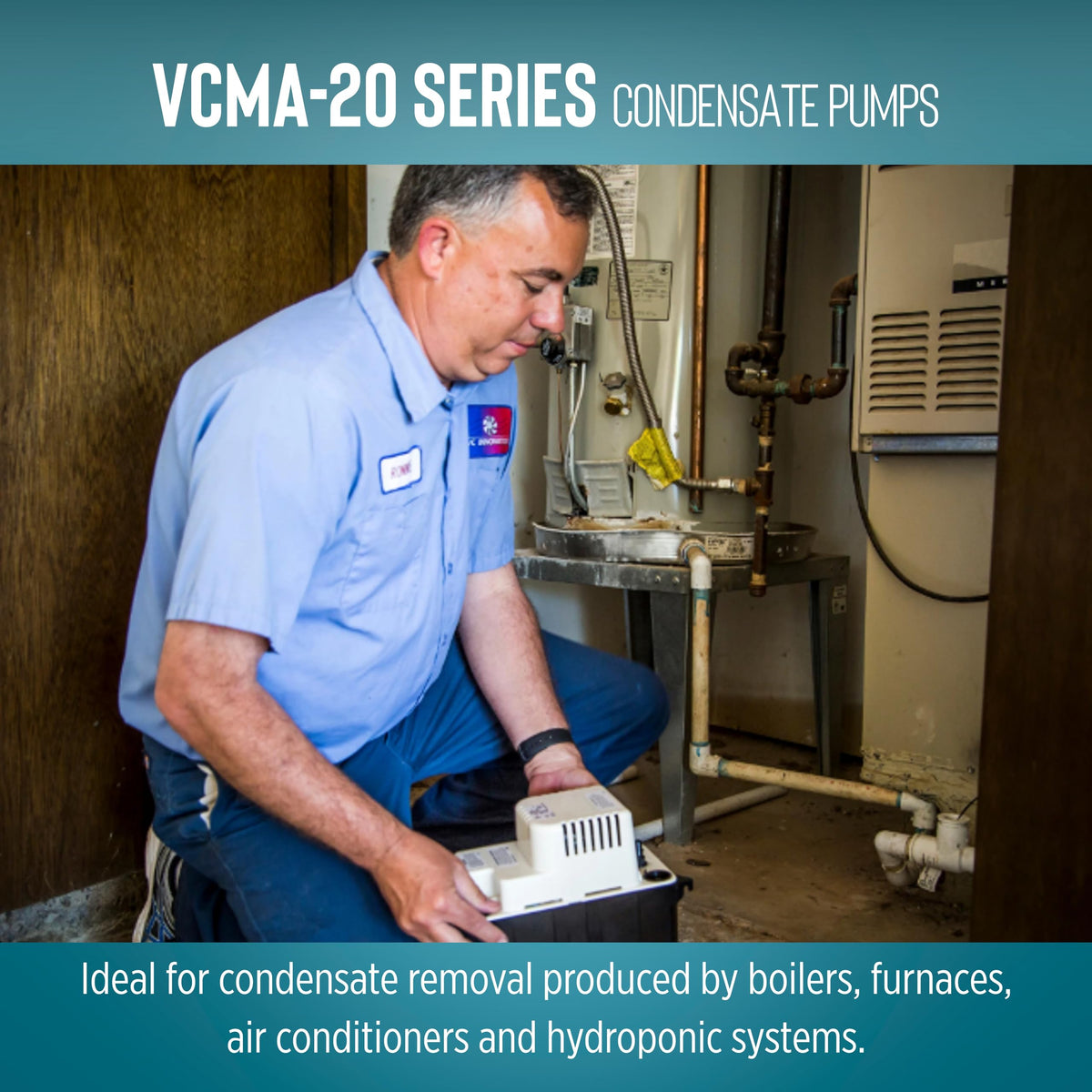

This unit is well suited for condensate management in central air systems, dehumidifiers, high efficiency furnaces, and condensing boilers where gravity drainage cannot be easily used. The compact vertical design helps save space in utility rooms, closets, and basements, while the included tubing and overflow switch add flexibility for several configurations. The combination of durable materials and a robust motor helps support long-term operation in damp environments, and CSA certification provides peace of mind for compatible installations.

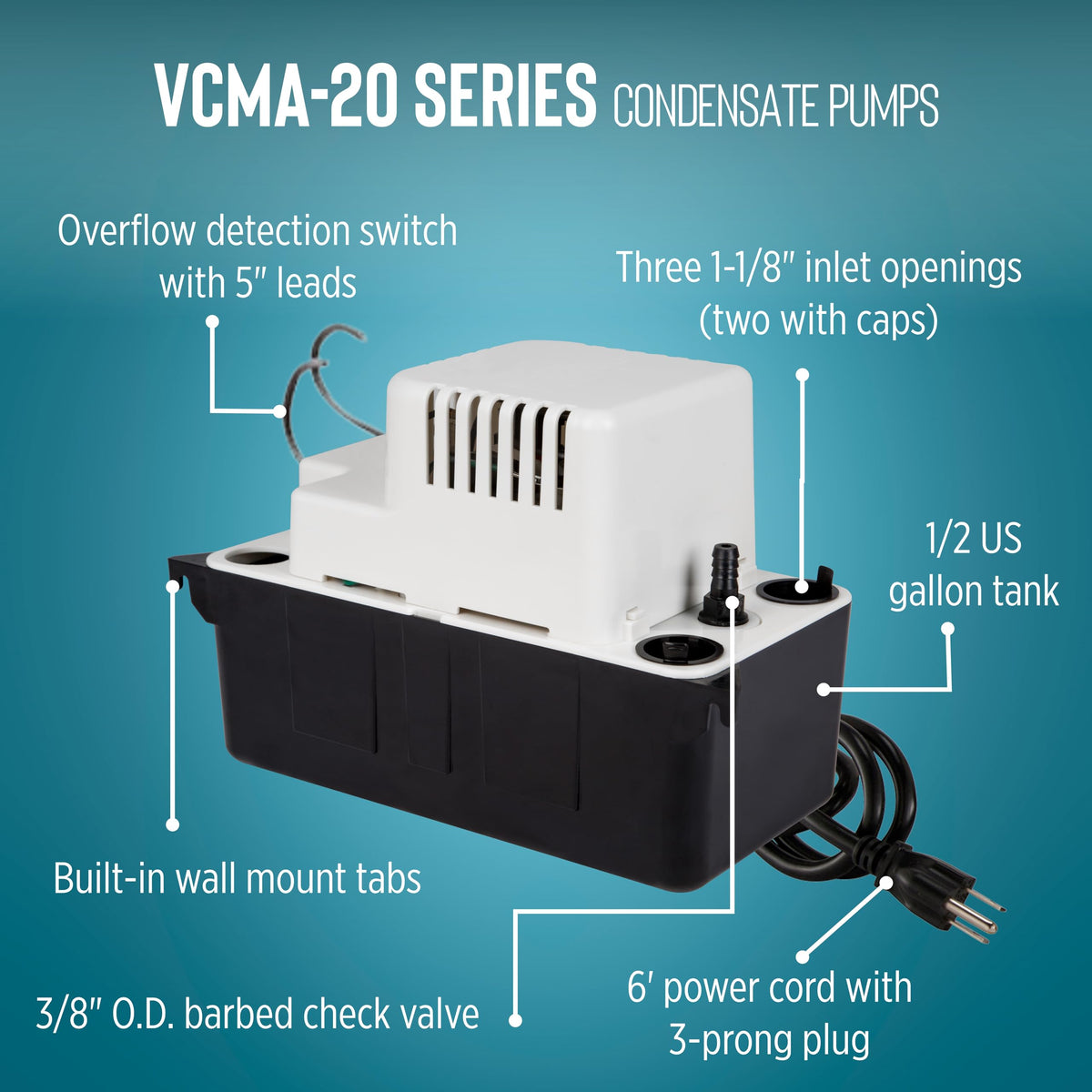

What you get and practical use cases

• 1/2-gallon condensate holding tank
• 3/8 inch O.D. discharge with built-in check valve

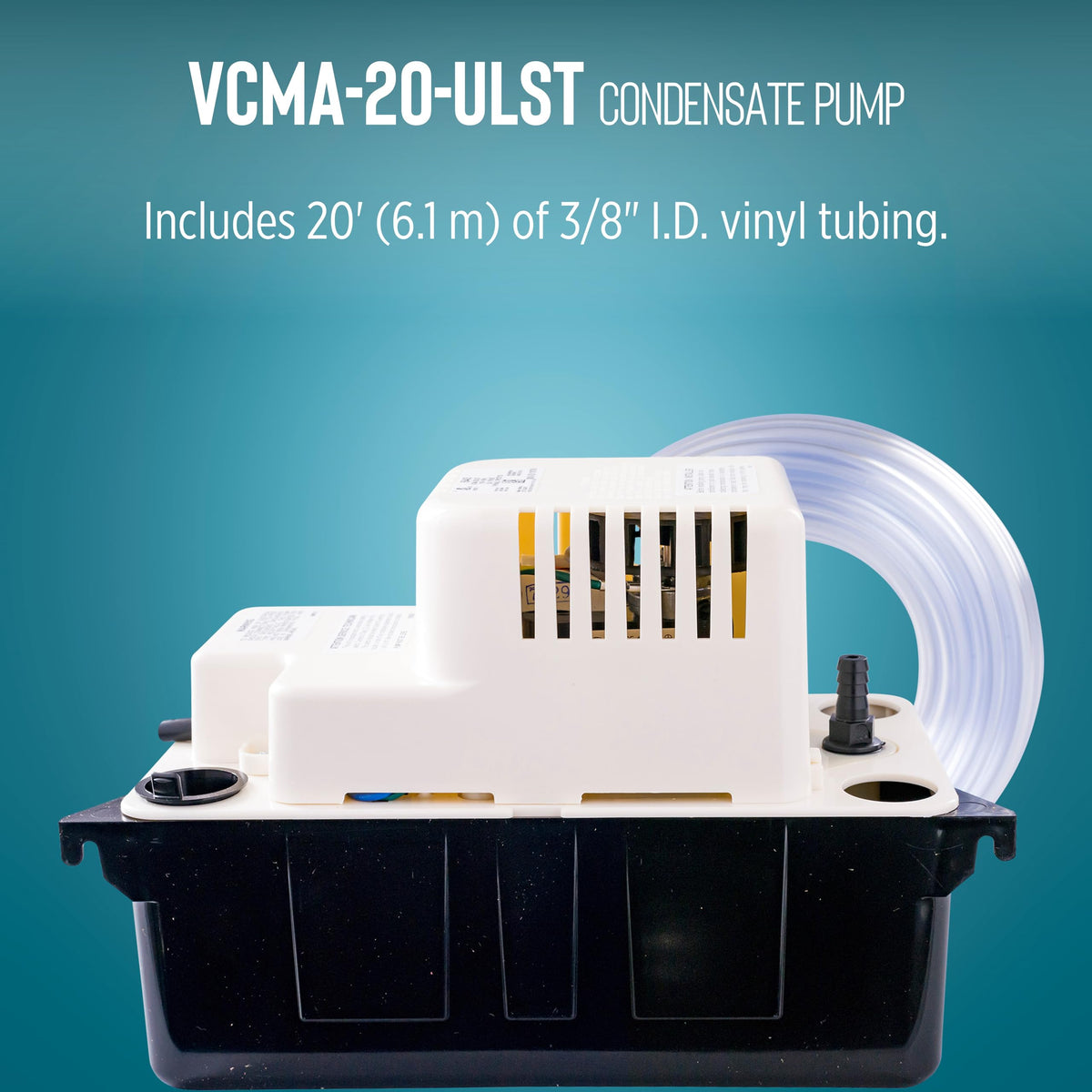

• 6 ft power cord and 20 ft of 3/8 inch ID vinyl tubing
• Overflow detection switch ready for automatic shutoff or alert style integration
• Sturdy ABS tank, motor cover, volute, and a stainless steel motor shaft for durability

In real-world setups, the VCMA-20ULST helps keep condensate under control without relying on gravity drains. It is a practical option for retrofit projects, equipment in tight spaces, and environments where reliable condensate removal supports consistent operation of AC units, dehumidifiers, and condensers. Basic wiring knowledge is recommended if wiring the overflow switch for auto shutoff or an alert, and always verify compatibility with local electrical standards.

installation tips

• Remove the shipping insert marked REMOVE before first use to prevent overflow
• Inspect tubing for kinks or obstructions; replace if necessary
• Ensure proper clearance around the unit and follow local electrical guidelines

Note: This is an authentic Little Giant product from Franklin Electric Co., Inc. The VCMA series is designed to collect and remove condensate automatically when gravity drainage is not feasible.
