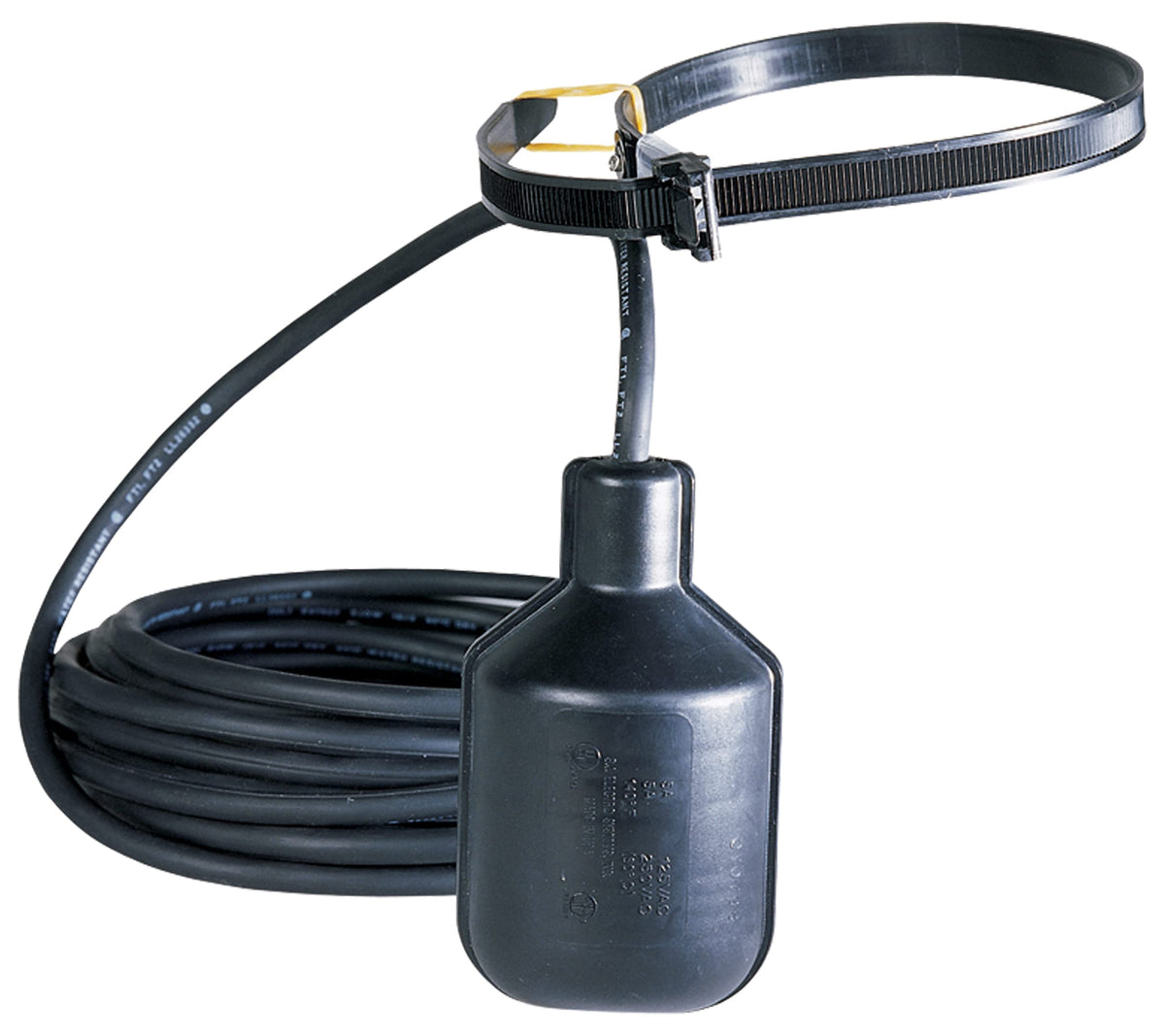

Little Giant CFST pump-down float switch with 20 ft lead wires for reliable pump control.

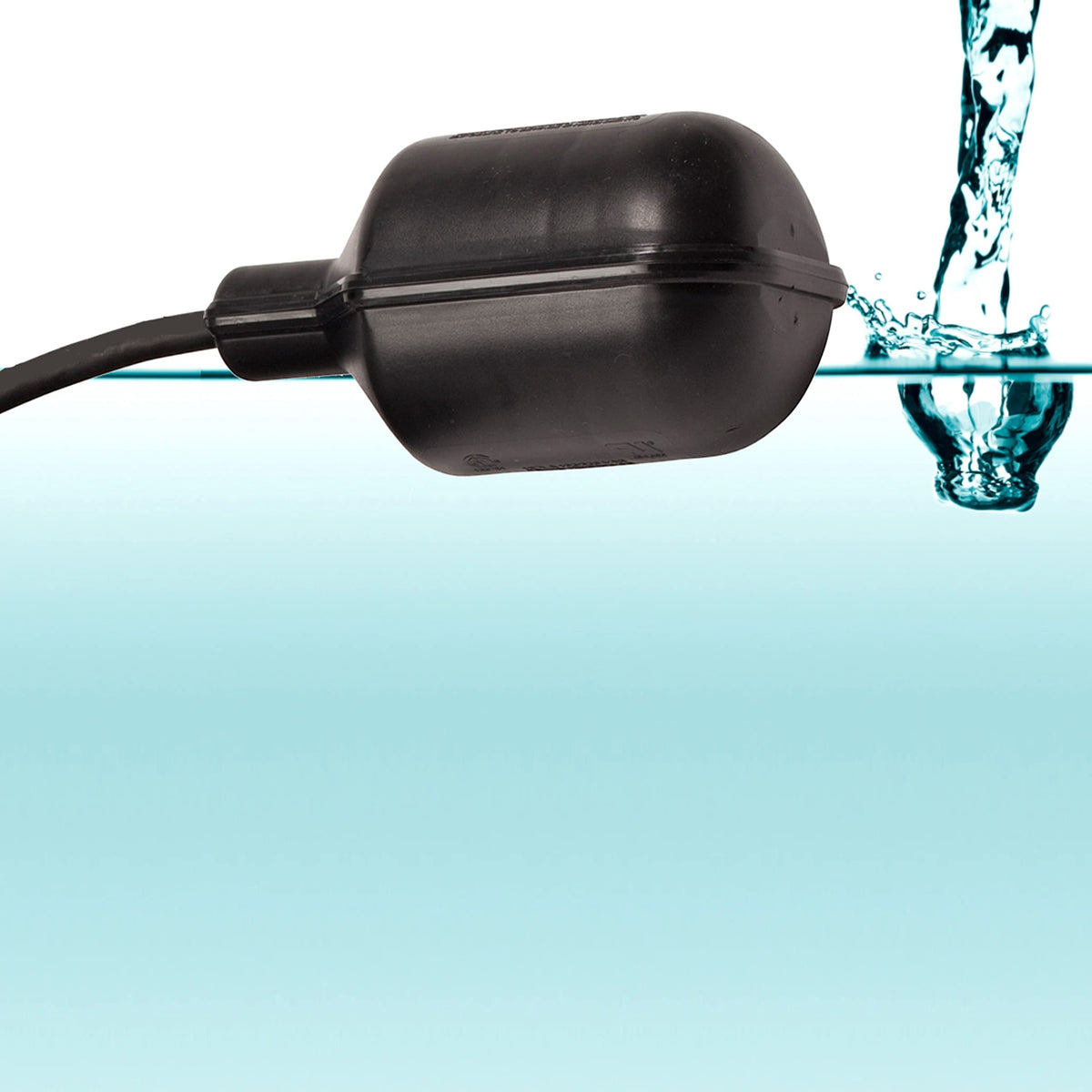

Little Giant CFST narrow-angle float switch for precise water level control in sump or effluent systems.

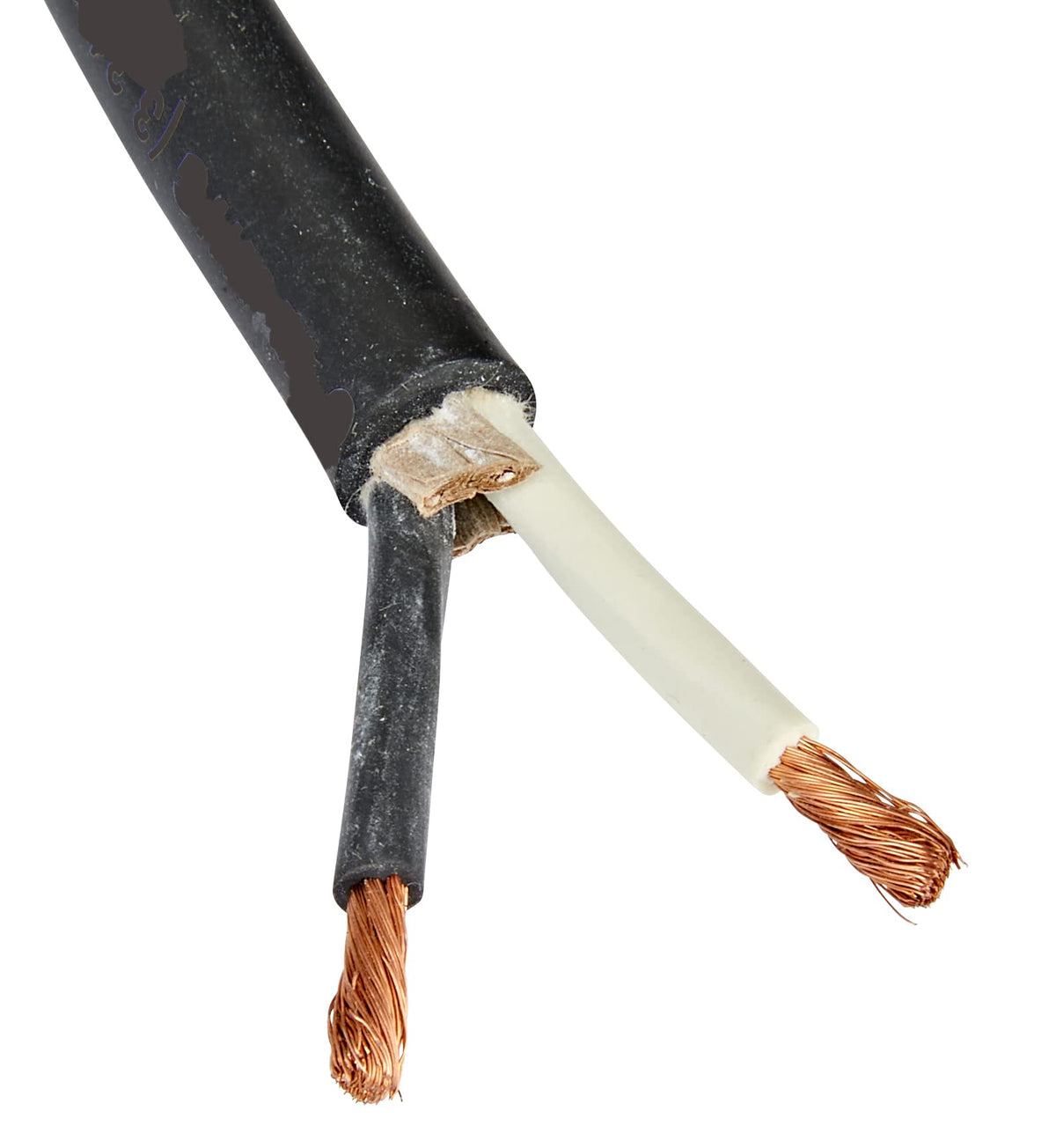

Little Giant CFST tethered float switch with corrosion-resistant polypropylene housing for durable operation.

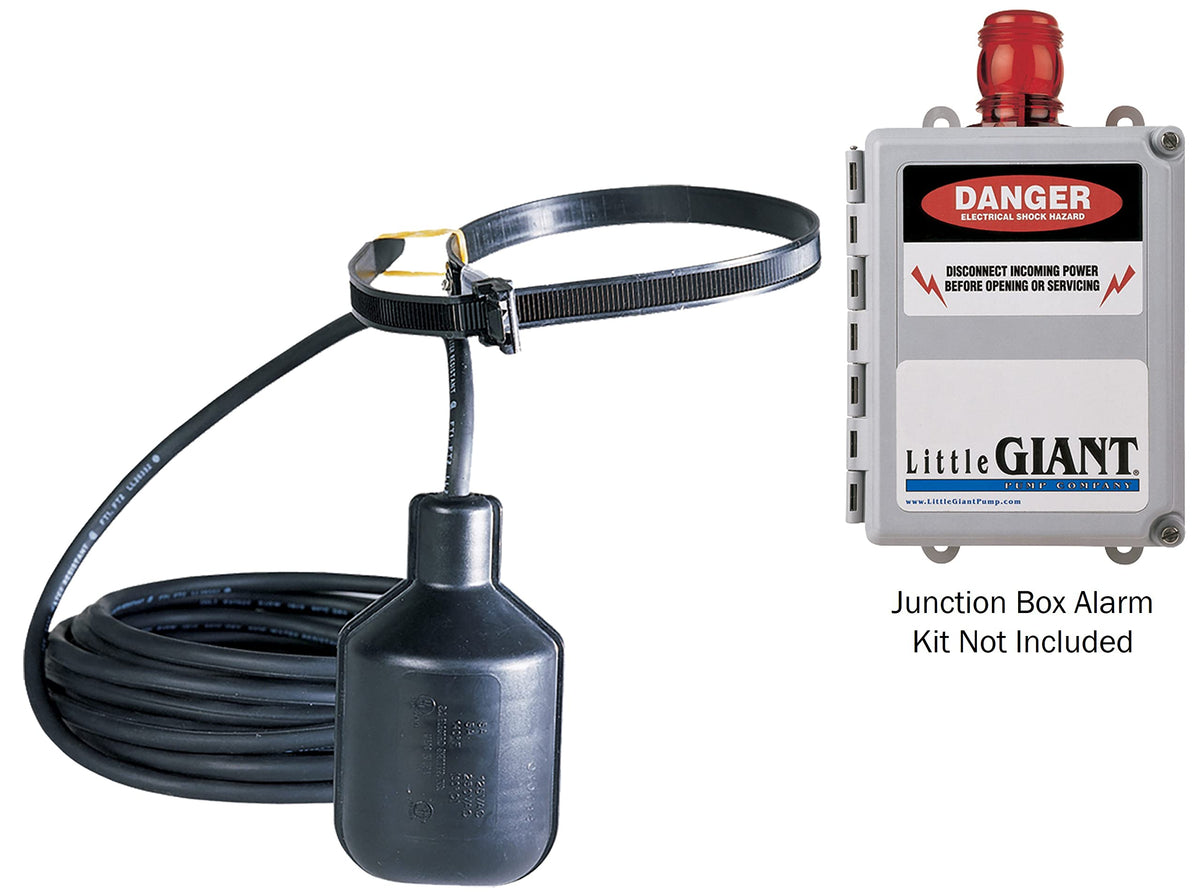

Little Giant CFST control-panel compatible unit designed to work with simplex and duplex panels.

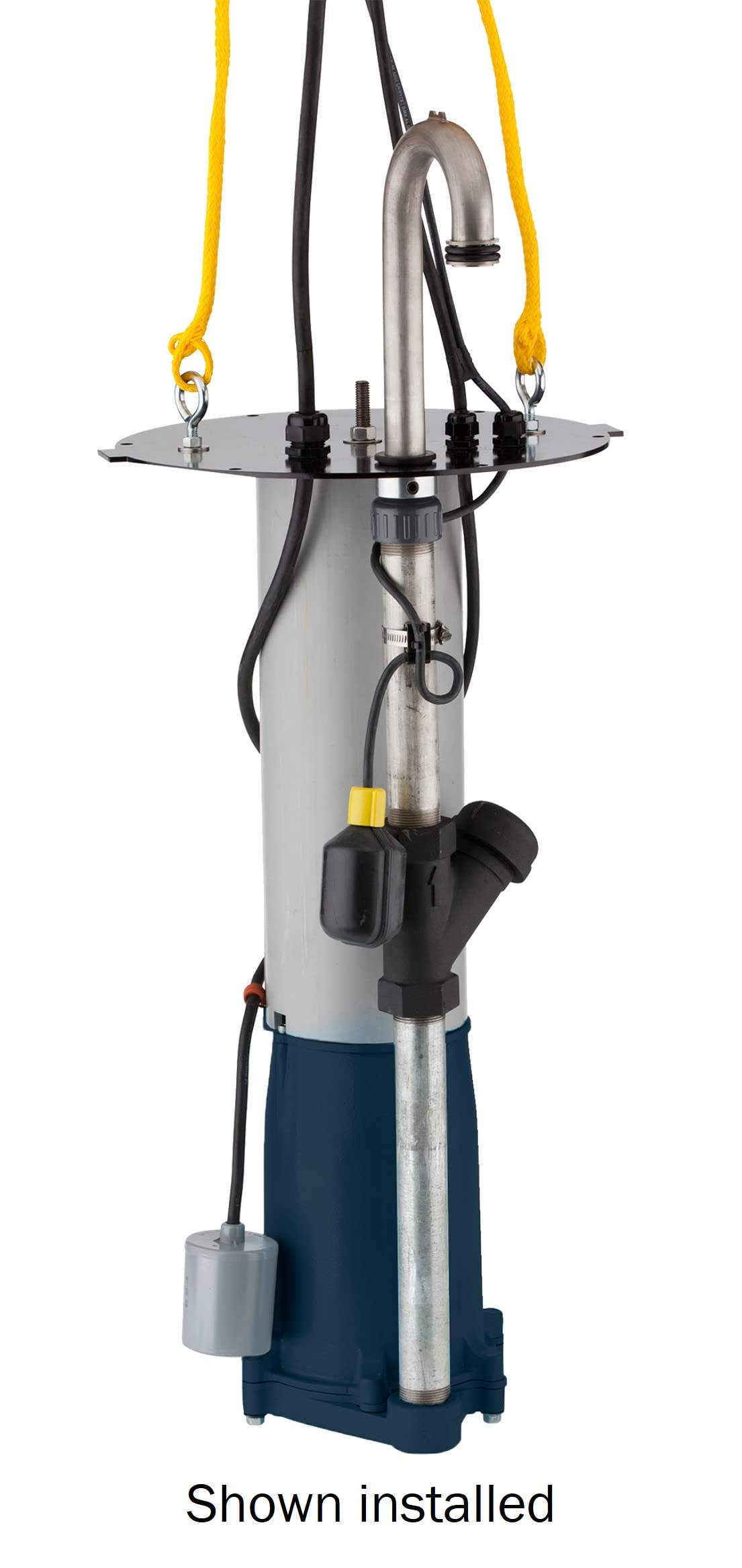

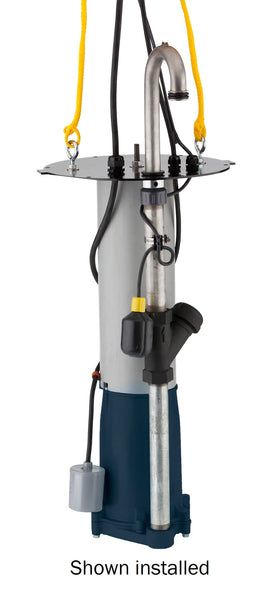

Little Giant CFST 125/250 VAC rated switch for standard commercial pump installations.

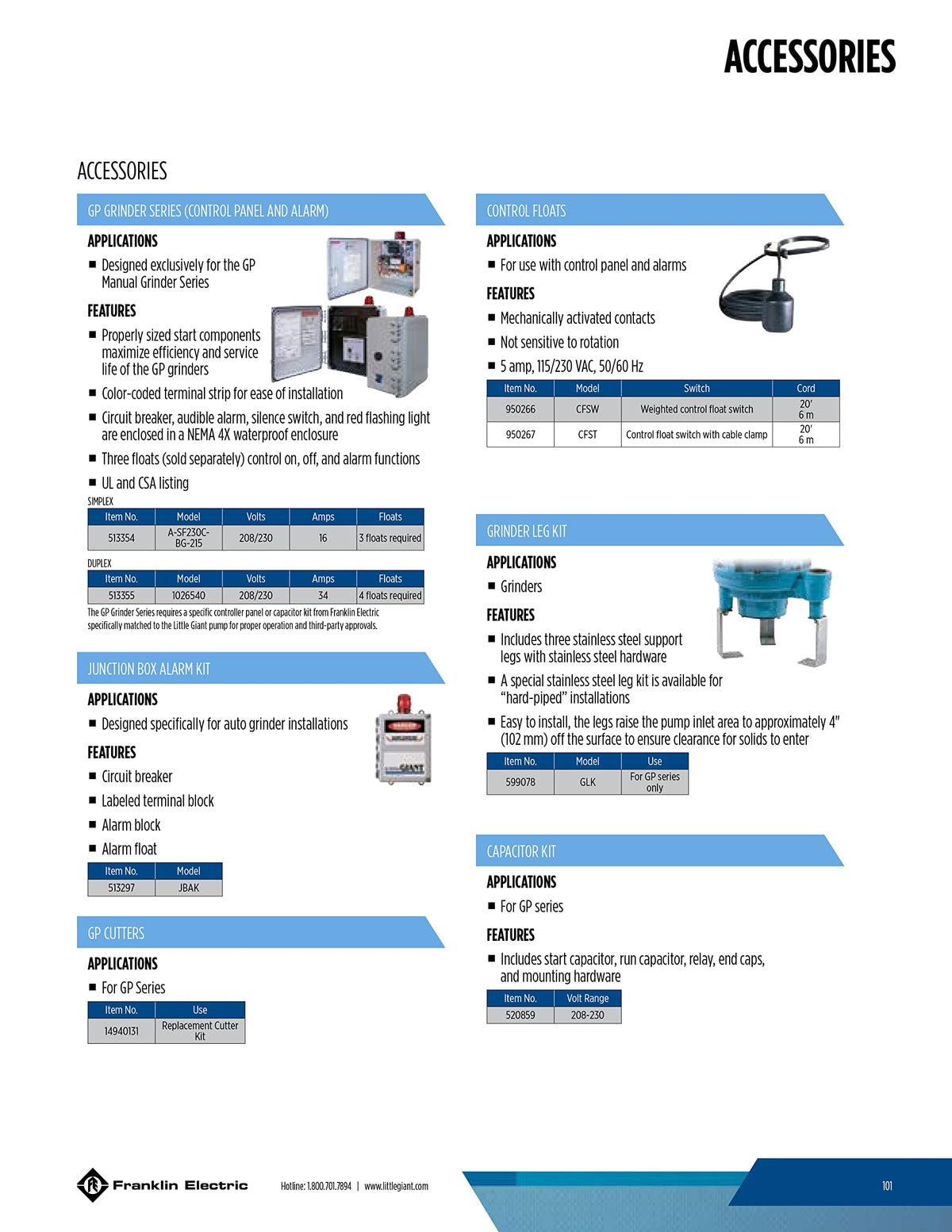

Little Giant CFST UL/CSA certified float switch ensuring safe, dependable pump-down switching.

Little Giant

Little Giant CFST Pump-Down Float Switch | 5 A, 115/230 VAC, 20 ft Lead

High-performance tools and home improvement made for confident daily results

$63.21

3 shoppers currently have this item in cart.

Low stock: only 5 left in inventory. Add to cart before it's gone.

Shop Pay installment options may appear at checkout where eligible.

Free shipping Secure checkout 100% refund eligible
Bundle & save Buy 2 and save checkout time

Premium tools and home improvement quality selected for United States (USA) customers.

Routine pack Build your routine pack (3)

Fast dispatch with always-free shipping and secure checkout on every order.

Free shipping

i

Free shipping on every order. Fast dispatch, tracked delivery, and secure checkout included.

Easy returns

i

Simple return flow and responsive support for eligible items.

Peak-demand shipping delays

i

During high demand, deliveries may experience short carrier delays. Tracking updates remain active for every order.

24/7 customer support

Questions before checkout? Our team is available and ready to help.

Return & RefundEasy returns and policy details Shipping PolicyDelivery process and tracking info
Share

Why customers choose TaskHolt Tools

Overview

The Little Giant CFST is a tethered narrow-angle, normally open float switch designed to automate pump control when used with compatible control panels for water and sewage effluent applications.

Designed to be paired with control panels such as Little Giant's Simplex or Duplex panels (not included), this switch helps manage pump cycling by sensing liquid levels with a robust, corrosion-resistant housing.

Key Features

  • REQUIRES A CONTROL PANEL: used with compatible control panels to monitor liquid levels in sewage and non-potable water.
  • TYPE: tethered, narrow-angle, normally open, pump-down control float switch.
  • MECHANICAL DESIGN: mechanically activated, non-mercury snap-action contacts sealed in a high-impact polypropylene float housing.
  • PUMP DOWN: closes when the float tilts above horizontal and opens when it drops below it, enabling automatic pump run/stop control.
  • SPECIFICATIONS: 5.0 Amps, 125/250 VAC, 50/60 Hz, 20-ft cord, cable clamp included; UL and CSA safety approvals.

Usage & Compatibility

  • COMPATIBLE CONTROL PANELS: works with Little Giant Simplex and Duplex panels (sold separately) and similar panels from Franklin Electric.
  • SAFE OPERATION: suited for water and non-potable effluent sensing in compliant systems; not recommended for loads under 100 mA or 12 VAC.
  • TEMPERATURE & DURABILITY: rated to 140°F; features corrosion-resistant housing for longer life in challenging environments.

Why consider CFST

Envision automated pump control in basements, crawlspaces, or pump rooms where liquid levels change gradually. The CFST provides a reliable switch action when paired with a suitable control panel, helping to minimize manual interventions while keeping systems responsive.

Specifications

  • Current: 5.0 Amps
  • Voltage: 125/250 VAC, 50/60 Hz
  • Lead: 20 ft
  • Temperature rating: 140°F
  • Certifications: UL recognized, CSA certified

FAQ

Q: What is the Little Giant CFST switch used for?

A: It is a tethered, normally open float switch designed to automate pump control when paired with compatible control panels.

Q: Which panels are compatible with CFST?

A: CFST works with Little Giant Simplex and Duplex panels and certain Franklin Electric panels; other compatible panels may apply.
