Leeauszya 1000 Pcs Heat Shrink Butt Connectors 22-16 AWG | Waterproof Marine-Grade Wire Splices

Overview

Introducing the Leeauszya 1000 Pcs Heat Shrink Butt Connectors set, crafted to simplify splices across boats, automotive projects, and home wiring. Each red connector emphasizes durability and a clean, professional finish, turning ordinary wire joins into dependable links in changing conditions. This bundle is designed for quick, solder-free work, followed by a secure, moisture-resistant seal that lasts under demanding environments.

Industrial-grade quality for diverse settings

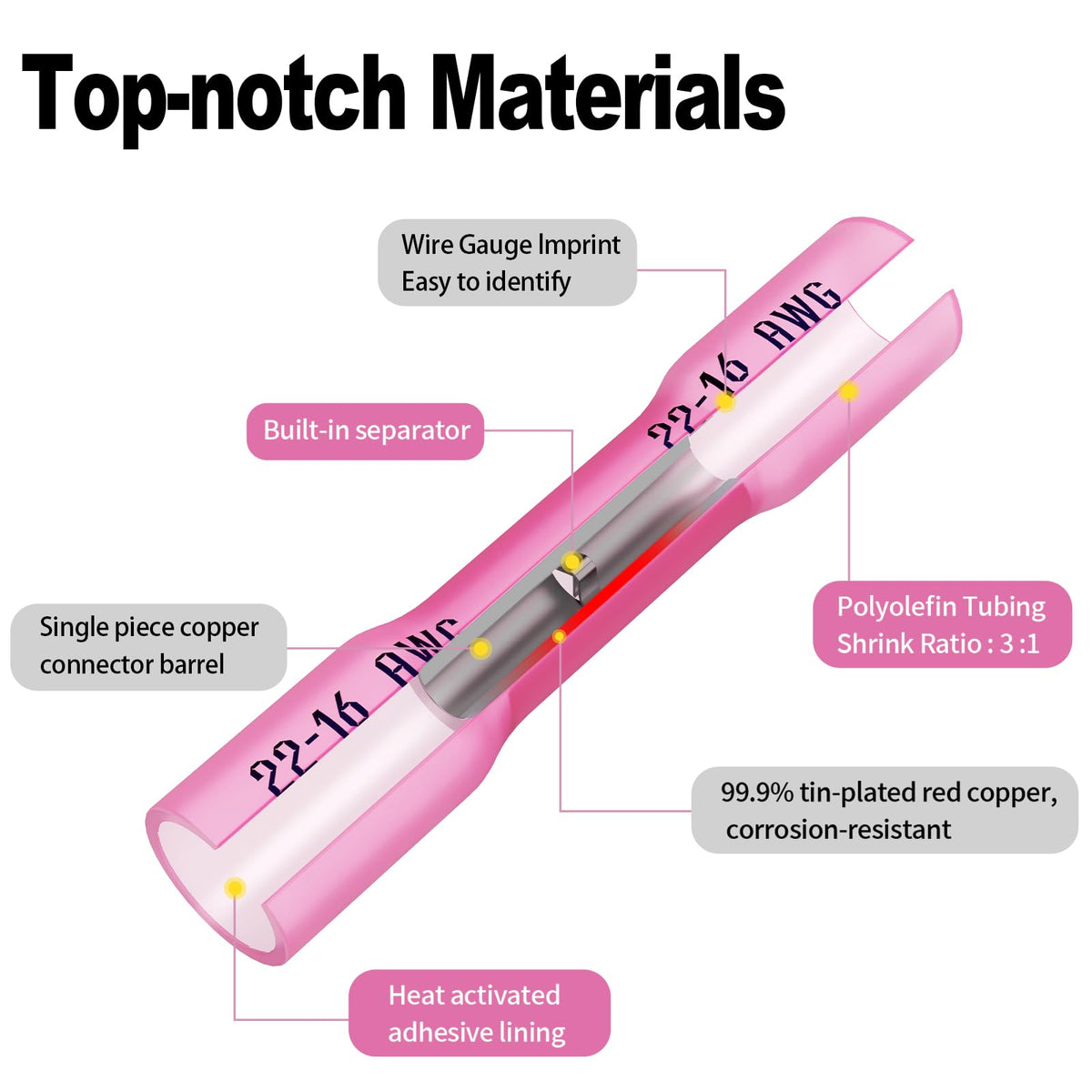

The kit pairs a thick 99.9% tinned copper core with marine-grade polyolefin heat shrink tubing and adhesive-lined double-insulated tubing. This combination helps minimize voltage drop while delivering strong conductivity and a secure, moisture-resistant seal that stands up to routine exposure and vibration.

3:1 shrink ratio and waterproof sealing

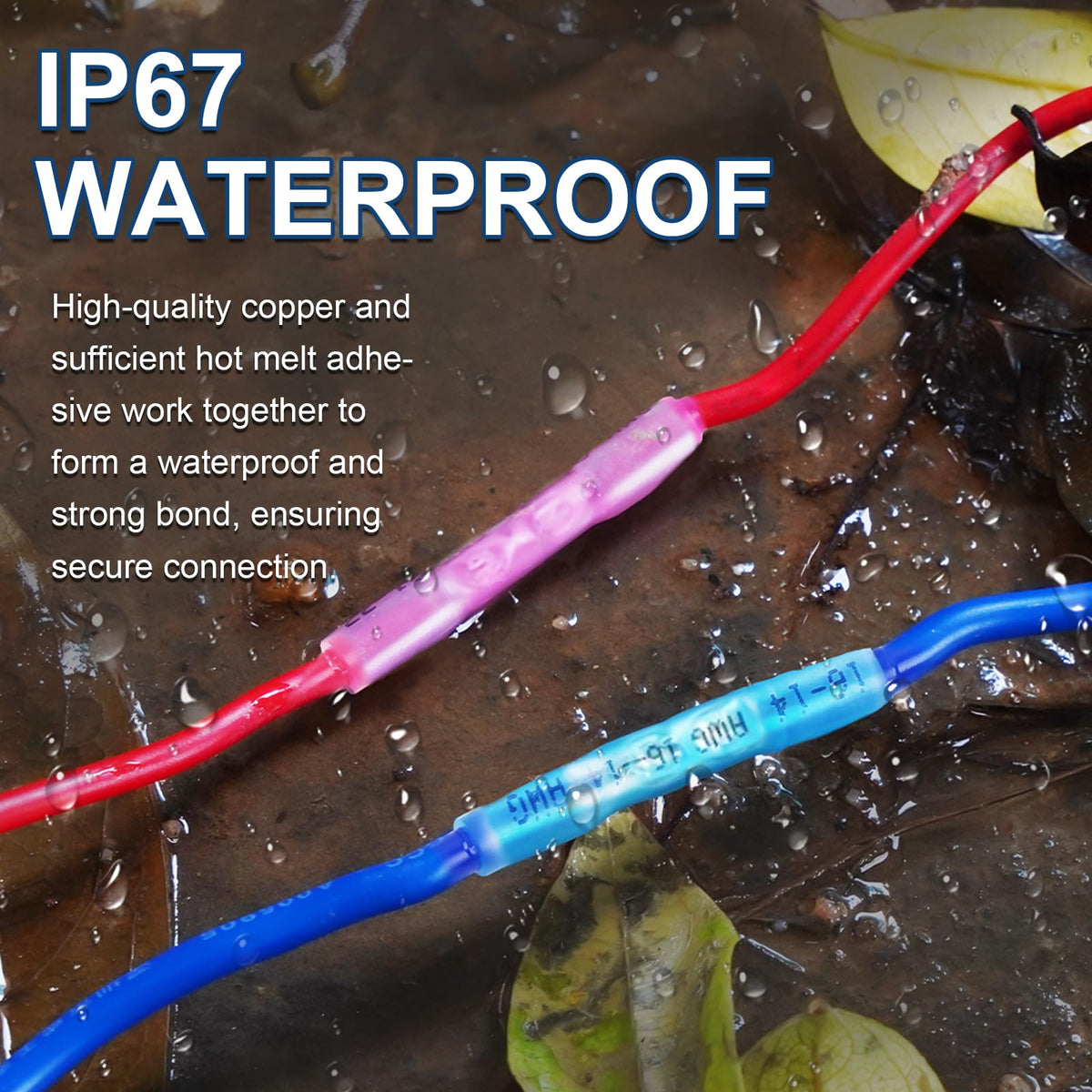

When heat is applied, the adhesive melts to form an all-around IP67 waterproof seal. The double-insulated tube remains flame-retardant, making these connectors suitable for outdoor, underwater, or underground use in a variety of settings.

Ease of use and inspection

Designed for solder-free installations: strip insulation, insert wire, crimp, then apply heat evenly. The tubing features wire-gauge markings and a transparent material for quick inspection, ensuring a clean, complete wrap every time.

What you get and practical benefits

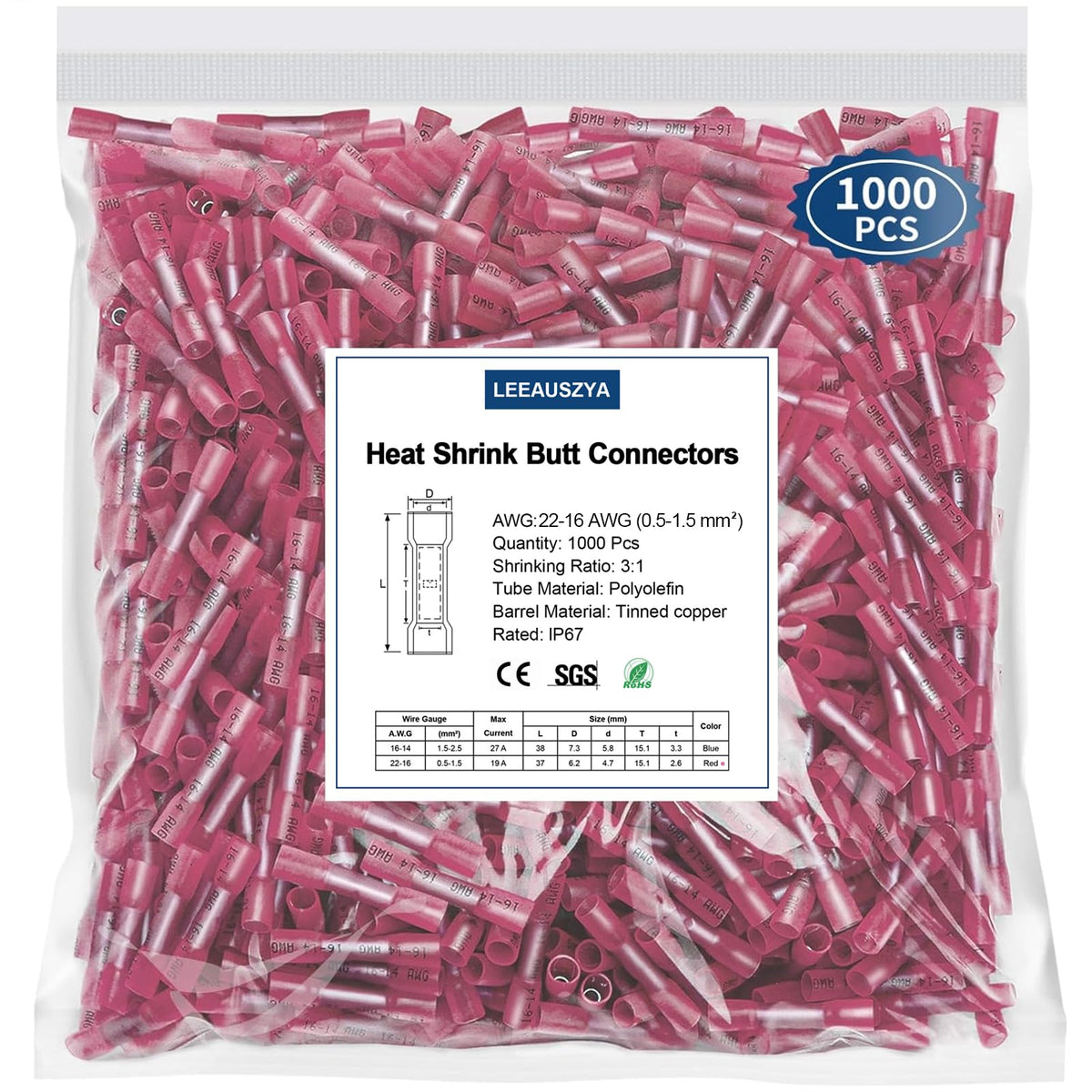

• Package Includes: 1000 red 22-16 AWG heat shrink butt connectors, suitable for automotive, marine, electrical, and electronics wiring, with a wide operating range and a low shrink temperature.
• Thick copper core resists mechanical damage and supports reliable current flow with minimal heat buildup, contributing to secure, long-lasting connections.

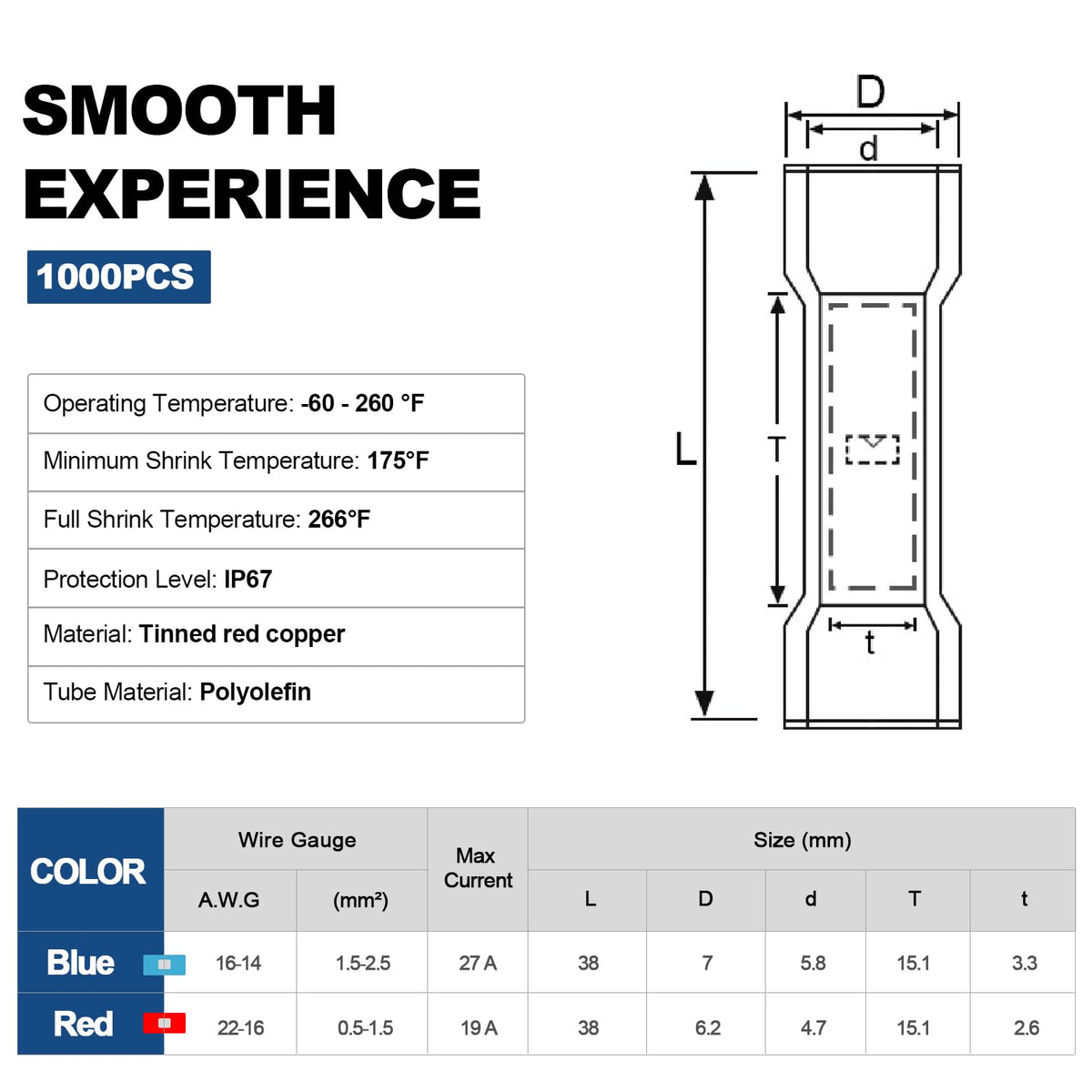

Key specs at a glance

• Operating temperature: -60℉ to 260℉
• Minimum shrink temperature: 175℉
• Shrink ratio: 3:1 with adhesive-sealed waterproofing
• Core material: 99.9% tinned copper for strong conductivity
• Insulation: marine-grade polyolefin with double-insulated tubing
• Quantity: 1000 connectors

Real-world use cases

Ideal for boat maintenance, automotive upgrades, garage wiring projects, and industrial tasks where a robust, moisture-resistant joint is helpful. The clear tubing and color-coded design support quick inspection during repairs and upgrades.

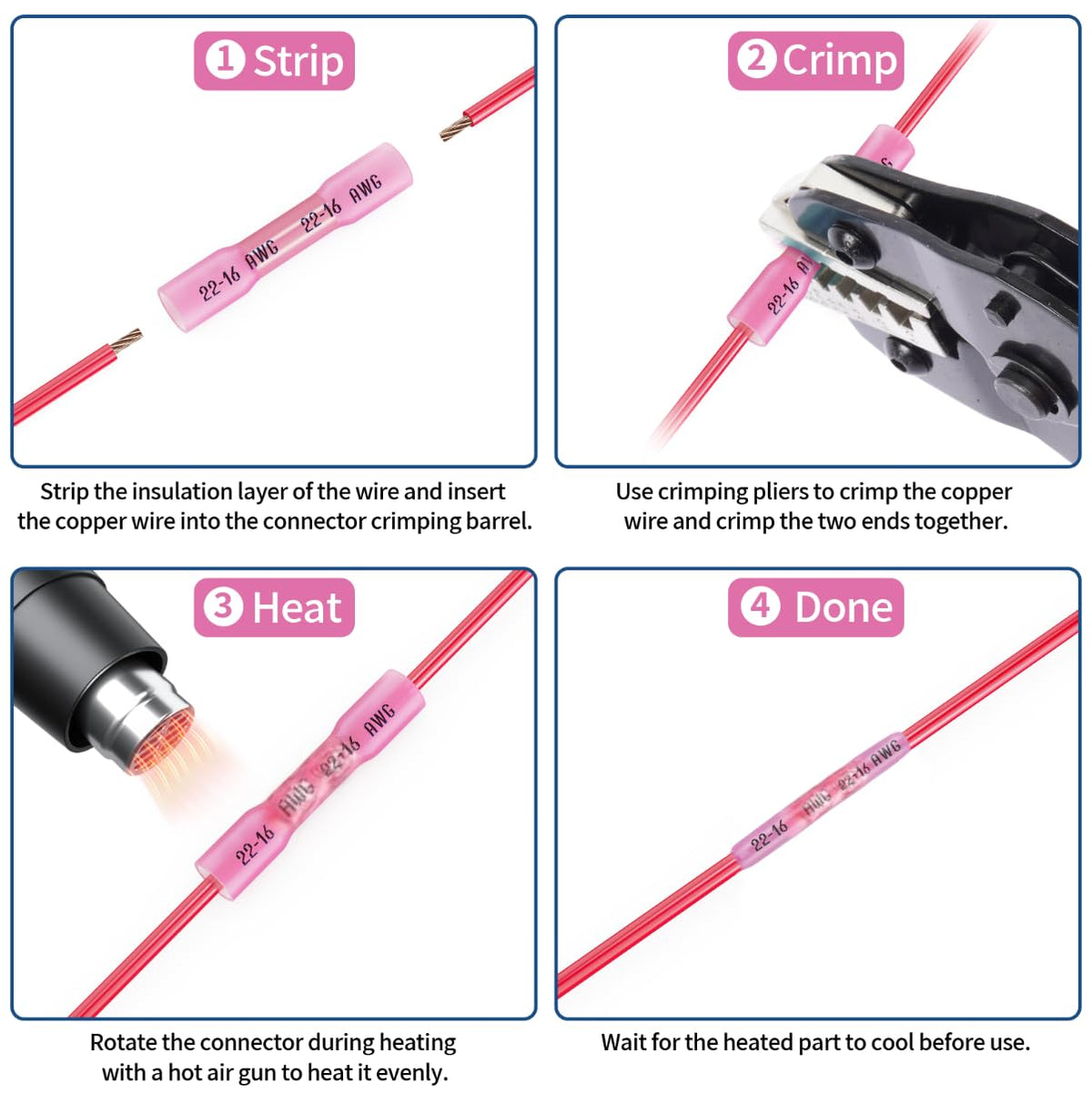

How to install in minutes

• Strip insulation, insert wire, crimp firmly, then heat evenly to activate the seal.
• Inspect the finished joint to confirm full coverage and a solid, adhesive-sealed wrap.
