Kreg Shelf Pin Jig 5 mm - Edge-Aligned Cabinet Drilling Guide - KMA3232

Overview

The Kreg Shelf Pin Jig 5 mm is a compact drilling guide crafted for European-style cabinets that use 5 mm shelf pins. Its edge-aligned design lets you register the jig securely against the cabinet edge, helping you achieve straight, repeatable hole placements with less guesswork. This tool is built to support both DIY projects and professional woodworking, making it a reliable option for planning and executing shelf layouts with confidence.

Designed to be portable, the jig travels easily from the shop to the job site. Its streamlined form enables quick setup, so you can map out spacing, align holes, and drill efficiently. Whether you’re updating an existing cabinet or building a new storage system, this jig is meant to accompany you through the process without slowing you down.

Key benefits

• 5 mm Shelf Pin Jig tailored for precise 5 mm holes in European-style cabinets

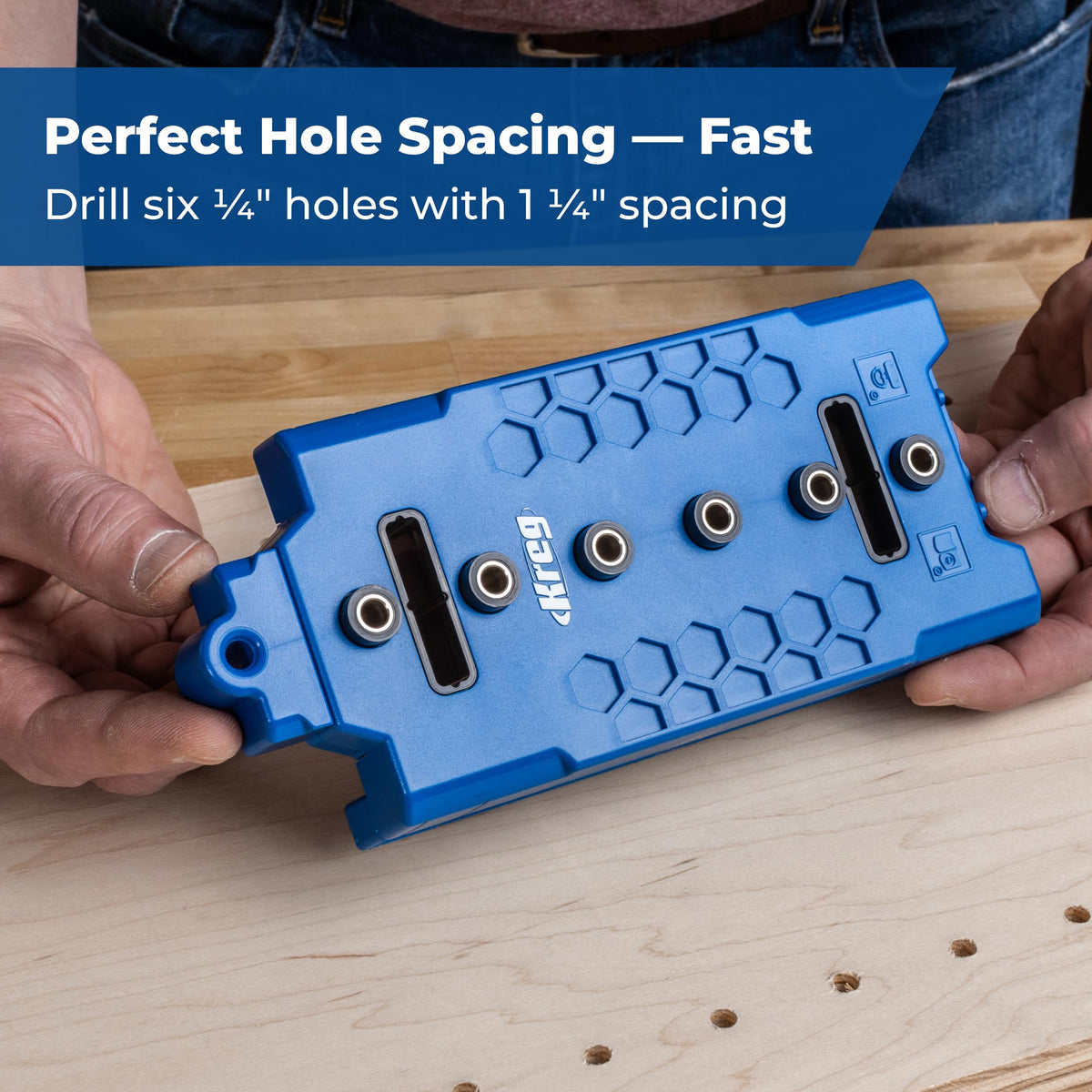

• Consistent hole spacing that supports clean, evenly spaced layouts
• Edge-aligned design that registers to cabinet edges for straight drilling
• Portable and easy to use, enabling fast setup for both DIY and professional projects
• Premium Kreg Tools brand quality that helps bridge ideas and outcomes

How it works

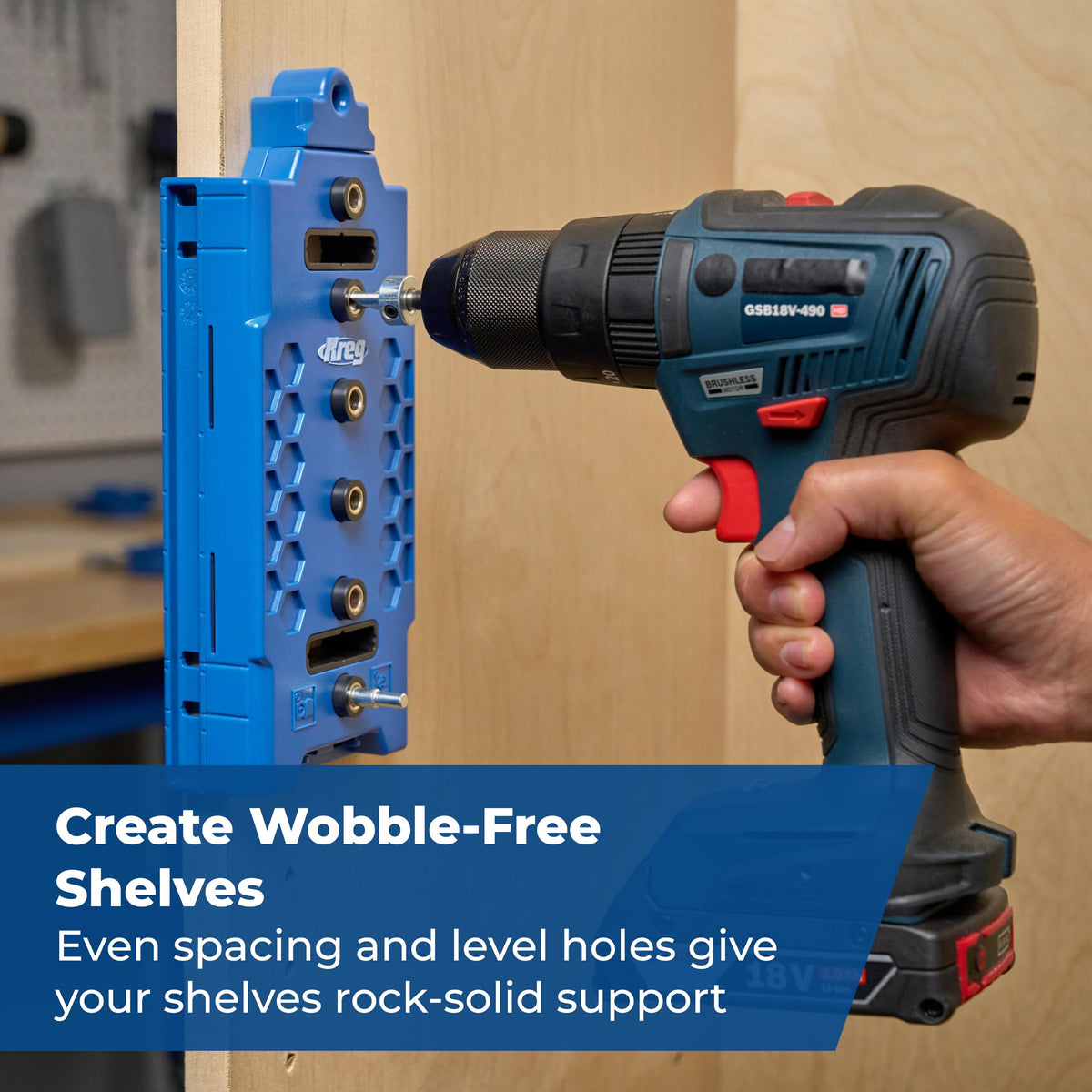

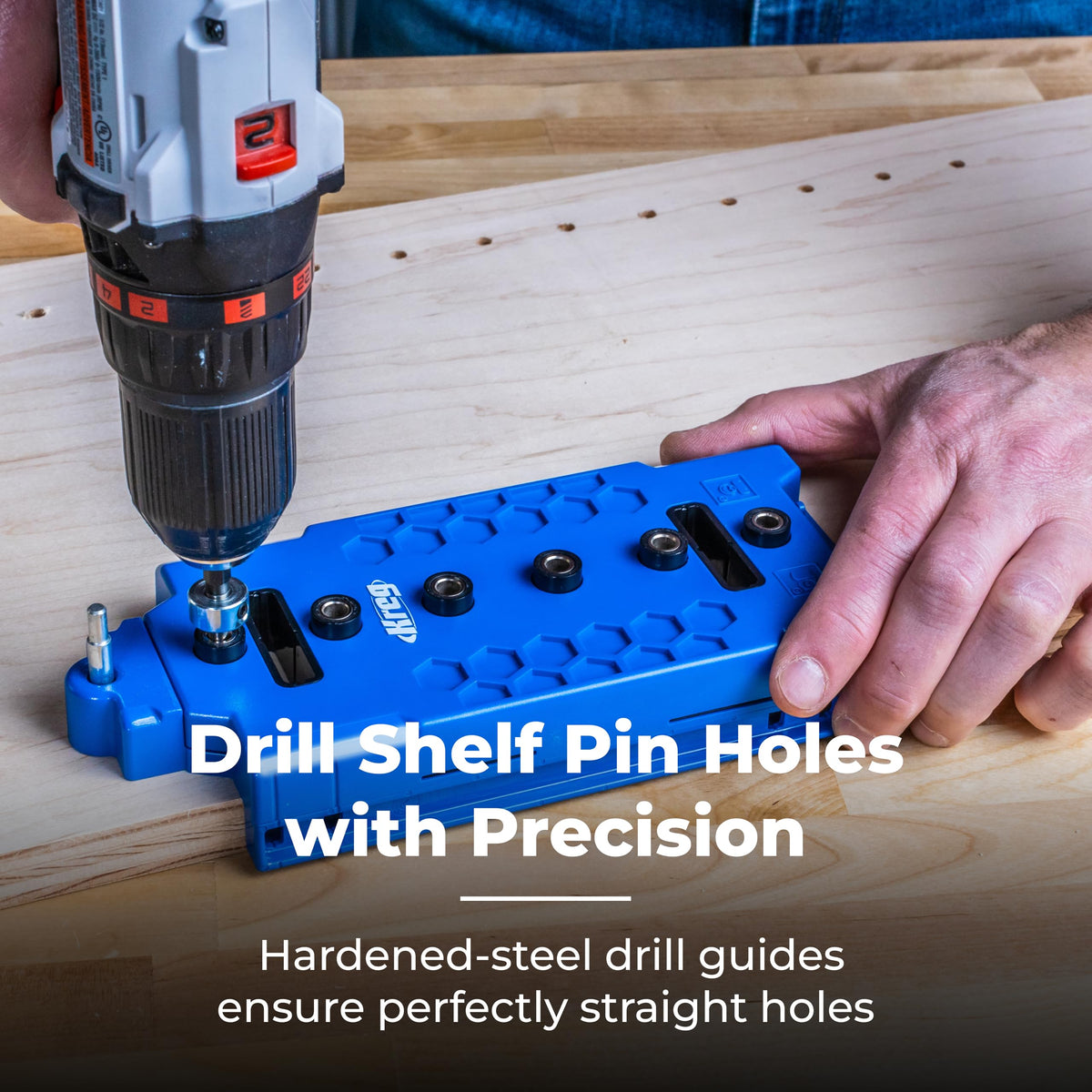

To use the jig, mount it along the cabinet edge and align with your chosen spacing. The built-in guides guide your drill bit to produce uniform 5 mm holes that accept standard shelf pins. The compact design leaves your other hand free to steady the workpiece, helping you maintain control through each hole in the sequence.

With a simple setup, you can create a series of evenly spaced holes that align with existing holes or prepare a new, repeatable pattern for multiple shelves. The edge-registration feature helps prevent drift, contributing to straight lines across rows of holes.

Practical uses

Ideal for updating kitchen base cabinets, organizing built-ins, or configuring modular wardrobe systems. The jig supports planning and drilling for multiple shelves, enabling sturdy, adjustable storage options. It’s well suited for both shop projects and on-site installations, where precise hole placement matters for reliable shelf support.

Pair with standard 5 mm shelf pins and a cordless drill for on-site adjustments, or use in the shop to create repeatable drilling templates. The design emphasizes accuracy and ease of use, so you can focus on layout and assembly rather than rework.

Quality and brand promise

As part of the premium Kreg Tools lineup, this jig reflects thoughtful engineering and dependable performance. While it does not promise specific outcomes, it is designed to support your workflow and help you translate ideas into practical, well-constructed storage solutions.
