Klein Tools RT390 Circuit Analyzer — Large Color LCD, AFCI/GFCI Test, 120V Outlet Verifier

Overview of the Klein Tools RT390 Circuit Analyzer

The Klein Tools RT390 Circuit Analyzer is a portable testing companion for evaluating wiring conditions at electrical outlets. With a large color LCD, it presents clear results for wiring faults, AFCI and GFCI devices, and voltage behavior across multiple load levels. Designed for North American 120V AC, 3-wire outlets, this tool blends professional-grade precision with practical on-site usability for electricians, contractors, and serious DIY enthusiasts alike.

Rather than relying on guesswork, the RT390 provides visual insights you can trust. The color display highlights key readings, so you can quickly spot anomalies, assess device functionality, and decide whether further inspection or action is needed. While results are informative rather than guarantees, they help you approach outlet evaluation with greater clarity and confidence.

Key capabilities at a glance

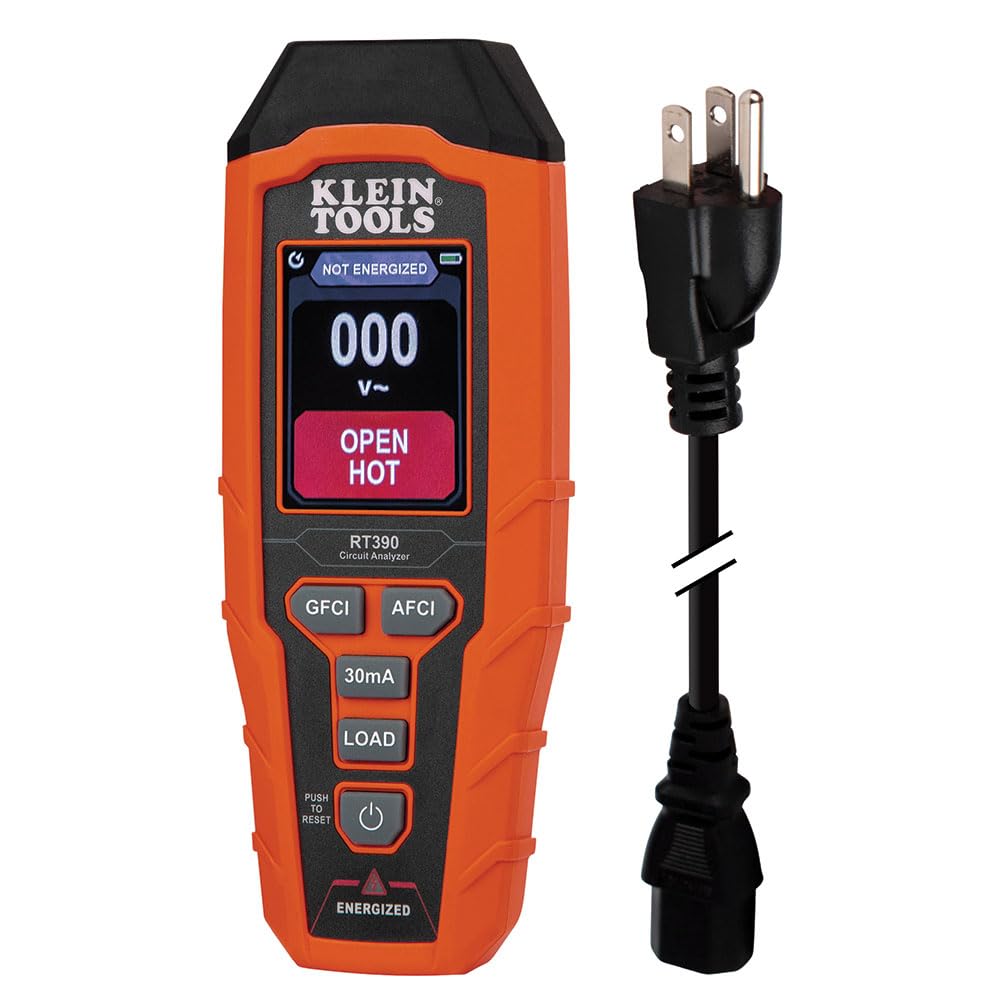

• CLEAR COLOR LCD DISPLAY: Large, easy-to-read results for wiring faults, AFCI/GFCI status, voltage drops, and trip time
• COMPREHENSIVE WIRING FAULT DETECTION: Identifies common wiring faults in standard, AFCI, and GFCI outlets
• DUAL WIRING FAULT DETECTION: Detects open neutral and open ground scenarios for safer diagnostics

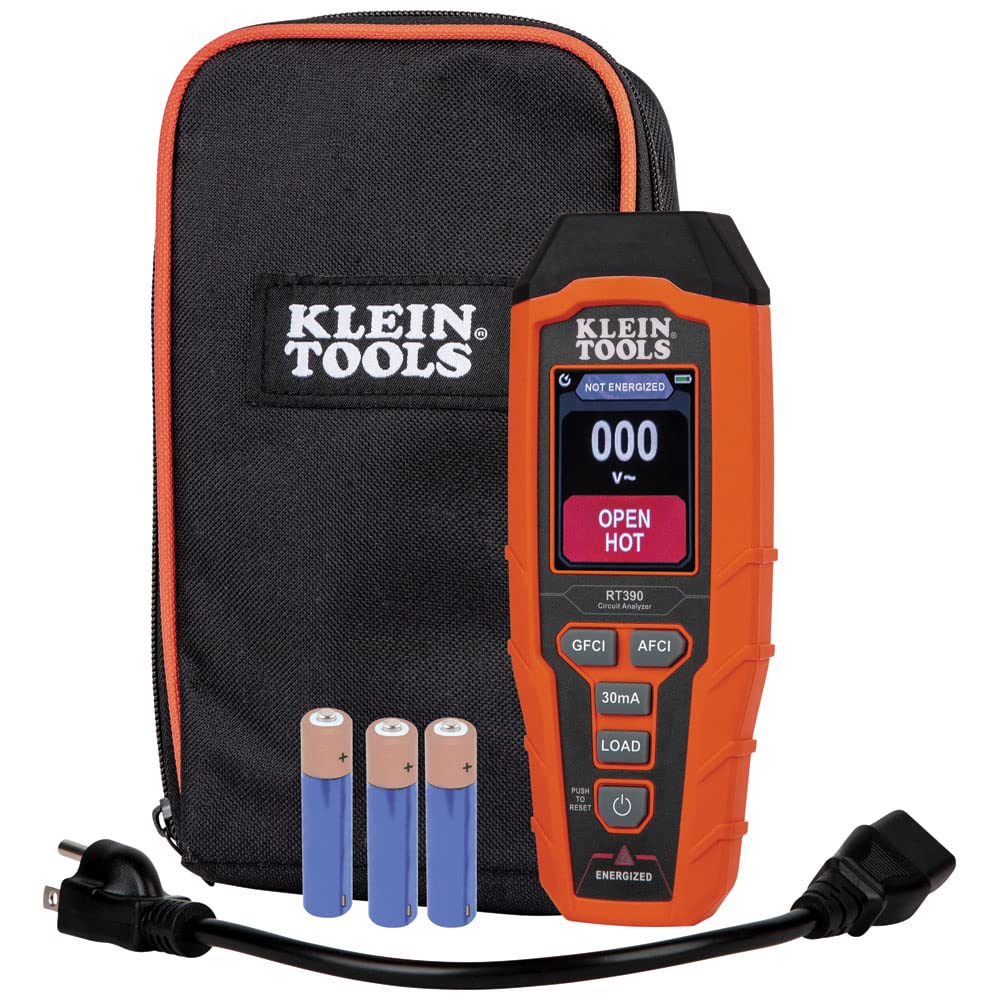

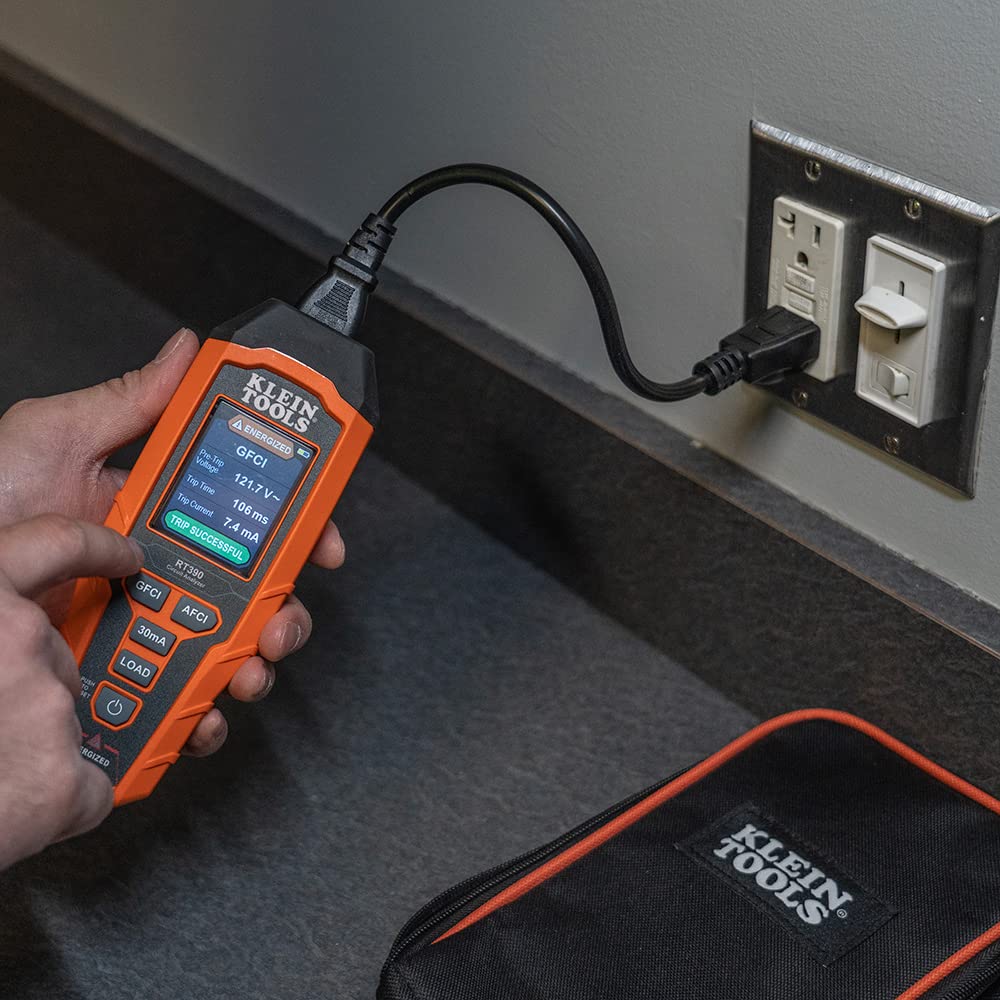

• AFCI AND GFCI DEVICE INSPECTION: Measures trip time and trip current for accurate device assessment

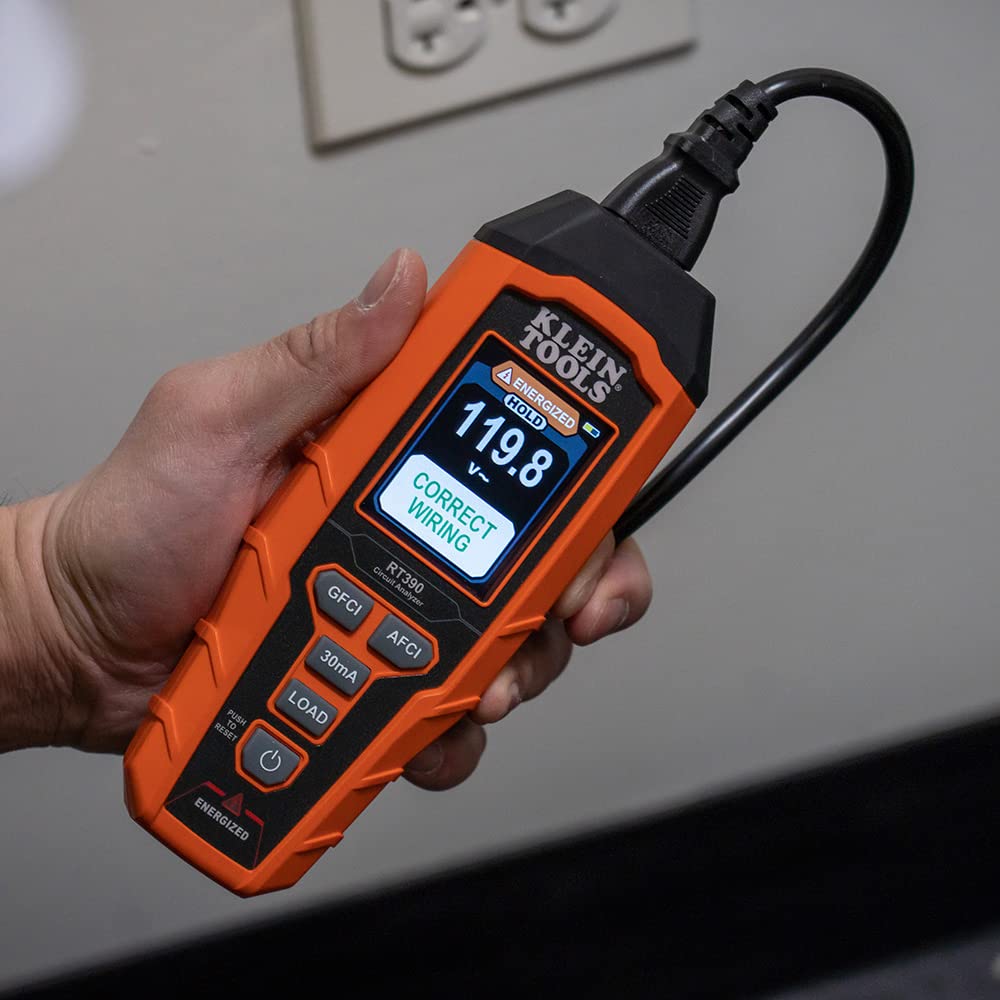

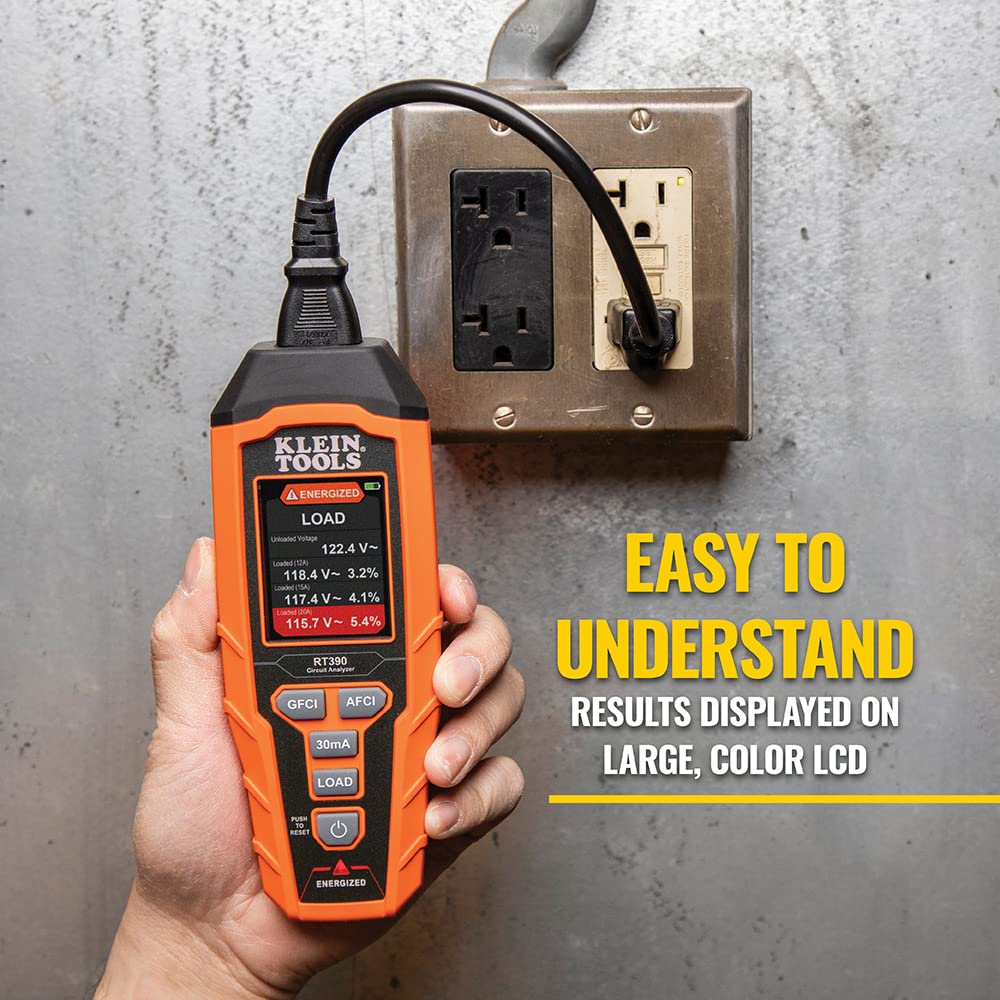

• LOAD TESTING CAPABILITIES: Performs 12A, 15A, and 20A tests to measure voltage drop under real-world loads
• AUTO POWER OFF: Conserves battery life by powering off after 5 minutes of inactivity

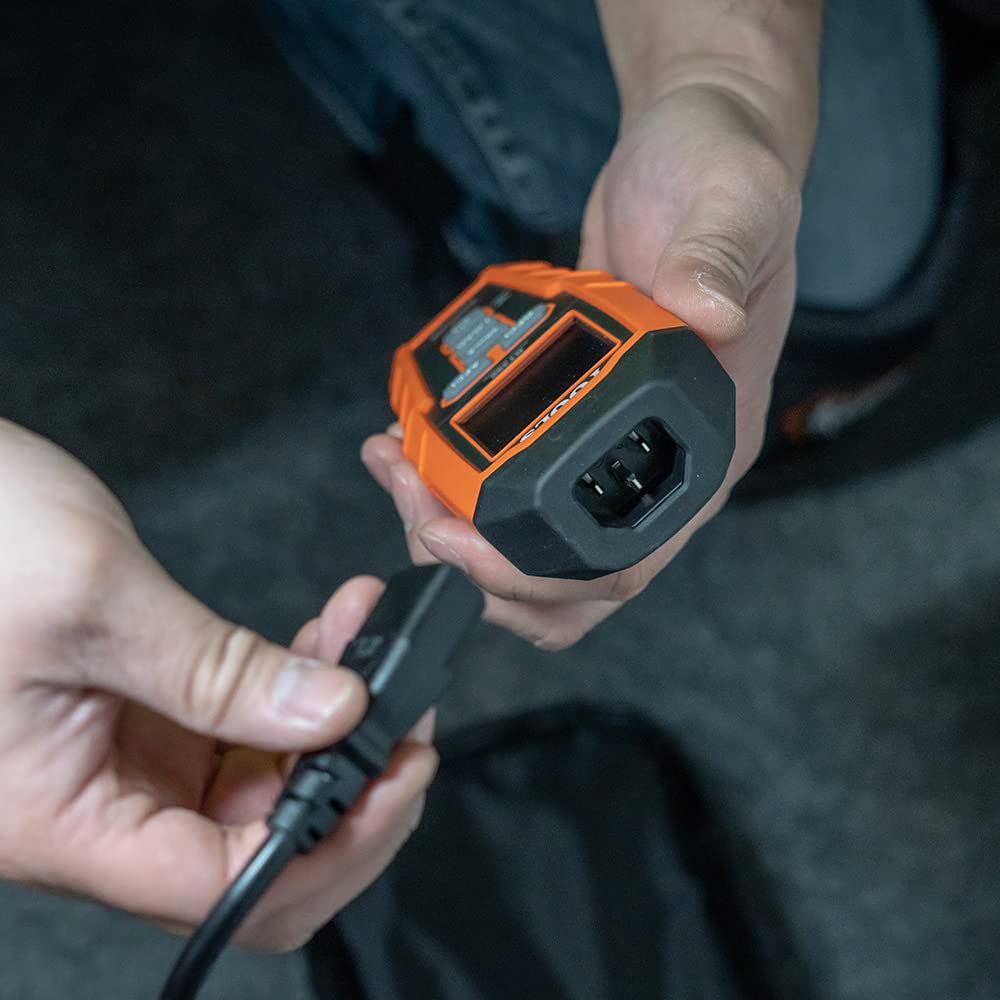

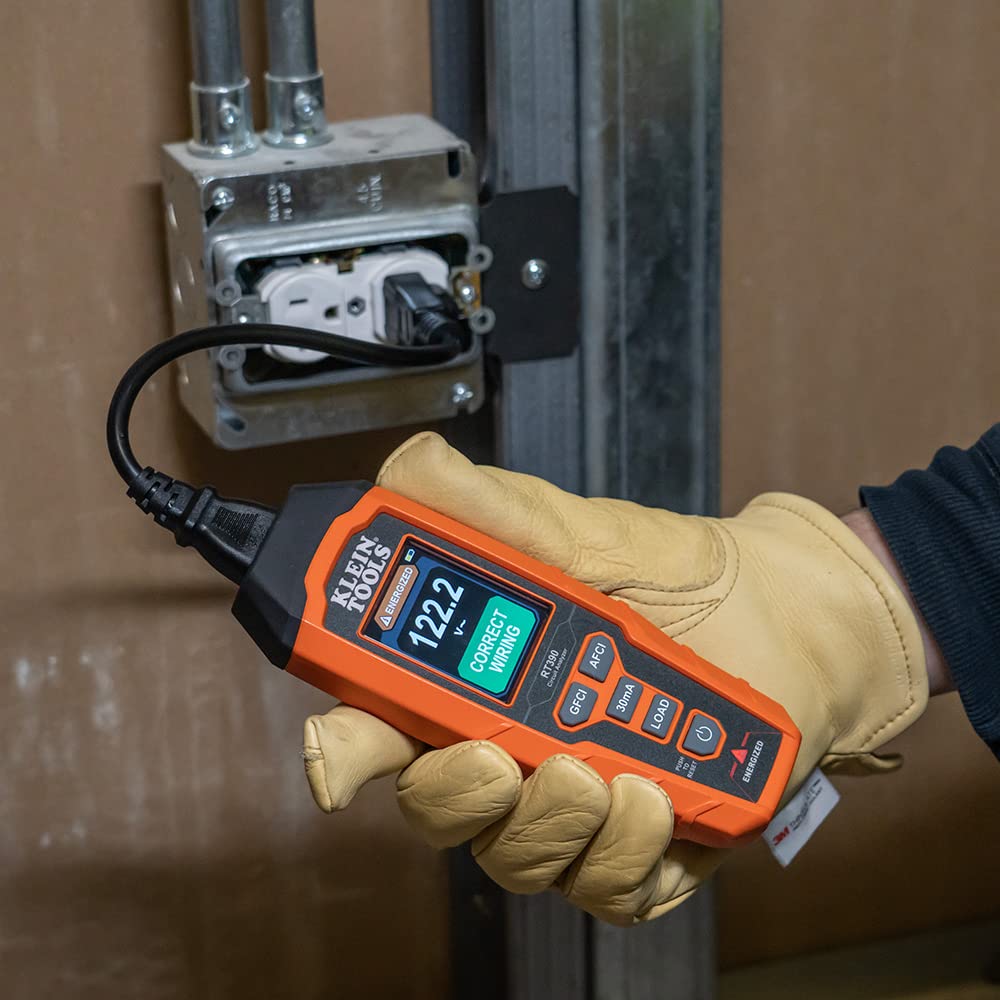

• DETACHABLE CORD: Removable cord simplifies storage and transport

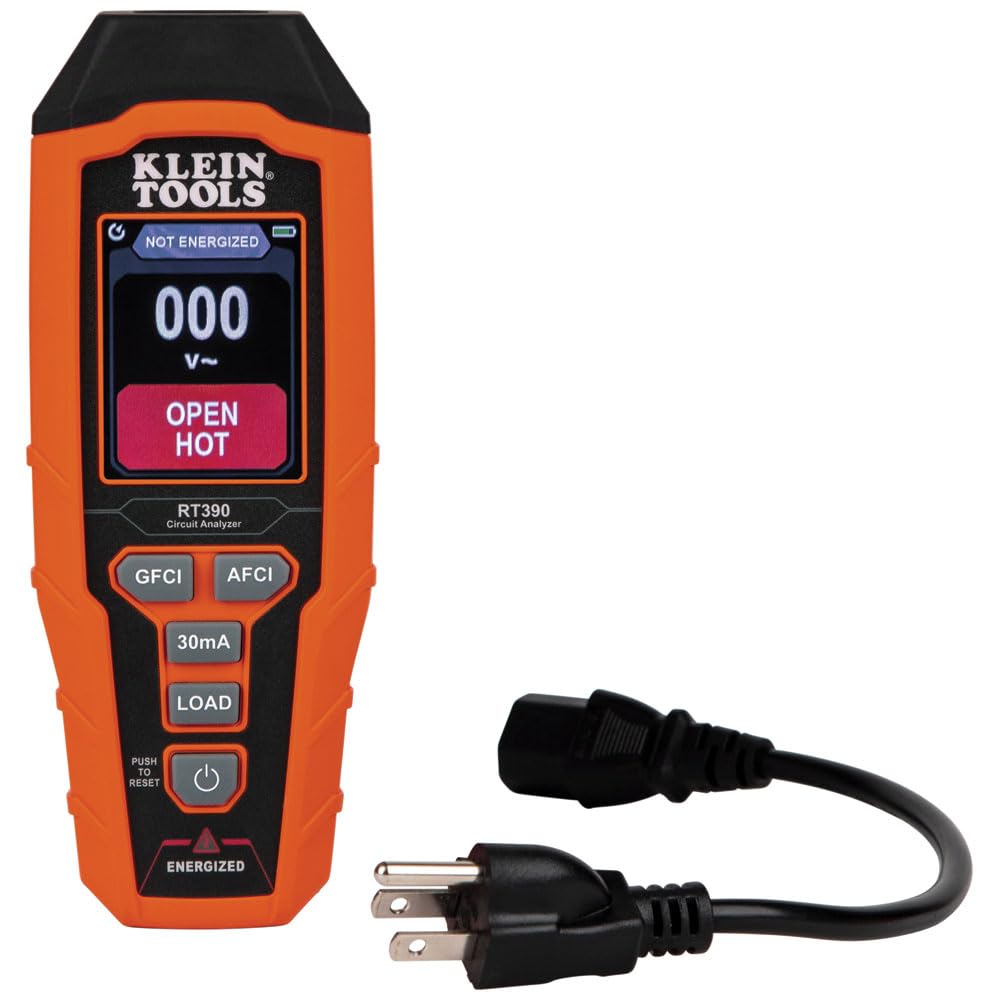

• COMPATIBILITY: For North American 120V AC 3-wire outlets
• SAFETY RATING: CAT III 135V for added protection during on-site testing

Two practical use cases you may encounter

On a bustling jobsite, you can quickly verify outlet wiring before installing fixtures or new devices, reducing the risk of undetected faults impacting performance. At a home upgrade, the RT390 helps confirm AFCI/GFCI protection is functioning as intended, guiding safer, code-compliant work.

Whether you’re inspecting a legacy panel or assessing a newly wired circuit, the RT390 provides a concise, readable readout that supports thoughtful decision-making. Use it as a field-check tool to inventory potential issues, then plan targeted follow-up testing or professional service as needed.

How to use (quick-start)

1. Insert the RT390 into a 120V AC, 3-wire outlet to begin a test cycle.
2. Read the color LCD for wiring fault status, AFCI/GFCI device condition, and voltage behavior.
3. Run load tests at 12A, 15A, and 20A to observe voltage drops and overall performance.
4. Review the results, note any warnings, and detach the cord for easy storage when finished.

With its balanced mix of insight, portability, and durability, the RT390 is built to support professional workflows without overwhelming the user with jargon or guesswork.
