JYINCPED 4 Pack Stationary Dock Base Plate – Stable Floating Dock Support

Overview

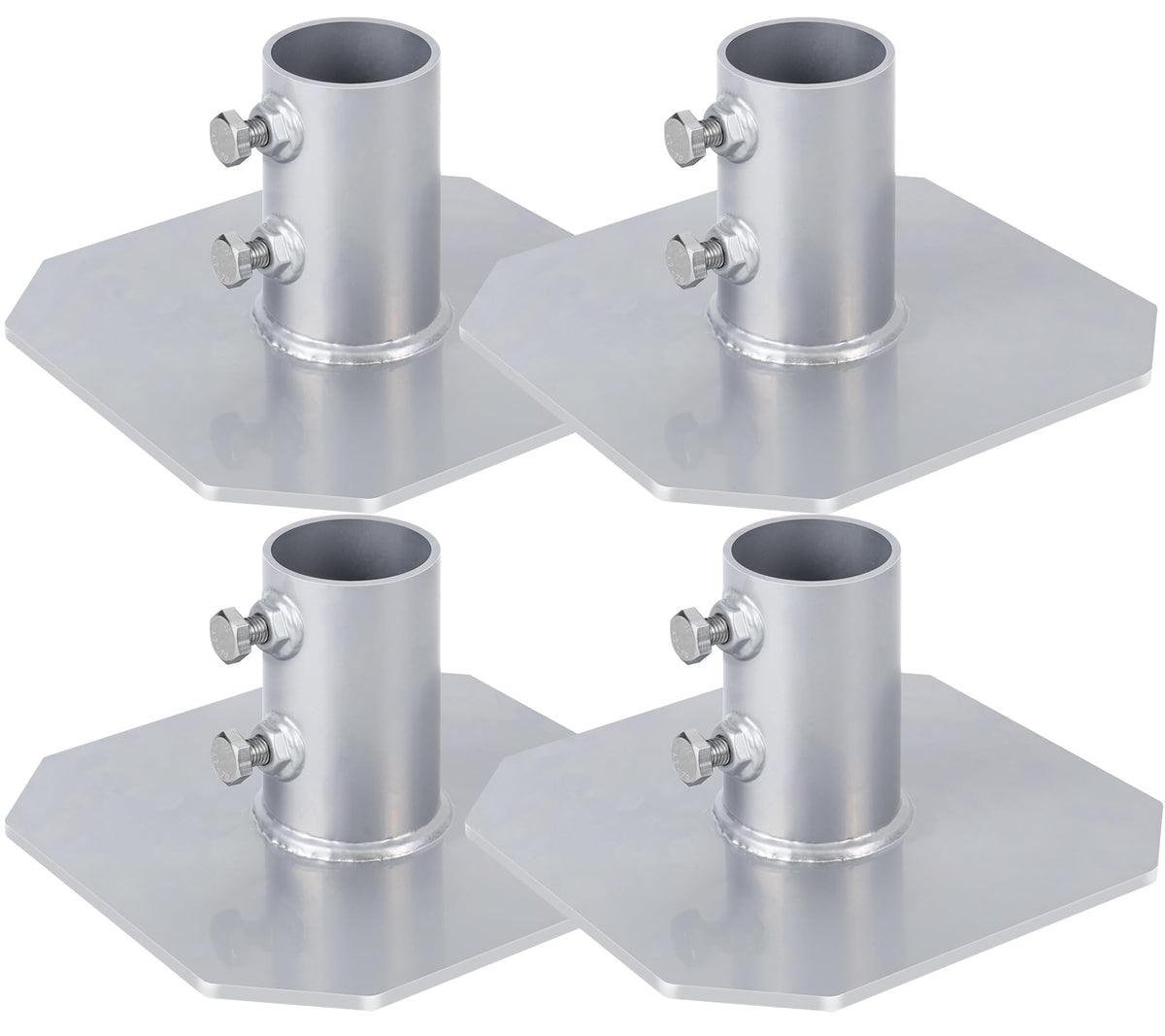

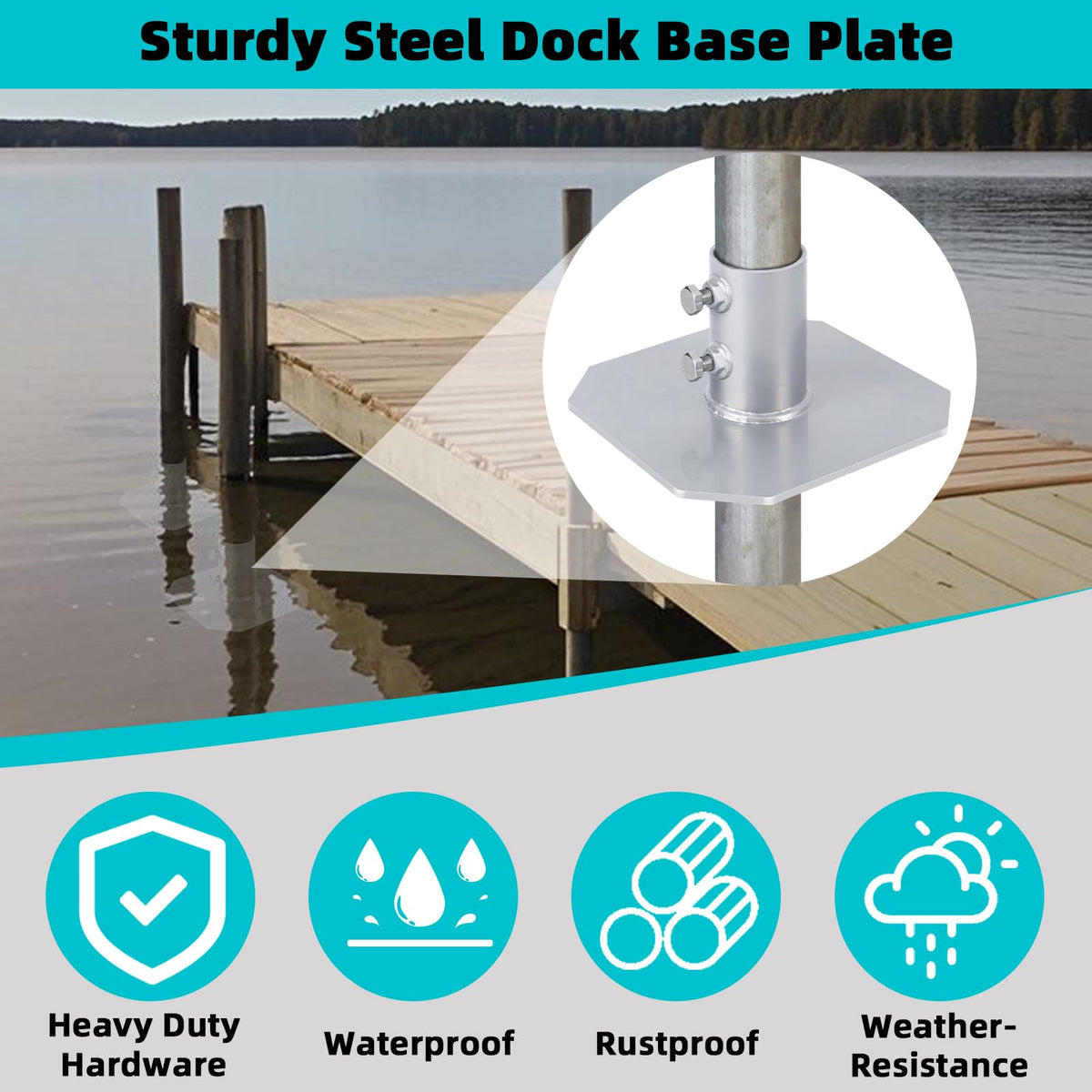

Meet the JYINCPED stationary dock base plate hardware, designed to bring dependable stability to floating docks constructed from wood or aluminum. Each unit pairs marine-grade 11-gauge steel with a heavy 8x8 backer plate, built to resist corrosion in both freshwater and marine settings. The result is a robust platform that helps your dock leg posts stay upright, even as water levels shift and mud migrates beneath.

The design emphasizes weight distribution and durability, aiming to reduce flex and settle that can occur on soft riverbeds. This combination of materials and geometry is intended to provide long useful service while staying accessible to DIY dock builders.

Key Features

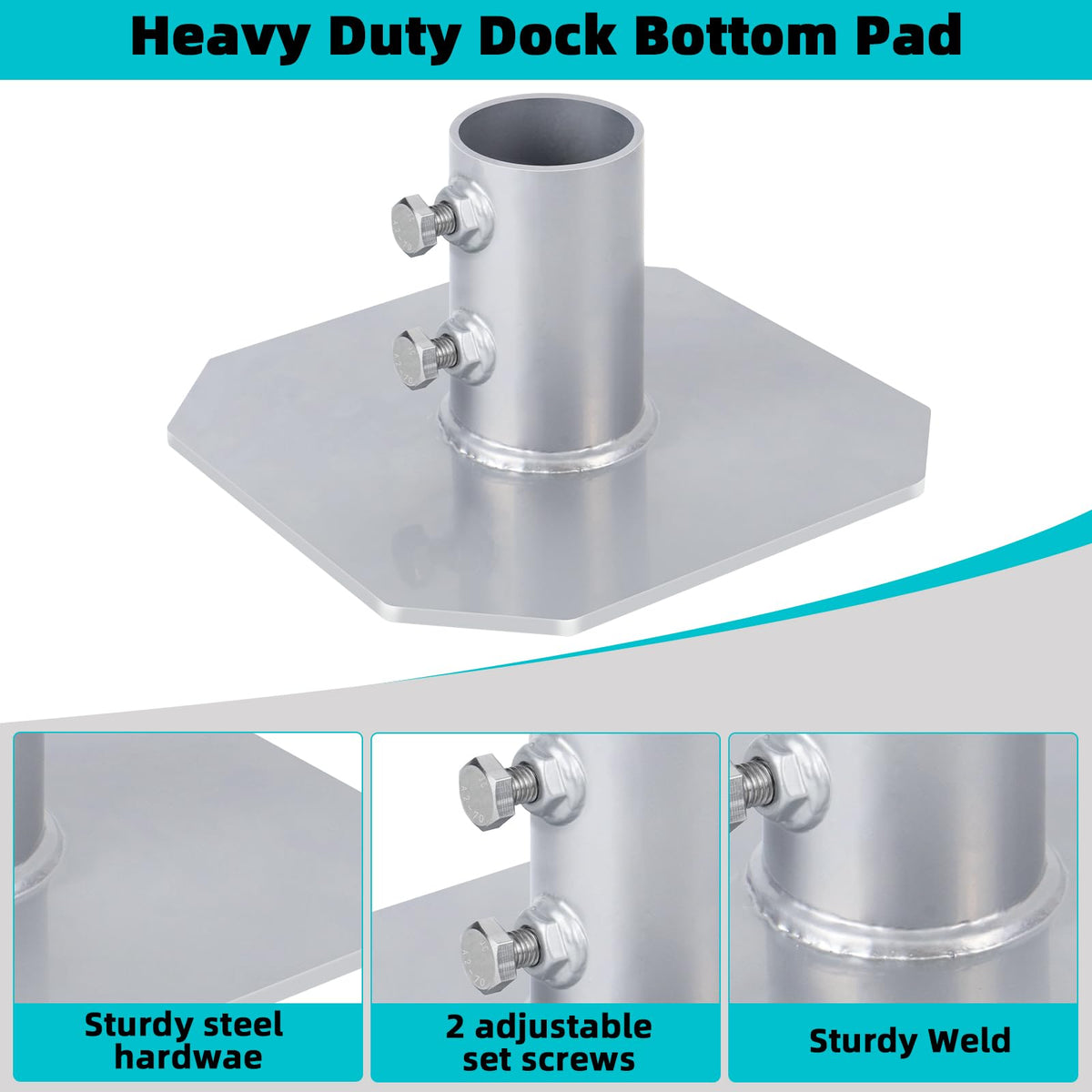

• Heavy-Duty Dock Bottom Pad: marine-grade 11-gauge steel with an 8x8 backer plate for added stability and rust resistance across environments.

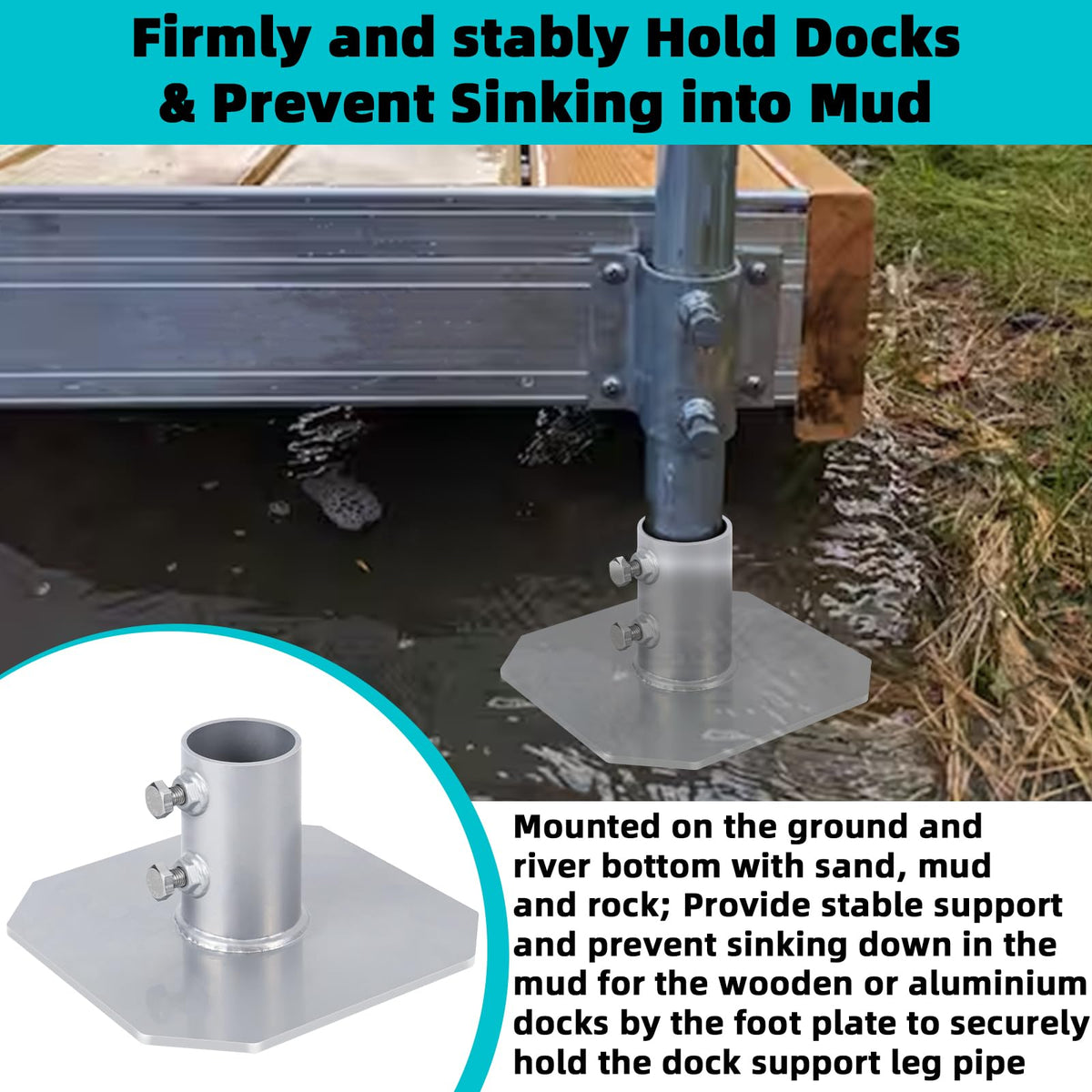

• Hold Docks in Place in Mud: the footprint helps distribute contact pressure and can mitigate sinking into soft sediment when the dock is anchored by its legs.
• Precise Fit and Versatility: inner diameter of 2-1/8 and a 4 tall pipe holder designed for round dock legs; two side screws add stability while accommodating various pipe sizes.

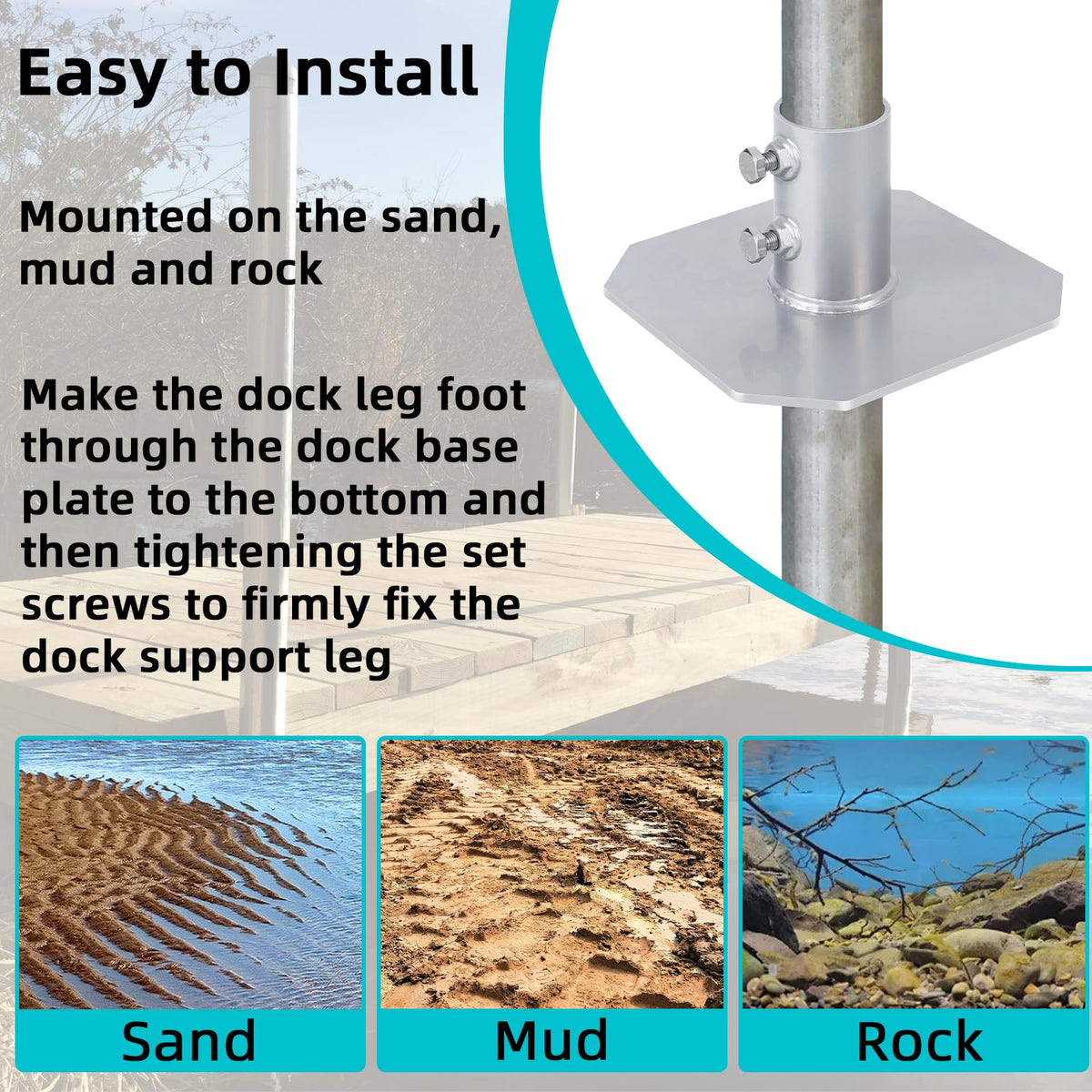

• Simple, Repeatable Install: mount on ground or river bed with sand, mud, or rock; thread the dock leg through the base plate and tighten screws to secure.

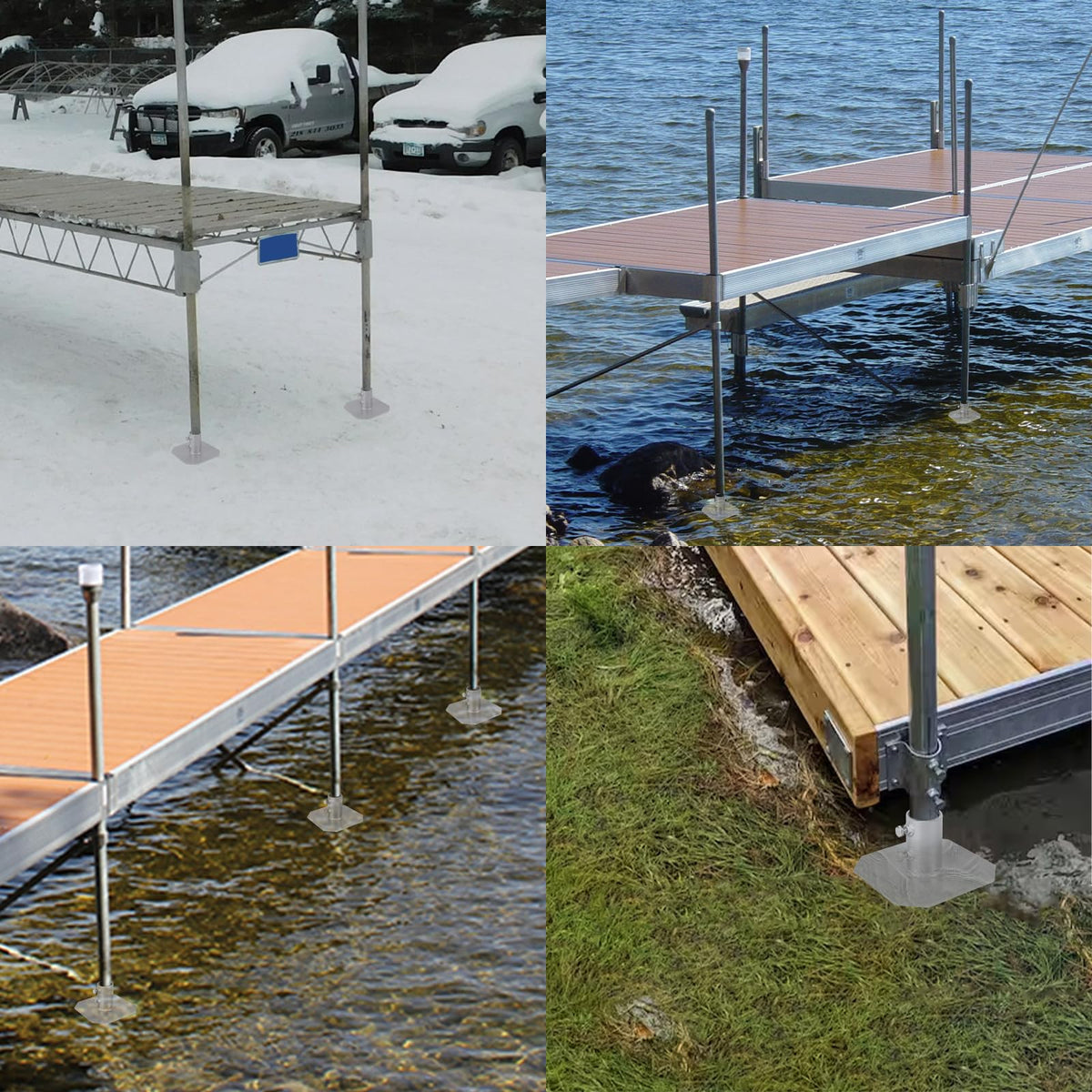

• Complementary Hardware for Floating Docks: available side leg holders, corner leg holders, and connector hinges extend the range of possible dock configurations (search related ASINs for availability).

Installation & Use

Begin by preparing a stable substrate on the riverbank or shoreline. Place the 8x8 backer plate on the chosen spot, then feed the dock leg post through the 2-1/8 inner opening. Tighten the side set screws to lock the leg in place. The system is designed to be simple to reuse across seasons as you adjust your dock layout.

For corner stabilization, use the outside corner leg holder to keep the frame square. When linking multiple docks or adding access ramps, consider the dock connector hinges to bridge sections and shore edges. Always verify the pipe OD against the listed specs before purchasing to ensure a proper fit.

Compatibility & Sizing

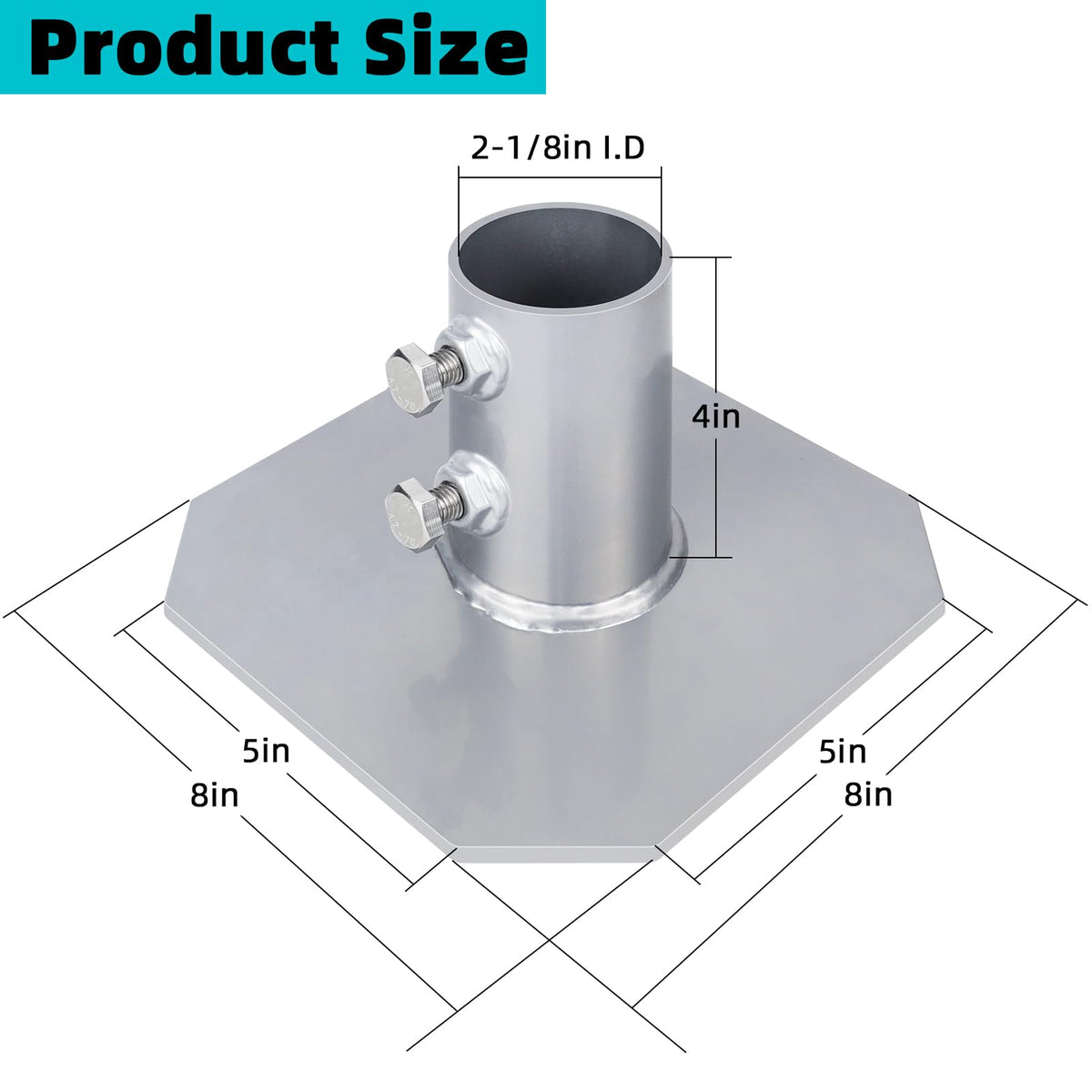

The standard dock pipe size is commonly listed as 1.5 schedule 40, but the outer diameter can be around 1 7/8. The base plate inner diameter is 2-1/8, and the keeper height is 4. This setup is intended for round posts and helps ensure a stable, adjustable fit with the provided screws.

Maintenance & Longevity

To maximize longevity, rinse with fresh water after exposure to salt spray or brackish water, and inspect the set screws regularly. The marine-grade steel's corrosion resistance supports durable performance over time, while the 8x8 backer plate lowers localized pressure under the dock foot.
