Jorgensen Cabinet Hardware Jig Tool – Aluminum Alloy with Double Scale Template & 5mm Alignment Holes

Precision you can trust for cabinet projects

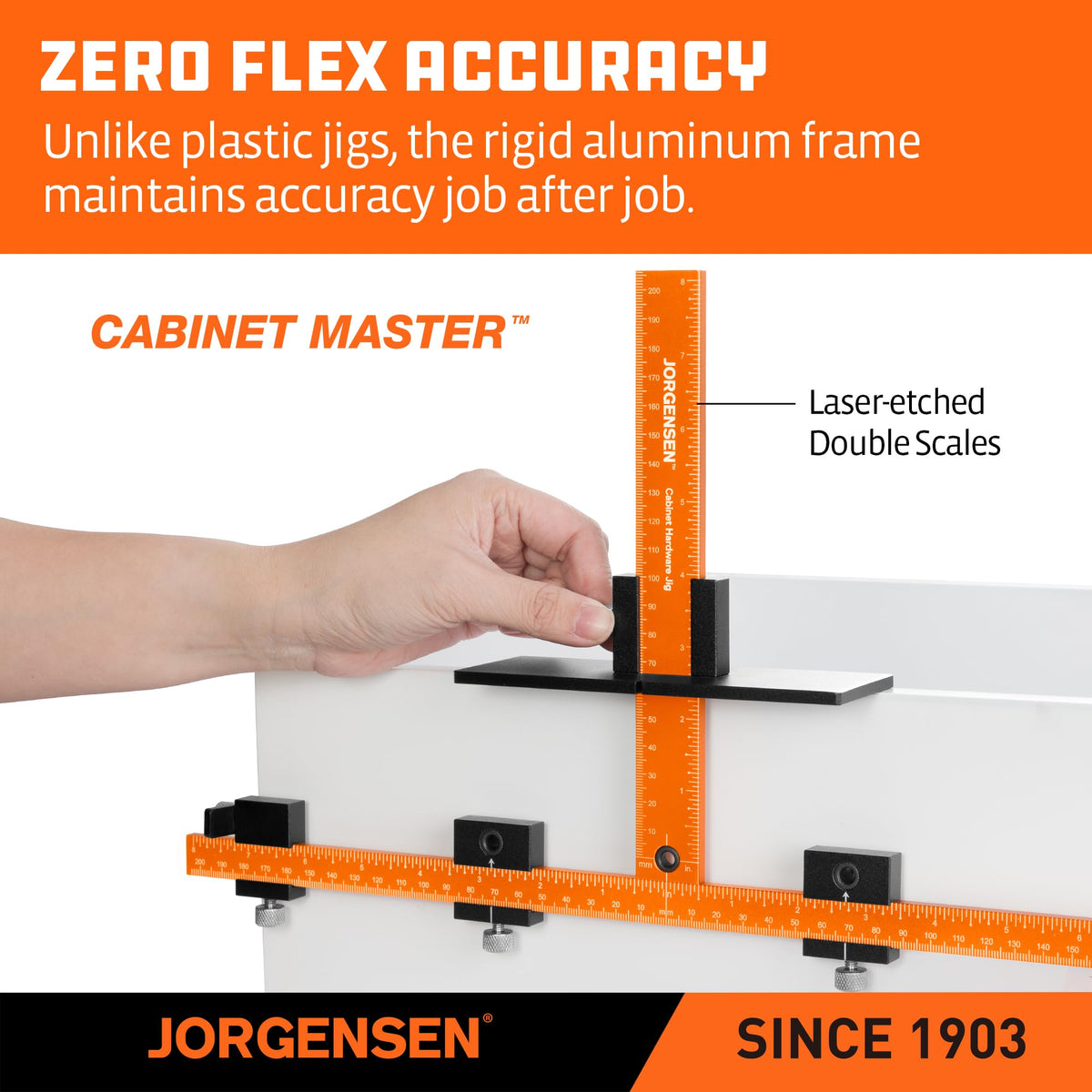

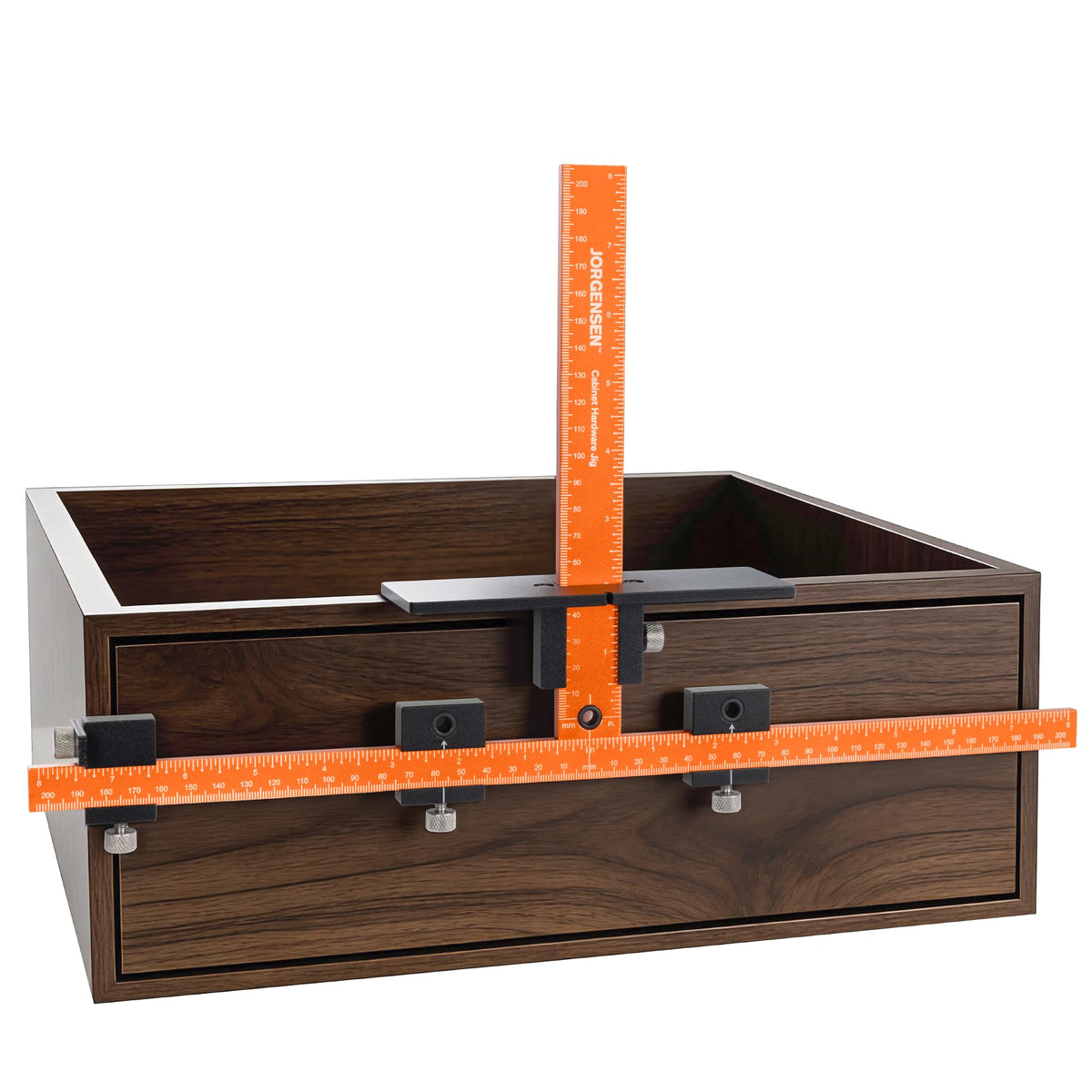

The JORGENSEN cabinet hardware jig tool is built from durable aluminum alloy and designed to stay firmly in place while you drill. Its robust construction helps minimize drift during hole creation, supporting clean, symmetric results across doors and drawers. The combination of a sturdy body and reliable guides gives you a steadier workflow from start to finish.

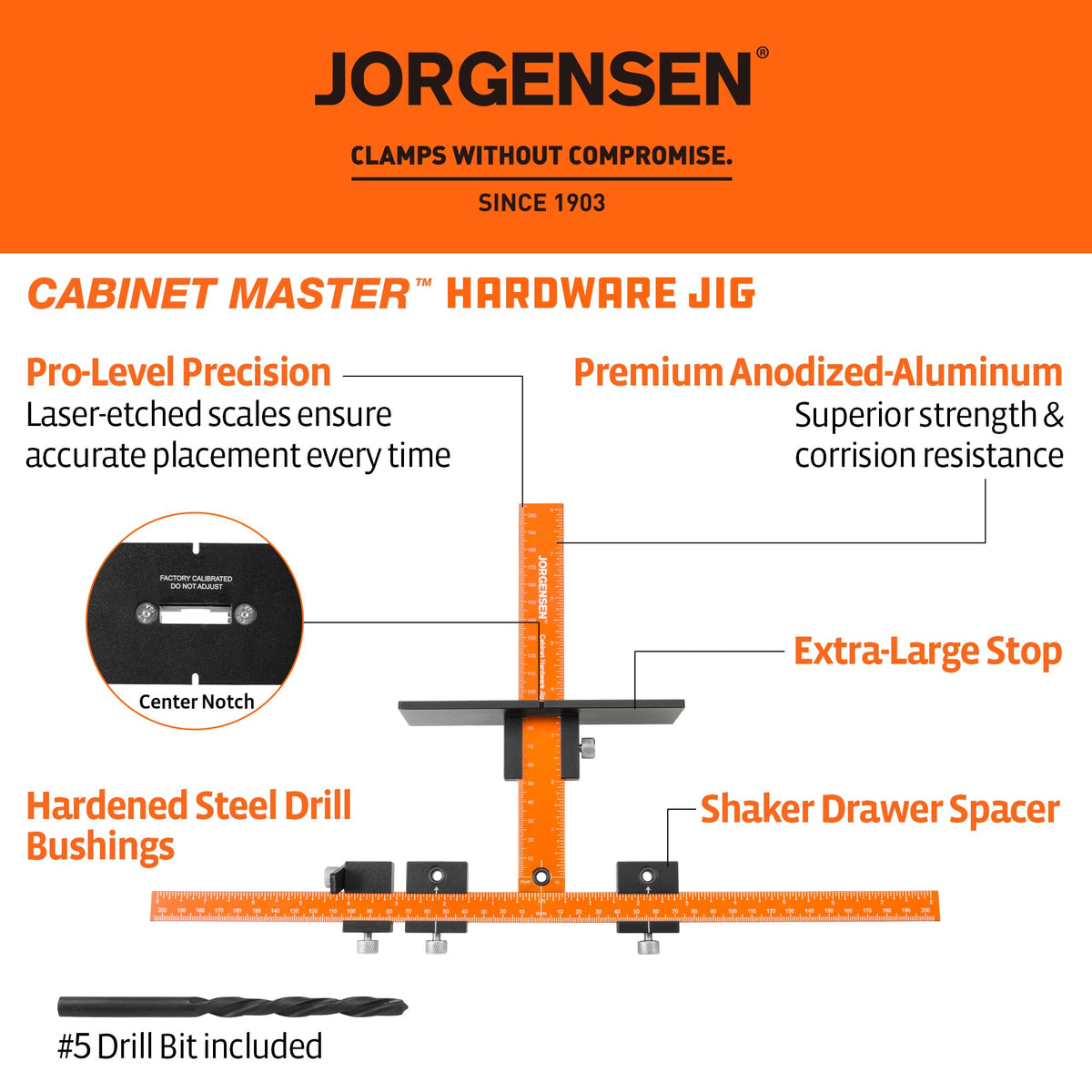

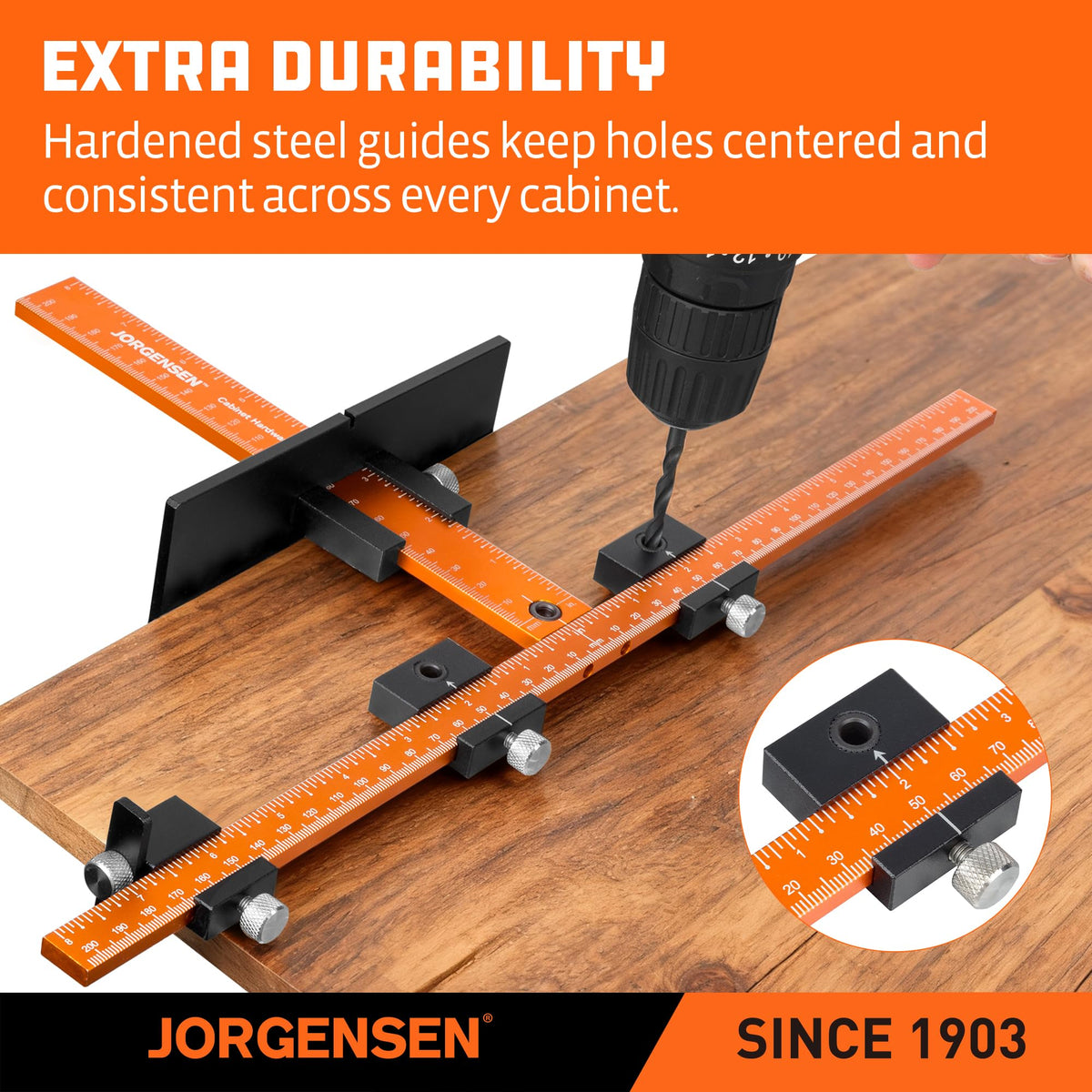

Key features keep you in control. The tool uses 5mm case-hardened steel bushings (HRC60-62) for wear resistance, and the sliding drill guides move smoothly with bolts that lock for quick, repeatable positioning. An integrated double scale design makes alignment more intuitive, whether you’re mounting knobs, handles, or pulls. This setup is designed to help you drill with confidence without requiring specialized equipment.

Real-world use, with confidence

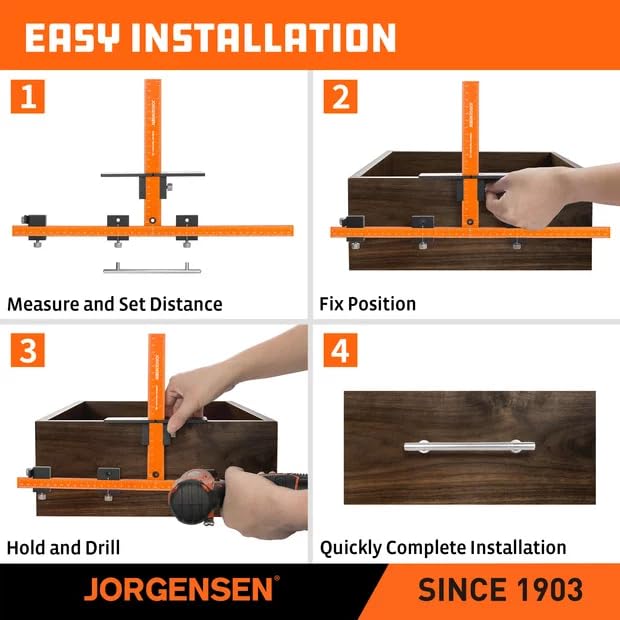

Imagine installing a row of cabinet pulls: you measure, position the template, and drill each hole with reduced risk of crooked results. The chamfered edges protect your skin and your furniture, creating a smoother workflow and a safer experience as you work.

• Dual-scale readings help confirm measurements at a glance, improving speed and accuracy.
• 5mm alignment holes and sturdy guides support consistent hole spacing across multiple pieces.

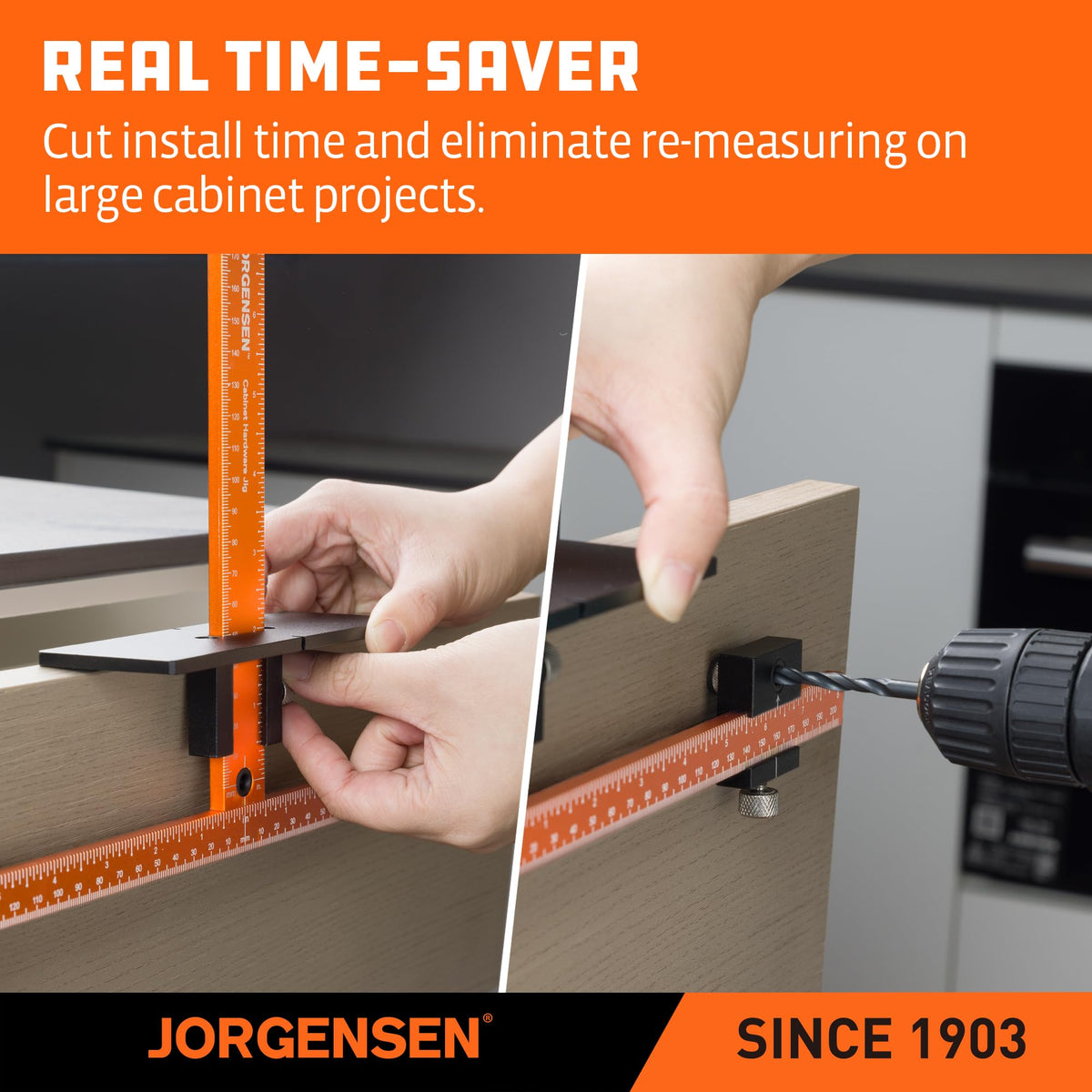

• Fast adjustments: sliding guides lock securely, making setup quick for different door or drawer configurations.

What you get matters as much as how you work. The included instruction manual lays out several installation methods and step-by-step guidance, helping both newcomers and seasoned pros reach reliable results without guesswork.

Benefits you may notice in practice

• Repeatable hole patterns for clean lines and professional-looking cabinetry.
• Safer handling thanks to chamfered corners and controlled drilling motion.
• Durable construction that stands up to the vibrations of drilling and repeated use.

Whether you’re upgrading a single vanity or outfitting an entire kitchen, this tool is designed to support a high standard of craftsmanship while keeping your workflow efficient. JORGENSEN stands behind its products, focusing on dependable performance and customer satisfaction.
