Jackson Safety Replacement DSL Dial Set for Curv-O-Mark Tools | 180° Protractor

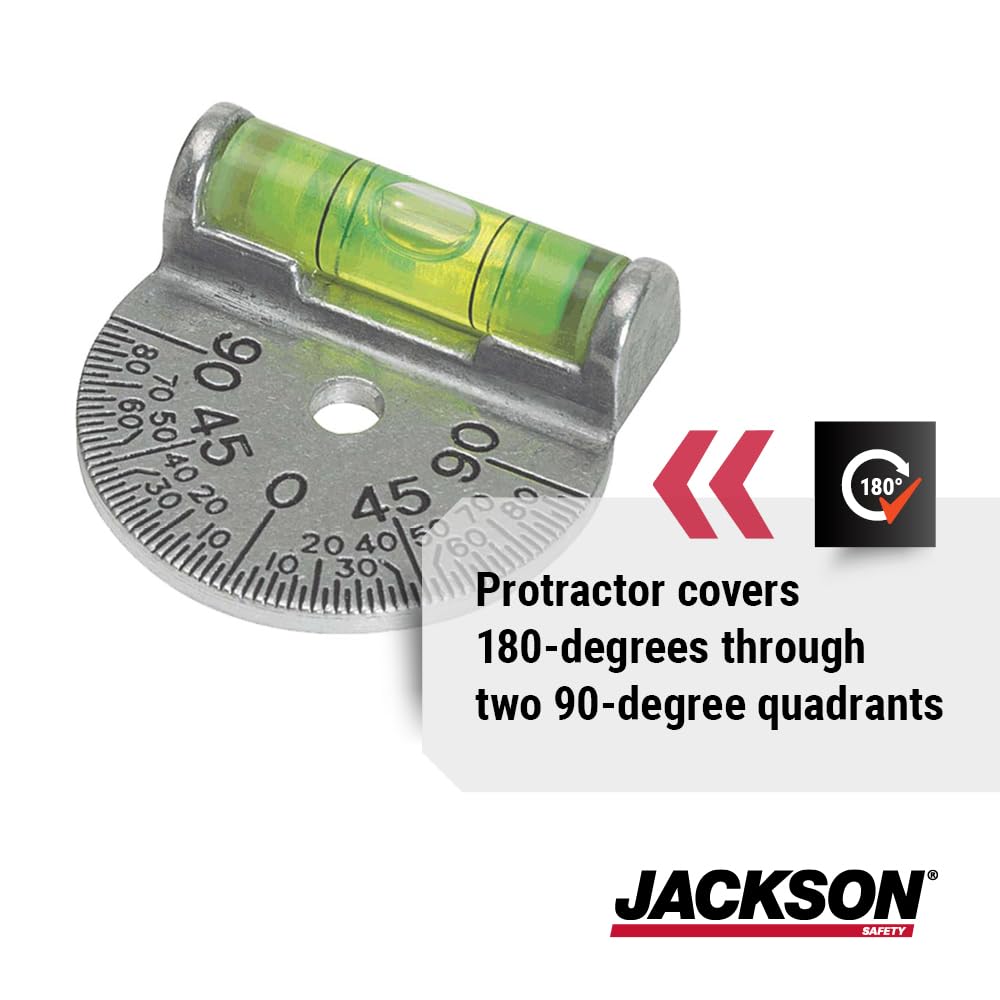

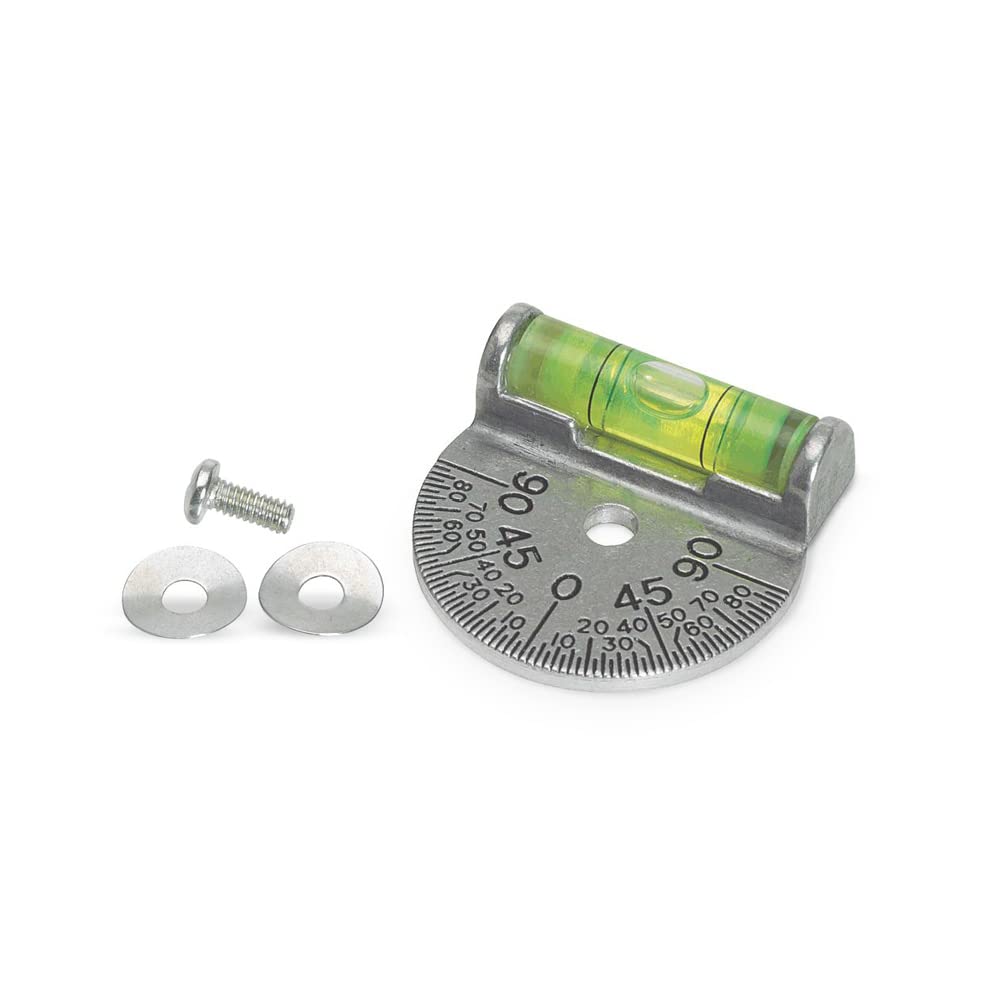

Upgrade your Curv-O-Mark layouts with the Jackson Safety Replacement DSL Dial Set, a precise bubble protractor designed for dependable alignment in welding and fabrication workflows. The dial spans 180 degrees across two 90-degree quadrants and reads in 2.5-degree increments, delivering clear, repeatable reference points for marking pipes and fixtures. Crafted as a lightweight aluminum dial, it balances durability with a responsive feel, even in a busy shop. This replacement part keeps your Curv-O-Mark toolkit performing at its best without sacrificing accuracy or speed.

The DSL is compatible with popular Curv-O-Mark pipe measuring tools and serves as a reliable upgrade option for models that rely on this exact dial system. When you’re aligning components or verifying joints, a trusted protractor helps reduce guesswork and streamline your workflow. The combination of full-range coverage, fine graduations, and a sturdy yet easy-to-handle design can support smoother project progress and fewer reworks on the shop floor.

Key benefits in daily use

• 180-degree coverage enables single-pass angle capture, minimizing tool repositioning during setup.

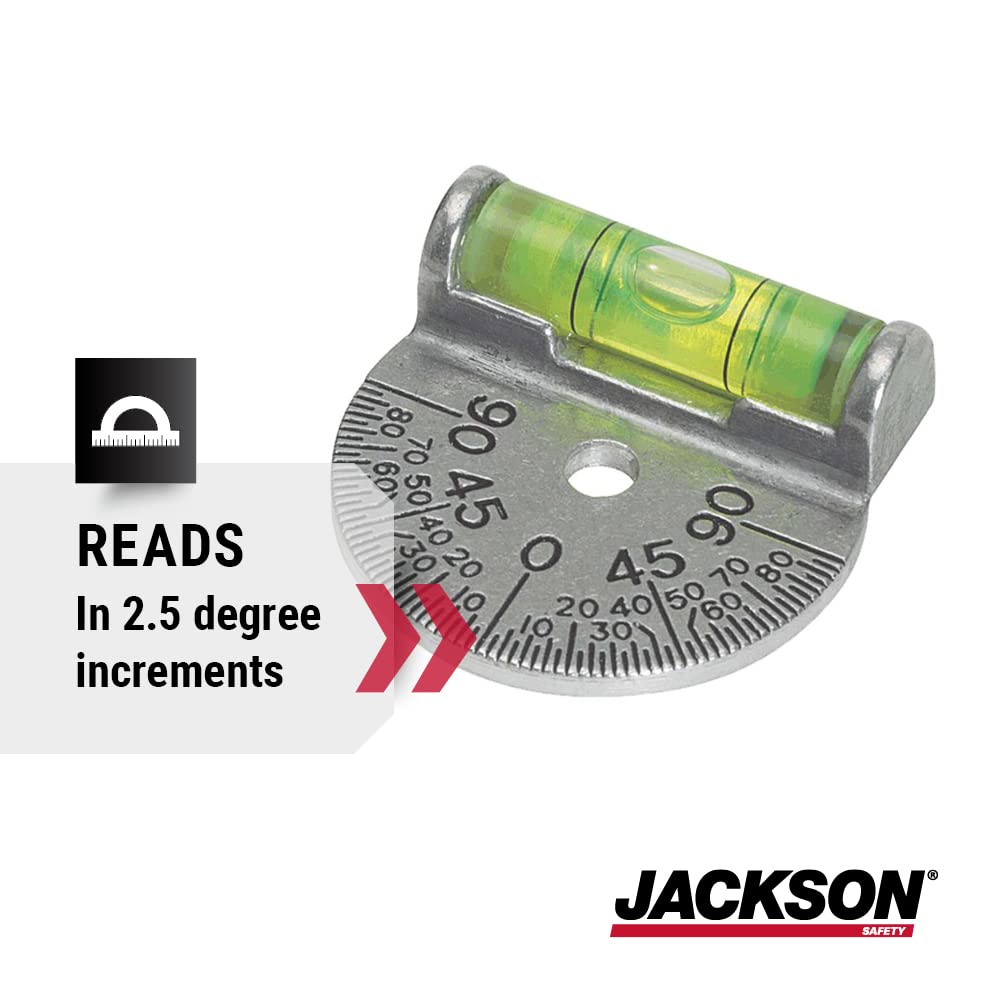

• 2.5-degree increments provide precise readings for accurate transfer of angles to workpieces.

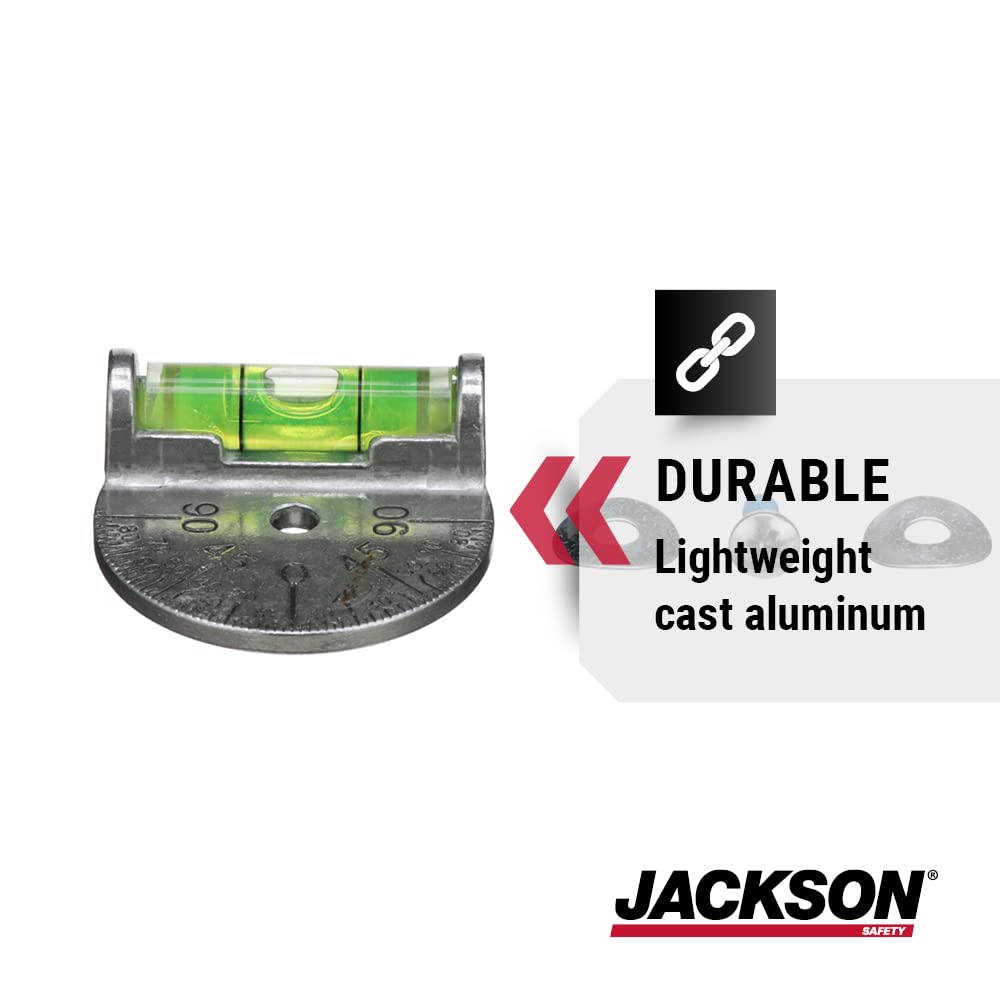

• Lightweight aluminum dial combines durability with easy handling in active fabrication environments.
• Replacement part designed to extend the life of your Curv-O-Mark systems with minimal downtime.

In real-world applications, the DSL Dial Set supports welding table layouts, pipe fittings, and layout verification on busy benches. The readable graduations and stable bubble presentation help you stay focused on the task at hand, even when tools and materials crowd the workspace. While this is not a medical device, the emphasis on precise measurements aligns with many professionals’ careful, repeatable workflows you rely on for consistent results.

Compatibility and care

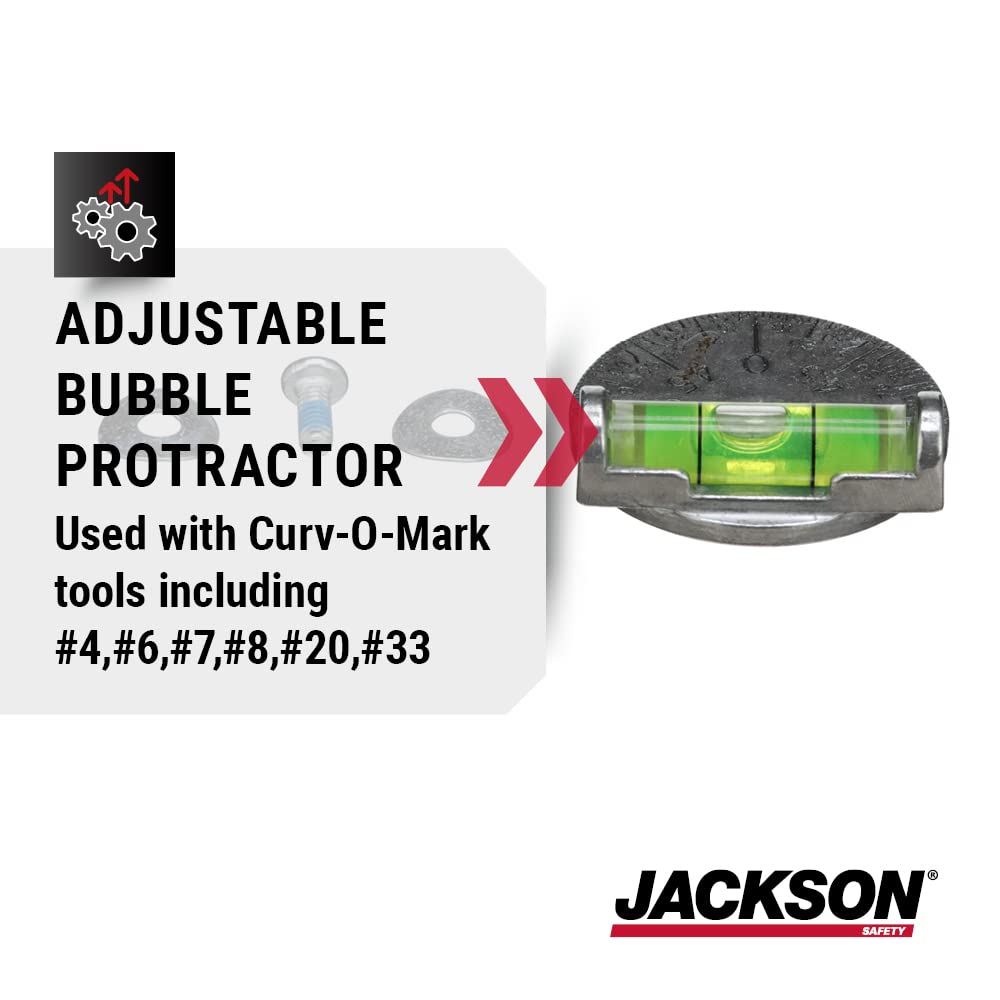

• Designed as a replacement part for Jackson Safety Curv-O-Mark tools, including models #4, #6, #7, #8, #20, and #33 (sold separately).
• Use as part of a dial-set level system to maintain accurate layouts over time.

Care guidance: store in a dry area, wipe with a soft cloth, and handle with care to preserve bubble sensitivity and overall durability in the field.
