IWISS iCrimp IWS-3220M Micro Connector Pin Crimping Tool — 0.03–0.52mm² (32–20 AWG), Ratcheting

Overview

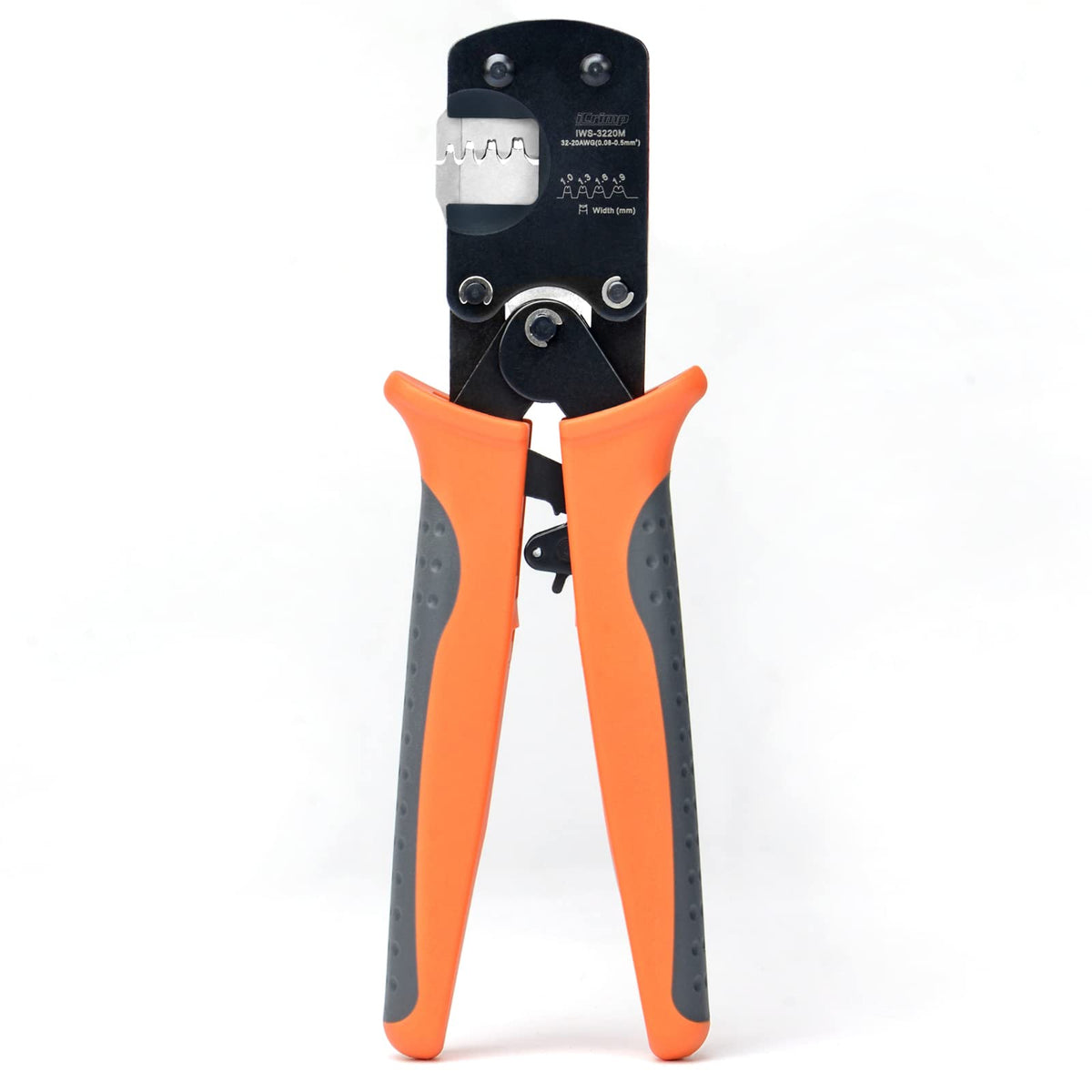

The IWISS iCrimp IWS-3220M is a precise micro connector pin crimping tool designed for small stranded conductors and insulation sleeves. It supports wire sizes from 0.03 to 0.52 mm² (32–20 AWG), making it a versatile addition for assembling compact connector assemblies and projects that require careful pin crimping. The tool’s compact build is balanced for comfortable handling during extended use, helping technicians work with confidence on tight layouts.

Why it stands out

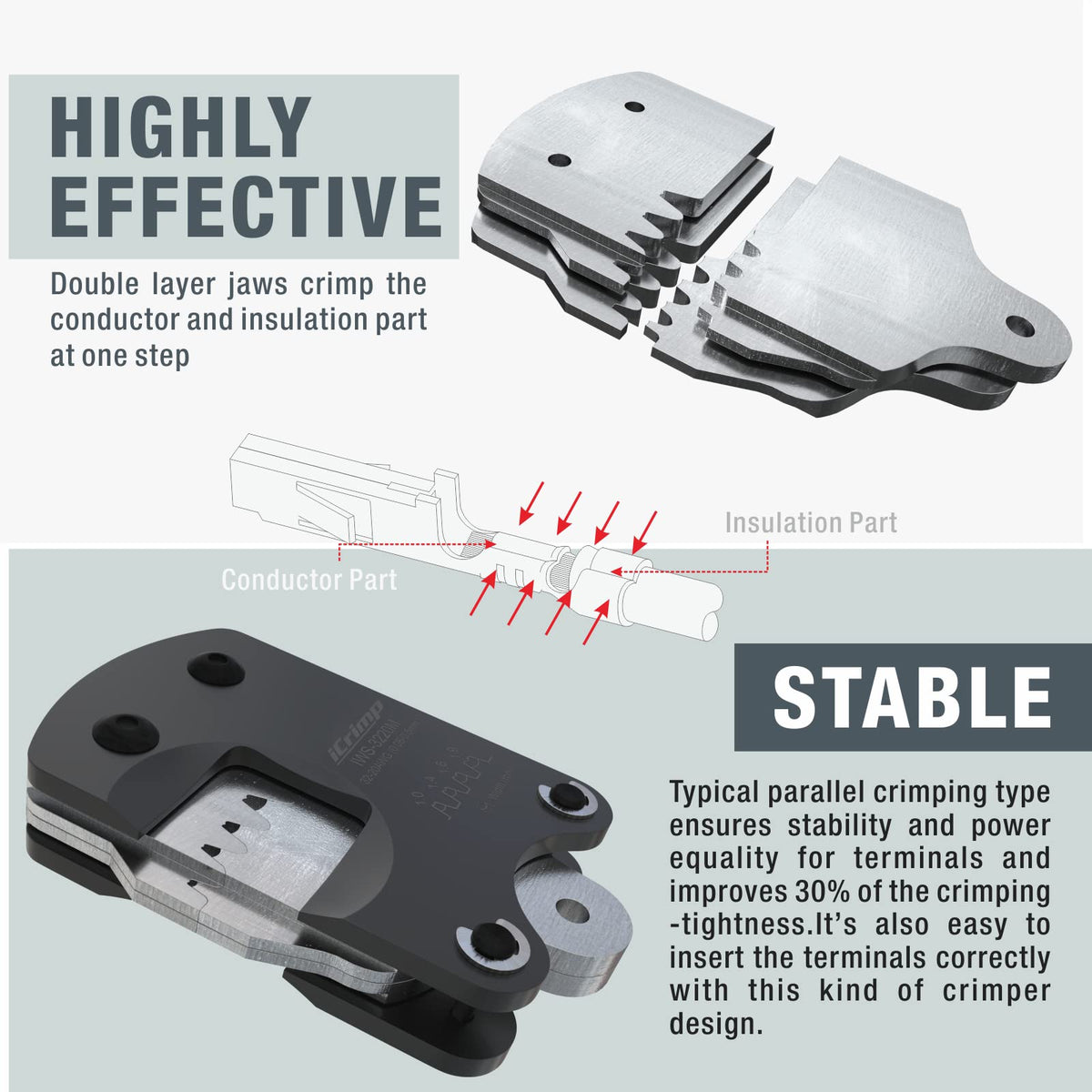

• Parallel crimping design promotes stable, consistent contact formation and improves crimping tightness by about 30% compared to single-action presses.

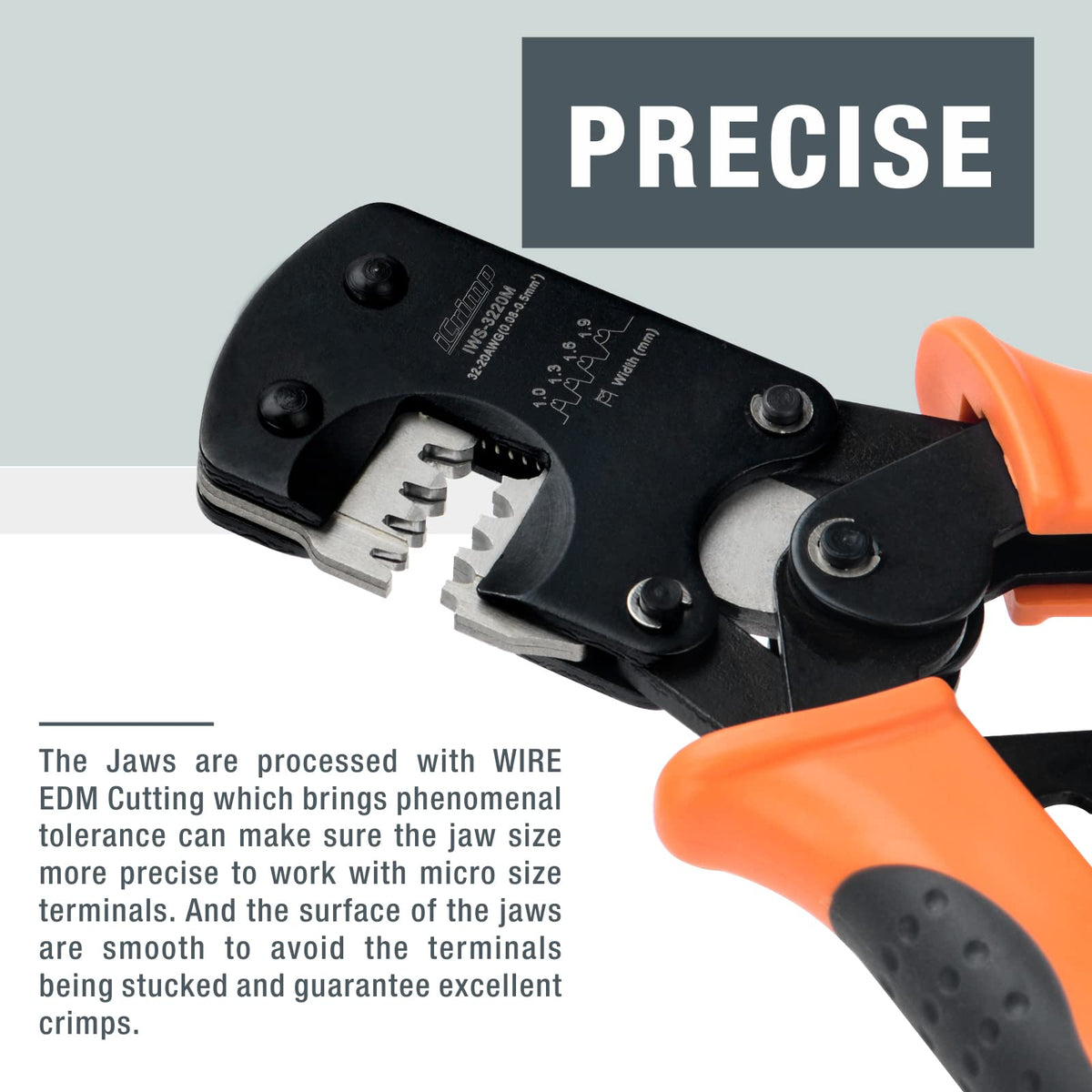

• Double-layer EDM cutting jaws crimp the conductor and insulation sheath simultaneously, delivering a clean, reliable finish on micro pins.

Performance and reliability

Designed for repeated use in professional settings, the IWS-3220M combines precision with durability. The parallel crimping action distributes pressure evenly across the crimp zone, helping reduce variation between crimps and supporting consistent electrical contact. The EDM-cutting jaws are engineered to handle the demanding micro-pin geometry found in modern connectors, enabling crimping without harming insulation or conductor strands.

Ergonomics and ease of use

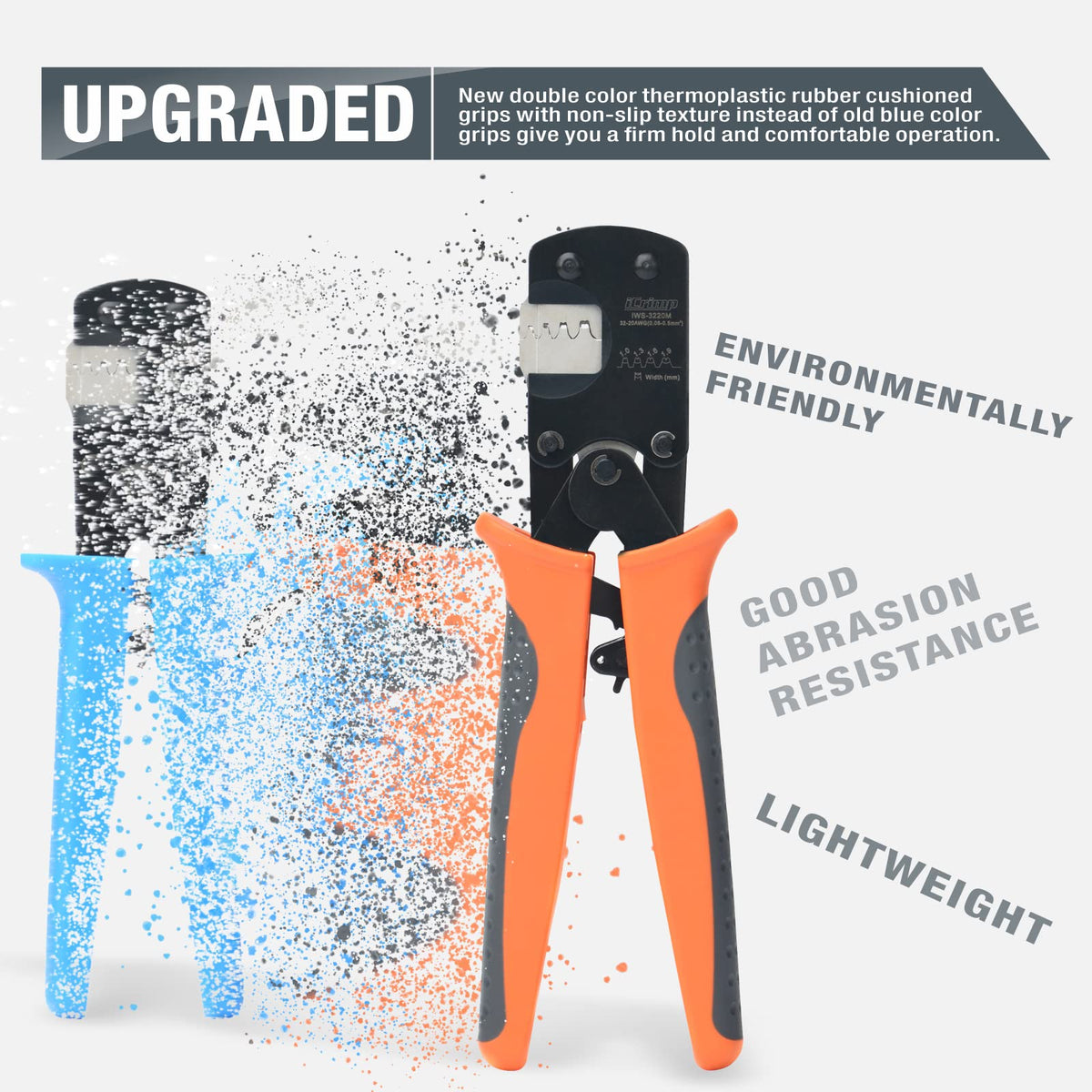

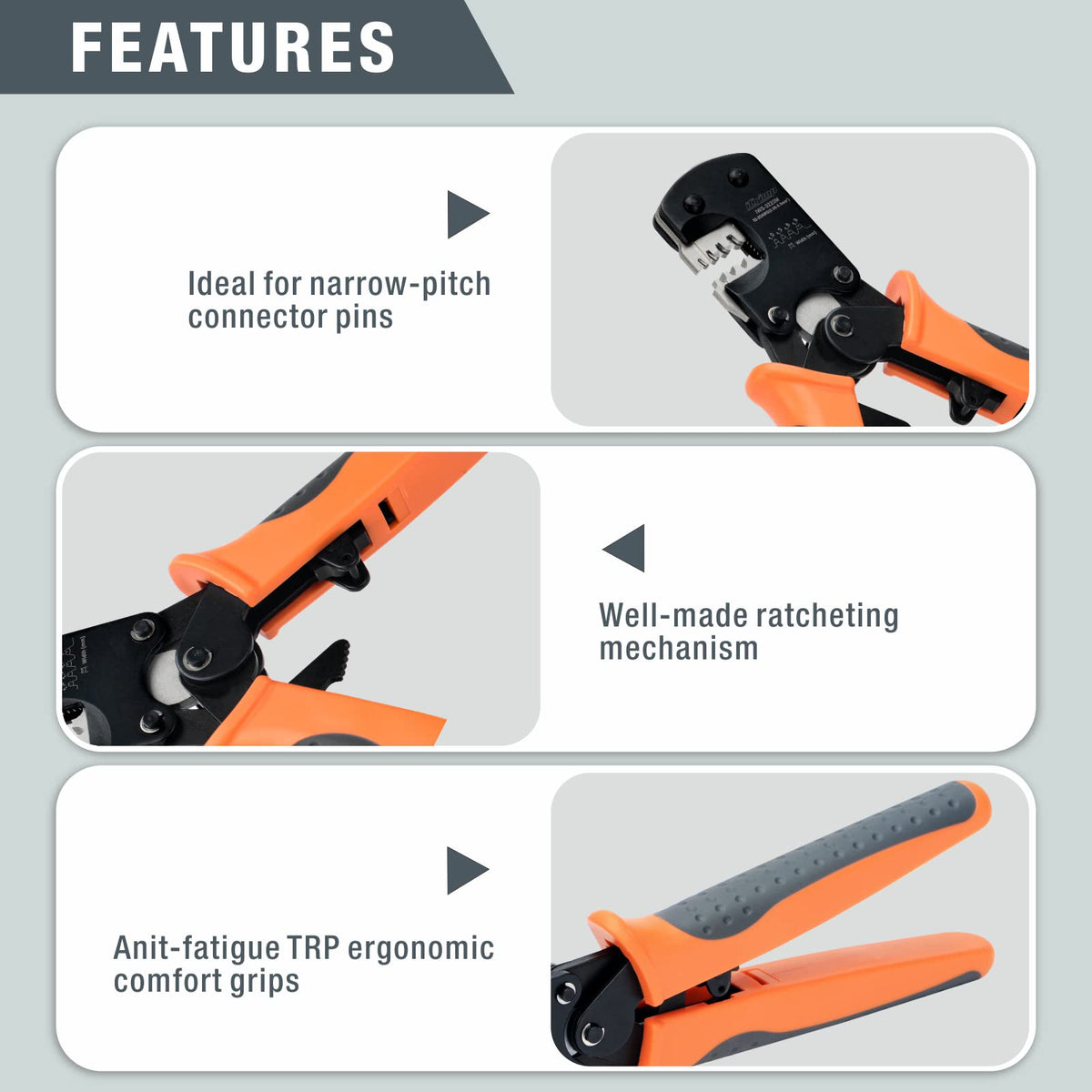

The ratchet mechanism provides controlled, repeatable cycles, so each crimp feels consistent. The lightweight, environment-friendly handle is crafted from soft-touch TPR material for a comfortable grip, reducing hand fatigue during longer sessions. A well-tuned mechanism means less force is required to achieve a solid crimp, which can translate to steadier work and fewer reworks.

Compatibility and versatility

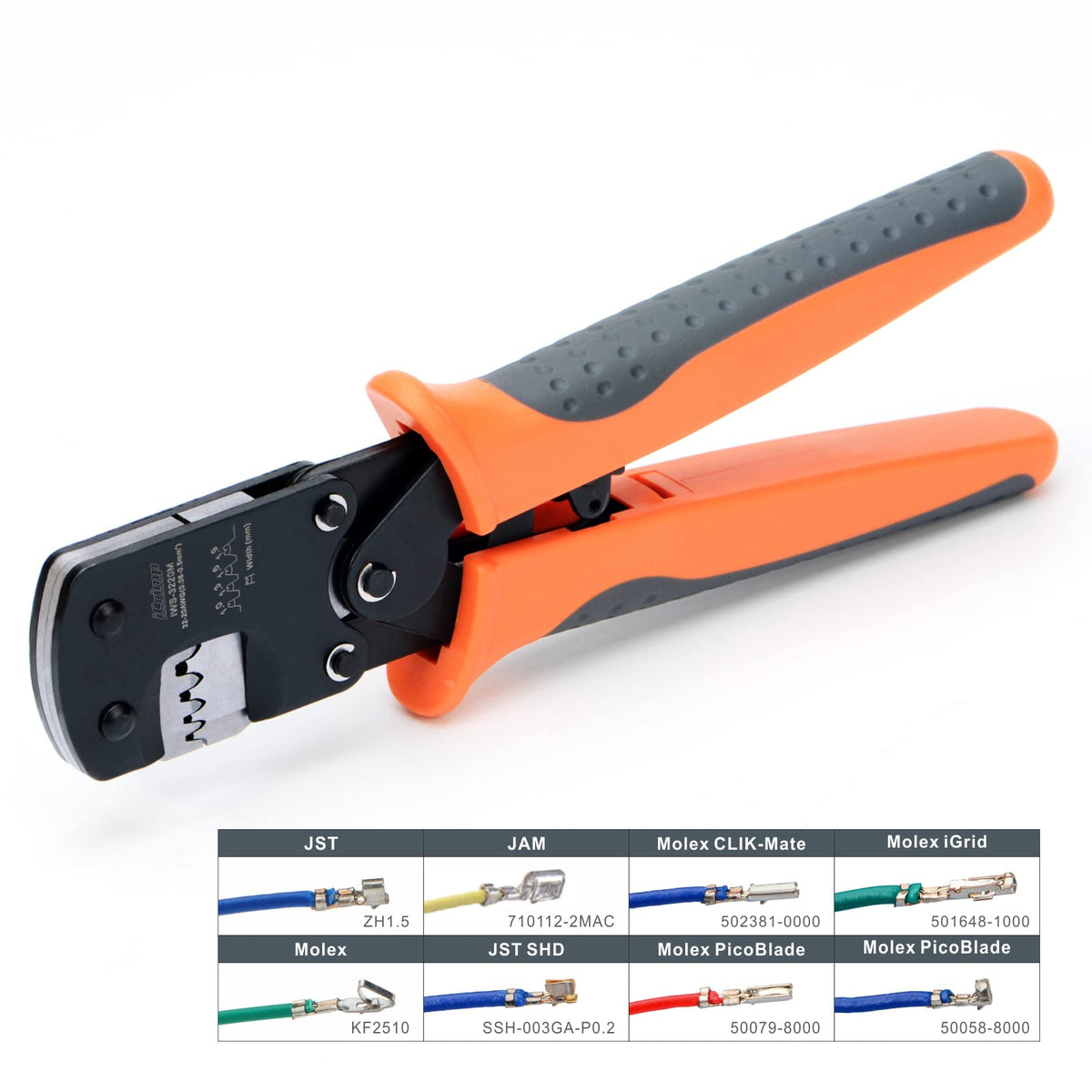

This tool is suitable for a range of popular micro connector families, including Molex CLIK-Mate, Molex PicoBlade, JST SHD, JAM, TYCO D-100, and other common open-barrel and inline pin formats. If you are working with D-Sub, open-barrel pins, or compact ribbon connections, the IWS-3220M offers a capable solution for high-precision pin crimping.

What you can expect in real use

In practical scenarios, the IWS-3220M helps technicians assemble compact harnesses, control panels, or tight-space connectors where space is limited but reliability matters. The combination of controlled crimping, clean cutting jaws, and ergonomic design translates to smoother workflow and a professional finish on wire assemblies.

Quick reference

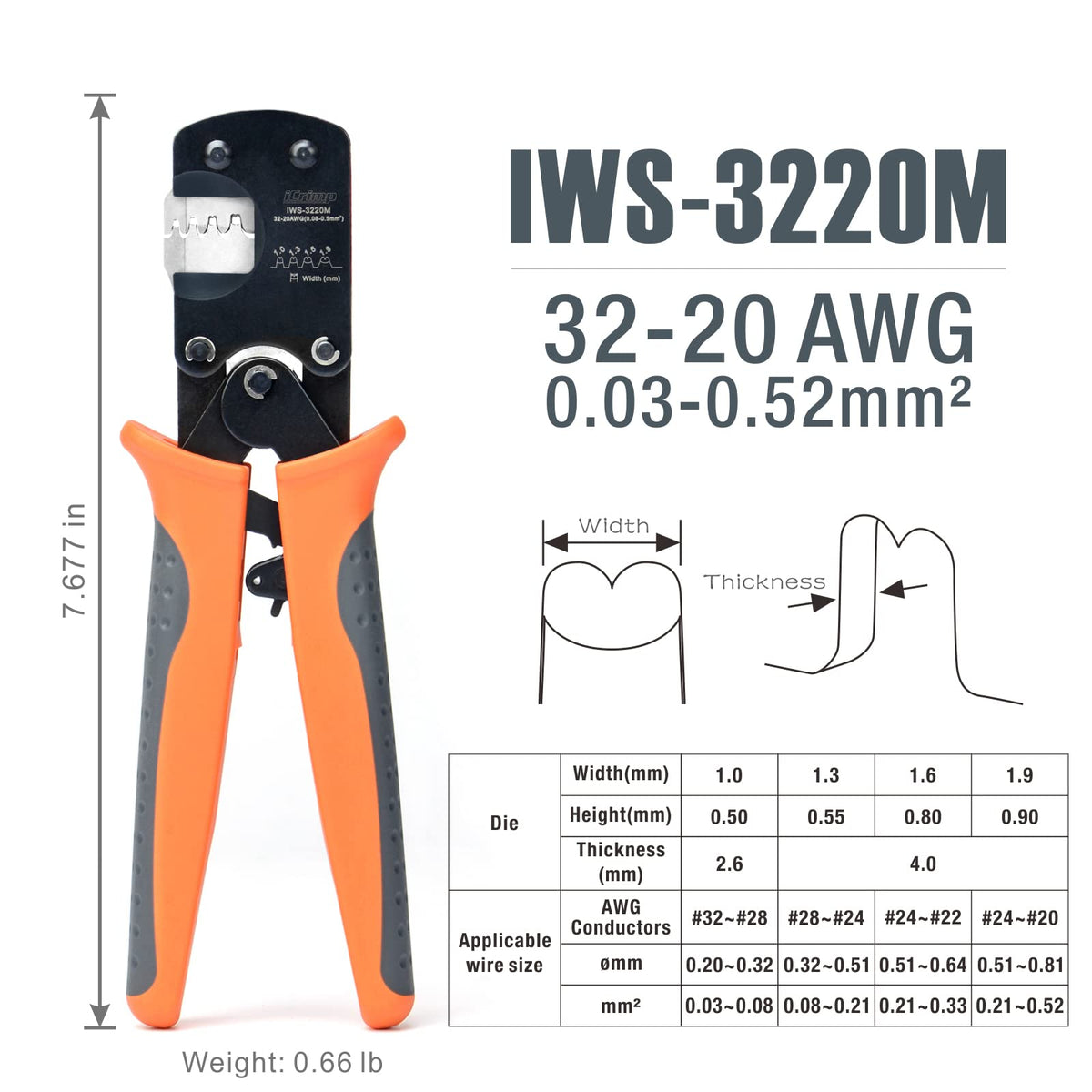

• Micro pin range: 0.03–0.52 mm² (32–20 AWG)
• Parallel crimping for stable, consistent results
• Double-layer EDM jaws for conductor and insulation sheath crimping
• Ratcheting action with an ergonomic TPR handle
• Compatible with Molex CLIK-Mate, PicoBlade, JST SHD, JAM, TYCO D-100, and more
