Ingersoll Rand 5102MAX Air Die Grinder – Right Angle, 0.4 HP, 20,000 RPM

Powerful yet portable: the Ingersoll Rand 5102MAX air die grinder

Engineered for automotive repair and light fabrication, the Ingersoll Rand 5102MAX combines compact design with accessible power. Its 0.4 HP air motor drives up to 20,000 RPM, enabling quicker material removal on metal, plastic, and wood surfaces when paired with the right accessories. Weighing just 1.41 pounds, the tool sits comfortably in the hand and reaches tight spaces with ease, while the right-angle head helps maintain control in awkward positions.

The lube-free design minimizes oil messes and spills in busy shops, supporting a cleaner work environment. A built-in lubricating wick helps sustain angle gear life with regular use, and a spindle lock makes attaching and swapping grinding bits faster and more secure. These thoughtful touches can translate to less downtime and more consistent results across grinding, sanding, honing, polishing, or light machining tasks.

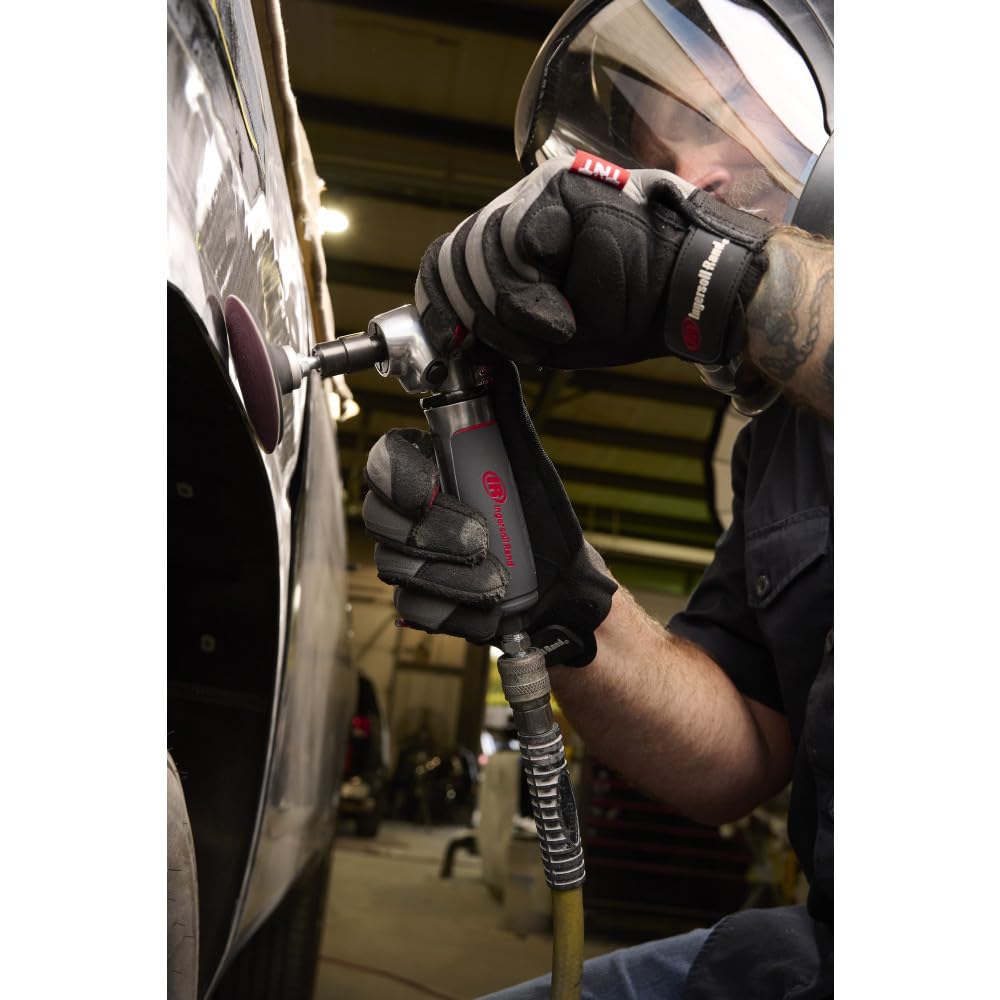

Imagine improving your workflow on common automotive or fabrication projects: trimming flash from joints, refining weld beads, or prepping panels for finish work, all with improved maneuverability. The 1/4 inch output accepts a broad range of abrasives and burrs, while the compact form and low-profile throttle aid precision across multiple passes.

Key strengths include power density, a durable build, and broad material compatibility. Designed for regular use in automotive bays, body shops, and small fabrication shops, this grinder offers a dependable option for daily tasks without the weight of larger tools. As with any tool, results depend on attachments and technique, but many users note faster material removal and smoother finishes when combined with appropriate accessories.

What to know before you buy

• Powerful 0.4 HP air motor delivering up to 20,000 RPM for efficient grinding and surface prep

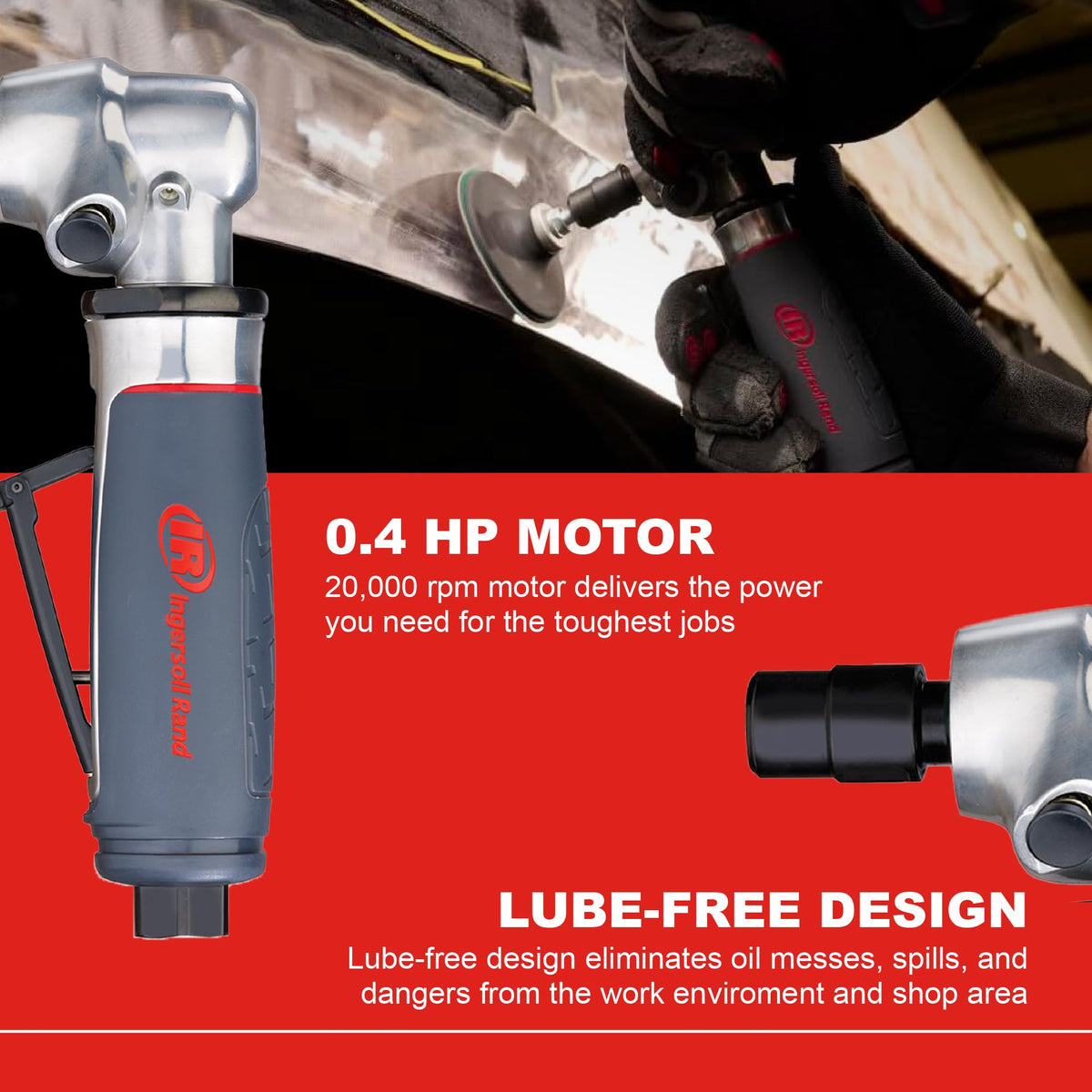

• Completely lube-free operation reduces shop mess and maintenance concerns

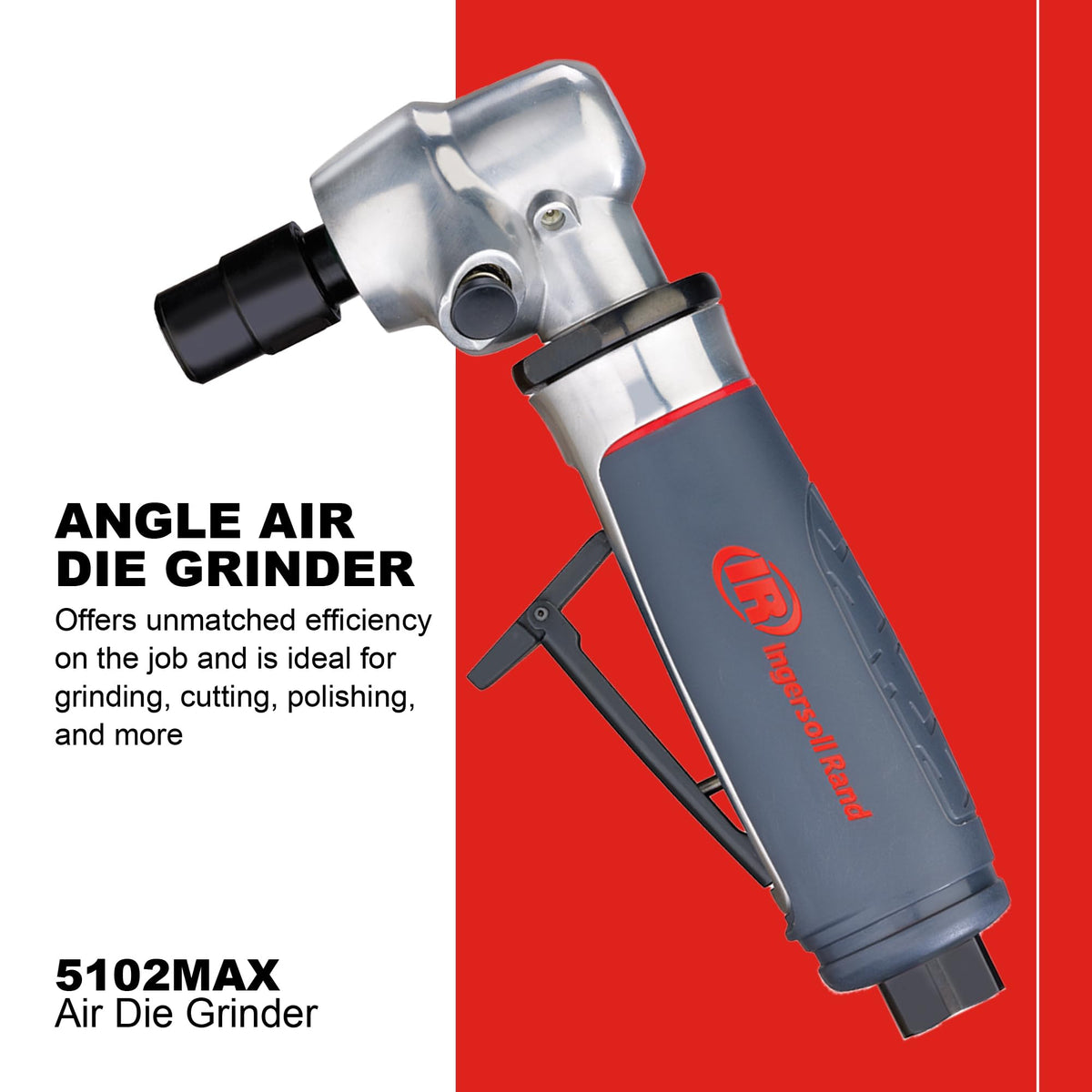

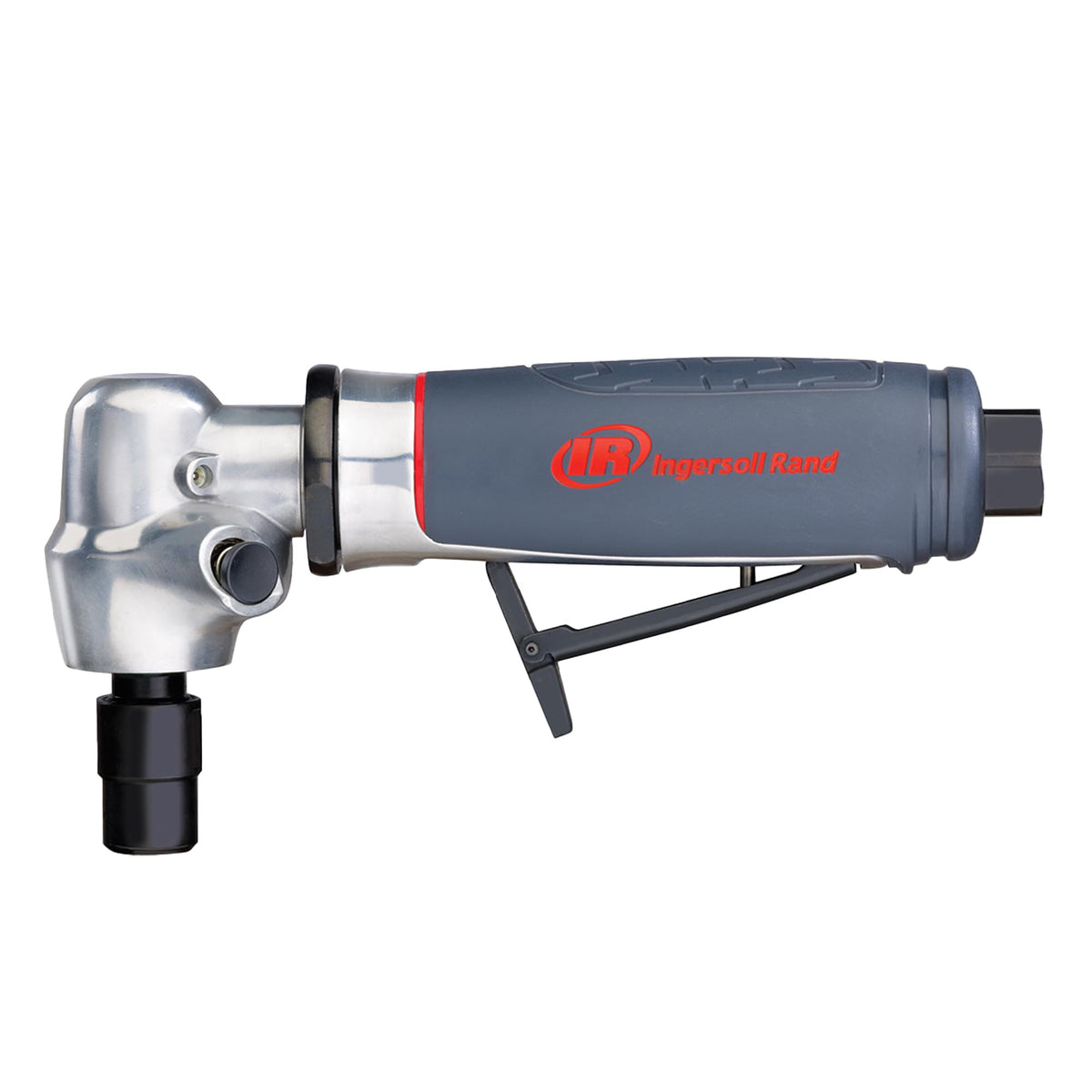

• Right-angle, lightweight body supports extended use and access in tight areas

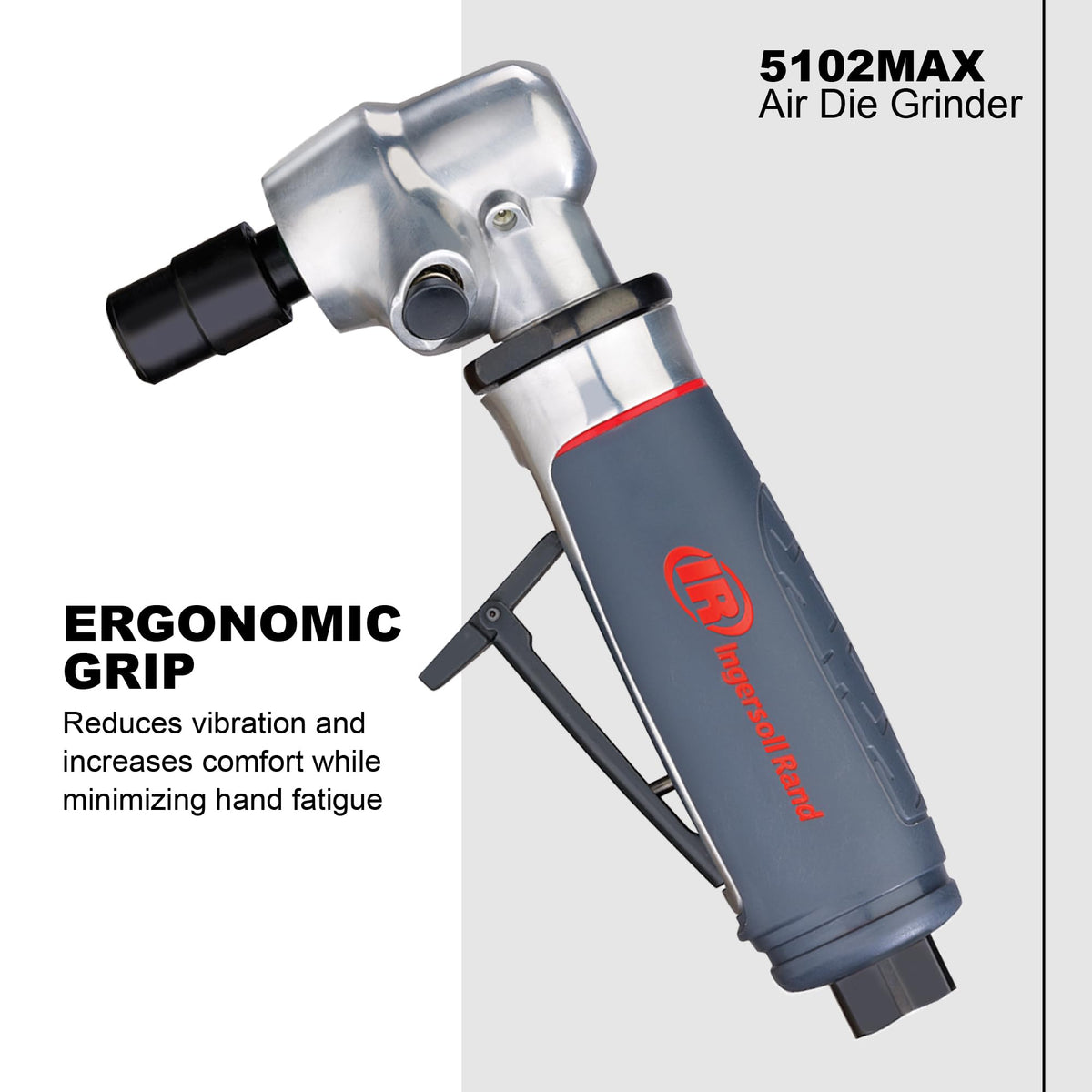

• Low-profile throttle lever minimizes hand fatigue during long sessions

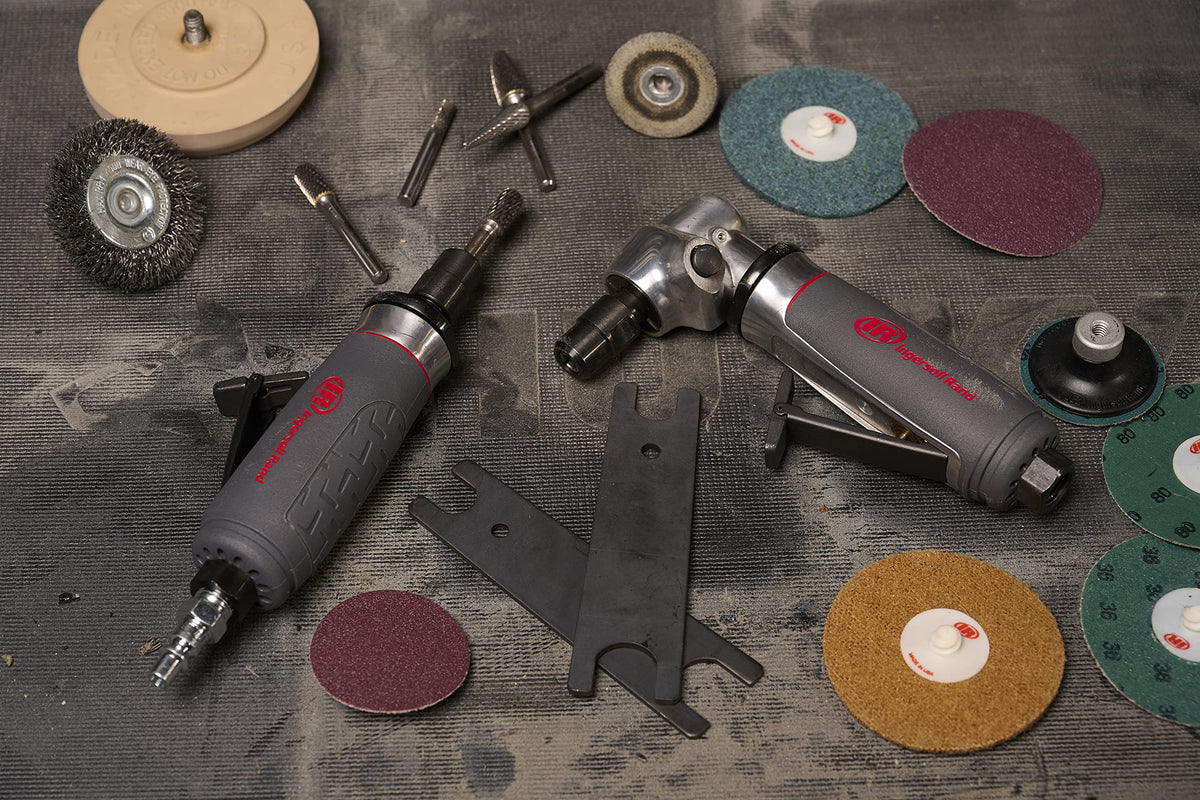

• Built-in lubricating wick helps extend angle gear life with regular usage

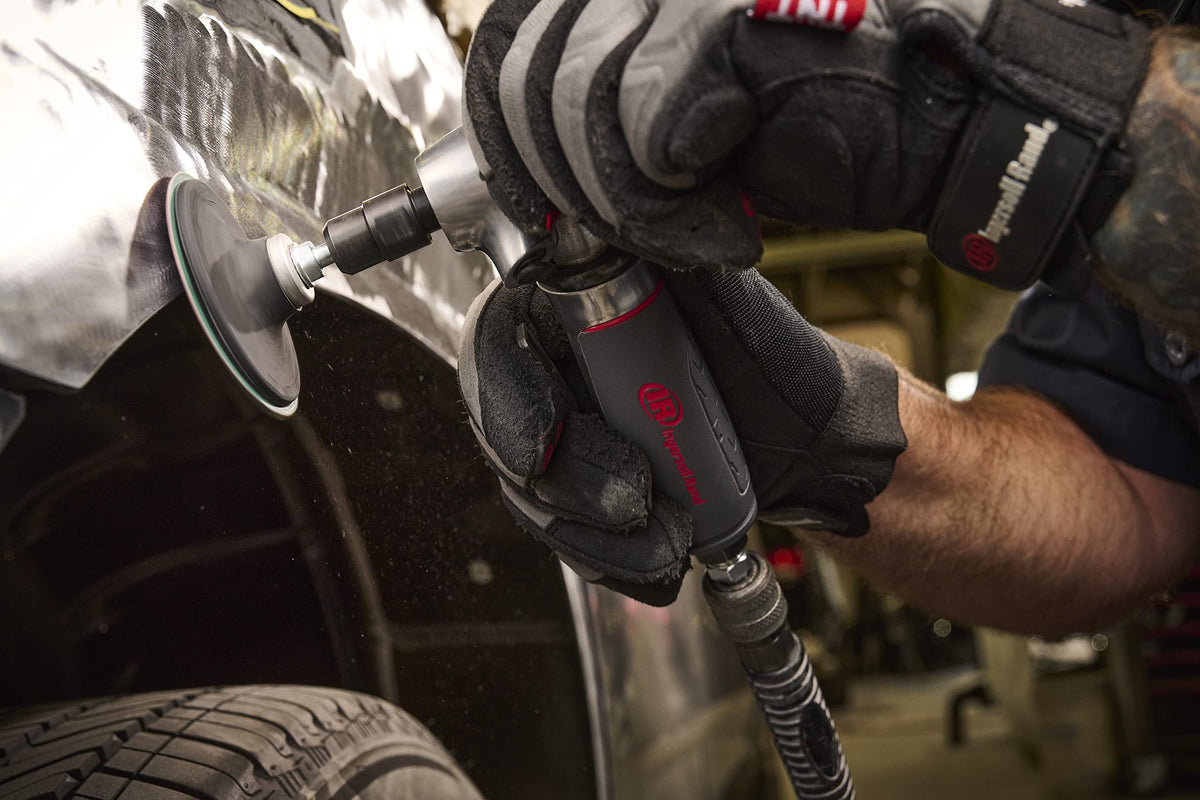

• Spindle lock enables quick, secure changes of attachments for faster task switching

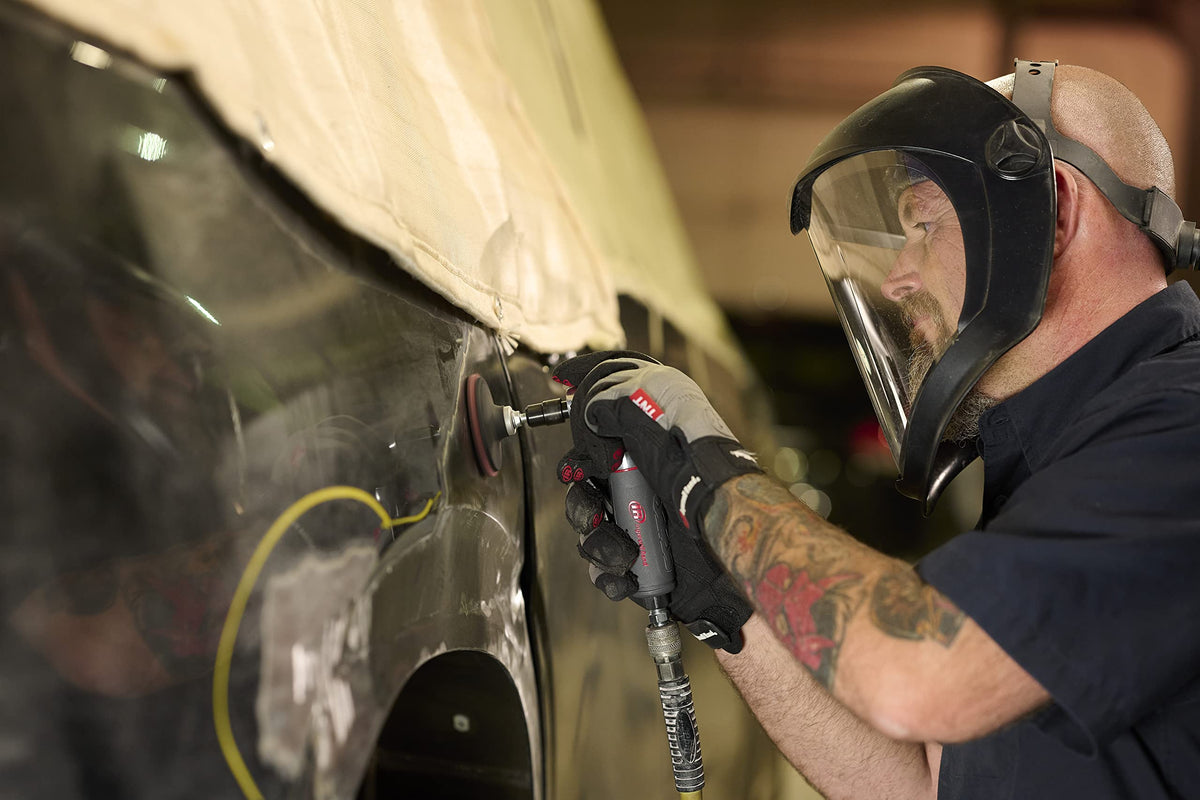

• 1/4 in output accommodates a wide range of common abrasives and bits

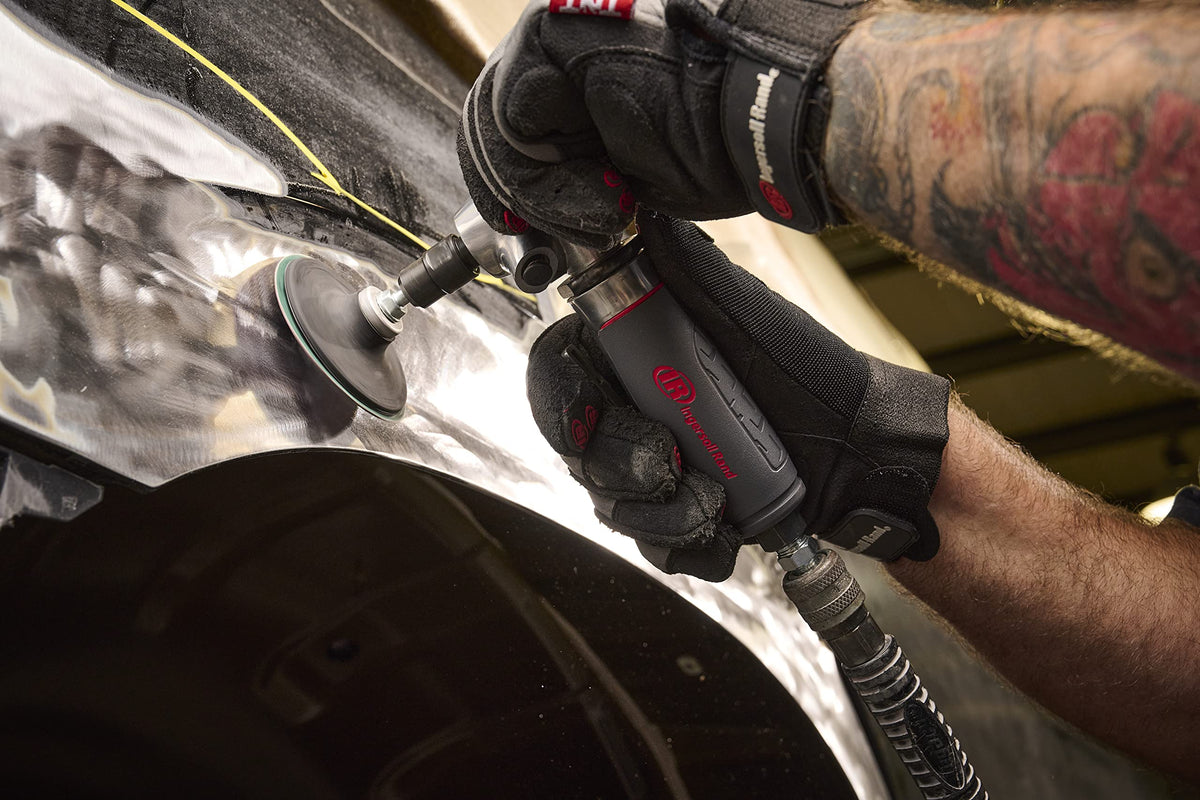

• Lightweight design (1.41 lbs) supports comfortable, all-day use

Specs at a glance

• Power: 0.4 HP
• Free speed: 20,000 RPM
• Output: 1/4 in
• Weight: 1.41 lbs
• Average air consumption: 6 CFM; at load: 25 CFM
• Air inlet: 1/4 in NPTF
• Min hose size: 3/8 in
