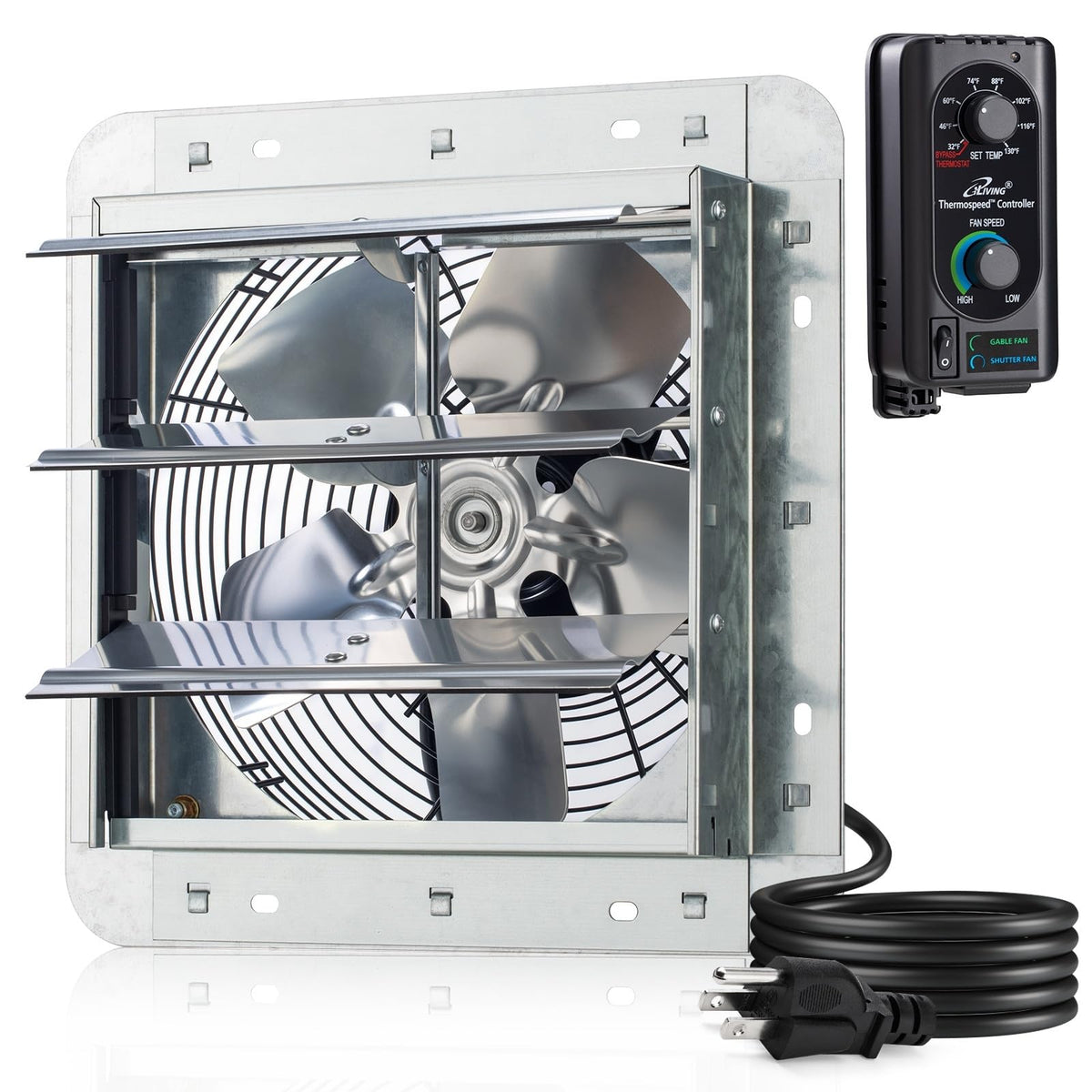

iLiving 10-Inch Wall Mounted Shutter Exhaust Fan with Thermostat and Variable Speed – 820 CFM, 1200 Sq Ft

Overview

The iLiving 10-inch Wall Mounted Shutter Exhaust Fan is engineered to pull heat, moisture, and odors out of busy spaces, turning stuffy rooms into more comfortable environments. Automatic shutters move in sync with the fan to help seal the opening when not in use, while the unit ships fully assembled for a straightforward setup that only requires electrical hardwiring. This combination of features supports easy integration into kitchens, warehouses, barns, greenhouses, factories, and other commercial settings.

Performance and air movement

Designed for high-volume air exchange, this model pushes up to 820 CFM at 115V with a compact 0.6A draw. The 10-inch blades use a deep pitch to maximize air movement, enabling effective refresh in spaces up to 1200 square feet. The fan operates with a direct drive motor that stays thermally protected and permanently lubricated, delivering consistent performance across long shifts.

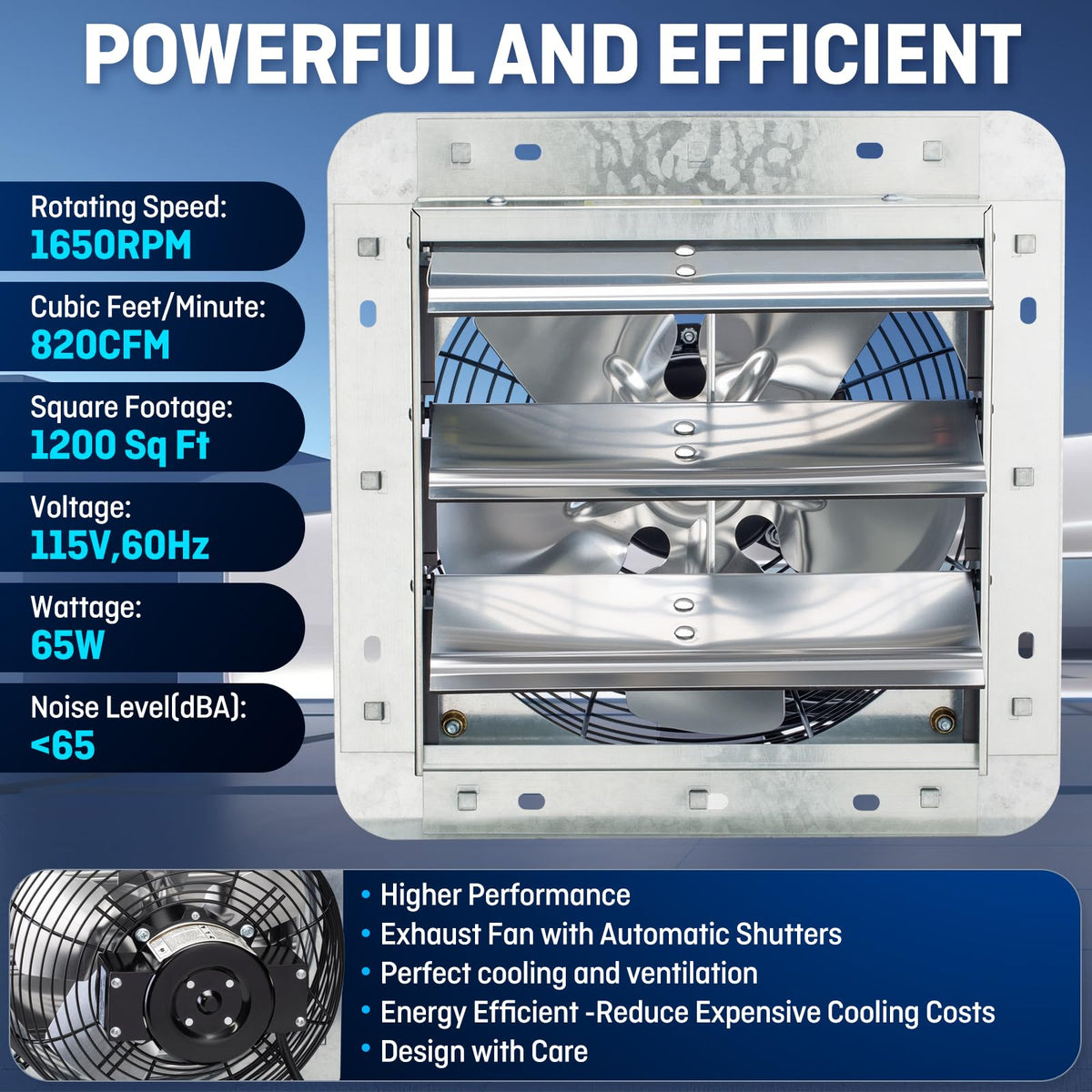

• Airflow: 820 CFM at 115V, 0.6A, 1/20 HP, 1600 RPM
• Coverage: up to 1200 square feet
• Shutter mechanism: automatic, synchronized with fan operation
• Sound: quiet operation under 65 dB

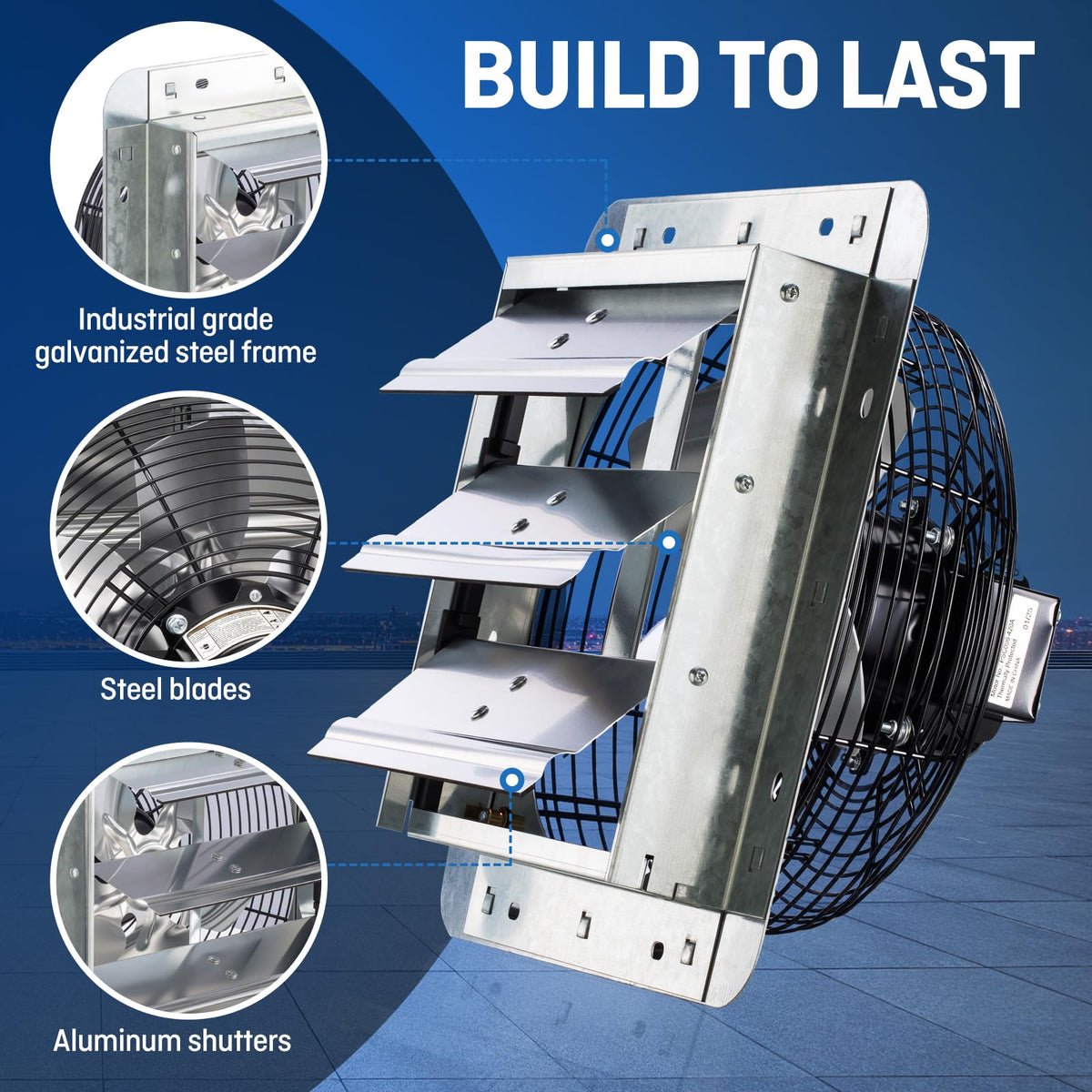

• Materials: galvanized steel frame with aluminum shutters and blades

Control, safety, and efficiency

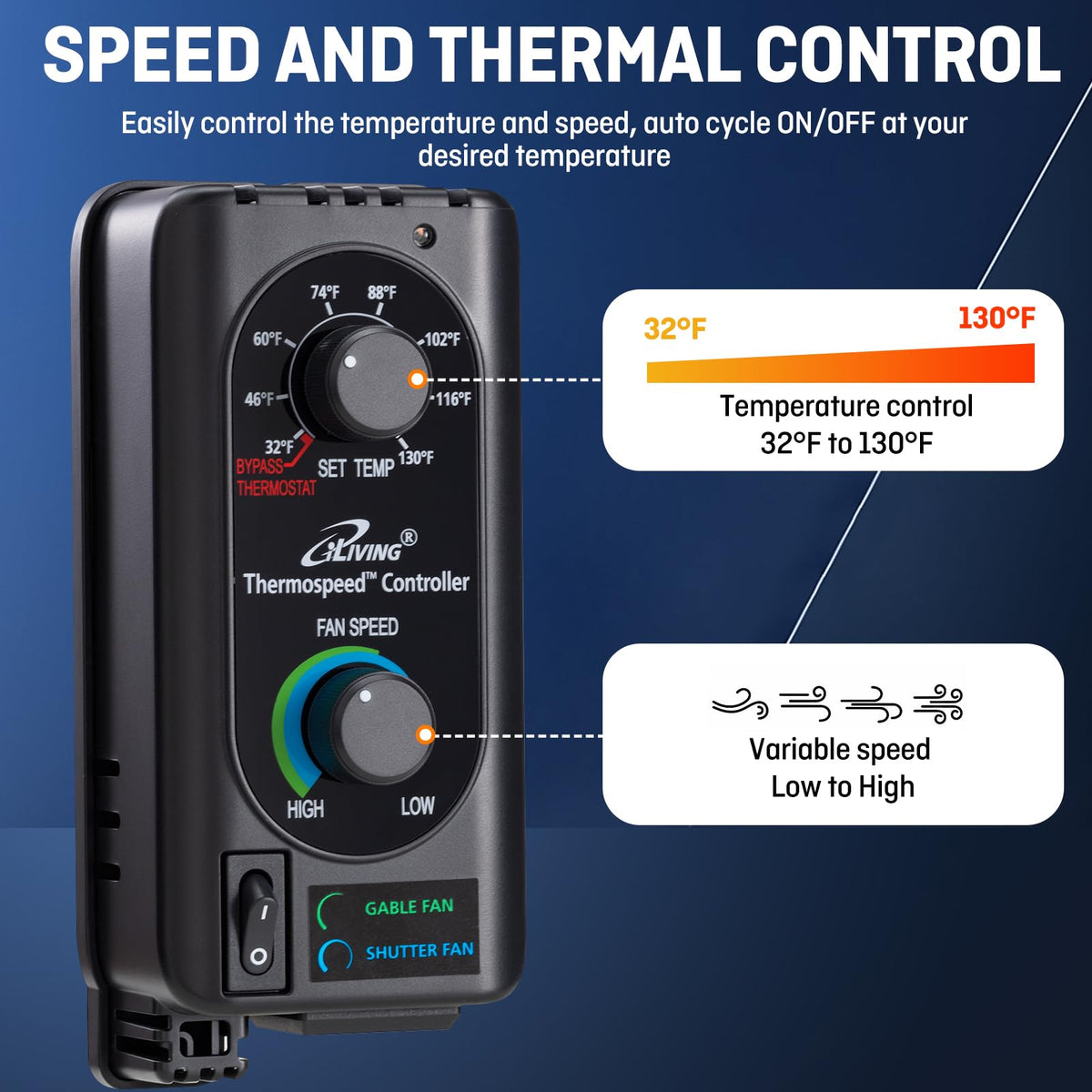

Control features are centered on flexibility and ease of use. The Thermospeed Controller ILG8SFST enables temperature-based adjustments within a 32 to 130 F range, and the unit can auto-cycle ON/OFF at your chosen temperature. The enclosed motor is thermally protected and permanently lubricated for reduced maintenance, while safety is enhanced by OSHA-compliant wire guards and UL/cUL listing.

• Thermostat range: 32–130 F
• Auto ON/OFF cycling based on temperature

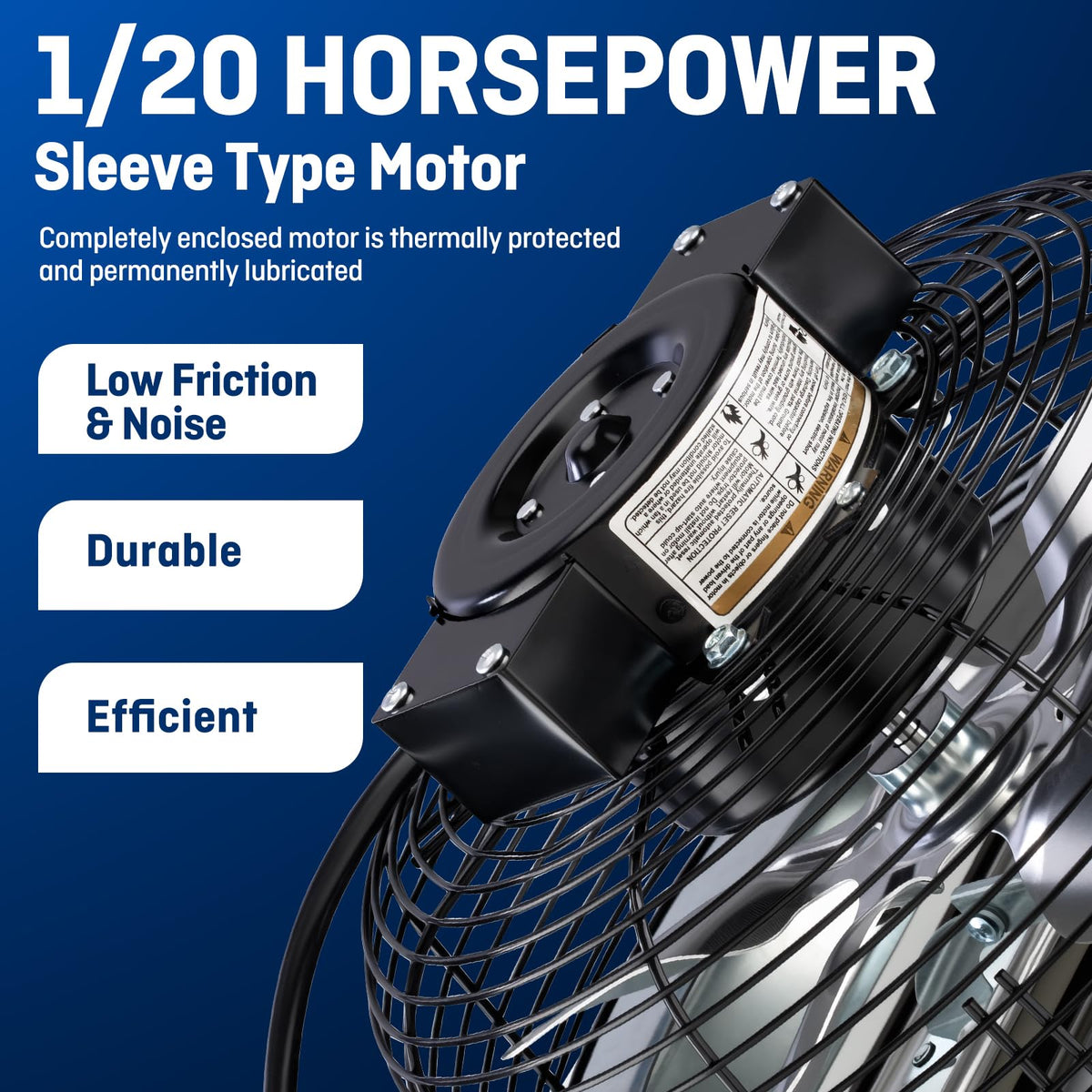

• Enclosed, thermally protected, permanently lubricated motor

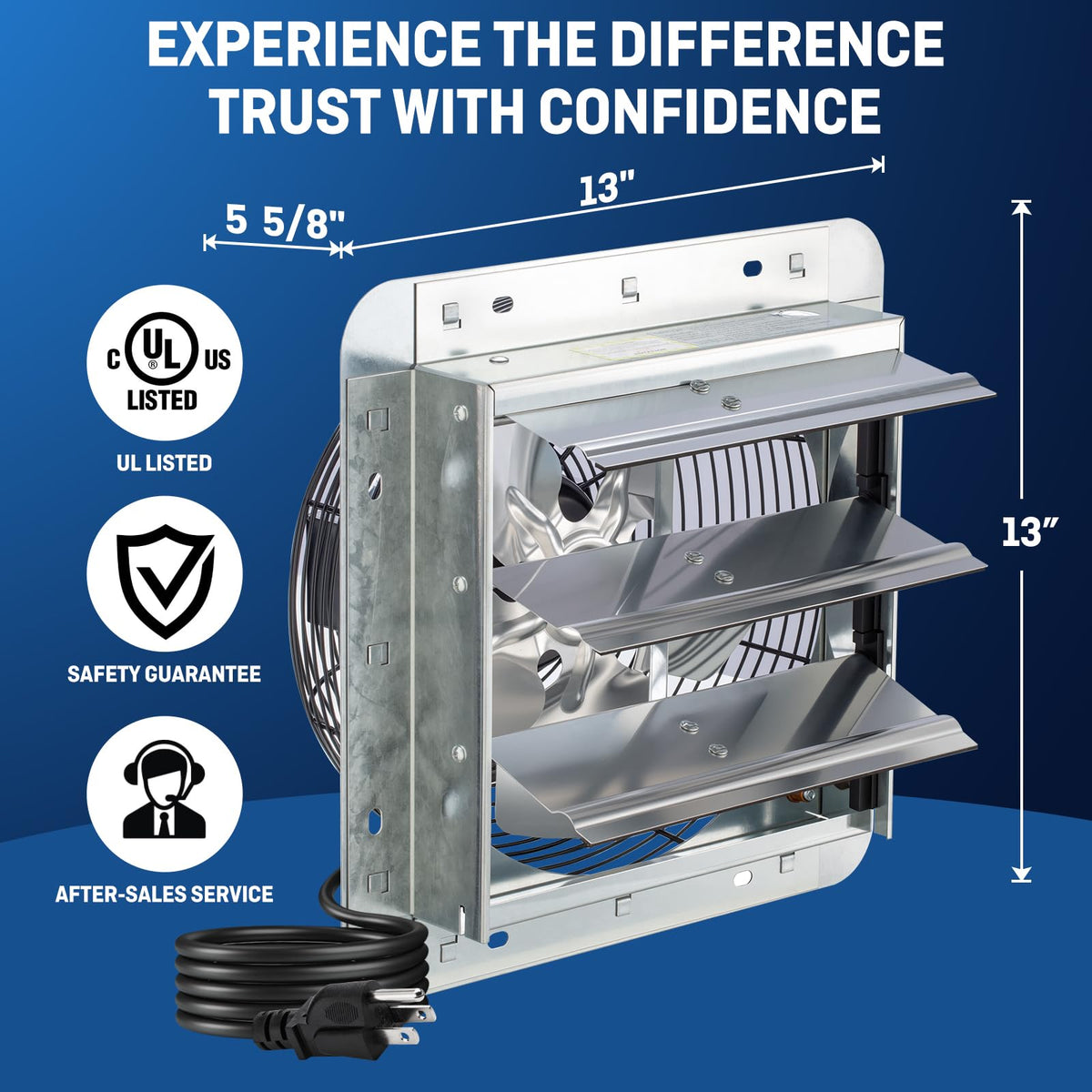

• UL/cUL listed with OSHA-compliant guards

Durability and installation

The unit combines industrial-grade galvanized steel with aluminum shutters for resilience in demanding environments. Its compact footprint makes wall mounting straightforward, and the fan is designed for long service life in workshops, garages, greenhouses, and commercial kitchens. Best of all, it arrives fully assembled, with electrical hardwiring required only for installation.

Real-world use cases

In everyday operations, this fan helps manage heat buildup, reduce humidity after cleaning, and minimize lingering odors in active spaces. Use cases include restaurants, light manufacturing, warehouses, barns, and greenhouses where consistent airflow and quick air exchange can improve comfort and work conditions without overhauling existing layouts.

Key benefits at a glance

• High airflow with dependable, long-lasting components
• Automatic shutters for efficiency and energy awareness
• Temperature-based control for hands-free operation
• Rugged construction that resists corrosion and wear
