HONTAITUO 11-Hole Shelf Pin Jig & Hinge Jig 2-in-1 – 1/4 Inch and 5mm Cabinet Drill Guide

Two jigs in one compact tool for faster cabinet work

HONTAITUO presents an innovative 2-in-1 drilling guide that blends a shelf pin jig with a hinge jig into a single, space-efficient instrument. Designed for real-world projects, it streamlines setup and delivers clean, repeatable results on every pass. Whether you’re building new cabinetry or upgrading existing units, this tool helps you plan precise spacing and dependable alignment without cluttering your workspace.

What makes it worth considering includes a robust 11-hole template that allows a full row of shelf pin holes to be drilled in one go, a feature that speeds up layout work and reduces drift. The hinge mechanism template is designed to fit common concealed US hinges, with an optional edge distance of 3–6 mm from the 35 mm hole. The package also includes hinge screws sized 48 × 6 and 45 × 9.5 mm, making installation smoother from first drill to final screw.

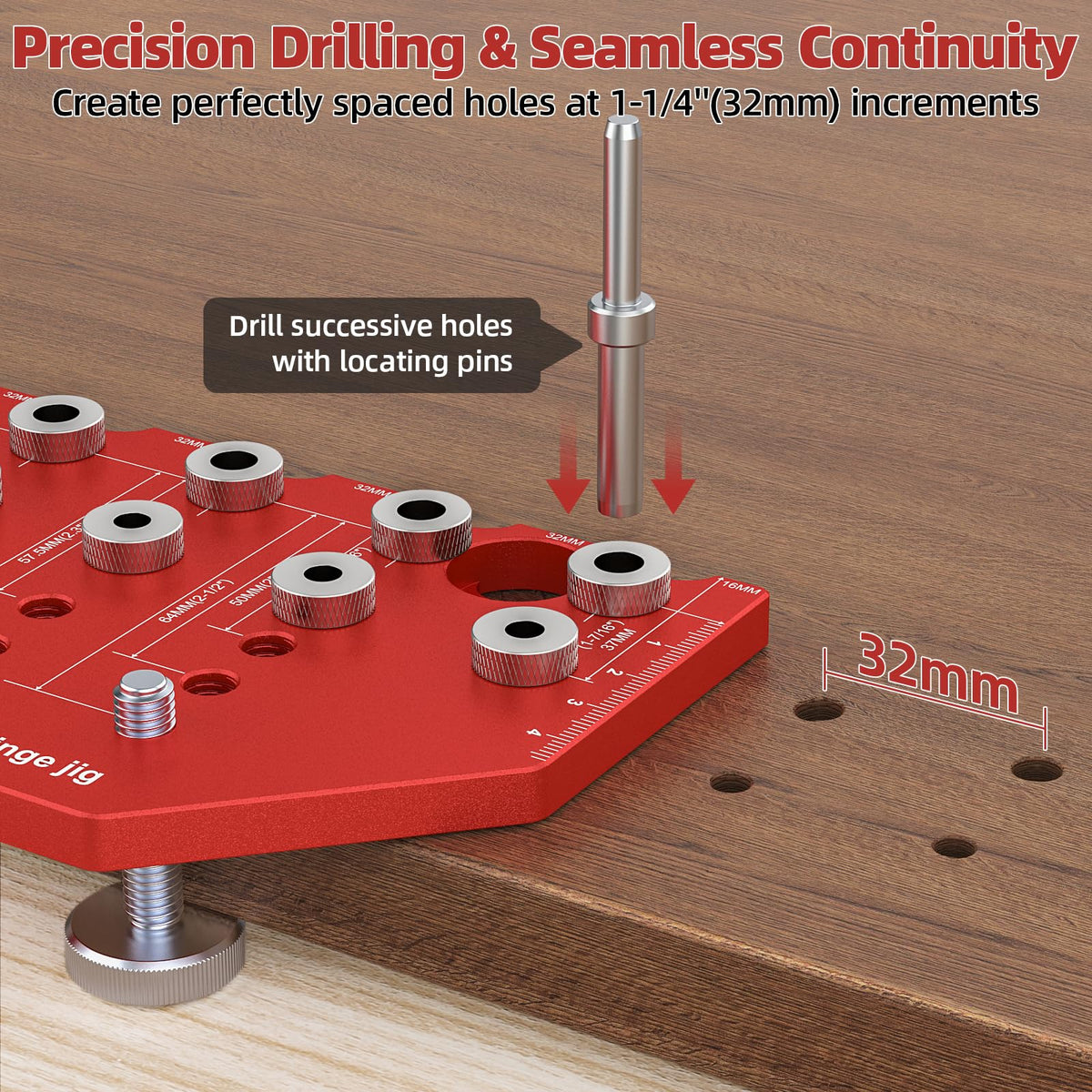

Two precise drilling sizes are supported: 1/4 inch and 5 mm. This flexibility lets you match hole diameters to your hardware and project requirements, from lightweight display shelves to heavier cabinet setups. The tool offers a self-contained clamping system that stabilizes your workpiece, helping you drill with confidence and minimal movement.

Built for professionals and DIY enthusiasts alike, the jig is described as widely applicable for builders, carpenters, home improvers, and cabinet makers. Its compact form and integrated design mean you can carry it between jobs, reducing the number of separate tools you need without sacrificing precision. If you have any questions while using the jig, the manufacturer offers professional customer support to help you maximize its potential.

Note: This product is patent-pending, reflecting ongoing innovation in cabinet hardware jigs and their practical, user-friendly features.

Key features at a glance

• Dual-function design merges shelf pin and hinge drilling in one tool

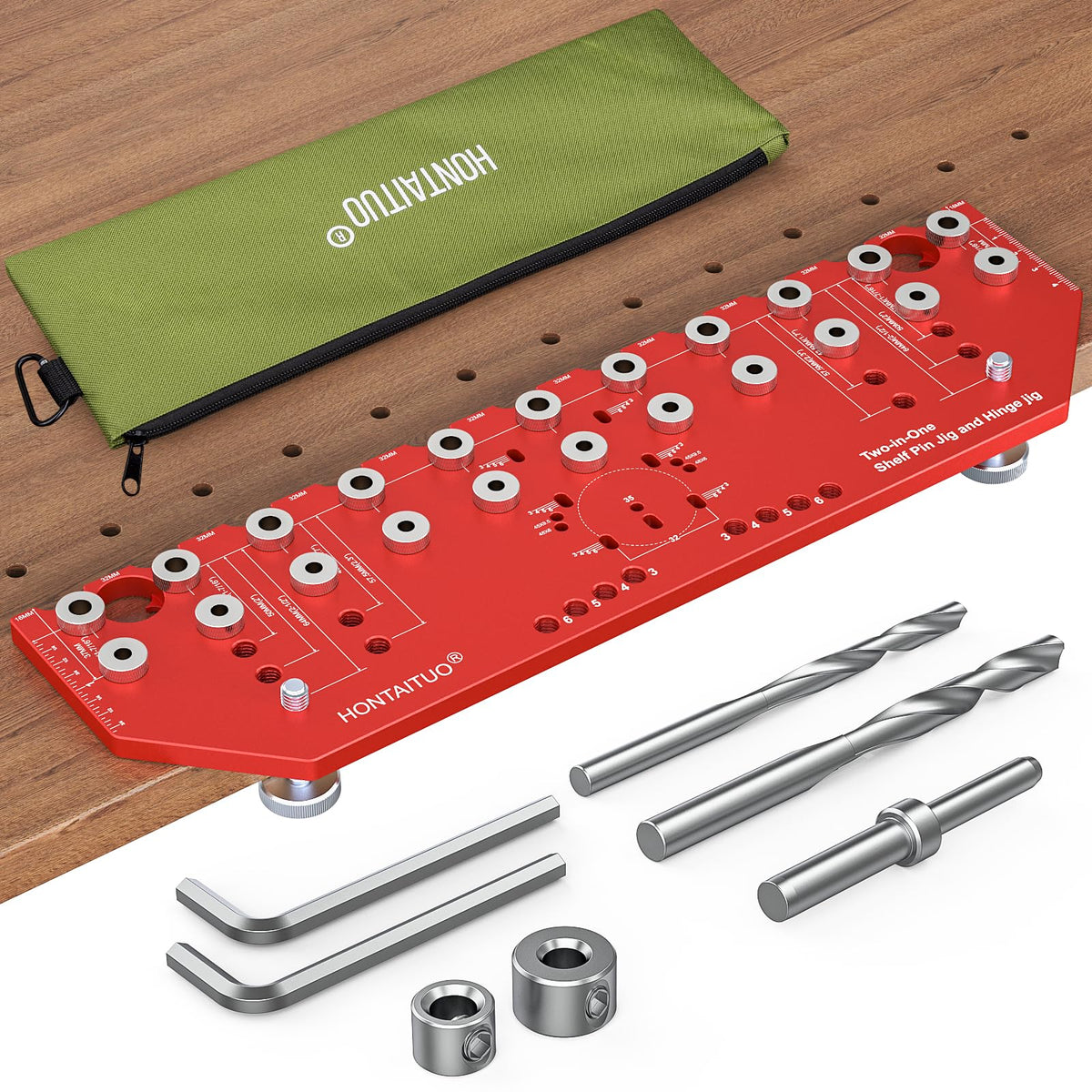

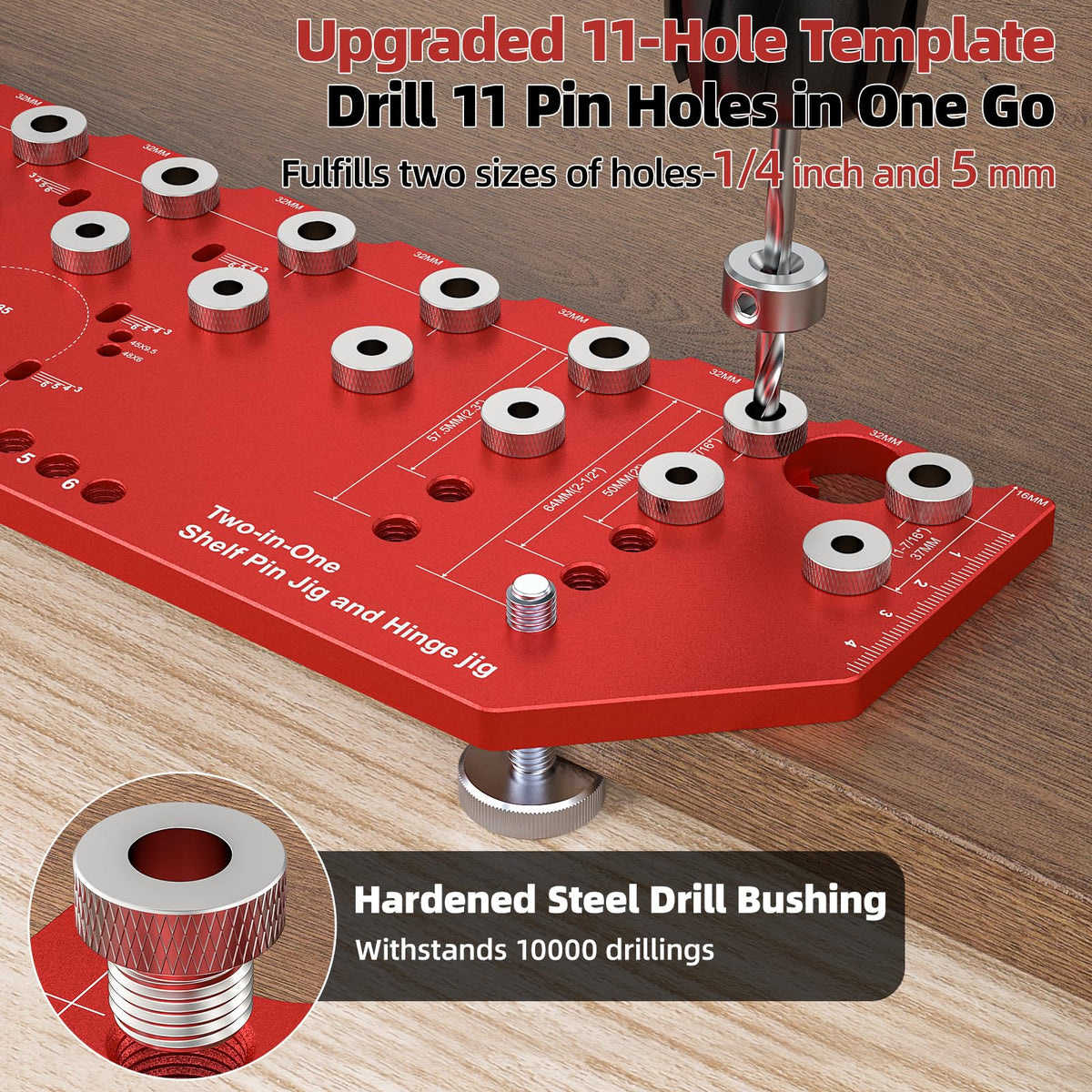

• Upgraded 11-hole template enables a full row of holes in one pass

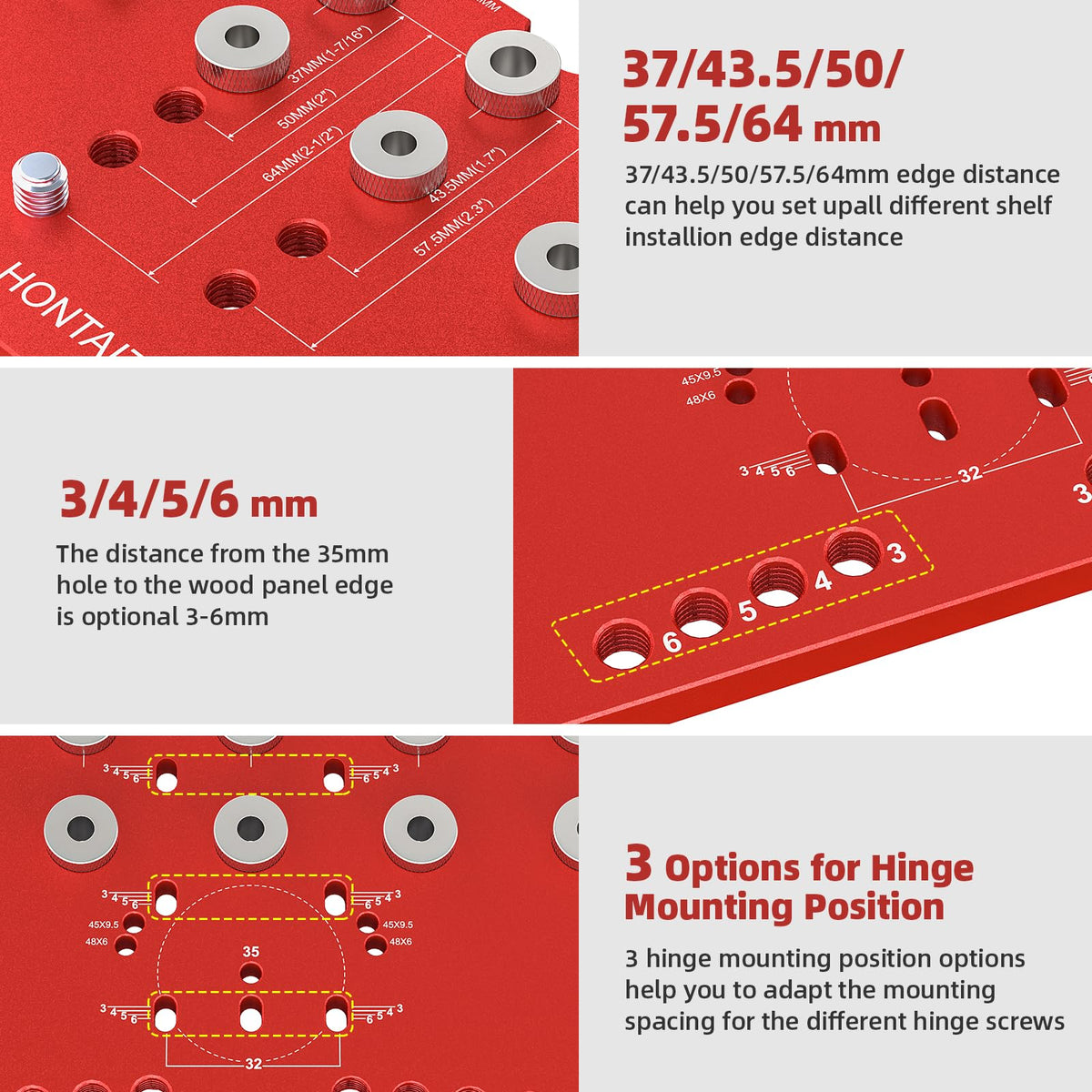

• Hinge jig fits common concealed US hinges with optional 3–6 mm edge distance
• Drilling sizes: 1/4 inch and 5 mm

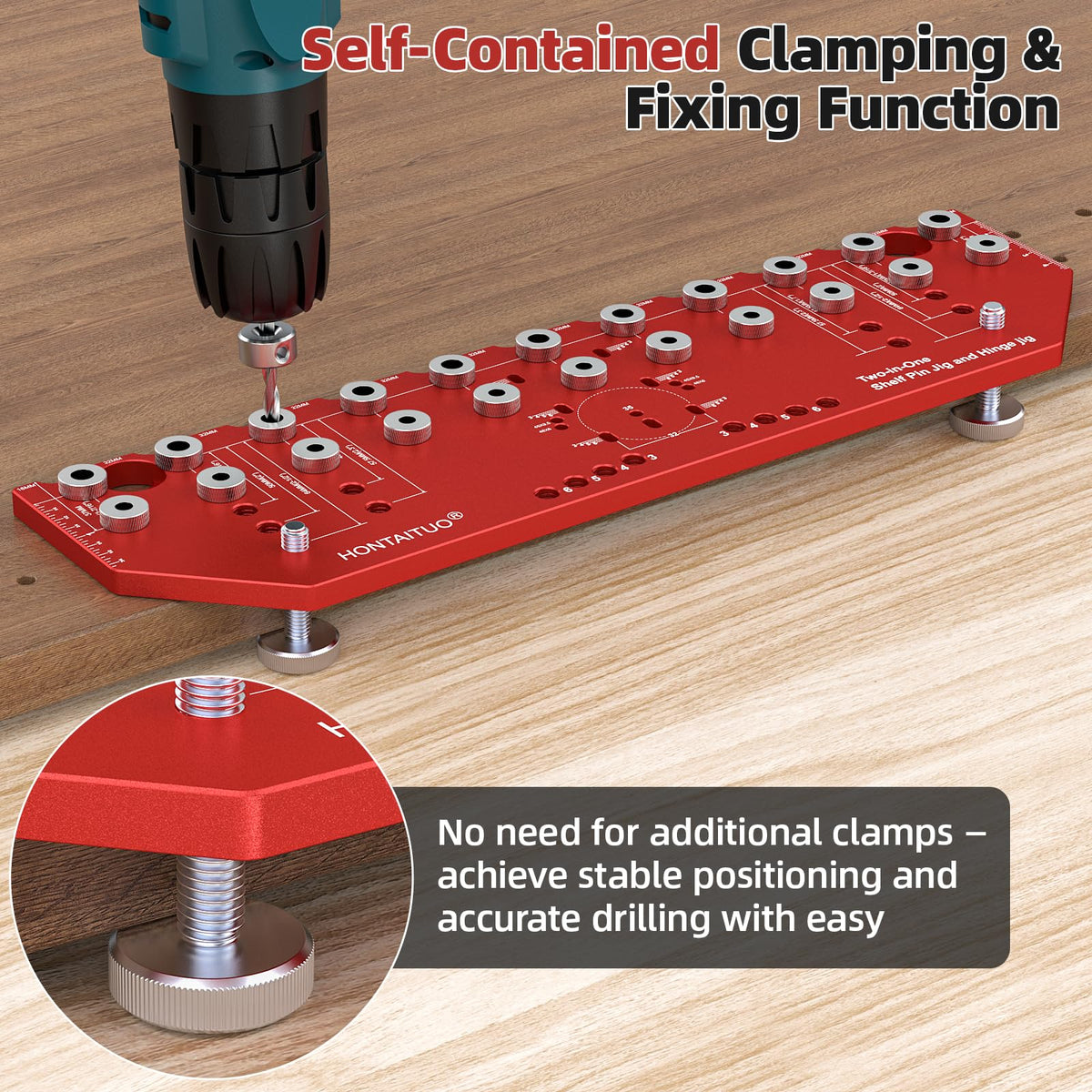

• Self-contained clamping for steady setup and accurate drilling
• Includes hinge screws and compatible templates for US hardware

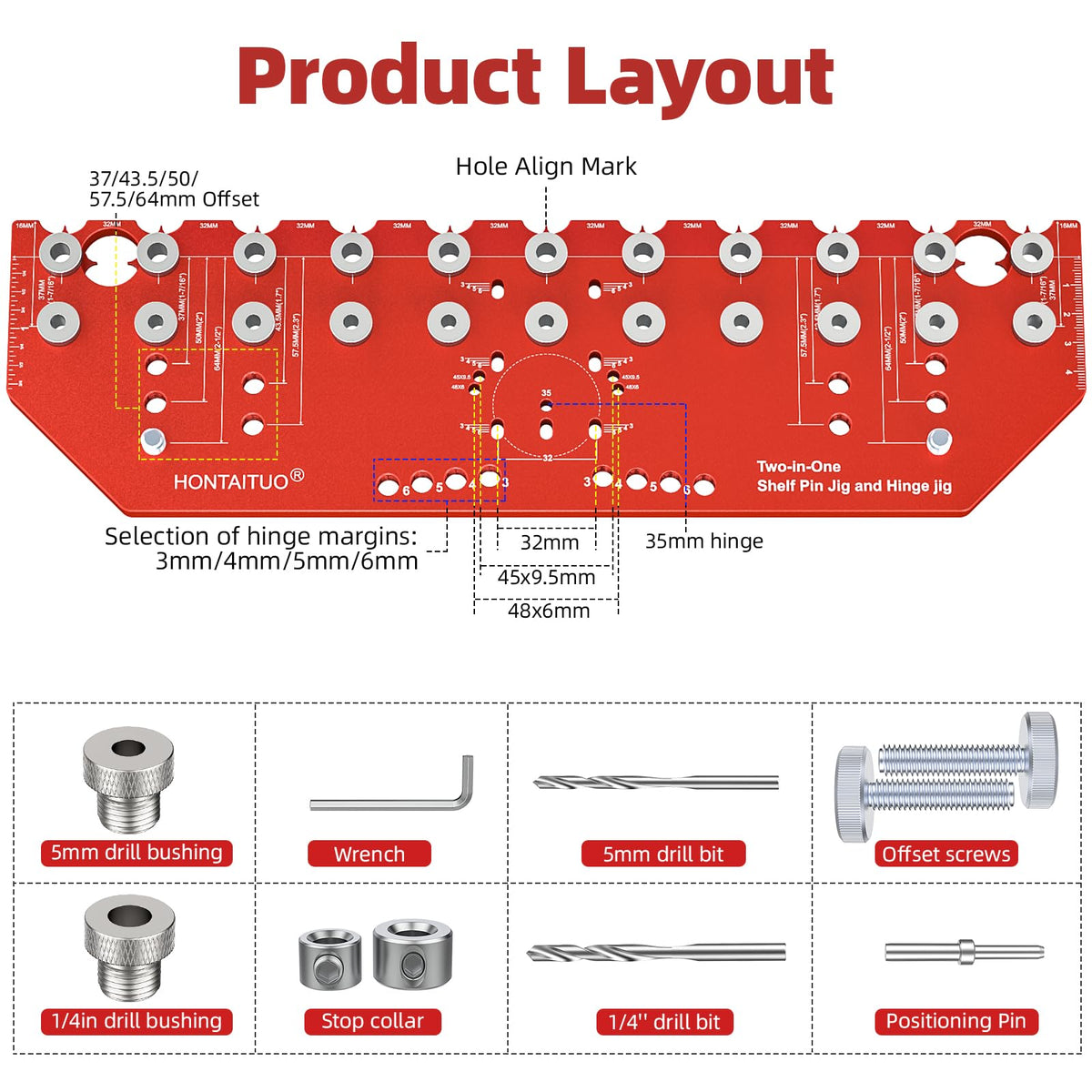

• Patent-pending design with thoughtful, practical details

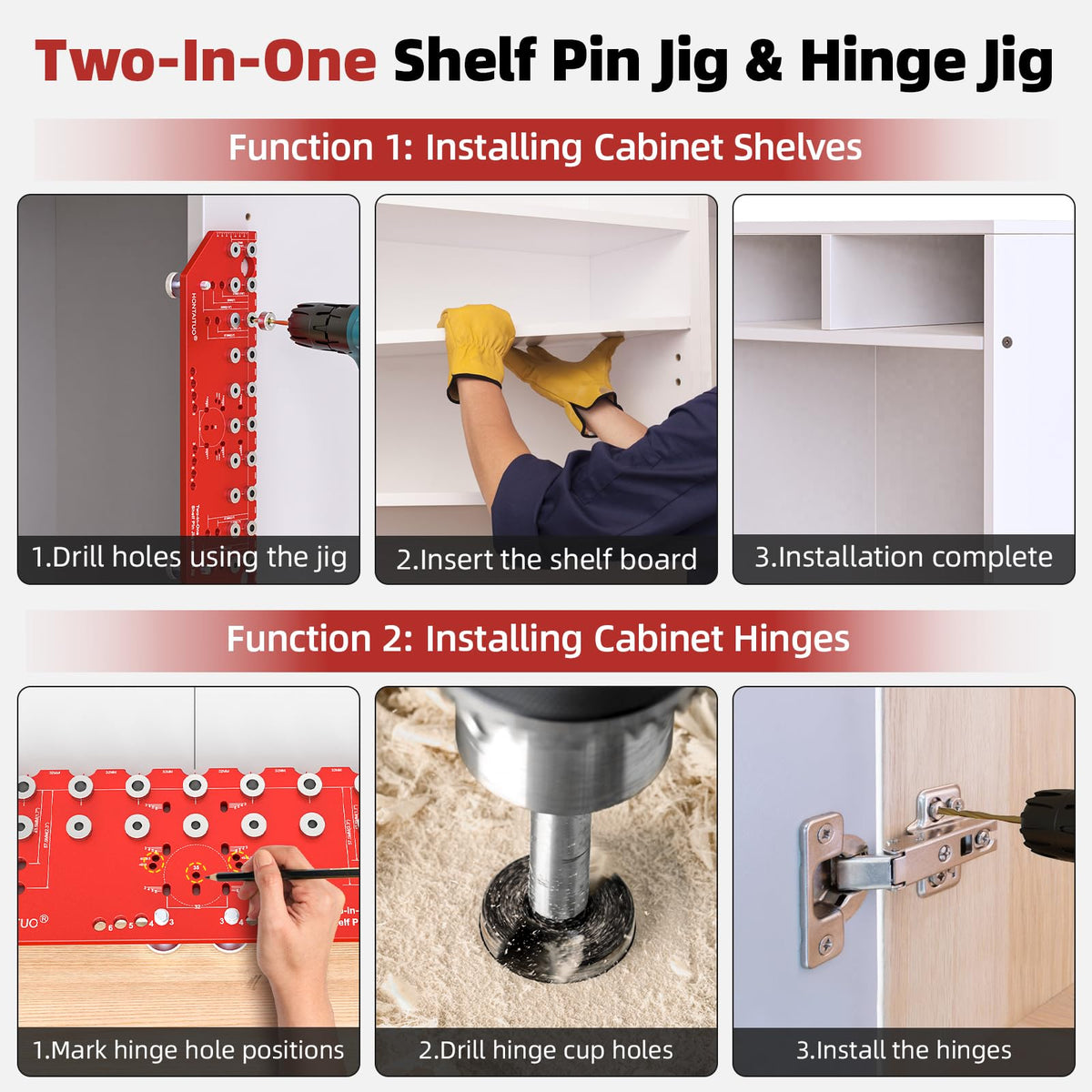

Ideal uses include cabinet installation, shelf system updates, pantry organization, and general woodworking projects where fast, repeatable hole spacing matters. The tool is designed to support both beginners and seasoned professionals, offering guidance and precision without unnecessary complexity.

What you can expect on a project

• Clear, repeatable shelf spacing to align shelves quickly
• Accurate hinge placement for smooth door operation
• Versatile hole sizes to fit a range of hardware
• Compact, self-contained design that reduces tool swaps
