HKS Crimping Tool for Insulated Flag Terminals – Ratcheting Wire Crimpers | AWG 22-14 (0.5-2.5mm²)

Overview

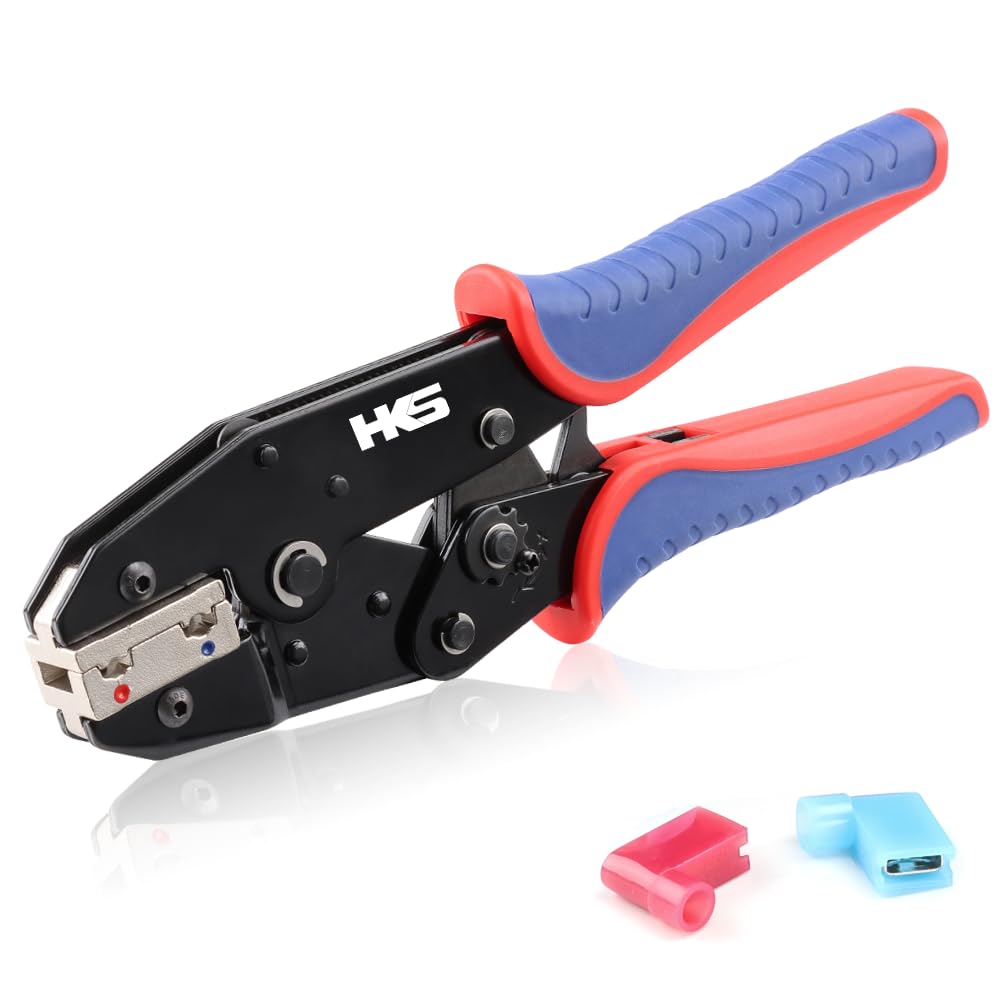

The HKS Crimping Tool for Insulated Flag Terminals is a purpose-built instrument designed to deliver consistent, repeatable crimps across standard wire gauges. Built to work with blue and red flag terminals sized 22–14 AWG (0.5–2.5 mm²), it combines a precise ratchet mechanism with a finish-machined crimp die to support clean, secure terminations in a range of electrical projects.

Key benefits at a glance

• Ratcheting mechanism for controlled cycles: The tool completes a full crimp cycle and auto-releases, helping you secure the connector first and then insert the wire.

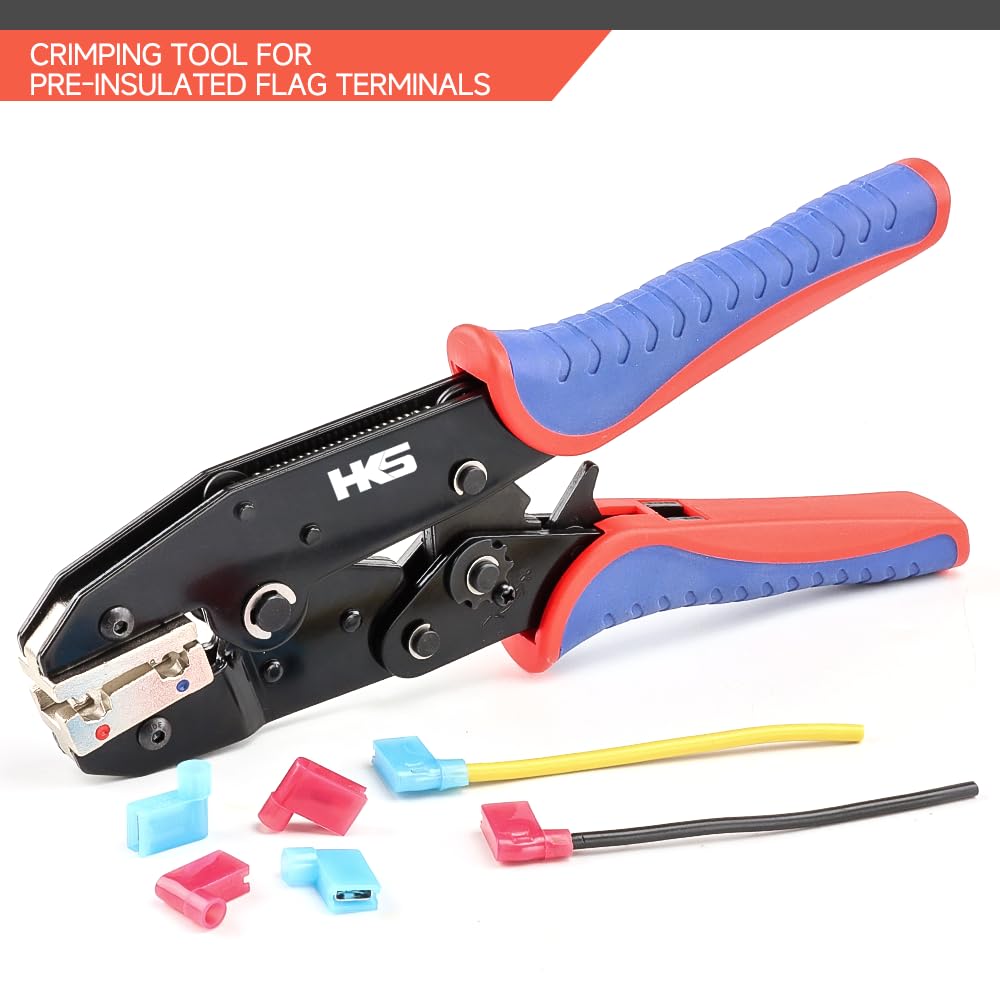

• Adjustable crimp force: A dedicated knob lets you tailor crimp strength to suit your terminal size and wire gauge, reducing the risk of over- or under- crimping.
• Quick-release lever: The lever enables the jaw to open in any position, making setup faster and easier when working in tight spaces.
• Ergonomic, non-slip handles: Cushioned grips are designed for comfort and control during extended use, helping you maintain a steady hand.

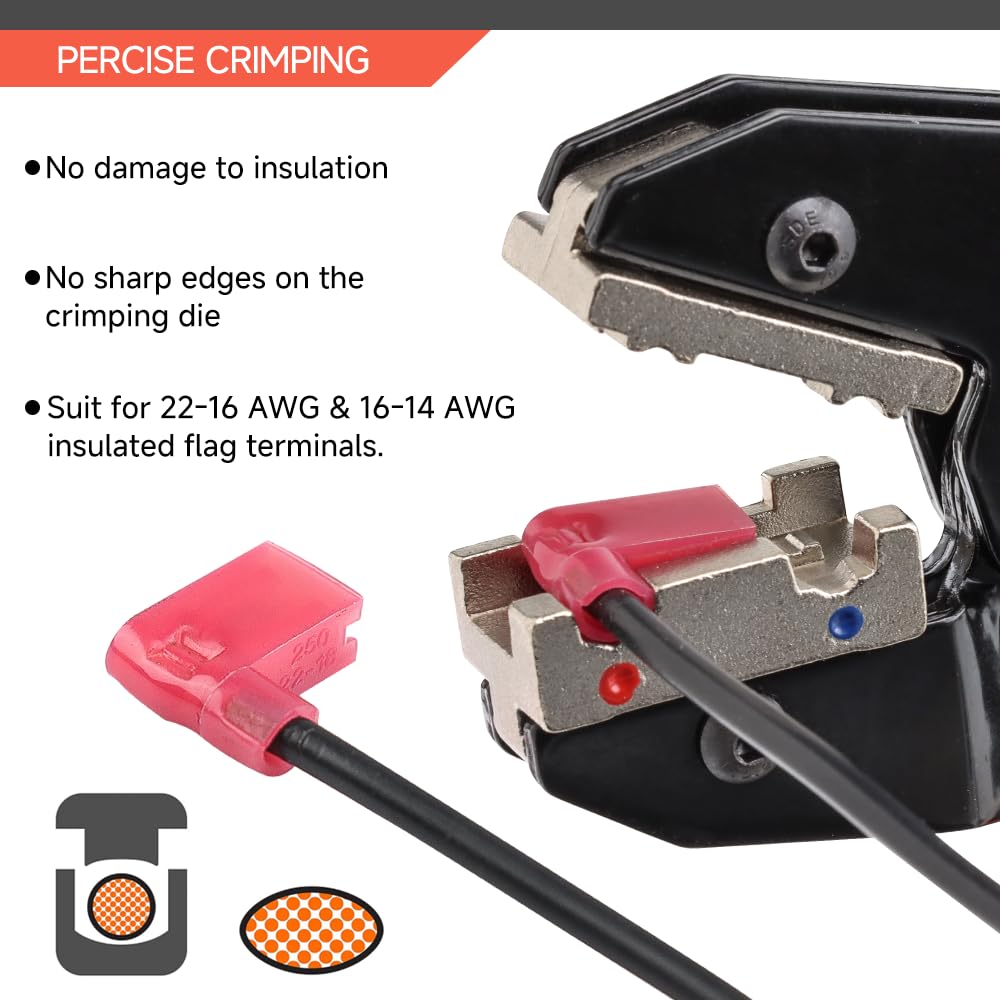

• Color-marked jaw for quick identification: Red and blue markers clearly indicate compatibility with 22–16 AWG and 16–14 AWG flag terminals.

What this means in real-world use

Whether you’re wiring a vehicle, repairing a motorcycle harness, or assembling a small electronic system, this crimping tool supports precise, repeatable crimps across common flag-terminal sizes. The ratchet mechanism encourages a full, deliberate crimp cycle, while the adjustable force helps you match the terminal and wire combination you’re using. The quick-release lever adds flexibility in confined spaces, and the ergonomic handles help you maintain control without fatigue. The color-marked jaw simplifies terminal recognition, so you can move between different wire grades with less guesswork.

The result is a versatile tool that can adapt to a variety of terminal configurations while keeping the crimping process straightforward. Use it to achieve consistent results across multiple crimps, not just a single, isolated task. The combination of a finish-machined die and a robust ratchet design contributes to a smooth operation that feels solid in hand, encouraging careful, repeatable work rather than rushed, inconsistent crimps.

Usage considerations

• Target terminals: blue and red insulated flag terminals in the 22–14 AWG range (0.5–2.5 mm²).
• Set the crimp force using the adjustment knob to fit the terminal and wire being used.
• Leverage the quick-release to access the jaw in tight cables or crowded assemblies.
• Routinely inspect the crimp quality and ensure the terminals seat properly before finalizing a connection.
