HES 9600-630 Series Stainless Steel Fire Rated Surface Mounted Electric Strike for Rim Exit Devices

From HES Hardware, an Assa Abloy brand, the 9600-630 Series delivers a windstorm rated, surface-mounted electric strike designed to secure rim exit devices with a 3/4" throw latch. Encased in a 3/4" thick stainless steel housing, this solution installs without cutting the door frame, delivering a sleek, robust presence on metal or wood frames. Its surface-mount design supports fast deployment and a tidy finish, making it a practical choice for high-traffic entrances exposed to challenging conditions.

Windstorm resilience you can rely on

• Static strength rated at 2,000 lbs to handle demanding door operations.
• Dynamic strength rated at 120 ft-lbs for resilient door movement during gusts or pressure changes.
• Endurance rated at 1,000,000 cycles for long-term, repeat use.
• ANSI windstorm approved and built for outdoor or harsh environments, with code-compliant certifications.

Simple, flexible installation and durable design

• 3/4" (19 mm) Pullman latch compatibility supports common rim exit devices.

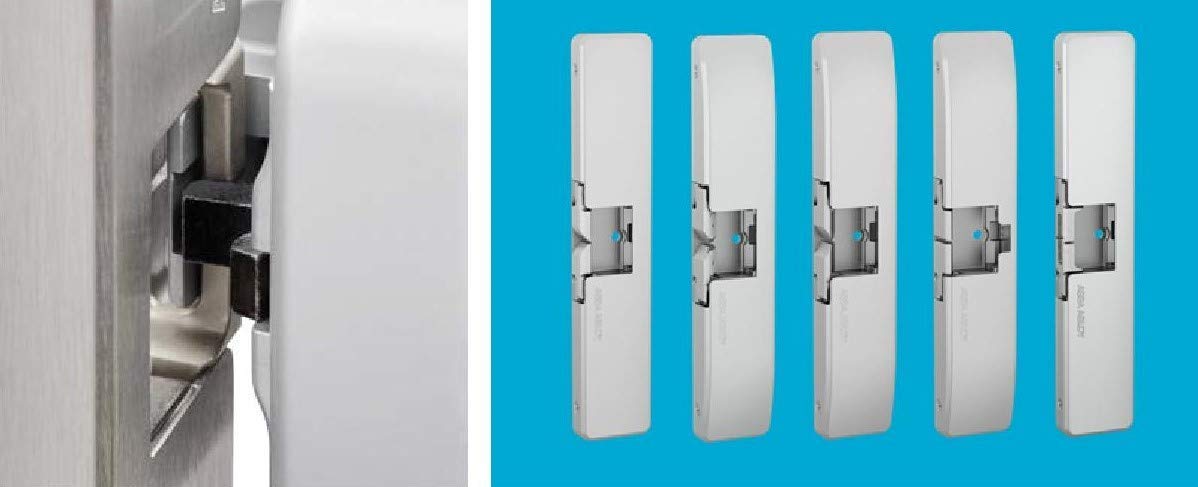

• Tools-free surface mounting on metal or wood frames with separate base and cover for precise alignment.

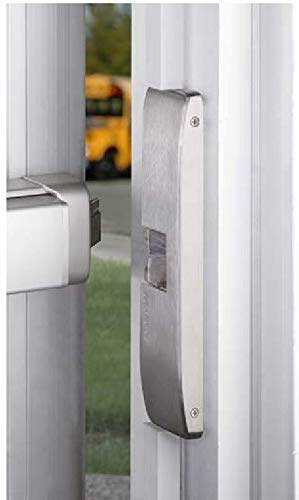

• Non-handed, horizontally adjustable, and internally mounted solenoid for a clean, compact fit.
• Satin 630 stainless steel finish offers a professional look with durable performance.
• Tamper resistant construction provides added security against interference.

Electrical flexibility and access control options

• DC continuous duty with dual voltage: 12/24 VDC, 450 mA at 12 V, 250 mA at 24 V.
• Field selectable operation: fail safe or fail secure to match different access control strategies.
• Designed to work with rim exit devices while maintaining a low-profile surface installation.

Certifications, testing, and warranty for confidence

• ANSI/BHMA A156.31 Grade 1 and UL 1034 burglary-resistant listed.
• UL 294 listed for access control systems; RoHS compliant; Florida Building Code TAS 201/202/203 approved.
• Five-year limited warranty covering manufacturing defects and reliability concerns.

In real-world use, facilities with exterior doors or high-traffic entrances can benefit from a secure, low-profile solution that installs quickly and resists tampering. The 9600-630 blends rugged metal construction with thoughtful engineering to support dependable access control at doors exposed to wind-driven forces, while preserving a clean and professional appearance.
