HES 9400 Slim-Line Electric Strike – Satin Stainless, 12/24V

Overview

The HES 9400 Series Slim-Line Electric Strike is a surface-mounted solution designed for rim exit devices that use a 1/2" Pullman latch. Its components are fully enclosed within a 5/8" thick stainless steel housing, eliminating the need to cut the frame during installation. A 1/8" spacer plate is included to accommodate varying door gaps, delivering a clean, uninterrupted appearance after installation.

Why this model stands out

Designed for strength and reliability, the 9400 offers field-selectable operation modes and dual voltage options, giving you flexibility on power supply and fail behavior without sacrificing aesthetics or performance.

• Slim-line surface mount with no frame cutting required
• Decorative cover hides mounting screws for a sleek look

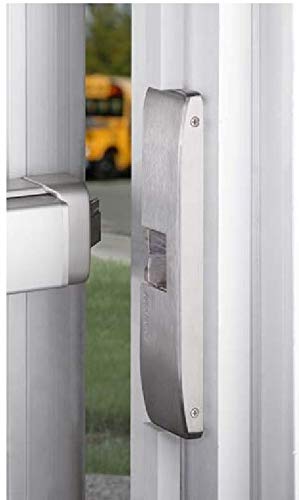

• Includes 1/8" spacer plate to fit different door gaps
• Tamper resistant and crafted from durable stainless steel

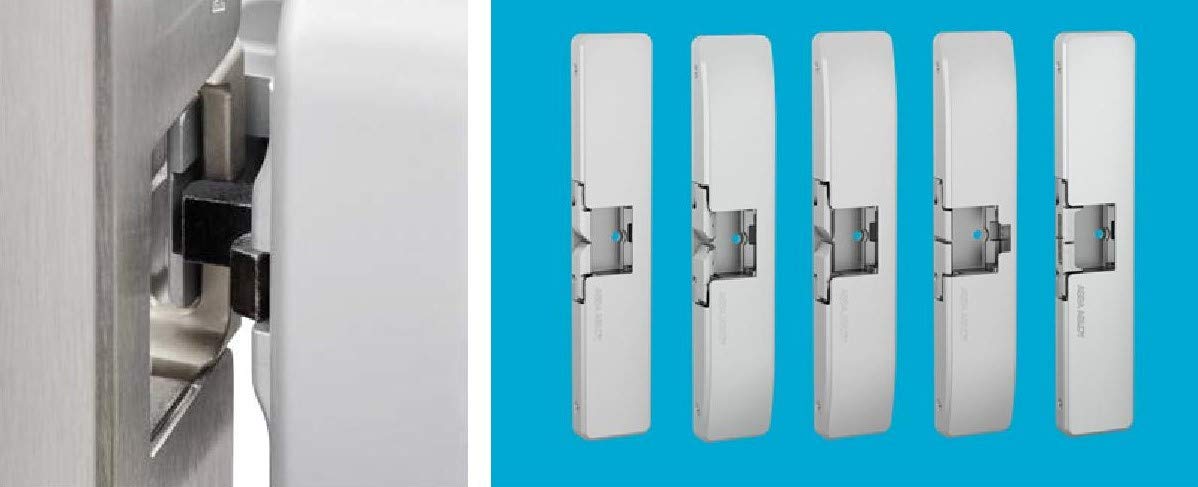

• Field selectable fail secure or fail safe; 12/24VDC operation

Durability, performance, and certifications

Built to withstand demanding use, this strike delivers substantial strength and long life. Key specs include a static strength of 1,500 lbs, dynamic strength of 70 ft-lbs, and endurance for up to 1,000,000 cycles. It carries ANSI/BHMA A156.31 Grade 1 certification, UL 1034 burglary resistance, and UL 294 listing for access control reliability. The unit is RoHS compliant and suitable for outdoor use in appropriate environments.

• Static strength: 1,500 lbs; Dynamic strength: 70 ft-lbs
• Endurance: 1,000,000 cycles
• ANSI/BHMA A156.31 Grade 1, UL 1034, UL 294
• Outdoor-capable, RoHS compliant

Installation, compatibility, and warranty

The 9400 is non-handed and horizontally adjustable for easy alignment with the exit latchbolt. It’s compatible with metal and wood frames (wood screws not included) and uses an internally mounted solenoid for a clean, low-profile installation. The Satin Stainless Steel (630) finish provides a durable, refined look that blends with modern door hardware. All of this is backed by SecuriCare’s five-year, no-fault, no-questions-asked warranty for added peace of mind.

With its sleek surface, durable construction, and flexible electrical options, the 9400 Series is well suited for commercial doors, offices, and other high-traffic entry points where a dependable strike is part of the security equation. Consider it if you value a balance of aesthetic appeal, strength, and installation flexibility.
