HES 5000C-12/24D-630 Universal Electric Strike Complete Pac for Latchbolt Locks | Satin Stainless Steel

Compact, high‑performance security for tight spaces

The HES 5000C-12/24D-630 Series Complete Pac is engineered for low-profile openings where space behind the jamb is limited. Its keeper pin locking system delivers a robust feel without adding bulk, while a field‑selectable fail secure or fail safe mode provides installation flexibility for different door conditions. This unit accommodates latchbolts from 1/2" to 5/8" and features a strike body depth of 1-3/16" with a 1/8" door gap to optimize alignment in challenging frames.

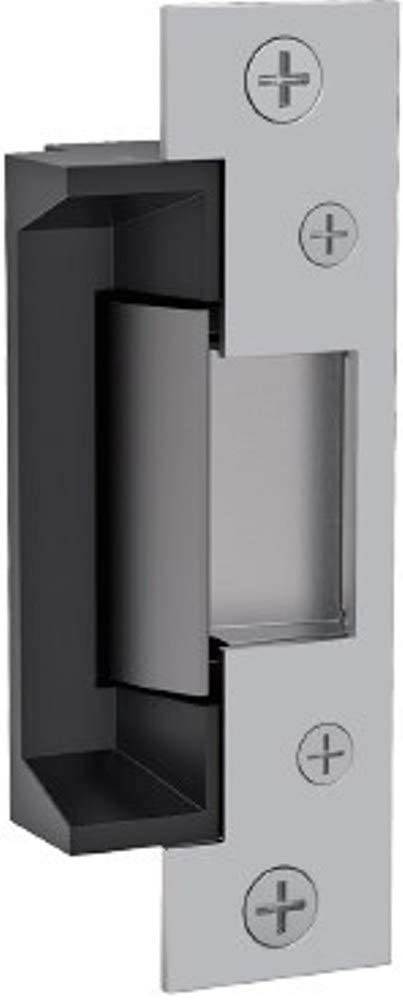

Included in the package are two faceplates—the 501 for ANSI metal jambs and the 501A for cylindrical locks in aluminum frames—so you can outfit a range of door types with a single purchase. The result is a streamlined retrofit or new installation that keeps a door appearance clean while delivering controlled access when needed.

Performance and reliability you can count on

• Static strength rated at 1,500 lbs for a solid, pushing profile against the strike
• Dynamic strength of 70 ft-lbs to handle varied door movements
• Endurance up to one million cycles for long-term use in busy environments
• Field‑selectable fail secure or fail safe to adapt to site requirements
• In-frame horizontal adjustment to dial in precise alignment
• Internally mounted solenoid for tidy, simple installation
• Dual voltage operation (12/24 VDC or VAC) for flexible electrical compatibility
• Non-handed design to simplify installation across door orientations

What’s included and where it fits

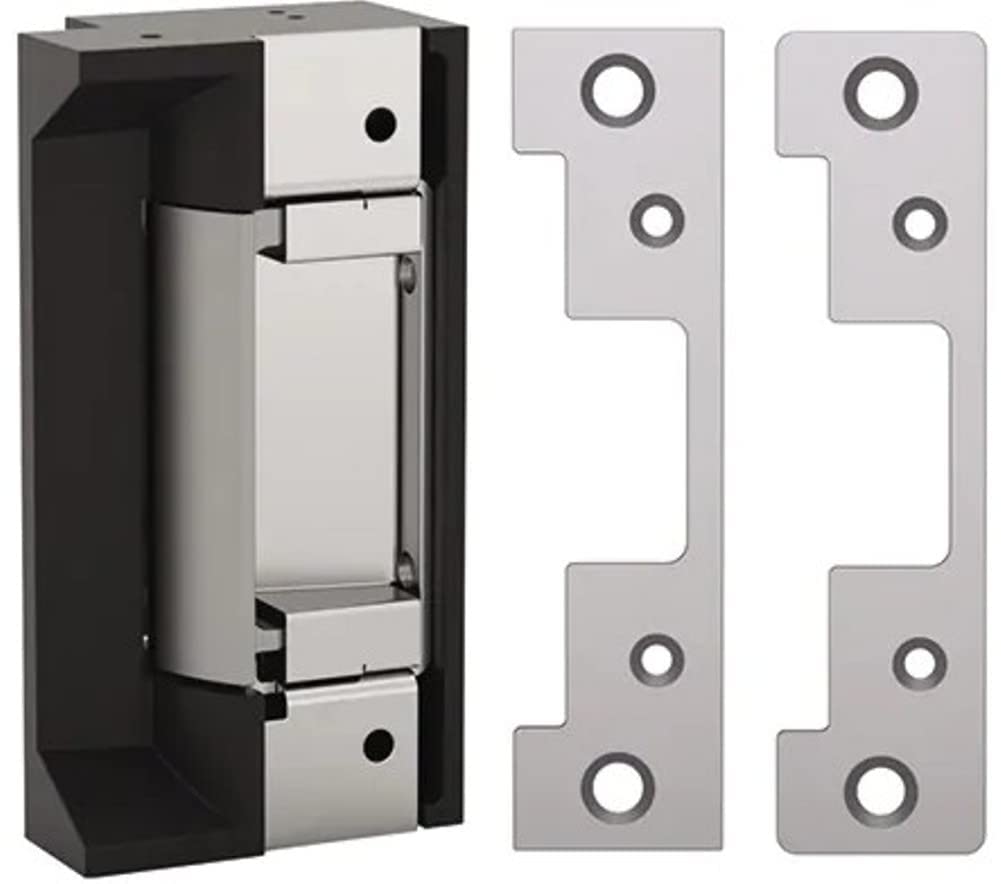

• Includes the 5000 strike body and two faceplates: 501 and 501A
• Suitable for latchbolts from 1/2" to 5/8" (5/8" with a 1/8" door gap)
• Works with doors in metal jambs (ANSI) or aluminum frames

Real-world uses

Ideal for spaces where traditional electric strikes won’t fit behind the jamb, such as compact office entrances, schools, or facilities with tight door reveals. The dual voltage option and field-adjustable settings help tailor performance to traffic patterns and security needs, without reshaping the door or frame.
