Haerkn 20 AWG Silicone Wire, 2-Conductor Parallel, 200 ft Total (Black & Red), 600V, Tinned Copper

Overview

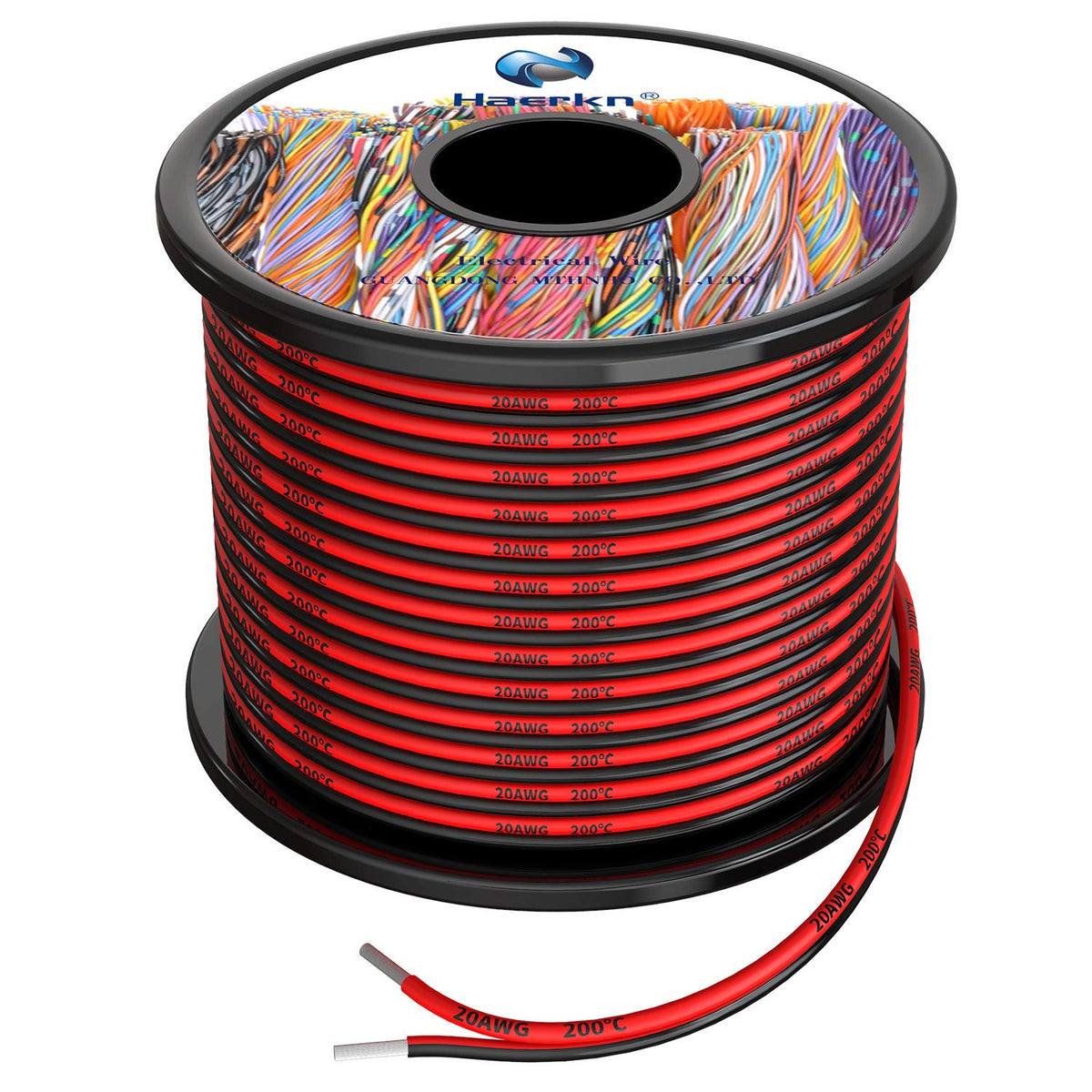

When a project demands flexible, dependable wiring, Haerkn 20 AWG silicone wire stands out. This two-conductor parallel cable spans a total of 200 feet, with black and red conductors that simplify polarity tracing and layout organization.

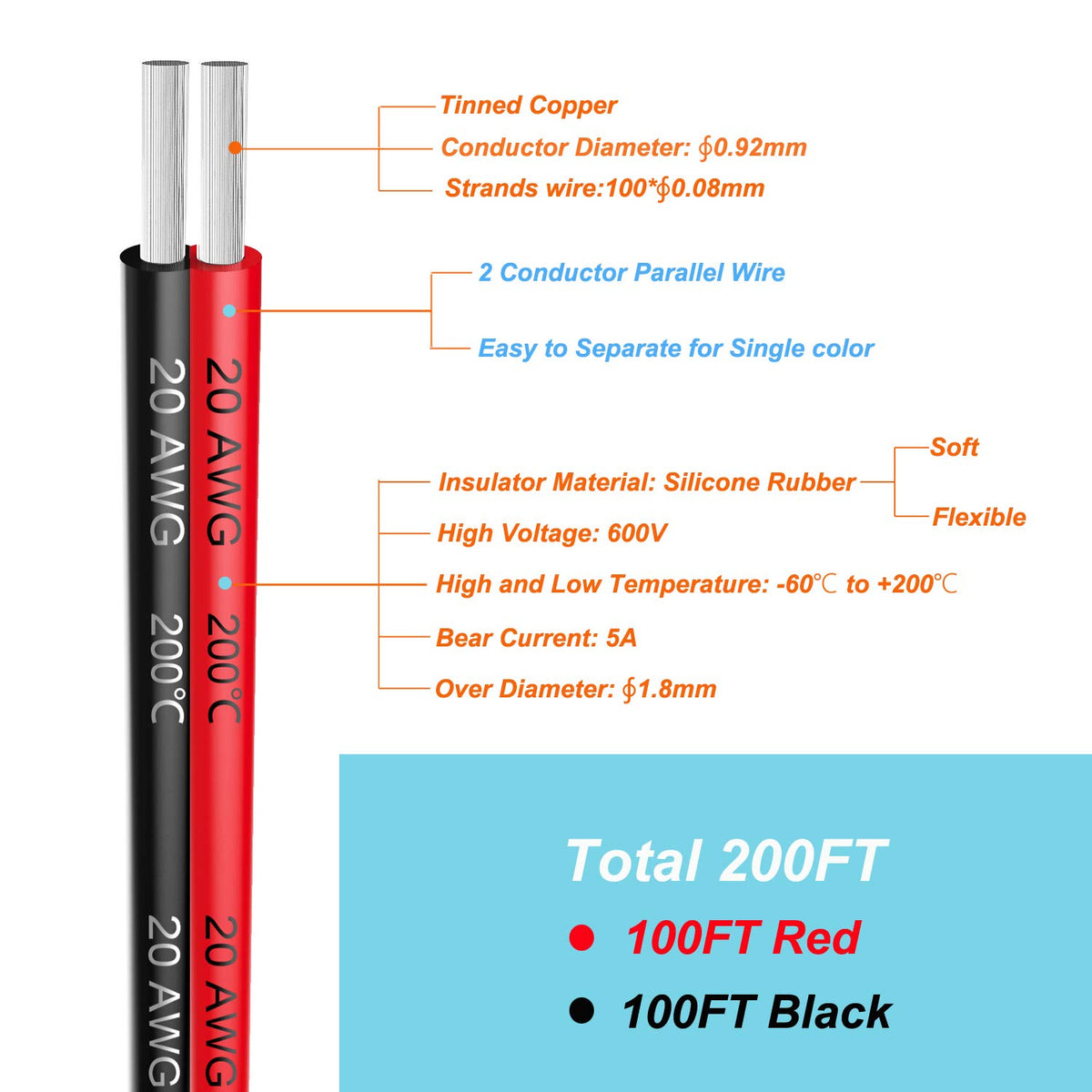

Inside each conductor, there are 100 strands of 0.08 mm tinned copper, delivering a robust yet supple feel that supports easy bending and reliable contact in tight spaces.

Key Specifications

• Two-conductor parallel design totaling 200 ft; black and red each run 100 ft for simple polarity pairing.
• 20 AWG silicone insulated wire with 100 strands of 0.08 mm tinned copper for flexibility and low impedance connections.
• Silicone insulation provides broad temperature tolerance from -60 C to 200 C, supporting diverse environments.
• Nominal voltage rated at 600 V and a continuous current capacity up to 5 A.
• Conductor material is high-purity oxygen-free tinned copper for dependable conductivity.

Physical Details

• Jacket thickness around 0.55 mm and overall diameter near 1.8 mm for sturdy routing.
• Conductor diameter approximately 0.92 mm, with a ±0.1 mm tolerance for consistent sizing.

Versatile Applications

Haerkn silicone wire is well suited to electronics prototyping, hobbyist builds, and space-conscious installations where flexible routing matters. Color-coded leads help keep projects neat and readable.

• Electronics projects and hobbyist prototypes that require easy bendability and reliable contacts.
• Automotive, RC hobby, or small appliance wiring in controlled environments where temperature may vary.

Note: This description highlights practical characteristics and typical use cases based on the product specifications. Always follow safety guidelines and verify compatibility with your design.
