Haerkn 16 AWG Silicone Wire – 60 ft Parallel 2-Conductor (Black/Red), 600V, -60°C to 200°C

Overview

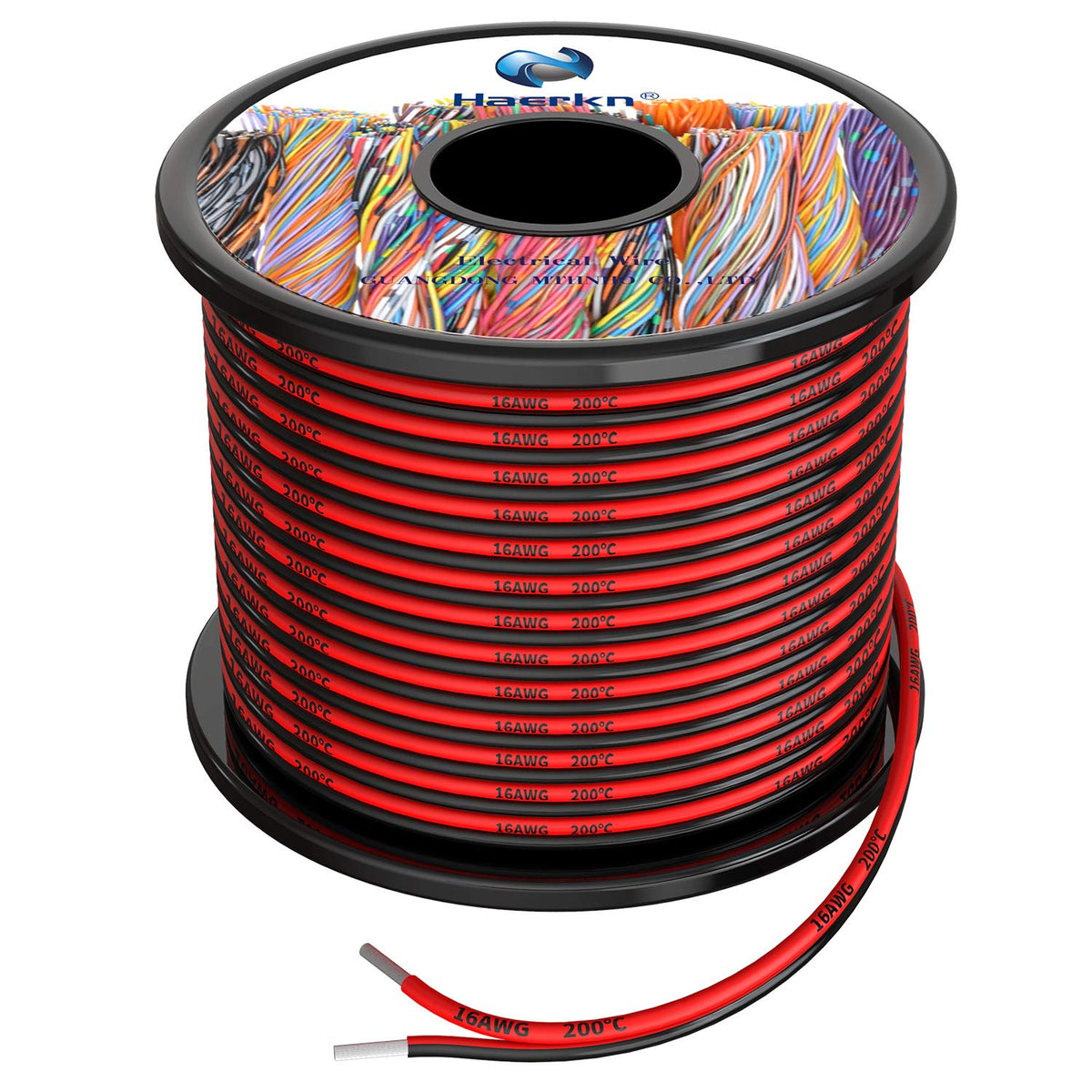

Haerkn 16 AWG Silicone Wire is a two-conductor parallel lead engineered for flexibility and reliability in tight spaces. The package totals 60 feet, split into two 30-foot runs: black and red. This color-coded setup helps keep circuits organized and simplifies testing and wiring in compact enclosures.

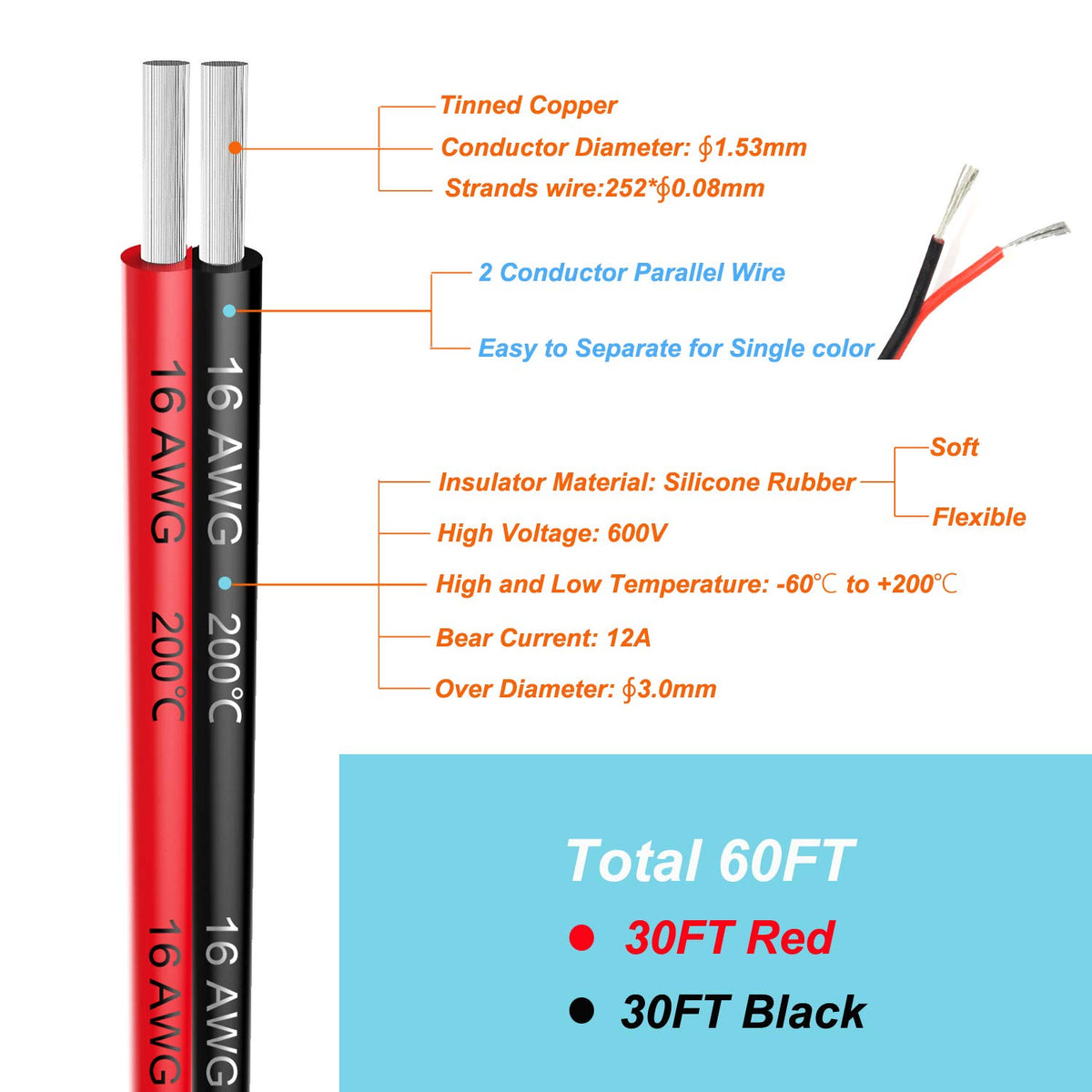

The core uses high-purity, oxygen-free tin-plated copper, organized into 252 fine strands of 0.08 mm. This arrangement supports a supple feel and lower impedance for clean, efficient connections over short runs. The silicone insulation offers a resilient, flexible jacket that remains pliable across a broad temperature spectrum. The outer jacket measures 0.8 mm thick, with an overall diameter of 3 mm and a tolerance of ±0.1 mm, allowing it to fit neatly in common ports and assemblies.

Key Benefits and Build Quality

The combination of materials and construction aims to deliver dependable performance in everyday projects and more demanding environments without unnecessary bulk. Silicone insulation helps protect conductors from thermal stress, while tin-plated copper resists corrosion and maintains solid contact reliability. The color-coded black and red leads aid in rapid identification, which can speed up assembly and debugging during hobby work, field tests, or controlled experiments.

• Total length: 60 feet across two 30-foot leads
• 16 AWG silicone wire with 252 strands of 0.08 mm copper for flexible, low-impedance connections
• Wide operating temperature range from -60 to 200 degrees Celsius
• Nominal voltage 600V and current bearing up to 12A
• Oxygen-free tin-plated copper and silicone insulation for durability and reliability

Electrical ratings are provided to guide usage in test rigs and consumer electronics projects. A tested voltage level of 2000V supports insulation verification in light-duty setups, while the color-coding helps ensure correct polarity and safe routing in complex assemblies.

Practical Uses and Applications

This wire is well suited for electronics projects, portable equipment wiring, motor or control wiring in compact panels, and temporary power leads in lab or workshop environments. The two-conductor parallel design, combined with the flexible silicone jacket and robust copper core, makes it a versatile option for quick connections, prototyping, and on-site testing where space is at a premium.

Care, Handling, and Tips

Store in a dry place and avoid kinking or crushing the conductors to preserve insulation integrity. When stripping, use proper tooling to prevent nicking the copper strands, and keep the colored leads organized to maintain polarity clarity during assembly and testing.
