GQGP Metal Concealed Hinge Jig — 35MM Cabinet Hinge Drill Locator with Quick Clamp

Overview

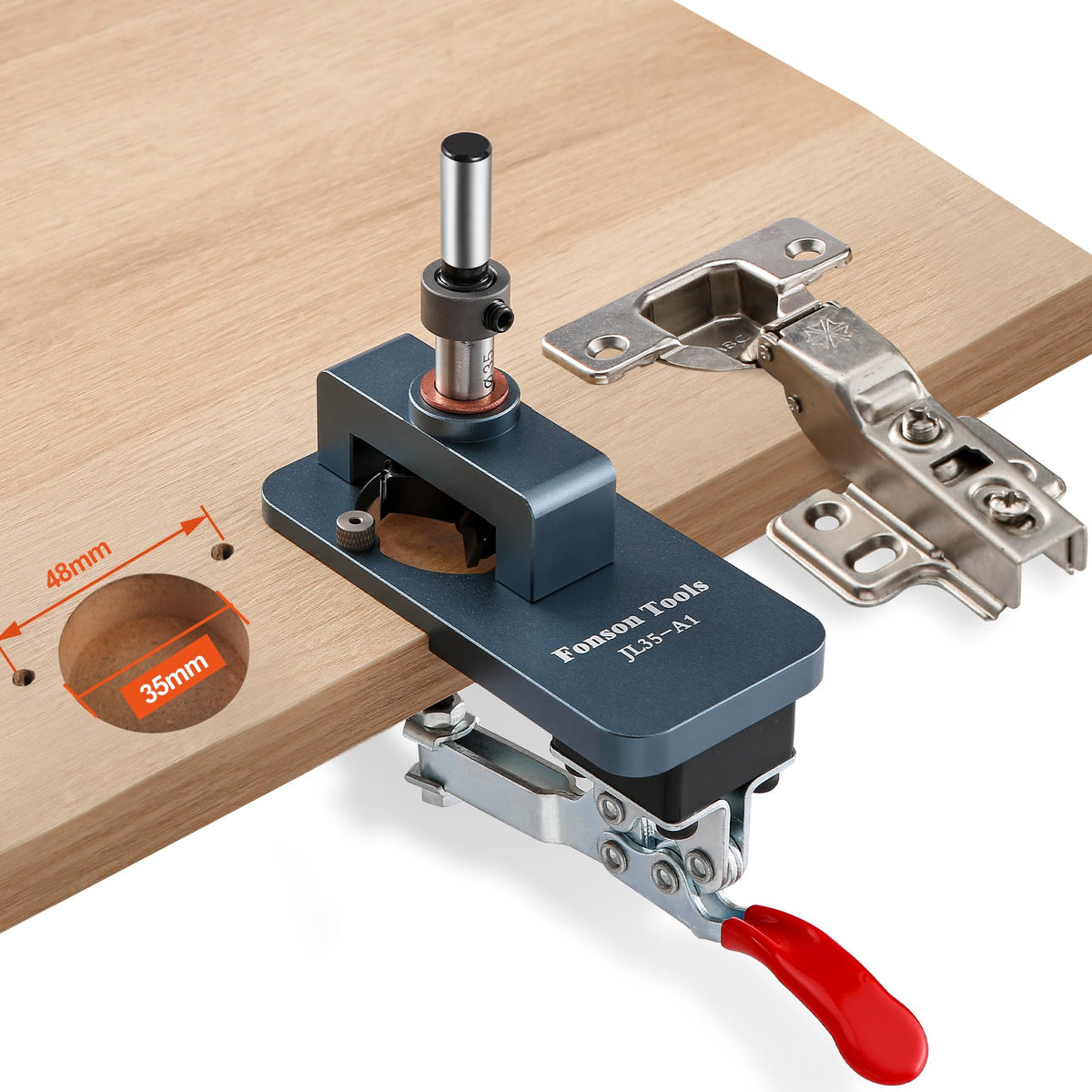

The GQGP Metal Concealed Hinge Jig is a durable, all-metal woodworking companion designed to make cabinet hinge installation more precise and efficient. Crafted from high-quality aluminum alloy, the jig features a flat, stable base and built-in double bearings. This combination minimizes lateral shake and helps you drill hinge holes with consistent accuracy, even after repeated use. Whether you are mounting kitchen cabinet hinges, closets, or doors, this tool aims to streamline setup and improve results without relying on a drill press.

Why this jig stands out

• Rigid, precise construction: all-metal design yields a flat bottom and durable performance that stays accurate over time.

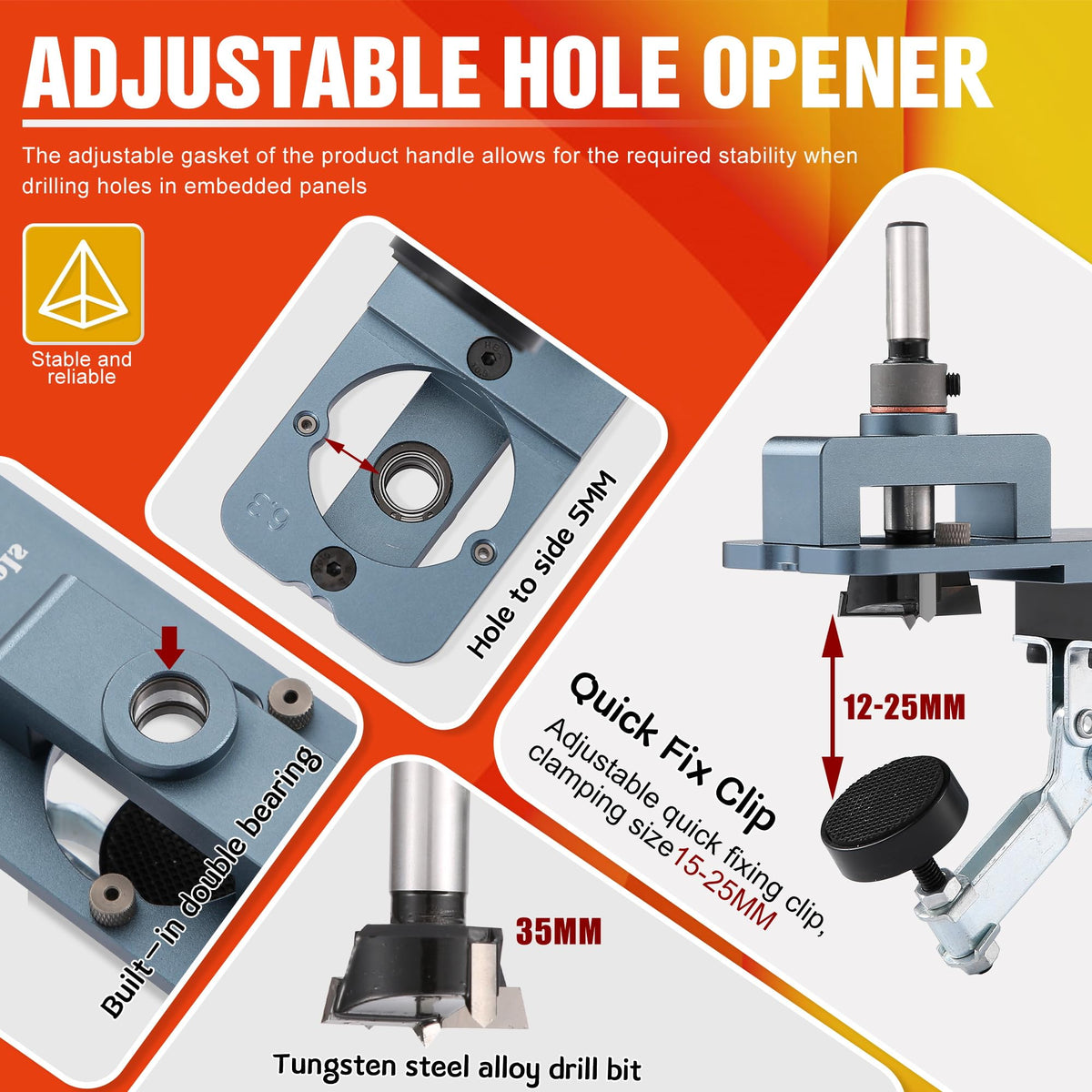

• Stability in drilling: double bearings reduce lateral movement for steadier hole punching and repeatable results.

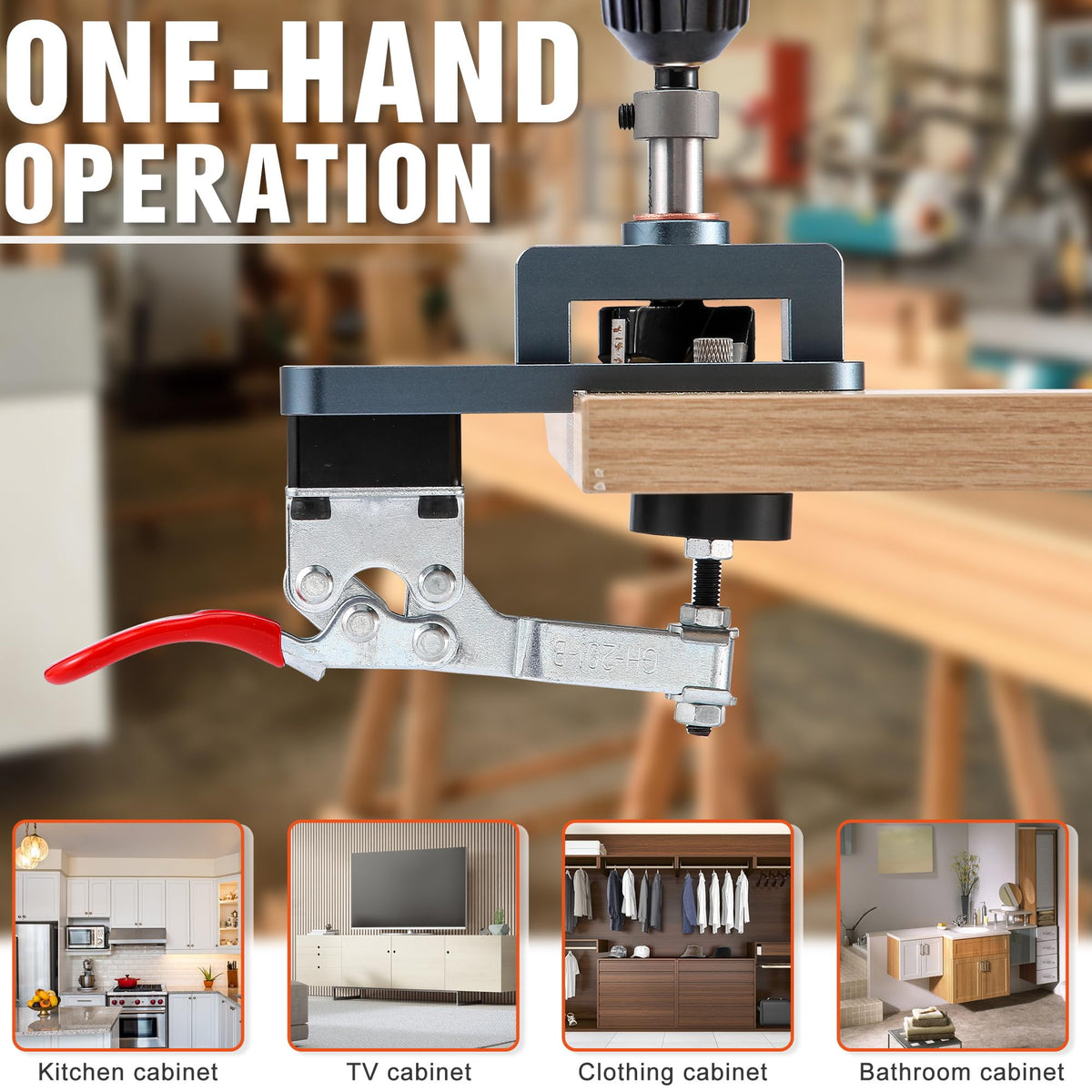

• Fast, repeatable positioning: quick-depth setting and a locking clip let you move, clamp, and drill to mark quickly.
• Wide compatibility: suited for boards in the 12–25 mm range and a 35 mm hinge hole with 5 mm edge distance, making it suitable for common cabinet and door hinges.

What you get and how it adapts to your project

• Includes essential hardware: 35 mm hole saw, 2 mm drill bit, two small wrenches, hex tool, screw, and limit ring—everything needed to get started.
• Fits most drills: designed to work with any standard electric drill, enabling easy setup on-site or in a workshop.
• Wide application: ideal for kitchen, cabinet, closet, and door hinge punching and positioning tasks.

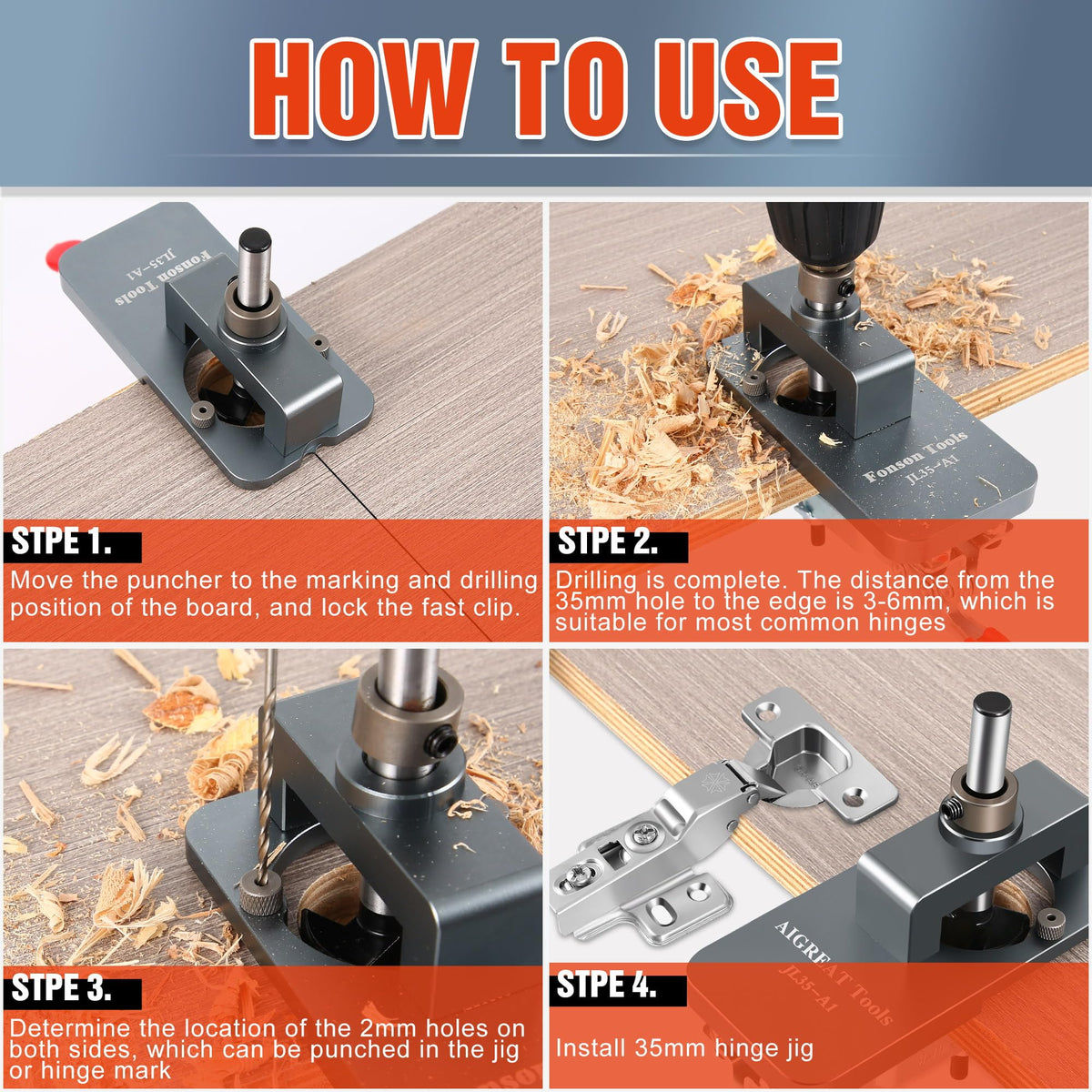

How to use (quick guide)

1. Adjust the drilling depth on the limit ring to typically 12–13 mm for your board thickness.

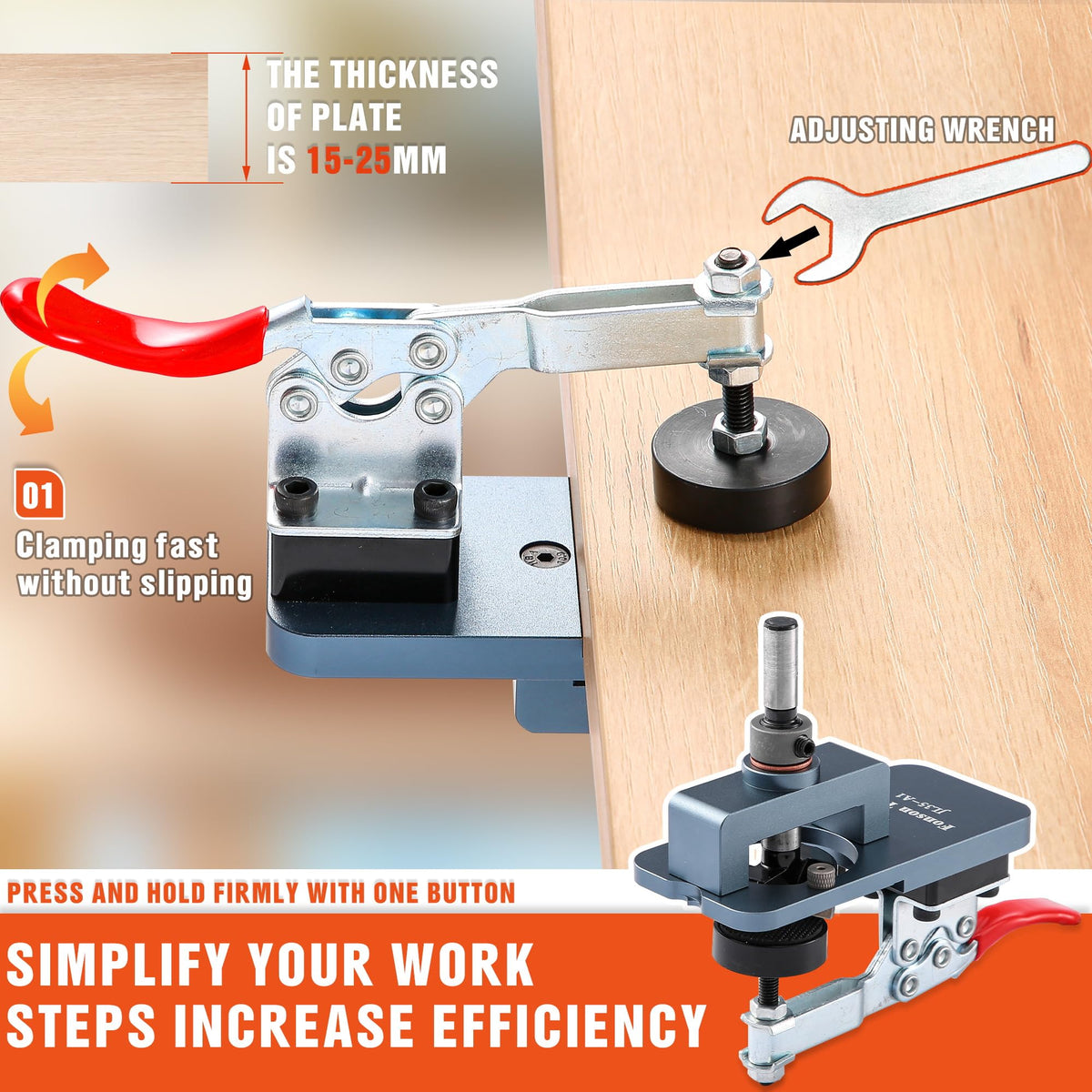

2. Set the clamp size to match your board thickness and width.
3. Clamp the locator plate securely and align with the hinge mark.

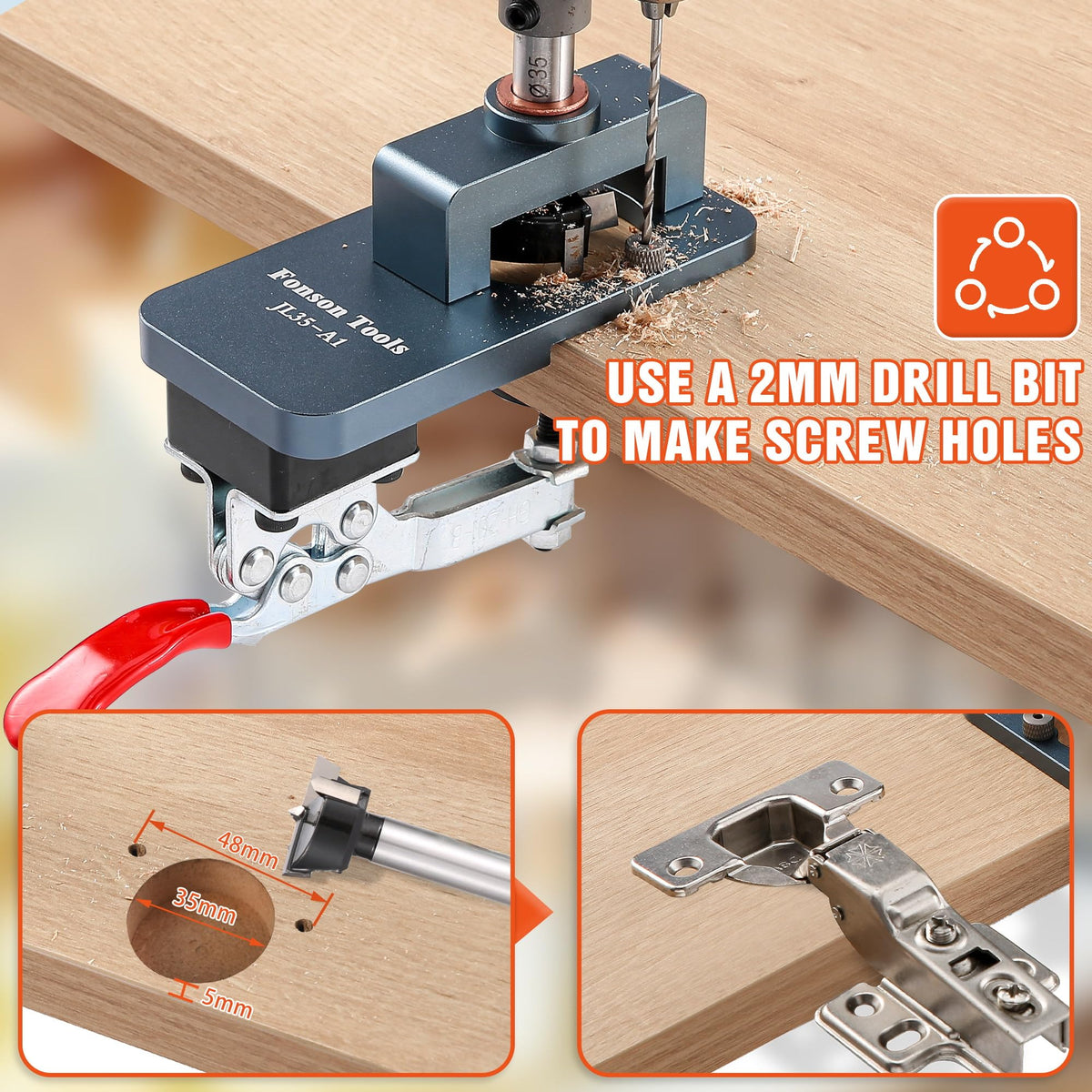

4. Drill the 35 mm hole and the left/right 2 mm pilot holes.
5. Mount the hinge and check alignment; repeat for additional hinges as needed.

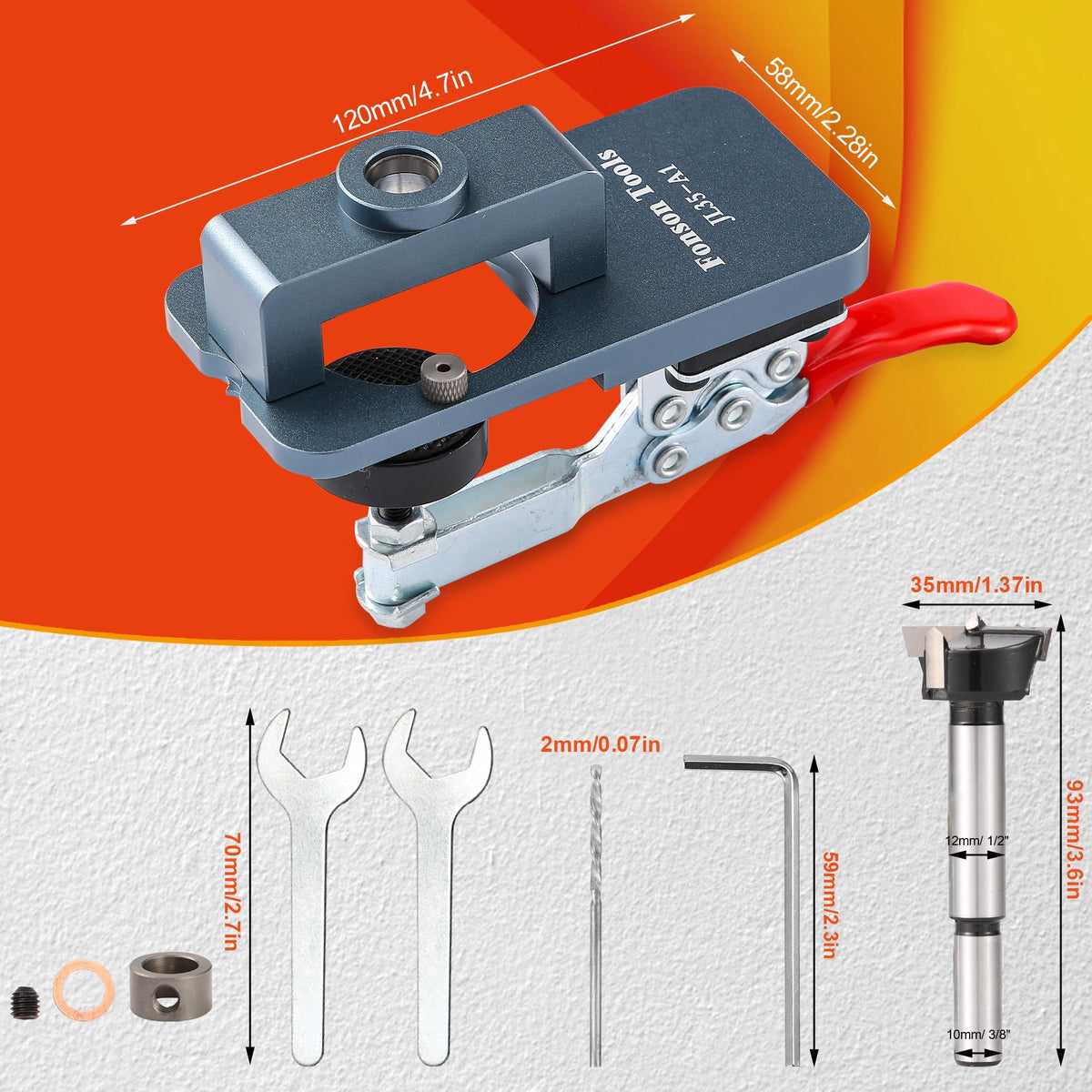

What’s included

• 1 x hinge drilling locator body
• 1 x 35 mm drill bit
• 1 x 2 mm drill bit
• 2 x small wrenches
• 1 x hexagonal tool
• 1 x screw
• 1 x limit ring

The GQGP hinge jig is a practical addition for hands-on woodworkers who value consistent results and smoother workflows. It presents a realistic set of capabilities for common hinge projects, offering a blend of sturdiness, ease of use, and broad compatibility without promising specific outcomes.
