GoingMake Metal Concealed Hinge Jig with Quick Clamp & Dust Vacuum Adapter – 35mm Cabinet Hinge Drilling Jig

Overview

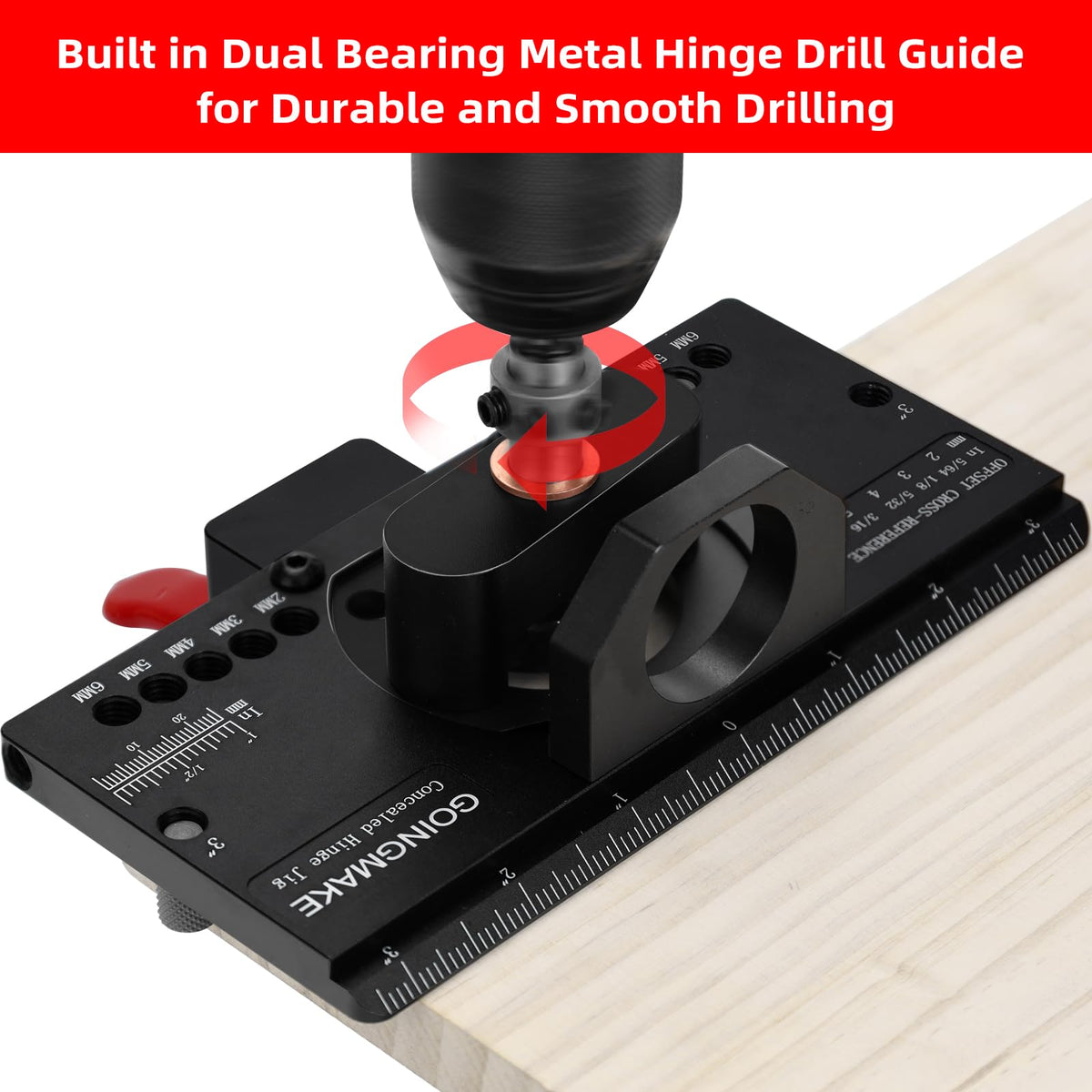

The GOINGMAKE Metal Concealed Hinge Jig is crafted for dedicated woodworkers and cabinetry pros who value precision and clean workspaces. Built from high-quality aluminum alloy, this all-metal jig delivers durability and reliable accuracy for mounting cabinet hinges. Its design borrows drill-press ergonomics with built-in double bearings, supporting continuous hinge hole drilling and smooth operation. The 35mm carbide-tipped bit remains sharp through repeated use, delivering clean entry points and dependable alignment as you work.

Key advantages

• Durable all-metal construction provides long-lasting reliability in busy shop environments
• Built-in double bearings offer smooth, consistent drilling for straight holes
• 35mm carbide-tipped bit delivers crisp, precise holes for concealed hinges
• Inline drilling feel similar to a drill press for familiar, confident operation

Dust-free drilling for a cleaner shop

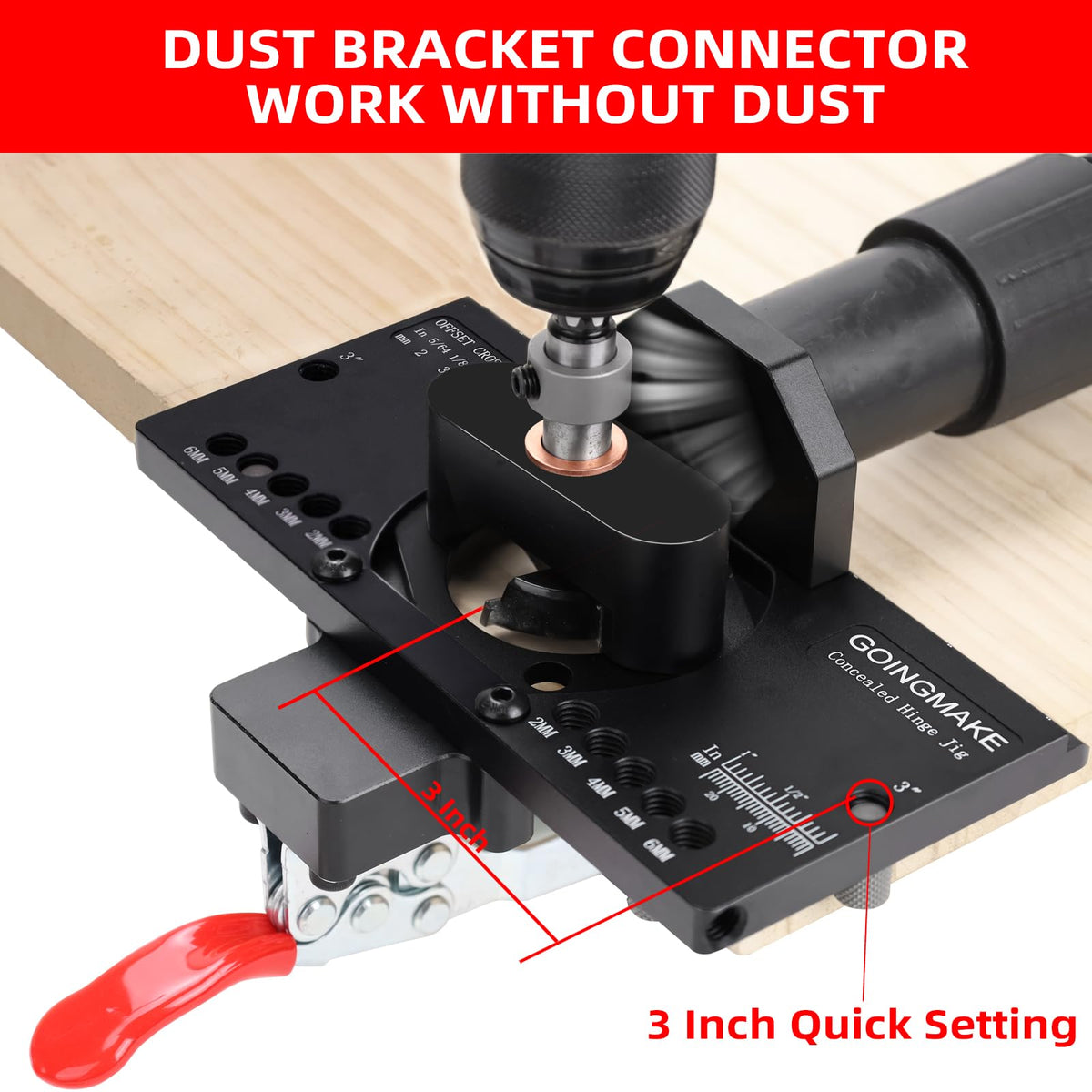

• Integrated metal dust bracket supports 1-3/8 inch vacuum hoses for easy attachment
• Dust vacuum adapter enables near-dust-free hinge drilling, boosting workflow efficiency
• Designed to help keep work surfaces cleaner and reduce post-install cleanup

Depth control and versatility

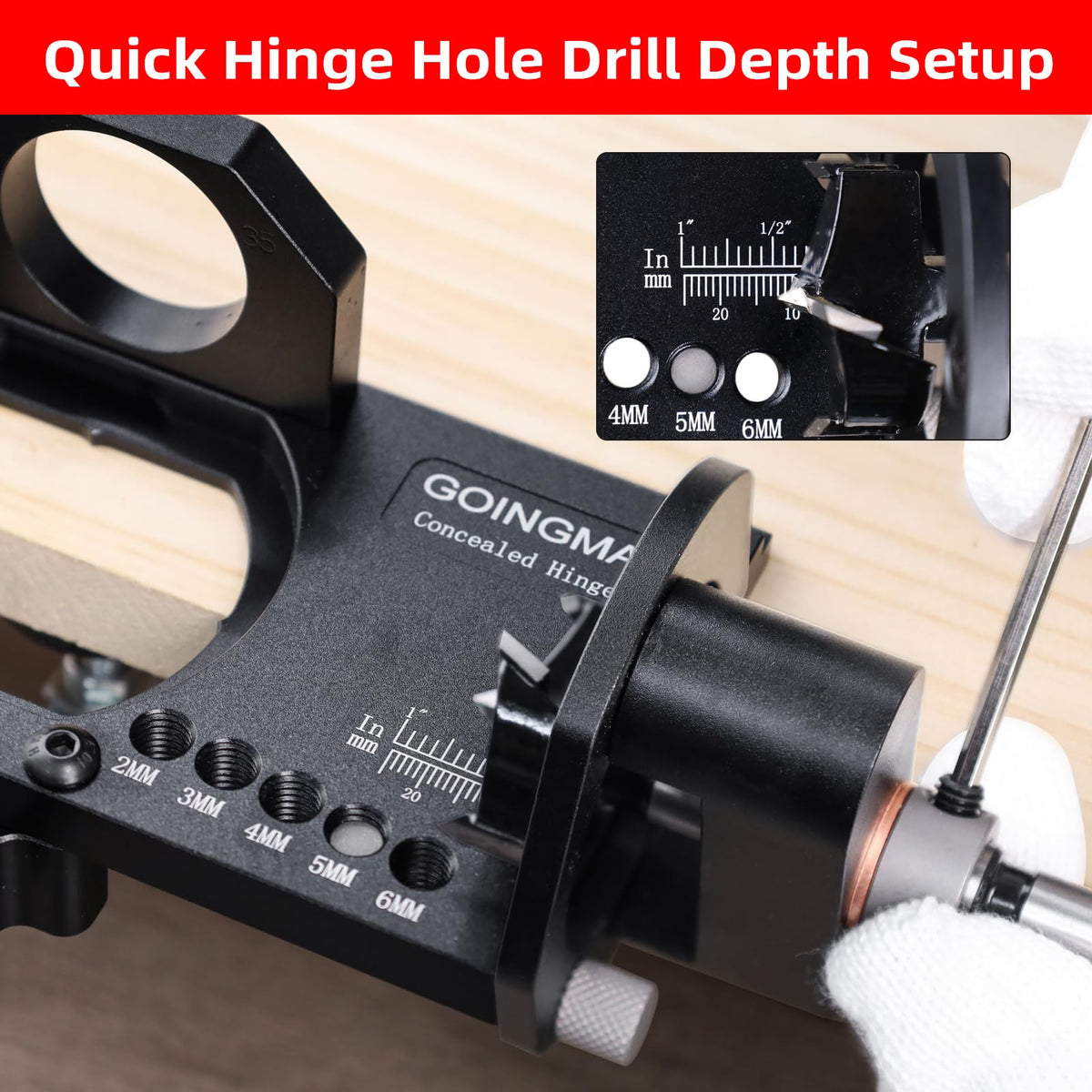

• Depth setting ranges from 0 to 0.6 inch, enabling precise recess or overlay hinge installations
• No separate measuring required for depth adjustments, saving setup time
• Compatible with 1/2 inch overlay hinges and other common configurations

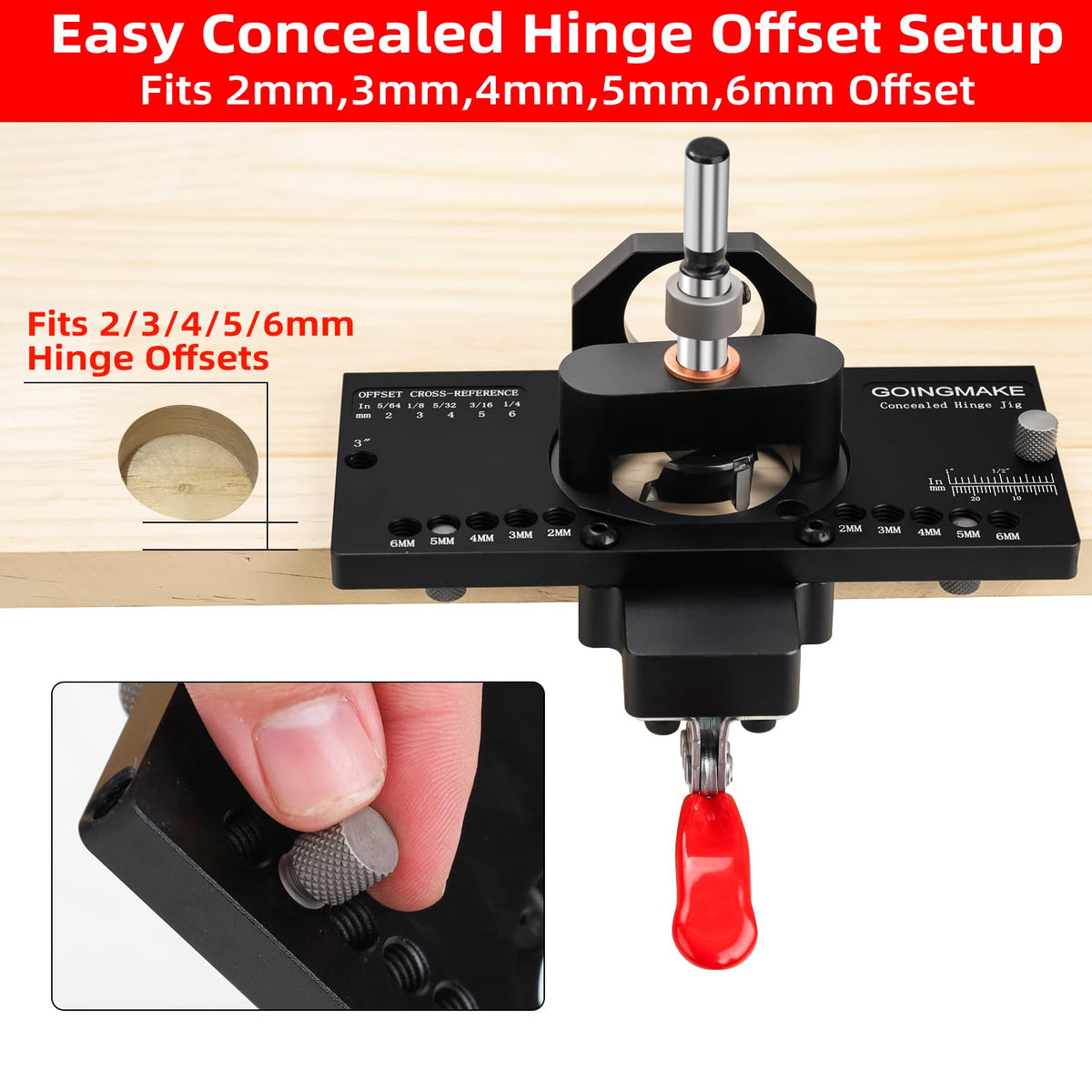

• Supports hinge offsets from 2 mm to 6 mm, covering most concealed hinge types

Drill guides and quick clamp for fast setup

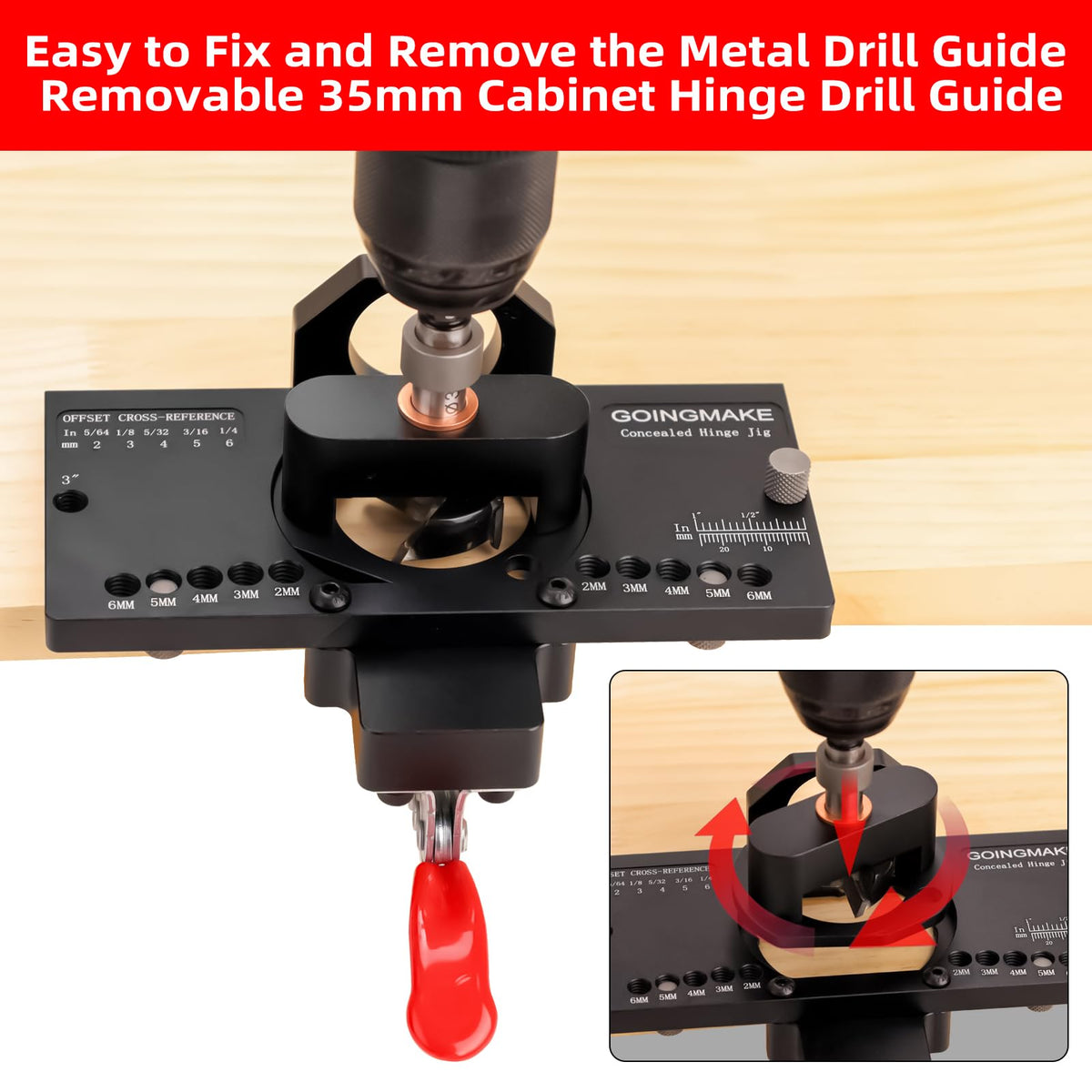

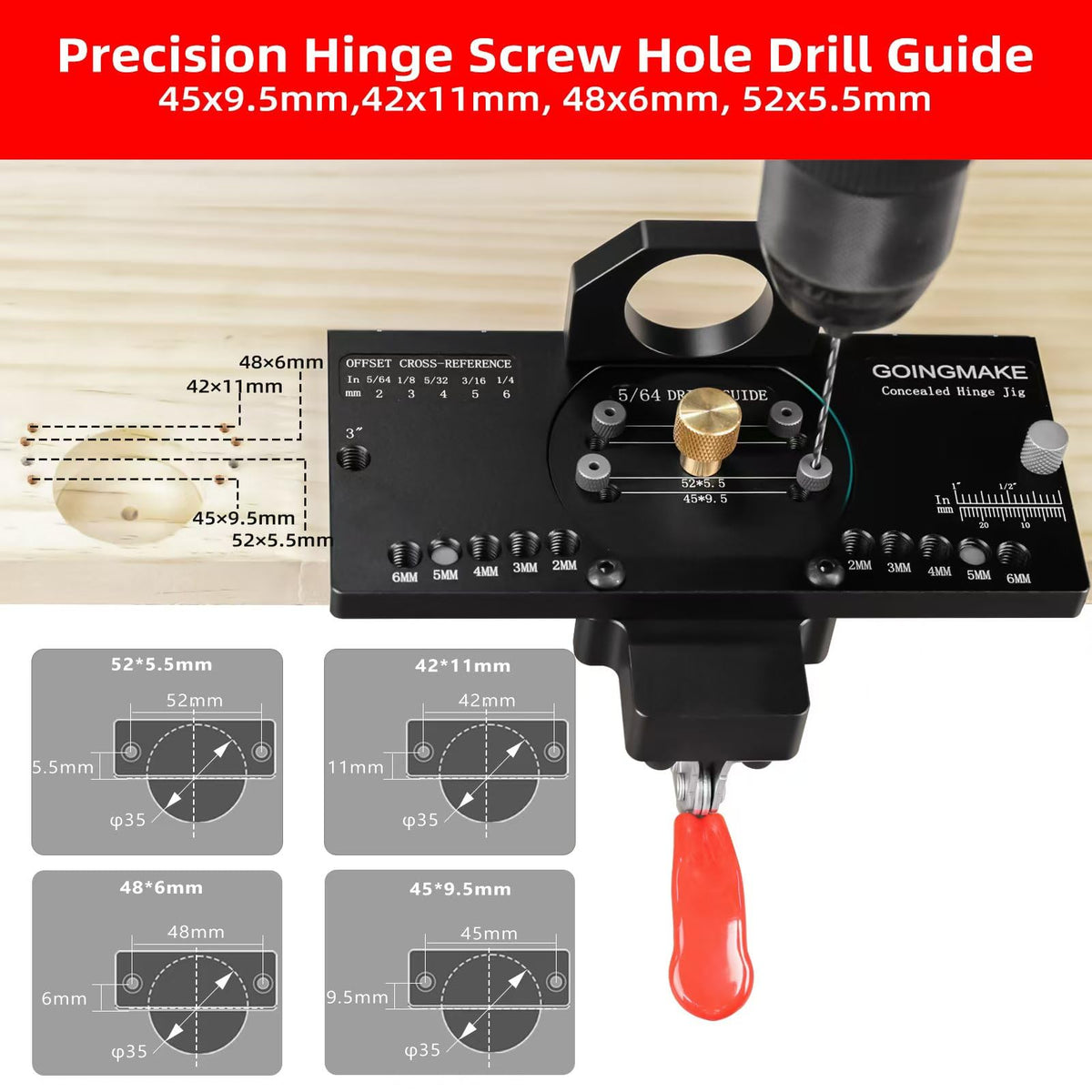

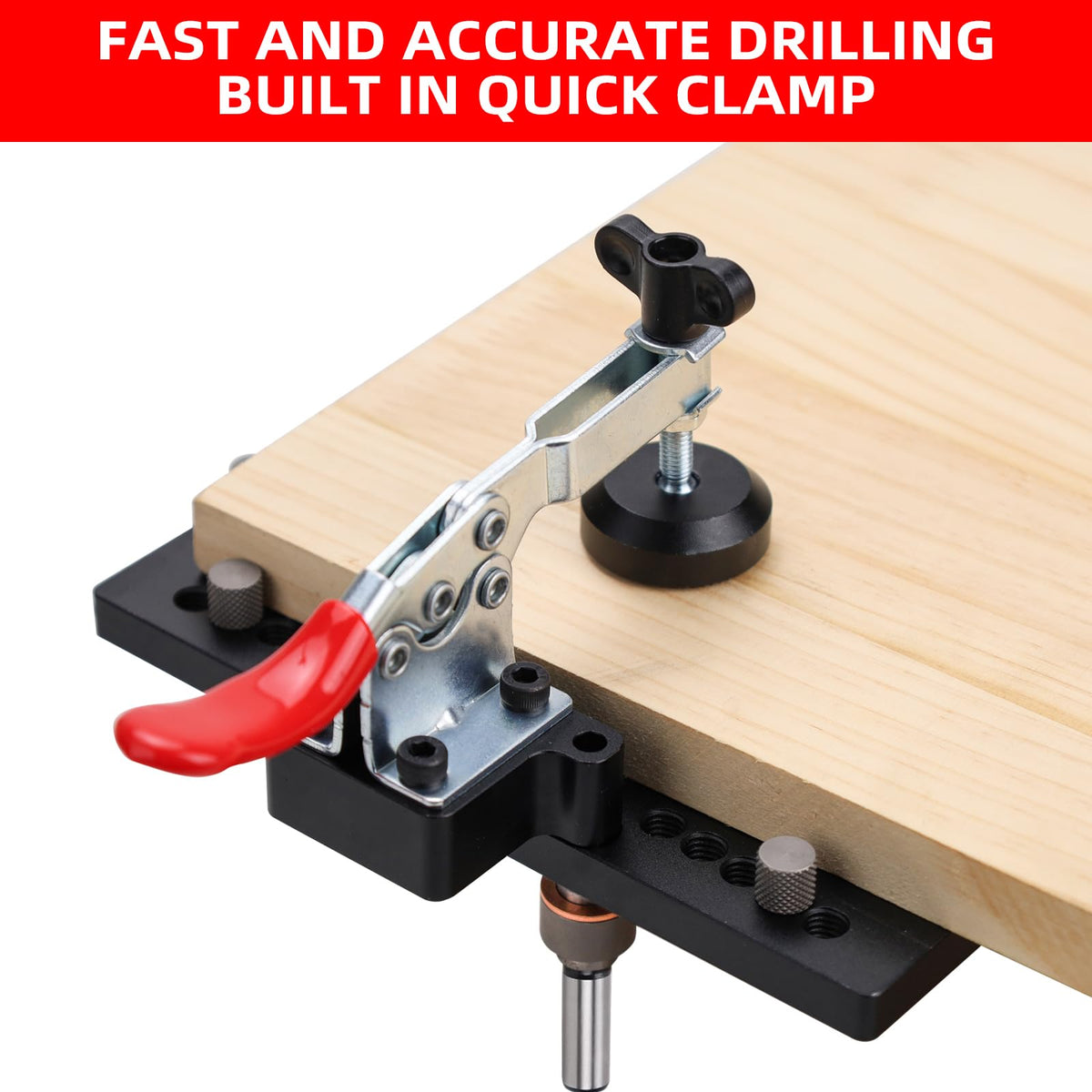

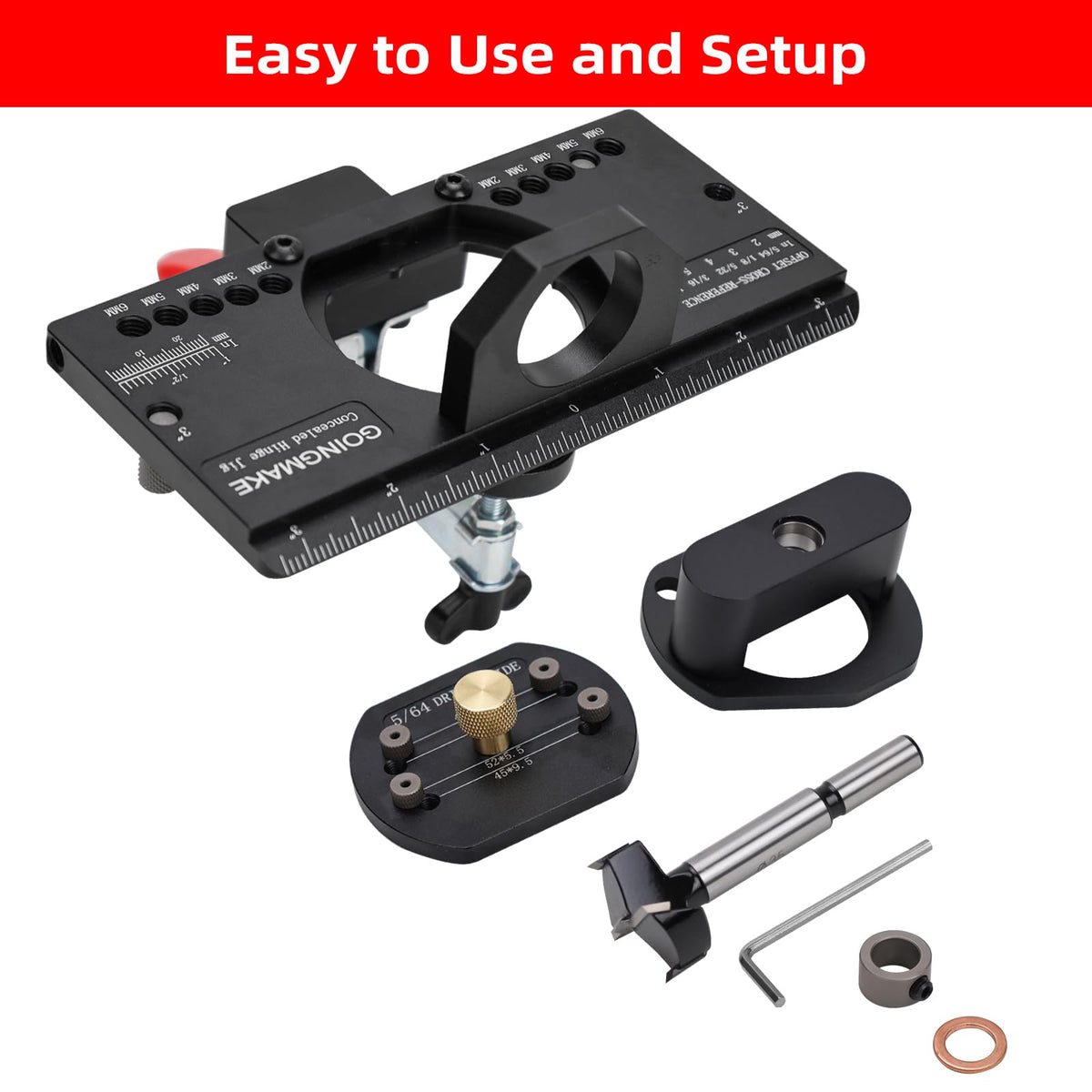

The jig includes 5/64 inch drill guides and multiple screw-hole spacings (42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm) to fit a variety of hidden hinge models. A quick clamp design lets you secure the jig to your workpiece quickly, reducing movement and increasing confidence during installation.

Practical tips for best results

For best results, clamp the jig firmly, verify your hinge type and offset, and align using the built-in guides. This combination of durable construction, dust control, and offset flexibility supports a smoother workflow in cabinet making and woodworking projects. Results may vary with technique and tool compatibility; consider this jig as a capable aid in pursuit of precise, repeatable installations.
