Gohelper Door Hinge Jig – Aluminum Mortise Template for 2.5-5 Inch Hinges (1/4 Inch / 5/8 Inch Radius) Lock Kit

Meet the Gohelper Door Hinge Jig, a complete door hardware solution designed to help you create precise hinge mortises, drill accurate lock holes, and align latches with confidence. Built for both DIY enthusiasts and professionals, this kit streamlines installations while delivering clean, professional results that feel dependable and straightforward.

Durable, accurate construction you can trust

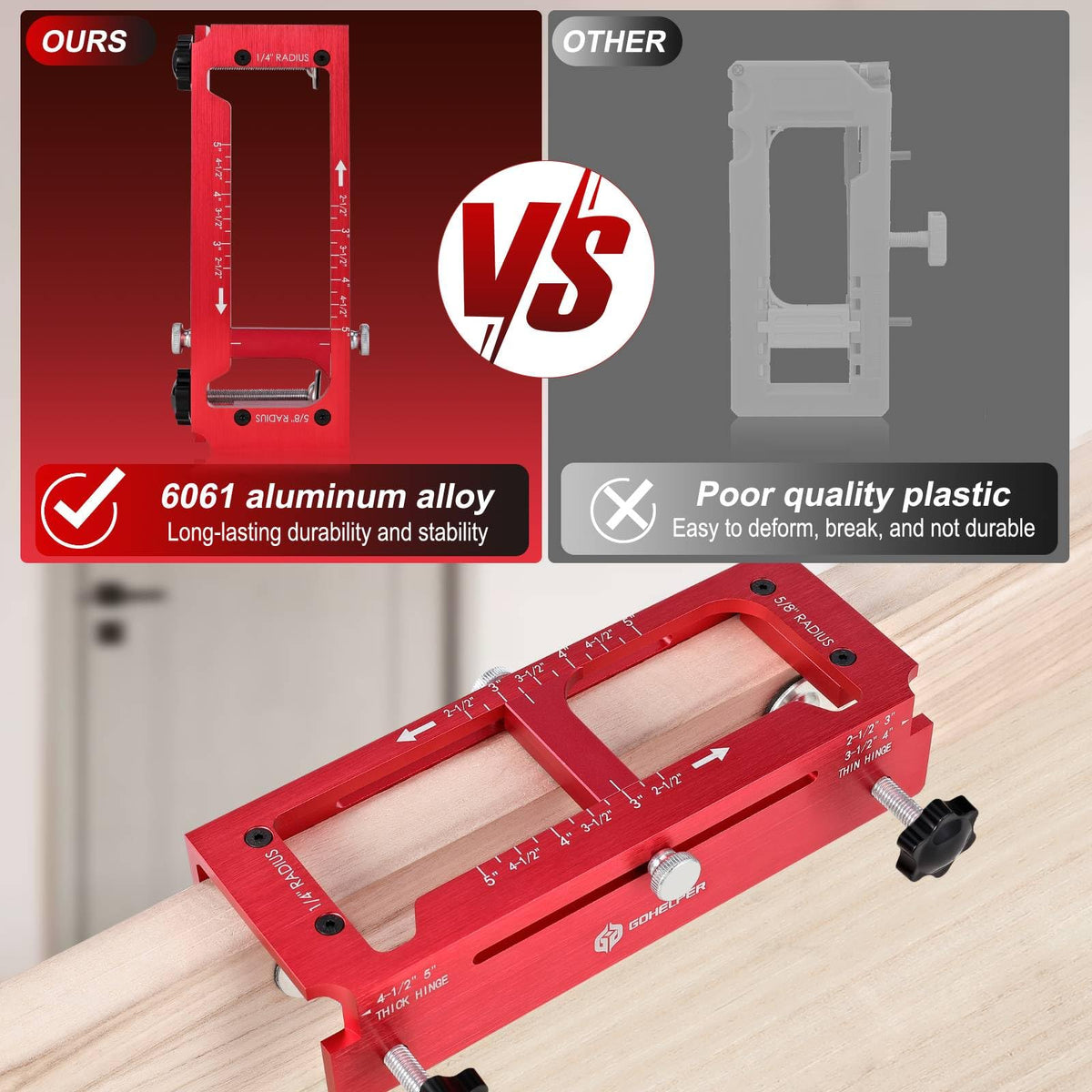

The jig is crafted from tough 6061 aluminum alloy, delivering greater resistance to bending and warping than common plastic templates. This rigidity helps keep mortises square and repeatable across doors. Note: this template is intended for use on the door leaf, not the jamb.

Wide compatibility and straightforward operation

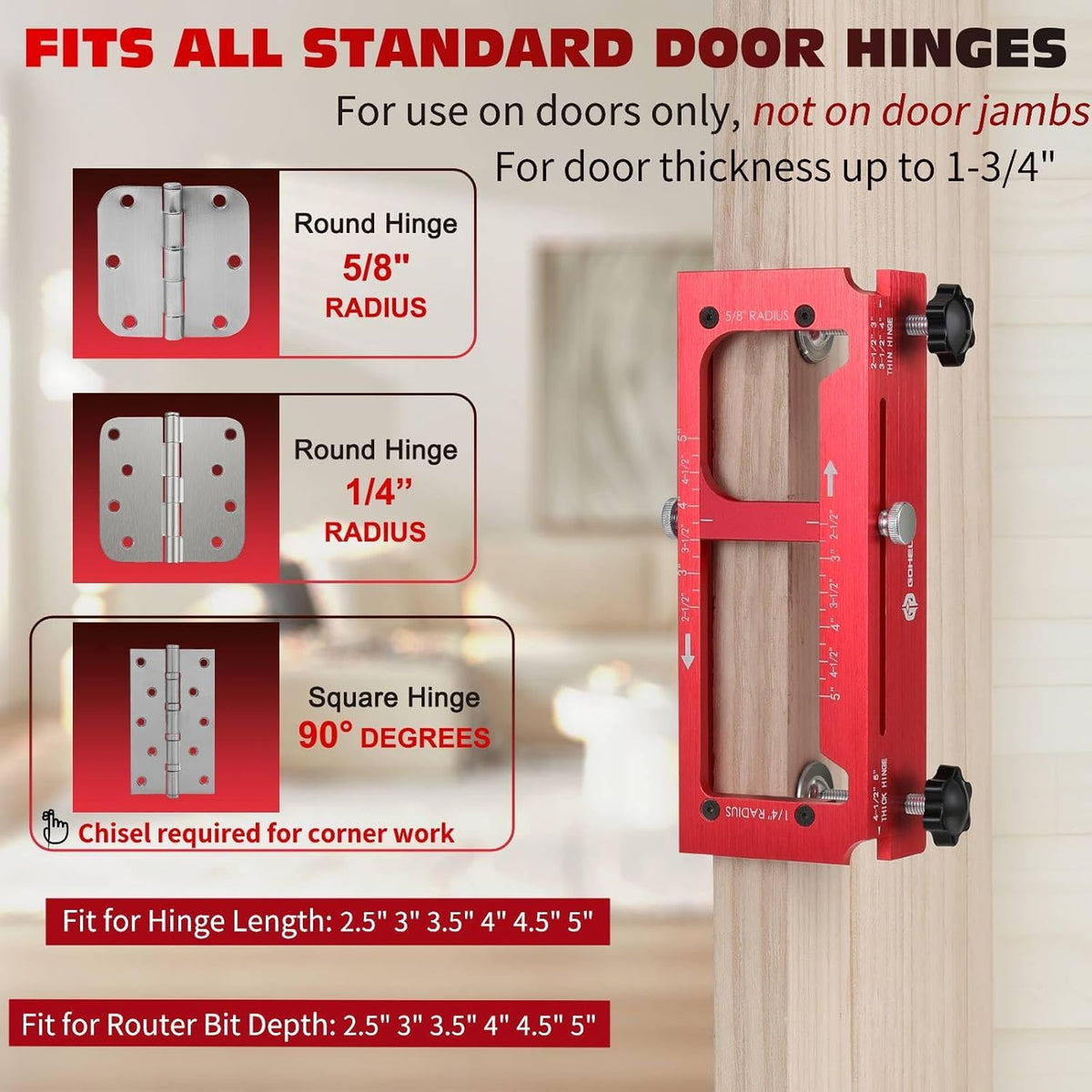

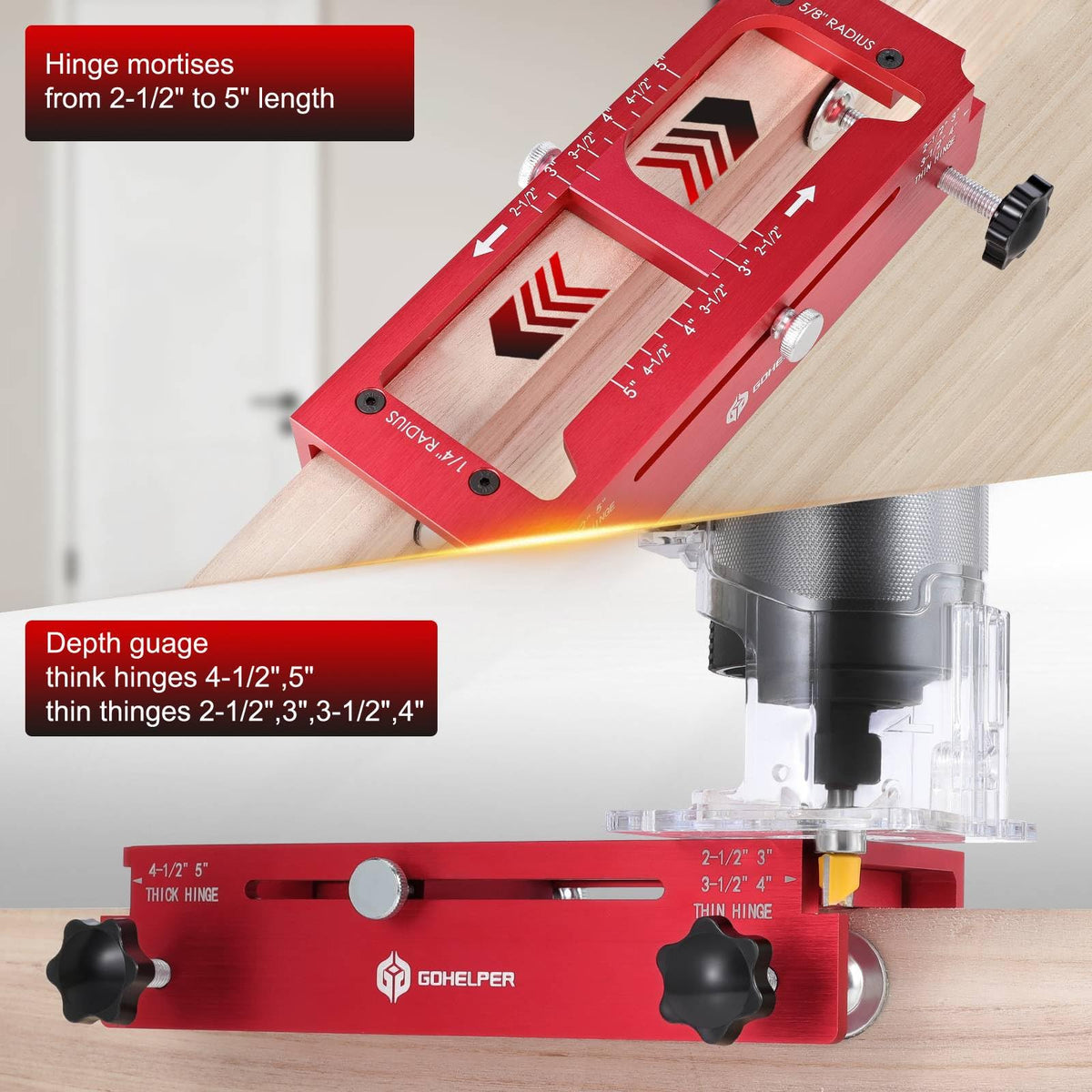

Use the hinge jig on most interior doors up to 1-3/4 inches thick. It accurately mortises hinges from 2.5 inches to 5 inches long, for both 1/4 inch and 5/8 inch radius corners. For square-corner hinges, edges can be finished with minimal chiseling. A built-in depth stop guarantees consistent depth, while self-centering bits and non-slip pads help keep the setup quick, stable, and scratch-free.

• Fits interior doors up to 1-3/4" thick
• Mortises range from 2.5" to 5" for 1/4" or 5/8" radius hinges
• Square corners finish with minimal chiseling

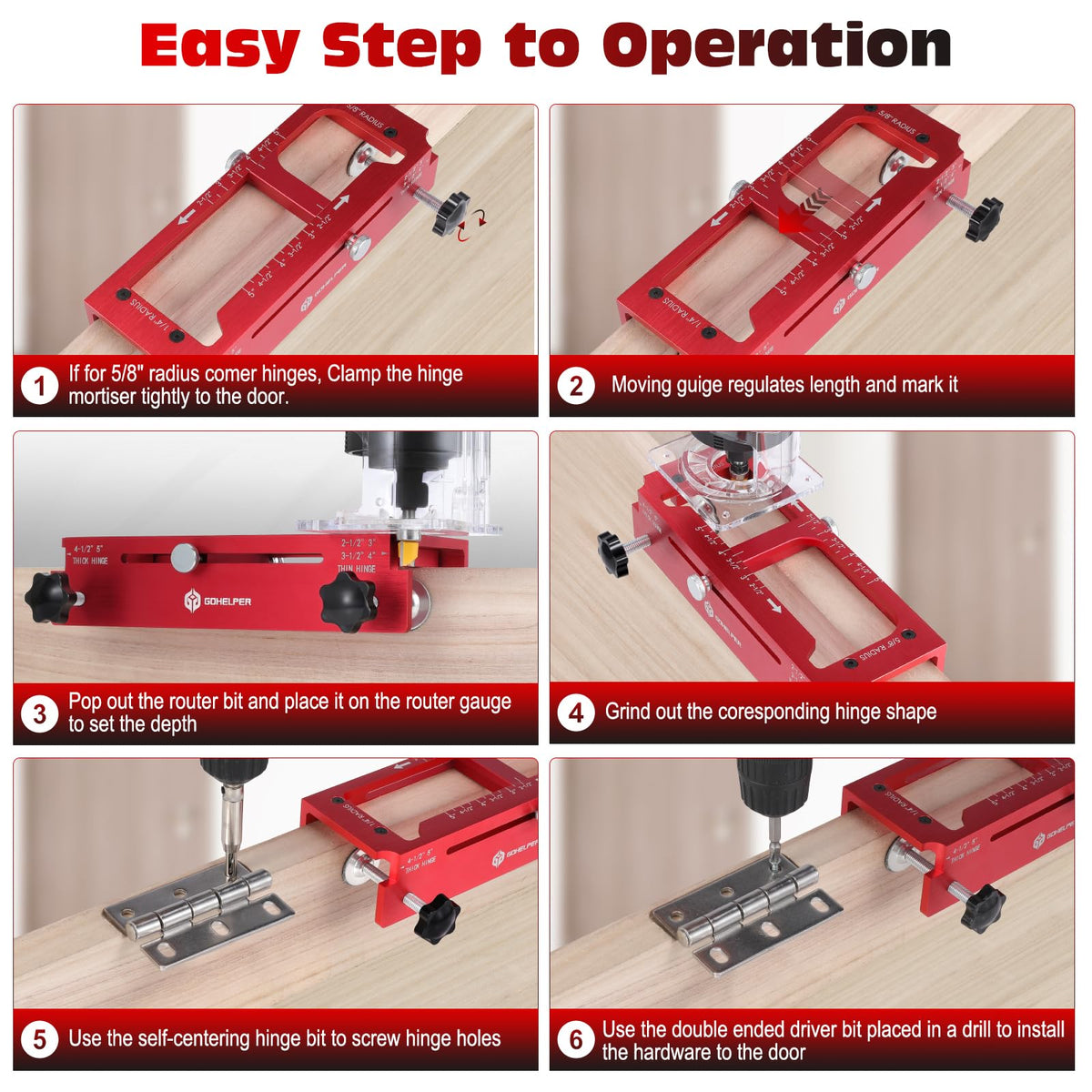

• Built-in depth stop for consistent mortise depth
• Self-centering bits and non-slip pads ensure stability

Lightweight, adjustable latch and lock support

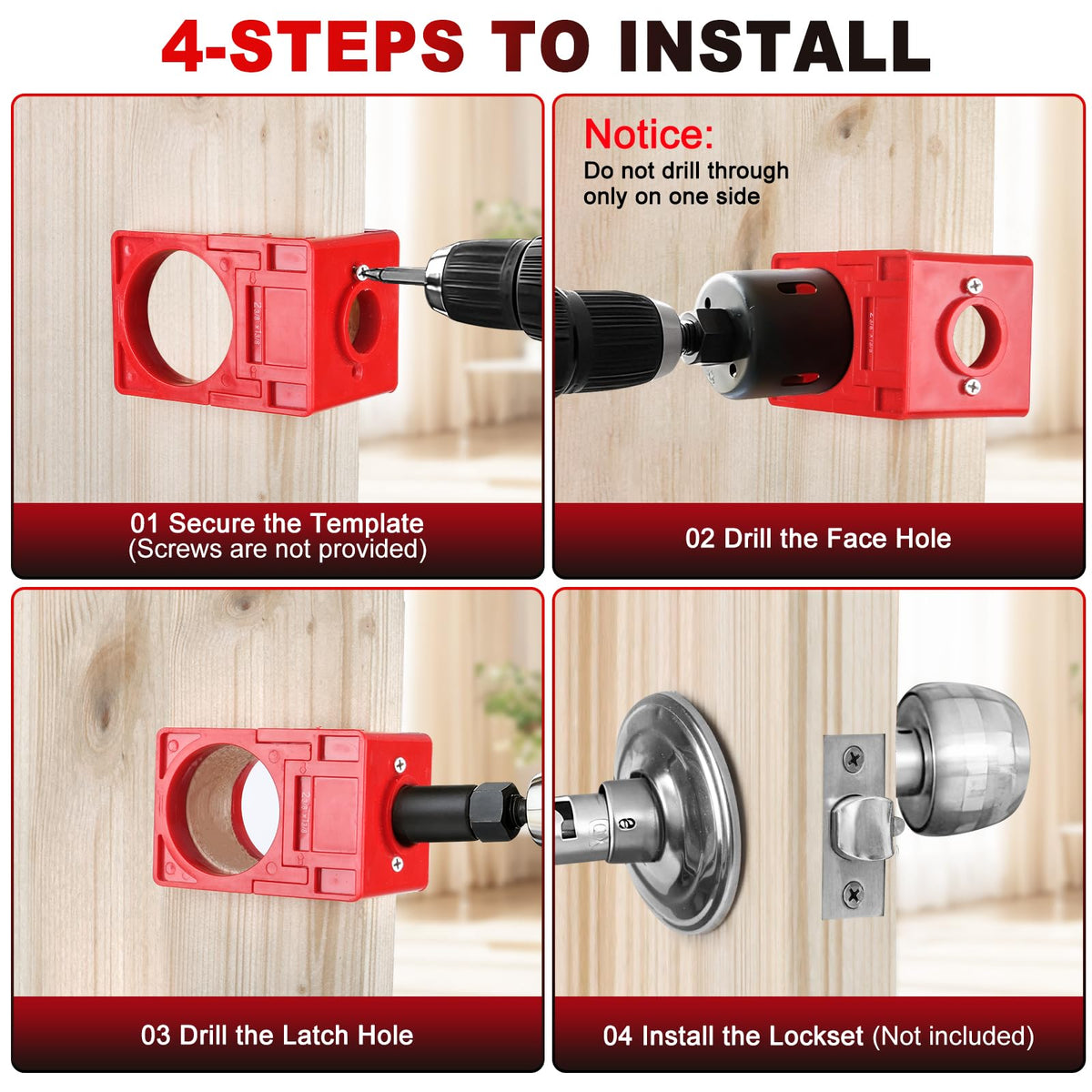

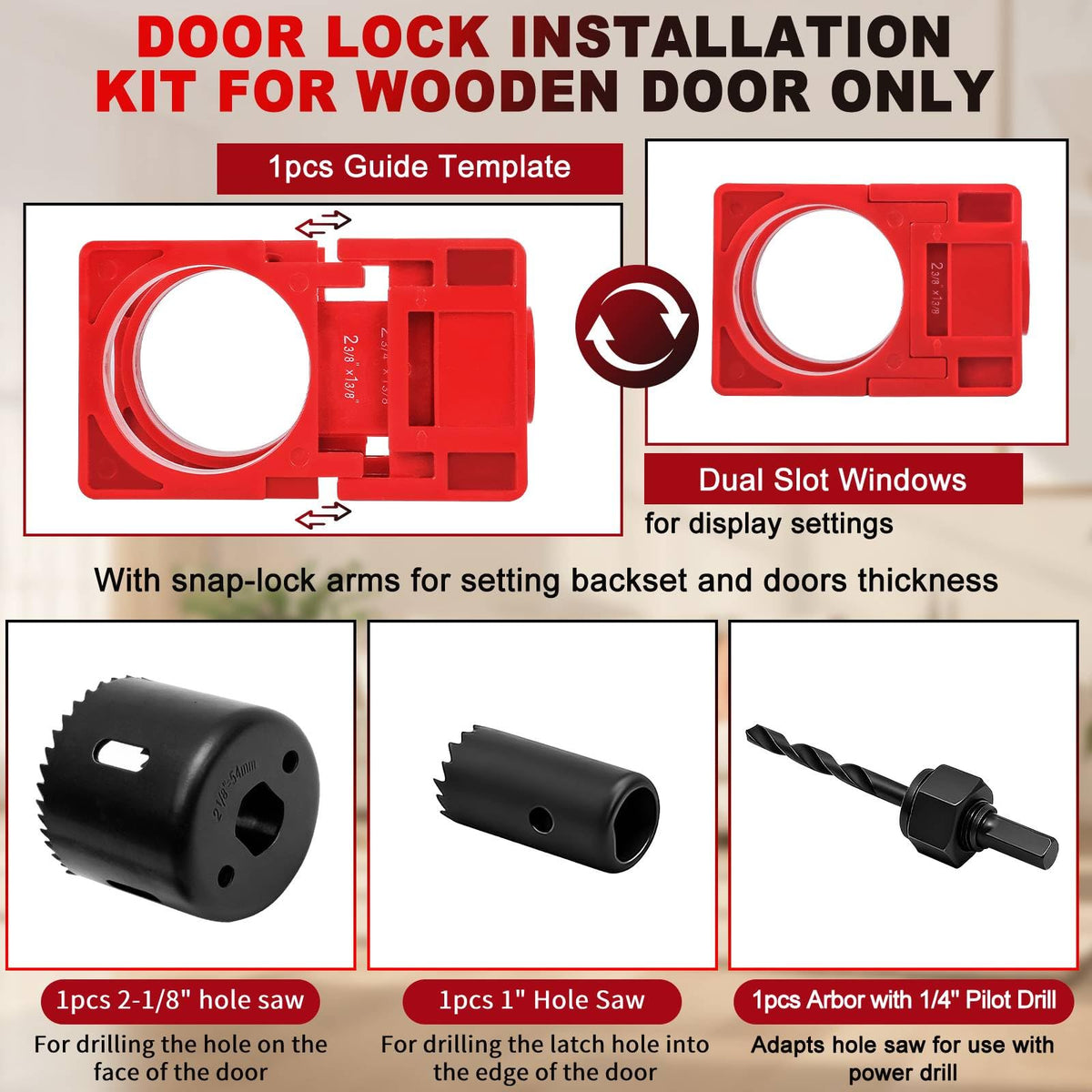

The kit includes a lightweight yet durable plastic template that adjusts to common door standards. It reliably accommodates 1-3/8" or 1-3/4" thick doors and backsets of 2-3/8" or 2-3/4", helping you set up quickly with reduced guesswork.

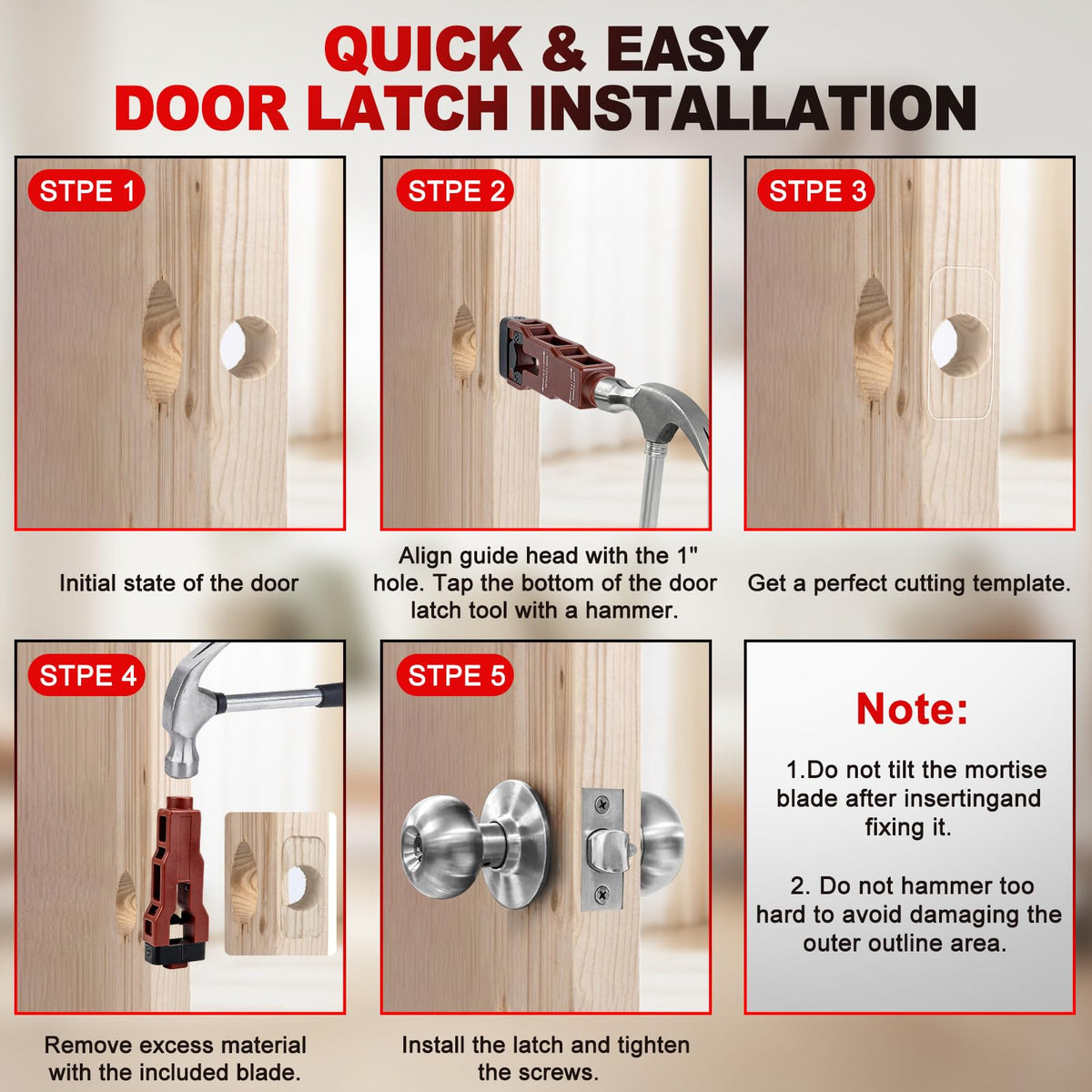

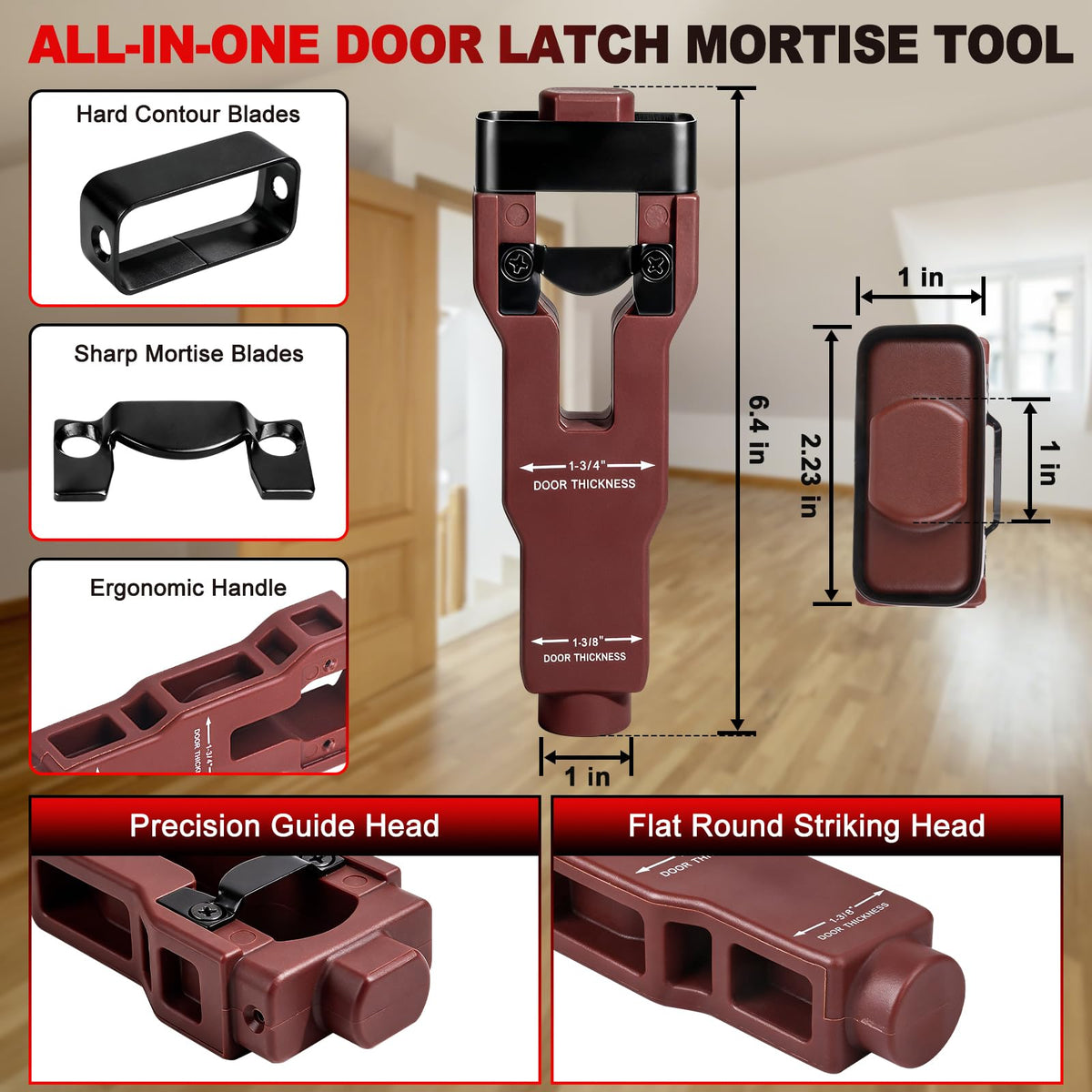

Latch mortising tool for faster cutouts

This handy tool minimizes the need for extra equipment, enabling clean, accurate lock holes and smoother latch installation on standard doors (1-3/4" or 1-3/8" thick).

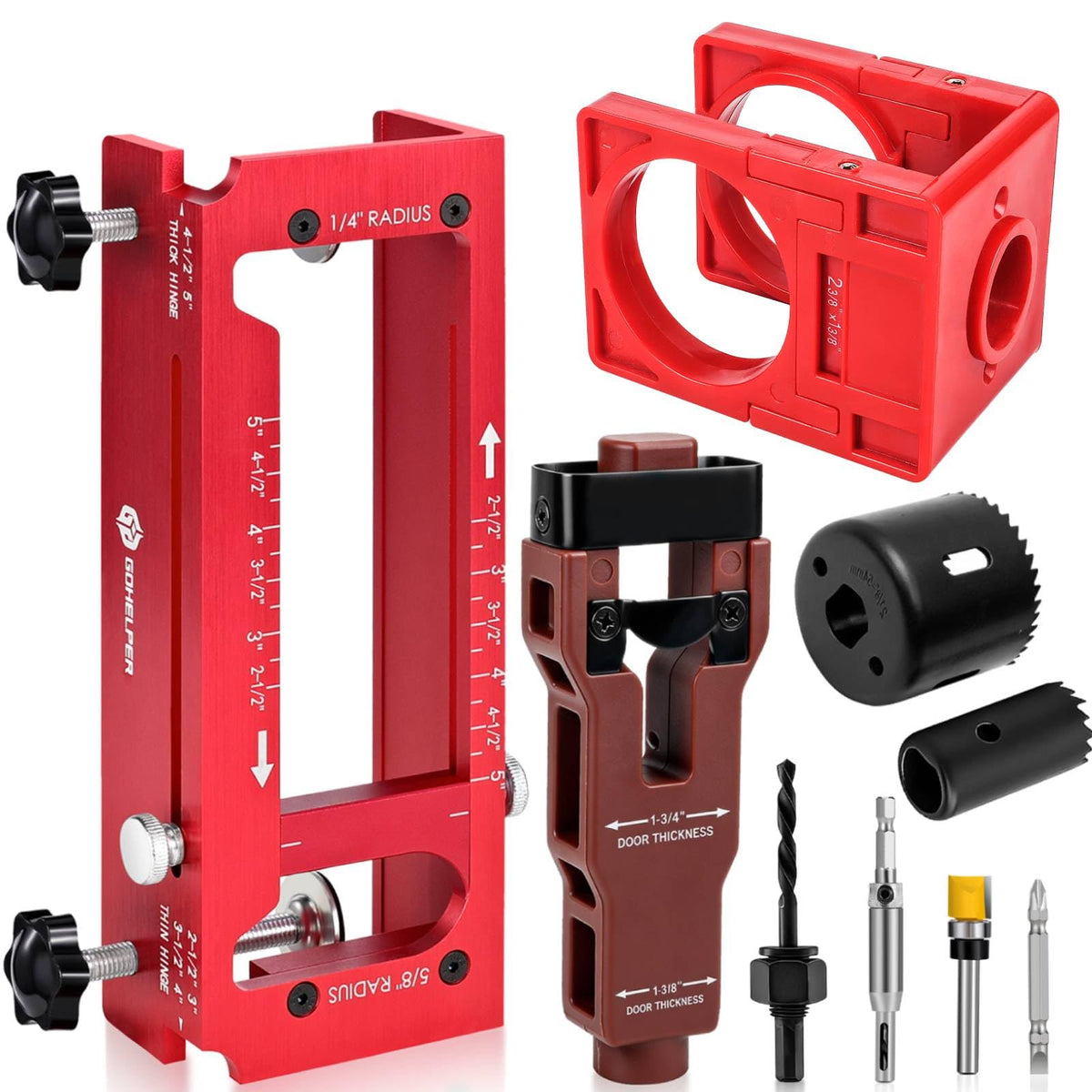

All-in-one kit contents

Everything you need is included to complete a full door hardware installation:

• 1 hinge mortising jig
• 1 router bit
• 1 self-centering hinge bit
• 1 double-ended screwdriver bit
• 1 lock installation template
• 2 hole saw kits
• 1 arbor with pilot drill
• 1 door latch installation kit
• 3 user manuals

Who benefits from this jig

Whether you’re upgrading a single door, refreshing rental units, or handling professional installs, this kit is designed to help you achieve alignment and cleaner cuts with less effort. It emphasizes practical results and reliable setup without promising guarantees.
