GATTLELIC HVLP Air Spray Gun — 1.4/1.7/2.0mm Nozzles, Regulator & 600cc Cups for Automotive, Furniture & Home Painting

Overview

The GATTLELIC HVLP Air Spray Gun is a versatile tool designed for precision spraying across automotive, furniture, and home projects. With multiple nozzle options and a built‑in regulator, you can explore smoother finishes, more uniform coats, and better paint efficiency. The gun balances performance with ease of use, making it a practical choice for both DIY enthusiasts and professionals who value control and consistency.

Key capabilities

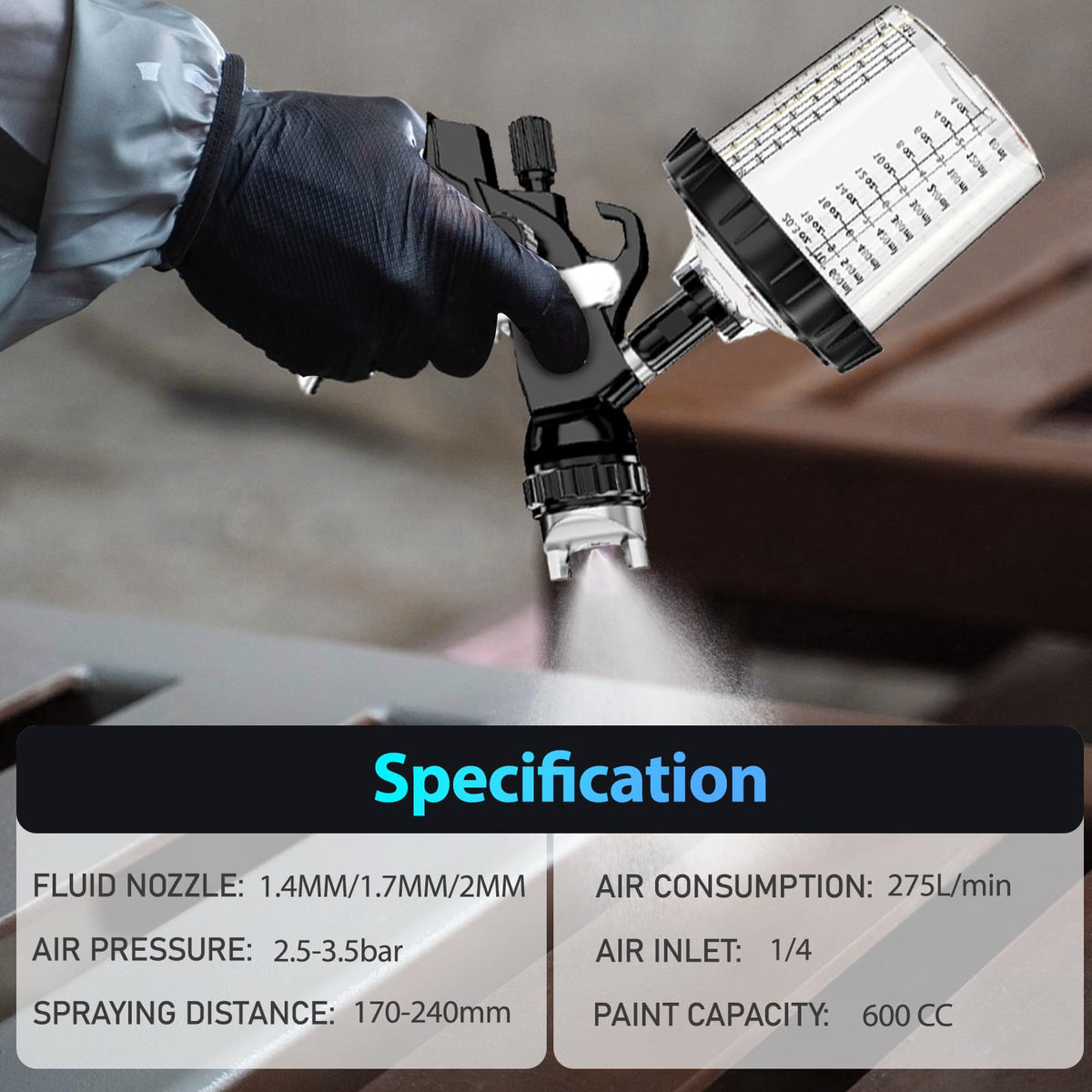

• Working pressure range: 2.5–3.5 bar, spraying distance of 170–240 mm, and air consumption around 275 L/min, with a 600 cc paint cup capacity.
• Designed to help reduce waste and improve paint utilization, with a wide spray width for comfortable coverage across surfaces.
• Standard 1/4" NPT inlet and a compatible quick adapter for straightforward setup with common compressors.

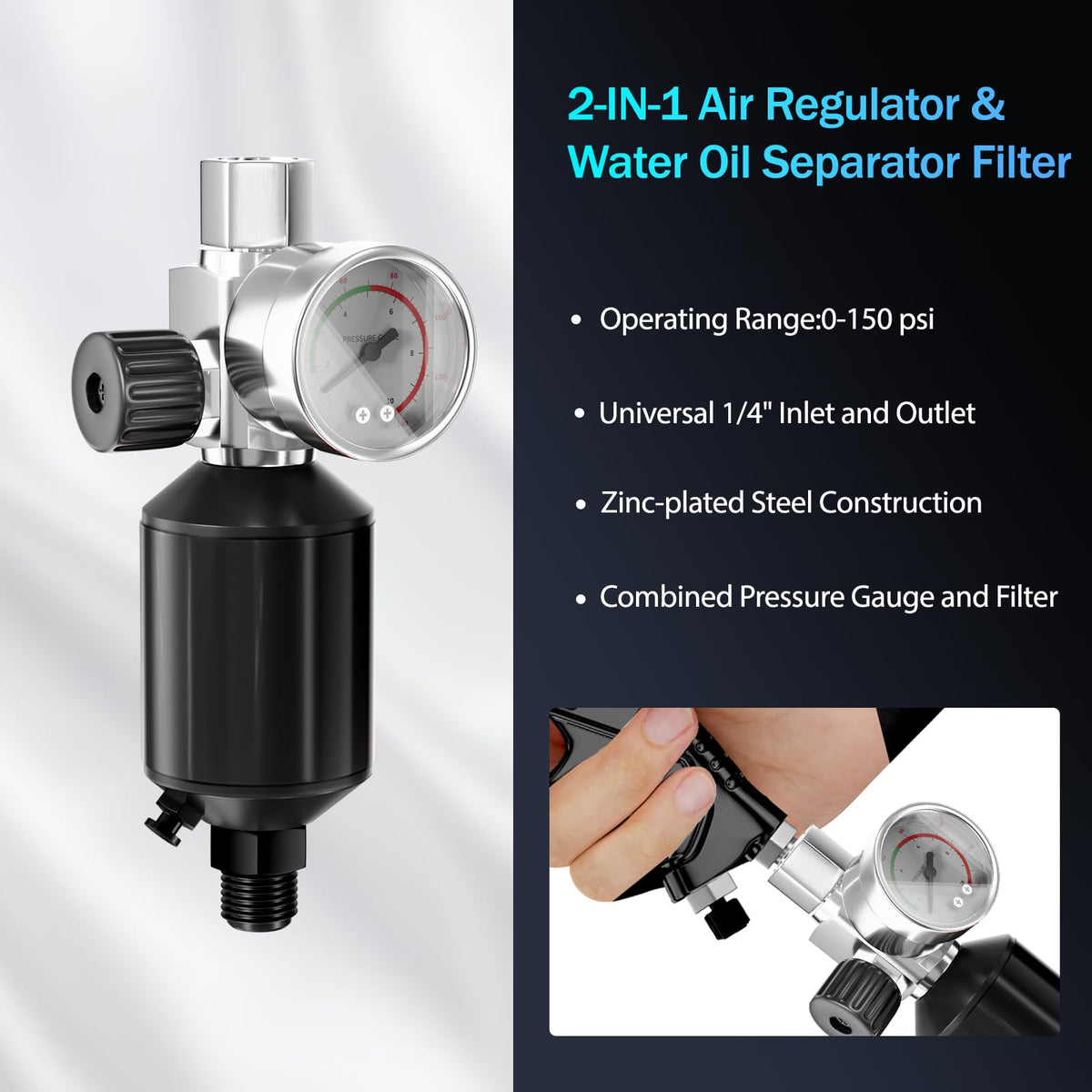

2‑in‑1 regulator and filter

• The built‑in air regulator combines a reusable filter with an accessible control, supporting steady pressure and easier adjustment during use.
• Compact, space‑saving design makes it suitable for automotive refinishing, furniture spraying, and general coating tasks.

High‑precision atomization

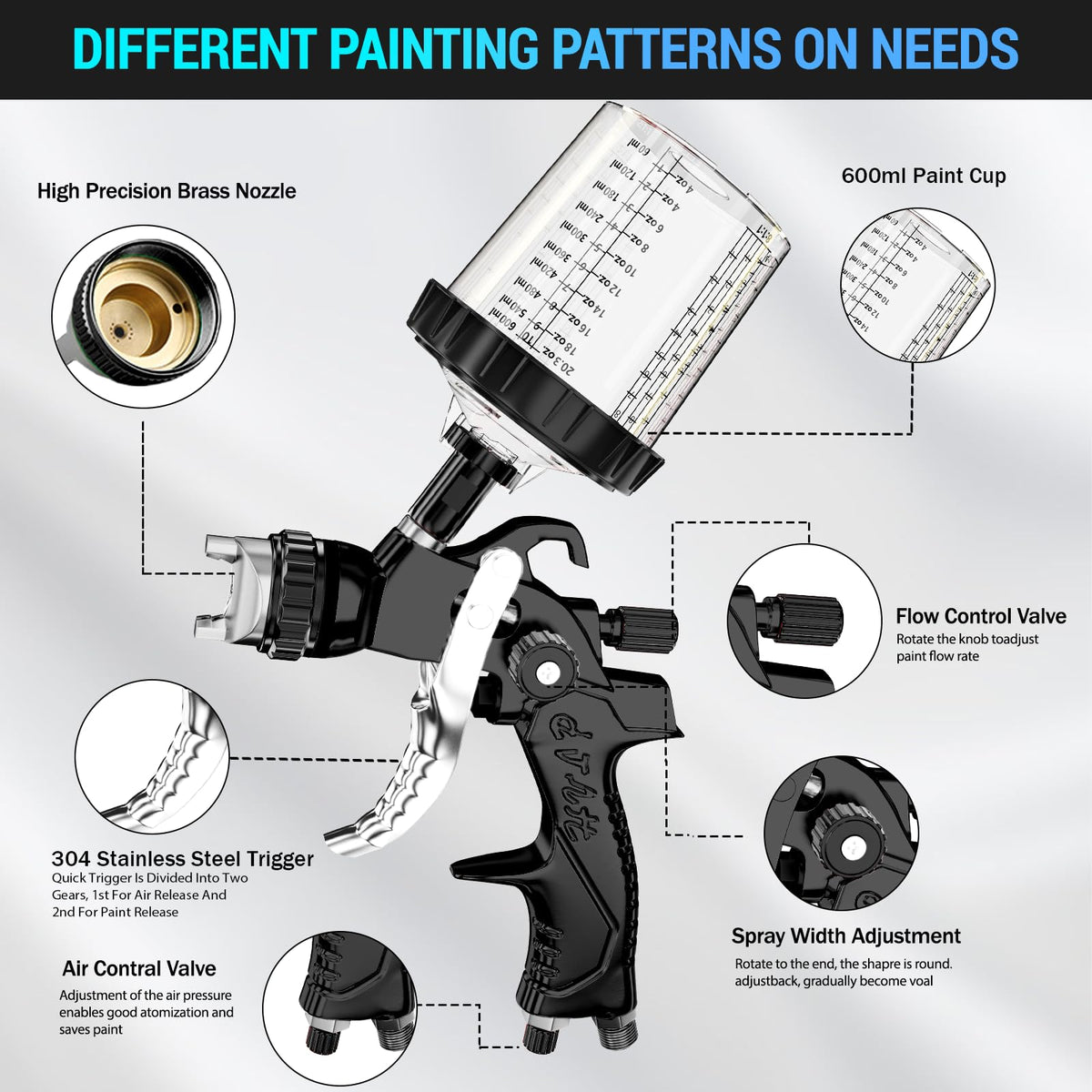

The spray gun uses a brass body and a precisely machined 15‑hole hood to promote even atomization. An adjustable air flow valve allows you to fine‑tune the spray characteristics for different coatings, helping you achieve uniform coverage on various materials.

interchangeable nozzles

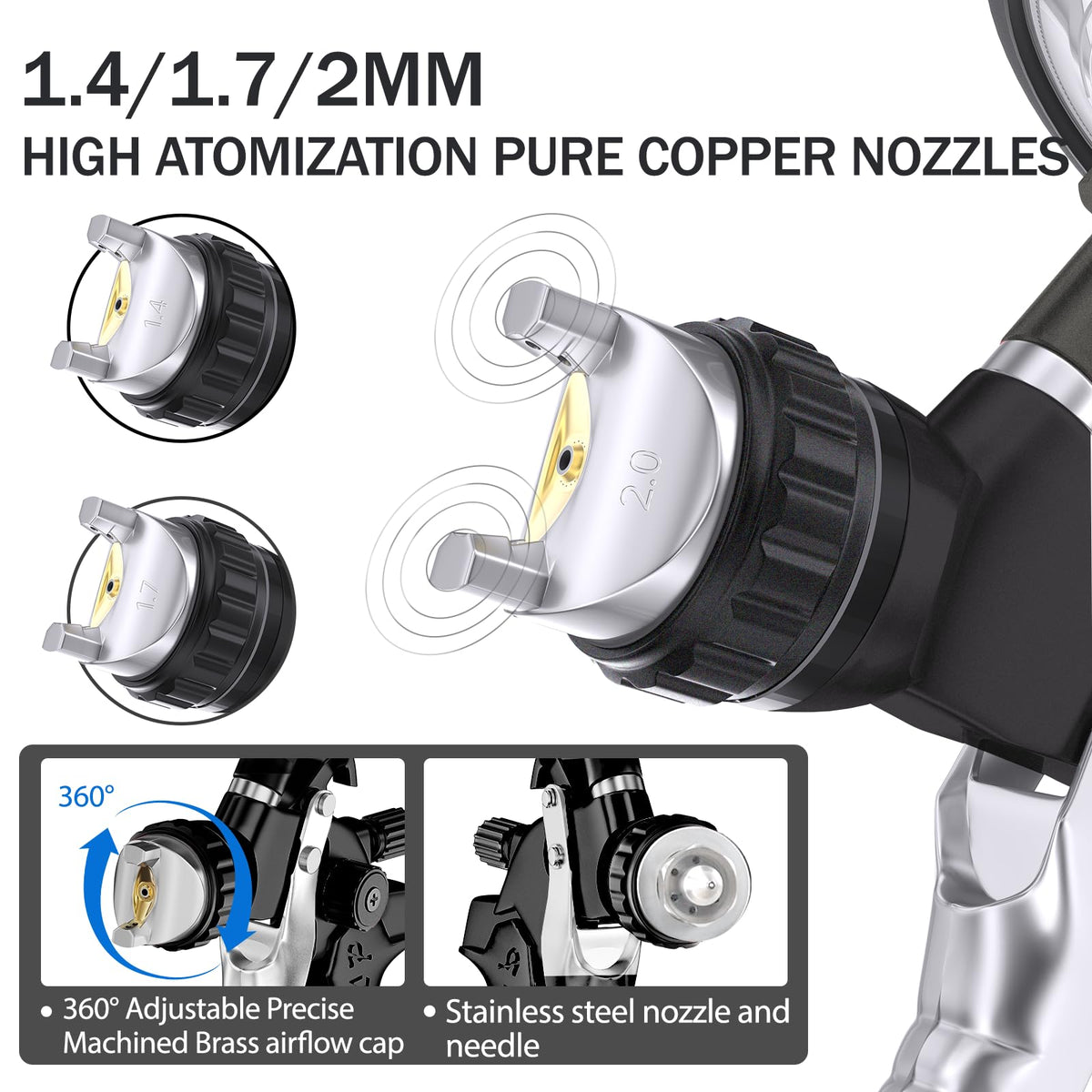

• Three tip sizes included: 1.4 mm (topcoats), 1.7 mm (primers), and 2.0 mm (larger areas). Note: swapping tips requires matching needle replacement to avoid leaks.
• Whether you’re laying down a thin topcoat or covering larger areas, these options offer flexibility for different coatings and project scales.

Cleaner, cost‑effective workflow

• A disposable cup system helps minimize material waste and simplify cleanup, reducing solvent use and labor compared with traditional spray cups.

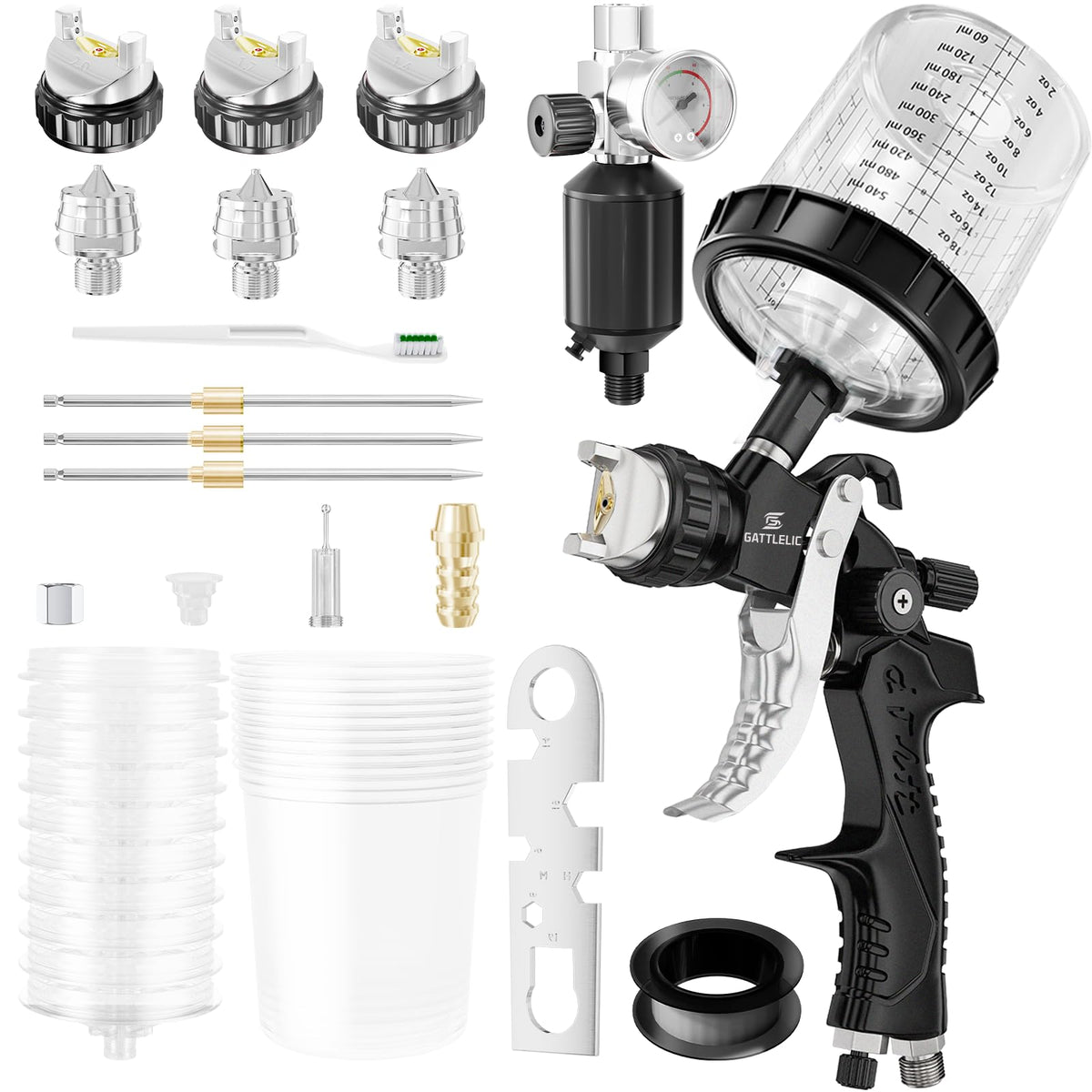

• Complete kit includes cups, regulator, brushes, wrenches, and sealing tape to support a ready‑to‑spray workflow straight out of the box.

Versatile applications

Use this HVLP setup for primers, clear coats, base coats, and other coatings with varying viscosities. It’s suited for automotive refinishing, furniture refinishing, and general household painting tasks where controlled atomization and smooth finishes matter.

Quality and support

GATTLELIC backs this product with a commitment to service. If you encounter any issues, reach out to our team for assistance until you’re satisfied with the resolution.
