fushionsea DC Motor Remote Control Switch WJZH-M01 — 8-36V, 433MHz, 10A, Momentary Mode

Overview

The fushionsea WJZH-M01 is a compact remote control switch designed to simplify forward/reverse control for DC motors and linear actuators. Operating from a broad DC power range (8–36V), it balances versatility with energy efficiency thanks to a low quiescent current. The 433MHz RF link delivers reliable wireless control, while the 10A max rating covers a wide array of small to mid-size loads.

Designed for practical rigidity, this receiver measures a slim 68 x 44 x 25 mm and supports operation in demanding conditions, with a wide temperature span from -40°C to +80°C. It accepts an external limit or wire button, and uses a straightforward learning process to pair remotes. The momentary mode maintains motion only while the transmitter button is held, then stops when released, reducing the chance of unintended movement in tight spaces.

Key specifications at a glance

• Working voltage: DC 8–36V; quiescent current <8 mA
• Working frequency: 433MHz
• Max load: 10A (recommend motor load <5A for best performance)

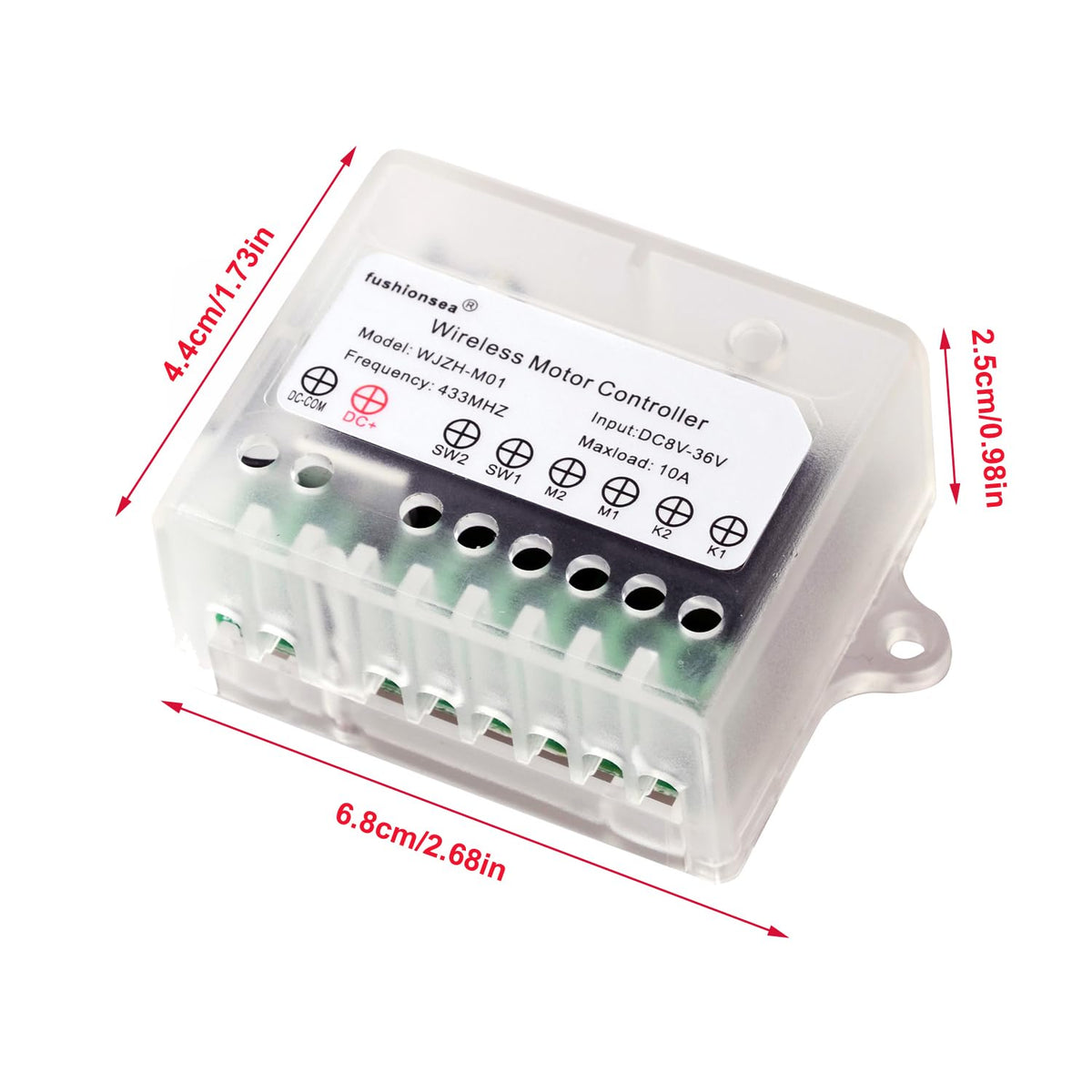

• Size: 68 × 44 × 25 mm
• Operating temperature: -40°C to +80°C

What you get and how it works

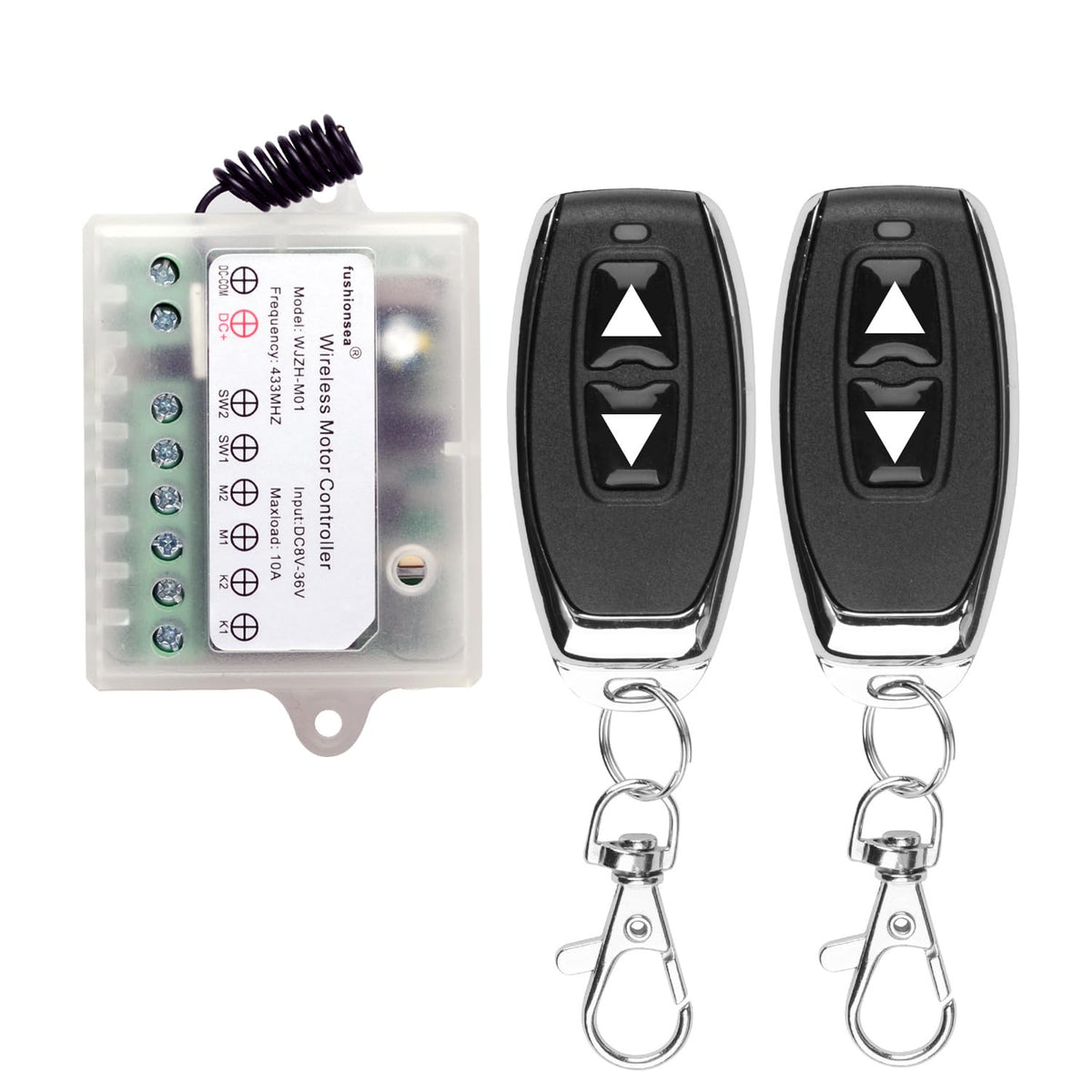

• 2 x Transmitters and 1 x Receiver included for quick setup
• Remote control supports Momentary mode: press and hold to move, release to stop
• Learning and clearing: pair transmitters to the receiver or reset all codes when needed

How it can fit your project

Use this switch to drive the forward/reverse motion of DC motors or to actuate small linear actuators in automation tasks, access control projects, or hobby builds. Its RF link can pass through walls and floors, enabling convenient operation from a distance within typical home or workshop layouts.

Practical benefits and notes

• Low power draw helps extend battery life in portable or stand-alone setups
• Compact size makes it easy to integrate into tight enclosures
• Reliable wireless control with a multi-remote learning option
• Clear separation between actuation and control keeps wiring simple

Included in the package

Two remote controls and one receiver provide immediate control right out of the box, with room to expand by adding more transmitters to the same receiver.
