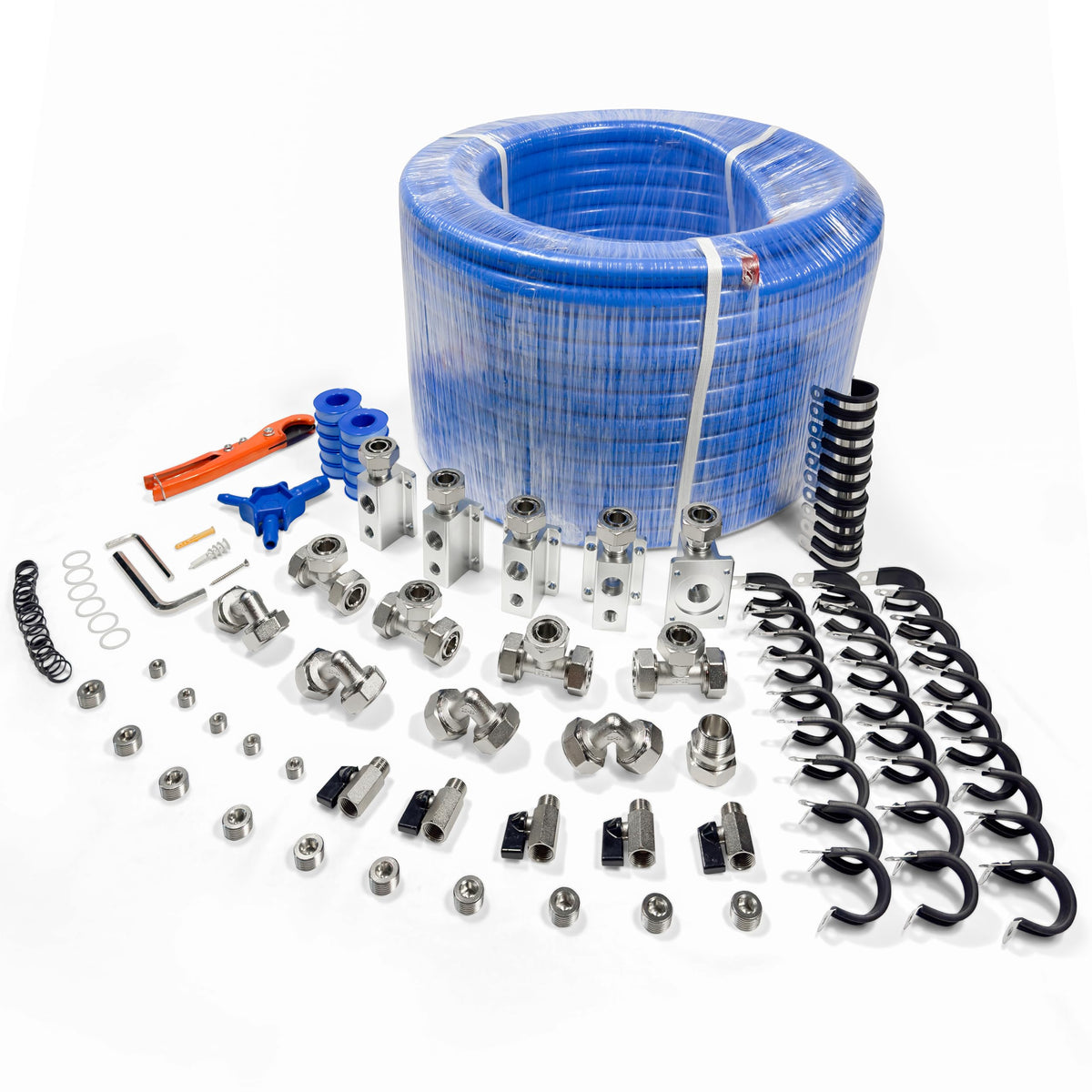

Fideursus 200 ft Compressed Air Piping Kit | 3/4 in ID HDPE Tubing + Aluminum Outlet Blocks

Overview

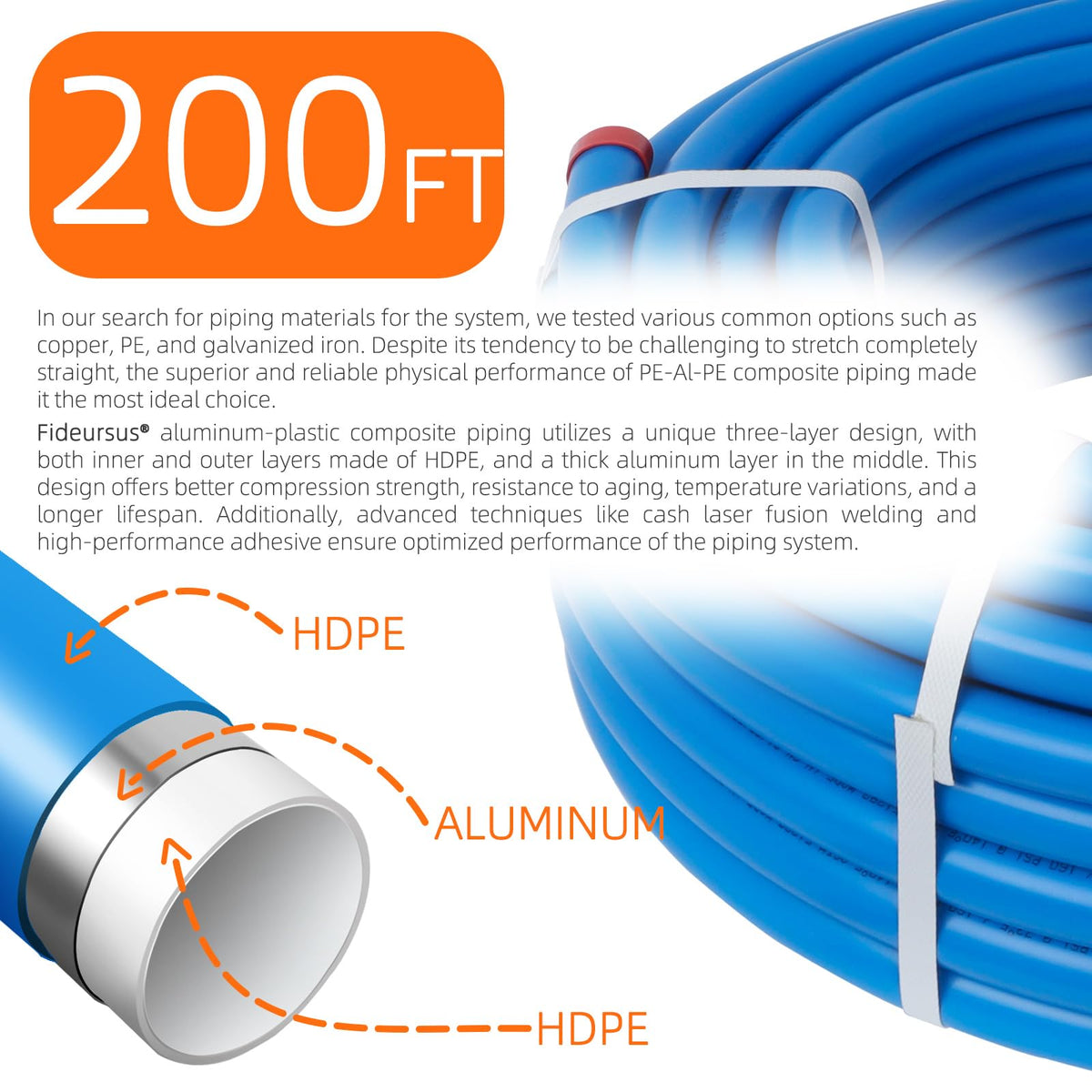

Discover the Fideursus Compressed Air Piping Kit, a 200-foot, three-layer HDPE-AL-HDPE system designed for garages, shops, and light manufacturing. The tubing blends copper and nickel within a rugged shell to resist rust while offering smooth interior walls that reduce friction. It is engineered to maintain steady pressure across temperature changes, with performance specs rated at 200 psi @ 73°F and 160 psi @ 140°F, and it adheres to ASTM F1282 and F1974 standards. This kit aims to simplify air distribution without sacrificing reliability, making it a practical option for organized, dedicated air lines.

Flexible layout, robust connections, and ports

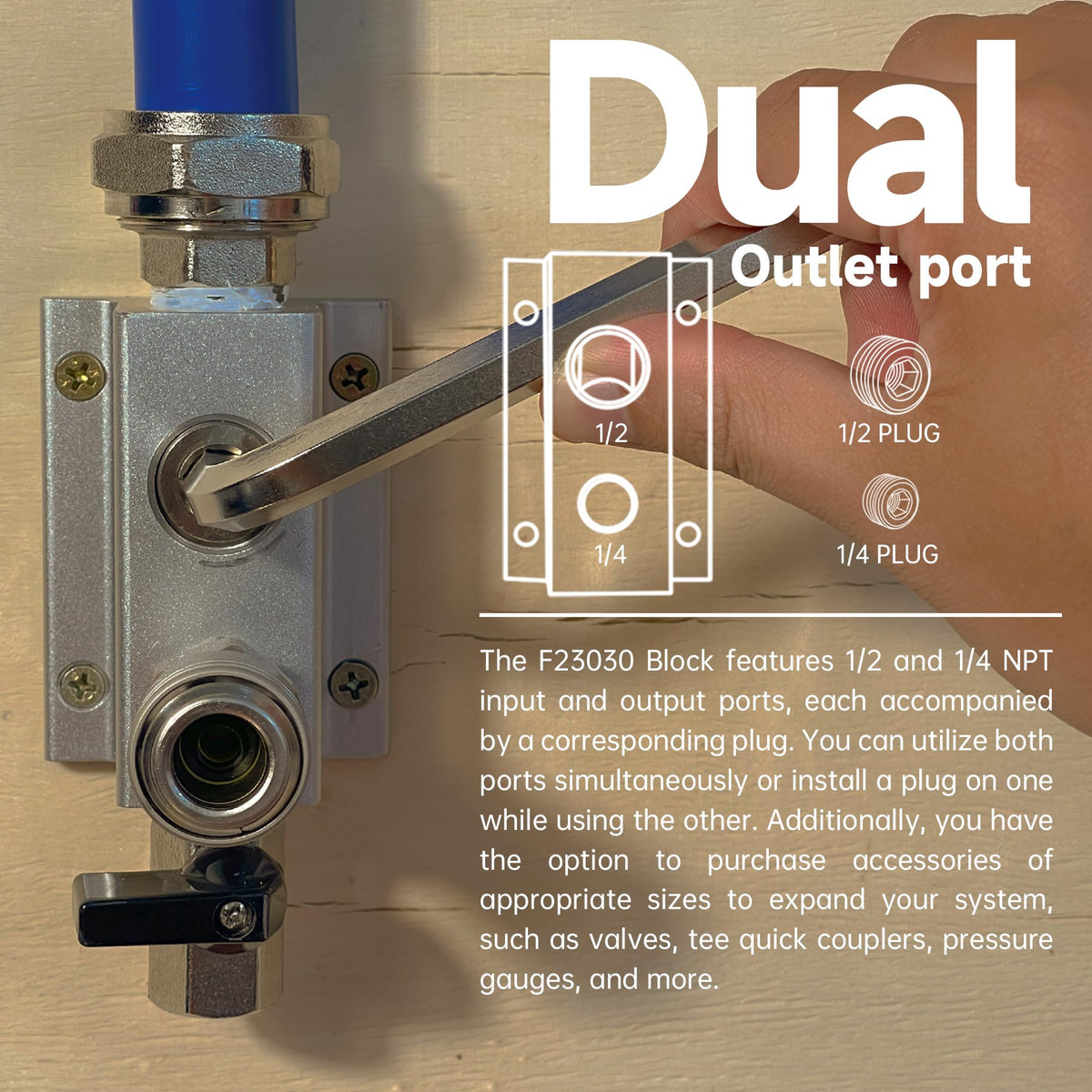

Designed for flexible configuration, the kit features a 1/4” NPT port on the front of the manifold, plus 1/2” NPT ports on the top, front, and back, and a 3/8” NPT port at the bottom for the drain valve. It includes 1/4” and 1/2” couplers, while the 3/4” pipe can bend with a radius of 6–8 inches. For tighter turns, an optional L-Fitting can be added in the middle, enabling varied routing across walls, ceilings, or work benches.

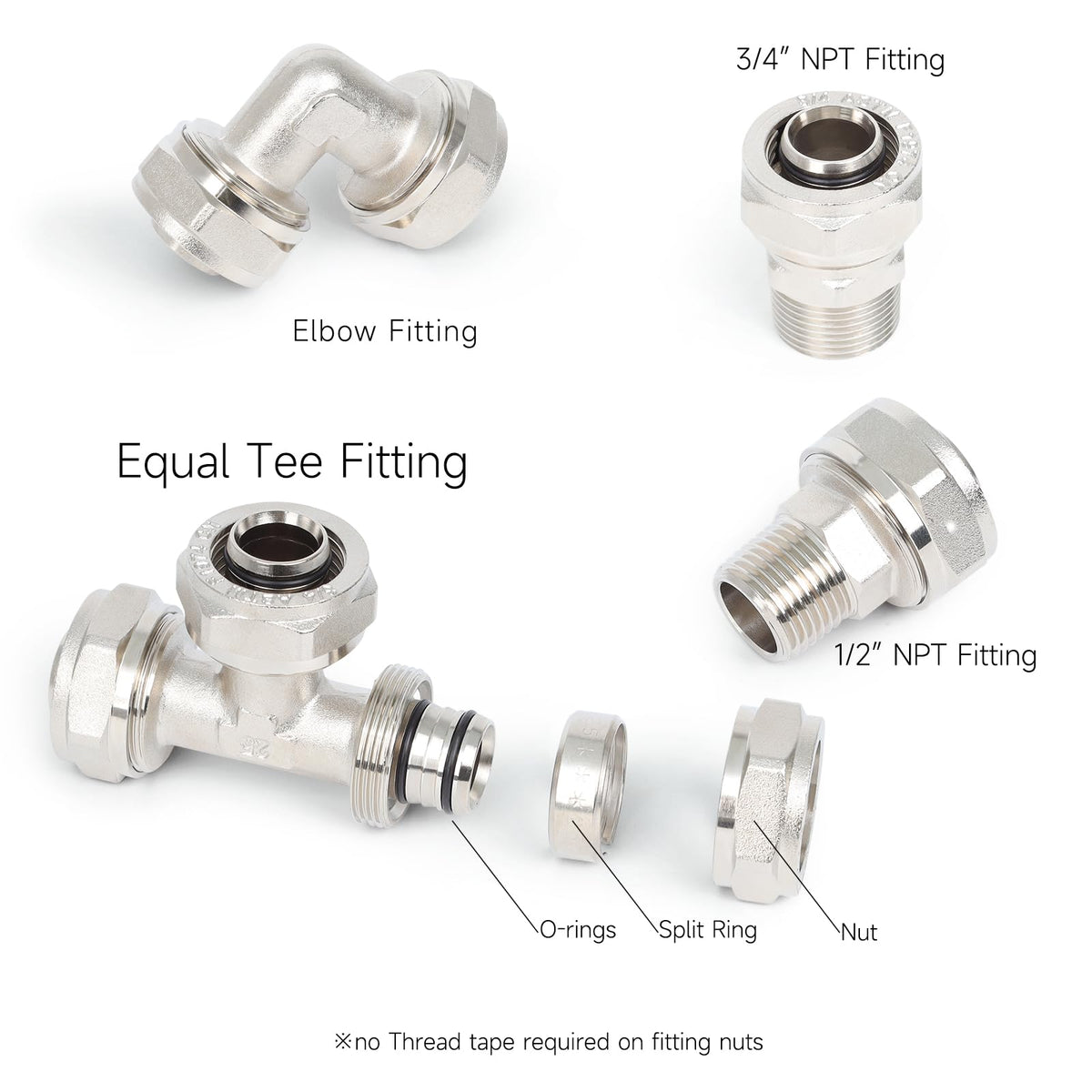

• Flexible fittings & pipes: Front 1/4” NPT port, multiple 1/2” NPT ports, bottom 3/8” NPT drain, and interchangeable couplers.

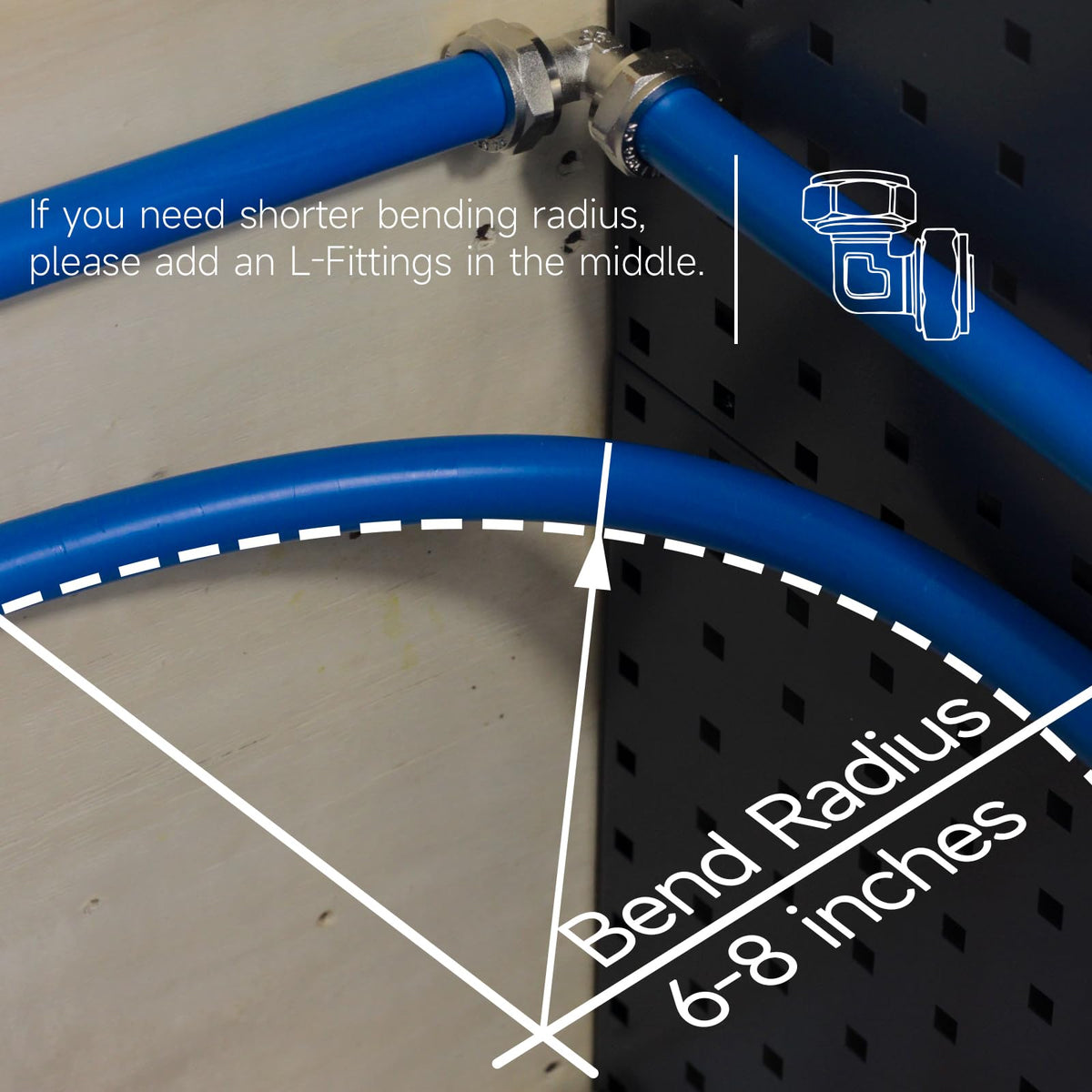

• Routing ease: 3/4” pipe bends with a 6–8 inch radius; use an L-Fitting for very tight paths.

Ideal for shop, garage, and beyond

Whether you’re outfitting a compact workshop, a farm workspace, or a light manufacturing area, the Semi-Flexible Compressed Air Tubing provides clean, pressurized air, inert gas, or vacuum where you need it. The installation process is straightforward, helping you plan the compressor location and the outlet points with fewer compromises.

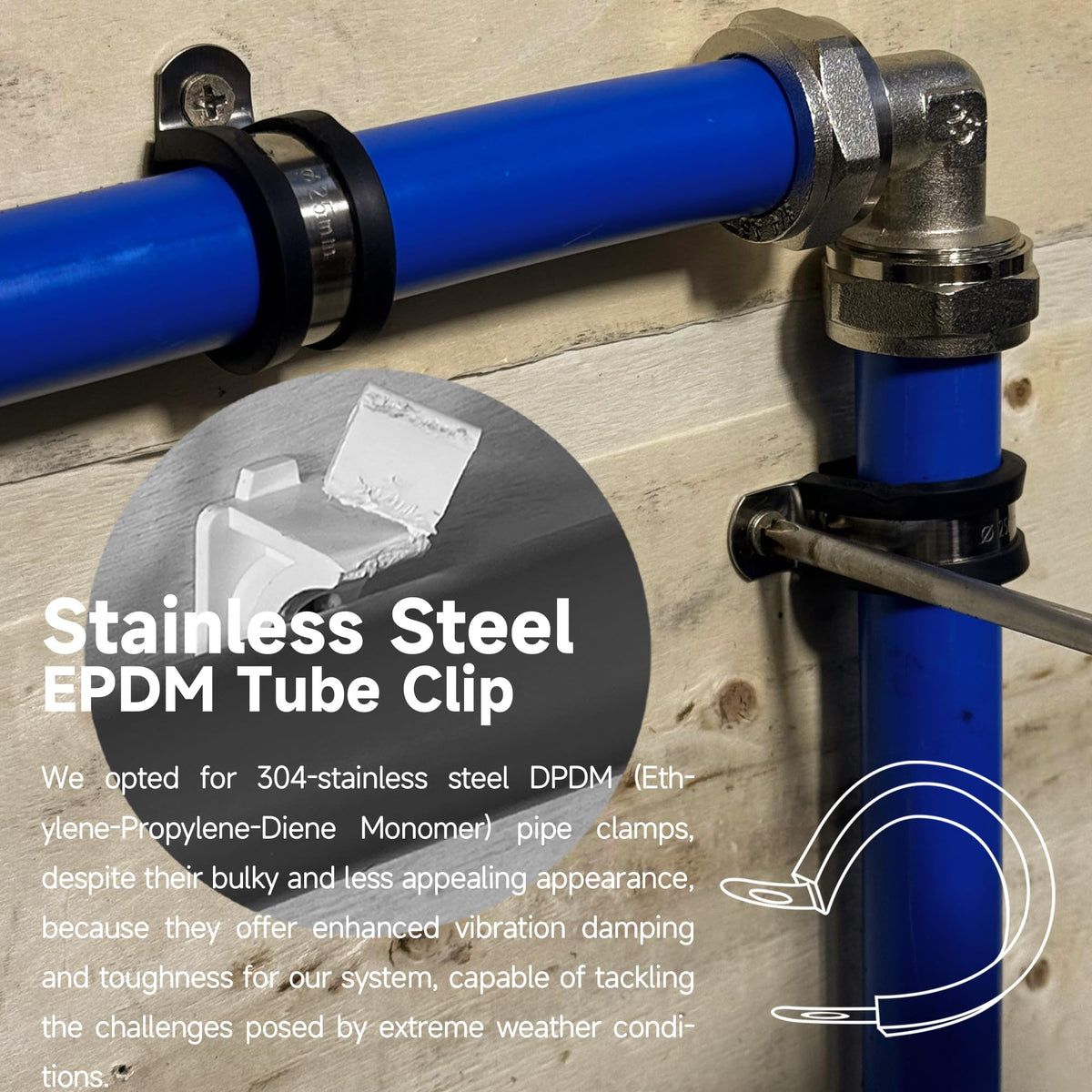

• Adaptable layout: Two anchor types for easy mounting on drywall, brick, ceilings, or within walls.
• Corrosion resistance and customization: HDPE tubing resists corrosion and can be painted or buried to suit your space.

Easy installation and ongoing support

No glue or welding is required during setup. Basic accessories are included, and you’ll typically need only a screwdriver and two adjustable wrenches to complete a clean installation. Our team provides 24/7 support for product questions and setup guidance, helping you resolve simple issues quickly.

What you gain with Fideursus

Expect a streamlined air distribution system that blends reliability with configurable layouts. While results depend on your space and usage, the kit’s materials, fittings, and design choices are aligned to support organized, efficient air lines that can be adjusted as needs evolve.
