FalconSupply Genuine Square D HOM250 50A Double-Pole Breaker Kit Bundle – 120/240V, 10kAIC, UL Listed

Authentic Square D HOM250 Breaker Kit for 50 Amp 120/240V Circuits

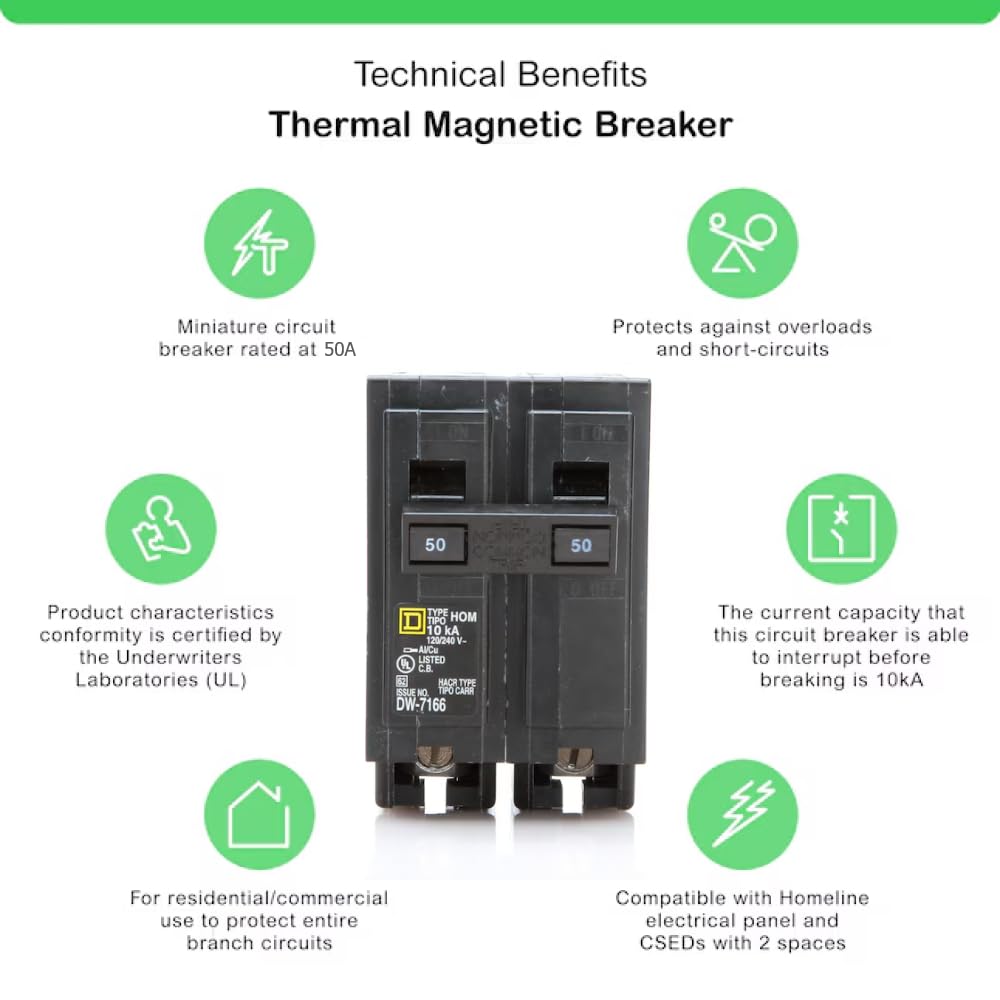

Secure the precise electrical protection you need with this FalconSupply Genuine Square D HOM250 50 Amp double-pole breaker kit. Designed for residential 120/240V branch circuits, this 1-pack bundle pairs a factory-new HOM250 with essential installation accessories to simplify upgrading or replacing a high-capacity circuit. The sturdy, thermal-magnetic mechanism targets both overloads and short circuits, offering dual-action protection without assuming results.

Why choose HOM250 in a Homeline system

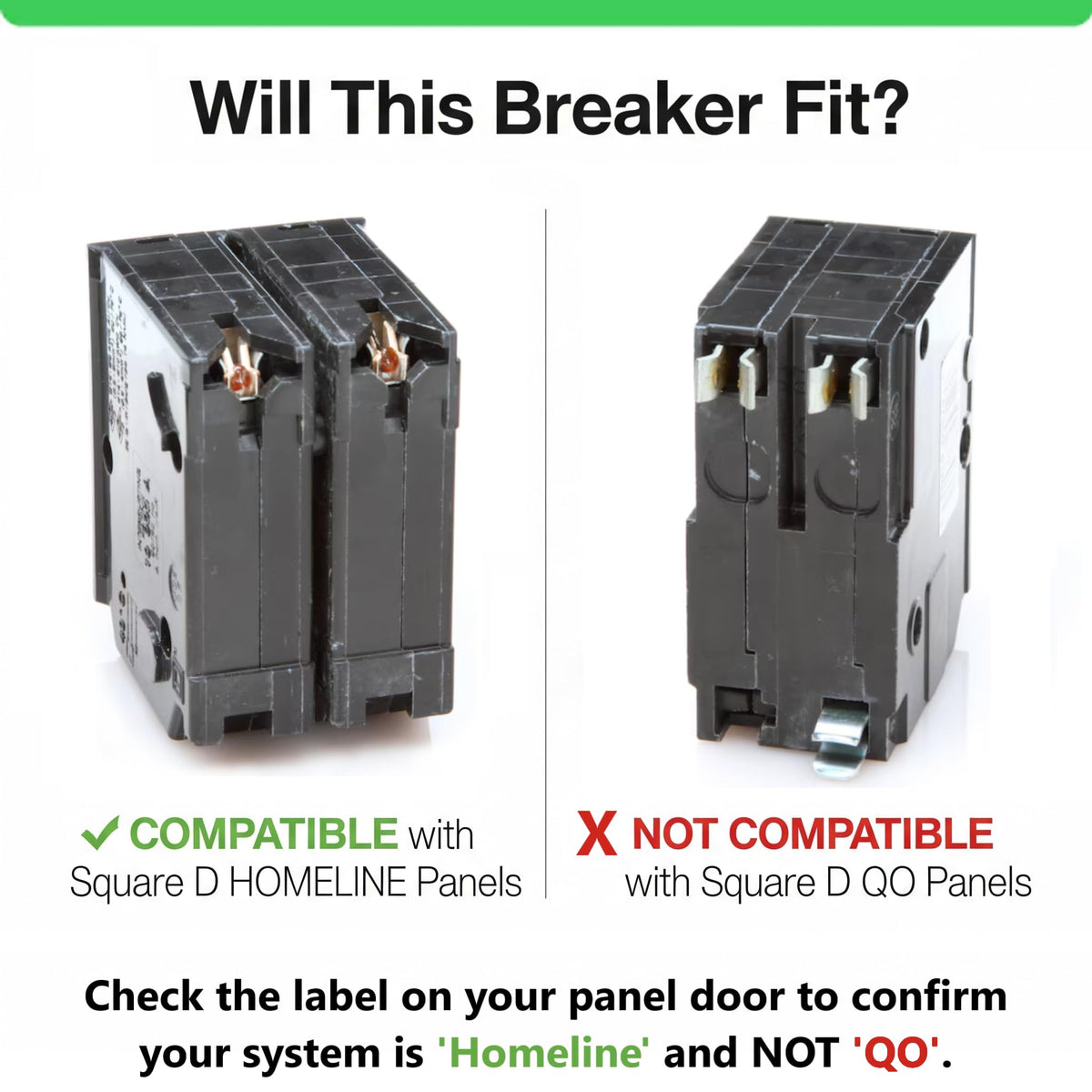

The HOM250 is engineered for plug-on installation in Square D Homeline panels, using a standard 2-inch format that securely connects to the panel bus bars. This design helps ensure a reliable connection and reduces common installation hassles. When used in the right panel family, it supports clean, efficient circuit protection for demanding 240V loads.

• Plug-on compatibility with Homeline load centers for quick setup.
• Dual-action protection for high-current 240V circuits, such as major appliances.
• UL Listed, CSA Certified, HACR Rated for dependable safety credentials.

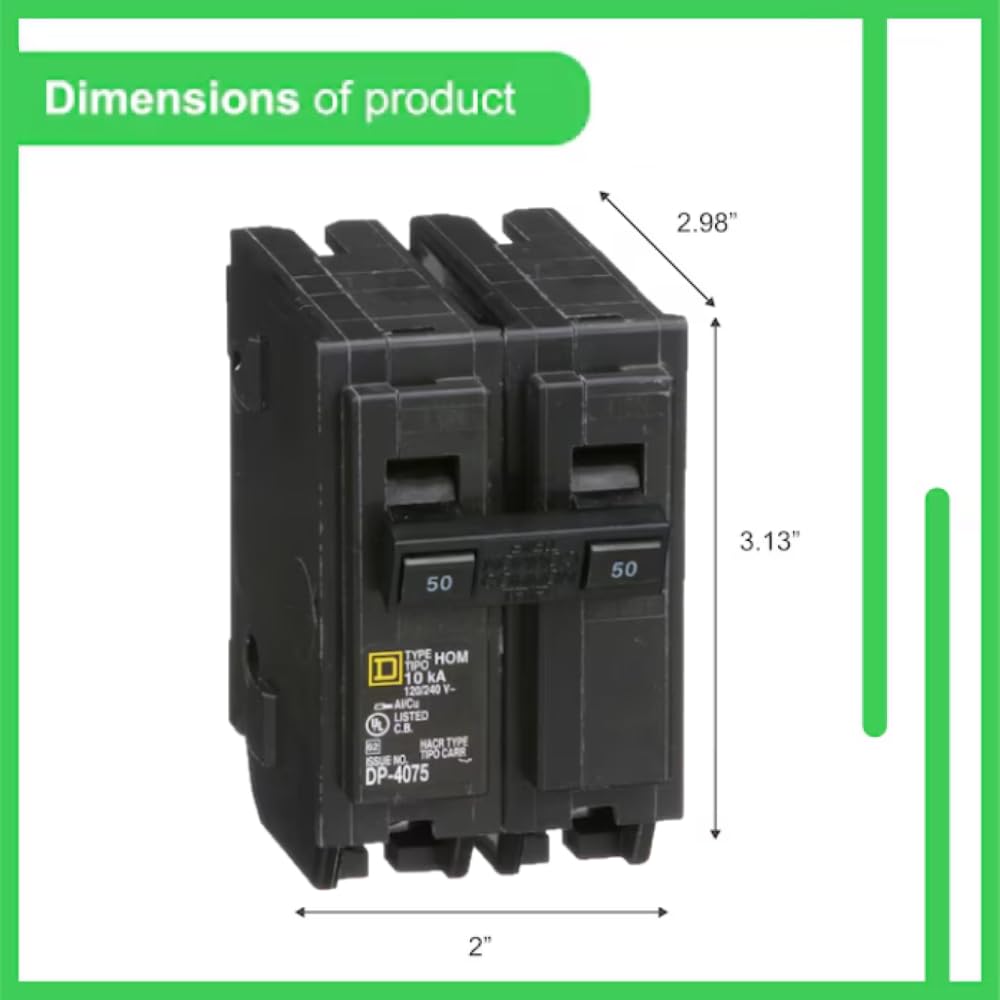

Key specifications at a glance

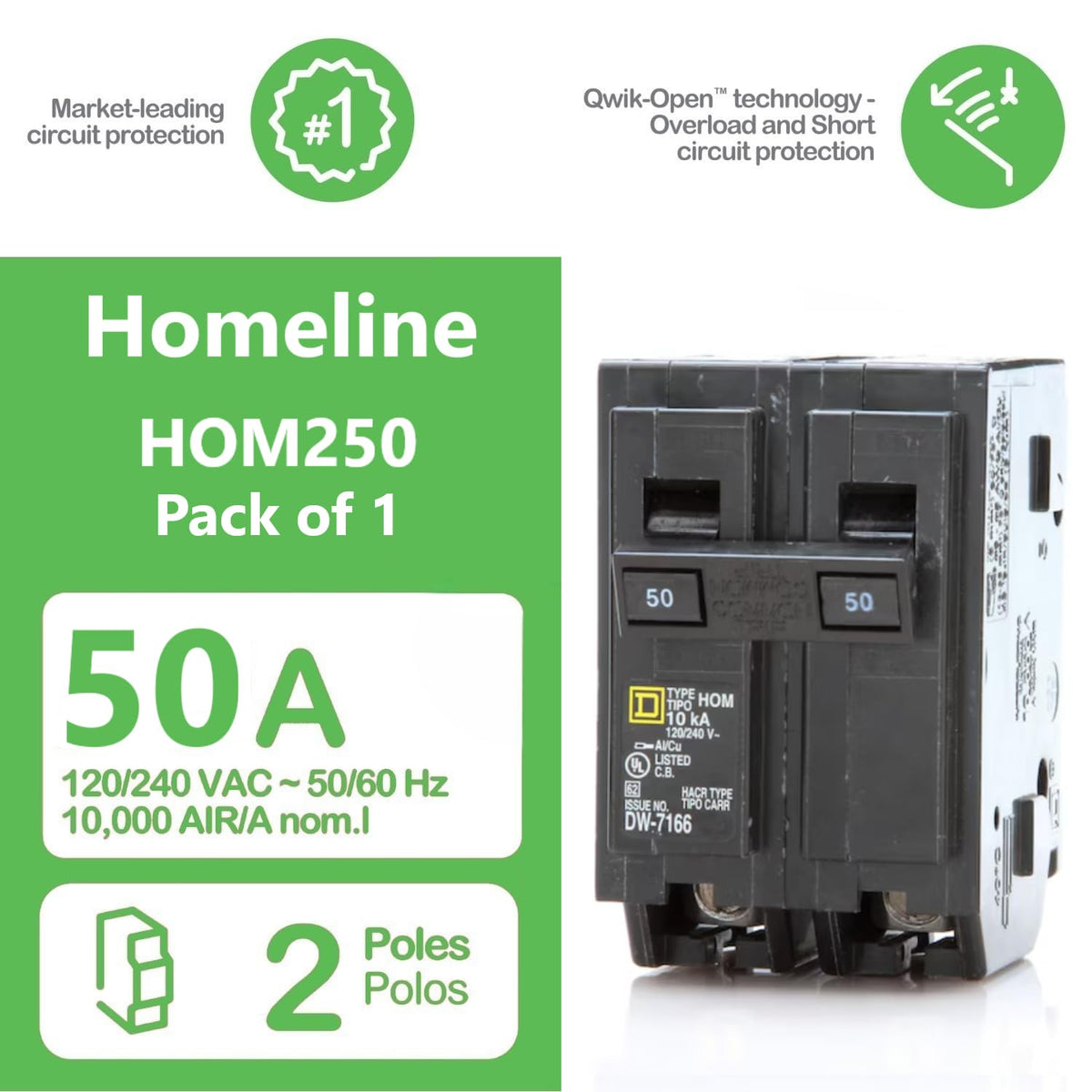

• Voltage: 120/240V AC; Amperage: 50A; Poles: 2-Pole
• Interrupting rating: 10,000 AIC
• Conductor compatibility: #8 to #2 AWG Cu or Al
• Mounting: Homeline plug-on type
• Certifications: UL Listed, CSA Certified, HACR Rated

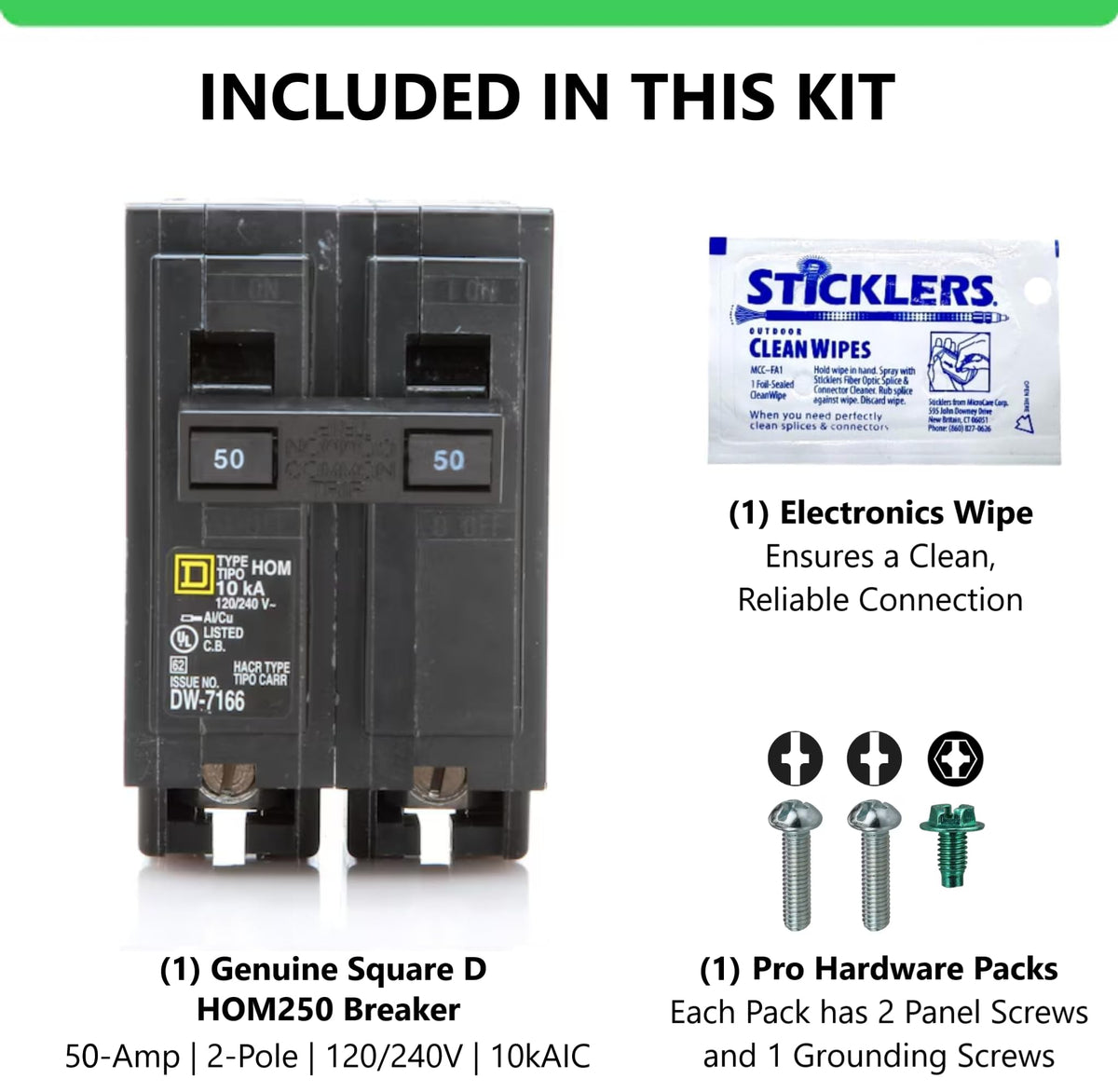

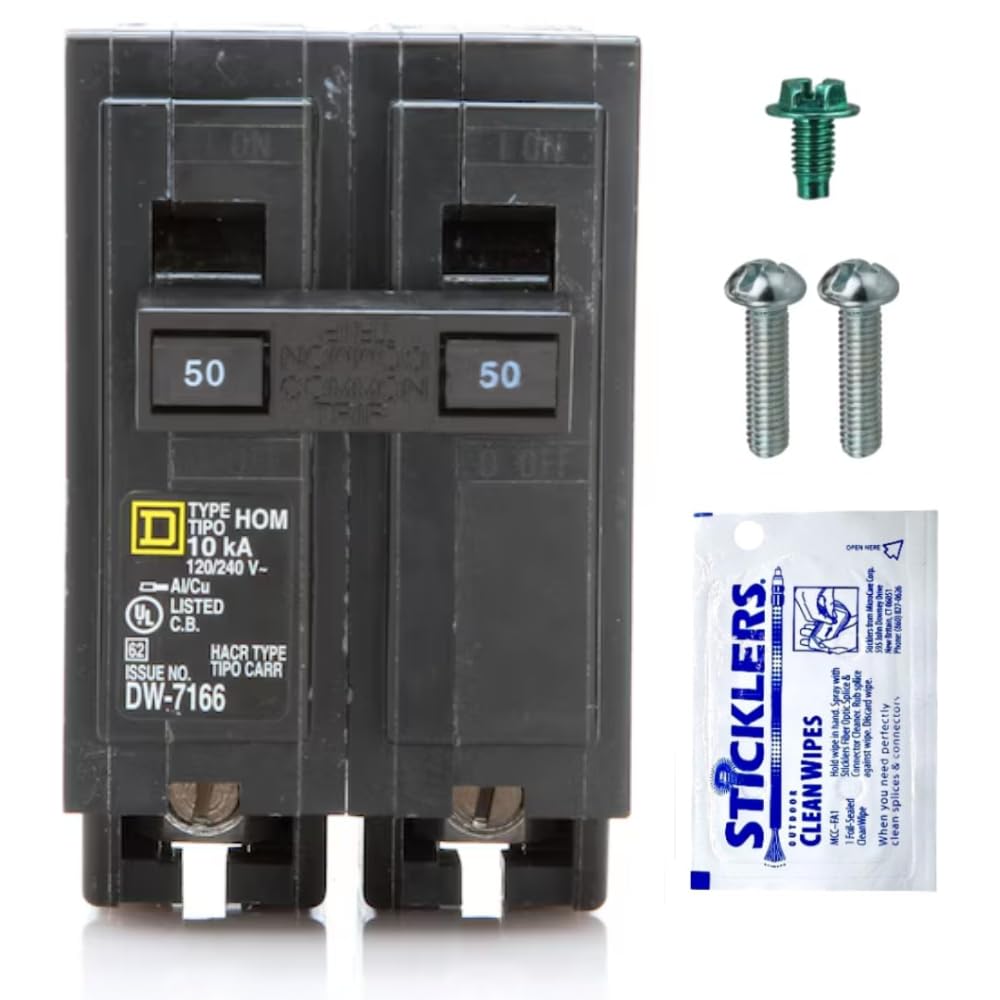

What’s in the installation bundle

• One (1) HOM250 50A double-pole breaker
• One (1) electronics cleaning wipe for bus bar prep
• Two (2) panel screws and one (1) grounding screw

Real-world use and installation notes

In typical homes, this breaker supports high-demand 240V loads and can serve as a feeder to a sub-panel. It is sized for 6-gauge copper wiring in many common installations. The included cleaning wipe helps ensure cleaner contact surfaces, which can contribute to a solid, secure connection during installation. The kit’s screws and grounding hardware are designed for durable mounting in residential panels.

As with any electrical work, verify panel compatibility and follow local codes. This kit provides OEM-grade components intended to replace existing 50A double-pole protection in Homeline systems, offering a straightforward path to restoring reliable circuit protection.
